MSP100KP User’s Manual

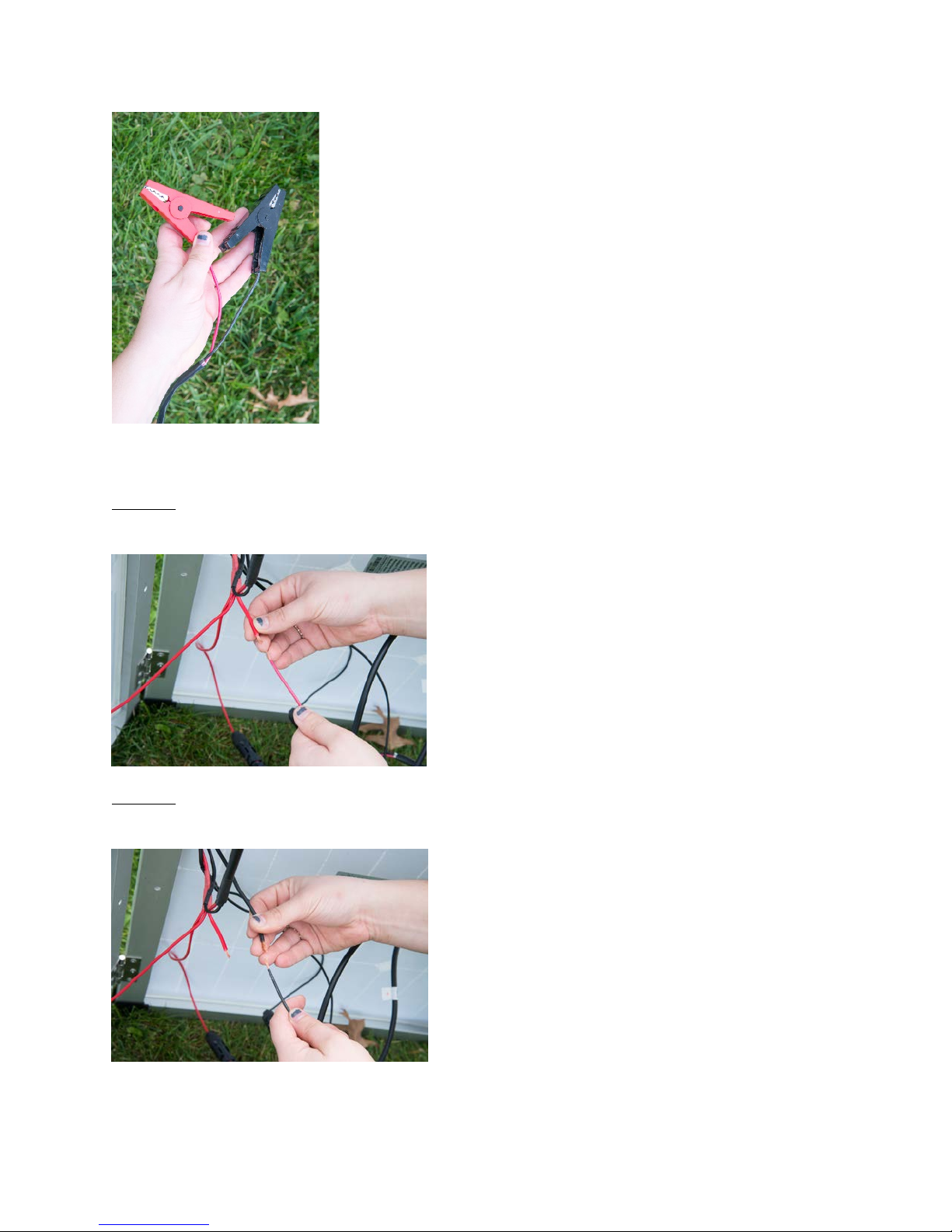

Step 1:Connect the positive (red) alligator clip from the charge controller to the
positive terminal on the battery.
Step 2:Connect the negative (black) alligator clip from the charge controller to the
negative terminal on the battery.
Step 3:Connect Panel A’s negative (bottom) plug to the charge controller’s negative
(black) plug.

Step 4:Connect Panel A’s positive (top) plug to the charge controller’s positive
(red) plug.
Step 5: Connect Panel B’s negative (top) plug to the charge controller’s negative
(black) plug.
Step 6:Connect Panel B’s positive (bottom) plug to the charge controller’s positive
(red) plug.

*Remove the alligator clips from the energizer, and mark
the positive and negative wires prior to removal. Strip the
insulation from the wire ends. Splice the alligator clip ends
to the corresponding charge controller load wires.
Step 7:Connect the positive (red) load wire from the charge controller to the
positive (red) alligator clip on the positive terminal of the energizer.
Step 8: Connect the negative (black) load wire from the charge controller to the
negative (black) alligator clip on the negative terminal of the energizer.

Panel A Panel B
A B
