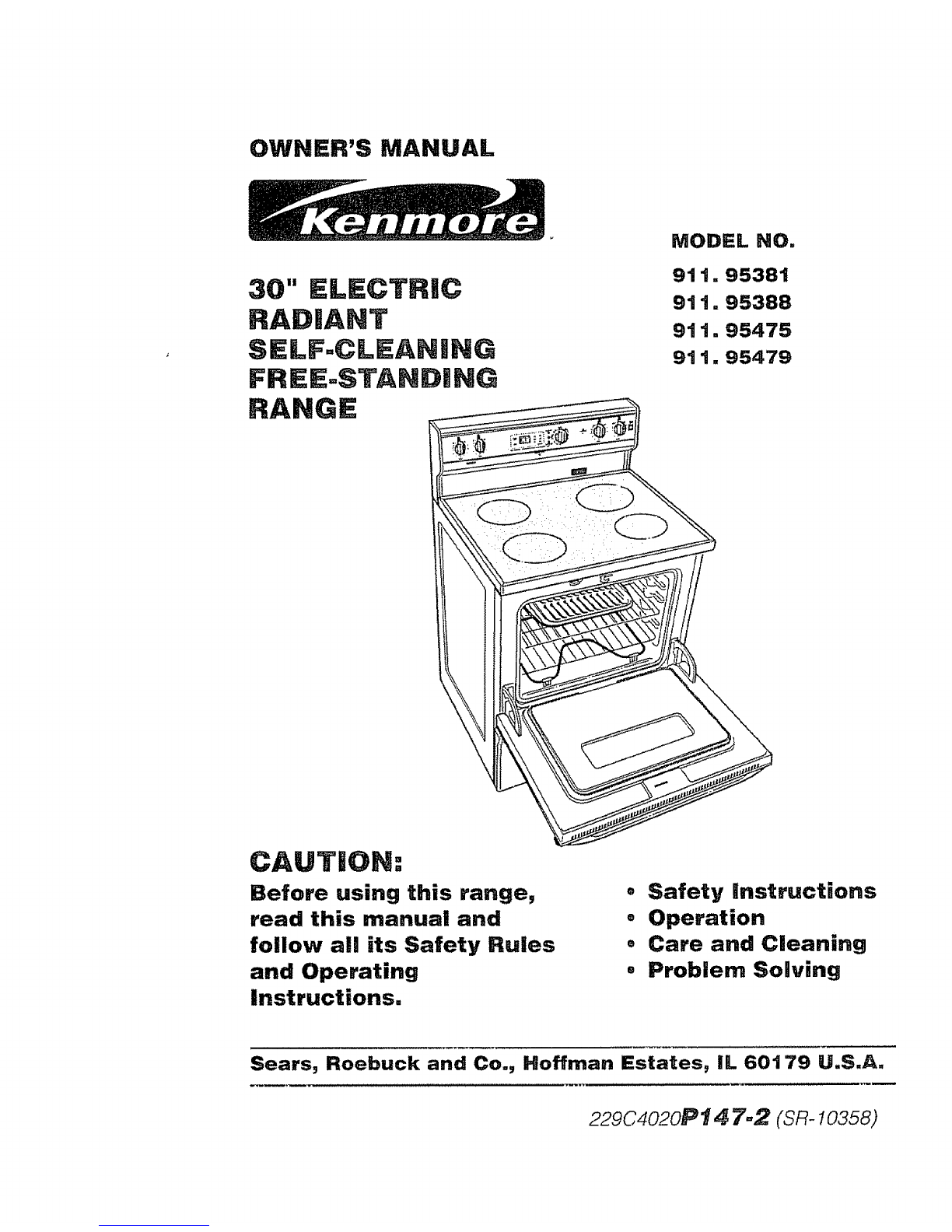

Kenmore 911.95475 User manual

OWNER'S MANUAL
CAUTtON:
Before using this range,
read this manual and
follow all its Safety Rules
and Operating
Instructions.
•Safety instructBons
•Operation
°Care and Cleaning
oProblem Solving
Sears, Roebuck and Co., Hoffman Estates, IL 60t 79 U.S_A.
229C4020Pt 47,,_ (SR- 10358)

Tableof Contents
SELF-CLEANING
RADIANTFREESTANDINGRANGE
Range Safety ............. 3-6
Stability Device ............ 3
Protecting the Cooktop ........... 7
Removal of Packaging Tape .... 7

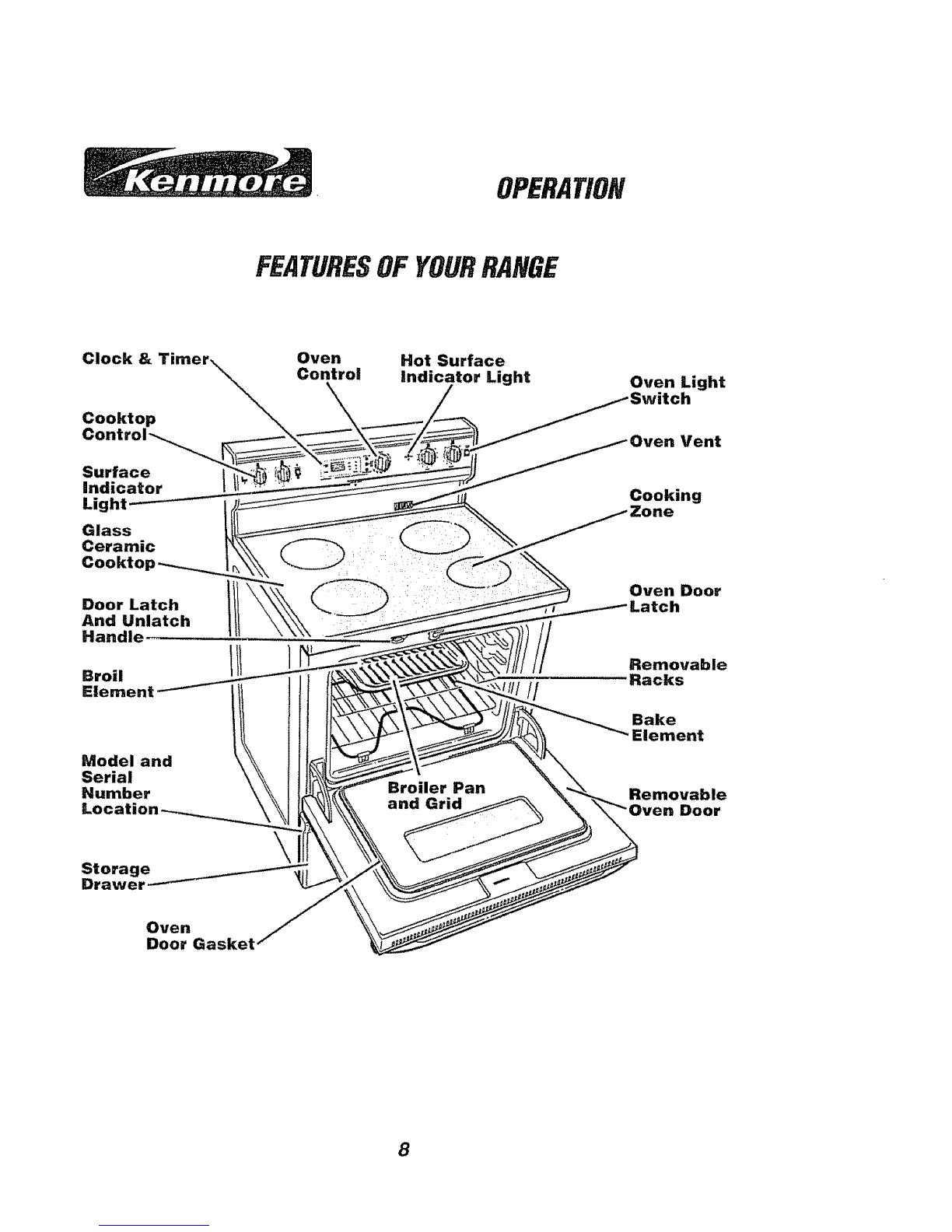

Features of Your Range ...... 8
Cooking Zones ...... 9
Cooking Utensils ........... 9
Checking Your Cookware ...... 9
Cookware Performance ..... 9
Radiant Coils .............. 10
Radiant Unit Cycle .... 10
Control Settings ......... 10
Home Canning Tips ...... t0
Oven Control, Clock
& Timer .................... 11
Hour!Minute Arrow Pad 11
Display ........... 11
Indicator Lights t t
To Black Out the Display 11
F Codes ........ 11
Power On ............ 1t
Automatic Oven Shut-Off ,.. 11
To Set The Clock t2
To Set The Timer ................ 12
To Reset The Timer ........... t2
To Cancel The Timer ......... 12
Oven Cooking Tips ........... 13-15
Baking With Margarine ...... 14
Oven Control ........... 15
Baking ........................... 16
Broiling ......................... ! 7
Self-Cleaning Cycle ........ t8-19
Glass Cooktop Cleaning, 20-21
Control Panel ......................... 21
Broiler Pan and Grid ..... 21
Control Knobs ....... 22
Oven Light Bulb ............... 22
Oven Racks .............. 23
Oven Door ............... 23
Storage Drawer ................... 24
Before Calling for
Service ................. 25-27
Temperature Adjustment 28
Warranty ............ 29
Consumer Service Numbers 30
For your convenience and future reference, please write down
your model and serial numbers in the space provided. They are
located on the front frame behind the storage drawer.
MODEL HUMBER: S_ROAL NUMBER:
2

IMPORTANTSAFETY
iNSTRUCTiONS
SAVE THESE |NSTRUCTRONS
Read air instructions before using this appliance. When using
gas or electrical appniances, basic safety precautions should
be followed, including the foi|owing:
Outside Edge Of
Bracket To Be
Flush With Left Or
Right Side Of Range
o All Ranges Can Tip
o Injury To Persons
Could Result
o Install Anti-tip
Device Packed With
Range
° See Installation
Instructions
Tools you will need:
°Phillips head screwdriver
o 13/8" open end or adjustable wrench
t. Remove the bracket from the
prepack located inside the oven
2. Decide whether the bracket will be
installed on the right or left side of
range location
3. tf the bracket side of the range is
adjacent to a cabinet, place the
bracket against back wal! and
cabinet as shown in Figure 1
If there is no adjacent cabinet,
determine where the location of
the range side (painted outside
panel) will be Place the bracket
with its outside edge at this
location and against back wall
See Figure 2,
4. Determine whether you will anchor
the bracket to the floor or wall
Make sure this location is clear of
electrical wiring or plumbing
Fig. 1
wFasten the bracket securely with
the screws provided Screws are
self-drilling in wood, plywood,
particle and chip board, and most
metal framing If attaching to
masonry, you can buy suitable
screws and anchors at hardware
stores Use a masonry drill bit to
drill the required holes
Bracket ] Wall
Screw Must Enter X_l Plate
Wood Or Metal ]] /
Fig. 2Attachment To Wall
w
7_
Using the wrench, back out the
four leg levelers at least two turns
See your installation guide for
more leveling information before
positioning range
Slide the range into place. Be sure
rear leg leveler fully engages the
slot in the bracket. If range cannot
be moved back far enough for
rear leg leveler to enter bracket,
move bracket forward as required
and attach to floor in new location
3

iMPORTANT
iNSTRUCTiONS
SAFETY
_WARN|NG! To
prevent accidental
tipping of the range
from abnormal usage,
including excessive loading
of the oven door, attach the
range to the wall or floor by
installing the Anti-Tip
device supplied. If the range
is moved for cleaning,
servicing or any reason, be
sure the Anti-Tip device is
re.engaged properly when
the range is slid back in the
opening. Failure to do so
could result in the range
tipping or personal injury. To
inspect the anti-tip device,
remove the storage drawer
and look to see if the rear
leg leveler fully engages the
slot in the bracket.
important: To insure safety for yourself,
family and home, please read your
Owner's Manual carefully Keep it handy
for reference Pay close attention to
Safety Sections BE SURE your
appliance is installed and grounded by a
qualified technician,
oDO NOT leave children alone or
unattended near an appliance in use
•TEACH CHILDREN not to ptay with
controls or any part of the appliance,
and not to sit, climb or stand on the
door, or any other part of the appliance
o
o
CAUTION: NEVER STORE items
of interest to children on the
backguard or in cabinets above the
appliance Children climbing on the
appliance could be seriously injured
KEEP THIS book for later use
NEVER USE your appliance for
warming or heating the room
NEVER TRY to repair or replace any
part of the appliance unless instruc-
tions are given in this manual All other
work should be done by a qualified
technician
•ALWAYS KEEP combustible walt
coverings, curtains, dish cloths,
towels, potholders, and other linens a
safe distance from the appliance.
•NEVER HEAT unopened food
containers, Pressure buildup can
cause the container to burst and cause
injury,
•NEVER LEAVE jars or cans of fat or
drippings in your oven
oALWAYS KEEP the oven and
surface unit areas free from things
that will burn Food, wooden utensils,
and grease buildup could catch fire
Plastic utensils could melt and
canned foods could explode Your
appliance should never be used as
a storage area
•ALWAYS KEEP your appliance clear
of things that will burn (gasoline and
other flammable vapors or liquids)
.NEVER TRY to clean a hot surface
Some cleaners produce noxious
fumes, and wet cloths or sponges
could cause steam burns.
NEVER WEAR loose fitting clothing
when using your appliance
NEVER USE a towel or other bulky
cloth as a potholder, and make sure
the pothoider is dry. Moist potholders
and wet cloths or sponges could
cause steam burns. DO NOT let
pothofders touch hot heating zones.
4

IMPORTANTSAFETY
INSTRUCTIONS
oDO NOT touch heating zones,
surfaces near them, or interior oven
surfaces These may be hot enough to
cause burns even though they are
dark in color During and after use, do
not touch or let clothing or flammable
material contact the zones or hot
surfaces until they have had time to
cool Other surfaces near the oven
vent openings, oven door and
window, and cooktop surfaces may
also be hot enough to cause burns
° ONLY SOME kinds of glass or
ceramic cookware can be used for
cooktop cooking Make sure the
cookware you choose to use is
designed for cooktop cooking without
breaking due to the sudden tempera-
ture change
oALWAYS USE care when touching
cooktop elements They will retain
heat after the range has been
turned off
oNEVER BLOCK the oven air vent on
the backguard of the range
•COOKWARE USED for cooktop
cooking should be flat on the bottom
and large enough to cover the heating
area being used Undersized utensils
expose the heating element and may
result in direct contact or ignition of
clothing
oNEVER LEAVE surface units
unattended at high settings Boi!overs
result in smoking or greasy spills
which could catch fire
NEVER cook on a broken cooktop;
cleaning solutions and spillage could
penetrate it and create the risk of
electrical shock or fire
oALWAYS TURN utensil handles
inward and away from other surface
units to reduce the risk of burns,
ignition, unintended contact, and
spillage.
°WHEN PREPARING flaming foods
under the vent hood, turn the fan on.
PLACE OVEN RACKS in the
desired position while the oven is
cool If racks must be moved while
oven is hot, do not let potholder
contact the hot oven element,
• AFTER BROIL|NG, always take
the broiler pan and grid out of the
oven and clean them Leftover
grease in the broiler pan could catch
fire the next time you use your oven
oALWAYS USE care when opening
the oven door Let hot air and steam
escape before moving foods
° NEVER USE aluminum foil to line the
oven bottom Improper use of foil could
start a fire, or electrical shock could
result

IMPORTANTSAFETY
INSTRUCTIONS
•CLEAN ONLY the parts listed in this
manual Follow all cleaning instructions
Be sure to remove broiler pan and grid
before the self-clean cycle
•NEVER RUB, move or damage the
door gasket on self-cleaning ranges
• NEVER TRY to clean utensils,
cookware, removable parts, or broiler
pan and grid in the self-clean cycle
°DO NOT USE oven cleaners -No
commercial oven cleaner, or protective
coating of any kind, should be used in
or around any part of the oven.
oNEVER force the door handle open
while the oven is hot
iMPORTANT SAFETY
HOTICE!
The California Safe Drinking
Water and Toxic Enforcement
Act requires the governor of
California to publish alist of
substances known to the state
to cause birth defects or other
reproductive harm and requires
businesses to warn their cus-
tomers of potential exposure to
such substances. The fiberglass
insulation in a self.cleaning oven
will give off avery small amount
of carbon monoxide during the
cleaning cycle. Exposure can be
minimized by venting with an
open door or window or using a
ventilation fan or hood.
IMPORTANT: 1'he health of some
birds is extremely sensitive to
the fumes given off during the
self-cleaning cycle of any range.
Move birds to another well,
ventilated room.
READ AND UNDERSTAND
THIS INFORMATION NOW!
Be sure everyone in your home
knows what to do in case of fire.
Never use water on a grease
fire; it will only spread the
flames,
COOKTOP GREASE FIRE:
Never pick up aflaming pan...
1. Turn off the surface elements
2. Smother the flame with a tightly
fitting lid Use baking soda or a dry
chemical, foam, or halon type
extinguisher
OVEN FIRE:
Do not try to move the pan!
1. Close the oven door and turn
controls off
.If fire continues, carefully open the
door, throw baking soda on the fire,
or use a dry chemical, foam, or
halon type extinguisher
6

Protecting the Cooktop
o Do not slide cookware across your
cooktop
,Do not use a dish towel or sponge
to clean or wipe your cooktop
• Do not use scouring powders or
plastic, nylon or metal cleaning
pads on your cooktop
• Do not apply your cooktop cleaning
creme to the cooktop surface if the
surface is hot
o Read the instruction label on the
cooktop cleaning creme bottle
before attempting to clean the
surface of your cooktop.
o After cleaning the cooktop surface,
be sure to wipe off any residue with
a dry paper towel that may be left
from the cleaning creme
o For major spills, turn the surface
control knob to OFF Use a dry
paper towel to wipe up spill, then
use a razor scraper (held with a
potholder) at a 300 angle against
the surface of the cooktop to
scrape remaining spill from the hot
cooking zone
OPERATION
rCAUTUON: When the
surface controls are
turned off, the Hot
Surface mndicator
light will remain lit until the
cooktop surface has cooled
to approximately 150°F, The
glass ceramic surface will
retain heat after the
indicator light goes out. Use
caution until the cooktop
surface has had time to cool.
.w,...J
To remove the adhesive left from
packaging tape, use household
dishwashing liquid, mineral oil or
cooking oil With a soft cloth rub into
the area and allow to soak Rinse and
dry welt Repeat procedure using an
appliance polish to insure no damage
is done This should be done
before the range is turned on
for the first time, The tape
cannot be removed once the
range has heated, Packaging
tape may be found in the following
areas. Cooktop surface, Door Handle,
Control Panel area, Door Trim and
Oven area
°Do not cook directly on the surface
of the glass
, Do not use the cooktop as a cutting
board
7

OPERATION
FEATURESOFYOURRANGE
Clock &
Cooktop
C,
Surface
indicator
Light
Glass
Ceramic
Cookto
Door Latch
And Unlatch
Handle
Oven Hot Surface
Control indicator Light
Broil
Element
Model and
Serial
Number
Lo(
Storage
Drawer \
Broiler Pan
and Grid
Oven Light
Vent
Cooking
Oven Door
Removable
Racks
Bake
Element
Removable
Door
Oven
Door Gasket
8

OPERATION

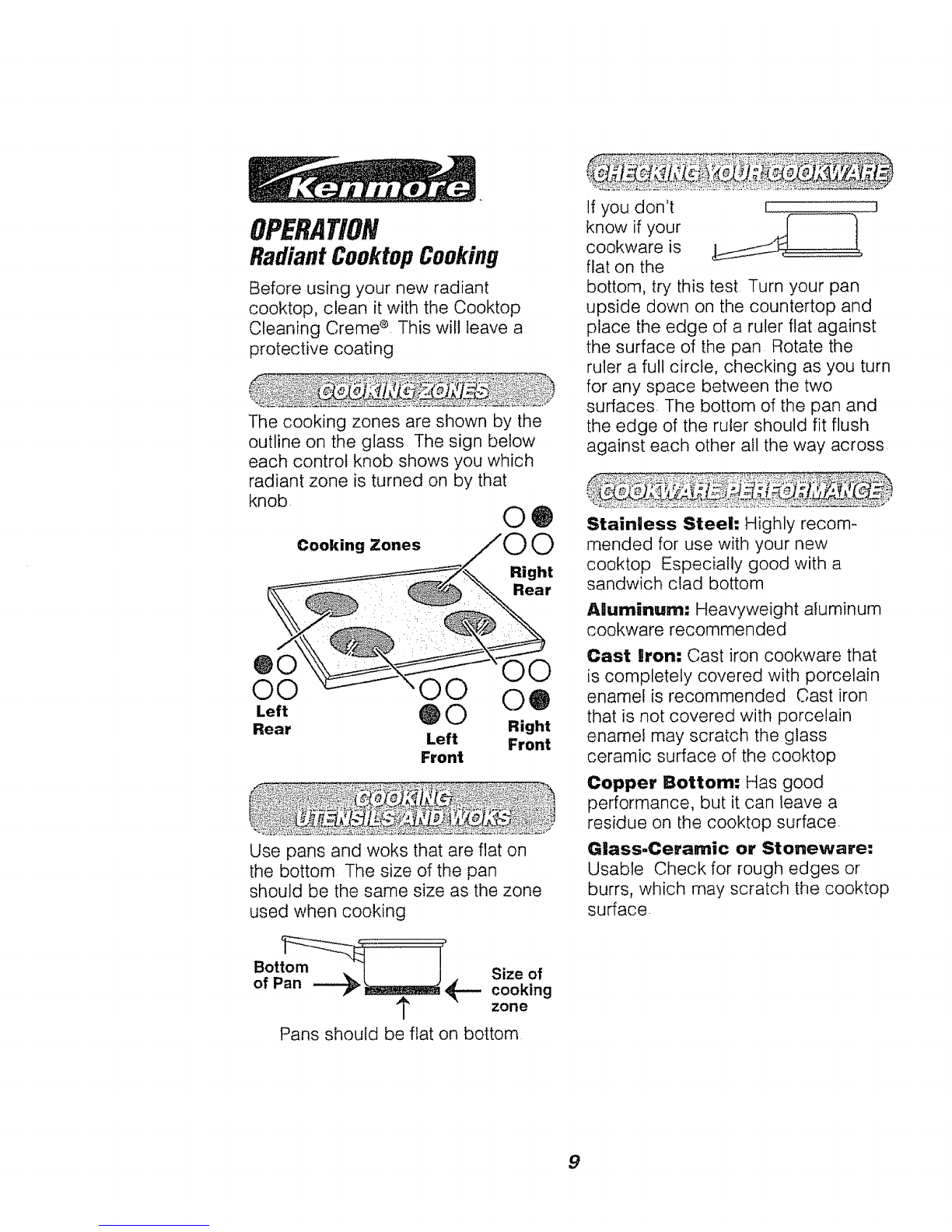

RadiantCooktopCooking
Before using your new radiant
cooktop, clean it with the Cooktop
Cleaning Creme®. This wil! leave a
protective coating
The cooking zones are shown by the
outline on the glass The sign below
each control knob shows you which
radiant zone is turned on by that
knob. 0@
Cooking Zones
Right
Rear
@O
O0 O00e
Left @0
Rear Right
Left Front
Front
Use pans and woks that are flat on
the bottom The size of the pan
should be the same size as the zone
used when cooking
If you don't [J
know if your ]
cookware is j_?_ ).
flat on the
bottom, try this test Turn your pan
upside down on the countertop and
place the edge of a ruler flat against
the surface of the pan Rotate the
ruler a full circle, checking as you turn
for any space between the two
surfaces. The bottom of the pan and
the edge of the ruler should fit flush
against each other all the way across
Stainless Steel: Highly recom-
mended for use with your new
cooktop Especially good with a
sandwich clad bottom
Aguminum: Heavyweight aluminum
cookware recommended
Cast Iron: Cast iron cookware that
is completely covered with porcelain
enamel is recommended Cast iron
that is not covered with porcelain
enamel may scratch the glass
ceramic surface of the cooktop
Copper Bottom: Has good
performance, but it can leave a
residue on the cooktop surface.
Glass.Ceramic or Stoneware:
Usable Check for rough edges or
burrs, which may scratch the cooktop
surface
Size of
cooking
zone
Pans should be flat on bottom
9

OPERATION
RadiantCooktopCooking
When the knobs are turned on, coils
beneath the glass radiate heat
through the glass to the cooking
utensil, tt will take a few minutes for
the coils to heat; as they do, a red
glow can be seen on the surface of
the cooktop
1. Push down to turn
the knob
2. Set on or between o_F
numbers for ._'_i o
desired heat .
The surface unit indicator light will
glow when any cooking zone is
activated
It is normal to see the elements glow
red and then dark while cooking at
settings below high This cycling on
and off is used to maintain your
selected control setting Cycling when
the selector is set on Hi is due to poor
transfer of heat to cookware that is not
flat The temperature limiters of the
cooking zones may turn the radiant
coils on and off while cooking or
canning to provide protection against
the overheating of the glass ceramic
This procedure helps maintain an
even cooking temperature without
allowing the cooking zones to
overheat
Water-bath or pressure canners and
large diameter pots extending more
than 1" beyond the edge of the
cooktop element may be used for
canning However, do not use large
diameter canners, pots or pans for
anything other than boiling water,
Most syrup or sauce mixtures, and all
types of frying, cook at temperatures
much higher than boiling water Such
temperatures could eventually harm
the cooktop surfaces surrounding the
surface units.
Hi Used for quick starts, such as
bringing water to a boil.
IVIED Used for slow boil and
saut6ing
LO Used for steaming foods or
keeping cooked foods at
serving temperature
11
ti
11
11
Be sure the canner is centered
over the element.
Make sure the canner is flat on the
bottom
Use recipes and procedures from
reputable sources, These are
available from manufacturers such
as Ball®and Kerr ®, or the Depart-
ment of Agriculture Extension
Service
Use caution while canning, to
prevent burns from steam or heat
10

OPERATION
OvenControl,Clock, & Timer
OFF
Your new range CLOCK, TIMER and OVEN operations are simple and easy to
understand.
The HOUR/MIN arrow pads allow you
to set the exact time you need
The display in the center of your control
will show:
ti. The time of day CLOCK
2. The amount of time you choose
when using the TIMER
3. The temperature selection as you
turn the oven control knob,
Your control has individual indicator
lights that will show you the operations
you have chosen
As you read through your manual, you
will find what each of these indicators is
used for and how they witf help you in
understanding your new control
If the display flashes an "F" followed by
a number and beeps continuously, you
have a function error code Note the
number after the "F" Turn the oven
control knob to the OFF position Allow
the oven to cool for about t hour and
retry the oven operation, If the problem
repeats call for service, Advise the
technician what code was flashing
When the power to your range is turned
on for the first time, the display will flash
the time when the power was turned off.
You can set the clock at this point or
press the clock pad to stop the flashing.
As a safety feature, this oven will
automatically shut off if it has been left
on for more than 12 hours This feature
can be disabled. See page I6
Your new control has the special feature
of blacking out the display (have
nothing showing in the display) To
activate this feature:
If the time of day is showing in the
display, press the CLOCK pad once
To bring back the display from the time
of day black-out, press the CLOCK
pad twice
11

OPERATION
Clockand Timer AA}V "V"
The CLOCK and TIMER are set by
using the touch pads The TIMER will
not control any oven operation.
After releasing the arrow pad, the Timer
Indicator Light and colon wilt blink three
to five times, then the timer will start the
countdown The Timer Indicator Light wil!
remain on until countdown reaches "0"
When the timer has started the count-
down, you may press the CLOCK pad
to return to the current time of day
At the end of the countdown the
control will beep and the Timer Indicator
Light will flash Press the TIMER ON/
OFF pad
1, Press the CLOCK pad
CLOCI( twice to make display flash.
A1Press the HOUR/MI]t'_ UP
and/or DOWN pads to set
the time of day The colon
wilt flash while you set the
time
The clock wilt automatically start
keeping time within one minute or you
may press the CLOCK pad for
immediate start
If you have selected an amount of time,
but decide to change it:
tf the countdown is showing in the
display, press the HOUR/MIN UP
and/or DOWN arrow pads Select the
desired time
If the time of day clock or temperature
is showing in the display, press the
TIMER ONIOFF pad, Then, press
either the HOUR/MIN UP andlor
DOWN arrow pads Select the
desired time
The TIMER is only a minute timer It will
not control oven operations. The
maximum time you may set is 11 hours
and 59 minutes.
_TIMER
ON/OFF
,,%
v
1
,=
Press the TIMER ON/OFF
pad "0.00" and the Timer
indicator Light will flash
Press the HOUR/MIN UP
and/or DOWN arrow pads
to set the time you prefer to
use The colon wilt flash
while you set the time.
If you wish to cancel the T|MER, press
the TIMER ON/OFF pad once If the
countdown is not showing, press the
TIMER ON/OFF pad twice
12

OPERATION
OvenCookingTips
It is normal to have some odor when
using your oven for the first time. To
help eliminate this odor, ventilate
the room by opening awindow
or using avent hood.
iMPORTANT: Never cover the oven
bottom or oven rack with aluminum
foil Improper use can cause poor
heat flow, poor baking results, and
may damage the oven finish To
prevent staining from spillovers, you
may place a piece of aluminum foil or
cookie sheet below the food which
may spill over
The oven vent is located under the
right rear element This area could
become very hot during oven use
Never block this vent.
In the back of the oven you will notice
a small tube This is a heat sensor
that maintains the temperature of the
oven Never move or bend this tube,
Oven ------___
Temperature Sensor
Opening the door often to check
foods will cause heat loss and poor
baking results
The low temperature zone of your
oven (between 170° and 200 ° F)is
available to keep hot cooked foods
warm. However, foods kept at these
temperatures longer than 2 hours
may spoil
To prolong the life of your oven light
bulb, follow these helpful tips: Always
turn the light off when the oven is not
in use or after a clean cycle If your
appliance does not have a window in
the door, you will need to open the
door to make sure the oven light is off
If your oven light is left on for an
extended period of time, the oven will
be warm when the door is opened
due to the heat generated from the
oven light bulb
Preheating is bringing the oven
temperature up to the temperature
you will be using during baking
13

OPERATION
OvenCookingTips
FLAT COOKIE SHEETS, without
sides, allow air to circulate all around
the cookies for even browning.
Most recipes for baking have been
developed using high-fat products
such as butter or margarine (80% fat
by weight - the federal requirement
for products labeled "margarine")
You will get poor results if cakes, pies,
pastries, cookies or candies are made
with low-fat spreads Low-fat spreads
contain less fat and more water. The
high moisture content of these

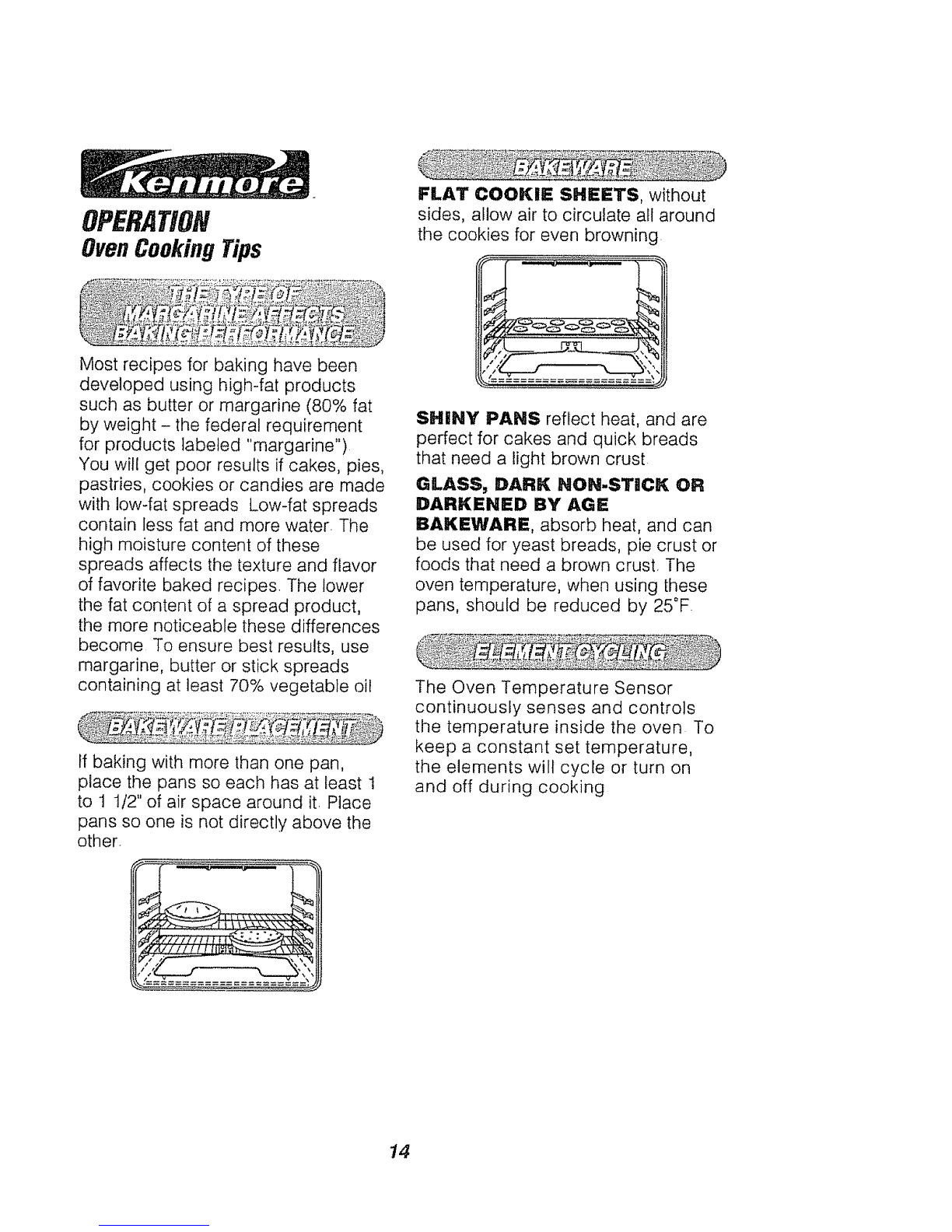

spreads affects the texture and flavor
of favorite baked recipes. The lower
the fat content of a spread product,
the more noticeable these differences
become To ensure best results, use
margarine, butter or stick spreads
containing at least 70% vegetable oil
If baking with more than one pan,
place the pans so each has at least 1
to 1 t/2" of air space around it. Place
pans so one is not directly above the
other.
SHINY PANS reflect heat, and are
perfect for cakes and quick breads
that need a light brown crust
GLASS, DARK NON-STICK OR
DARKENED BY AGE
BAKEWARE, absorb heat, and can
be used for yeast breads, pie crust or
foods that need a brown crust, The
oven temperature, when using these
pans, should be reduced by 25°F.
The Oven Temperature Sensor
continuously senses and controls
the temperature inside the oven To
keep a constant set temperature,
the elements wilt cycle or turn on
and off during cooking
1#

OPERATION
OvenCookingTips

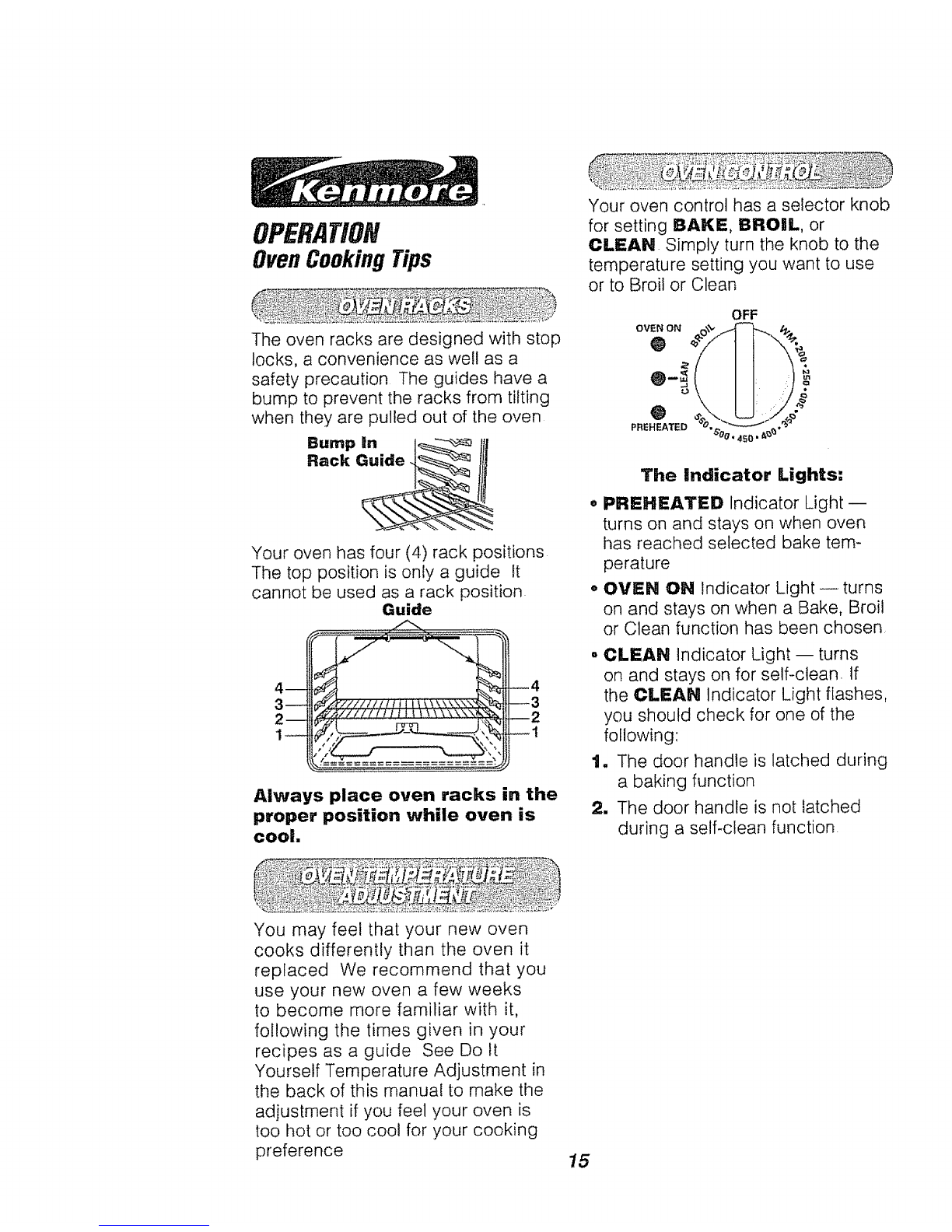

The oven racks are designed with stop
locks, a convenience as well as a
safety precaution The guides have a
bump to prevent the racks from tilting
when they are pulled out of the oven
Your oven has four (4) rack positions
The top position is only a guide It
cannot be used as a rack position.
Guide
__P._,(/!4t!!/4
3--
2-- _I/I!/iI!ttlI_\\X'_X+k"_ --2
Always place oven racks in the
proper position while oven is
cool.
Your oven control has a selector knob
for setting BAKE, BROIL, or
CLEAN Simply turn the knob to the
temperature setting you want to use
or to Broil or Clean
OFF
OV_NON o\__--_
e- m( I I
The Indicator Lights:
. PREHEATED Indicator Light-
turns on and stays on when oven
has reached selected bake tem-
perature
oOVEN OH Indicator Light -- turns
on and stays on when a Bake, Broil
or Clean function has been chosen,
oCLEAN indicator Light -- turns
on and stays on for self-clean. If
the CLEAH Indicator Light flashes,
you should check for one of the
following:
1. The door handle is latched during
a baking function
2. The door handle is not latched
during a self-clean function.
You may feel that your new oven
cooks differently than the oven it
replaced We recommend that you
use your new oven a few weeks
to become more familiar with it,
following the times given in your
recipes as a guide See Do ft
Yourself Temperature Adjustment in
the back of this manual to make the
adjustment if you feel your oven is
too hot or too cool for your cooking
preference 15

OPERATION
Baking
1. Turn the OVEN CONTROL
KNOB to selected temperature
from WM to 550°F As the knob
turns the control display will show
the changing temperatures When
the display shows your selected
temperature release the control
knob. The temperature will remain
in the display for 5 seconds then
return to the time of day_ To recall
the temperature display press the
minute down arrow pad
2. The "OVEN ON" indicator light
will glow,
3. When the oven has reached the
selected temperature, a series of
short tones will sound, and the
"PREHEATED" and "OVEH
ON" indicator lights 'will glow
4. The "PREHEATED" and
"OVEN ON" indicator lights will
remain on until baking is complete
and the control knob is turned to
the OFF position
1. With the control knob in the off
position, press and hold the
i_inN UP and DOWN arrow
pads, at the same time, until
"ON" or "OFF" shows in the
display.
2. Holding the MIlN UP or DOWN
arrow pad again, at the same
time, will alternate between 12
hour shut-off on or off,
16

OPERATION
Broiling
Broiling is cooking by direct heat
from the upper element The oven
door should remain open to the broil
stop position during broiling
it is not necessary to preheat the
oven when broiling Use the broiler
pan and grid that came with your
range Both are designed for proper
drainage of fat and liquids
_f foil is used it must
be molded tightly to
the grid and slits cut
into the foil to match
those of the grid. This
allows fats and liquids to
drain into the broiler pan,
preventing fire and
excessive smoke.
Always remove the pan and
grid from the oven. (_
Storing or forgetting
asoiled broiler pan
in the oven is a potential
smoke or fire hazard.
The U S Department of Agriculture
recommends to cook meat and
poultry thoroughly--meat to at least
an INTERNAL temperature of 160°F
and poultry to at least an INTERNAL
temperature of I80°F Cooking to
these temperatures usually protects
against food-borne illness
The closer you place foods to the
broil element, the faster foods brown
on the outside yet remain red to pink
in the center
Moving meats away from the element
will allow the meat to cook to the
center while browning on the outside.
Cook side 1 at least 2 minutes longer
than side 2 If your oven is connected
to 208 volts, you may want to use a
higher rack position andfor broil
foods longer
The size, weight, thickness, starting
temperature and your preference of
the doneness of the meat will affect
broiling This chart is based on meats
at refrigerator temperature
FOOD RACK
POSITION
3
Steak 1" thick
Ground beef
patties
1" thick 3 16-18
Pork Chops-t/2"
thick 3 27-29
Fish (fillets) 3 'I1-13
Chicken (pieces', 2 45-55
TOTAL
TIME (MIN.)
9-11
== Set the OVEN CONTROL
KNOB to BROIL
2= The "OVEN ON" indicator light
will glow
3. When broiling is finished, turn the
OVEN CONTROL KNOB to the
"OFF" position
17

Self-CleaningCycle
CAREANDCLEANING
1. Remove the broiler pan and grid,
oven racks, utensils and any foil
that may be in the oven
2. Soil on the front frame, 1" inside
the oven, and outside the door
gasket will need to be cleaned
by hand
Front Frame
Ooor Gask;t
--_'_ Door Liner
Clean these areas with hot water,
soap-filled steel wool pads or
cleansers such as Soft Scrub ®to
remove any soil Rinse well with clean
water and dry
8. Wipe up any heavy spillovers on
the oven bottom
4. Do not clean the door gasket The
fiberglass material of the oven
door gasket cannot withstand
abrasion It is essential for the
gasket to remain intact If you
notice it becoming worn, frayed or
displaced on the door, it should be
replaced
The door gasket is designed to have
a 5-6" gap at the bottom of the door.
This allows for proper air circulation
Door Panel Gasket
Door Liner
tt is normal for your oven door to give
the appearance of not having a good
seal against the range This is due to
the gasket. The location of the gasket
on the oven door maintains a good
seal and prevents any heat loss
_tensils should never
be left in the oven
during aself-clean
cycle,
The oven racks may be
cleaned during the self.
clean cycle, but will lose
their luster and become hard
to slide, if you choose to
leave them in during the
cycle, wiping them down
with vegetable oil after the
cycle wil! help them slide
easier.
For the first clean cycle,
vent the room with an
opened window or hood
vent. This will reduce the
odor produced when heating
new parts,
18

CAREANDCLEANING
Self-CleaningCycle

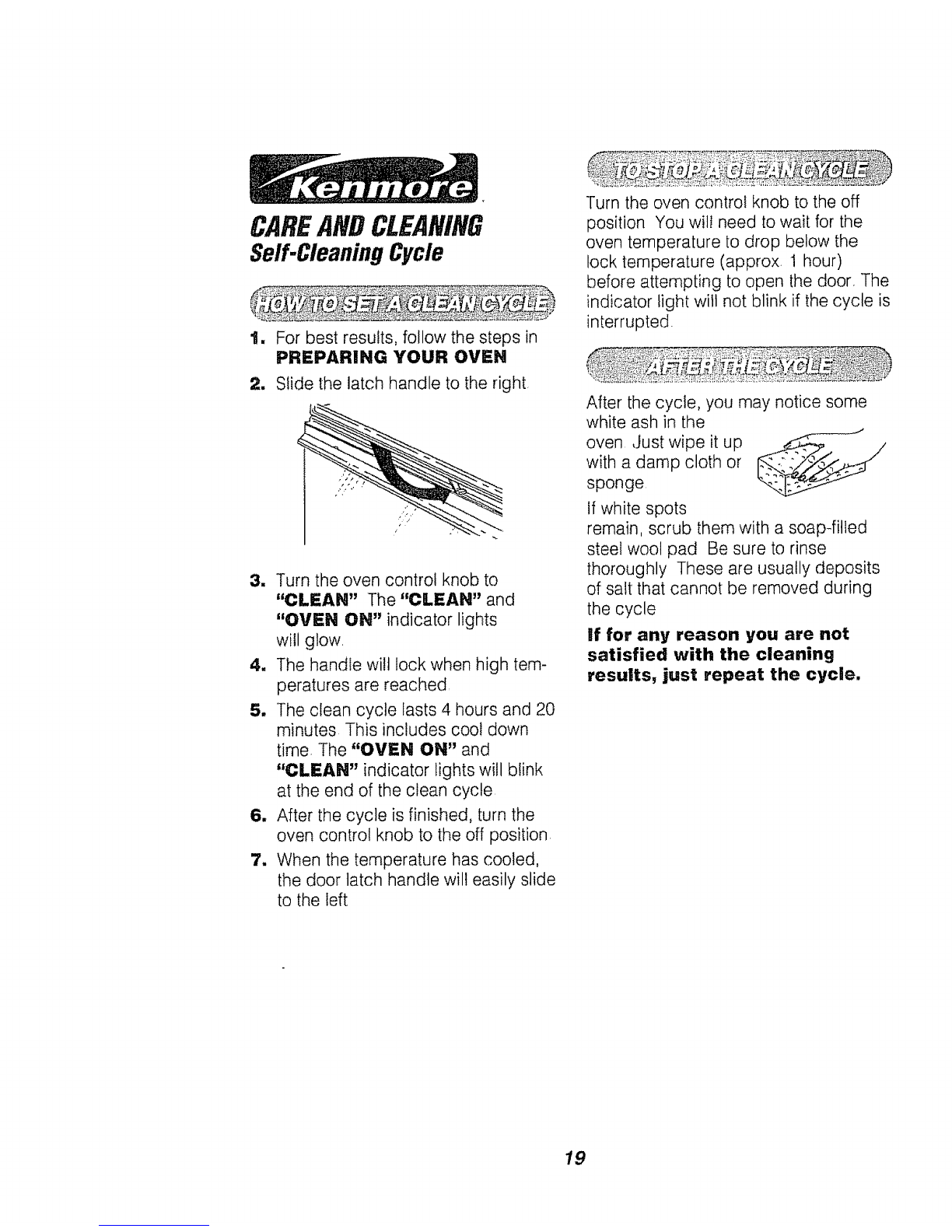

lu For best results, follow the steps in
PREPARING YOUR OVEN
2. Slide the latch handle to the right
3. Turn the oven control knob to
"CLEAN" The "CLEAN" and
"OVEN OH" indicator lights
will glow,
4. The handle wilt lock when high tem-
peratures are reached
5. The clean cycle lasts 4 hours and 20
minutes This includes cool down
time. The "OVEN ON" and
"CLEAH" indicator lights will blink
at the end of the clean cycle
6. After the cycle is finished, turn the
oven control knob to the off position.
7. When the temperature has cooled,
the door latch handle will easily slide
to the left
Turn the oven control knob to the off
position You will need to wait for the
oven temperature to drop below the
lock temperature (approx 1 hour)
before attempting to open the door. The
indicator light will not blink if the cycle is
interrupted.
After the cycle, you may notice some
white ash in the
oven ,Just wipe it up
with a damp cloth or
sponge
If white spots
remain, scrub them with a soap-filled
steel wool pad Be sure to rinse
thoroughly These are usually deposits
of salt that cannot be removed during
the cycle
If for any reason you are not
satisfied with the cleaning
results, just repeat the cycle.
19

CAREANDCLEANING
Glass-CeramicCooktop
Cleaning
Cleaning a glass-ceramic cooktop is
different from cleaning a standard
porcelain cooktop To maintain and
protect your glass-ceramic cooktop
follow these basic steps.
Use only Cooktop Cleaning Creme ®on
glass-ceramic,
For normal, light soil
tm Using a damp paper towel, rub a
few drops of creme onto soiled area
Wipe until all soil and creme are
removed
11 Clean surface with creme after each
cooktop use Frequent cleaning is
essential in preventing scratches
and abrasions
For heavy, burned-on soil
t. Apply a few drops of creme to the
cool, soiled area
11
11
Using a damp paper towel, rub
creme into the burned-on area
Holding a razor scraper at a 30°
angle against the glass ceramic
surface, carefully scrape
remaining soi!
_MPORTANT: Using a
razor scraper will not
damage the surface if
the 30 ° angle is main.
tained. Do not use a dull or
nicked razor b_ade on your
cooktop. Store the razor
scraper out of reach of children.
Sugar spills (such as jellies, fudge,
candy syrups) or melted plastic can
cause pitting of the cooktop surface
unless the spill is removed while it is still
hot. Special care should be taken when
removing hot substances
Follow these instructions carefully and
remove soil while spill is hot,
11.Turn off the cooking zone affected
by the spill Remove the utensils
2. Wearing an oven mitt, hold the razor
scraper at a 30° angle against the
cooktop and scrape hot spill to a
cool area outside the cooking zone
3. With spill in a coot area, use a dry
paper towel to remove any spitiover
Any spill remaining should be left
until the surface of the cooktop has
cooled Do not continue to use the
soiled cooking zone until all of the
spill has been removed Follow the
steps under Heavy Soil to continue
the cleaning process
1t If any soil remains, repeat the steps
listed above For additional protec-
tion after soil has been removed,
polish the entire surface with creme 20
