Kenmore 580.52650 User manual

Owner's Manual
Manual del Propietario
®
DEHUMIDIFIER
DESHUMIDIFICADOR
Model, Modelo 580.52650
/
/
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

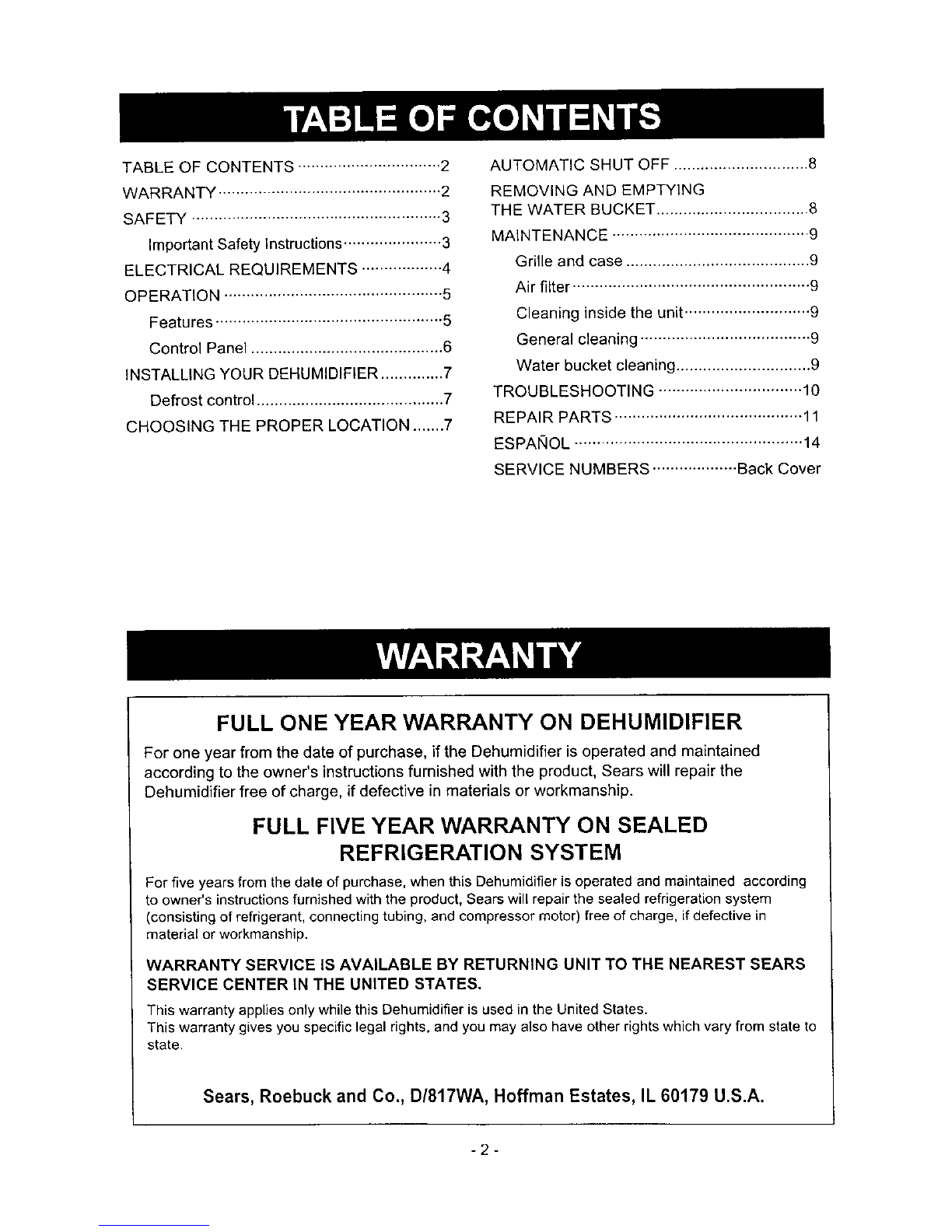

TABLE OF CONTENTS ................................ 2
WARRANTY .................................................. 2
SAFETY ........................................................ 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS .................. 4
OPERATION ................................................. 5
Features ................................................... 5
Control Panel ........................................... 6
INSTALLING YOUR DEHUMIDIFIER .............. 7
Defrost control .......................................... 7
CHOOSING THE PROPER LOCATION ....... 7
AUTOMATIC SHUT OFF .............................. 8
REMOVING AND EMPTYING
THE WATER BUCKET .................................. 8
MAINTENANCE ............................................ 9
Grille and case ......................................... 9
Air filter ..................................................... 9
Cleaning inside the unit ............................ 9
General cleaning ...................................... 9
Water bucket cleaning .............................. 9
TROUBLESHOOTING ................................ 10

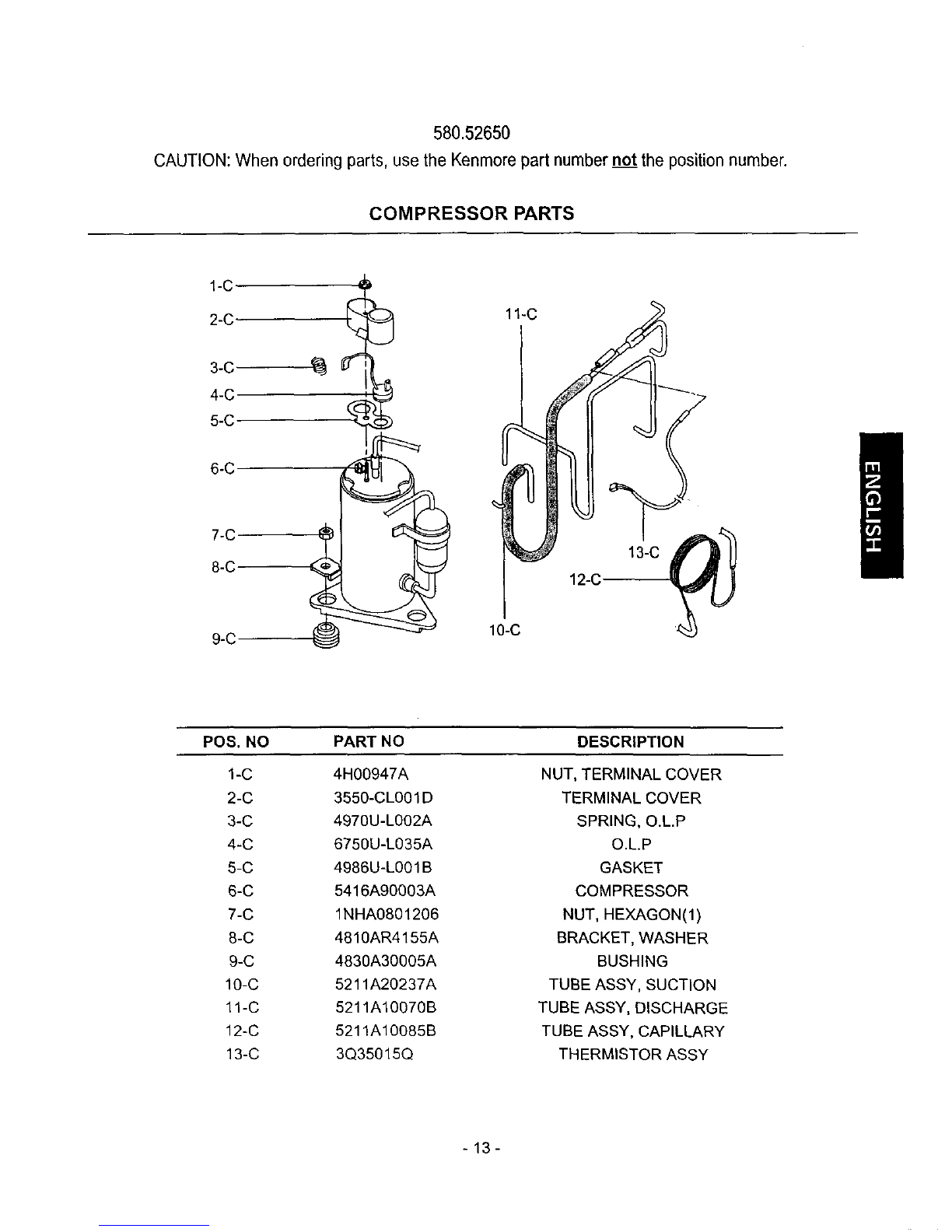

REPAIR PARTS .......................................... 11
ESPANOL ................................................... 14
SERVICE NUMBERS ................... Back Cover
FULL ONE YEAR WARRANTY ON DEHUMIDIFIER
For one year from the date of purchase, if the Dehumidifier is operated and maintained
according to the owner's instructions furnished with the product, Sears will repair the
Dehumidifier free of charge, if defective in materials or workmanship.
FULL FIVE YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five years from the date of purchase, when this Dehumidifier is operated and maintained according
to owner's instructions furnished with the product, Sears will repair the sealed refrigeration system
(consisting of refrigerant, connecting tubing, and compressor motor) free of charge, if defective in
material or workmanship,
WARRANTY SERVICE IS AVAILABLE BY RETURNING UNIT TO THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
This warranty applies only while this Dehumidifier is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179 U.S.A.
-2-

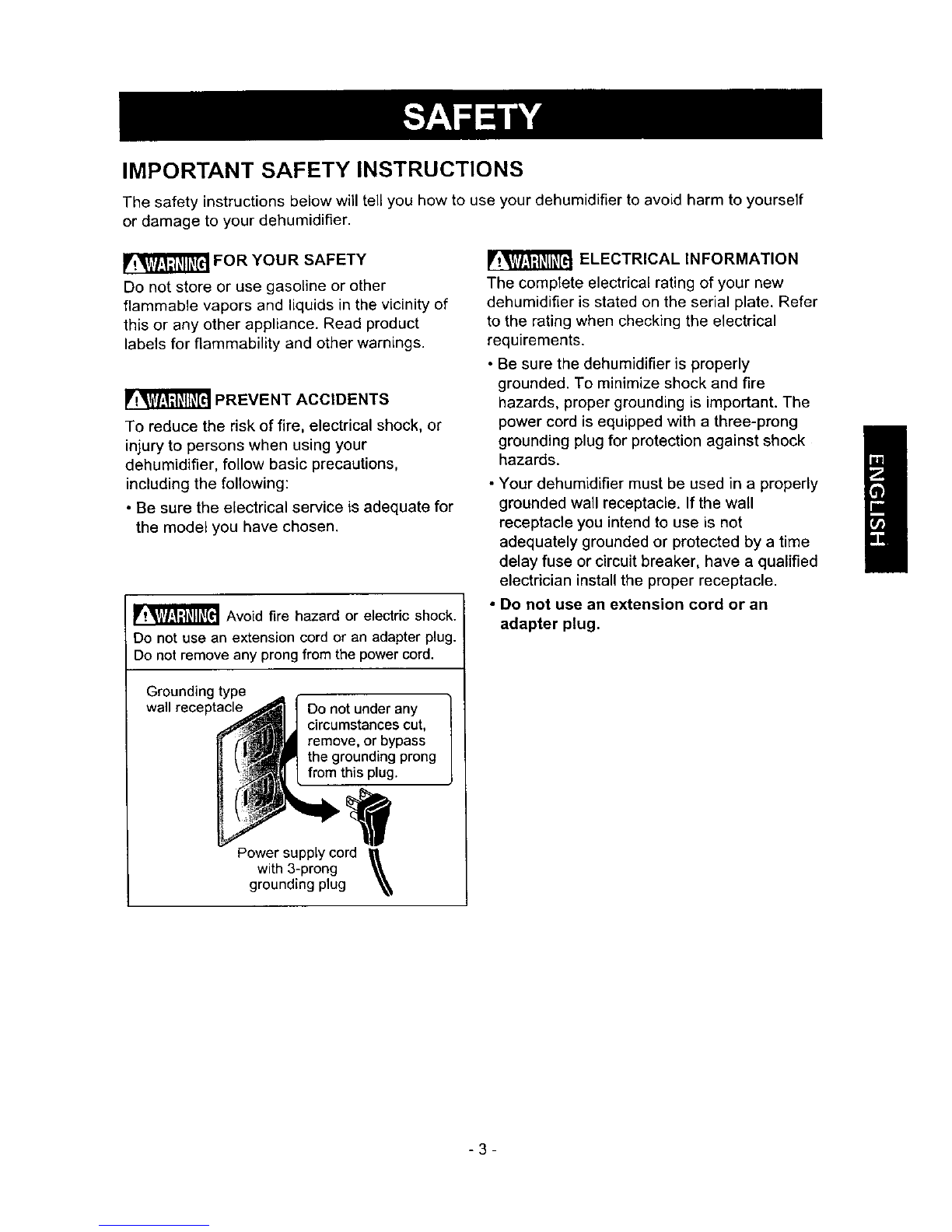

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your dehumidifier to avoid harm to yourself
or damage to your dehumidifier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance. Read product
labels for flammability and other warnings.
PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or
injury to persons when using your
dehumidifier, follow basic precautions,
including the following:
• Be sure the electrical service is adequate for
the model you have chosen.
_ Avoid fire hazard or electric shock.
Do not use an extension cord or an adapter plug.
Do not remove any prong from the power cord.
Grounding type
wall receptacle Do not under any
circumstances cut,
remove, or bypass
the grounding prong
from this plug.
Power supply cord
with 3-prong \grounding plug
ELECTRICAL INFORMATION
The complete electrical rating of your new
dehumidifier is stated on the serial plate. Refer
to the rating when checking the electrical
requirements.
• Be sure the dehumidifier is properly
grounded. To minimize shock and fire
hazards, proper grounding is important. The
power cord is equipped with a three-prong
grounding plug for protection against shock
hazards.
• Your dehumidifier must be used in a properly
grounded wall receptacle. If the wall
receptacle you intend to use is not
adequately grounded or protected by a time
delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
•Do not use an extension cord or an
adapter plug. /
-3-

OBSERVE ALLLOCALCODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE POWER SUPPLY CORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A115-volt 60 Hz, AC only, 15A fused and
properly grounded electrical supply is required.
A time delay fuse or time delay circuit breaker
is recommended. Use a dedicated circuit,
serving only this appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug. To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it is the personal responsibility and
obligation of the customer to have a properly
grounded 3-prong wall receptacle installed by a
qualified electrician.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electrical shock.
_3-prong
3 "ron '_ _,_ IIf",_ III grounding
groundin_ IIU.a%UItype wal,
plug "__'_ _receplacle
Ground
Power _prong
supply
cord
-4-

FEATURES
INING : :;
To reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY
instructions section before operating this appliance.
1. CONTROL PANEL
2. GRILLE, FRONT
3. POWER CORD
4. CABINET
5. AIR FILTER
6. WATER BUCKET 2
3
4
5
-5-

F
K_,lq_'Con s ant
_o:_HLgh o8Hr.
BU ET HUMIDITY SpE;_ •4 Hr.
FULL CONTROL .... e2Hr.
•Low

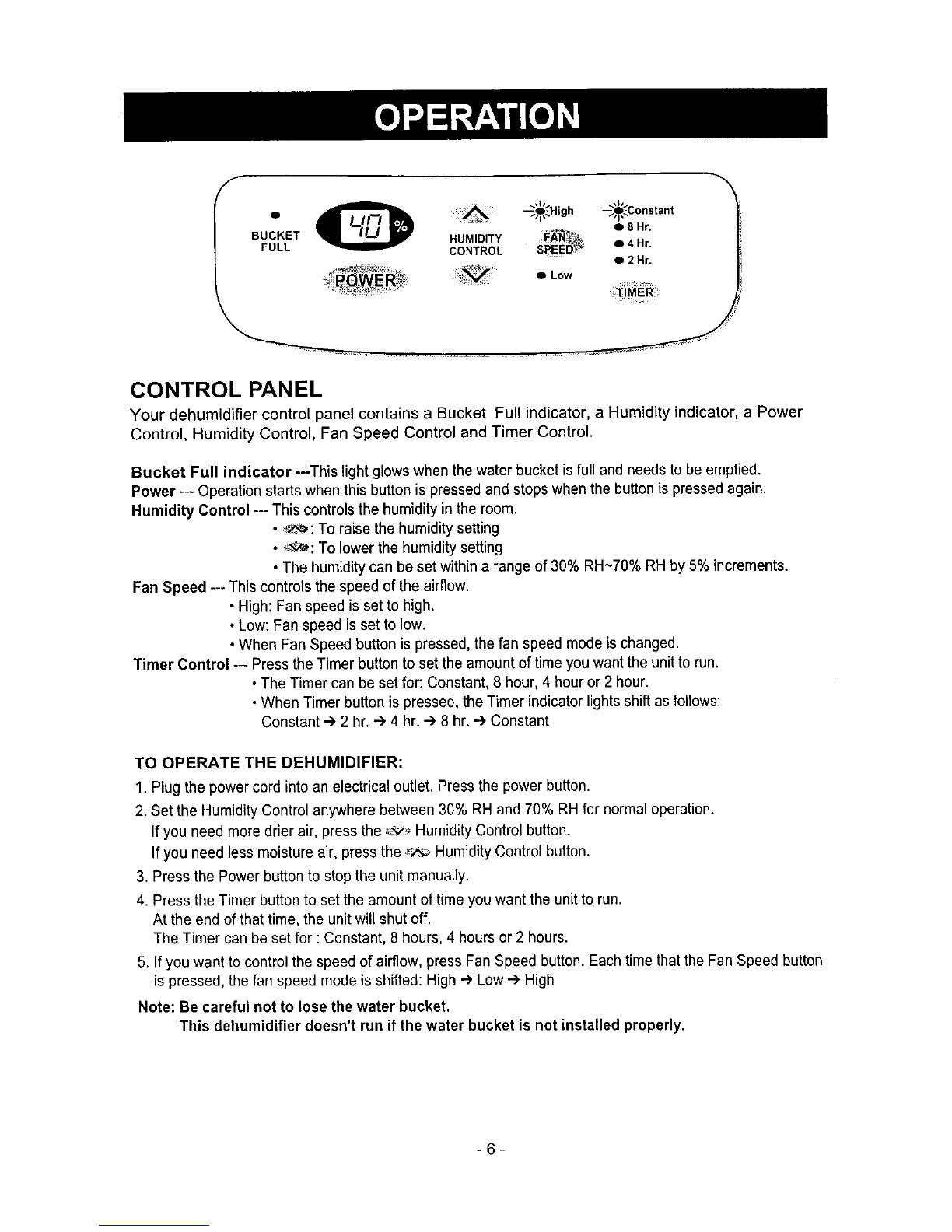

CONTROL PANEL
Your dehumidifier control panel contains a Bucket Full indicator, a Humidity indicator, a Power
Control, Humidity Control, Fan Speed Control and Timer Control.
Bucket Full indicator --This light glows when the waterbucket isfull and needs to be emptied.
Power --- Operation starts when this button is pressed and stops when the button is pressed again.
Humidity Control --- This controls the humidity in the room.
• _::_: To raise the humidity setting
•,_: To lower the humidity setting
•The humidity can be set within a range of 30% RH~70% RH by 5% increments.
Fan Speed -- This controls the speed of the airflow.
• High: Fan speed is set to high.
• Low: Fan speed is set to low.
• When Fan Speed button is pressed, the fan speed mode is changed.
Timer Control -- Press the Timer button to set the amount of time you want the unit to run.
•The Timer can be set for: Constant, 8 hour, 4 hour or 2 hour.
•When Timer button ispressed, the Timer indicatorlights shift as follows:
Constant .--)2 hr. -> 4 hr..--)8 hr. "-) Constant
TO OPERATE THE DEHUMIDIFIER:
1. Plug the power cord into an electrical outlet. Press the power button.
2. Set the HumidityControl anywherebetween 30% RH and 70% RH for normal operation.
If you need more drier air, pressthe_x,',,HumidityControl button.
If you need lessmoisture air,pressthe ;,_'> HumidityControl button.
3. Press the Power buttonto stop the unit manually.
4. Pressthe Timer button to set the amount oftimeyou wantthe unitto run.
At the end of thattime, the unitwillshut off.
The Timer can be set for : Constant, 8 hours, 4 hours or 2 hours.
5. If you want to control the speed of airflow, press Fan Speed button. Each time that the Fan Speed button
is pressed, the fan speed mode is shifted: High ---)Low -) High
Note: Be careful not to lose the water bucket.
This dehumidifier doesn't run if the water bucket is not installed properly.
-6-

• Install the dehumidifier on a level floor strong
enough to support the unit with a full bucket
of water.
• For best performance, allow at least 12-18
inches of air space on all sides of the unit for
good air circulation.
• Keep all outside doors, windows, and other
openings closed when operating the
dehumidifier. Humid outdoor air will add to the
unit's work load.
• Install your dehumidifier in an area where the
temperature will not fall below 65°F (18°C). At
temperatures below this, the coils can
become covered with frost.
NOTE" If frost occurs, the unit will cycle on
and off. This is normal. Unplug the unit (or turn
the unit off) until the frost melts and the room
temperature rises.
DEFROST CONTROL
When the defrost control senses frost build-up
on the evaporator coil, it will automatically shut
off the compressor. The fan will continue to run
to draw air across the coil and melt the frost.
When the coil is defrosted, the compressor will
automatically restart and dehumidifying
resume.
(_- 65"F
(18"C)
(_)- 65"F
(18"c)
/
• Use the dehumidifier in a basement to help
prevent moisture damage.
• Use the dehumidifier in cooking, laundry,
bathing, and dishwashing areas that have
excessive moisture.
• Use the dehumidifier to prevent moisture
damage anywhere books or valuables are
stored.
-7-

Whenthebucketisfull,orwhenthebucketisnotintheproperposition,theBucketFulllightturnson
andtheunitautomaticallyshutsoff.
Also,whenbucketisoutofposition,theunitwillbeep3times.
Thebucketmustbereplacedintheproperpositionforthedehumidifiertowork.Thelightwill
beonand the dehumidifier will not run if the bucket is not in the proper position.
The water bucket can be emptied in one of three ways:
Empty the bucket manually.
When the bucket is full,
remove and empty it into a
large sink or tub. When
finished, replace it properly.
NOTE: To replace the bucket
properly, make sure the
slots on the back of bucket
are positioned correctly.
Place the dehumidifier
directly over drain.
The bucket has a threaded
hose connection which can be
left open. Drill a 1/4" (6.4ram)
to 1/2"(13mm) hole in the
center of the hose connection.
Once opened, the hose
connection will continually
drain water from the bucket.
Attach a garden hose to the
threaded bucket drain hose
connection to carry water to
the drain. (HANDTIGHTENONLY)
When being attached to the
bucket drain hose connection,
be sure the hose doesn't kink
or bend. It should lie fiat from
the dehumidifier to the drain.
-8-

GRILLE AND CASE
To clean the case: Use water and a mild
detergent. Do not use bleach or an abrasive
cleaner.
To clean the grille: Use a vacuum with an
attachment or brush.
AIR FILTER
The air filter is on the back of the dehumidifier.
It should be checked and cleaned at least
every 30 days or more often if necessary.
TO REMOVE:
Flex the filter at the lower right corner and slide
the upper right side to the left. Release all of
the tabs and remove the filter. Wash it in warm
soapy water. Rinse and let the filter dry before
replacing it.
CLEANING INSIDE THE UNIT
After removing the air filter, clean the coil on
the inside with a soft brush to remove any soft
and wet soil.
NOTE: Do not allow water to enter the
electrical/machine compartment through the
circular opening behind the coil.
Do not spray the coil with a hose.
GENERAL CLEANING
•Dust the front grille and the side panels with a
soft brush or use the dusting attachment of
your vacuum.
• If cabinet paint chips, you can touch up the
paint with a good grade enamel to prevent rust.
WATER BUCKET CLEANING
• Every few weeks, rinse the inside of the water
bucket with a mild detergent to prevent
growth of mold, mildew, and bacteria.
-9-

"Problem
Dehumidifier
does not start
Possible causes
The dehumidifier power
Dehumidifier
does not dry the
air as it should
Dehumidifier runs
too much
Frost appears on
the coils
Fan noise
cord is unplugged
The fuse is blown or circuit
breaker is tripped.
Water bucket is full
Bucket is not installed.
Did not allow enough time
to remove the moisture.
Airflow is restricted,
•Make sure the dehumidifier plug is pushed
completely into the outlet.
• Check the house fuse or circuit breaker box
and replace the fuse or reset the breaker.
•The dehumidifier automatically turns off
when this occurs. Empty the bucket.
• Make sure a bucket in the fight place.
•When first installed, allow at least 3 or 4
days to maintain the desired dryness.
• Make sure there are no curtains, blinds or
furniture blocking the front or back of the
dehumidifier.
• Press the _ Humidity Control button to
lower the humidity.
•Check that all doors, windows and other
openings are securely closed.
• Instalt the dehumidifier away from the dryer.
The dryer should be vented to the outside.
• The unit will not operate satisfactorily if the
room temperature is below 65°F. (18°C.).
• Check with your dealer to see if the capacity
is adequate.
• Close all doors and windows to the outside.
• This is normal. Frost will usually disappear
within 60 minutes.
The Humidity Control may
not be set low Humidity.
Doors and windows may
not be closed tightly.
Clothesdryermaybeblowing
moisture-ladenairintotheroom.
Room temperature is too
low.
Area to be dehumidified is
too large.
Doorsandwindowsareopen.
Dehumidifier has been
recently turned on or room
temperature is below 65°F.
(18°C.).
Air is moving through the
dehumidifier.
Bucket drain hose
connection may be loose.
Water bucket is not all the
way in.
• This is normal.
• Check the hose if one is attached.
Water on floor • See the Removing and Emptying The Water
Bucket.
-10-

Dehumidifier To order Parts call Toll Free
Model No. 580.52650 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, no._tthe illustration number.
OUTER CASE PARTS AND CONTROL PART
15-A
12-A
/
P0S.N0
1-A
2-A
3-A
4-A
5&
6-A
7-A
8-A
9-A
PARTNO
3041AD2007C
3661A30003B
3086A30006A
6600A30003C
6500A90002A
3090A10001J
4994A20012A
6871A10016A
0CZZA20001F
DESCRIPTION
BASE, ASSY WELD
HOUSINGASSY,SINGLE
DRAIN PAN
SWITCH ASSY, MICRO
SENSOR
CABINET
CONTROLBOX,SINGLE
PWB ASSY, MAIN
CAPACITOR
POS.N0 PARTNO
10-A 4H00442J
11-A 6631AQ3132U
12-A 5230AD3005A
13-A 6411A20001L
14-A 3530A10006F
15-A 3831A20016A
16-A 3551A30030A
17-A 4838A20005A
18-A 3096AR2871H
DESCRIPTION
CLAMP, CAPACITOR
CONNECTOR ASSY
FILTER, AIR
POWER CORD ASSY
GRILLE, FRONT
ESCUTCHEON
COVER ASSY, DISPLAY
TANK, BUCKET
SOUND PROOF
-11-

580.52650
CAUTION: When ordering parts, use the Kenmore part number not the position number.
CYCLE PARTS
POS. NO PART NO DESCRIPTION
1-B 4681A20034C
2-B 5900AD2013A
3-B 4H02861A
4-B 5403A20027D
5-B 5421A20046C
MOTOR ASSY, SINGLE
FAN ASSY, PROPELLER
FAN, NUT
CONDENSER ASSY
EVAPORATOR ASSY
-12-

580.52650
CAUTION: When ordering parts, use the Kenmore part number not the position number.
COMPRESSOR PARTS
1-O
2-C
3-c ¢"
4-C
5-C
6-C
7-0i
8-C
9-0
b
10-C
11-C
13-C
12-C
POS. NO PART NO DESCRIPTION
1-C 4H00947A
2-C 3550-CL001D
3-C 4970U-L002A
4-C 6750U-L035A
5-C 4986U-L001B
6-C 5416A90003A
7-C 1NHA0801206
8-C 4810AR4155A
9-C 4830A30005A
10-C 5211A20237A
11-C 5211A10070B
12-C 5211A10085B
13-C 3Q35015Q
NUT, TERMINAL COVER
TERMINAL COVER
SPRING, O.L.P
O.L.P
GASKET
COMPRESSOR
NUT, HEXAGON(I)
BRACKET, WASHER
BUSHING
TUBE ASSY, SUCTION
TUBE ASSY, DISCHARGE
TUBE ASSY, CAPILLARY
THERMISTOR ASSY
-13-
