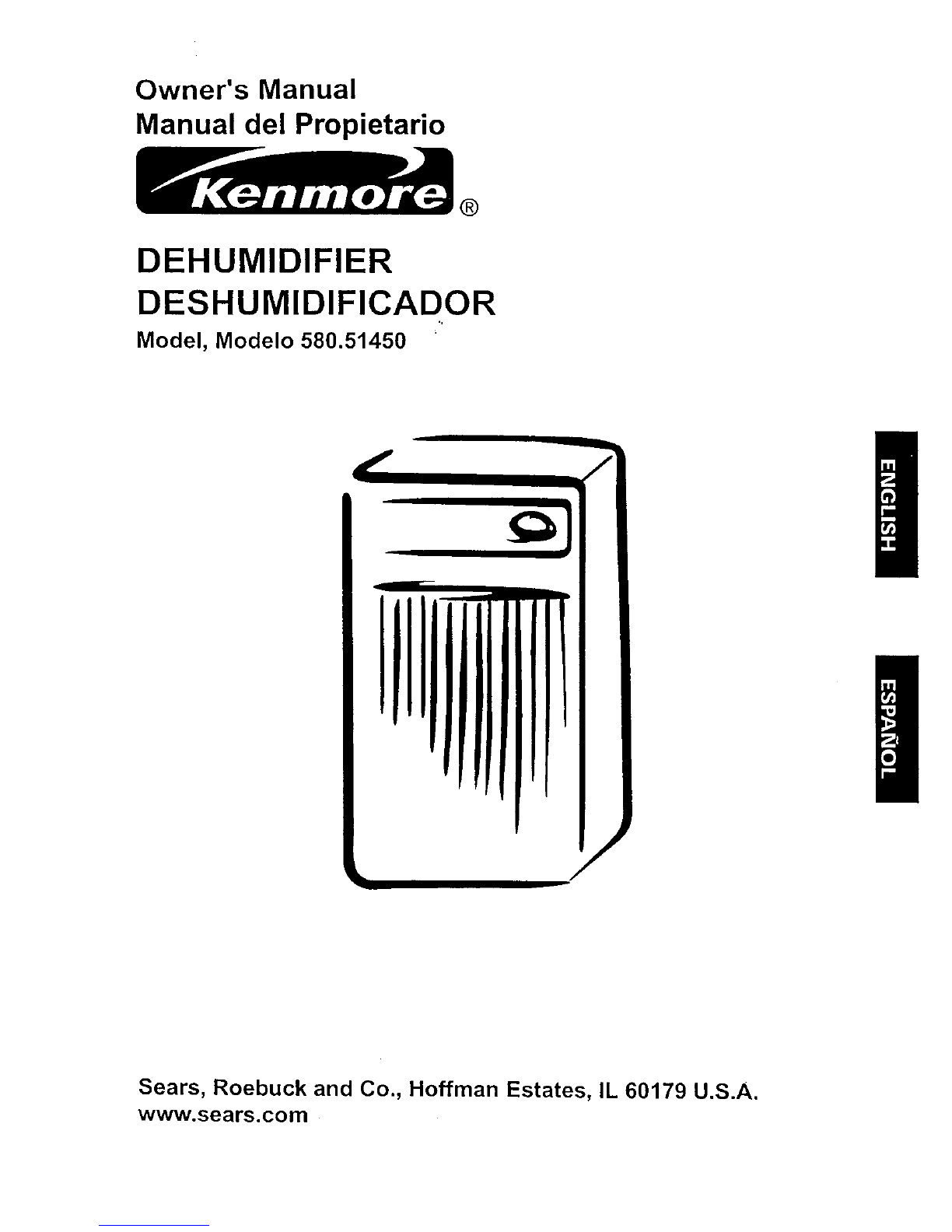

Owner's Manual
Manual del Propietario
®
DEHUMIDIFIER
DESHUMIDIFICADOR
Model, Modelo 580.51450
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

TABLE OF CONTENTS ................................ 2
WARRANTY .................................................. 2
SAFETY ........................................................ 3
Important Safety Instructions ...................... 3
ELECTRICAL REQUIREMENTS .................. 4
OPERATION ................................................. 5
Features ................................................. _5
Control Panel ........................................... 6
INSTALLING YOUR DEHUMIDIFIER .............. 7
Defrost control .......................................... 7
CHOQSlNG THE PROPER LOCATION ....... 7
AUTOMATIC SHUT OFF .............................. 8
REMOVING AND EMPTYING
THE WATER BUCKET .................................. 8
MAINTENANCE ............................................ 9
Grille and case ......................................... 9
Air filter ..................................................... 9
Cleaning inside the unit ............................ 9
General cleaning ...................................... g
Water bucket cleaning .............................. 9
TROUBLESHOOTING ................................ 10

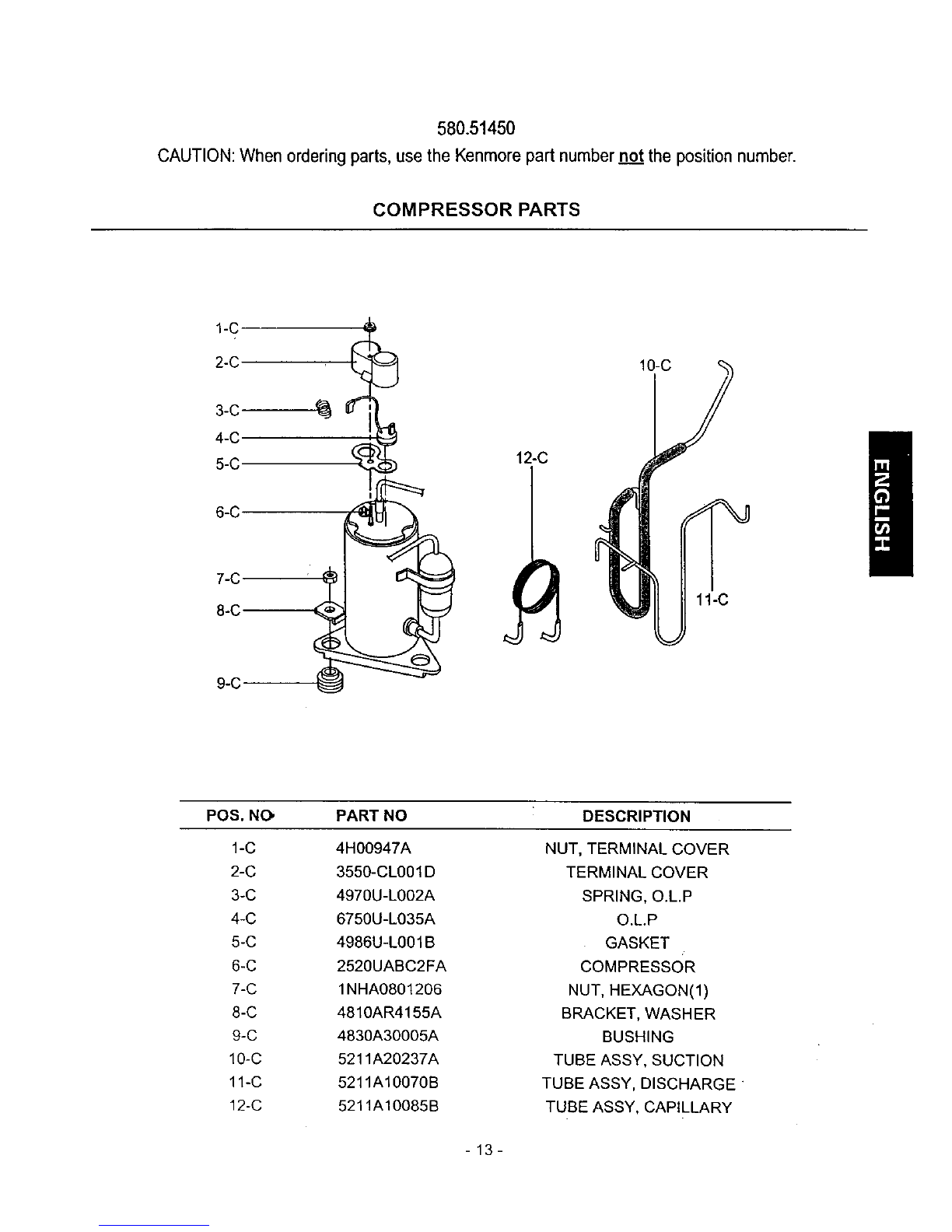

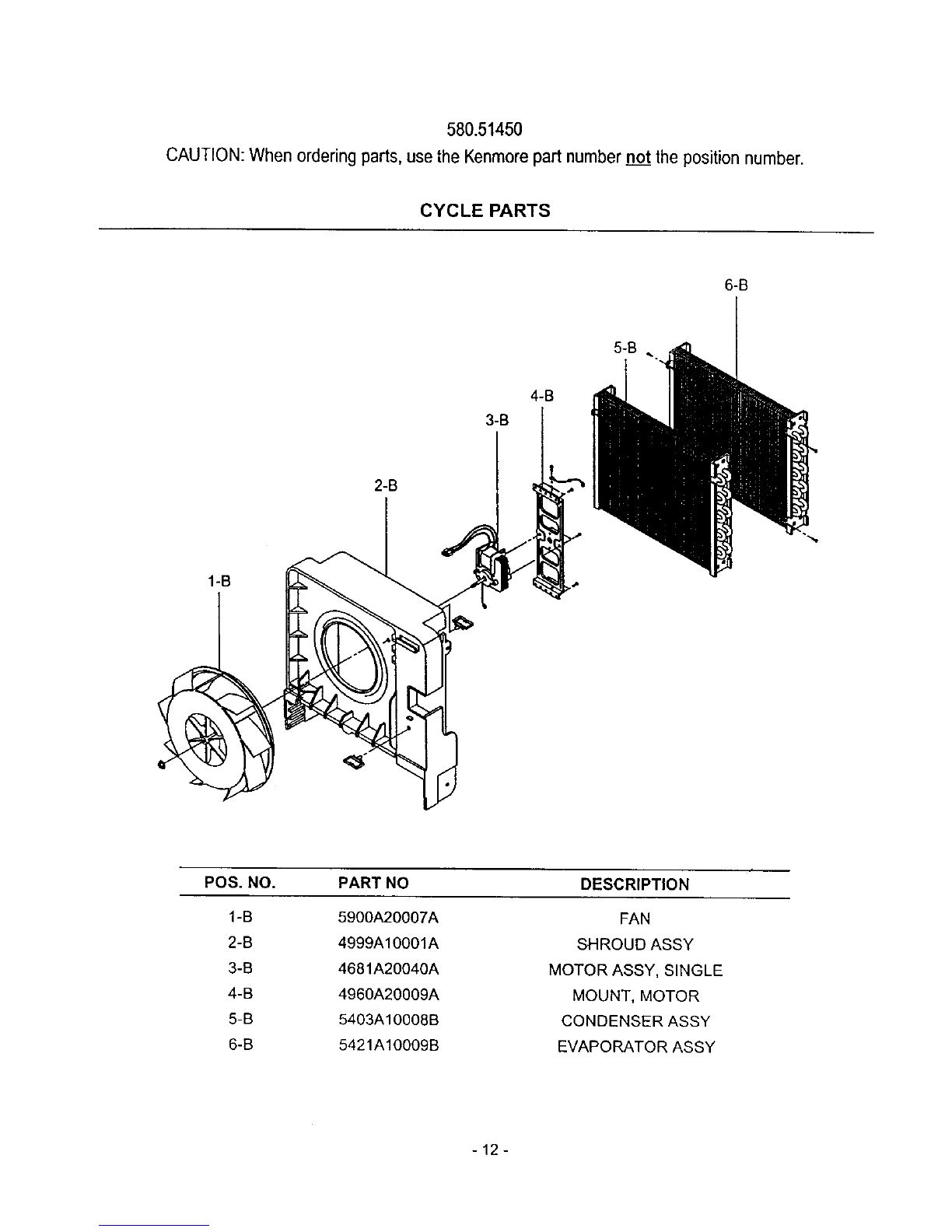

REPAIR PARTS .......................................... 11
ESPAI_IQL ................................................... 14
SERVICE NUMBERS ................... Back Cover
FULL ONE YEAR WARRANTY ON DEHUMIDIFIER
For one year from the date of purchase, if the Dehumidifier is operated and maintained
according to the owner's instructions furnished with the product, Sears will repair the
Dehumidifier free of charge, if defective in materials or workmanship.
FLILL FIVE YEAR WARRANTY ON SEALED
REFRIGERATION SYSTEM
For five yearsfrom thedateofpurchase,when thisDehumidifier is operatedand maintained according
toowner's instructionsfurnished withthe product, Sears willrepairthe sealed refrigerationsystem
(consistingofrefrigerant,connectingtubing,and compressormotor)free of charge, ifdefectivein
material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY RETURNING UNIT TO THE NEAREST SEARS
SERVICE CENTER IN THE UNITED STATES.
This warranty applies only while this Dehumidifier is used in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL 60179 U.&A.
-2-

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your dehumidifier to avoid harm to yourself
or damage to your dehumidifier.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance. Read product/'
labels for flammability and other warnings.
PREVENT ACCIDENTS
To reduce the risk of fire, electrical shock, or
injury to persons when using your
dehumidifier, follow basic precautions,
including the following:
•Be sure the electrical service is adequate for
the model you have chosen.
r_l_ Avoid fire hazard or electdc shock.
Do not use an extension cord or an adapter plug.
i Do not remove any prong from the power cord.
Grounding type
wall receptacle Do not under any
circumstances cut,
remove, or bypass
the grounding prong
from this plug.
Power supply cord I'l
with 3-prong
grounding plug
ELECTRICAL INFORMATION
The complete electrical rating of your new
dehumidifier is stated on the serial plate. Refer
to the rating when checking the electrical
requirements.
• Be sure the dehumidifier is properly
grounded. To minimize shock and fire
hazards, proper grounding is important. The
power cord is equipped with a three-prong
grounding plug for protection against shock
hazards.
• Your dehumidifier must be used in a properly
grounded wall receptacle. If the wall
receptacle you intend to use is not
adequately grounded or protected by a time
delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
•Do not use an extension cord or an
adapter plug. /
-3-

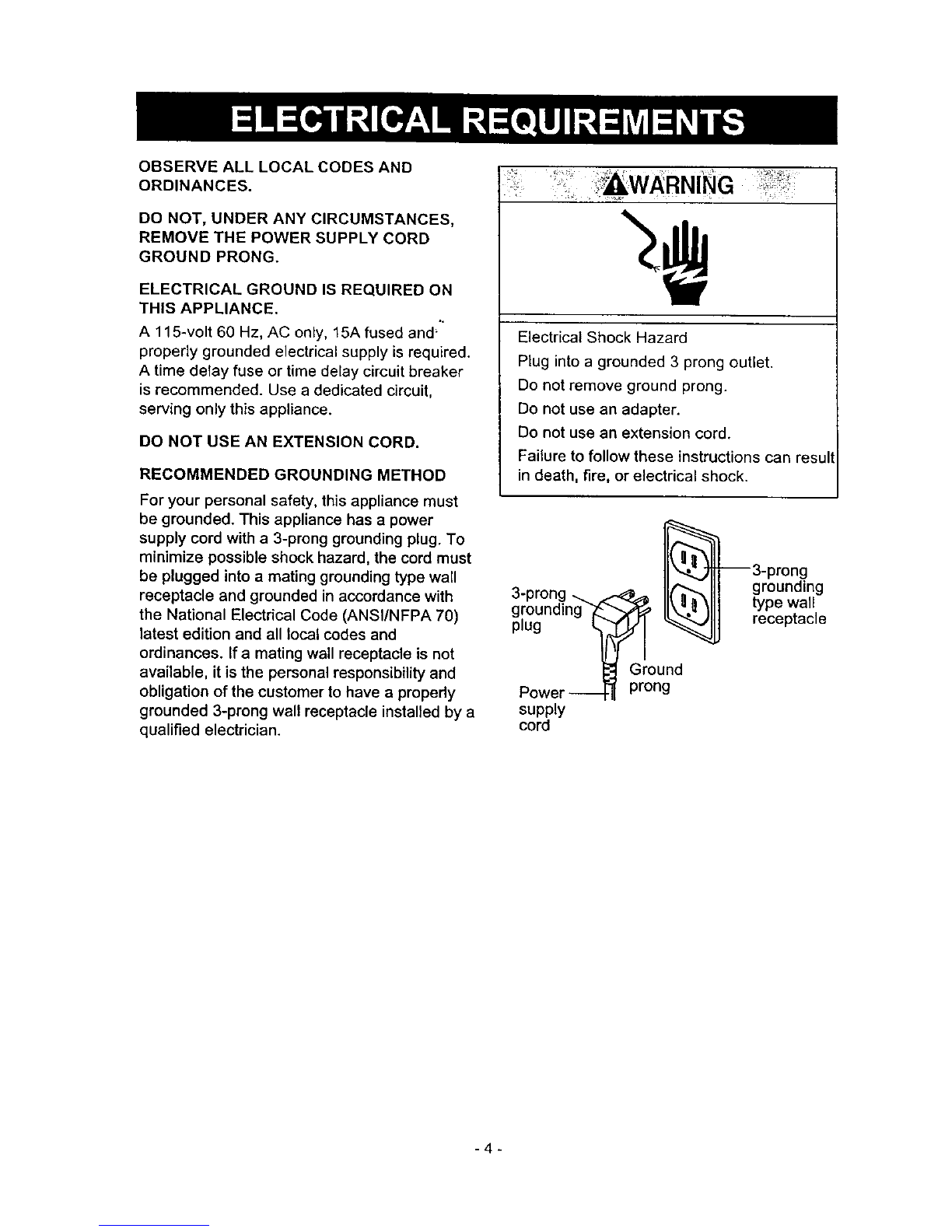

OBSERVE ALL LOCAL CODES AND
ORDINANCES.
DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVETHEPOWERSUPPLYCORD
GROUND PRONG.
ELECTRICAL GROUND IS REQUIRED ON
THIS APPLIANCE.
A 115-volt 60 Hz, AC only, 15A fused and'"
properly grounded electrical supply is required.
A time delay fuse or time delay circuit breaker
is recommended. Use a dedicated circuit,
serving only this appliance.
DO NOT USE AN EXTENSION CORD.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must
be grounded. This appliance has a power
supply cord with a 3-prong grounding plug. To
minimize possible shock hazard, the cord must
be plugged into a mating grounding type wall
receptacle and grounded in accordance with
the National Electrical Code (ANSI/NFPA 70)
latest edition and all local codes and
ordinances. If a mating wall receptacle is not
available, it isthe personal responsibility and
obligation of the customer to have a properly
grounded 3-prong walt receptacle installed by a
qualified electrician.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result
in death, fire, or electrical shock.
_]_ 3-prong
3- ron- - iif'--.- tit grounding
I1 , 111
Ground
Power _ prong
supply
cord
-4-

FEATURES
, _ AWARNING
To reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY
instructions sect on before operating this appliance.
1. CONTROL PANEL
2. GRILLE, FRONT
3. POWER CORD
4. CABINET
5. AIR FILTER
6. WATER BUCKET 2
-3
5
-5-

f
Q _1_ / . lli
BU ET HUMIDITY _p_ n_ e4 Hr.
FULL CONTROL o2Hr.
e Low
" S
CONTROL PANEL
Your dehumidifier control panel contains a Bucket Full indicator, a Humidity indicator, a Power
Control, Humidity Control, Fan Speed Control and Timer Control.
Bucket Full indicator --This lightglowswhenthewater bucketisfull and needsto be emptied.
Power --- Operation startswhenthisbuttonispressedand stopswhen the buttonis pressedagain.
Humidity Control -- Thiscontrols the humidityin theroom.
•,,_: To raisethe humiditysetting
• _: To lowerthe humiditysetting
• The humiditycanbe setwithina range of30% RH~70% RH by 5% increments.
Fan Speed --- Thiscontrolsthe speedof theairflow.
• High:Fan speed isset tohigh.
•Low:Fan speedissetto low.
•When Fan Speed buttonispressed,thefan speed mode is changed.
Timer Control -- Pressthe Timerbuttonto settheamountoftimeyou wantthe unit to run.
•The Timercanbe setfor: Constant,8 hour,4 houror 2 hour.
•When Timerbuttonispressed,the Timer indicator lightsshiftas follows:
Constant --) 2 hr.--) 4 hr. --)8 hr.--) Constant
TO OPERATE THE DEHUMIDIFIER:
1. Plugthe power cord intoan electrical outlet.Press the powerbutton.
2. Set the HumidityC_)ntrolanywherebetween30% RH and 70% RH for normaloperation.
If you need drier air, presstheOHumidityControl button.
Ifyou need tessmoister air,pressthe4S_ HumidityControlbutton.
3. Press thePower button to stopthe unitmanually.
4. Press theTimer button tosetthe amountoftimeyouwant the unit to run.
At the end ofthattime,the unitwillshutoff.
The Timer canbe set for :Constant,8 hours,4 hoursor 2 hours.
5. Ifyou want tocontrolthe speedofairflow,pressFan Speed button. Each timethatthe Fan Speed button
is pressed, the fan speed modeisshifted:High.--)Low .--)High
Note: Be careful not to lose the water bucket.
This dehumidifier doesn't run if the water bucket is not installed properly.
-6-

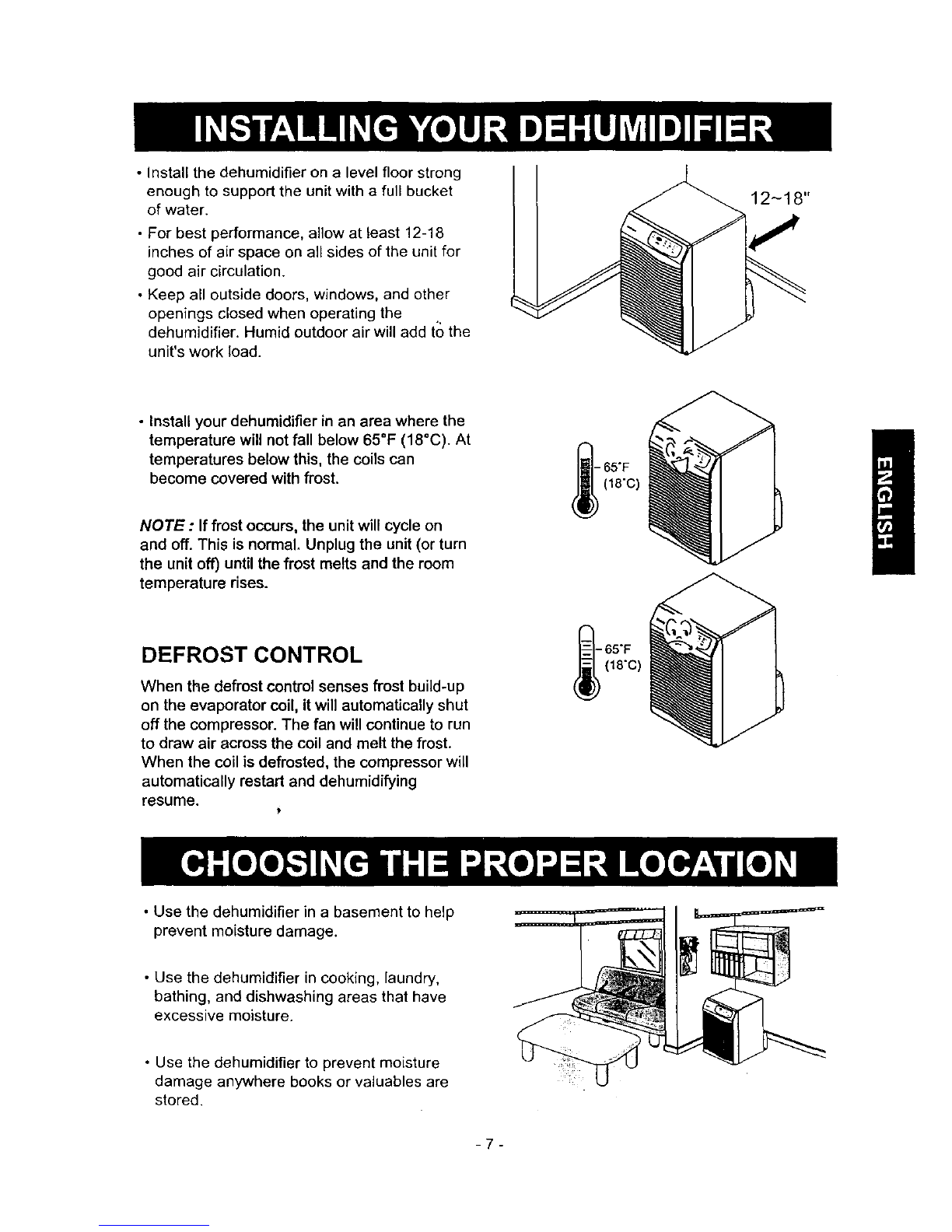

•Install the dehumidifier on a level floor strong
enough to support the unit with a full bucket
of water.
• For best performance, allow at least 12-18
inches of air space on all sides of the unit for
good air circulation.
• Keep all outside doors, windows, and other
openings closed when operating the
dehumidifier. Humid outdoor air will add to the
unit's work load.
12_18"
• Install your dehumidifier in an area where the
temperature will not fall below 65°F (18°C). At
temperatures below this, the coils can
become covered with frost.
NOTE: If frost occurs, the unit will cycle on
and off. This is normal. Unplug the unit (or turn
the unit off) until the frost melts and the room
temperature rises.
DEFROST CONTROL
When the defrost control senses frost build-up
on the evaporator coil, itwill automatically shut
off the compressor. The fan will continue to run
to draw air across the coil and melt the frost.
When the coil is defrosted, the compressor will
automatically restart and dehumidifying
resume.
(_- 65"F
(18"c)
-65°F
g8"c)
• Use the dehumidifier in a basement to help
prevent moisture damage.
• Use the dehumidifier in cooking, laundry,
bathing, and dishwashing areas that have
excessive moisture.
• Use the dehumidifier to prevent moisture
damage anywhere books or valuables are
stored.
-7-

Whenthebucketisfull,orwhenthebucketisnotintheproperposition,theBucketFulrlightturnson
andtheunitautomaticallyshutsoff.
Also,whenbucketisoutofposition,theunitwillbeep3times.
Thebucketmustbereplacedintheproperpositionforthedehumidifierto work.Thelightwill
beonandthedehumidifierwill notrunifthebucketisnotintheproperposition.
The water bucket can be emptied
Empty the bucket manually.
When the bucket is full,
remove and empty it into a
large sink or tub. When
finished, replace it properly.
NOTE: To replace the bucket
properly, make sure the
slots on the back of bucket
are positioned correctly.
in one of three ways:
Place the dehumidifier
directly over drain.
The bucket has a threaded
hose connection which can be
left open. Drill a 1/4" (6.4ram)
to 1/2"(13mm) hole in the
center of the hose connection.
Once opened, the hose
connection will continually
drain water from the bucket.
Attach a garden hose to the
threaded bucket drain hose
connection to carry water to
the drain. (HANDTIGHTENONLY)
When being attached to the
bucket drain hose connection,
be sure the hose doesn't kink
or bend. It should lie fiat from
the dehumidifier to the drain.
-8o

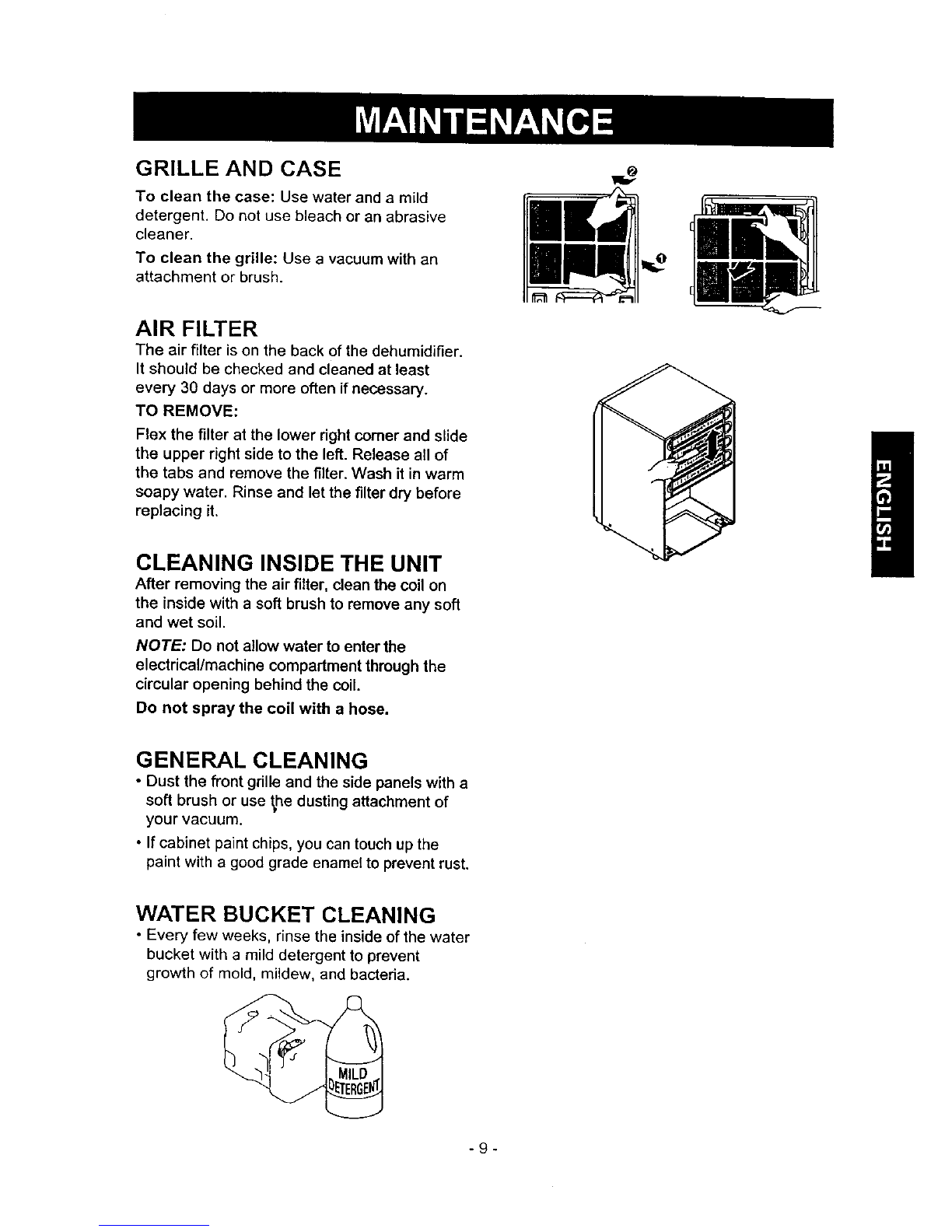

GRILLE AND CASE
To clean the case: Use water and a mild
detergent. Do not use bleach or an abrasive
cleaner.
To clean the grille: Use a vacuum with an
attachment or brush.
AIR FILTER
The air filter is on the back of the dehumidifier.
It should be checked and cleaned at least
every 30 days or more often if necessary.
TO REMOVE:
Flex the filter at the lower right corner and slide
the upper right side to the left. Release all of
the tabs and remove the filter. Wash it in warm
soapy water. Rinse and let the filter dry before
replacing it.
CLEANING INSIDE THE UNIT
After removing the air filter, clean the coil on
the inside with a soft brush to remove any soft
and wet soil.
NOTE: Do not allow water to enter the
electrical/machine compartment through the
circular opening behind the coil.
Do not spray the coil with a hose.
/
GENERAL CLEANING
• Dust the front grille and the side panels with a
soft brush or use the dusting attachment of
your vacuum.
•If cabinet paint chips, you can touch up the
paint with a good grade enamel to prevent rust.
WATER BUCKET CLEANING
• Every few weeks, rinse the inside of the water
bucket with a mild detergent to prevent
growth of mold, mildew, and bacteria.
-9-

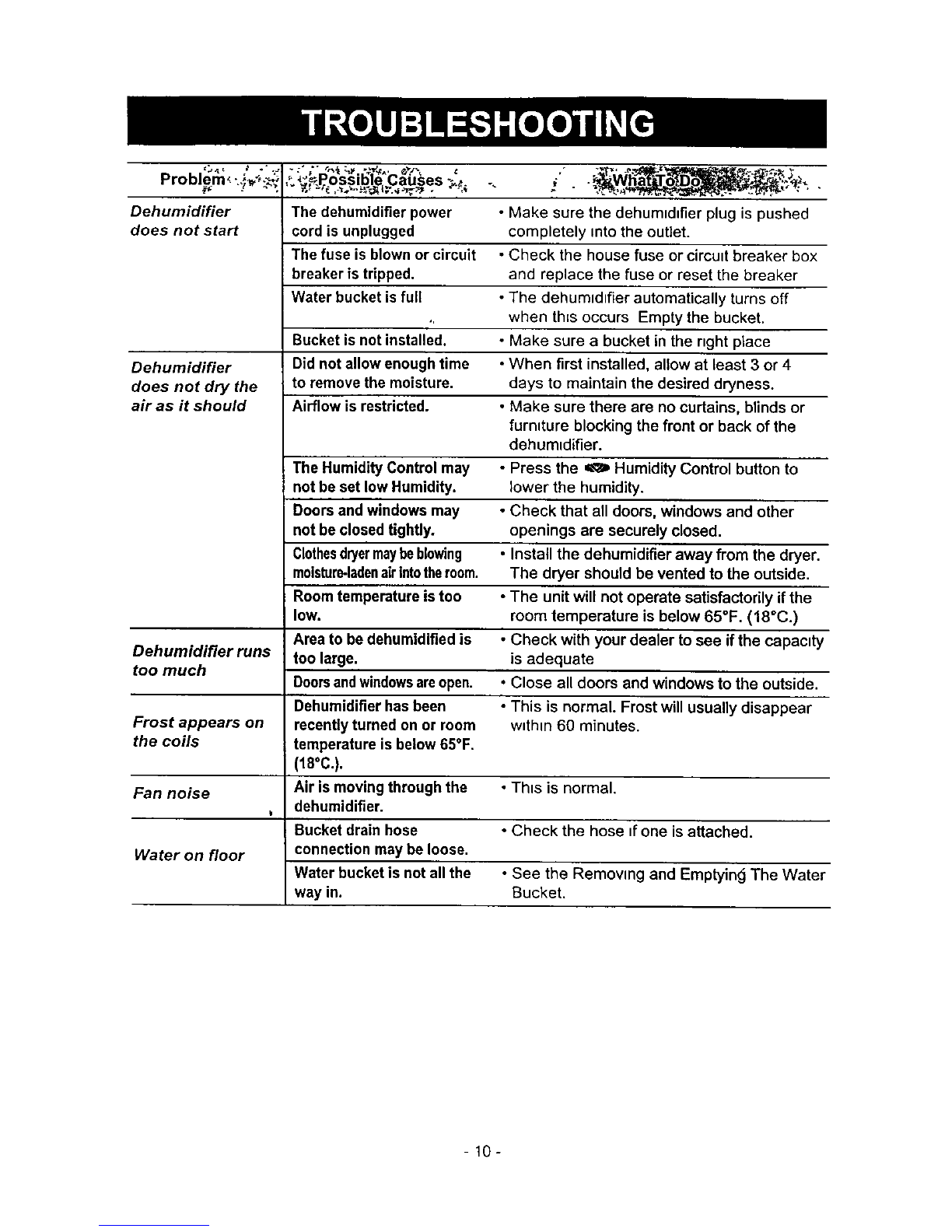

,_ _Possuble Causes >_ _ . ._,wnat- o Do -- _'_,,_._.
Problem<..:i_, v,,=_,-_.,--._-_m,_ - ,_ " -,,_:,_,_...... ..,r,-'_.,,_ • ' "
Dehumidifier The dehumidifier power •Make sure the dehumidifier plug is pushed
does not start cord is unplugged completely into the outlet.
The fuse is blown or circuit • Check the house fuse or circuit breaker box
breaker is tripped, and replace the fuse or reset the breaker
Water bucket is full •The dehumidtfier automatically turns off
when th_s occurs Empty the bucket.
Bucket is not installed. •Make sure a bucket in the right place
Dehumidifier Did not allow enough time •When first installed, allow at least 3 or 4
does not dry the to remove the moisture, days to maintain the desired dryness.
air as it should Airflow is restricted. •Make sure there are no curtains, blinds or
furniture blocking the front or back of the
dehumidifier.
The Humidity Control may oPress the O Humidity Control button to
not be set low Humidity. lower the humidity.
Doors and windows may • Check that all doors, windows and other
not be closed tightly, openings are securely closed.
Clothesdryermaybeblowing • Install the dehumidifier away from the dryer.
moisture-ladenairIntotheroom. The dryer should be vented to the outside.
Room temperature is too •The unit will not operate satisfactorily if the
low. room temperature is below 65°F. (18°C.)
Area to be dehumidified is • Check with your dealer to see if the capacity
Dehumidifier runs too large, is adequate
too much Doorsandwindowsareopen. •Close all doors and windows to the outside.
Dehumidifier has been •This is normal. Frost will usually disappear
Frost appears on recently turned on or room within 60 minutes.
the coils temperature is below 65°F.
(18°C.).
Fan noise Air is moving through the • This is normal,
dehumidifier.
Bucket drain hose • Check the hose if one is attached.
Water on floor connection may be loose.
Water bucket is not all the • See the Removing and Emptyin_ The Water
way in. Bucket,
-10-

Dehumidifier To order Parts call Toll Free
Model No. 580.51450 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, no__.ttthe illustration number.
OUTER CASE PARTS AND CONTROL PART
14-A
10-A 11-A
4-A
13-A
POS,NO PARTNO DESCRIPTION POS.NO PARTNO DESCRIPTION
1-A 3041AD2007C
2-A 4791A10002A
3-A 6600A30003C
4-A 3090A10001J
5-A 6877A30013B
6-A 4994A20012A
7-A 6871A10016A
8-A 0CZZA20001Q
BASEASSY,WELD[SINGLE]
BARRIER, ASSY
SWITCH ASSY, MICRO
CABINET
LEAD WIRE ASSY
CONTROLBOX,SINGLE
PWB ASSY, MAIN
CAPACITOR
10-A 6631AQ3132U
11-A 5230AD3005A
12-A 3530A10006F
13-A 4838A20005A
14-A 3831A20016A
15-A 3551A30030A
CONNECTOR ASSY
FILTER, AIR
GRILLE, FRONT
TANK, BUCKET
ESCUTION
COVER ASSY, DISPLAY
9-A 4H00442J CLAMP, CAPACITOR
-11-

580.51450
CAUTION:Whenorderingparts,usetheKenmorepartnumberno._ttthe positionnumber.
CYCLE PARTS
6-B
4-B
3-B
POS. NO. PART NO DESCRIPTION
1-B 5900A20007A FAN
2-B 4999A10001A SHROUD ASSY
3-B 4681A20040A MOTOR ASSY, SINGLE
4-B 4960A20009A MOUNT, MOTOR
5-B 5403A10008B CONDENSER ASSY
6-B 5421A10009B EVAPORATOR ASSY
-12-

580.51450
CAUTION:Whenorderingparts,use the Kenmorepartnumbernot the positionnumber.
COMPRESSOR PARTS
10-C
11-C
POS. NO, PART NO DESCRIPTION
1-C 4H00947A NUT, TERMINAL COVER
2-C 3550-CL001 D TERMINAL COVER
3-C 4970U-L002A SPRING, O.L.P
4-C 6750U-L035A O.L.P
5-C 4986U-L001 B GASKET
6-C 2520UABC2FA COMPRESSOR
7-C 1NHA0801206 NUT, HEXAGON(I)
8-C 4810AR4155A BRACKET, WASHER
9-C 4830A30005A BUSHING
10-C 5211A20237A TUBE ASSY, SUCTION
11-C 5211A10070B TUBE ASSY, DISCHARGE "
12-C 5211A10085B TUBE ASSY, CAPILLARY
-13-
