I!i_
Safety instructions ........................................................ 2
What Your Dishwasher Needs to Do Its Job .............. 3
Important Parts of Your Dishwasher ........................... 4
Special Tips .................................................................... 5
Proper Loading ........................................................ 6,7,8
Detergent and Rinse Agent Dispensers ...................... 9
Portable Dishwasher Information ......................... 10,11
Door Panels .................................................................. 11
User Maintenance Instructions ............................. 12,13

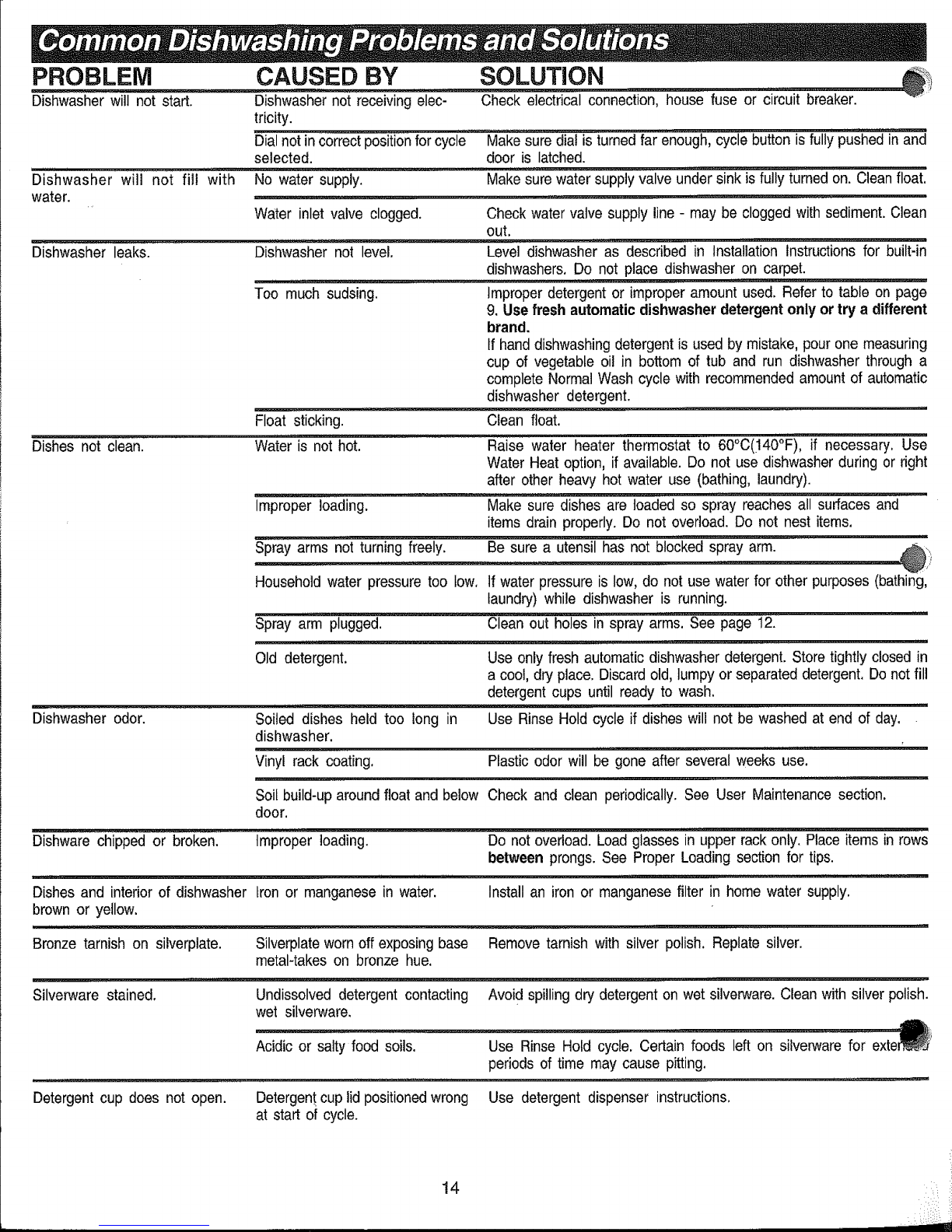

Problems and Solutions ........................................ 14,15
Sears Service, Warranty ............................... Back Cover
Read and Save These instructions
Model and Serial
Number Plate
Fig in these spaces:
Model No.-
Serial No.:
Purchase Date:

WARNING: Please follow basic precautions, including the following:
Read al! INSTRUCTIONS before using DO NOT touch heating element during
dishwasher, or immediately after use. Allow time to
cool.
CZC]___
@
For best results use fresh granular au-
tomatic dishwashing detergent and a
rinse agent recommended for use in a
dishwasher.
Load sharp or pointed tableware with
handles up (points down) to avoid injury
when reaching into dishwasher.
Store detergents in a cool, dry place Load sharp items and knives so they
OUT OF CHILDREN'S REACH. won't damage door seal.
DO NOT tamper with controls. DO NOT sit or stand or abuse
dishwasher door or dishracks.
DO NOT operate dishwasher unless all
enclosure panels are properly in place. DO NOT allow children to play in or on
dishwasher.
ALWAYS disconnect electrical power
to dishwasher before attempting to
service. When discarding old dishwasher,
ALWAYS remove door to prevent
accidental entrapment.
REMEMBER, use dishwasher for
intended function only.
DO NOT wash plastic items unless
marked "Dishwasher Safe" or equiva-
lent. If unmarked, check manufacturer's
recommendations.
To avoid risk of electrical shock, the
dishwasher must be electrically
grounded before it is operated.
WARNING: Under certain conditions,
hydrogen gas may build up in a hot
water system that has not been used for
two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. To prevent injury or
damage, before using dishwasher, turn
on all hot water faucets and allow water
to run for several minutes. This will allow
gases to escape. As the gas is
flammable, DO NOT smoke or use an
open flame near faucets while they are
open.
Built-In models - see Installation
Instructions book.
Portable models-see portable
dishwasher information included in
this book.
DO NOT install dishwasher on carpeted
floor.
Save These instructions

Hot Water
o Hot water isneeded for best dishwashing and drying results. Before starting
the dishwasher, turn on the hot water faucet nearest the dishwasher to clear
cool water from the pipe.
Water supplied to dishwasher must be at least !20°F (49°C)o Improved
performance may be obtained by raising water temperature to 140°F (60°C).
Check water heater for proper temperature setting. Check hot water tem-
perature at sink faucet with candy or meat thermometer. Caution: Water
temperature should not exceed 160°F (71 °C).
Do not operate dishwasher during or right after other heavy use of hot water,
such as laundry or bathing.
Some models are equipped with a Water Heat option which will bring water
to the proper washing temperature. Cycle time will be extended while water
is heating. For example, incoming water temperature of 120°F (49°C) will add
20-30 minutes washing time to heat water.
Water Pressure
Water supply pressure must be between 15 and 120 pounds per square inch. To
determine if you have enough pressure, put a gallon container under fully
opened hot water faucet nearest dishwasher. If container fills in less than 14
seconds, water pressure is within an acceptable range. Be sure all other faucets
are turned off during this test. NOTE: Motor sounds will be heard when water
enters the dishwasher.
Water Conditions
In areas where water is very hard (12 grains or more), it may be necessary to
install a water softener to assure proper performance from your dishwasher. If
you do not know the hardness of your water supply, contact your local water
or bring a sample into your Sears store for testing.
Detergents
use of fresh granular automatic dishwasher detergent is recommended
in the amount sufficient for your water condition. NEVER use laundry detergents,
liquid soaps or other household cleaners in your dishwasher. Some detergents
be more effective with your water conditions than others. Refer to the table
page 9 for the correct amount of detergent according to your water condition.
detergent in a cool, dry place. Follow label instructions for liquid dishwasher
etergents.
Rinse Agents
agents are designed to make water sheet off glasses, dishes, and
to prevent spotting and speed up the drying process. For best results,
rinse agent dispenser approximately once a month, or if your model does
liquid rinse agent dispenser, use the solid form rinse agent and replace
empty. (For more information, see page 9).
3

Themodelyouhaveselectedmaynothaveallfeaturesshown.
ThirdLevelSprayArm--------------
LowerSprayArm
"......"""IIIIII
t', re-1 _
Automatic Filter
Left Side View
m
i
m
E
Upper Rack
Upper Spray Arm
.I.1. Lower Rack
.....---
..._--
_ Heating Element
Door Spring
m
Door Latch
.. _ Control Panel \Detergent Dispenser
\ Rinse Agent
Dispenser
Door Panel _,,,_,,,_llJliii=lli_l_l___ _"_.
(°pti°nalc°l°rpanels) f7 ...i/...__........ _'_--_\
j Access Panel
/(optional color panels)/i/_// _ _ _\
Front View inner Door
NOTE" Your dishwasher has been shipped with a pink protective film over the door and access panel trim. For
best appearance of your new dishwasher, make sure this film has been removed.
4

Mostutensilsanddishwarecanbe safelywashedinyourdishwasher.
However,somematerialsmayrequirespecialhandling.
ALUMINUM:Somedarkeningmaytakeplace.Coloredaluminummay
fade.Donotplacealuminumitemsdirectlyinfrontofdetergentcupswhere
contactwith undissolveddetergentcould cause pitting, spottingor
discoloration.
CASTIRON: Castironutensilsshouldbe handwashed.
CRYSTAL:Loadcarefullyinupperrackonly.Topreventchipping,items
shouldnottouch.Handwashdelicateitems.UseCoolDryoptionfor
crystalitems.
FLATWARE: Sterling,silverplateand stainlesssteel are normally
dishwashersafe.Donotmixsilverandstainlessorthefinishesmaybe
damaged.Flatwarewith darkdecorativeshadingand!ornon-metallic
handlesshouldbehandwashed.
PEWTER: Pewter or pewter-like materials should be hand washed.
PLASTIC: Plastic items should be placed in upper rack only to
eliminate the possibility of distortion by the heating element. Wash
only those items marked "Dishwasher Safe."
WOOD: Wooden items should be hand washed.
Antique, hand painted china and those with gold or platinum trim
be hand washed.

Dishesdonotneedto bepre-rinsedbeforeloading.Simplyscrapeawayexcessfood,bones,pits,etc.Burned-on
foodshouldbeloosenedbeforeloading.Emptyliquidsfromglassesandcups.
Always load dishes so spray reaches soiled surfaces. Water must drain off completely for best results.
Lower Rack
• Make sure pot handles and other items do not
stop rotation of spray arms or block center wash
tower from extending upward.
• Load cookie sheets, cake pans and other large
items at sides. Do not block the detergent dis-
penser.
°Items should be loaded with soiled surfaces facing
inward.
• Place plates, soup bowls, etc. between prongs
and facing inward.
o Place heavily soiled cookware in lower rack.
24" Models 24" Models
42
Tower Models
NOTE: On tower models, do not block the center
area of lower rack when loading. The center wash
tower extends through this area. Blockage may
result in poor cleaning. (Select models)
Do not block center area.

Upper Rack
•Glassware should not touch other items. Damage
may occur.
o Place items in rows between prongs. Putting items
over prongs could cause breakage and wear of vinyl
rack coating.
• Load plastic items in upper rack only. They may melt
in lower rack. Wash only items marked "Dishwasher
Safe."
18" Models
o Be sure lightweight items are held firmly in place.
,, Load glasses and cups in upper rack only in rows
between prongs. Breakage may occur if loaded in
lower rack.
,, Small bowls, pans and other utensils can be placed
in upper rack.
°Place open ends face down for cleaning and drain-
ing.
Fold Down Fence
Available on some models
A nylon coated fence in the upper rack can be positioned
to allow loading versatility, To load glasses, lift fence and
slide toward front of dishwasher into locking position. To
load plates and bowls, slide fence toward back of
dishwasher and fold down.
24" Models
Fold Down Shelf
Available on some models
A shelf on the side of the upper rack can be folded down
over short items (juice glasses, cups, etc.) for more
loading space.
7

Utensil Basket
Available on some models.
Lift lids and snap gates flat against sides to load long
knives and utensils.
Close gates at each end to form compartments to
hold small items such as baby bottle nipples or
measuring spoons. Snap lids shut.
If your dishwasher does not have this basket, it can be
ordered from Sears Service Center-Part No. 809105.
Silverware Basket
Load silverware so items are mixed in each section
and do not "nest" together. Water spray cannot
clean nested items.
o Be sure no items protrude through holes in basket
or extend high enough to stop rotation of spray
arms.
° Load sharp items with points down.
•• •_•• • ••_••••••••_/••_••,_•_••_•_••,••••__••ii!i!•!ii_i•_!i!•¸i_i••i_i!iiilii_!_
How to Add an item During a Cycle
You can add items anytime before the wash portion of the cycle.
° Make sure there is a full cycle yet to be completed.
,, Unlatch door to stop cycle.
Open door and add item.
Latch door to resume cycle.

Donotadddetergentuntilyouarereadyto startthe
cycle.Usefreshgranularautomaticdishwasherdeter-
gent.
Thedispenserwillautomaticallyreleasedetergentat
thecorrecttimesduringthecycle.
Light Wash Cycle
1. Fill cups #1 and #3.
2. Turn lid counterclockwise to covercups #1 and #3
completely.
3. Do not fill open cups #2 and #4.
Normal Wash, Pots Pans, and Water Miser Cycles
1. Fill cups #1 and #3.
2, Turn lid counterclockwise to cover cups #1 and #3
completely.
3. Fill open cups #2 and #4_
IMPORTANT: Always turn lid to cover cups #1 and #3 completely before starting dishwasher. Cups #2 and
#4 will be open. For best dishwashing results, use proper amount of detergent according to your water
condition. Refer to table shown below.
Cycles Soft water
(o to 3 grains)
Light Wash
.n
tVloderately
Hard Water
(4 to 8grains)
Normal Wash
Pots Pans
Water Miser
1 tablespoon in
cup #1
1 tablespoon in
cups #1 and #2
Fill cup #1
Fill cups #1 and #2
To prevent water spotting and to speed drying, we
recommend the use of a rinse agent.
Hard Water
(9 to 12 grains)
i
Fill cups #1
and #3
Fill all four cups
Very Hard Water
(over 12 grains)
__r ....................
Detergent alone may
not be enough.
Water softener
recommended.
Detergent aJone may
not be enough.
Water softener
recommended.
The model you have selected may have a liquid rinse
agent dispenser. To fill:
•Turn dispenser cap turn counterclockwise and lift
out.
Pour in rinse agent until liquid touches white cross
at bottom of fill opening. Re-insert cap.
- Refill the rinse agent dispenser approximately once
a month.
For models without arinse agent dispenser, you may
use the solid form. To use:
° Clip basket of solid rinse agent onto front corner of
the upper rack.
Hang basket inside rack.
° Replace immediately when empty. 9
!i
f

important: Always be sure door is latched before moving dishwasher.
The power cord, faucet coupler and hoses are located in a covered
compartment on the top back of the dishwasher.
A special adapter (included) must be installed on the faucet before you can
connect the dishwasher.
1. Remove adapter from coupler by pressing down on the collar (see
Figure B). Washer
2. Unscrew the sink faucet aerator.
3. Check faucet spout to see if threads are inside or outside. Adapter
•If threads are inside, screw adapter onto faucet spout along
with washer. Figure A
-tf threads are outside, remove threaded bushing from
adapter and screw adapter onto faucet spout.
Only
Connecting the Portable Dishwasher
1. Run water at faucet until it is hot. Turn faucet off.
2. Pull hoses out of covered compartment.
3. Push collar down and slip faucet connector onto faucet adapter.
4. When connector snaps into place, release collar.
5. Slowly turn hot water all the way on.
6. Plug power cord into grounded outlet.
Faucet
Adapter
Disconnecting the Portable Dishwasher
1. When cycle has finished, turn off hot water.
2. Press red button on coupler to release water pressure.
3. Press down on collar to release coupler.
4. Empty remaining water from coupler and return it to
compartment.
5. Unplug power cord and return it to covered compartment.
Collar
Red
covered Button
CAUTION: A sink spray hose can burst due to constant water pressure Fig ure B
while the dishwasher is being used. if installed on the same water line
as the dishwasher, disconnect sink spray hose and plug hole.
Electrical Connection for a Portable Dishwasher 3-Prong Polarized
An electrical supply of 120 volts, 60 Hz, AC only, 15 amps is required. For Grounding Plug
your personal safety, the dishwasher must be grounded. In the event of a
malfunction or breakdown, grounding will reduce the risk of electrical shock
by providing a path of least resistance for electrical current. This appliance
has a power cord with a 3-prong polarized grounding plug. It must be
plugged into a mating 3-prong grounding type receptacle (see Figure C),
installed and grounded in accordance with the National Electrical Code and
local codes and ordinances.
DANGER: Improper connection of the power cord can result in a risk of
electrical shock. Check with a qualified electrician if you are in doubt as to
whether the appliance is properly grounded. DO NOT modify the plug
provided with the dishwasher. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
•DO NOT use an extension cord.
®DO NOT remove the power cord grounding prong.
Cord
3-Prong
Grounding Type
Receptacle
Figure C
10
