Kenmore 120-volt portable electric dryers Operating instructions

Owner's Manual and
Installation Instructions
120-Volt
PORTABLE
®
ELECTRIC DRYERS
imrmm
m. mm_m
mm_l
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PART NO. 3406895 PRINTED IN U.S.A.

BEFORE USING YOUR NEW DRYER 2
SEARS PORTABLE ELECTRIC DRYER WARRANTY 3
IMPORTANT SAFETY INSTRUCTIONS 4
INSTALLATION INSTRUCTIONS 5
OPERATING YOUR DRYER 18
LAUNDRY TIPS ...... 21
CARING FOR YOUR DRYER 23
TROUBLESHOOTING ........ 26
SEARS MAINTENANCE AGREEMENT 28
Please read this manual, It will help you
install and operate your new Kenmore
portable dryer in the safest and most
economical way.
For more information about the care
and operation of Kenmore appliances call
your nearest Sears store. You will need
the complete model and serial numbers
when requesting information, Your dryer's
model and serial numbers are located on
the Model and Serial Number Plate.
Use the space below to record the
model number and serial number of
your new Kenmore portable dryer,
Model No.
Serial No ....
Date of Purchase
Keep this book and your Sears
Salescheck (receipt) in a safe place for
future reference.

OneYearWarrantyon Y "
Mechanicaland Electrical Parts Warranty service is available by
For one year from the date of purchase, contacting your nearest Sears
if this dryer is installed and operated Service Center in the United States.
according to the instructions in this
manual, Sears will repair or replace
any of its mechanical or electrical
parts if they are defective in material
or workmanship,
NOTE: Exhausting your dryer with
plastic product may void this warranty.
Pages 13-16 of this manual describe
the complete exhaust requirements
for this dryer.
This warranty applies only while this
dryer is used in the United States.
This warranty gives you specific legal
rights, and you may also have other
rights which vary from state to state.
Sears, Roebuck and Co., Dept.
817WA, Hoffman Estates, IL 60179.
Your safety and the safety of others is very important.
We have provided many importantsafety messages in this manual and
on your appliance, Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts
you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word "DANGER" or "WARNING."
These words mean:
You will be killed or seriously
injured if you don't follow
instructions.
You can be killed or seriously
injured if you don't follow
instructions.
All safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are
not followed.

YOURSAFETYISIMPORTANTTOUS.
WARNING:To reduce the risk of fire,
electric shock, or injury to persons when
using your dryer, follow basic precautions,
including the following:
•Read all instructions before using
the dryer.
• Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable or explosive
substances as they give off vapors that
could igniteor explode.
• Do not allow children to play on or in
the dryer. Close supervision of children is
necessary when the dryer is used
near children,
• Before the dryer is removed from service
or discarded, remove the door to the
drying compartment.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store this dryer where
it will be exposed to the weather,
•Do not tamper with controls.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in the Owner's
Manual or in published user-repair
instructions that you understand and have
the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended by
the manufacturer of the fabric softener or
product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each load.
• Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the machine and exhaust
duct should be cleaned periodically by
qualified service personnel.
SAVE THESE INSTRUCTIONS
IIMPORTANT: Observe all governing codes and ordinances. I

INSTALLATION OVERVIEW
For a complete list of tools and parts
needed, see pages 5-7.
A. SELECT LOCATION FOR YOUR DRYER (pgs. 8-18)
Standard Installation (p. 8)
B. INSTALL CORD BRACKETS (p, 11)
Recessed Areal
Closet Installation Instructions (p. 9)
r----
Tools Needed: Parts Needed:
#2 Phillips head_
screwdriver
Flashlight (optionaI
depending on installation) 2cord brackets (suppliedwith dryer)

C.INSTALL CASTERS (p. 11)
Tools Needed: PaNs Needed:
A_u_able
w_nch
Fl._,llight (optional
depending on installation) 4 casters (supplied with dryer)

D. INSTALL KNOBS (p. 11)
PUSH TO START
L-----q
Parts Needed:
2 knobs (supplied with dryer) @
CYCLE SELECTOR

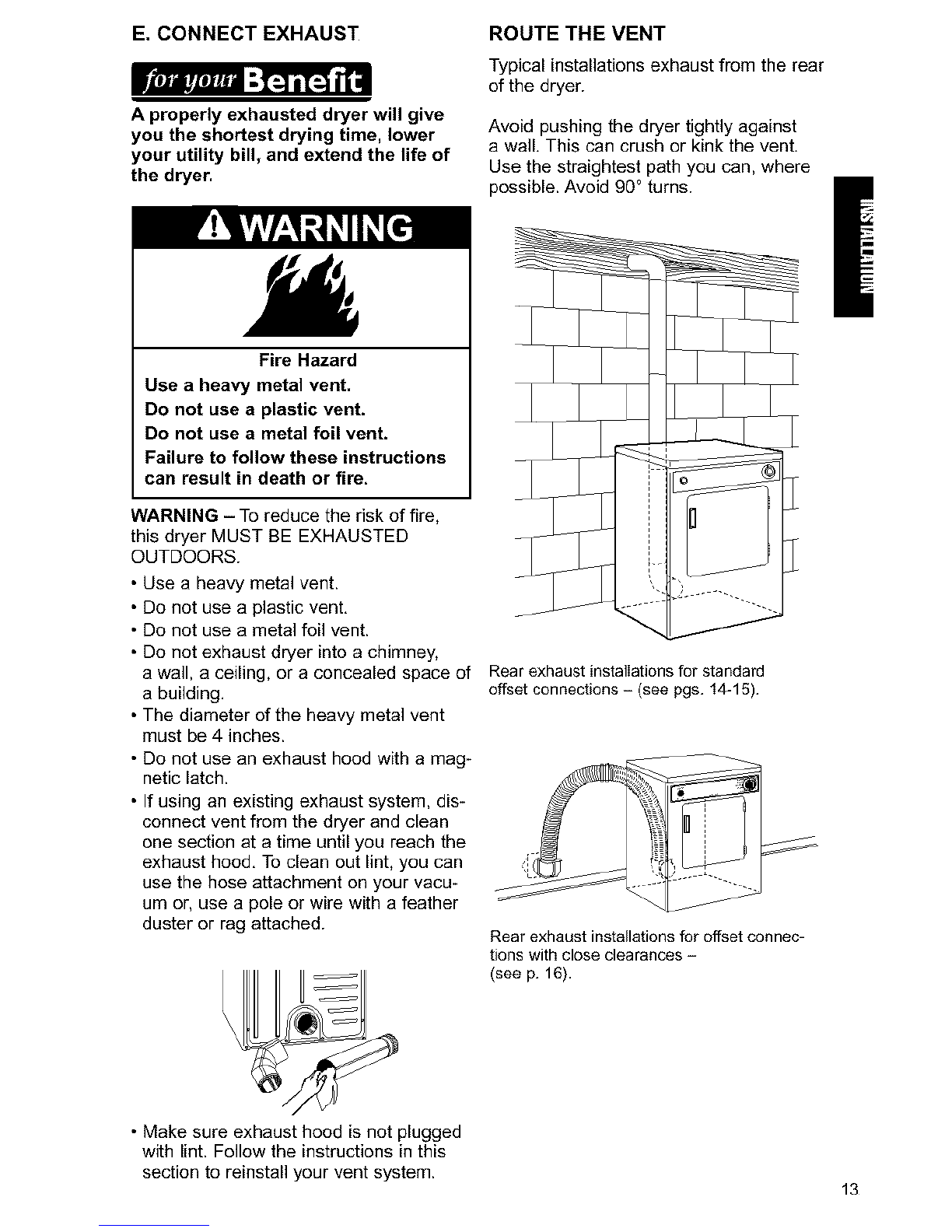

E. CONNECT EXHAUST (pgs. 13-16)
Tools Needed: Parts Needed:
Tin snips Duct tape
Flashlight
(optional depending
on installation)
Flat-bladed
screwdriver
4-Inch rigid
or flexible heavy
metal vent
4-Inch outlet
exhaust hood
4-Inch metal elbow(s)
(optional depending
on installation)
(4) 4-Inch
diameter clamps

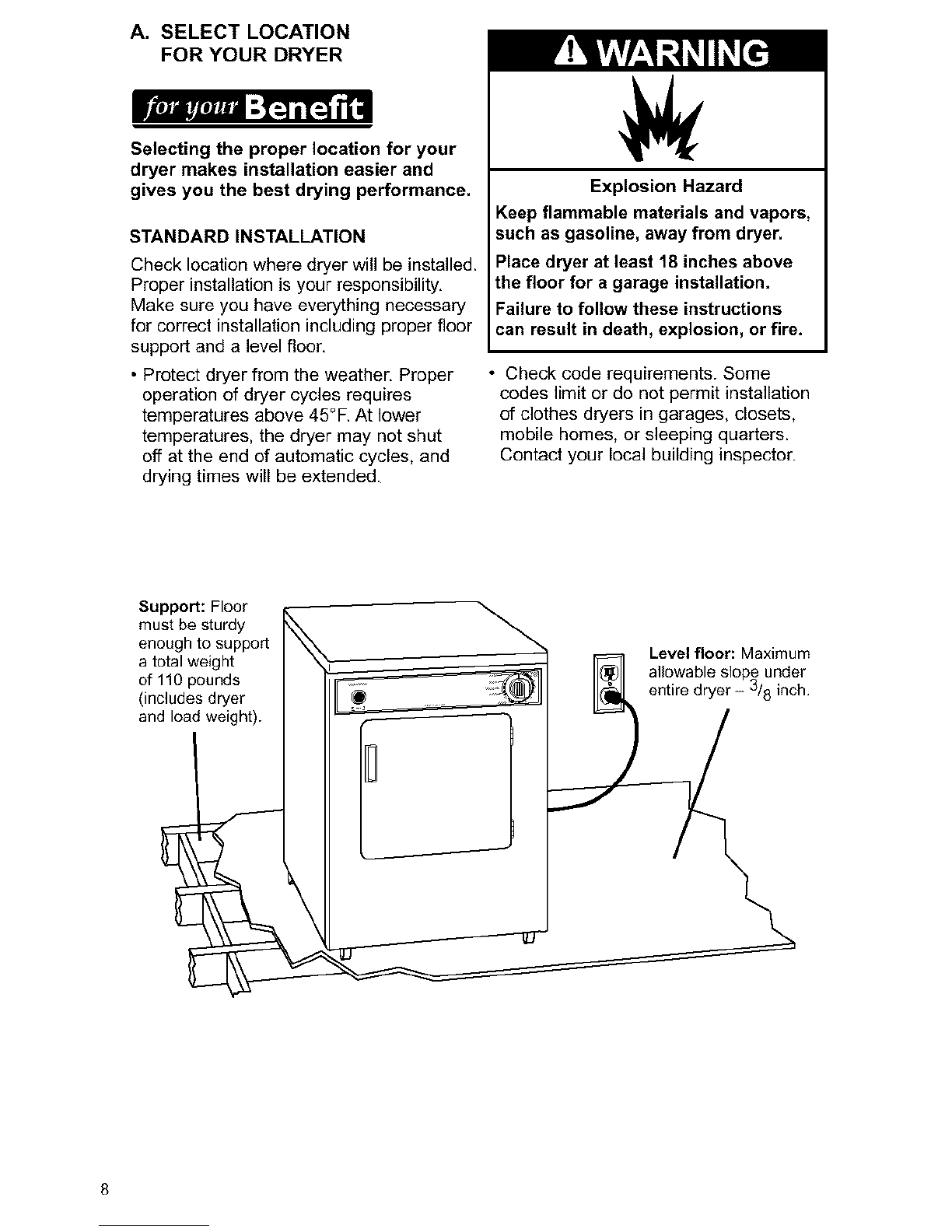

A. SELECT LOCATION
FOR YOUR DRYER
Selecting the proper location for your
dryer makes installation easier and
gives you the best drying performance.
STANDARD INSTALLATION
Check location where dryer will be installed.
Proper installation is your responsibility,
Make sure you have everything necessary
for correct installation including proper floor
support and a level floor,
• Protect dryer from the weather, Proper
operation of dryer cycles requires
temperatures above 45°F. At lower
temperatures, the dryer may not shut
off at the end of automatic cycles, and
drying times will be extended.
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Place dryer at least 18 inches above
the floor for a garage installation.
Failure to follow these instructions
can result in death, explosion, or fire.
• Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
Support: Floor K_
must be sturdy ['X_
enough to support I \\ -- .
. -- Levelfloor: Maxtmum
a total weight I __ r=_=_
..... I - I I_Jl allowable slope under
or 11 upounds I I _ _-4_ I i "_" i • 3 ,
(includes dryer I II I i& entiredryer- /8 inch.
and load weigh__J _ _

RECESSED AREA/CLOSET
INSTALLATION INSTRUCTIONS
Check governing codes and ordinances.
This dryer may be installed in a recessed
area or closet.
Confined or Recessed Area Installation
An exhaust system is not required for
operation of the portable dryer. However,
exhausting the dryer outside is recom_
mended. The moisture and lint indoors
may cause:
• Lint to gather inside and around the dry-
er and be fuel for a fire.
• Moisture damage to woodwork, furniture,
paint, wallpaper, carpet, etc.
• Housecleaning problems and possible
health problems.
Closet Installation
WARNING: To reduce the risk of fire, this
appliance must be exhausted outdoors
when installed in a closet.
NOTE: No fuel burning appliances may be
installed in the same closet as a dryer.
PRODUCT DIMENSIONS
Location must be large enough to fully
open dryer door.
_237/_ "_
Side-SwingDoor
* Dimension does not include casters.
Height with casters is 321/2 inches.
18"
"1"-_'
olo
FrontView
(Doer Not Shown)
,D
Q
t-_.,t 14" **48 sq. in.
minimum-
ventilation
area
Side View
(DoorShown)
**24 sq. in.
minimum-
ventilation
area
3"
]
#
3_
FrontView
(Boor With Vent)
MIXIMBM INSTALLATIONSPACING,ClosetInstallation MUSTbeexhaustedoutside,
* Additionalclearances forwall doorand floor moldingsmayberequired,
** Openingis minimum forclosetdoor.Logvereddoorwith equivalent air openings
isacceptable,
***Additional spaceis needed whenexternal exhaustelbowisused.
•The installation spacing is in inches
and is the minimum allowable.
• Additional spacing should be
considered for ease of installation
and servicing.
• If closet door is installed, the
minimum air openings in top and
bottom are required. Louvered doors
with equivalent air openings in top
and bottom are acceptable.

STAND KIT CLEARANCES
12"
Dryer ___
12"
Wa
23'_16" _'1"_ 281/4"_
FrontView SideView
StackStand StackStand
(DoorNotShown) (DoorShown)
***48+sq+in_+.D-minimum
ventilation
area
***24sq,in_+
minimum __
ventilation
al_a
FrontView
(DoorWithVent)
J3"
3"
*1" dimensionmustbefromfrontof timerknob.
** Additional clearances for wall, door and lloor moldings may be required.
*** Opening is minimunl for closet door. Lot=vereddoor with equivalent air openings
is acceptable.
• The installation spacing isin inches and • For complete installation information,
is the minimum allowable, order Stand Kit Installation Instructions+
• If installing your portable dryer on a Part No. 49971/8, from your Sears store
stand kit, do not install the casters, or Sears Service Center.
MOBILE HOME EXHAUST
REQUIREMENTS
• The dryer must not be installed where
it will be exposed to water and/or weath-
er. Proper operation of dryer cycles
requires temperatures above 45°R At
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended.
This dryer is suitable for mobile home
installations. The installation must
conform to the Manufactured Home
Construction and Safety Standard,
Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Homes Con-
struction and Safety, Title 24,
HUD Part 280).
• Dryer exhaust vent must not be
connected or secured with screws
or other devices which extend into
the interior of the vent.
• The exhaust vent must be securely
fastened to a non-cembustible
portion of the mo-
bile home struc-
ture and must not
terminate k_
beneath the
mobile home.
• While in transit,
it is recommend-
ed that you
secure the
portable
dryer to the floor.
Mobile Home
Installation Kit
346764 is available from your Sears
store or Sears Service Center. This kit
includes the necessary fastening hard-
ware and detailed installation
instructions.
10

B. INSTALL CORD BRACKETS
The power supply cord may be
wrapped around the brackets for
storage convenience when the
dryer is not in use.
STEP 1. Remove tape from the power
cord and rear panel.
STEP 2. Insert cord brackets into slotted
holes in rear panel and secure with
screws provided.
C. INSTALL CASTERS
NOTE: If installing your portable
dryer on a stand kit, do not install
the casters.
STEP 1. Firmly grasp the body of the
dryer. Gently lay dryer on the cardboard
corners,
STEP 2. Insert casters into the holes by
hand. Use a wrench to finish turning the
casters until they are tightened securely.
STEP 3. Now stand the dryer up.
Be careful that the dryer does not roll
away from you.
D. INSTALL KNOBS
One large and one small knob are
supplied with the dryer.
On the back side of each knob is
a"D" shaped notch. The "D" shaped
notch will fit onto the "D" shaped peg
on the dryer console.
STEP 1. Firmly holding the large
CYCLE SELECTOR knob, align the
"D" shaped notch of the knob with
the "D" shaped CYCLE SELECTOR
peg. Push knob into place.
STEP 2, Firmly holding the small
PUSH TO START knob, align the
"D" shaped notch of the knob with
the "D" shaped PUSH TO START
peg. Push knob into place.
PUSH (_
TOSTART CYCLE
SELECTOR

ELECTRICAL REQUIREMENTS
It is your responsibility:
• To assure that the electrical installation
is adequate and in conformance with
the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and
ordinances.
Copies of the code standards listed above
may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
The proper electrical connection
ensures a safe installation that
meets local code requirements.
Electrical Shock Hazard
Plug into a grounded 3-prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or electrical
shock.
• A 120-Volt, 60-Hz,, AC-only, 15- or
20-ampere fused electrical supply
is required.
• A time-delay fuse or circuit breaker is
recommended. Be sure fuse or circuit
breaker matches the rating of your line.
• Use a separate circuit serving only
your dryer.
• Do not use an extension cord.
GROUNDING INSTRUCTIONS
This appliance must be grounded.
In the event of malfunction or breakdown,
grounding will reduce the risk
of electric shock by providing a path
of least resistance for electric current.
This appliance is equipped with a cord
having an equipment-grounding con-
ductor and a grounding plug. The plug
must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.
WARNING: Improper connection of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician
or serviceman if you are in doubt as
to whether the appliance is properly
grounded. Do not modify the plug
provided with the appliance - if it
will not fit the outlet, have a proper
outlet installed.
12

E. CONNECT EXHAUST
A properly exhausted dryer will give
you the shortest drying time, lower
your utility bill, and extend the life of
the dryer.
ROUTE THE VENT
Typical installations exhaust from the rear
of the dryer.
Avoid pushing the dryer tightlyagainst
a wall, This can crush or kink the vent,
Use the straightest path you can, where
possible. Avoid 90° turns.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
WARNING - To reduce the risk of fire,
this dryer MUST BE EXHAUSTED
OUTDOORS.
•Use a heavy metal vent.
• Do not use a plastic vent,
• De not use a metal foil vent.
• De not exhaust dryer into a chimney,
a wall, a ceiling, or aconcealed space of Rearexhaust installationsfor standard
a building, offset connections- (see pgs. 14-15).
• The diameter of the heavy metal vent
must be 4 inches.
• De not use an exhaust hood with a mag-
netic latch.
• If using an existing exhaust system, dis-
connect vent from the dryer and clean
one section at atime until you reach the
exhaust hood, To clean out lint, you can
use the hose attachment on your vacu-
um or, use a pole or wire with a feather
duster or rag attached. Rear exhaust installations for offset connec-
tions with close clearances -
(see p. 16).
• Make sure exhaust hood is not plugged
with lint. Follow the instructions in this
section to reinstall your vent system. 13

DETERMINE VENT LENGTH
Maximum Exhaust Lengths:
•The maximum length of the rear
exhaust system depends on the
type of vent, the number of elbows,
and the type of exhaust hood.
Refer to the chart below.
EXHAUST HOOD TYPE
Numberol Maximum length of 4-inch
90° Turns diameter rigid heavy metal vent.
0 43 ft. 41 ft. 36 ft.
1 33 ft. 31 ft. 26 ft.
2 23ft. 21 ft. 16ft.
Numberol Maximum length of 4-inch
90° Turns diameter flexible heavy metalvent
0 30 ft. 29 ft. 24 ft.
1 24ft. 23ft. 18ft.
2 16ft. 15ft. 10ft.
If a combination of rigid metal vent and
flexible metal vent is used, use instructions for
flexible metaI vent (see p. 15).
WIRE EXHAUST GUARD
Before installing the exhaust system, be
sure to remove the wire exhaust guard
that is located at the exhaust outlet.
NOTE: An exhaust system is not required
for operation of the portable dryer. If
you are not installing an exhaust system,
do not remove the wire exhaust guard.
STANDARD OFFSET CONNECTIONS
Using 4-inch rigid heavy metal vent:
NOTE: Do not secure exhaust vent
joints with screws. Screws can catch lint
and slow the drying process. Instead, use
clamps to secure exhaust vent joints.
STEP 1. Install a 44nch metal elbow on
the hood and on the dryer exhaust outlet.
STEP 2. Measure the length of 4-inch
rigid heavy metal vent needed to
connect the two elbows.
Elbow Wail
Exhaust
Duct
clamps
EIbew
The vent usually comes in 2-foot lengths.
Use tin snips to cut the vent 3 inches
longer than your measurement in order to
make aconnection.
STEP 3. Place a clamp on each end of
vent elbow and connect elbow to dryer
outlet. Tape the joint with duct tape. Tight-
en clamp.
Tape
Clamp
14

STEP 4. Connect vent to elbow. Tape the
joint with duct tape. Tighten clamp.
STEP 5, Install one end of elbow on vent,
the other end to the exhaust hood. Tape
joints and tighten clamps,
Finish Installation, See "REVIEW
INSTALLATION" on page 17,
STEP 5. Place a clamp on each end of
vent elbow, Install one end of elbow on
vent, the other end to the exhaust hood.
Tape joints and tighten clamps.
Tape
Using 4-inch flexible heavy metal vent:
NOTE: Do not secure exhaust vent
joints with screws. Screws can catch lint
and slow the drying process, Instead, use
clamps to secure exhaust vent joints.
STEP 1. Install a 4qnch metal elbow
on the exhaust hood and, if necessary, on
the dryer exhaust outlet,
STEP 2. Measure the length of 4qnch
flexible heavy metal vent needed from the
dryer to the hood.
Flexibleheavy
metalvent Elbow
Dryer _
\
_Wall
Exhaust
i h0e°
_Duct
tape&
clamp
_"STEP 2
.. Elbow
(option-
al)
_'Ducttape & clamp
STEP 3. Add 10 inches to the measure-
ment for each bend in the vent.
STEP 4. Add 3 more inches to the
measurement for connection over the
dryer outlet and hood.
Clamp
STEP 6, Stretch the vent only as
needed by pulling out from the center
in each direction. Do not stretch vent
sections over 6 feet. If distance is more
than 6 feet, use 2 or more sections of
rigid metal vent with flexible metal
vent attached at ends.
STEP 7. Connect the vent directly to
the dryer outlet or to a separate elbow.
Tape the joints with duct tape. Secure
with clamps.
STEP 8. To fit the vent over the duct on
the hood it may be necessary to make
two 1/2qnch cuts in the end of the vent to
allow it to expand.
Finish Installation. See "REVIEW
INSTALLATION" on page 17,
15

OFFSET CONNECTIONS WITH
CLOSE CLEARANCES
When your exhaust vent is in a close
clearance behind the dryer, or if you are
installing your dryer in a recessed area or
closet, you will find it helpful to install the
exhaust vent over the top* of the dryer. A
kit is available from your local Sears store
or Sears Service Center.
*Parts may be covered byone or more
U.S. Patents.
LOOP SYSTEM
NOTE: Vent systems come in many
varieties. Select the type that best fits
your installation. Three of the most
common types of installations are
illustrated here.
Vent system installed over the top
with standard elbows Ventsystem installed overthe top with one offset andone standard elbow
PERISCOPE SYSTEM
16
Vent system
with one periscope
(2" clearance)

REVIEW INSTALLATION
Take a few minutes to complete
this checklist. It will help assure you
that you have a proper installation
and increase your satisfaction with
your Kenmore dryer.
I Check that all parts you removed
from the parts packages are now
installed.
I If using an exhaust system, ensure
that dryer is positioned in its final
location before operating. Make sure
vent is not crushed or kinked.
I Check to make sure you have all
the tools you started with.
FINAL STEPS
I Plug the power supply cord into the
grounded outlet.
I Wipe the interior of the drum
thoroughly with a damp cloth to
remove any dust.
[ Read the rest of this manual to fully
understand your new dryer. Start the
dryer and allow it to complete a full
heat cycle (not the air cycle). After five
minutes, open dryer door. You should
feel heat inside the dryer. If you do
not feel heat, see Troubleshooting
information on pages 26-27,
NOTE: You may notice a burning
odor, This smell is common when
the heating element is first used.
The smell will go away.
17

STARTING YOUR DRYER
Explosion Hazard
Keep flammable materials and
vapors, such as gasoline, away
from dryer.
Do not dry anything that has ever
had anything flammable on it (even
after washing).
Failure to follow these instructions
can result in death, explosion,
or fire.
Fire Hazard
No washer can completely
remove oil.
Do not dry anything that has ever
had any type of oil on it (including
cooking oils).
Items containing foam, rubber,
or plastic must be dried on a
clothesline or by using an air cycle.
Failure to follow these instructions
can result in death or fire.
To get the best drying results, you must
operate your dryer properly, This section
gives you this important information.
STEP 1. Check lint screen. Clean
if needed.
STEP 2. Put laundry into dryer and
shut door.
STEP3. Set CycleSelector Control (Tim-
er) O ; (see pages 19-20).
STEP 4. Press PUSH TO START
Button _. Be sure door is closed.
STOPPING/RESTARTING
YOUR DRYER
• To stop the dryer at any time, open dry-
er door.
• To restart,
__ press PUSH TO START
Button . Be sure door is closed.
• If you wish to end your drying cycle, turn
Cycle Selector Control (Timer)
to OFF.
18

CYCLE DESCRIPTION
The AUTO DRY Cycle saves you time
by providing the best drying results
in the shortest time. This can help
you save money on utility bills and
reduce the risk of fabric damage.
AUTO DRY CYCLE
Use this cycle for most loads. Drying time
varies according to type of fabric, size of
load, and dryness setting.
• Set the Cycle Selector Control (Timer)
to NORMAL DRY(*) which is good for
most fabrics.
• At the end of the cycle, feel the dried
clothes. If they are damp, select MORE
DRY the next time you do a similar load.
If they are overdried, select LESS DRY
the next time you do a similar load.
• Dryness is determined by thermostats
that react to the amount of moisture
in the air exhausted from the dryen
Moist air indicates clothes are still
damp, dry air indicates that moisture
has been removed.
• The End-of-Cycle Signal sounds once
the cycle is completed.
LESS DR'*' TIMED
DRY
NORMAL DRY
AUTO DRY II
MORE DRY
AIR DRY
TIMED DRY CYCLE
Use this cycle to get up to 105 minutes
of heated drying time.
• The heating cycle is followed by a
10-minute (approx.) COOL DOWN period.
• The End-of*Cycle Signal sounds once the
cycle is completed.
NOTE: The portable dryer operates on a customed to. This is normal and does not
120V current. As a result, you will have represent a problem with your dryer.
longer drying times than what you are ac-
AUTO DRY
Type of Load Setting
COTTONS AND LINENS
Extra Heavy -Bedspreads, mattress pads, quitts MORE DRY
Heavyweight -Towels, jeans, corduroys, work clothes MORE DRY
Medium Weight- Sheets, cotton underwear, diapers NORMAL DRY
Lightweight - Batistes, organdies, lingerie NORMAL DRY
PERMANENT PRESS, SYNTHETICS AND BLENDS
Heavyweight -Work clothes, jackets, raincoats NORMAL DRY
Medium Weight- Shirts, play clothes, sheets, slacks NORMAL DRY
Lightweight - Lingerie, blouses, dresses LESS DRY
KNITS
Heavyweight -Cottons, rayons, blends, T-shirts, slacks, shirts NORMAL DRY
Medium Weight- Synthetics (polyester, acrylic, etc.), dress slacks, skirts, sweaters NORMAL DRY
Lightweight -Synthetics (polyester, acrylic, etc.) and blends, lingerie, blouses, LESS DRY
dresses
This table lists suggested dryer settings for various loads. This is only a guide. Settings may
require adjustment depending on the requirements of your load.
19

USING AIR DRY END-OF-CYCLE SIGNAL
irjmml-
Using this cycle gives you all
the benefits of hang drying with
a shorter drying time.
Use the AIR DRY Cycle to get 10 minutes
of drying time in room temperature air.
Use this setting for items that will not
tolerate heat such as plastics and foam
rubber. Also use for airing and fluffing
items such as pillows.
TIMED
DRY
AUTO DRY II
AIR DRY
Refer to the following table for examples
of items that require drying without heat.
Use the AIR DRY Cycle, or place the
items on a line or rack to air dry.
Your dryer sounds a signal when
adrying cycle is finished.
The signal is helpful when you are
drying permanent press, synthetics,
and other items, These items should
be removed from the dryer as soon
as it stops in order to prevent wrinkles.
PUSH TO START BUTTON
Use this control to start the dryer. Be sure
the dryer door is closed.
Opening the door stops the dryer, It will
not start again until you close the door
and press the PUSH TO START Button.
Be sure the Cycle Selector Control (Tim-
er) is still on a drying cycle or air setting.
PUSH TO START
COOL DOWN
Approximately ten minutes before the end
of the AUTO DRY and TIMED DRY Cy-
cles, clothes are tumbled without
heat to help reduce wrinkles and make
clothes more comfortable to handle.
Type of Load
DELICATE FABRICS
Sheer curtains (2 or 3panels), gauze, lace, etc.
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foamrubber- Pillows, padded bras, stuffed toys
• Make sure coverings are securely stitched.
• Shake and fluff pillows by hand several times during the cycle.
• Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic- Shower curtains, tablecloths
Rubber-backed rugs
Olefin, pelypropylene, sheer nylon
AIR DRY Cycle*
20-30 rain.
20-30 rain.
20-30 rain.
40-50 rain.
10-20min.
*Reset time, as needed, to allow these items to dry completely.
20
