Kenmore 758.154120 User manual

READ AND SAVE
Operator's Manual
THESE INSTRUCTIONS
®
WHOLE HOUSE HUMIDIFIER
12 Gallon Output with
Digital Readout
Model 758.154120
CAUTION: Before using this
product, read this manual and
follow all its Safety Rules and
Operating Instructions.
Sears, Hoffman Estates, IL 60179 U.S.A.
www.sears.com
• Safety
•Assembly
•Operation
•Maintenance
•Parts
•Espahol, p. 17
Part No. SP6592 Printed in U.S.A.

ONE YEAR FULL WARRANTY ON KENMORE HUMIDIFIER
If any part of this humidifier fails due to a defect in material or workmanship
within one year from the date of purchase, or it the humidifier motor fails due
to a defect in material or workmanship during the second year from the date
of purchase, RETURN THE HUMIDIFIER TO THE NEAREST SEARS PARTS &
REPAIR CENTER, and it will be repaired free of charge. This warranty does not
include humidifier filters, which are expendable parts that can wear out from
normal use in less than one year. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
GENERAL SAFETY INSTRUCTIONS
Safety Signal Words
DANGER: means if the safety information is not
followed someone will be seriously injured or
killed.
WARNING: means if the safety information is
not followed someone could be seriously injured
or killed.
CAUTION: meansifthesafetyinformationis
notfollowedsomeonemay beinjured.
,To reduce the risk of fire or shock
hazard, plug humidifier directly into a 120V,
A.C. electrical outlet. Do not use extension
cords.
2. Keep the electric cord out of traffic areas. To
reduce the risk of fire hazard, never put the
electric cord under rugs, near heat registers,
radiators, stoves or heaters.
3. Always unplug the humidifier before moving it,
before cleaning, or whenever the humidifier is
not in service.
,Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
7. Never use your humidifier whileany part is
missing or damaged in any manner.
8. To reduce the risk of electrical hazard or
damage to humidifier, do not tilt, jolt or tip
humidifier while unit is running.
9. To reduce the risk of damage to humidifier,
unplug when not in use.
10. To reduce the risk of accidental electrical
shock, do not touch the cord or controls with
wet hands.
11. To reduce the risk of fire, do not use near an
open flame such as a candle or other flame
2source.
12. Note the warning label shown below.
4. Keep the humidifier clean.
5. Do not put foreign objects inside the
humidifier. WARNING: To reduce risk of fire, electric
shock, or injury always unplug before servicing
or cleaning.
Table of Contents
Warranty Information ............................................. 2
General Safety Instructions ................................... 2
To Save A Service Call .......................................... 3
Know Your Humidifier ............................................ 3
How Your Humidifier Works................................... 4
Step 1. Getting Your Humidifier
Up and Running ................................................ 4
Step 2. Location Instructions ................................ 5
Electrical Hook-Up ................................................. 5
Step 3. Water Fill................................................... 6
Step 4. Operating the Controls ......................... 7-8
Using Your Humidifier ....................................... 9-10
Replacement and Care of Filters......................... 11
Cleaning and Maintenance .................................. 12
Troubleshooting .................................................. 13
Repair Parts ................................................... 14-15
2

To Save A Service Call
Check the following if your humidifier is not
operating.
1. Is power cord attached to outlet?
2. Is there electrical power to outlet?
Know Your Humidifier
3. Is fan control on?
4. Is humidity control set high enough?
5. Is the cabinet sitting on a level surface?
Fan Assembly-_ Bottle Handle
peed
Control
Assembly
%Bottle
Humidistat
(On Power
Cord)
Casters
f Base
_<_ Filter:
_,__ Replacement No,
32=14906
Description
Gallon Output/24 hrs.
Capacity of Bottle
Capacity of Base
Sq. Ft. Coverage
Fan Speeds
Auto Fan Speed
Replacement Filter
Fill Indicator
Auto Humidistat
758.154120
12
1.9 Gallons
2.0 Gallons
2500
4
Yes
32-14906
Yes
Yes
Auto Shut Off
Controls
Casters
ETL Listed
Volts
Hertz
Amps (High Speed)
Watts (High Speed)
Yes
Electronic(PushButton)
Yes (4)
Yes
120 A.C.
60
0.80
80
* Based on an area with average insulation and an 8 foot
ceiling height
3

How Your Humidifier Works
Your new Kenmore humidifier is designed to satisfy
home humidity requirements through the principle
of evaporation of water in the air. Once the filter
becomes saturated, air is drawn in, passes through
the filter and moisture is absorbed into the air. All
evaporation occurs in the humidifier so any residue
remains in the filter. This natural process of
evaporation virtually eliminates white dust.
Humidified air is
then released
through the to
Dry air
enters
through
the
louvers
in the
housing
CAUTION: To reduce the risk of injury, fire
or damage to humidifier, use only cleaners
specifically recommended for humidifiers.
Never use flammable, combustible or
poisonous materials to clean your humidifier.
To reduce the risk of scalds and damage to
humidifier, never put hot water in humidifier.
Step 1. Getting Your Humidifier Up and Running
Assembly
Remove casters, water bottle, housing assembly,
and filter from the box and reverse the base. Press
casters into the bottom of the base manually. Do
not use tools. Set the base upright.
Replace the filter, housing assembly and bottle
(See "Replacement and Care of Filters", page 11
for reference).
4

Step 2. Location and Electrical Hook-Up
WARNING: For your own safety, do not
use humidifier if any parts are damaged or
missing.
Selecting A Location
Place humidifier on a flat level surface, take extra
care in leveling when placing the unit on carpet.
Position the humidifier where the most humidity is
needed or where the most air will be circulated
throughout the house such as near a cold air
return.
Moist air (humidity) produced will disperse into the
whole house, but the area closest to the unit wilt
have the highest humidity. If the unit is positioned
close to a window, condensation may form on the
window pane. If this occurs the unit should be
repositioned in another location.
NOTE: Due to release of coot, moist air from
humidifier, it is best to direct air away from
thermostat and hot air registers and to position
humidifier next to an inside walt. Unit should not
be placed where cold air from outside walls or
warm air from a hot air register blows directly on it.
Positioning The Unit
The humidifier should be positioned with the back
(cord exit side) and left side, at least 2 inches
away from the wall. Air needs to enter through all
of the louvers in the housing assembly in order for
the humidifier to operate at peak efficiency.
Electrical Hook-Up
Locate nearest 120V A.C. wall socket in the
location desired, preferably on inside wall. With
the humidifier in the desired location, route the
electrical cord safely so no one will trip or upset
the humidifier. Plug in the electrical cord.
To reduce the risk of electrical shock, this
humidifier has a polarized plug (one blade is wider
than the other). This plug wilt fit in a polarized
outlet only one way.
WARNING: To reduce the risk of fire
or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.
Do not use extension cords.
At least 2 inches
from wall
NOTE: Be sure humidistat, which is located on
power cord, is free from obstruction and away from
any hot air source.
If the plug does not fit fully inthe outlet, reverse
plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not
change the plug in any way.
5

Step 3. Water Fill
WARNING: To reduce the risk of fire or
shock hazard, do not pour or spill water into
control or motor area.
If controls get wet, let them dry completely
and have unit checked by authorized service
personnel before plugging in.
Bottle
After the humidifier is positioned where it will be
operating you are ready to fill the humidifier. The
bottle lifts straight up and away from the base.
Take care not to bump or damage fill valve
assembly on the bottom of the bottle.
Remove the "E-Z Fill Side Cap" and fill with water.
Replace cap and twist by hand until secure. Hold
the bottle upright
valve plunger for
amount of water.
over the sink. Press up on the
one second to release a small
If you hear air bubbles or see
leaks around the "E-Z Fill Side Cap" or Spring
Valve Assembly, retighten and recheck.
Base
Turn Counterclockwise to
Remove "E-Z Fill Side Cap"
/
CAUTION: Use only 32-14900 EPA
Registered Bacteriostat available from Sears
Retail store. Under no circumstances should
you use water treatment products designed
for Roto belt or Ultrasonic humidifiers.
Place the water bottle back into the humidifier
base. When positioned properly, the plunger wilt
open and the water will flow into the base. The
base will hold the entire contents of the water
bottle. Once the bottle is empty, remove it and
repeat the filling process. The humidifier is now
filled to capacity. To benefit from less frequent
filling let the humidifier exhaust both the water
from the bottle and the base before filling.
/
,/
Spring Valve
Assembly
6

Step 4. Operating the Controls
Where you set your desired humidity levels
depends on your personal comfort level, outside
temperature and inside temperature. A starting set
point of 30% - 40% ROOM humidity is
recommended but there may be conditions that
require a different setting.
When Outdoor
Temperature is:
2°F _18°C
10° F -12° C
20° F* -6° C *
Recommended Indoor
Relative Humidity (RH) is:
25%
30%
35%
*and above
IMPORTANT: Water damage may result if
condensation starts to form on windows or
walls. Humidity SET point should be
lowered until condensation no longer forms.
We recommend room humidity levels do not
exceed 50%.
To Operate the Controls
Digital Display
Press the power button once to display the digital
readout*. Initially there is a slight delay while the
electronics calibrate.
Two bars (- -) flash during this time.
Once calibration is complete a ROOM humidity
reading between 25% - 95% will be displayed. A
flashing 20 display indicates that the room humidity
is less than 20%.
NOTE: After desired settings are selected by the
user, they remain as long as the unit remains
plugged in and there is no power interruption. If the
unit is unplugged the original default settings are
employed.
* Humidifierfanshouldoperateat initialstartup.If it
doesnot,referto,"Fannotoperating(digitaldisplayis
illuminated)"in the"TroubleShooting"sectionon page
13ofthis manual.
Digital Display
Fan Speed
Humidity Control
7

Using Your Humidifier (cont'd.)
Speed Button
This humidifier is equipped with a 4-speed fan
control. Each push of the speed button advances
the mode through the settings of HIGH,
MEDIUM, LOW, WHISPER, and AUTO.
The selected setting is displayed on the digital
readout. The higher the setting, the faster water is
evaporated and released into the air. WHISPER
is the quietest setting and is provided for conditions
that do not require a rapid evaporation rate.
How Auto Control Works
Quiet Comfort
Fan Speed Display Fan Speed Button
The AUTO setting allows the humidifier to manage
it's speed range to maintain your desired humidity
setting. It wilt automatically cycle to the most
efficient speed to achieve the desired humidity.
Here is how the fan wilt operate:
• HIGH speed if room humidity is 15% or greater
RH (Relative Humidity) below the SET point.
•MEDIUM speed if room humidity is
15 - 10% RH below the SET point.
• LOW speed if room humidity is 10 - 5% RH
below the SET point.
• WHISPER speed if room humidity is 5% RH
or less.
If the room humidity is not increasing at the current
fan speed during a 15 minute period, the fan speed
increases to the next higher speed until the humidity
SET point is reached.
NOTE: The humidifier may run on HIGH for an
extended period of time if the actual room humidity
is extremely low.
Humidity Control
This button allows you to adjust the humidity to
suit your needs. This humidifier will automatically
cycle on and off as required to maintain the
selected setting. The readout displays both actual
(ROOM) and desired (SET) humidity percentage
(%) settings when humidity control button is
pressed. The ROOM readout has a range of 25%
to 95%. If the room humidity level is equal to or
less than 20% the display will show a flashing 20.
The SET readout has a range of 25% to 65% and
is adjusted in increments of 5%. Initially
depressing the humidity button will display the
current humidity setting. Each additional press of
the button increases the setting by 5%. A SET
point of 65% operates the humidifier continuously
regardless of the ROOM reading. The humidistat
that senses the readings is located on the power
cord. Insure that this humidistat is free from
obstruction.
®
Quiet Comfort
Humidity Display Humidity Control Button
8

Using Your Humidifier
Refill Display Function
For maximum run time bottle and base should be
filled. When bottle and base are empty the display
alternates the room humidity reading and "F"
(FILL), indicating additional water is required.
Quiet Comfort
Check Filter Indicator
The ability of any humidifier to efficiently supply
humidity output relies heavily on the condition of the
filter. As the filter loads with impurities it gradually
loses its wicking capability. When this happens,
moisture output is reduced and the humidifier has to
work longer to satisfy the selected setting. This
humidifier hasa check filter reminder timed to appear
after 720 hours of operation. When the CF message
is displayed,disconnect the power cord and check the
condition of the filter. If a build-up of deposits or
severe discoloration is evident replace the filter to
restore maximum efficiency. The CF message is
reset when the humidifier is plugged back in.
Refill Display
Dry Out Mode
at this time the unitwill automatically switch intothe
DRY OUT mode and continue to run on Whisoper
for a tow hour period.
Note: During this time the room humidity level will
continue to be monitored and the humidifier will
cycle the fan on and off until the filter is completely
dry. The fan wilt shut off leaving you with a dry
humidifier that is less prone to mold and mildew
growth.
If DRY OUT is not desired, refill the humidifier with
water.
Note: Once the dry out cycle is complete, the fan
wilt shut off.
Quiet Comfort ®
Check Filter Indication
9

Using Your Humidifier (cont'd.)
Humidistat
The humidistat located on the power cord senses
the percentage of humidity in the air. It causes the
humidifier to cycle on and off to maintain the
selected humidity SET point. The fan will turn on if
the ROOM reading falls 3% below the SET point
and will continue to run the humidifier until a reading
of 1% above the SET point is achieved. The fan
wilt turn off until the ROOM reading falls 3% below
the SET point again.
I
NOTE: Be sure humidistat, which is located on
power cord, is free from obstruction and away from
any hot air source.
10

Replacement and Care of Filter
WARNING: To reduce the risk of shock or
injury from moving parts, always unplug
humidifier before removing or replacing any
parts.
Grasp housing
assembly
securely and
lift off
CAUTION: To help retard bacteria growth
and keep maximum efficiency, the filter
should be replaced at least once per season,
or more often under hard water conditions.
Use Kenmore 32-14906 recommended
replacement filter.
Replace the evaporative wicking filter at least once
per humidification season or more depending on
water conditions in your area.
Filter Replacement
1. Unplug humidifier. Before removing the filter,
we recommend moving the humidifier to an
area where floor coverings are not susceptible
to water damage. (i.e. kitchen or bath areas.)
2. Remove the water bottle and set aside. Be sure
not to bump or damage the fill valve.
3. Grasp the housing assembly and lift straight up
and away from the base and set aside. The
filter is now accessible.
,Take note of the filter position. Remove the
filter. You may want to clean the base at this
time. See the "Cleaning Your Humidifier"
section of this manual.
5. Install a new filter (32-14906) into the base.
Coil the filter and position it between the
uprights in the bottom of the base. The start
and finish of the coil should be captured at the
center of the base (see diagram) and the filter
should be resting on the floor of the base.
6. Return the housing assembly to the top of the
base. Reposition the humidifier to its operating
position.
7. The humidifier is now ready to be filled for
operation.
Position start
and finish of
oiled filter at
enter of base
Align housing
-_ assembly
---_-__ bottom with
top of base
and reposition
securely
11

Cleaning and Maintenance
WARNING: To reduce the risk of injury, fire or
damage to humidifier, use only cleaners
specifically recommended for humidifiers. Never
use flammable, combustible or poisonous
materials to clean your humidifier. To reduce the
risk of scalds and damage to humidifier, never
put hot water in humidifier.
NOTE: Remove
Jexcess water
before cleaning
CAUTION: Local water purity varies from area
to area and under certain conditions water
impurities and airborne bacteria may promote the
growth of microorganisms in the reservoir of the
humidifier.
To retard bacteria growth that may cause odors
and be harmful to your health, use only Kenmore
replacement filters. We also recommend using
EPA approved bacteriostat, and humidifier
cleaner, available at your local Sears store.
Step 1
To make cleaning easier, the humidifier base
should be empty and completely dried out. To
accomplish this, use the
following method:
a. Allow the humidifier to run until the refill F light
flashes and the DRY OUT mode has
stopped the humidifier fan.
b. Unplug humidifier.
Step 2
WARNING: To reduce the risk of shock,
always unplug humidifier before cleaning or
servicing. If humidifier is not un-plugged, fan
could start after housing is removed.
To Remove Parts
See "Replacement and Care of Filter" page 11.
NOTE: There may be a little water still in the
base. Carefully dump the water out or remove with
a sponge.
Step 3
Bi-Weekly Maintenance
Removing Scale
1. Fill the humidifier base with one 8 oz. cup
of white vinegar. Let solution stay 20
minutes.
2. Clean all interior surfaces with a soft
brush. Dampen a soft cloth with white
vinegar and wipe out the base to remove
scale.
3. Rinse thoroughly with clean warm water to
remove scale and cleaning solution.
Disinfecting Base
1. Pour 1/2 gallon of water and 1/2
teaspoon chlorine bleach into the base.
Let solution stay for 20 minutes, carefully
swishing every few minutes. Wet all
surfaces normally exposed to water.
2. Empty base after 20 minutes. Rinse with
water until bleach smell is gone. Allow unit
to dry out completely.
NOTE: The water bottle should be cleaned
in the same manner as the base. Rinse
thoroughly with clean water after all steps are
complete.
End of Season Maintenance
1. Follow "Bi-Weekty Maintenance" instructions
at end of humidification season.
2. Remove filter.
3. Let humidifier dry completely before storing.
4. Store in coot, dry location.
5. Install a new filter in clean humidifier before
next season begins.
NOTE: "Bi-Weekty Maintenance" procedure
is also recommended if you do not plan to run
the humidifier for one week or more.
12

Troubleshooting
Trouble Probable Cause Remedy
Digitaldisplaynot illuminated. • NoPower. •Check120voltpowersource.
• Powerbuttonhasnot beendepressed. •Presspowerbuttononcetoturnon.
• ROOMhumiditylevelis not3%or more
Fannotoperating(Digitaldisplayis belowSEThumiditylevel.
illuminated). • SEThumiditylevel is65%.
Fanrunningcontinuously.
Poorevaporationofwater.
• ROOMhumiditylevelhasnot reached1%
or moreaboveSEThumiditylevel.
• CFmessageflashing.
•RaiseSEThumiditylevelif desired.
• ASEThumiditypercentageof65%
operatesfan continuously.AdjustSET
levelbetween25%- 60%.
• Continuetorununtildesiredhumidity
levelisachieved.Thismaytakeup to48
hoursinitially.
Changetoafreshnewfilter.
NOTE:Localwatervariesfromareto
areaandundercertainconditionsmineral
will buildup morerapidlyin thefilter.
• Refillbottlefor maximumruntime.
• Thisis normalfor initialfilling.
Bottleemptiescompletely. • Air isenteringwaterbottle. •Thebasewill holdthe contentsof water
Bottlecontinuestoemptyaftercomplete bottle(1.9gallons).Continueto run
filling. • Basefull ofwater, humidifiertodepletewaterfrombase.
Bottlenotemptying. • Replacefilter.
• A lossof powerhascausedthe CF
messageto prematurelyreset.
• Humidifierisin DRYOUTmode.
• Filternotdry.
CFmessagedoesnotappearevenwhen
filterisdirtyor humidifierperformanceis
clearlyreduced.
Fanoperatingslowerthanspeedregistered
ondigitaldisplay.
HumidifiernotshuttingoffduringDRYOUT
mode.
• Ensurefillcap istightwithno interfering
debris.
• Checkfor leakinwaterbottle.
• Humidifierautomaticallyswitchesfan
speedto WHISPERwhenDRYOUT
modemessageisdisplayed.
• DuringDRYOUTmodethe humidifierwill
continueto runonWHISPERspeedas
requiredfor a2 hourperiod.
13

Repair Parts
Parts List for Kenmore Humidifier
Model No. 758.154120
15
3
6
8
14
13
14

Parts List for Kenmore Humidifier
Model No. 758.154120
Always order by part number - Not by key number
Key No Part No. Description
1 830487 Housing, Upper
2 831341 •Assembly, Control
3 829821 • Blade, Fan
4 830778 • Motor
5 828854 Switch, Micro
6 830489 Housing,Lower
7 32-14906 1 Filter
8 829815 * Screw, Pan Hd. Ty.AB #6 x 1/2 SS
9 830496-2 Support, Float
10 829816 Float, Reservoir
11 830537 Bottle, Includes Key #15
12 829812 Casters (Includes 4)
13 830484-2 Base
14 824690-2 Cap, Fill
15 829805 Screw, Pan Hd. Trx. Hi-Lo #6 x 3/4
16 830587 Cap, Screw
17 SP6592 Owner's Manual (not shown)
* Standard Hardware Item - May be purchased locally
1 Stock item - May be secured through the Hardware Department of most
Sears retail stores.
Any attempt to repair the control assembly or motor may
create a hazard unless repair is done by a qualified service technician.
Repair service is available at your nearest Sears store.
15

Notes
16

LEA Y GUARDE
Manual del usuario
ESTAS INSTRUCCIONES
MD
HUMIDIFICADOR PARA TODA LA CASA
Produccibn de 12 galones
con lectura digital
modelo 758.154120
PRECAUCION: Antes de
utilizar este producto, lea este
manual y siga todas las
normas de seguridad e
instrucciones de utilizacibn.
• Seguridad
•Ensamblaje
•Utilizacibn
•Mantenimiento
•Piezas
Sears, Hoffman Estates, IL 60179 U.S.A.
www.sears.com
No. de pieza SP6592 Impreso en U.S.A.

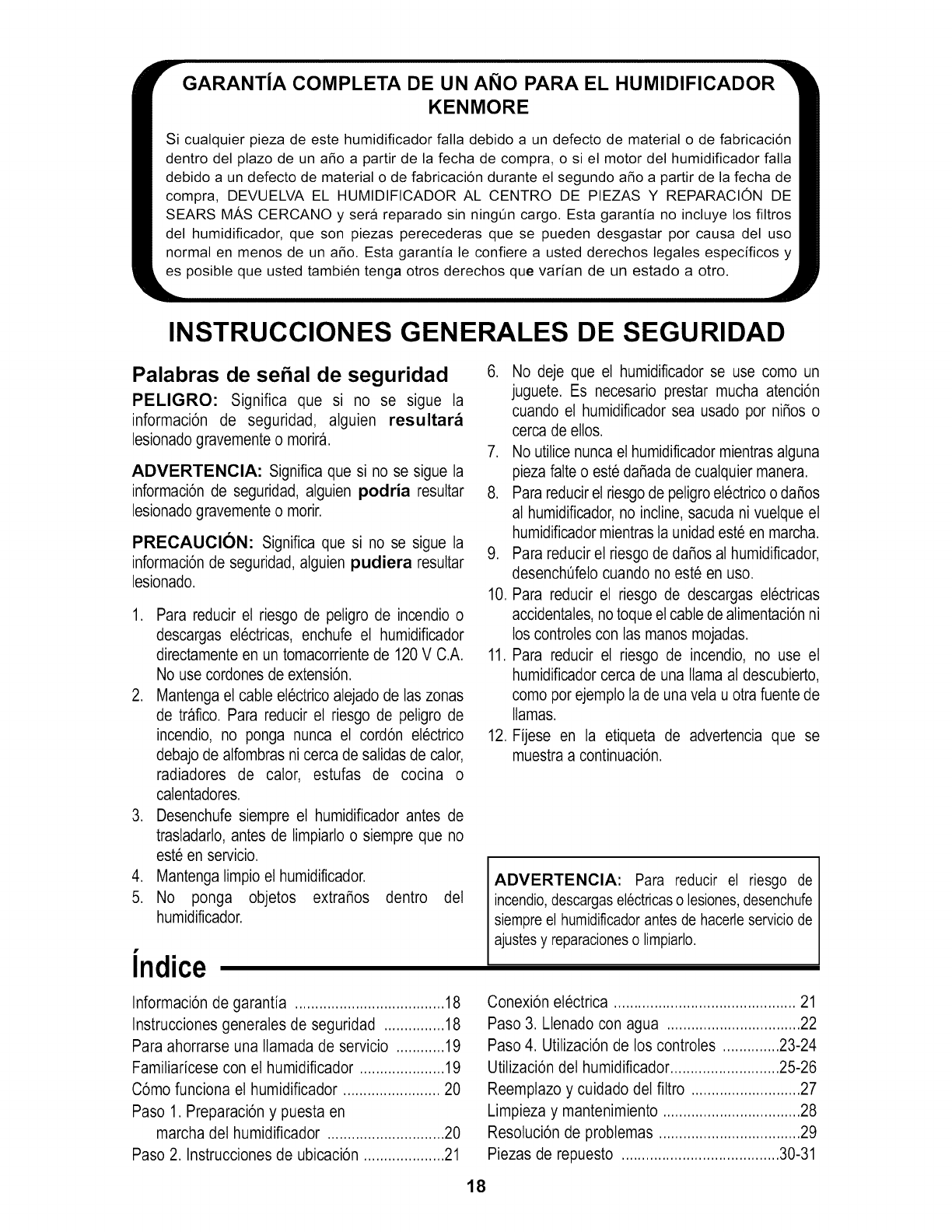

GARANTiA COMPLETA DE UN ANO PARA EL HUMIDIFICADOR
KENMORE
Si cualquier pieza de este humidificador falla debido a un defecto de material o de fabricaci6n
dentro del plazo de un afio a partir de la fecha de compra, o si el motor del humidificador falla
debido a un defecto de material o de fabricaci6n durante el segundo afio a partir de la fecha de
compra, DEVUELVA EL HUMIDIFICADOR AL CENTRO DE PIEZAS Y REPARACION DE
SEARS MAS CERCANO y sera reparado sin ningQn cargo. Esta garantia no incluye los filtros
del humidificador, que son piezas perecederas que se pueden desgastar por causa del uso
normal en menos de un afio. Esta garantia le confiere a usted derechos legales especificos y
es posible que usted tambien tenga otros derechos que varian de un estado a otro.
INSTRUCCIONES GENERALES DE SEGURIDAD
Palabras de serial de seguridad
PELIGRO: Significa que si no se sigue la
informaci6n de seguridad, alguien resultar_
lesionado gravemente o morir&
ADVERTENCIA: Significa que si no se sigue la
informaci6n de seguridad, alguien podria resuttar
lesionado gravemente o morir.
PRECAUCION: Significa que si no se sigue la
informaci6n de seguridad, alguien pudiera resuttar
lesionado.
1. Para reducir el riesgo de peligro de incendio o
descargas electricas, enchufe el humidificador
directamente en un tomacorriente de 120 V C.A.
No use cordones de extensi6n.
2. Mantenga el cable etectrico alejado de las zonas
de trafico. Para reducir el riesgo de peligro de
incendio, no ponga nunca el cord6n etectrico
debajo de alfombras ni cerca de salidas de calor,
radiadores de calor, estufas de cocina o
calentadores.
3. Desenchufe siempre et humidificador antes de
trasladarlo, antes de limpiarlo o siempre que no
este en servicio.
4. Mantenga limpioel humidificador.
5. No ponga objetos extrafios dentro del
humidificador.
indice
Informaci6n de garantia ..................................... 18
Instrucciones generales de seguridad ...............18
Para ahorrarse una Ilamada de servicio ............19
Familiaricese con el humidificador ..................... 19
C6mo funciona el humidificador ........................ 20
Paso 1. Preparaci6n y puesta en
marcha det humidificador ............................. 20
Paso 2. Instrucciones de ubicaci6n ....................21
6. No deje que et humidificador se use como un
juguete. Es necesario prestar mucha atenci6n
cuando et humidificador sea usado por nifios o
cerca de eltos.
7. No utilice nunca el humidificador mientras alguna
pieza falte o este dafiada de cualquier manera.
8. Para reduciret riesgode peligroelectrico o dafios
al humidificador, no incline, sacuda ni vuetque et
humidificador mientras la unidad este en marcha.
9. Para reducir el riesgo de dafios al humidificador,
desenchOfeto cuando no este en uso.
10. Para reducir et riesgo de descargas etectricas
accidentales, no toque el cable de alimentaci6n ni
los controtes con las manos mojadas.
11. Para reducir et riesgo de incendio, no use el
humidificador cerca de una llama al descubierto,
como por ejemplo la de una vela u otra fuente de
llamas.
12. Fijese en la etiqueta de advertencia que se
muestra a continuaci6n.
ADVERTENCIA: Para reducir el riesgo de
incendio,descargaselectricaso lesiones,desenchufe
siempreel humidificadorantesde hacerleserviciode
ajustesy reparacioneso limpiarlo.
Conexi6n electrica ............................................. 21
Paso 3. Ltenado con agua ................................. 22
Paso 4. Utilizaci6n de los controtes ..............23-24
Utilizaci6n del humidificador ...........................25-26
Reemplazo y cuidado det filtro ........................... 27
Limpieza y mantenimiento .................................. 28
Resotuci6n de probtemas ................................... 29
Piezas de repuesto ....................................... 30-31
18

ParaahorrarseunaIlamadadeservicio
Compruebe Io siguiente si el humidificador no
funciona.
1. 6Esta el cable de alimentaci6n conectado a un
tomacorriente?
2. _,Hayalimentaci6n electrica al tomacorriente?
3. 6Esta encendido el control del ventilador?
4. 6Esta el control de humedad ajustado a un nivel
Iosuficientemente alto?
5. 6Esta el gabinete ubicado en una superficie
nivetada?
Familiariceseconel humidificador
Conjunto del
ventilador
Conjunto de la_---_
carcasa"
Higrostato:
(en el cordon
de
alimentacion)
de la botella
de
velocidad
Botella
Base
Filtro:
No. de repuesto
32-14906
Descripcion
Producci6n en galones/24 h
Capacidad de la botella
Capacidad de la base
Cobertura en pies cuadrados
Vetocidades del ventilador
Vetocidad automatica del ventilador
Filtro de repuesto
Luz de alimentaci6n
Luz de Ilenado
Higrostato automatico
758.154120
12
1,9galones
2,0 galones
2500
4
Si
32-14906
Si
Si
Si
Apagado automatico
Controtes
Ruedeciltas
Catalogado por ETL
Voltaje
Frecuencia
Intensidad (alta vetocidad)
Potencia (alta velocidad)
Si
Electr6nicos (putsadores)
Si (4)
Si
120 V C.A.
60 Hz
0,80A
8OW
* Basadaen una zonaconaislamientopromedioy unaalturade habitacion
de2,44m (8 pies).
19

Cbmofunciona el humidificador
Su nuevo humidificador Kenmore esta disefiado para
satisfacer los requisitos de humedad del hogar a
traves del principio de la evaporaci6n del agua en el
aire. Una vez que el flltro se satura, se hace entrar
aire, el cual pasa a traves del filtro y absorbe hume-
dad. Toda la evaporaci6n ocurre en el humidificador,
por Ioque todos los residuos permanecen en el filtro.
Este proceso natural de evaporaci6n elimina
practicamente el polvo blanco.
Luego, se expulsa
aire humidificado a
trav6s dela parte
superior
Elaire
seco
entra a
trav6s de
las rejillas
ubicadas
en la
carcasa
PRECAUCION: Parareducirel riesgode lesiones,
incendioo dafios al humidificador,utilice Onicamente
limpiadores recomendados especificamente para
humidificadores. No utilice nunca materiales
inflamables, combustibles o toxicos para limpiar el
humidificador.Parareducirelriesgode quemarseyde
dafiarel humidificador,no ponganuncaagua caliente
en el humidificador.
Paso1.Preparacibny puestaenmarcha
delhumidificador
Ensamblaje
Saque de la caja las ruedeciltas, la botelta de agua,
el conjunto de la carcasa y el filtro,e invierta labase.
Presione las ruedeciltas manualmente en la parte
inferior de la base. No use herramientas.
Ponga la base en posici6n al derecho.
Coloque de nuevo el filtro, et conjunto de la carcasa
y la botella (consutte "Reemplazo y cuidado de los
filtros", pagina 27, como referencia).
20
