Kenmore SELECT CLEAN 665.75827 User manual

®
SELECT CLEAN TMSelf-Cleaning Gas Range
Cocina de gas de auto limpiezaSELECT CLEAN TM
Models, Modelos 665.75822
665.75827
665.75829
f
!
Super Capacity with ULTRABAKE TM System
Capacidad extra con el Sistema ULTRABAKE TM
8273135 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

TableofContents
A Note to You ............................................................ 2
Warranty ..................................................................... 3
Range Safety ............................................................. 4
Parts and Features ................................................... 6
Using Your Range .................................................... 7
Using the Surface Burners .................................... 7
Characteristics of Cookware Matedals ................ 8
Using the Oven ...................................................... 9

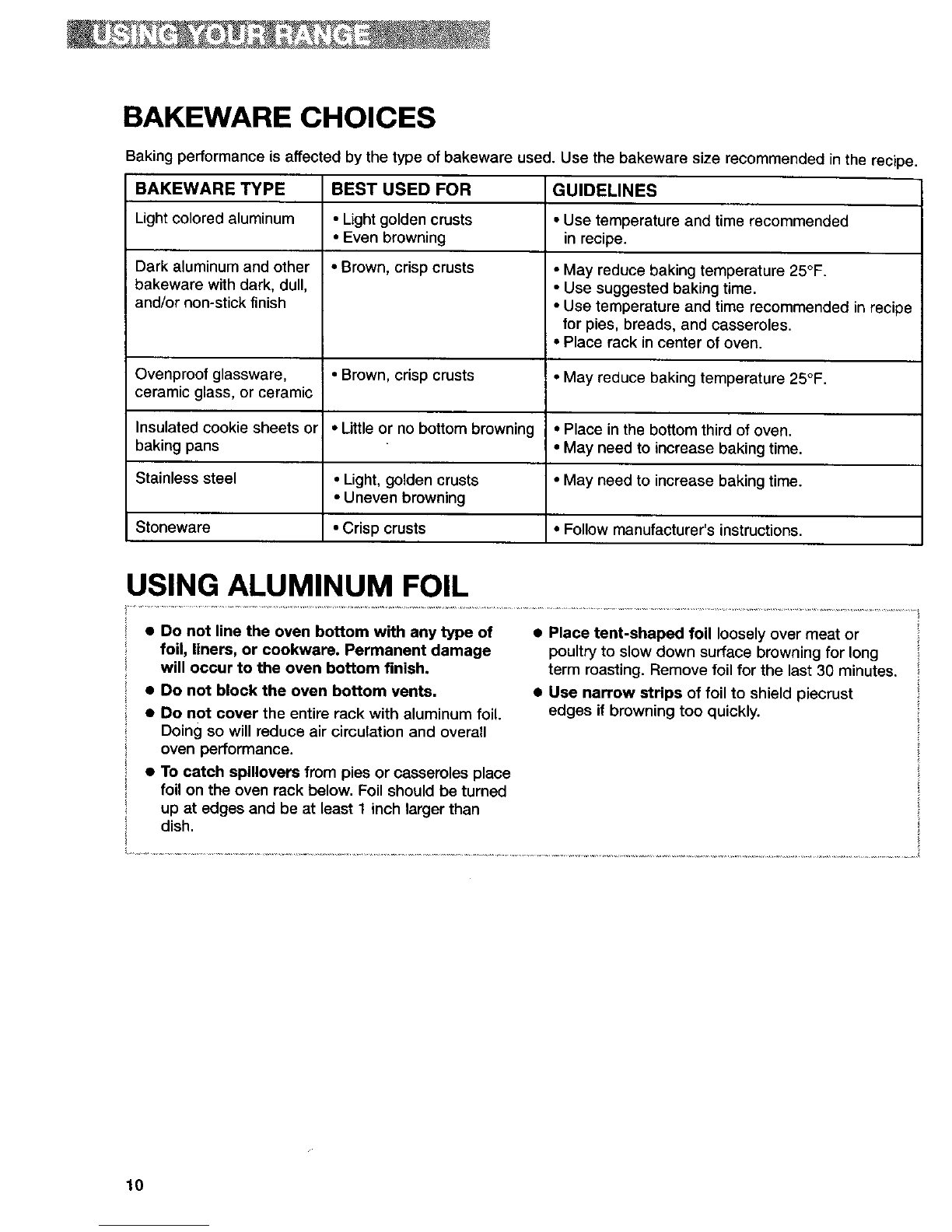

Bakeware Choices .............................................. 10
Using Aluminum FoiJ........................................... 10
The Electronic Oven Control ............................... 11

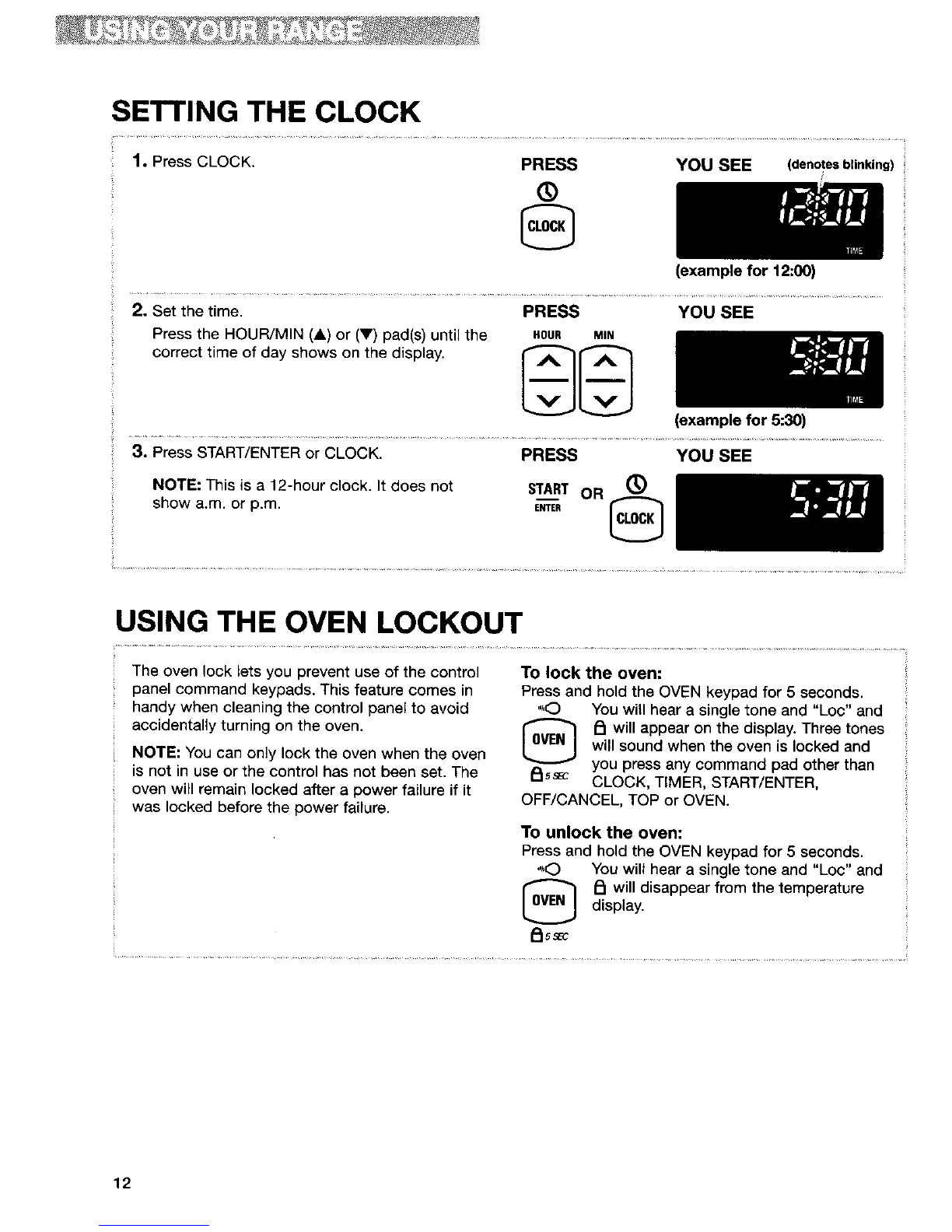

Setting the Clock ............................................. 12
Using the Oven Lockout ................................. 12
Tones ................................................................ 13
Using the 12-Hour Shut-Off ........................... 13

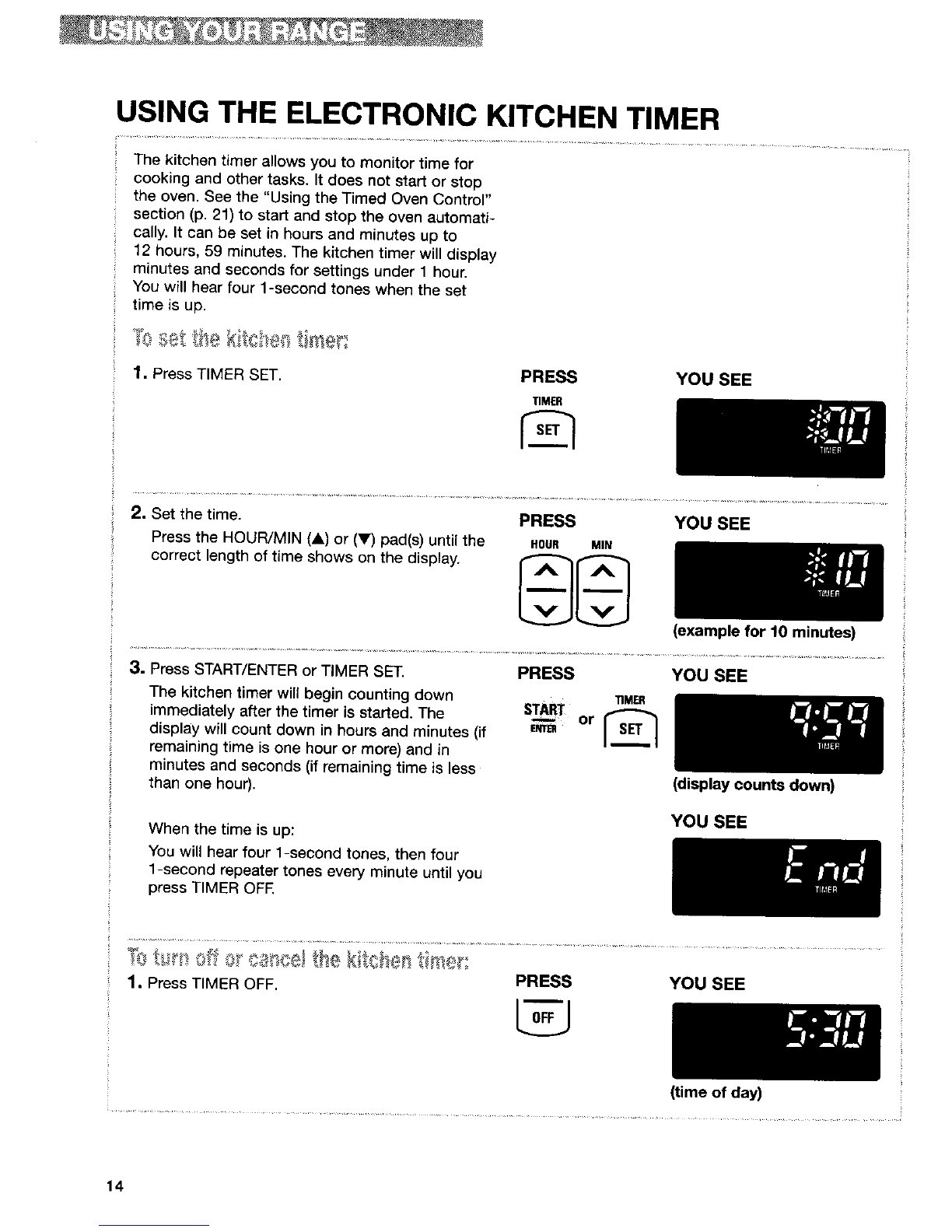

Using the Electronic Kitchen Timer ............... 14
Starting/Canceling a Function ........................ 15
ULTRABAKE TM Baking/Roasting ................... 15
Readjusting the Oven Temperature Control...17

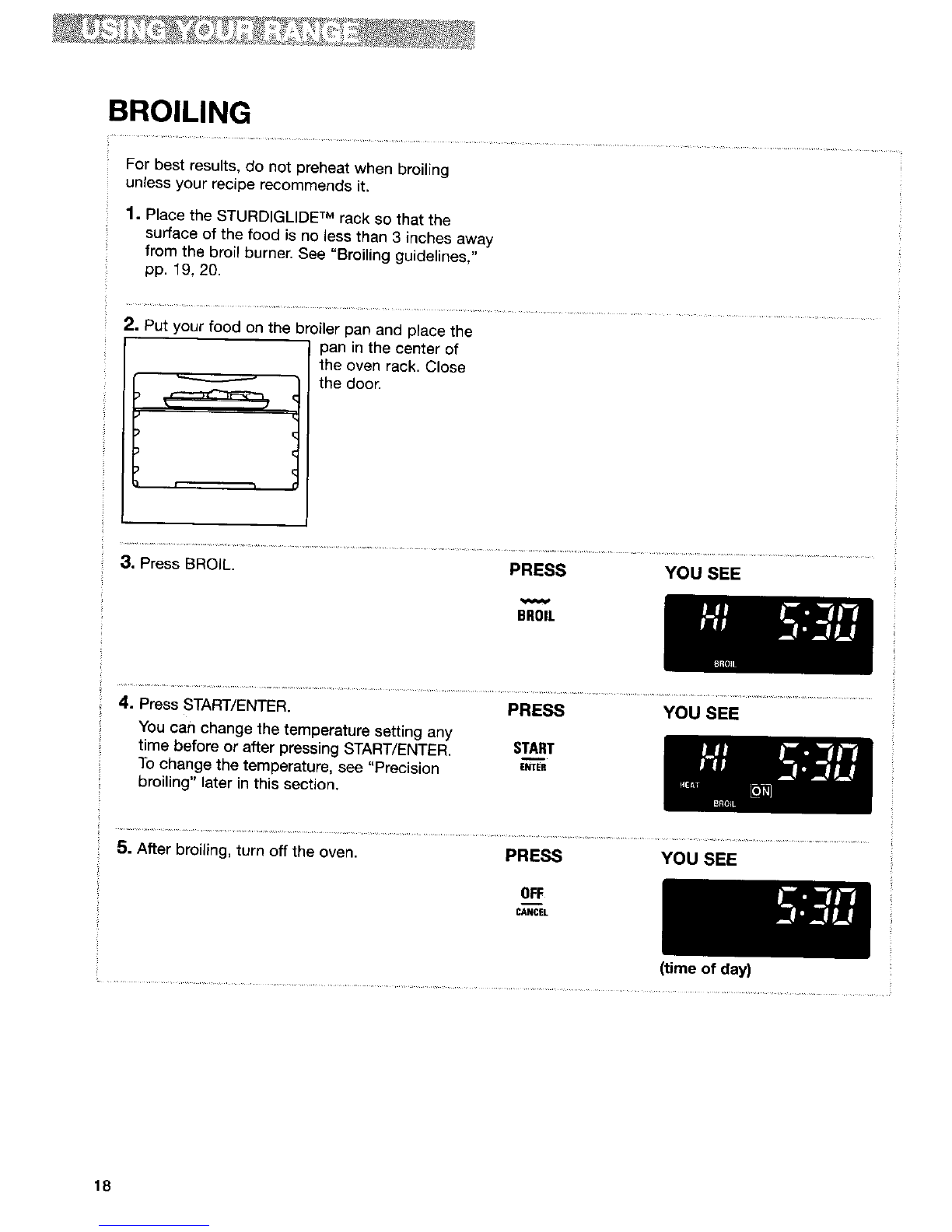

Broiling ............................................................. 18
Using the Timed Oven Control ...................... 21
The Storage Drawer ....................................................25
The Oven Vent ..................................................... 25
Using the SELECT CLEAN TM
Self-Cleaning Cycle ............................................... 26
Before You Start .................................................. 26
How the Cycle Works ......................................... 27
Setting the Controls ............................................ 27
Caring for Your Range ........................................... 30
Cleaning Chart ..................................................... 30
Sealed Surface Burners and Cooktop ............... 32
Removing the Oven Door ................................... 33
The Oven Light .................................................... 35
Troubleshooting ...................................................... 36
Range Does Not Work ........................................ 36
Oven/Broiler Burner ............................................. 36
Surface Burners ................................................... 37
When Self-Cleaning Your Oven .......................... 37
Cooking Results .................................................. 38
Display Messages ............................................... 38
Index ......................................................................... 39
Service .................................................... Back Cover
A NotetoYou
Your KENMORE gas range takes on a new value
when you discover that Sears has service centers
around the country. Trained Sears Service
Professionals use fully-equipped trucks and Sears-
approved methods for expert repairs backing up all
Sears guarantees.
Whenever you call to request service for your
appliance, you need to know your complete model
number and serial number. You can find this
information on the model and serial number plate
(see diagram in the "Parts and Features," p. 6).
Please also record the purchase date of your
appliance and your store's name and telephone
number.
Model Number 665.
Serial Number R
Purchase Date
Keep this book and the sales slip together
in a safe place for future reference.
2

Free-StandingRangeWarranty
FULLONEYEARWARRANTYONALLPARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in
material or workmanship, Sears will repair or replace it, at our option, free of charge.
If this product is subjected to other than private family use, the above warranty is effective for only
90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN
THE UNITED STATES.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
Sears Roebuck and Co. Dept. 817WA Hoffman Estates, IL 60179
ToFurtherAddToTheValueOfYourRange,Buya SearsMaintenanceAgreement,
Years of Ownership Coverage 1st Year 2nd Year 3rdYear
1. Replacement of Defective Parts WMA MA
2. Annual Preventive Maintenance MA MA MA
Check at Your Request
W = Warranty MA = Maintenance Agreement
Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service
program, affordably priced.
The table above shows the additional benefits a Sears Maintenance Agreement provides beyond the Sears Warranty.
Contact your Sears Sales Associate or call 1-800-827-6655 to purchase a Sears Maintenance Agreement.
I
WARNING: If the information in this manual is not followed exactly, a fire or I
explosion may result causing property damage, personal injury or death. I
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
= Do not try to light any appliance.
•Do not touch any electrical switch.
= Do not use any phone in your building.
= Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
= If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
3

Range Safety
Yoursafetyandthesafetyofothersisveryimportant.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and ethers,
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed,
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
tLook for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
The illustration on the right shows the proper
placement of the anti-tip floor bracket. To install
correctly, see your installation instructions.
4

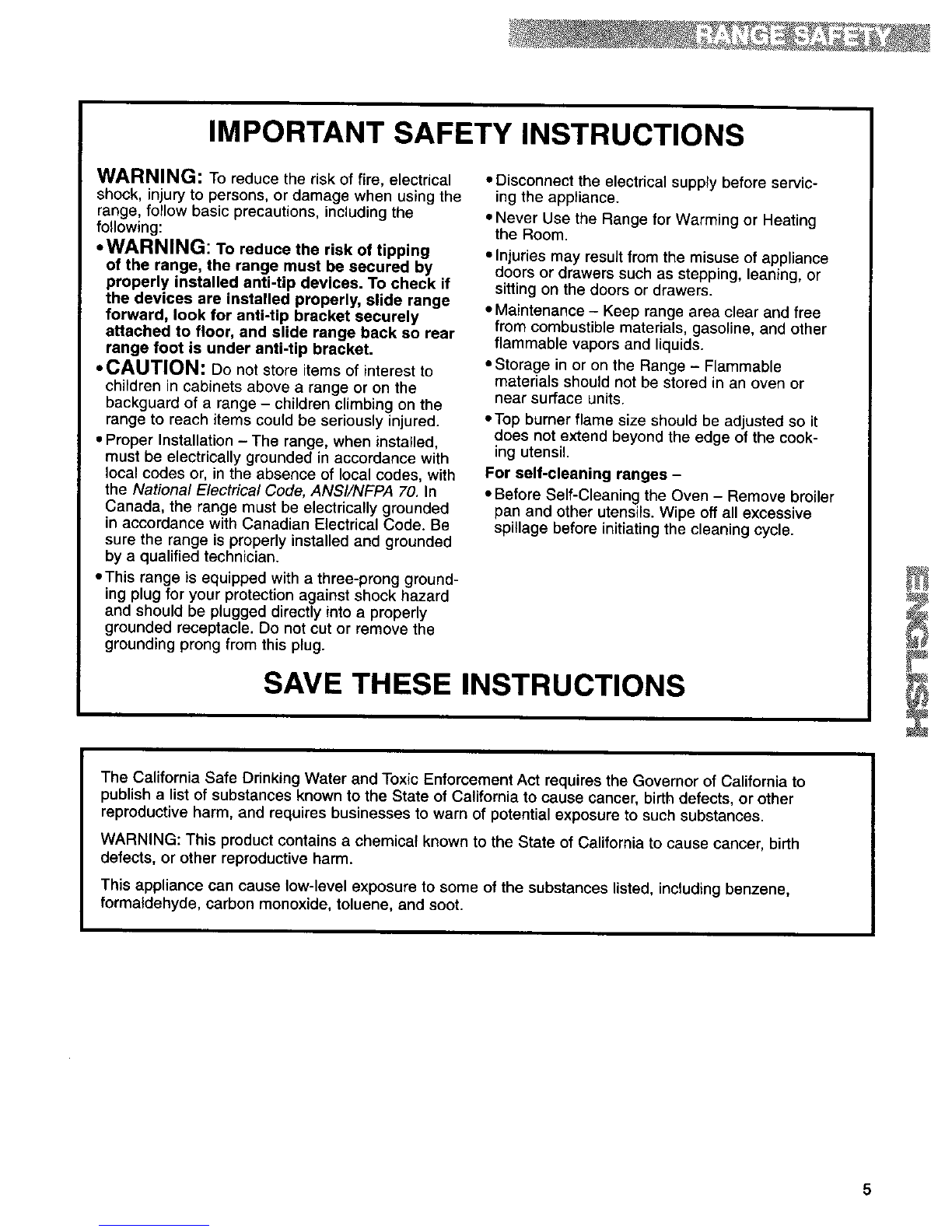

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of tim, electrical
shock, injuryto persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING: To reduce the risk of tipping
of the range, the range must be secured by
properly installed anti-tip devices. To check if
the devices are installed properly, slide range
forward, look for anti-tip bracket securely
attached to floor, and slide range back so rear
range foot is under anti-tip bracket.
•CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
•Proper Installation - The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the Nationa/ E/ectrica/ Code, ANSI/NFPA 70. In
Canada, the range must be electrically grounded
in accordance with Canadian Electrical Code. Be
sure the range is properly installed and grounded
by a qualified technician.
•This range is equipped with a three-prong ground-
ing plug for your protection against shock hazard
and should be plugged directly into a properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.
• Disconnect the electrical supply before servic-
ing the appliance.
• Never Use the Range for Warming or Heating
the Room.
•Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
•Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
flammable vapors and liquids.
• Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Top burner flame size should be adjusted so it
does not extend beyond the edge of the cook-
ing utensil.
For self-cleaning ranges -
• Before Self-Cleaning the Oven -Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
H
£
F
i
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene,
formaldehyde, carbon monoxide, toluene, and soot.

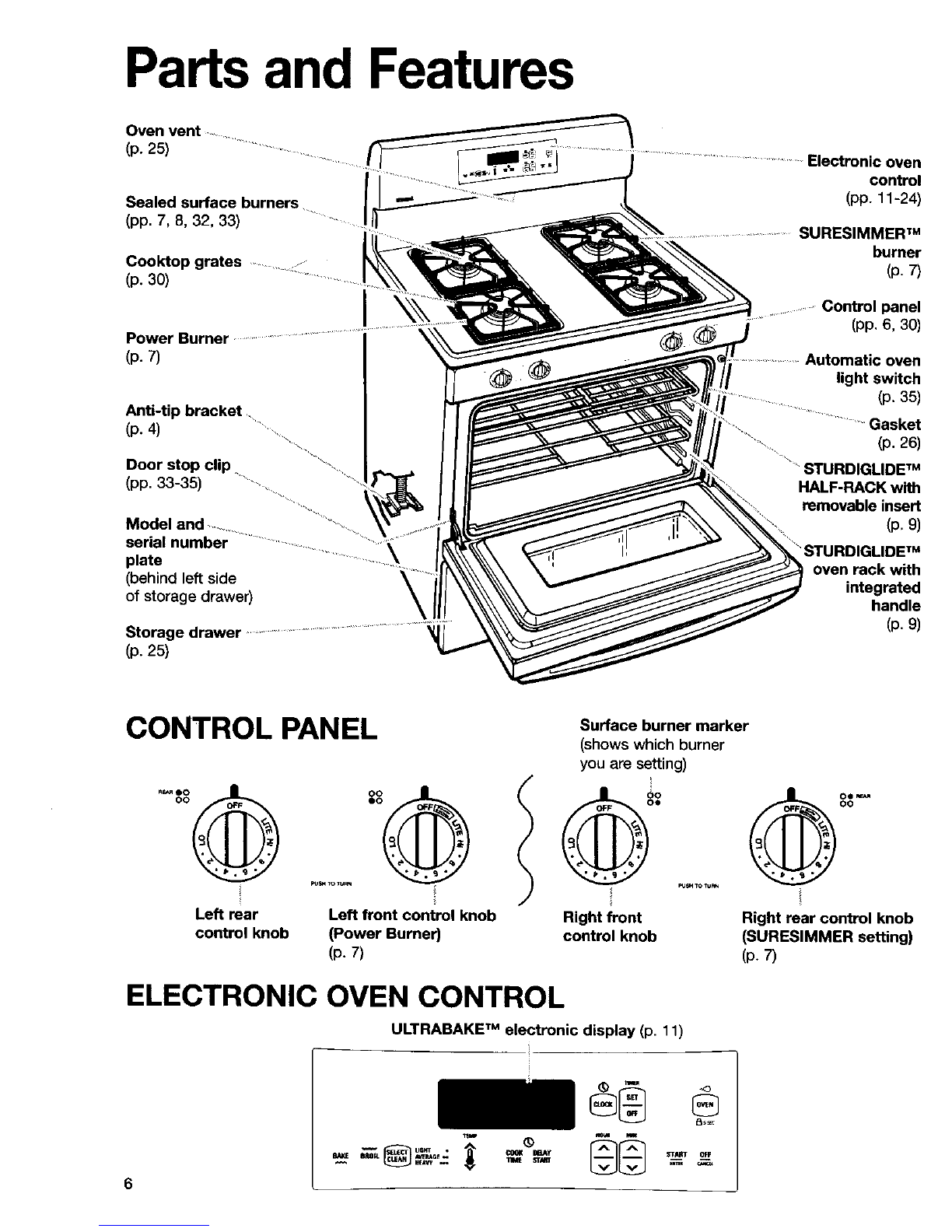

Parts and Features
Oven vent
IF _ _ _ _l '.............................................Electronic oven
(p. 25) ............................. "_ . _ control
Sealed surface burners ....
(pp. 7, 8, 32, 33) .....
Cooktop grates
(p. 30)
Power Burner
(p. 7)
(pp. 11-24)
SURESIMMER TM
burner
(p. 7)
........Control panel
(pp. 6, 30)
Automatic oven
light switch
(p. 35)
Anti-tip bracket. _Gasket
(p. 4) _ (p. 26)
Door stop clip _ •......... _STURDIGLIDE TM
(pp, 33-35) • •. HALF-RACK with
...... removable insert
Model and ....... •................. (p.9)
serial number ............... •STURDIGLIDET-
plate oven rack with
(behind left side integrated
of storage drawer) handle
(p. 9)
Storage drawer
(p.25)
CONTROL PANEL
Left rear
control knob
Surface burner marker
(shows which burner
you are setting)
Left front control knob Right front
(Power Burner) control knob
(p. 7)
e_
O0
Right rear control knob
(SURESIMMER setting)
(p. 7)
ELECTRONIC OVEN CONTROL
ULTRABAKE TM electronic display (p. 11)
6

UsingYour Range
USING THE SURFACE BURNERS
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
thece t Q!k obs
Your range comes with electric ignitors that light
the burners each time you turn the control knobs
to LITE.
•Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
Push in the control knob and turn it counter-
clockwise to the LITE
position. The clicking
sound isthe ignitor
sparking. Make sure
the burner has lit.
•Stop the clicking
sound after the burner
lights by turning the
control knob anywhere
between HI and LO.
NOTE: All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LITE is the one that will ignite.
IREMEMBER: When range is in use or during
the Self-Cleaning cycle, the entire cooktop area
may become hot.
heat setti s
Use the following chart as a guide.
S.ETT!NG ................ RECOMMENDED USE ..............
LITE • To light the burner.
Power Burner • To provide highest heat ,
(left front burner) setting.
HI • To start food cooking. :
• To bring liquid to a boil.
Mid-renge
(between HI and
LO)
• To hold aboil. ;
• To fry chicken or pancakes. '
• To cook gravy, pudding, or
icing.
•To cook large amounts of ,
vegetables.
LO •To keep food warm,
• To simmer.
SURESlMMER TM • TOprovide lowest
'setting simmer/heat setting. _
(right rear burner) • To melt chocolate or butter.
NOTE: Do not leave empty cookware, or cookwara
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
UsingPewe
The left front burner is designed to give ultra-high
power when it is fully on. It can be used to rapidly
bring liquid to a boil and to cook large quantities of
food.
UsingSURESIM vIER
The right rear SURESIMMER burner is designed for
low temperature cooking. It allows accurate simmer
control at the lowest setting.
5asywaysto sav : s serg
• To help shorten your cooking time, use the least
I amount of liquid possible,
•Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
7

USING THE SURFACE BURNERS (contd.)
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
•Center the canner over the surface burner. Do
not extend more than 1 inch outside the burner
area.
• Do not place your canner on two surface burners
at the same time.
• Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
• Refer to your canner manual for specific
instructions.
For up-to-date information on canning, contact
your local U.S. Government Agricultural
Department Extension Office or companies who
manufacture home canning products.
t ghteo kwa ema es
• The pan should have a flat bottom, straight sides,
and a well-fiffing lid.
• Choose medium to heavy gauge (thickness)
cookware.
• The pan material (metal or glass) affects how
quickly and evenly the pan heats.
• When using glass or ceramic cookware, check to
make sure it is suitable for use on surface burners.
• To avoid tipping, make sure pots and pans are
centered on the grates.
You can manually light surface burners. Hold a lit
match near a burner and turn the control knob to
the LITE position. After the burner lights, turn the
control knob to the setting you want.
CHARACTERISTICS OF COOKWARE MATERIALS
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
•Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or • Heats slowly and unevenly.
ceramic glass • Use on low to medium settings.
• Follow manufacturer's instructions.
Copper • Heats very quicklyand evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking ifrecommended by the
manufacturer.
•Use on low settings.
Porcelain enamel-on-steel or •See cast iron and stainless steel.
enamel-on-cast iron
Stainless steel •Heats quickly but unevenly.
•Acore or base of aluminumor copper on the cookwareprovides
even heating.
•Can be coated with porcelain enamel.
8

USING THE OVEN
i_!i_'!i!_ ' _i_ _
The integrated handle area makes pulling out the
STURDIGLIDE rack simple. The opening is large
enough for a potholder or oven mitt.
The STURDIGLIDE HALF-RACK with removable
insert is a space maximizer. When attached, they
make a full rack. The insert can also be used on
the counter for a cooling rack.
Position a full rack on guide 1 or 2 and the half-rack
on guide 3 or 4. On the full rack place large items on
right side and deeper, covered dishes on left side.
Place shallow dishes on the half-rack. It may be
necessary to increase cooking time. At the end of
cooking, carefully remove items from the oven.
P0siti sisg racks pa s
Place the STURDIGLIDE racks where you need
them before turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
•When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake
time. Increase baking time, if necessary.
•For best results, allow 2 inches of space around
each pan and between pans and oven walls. Hot
air must circulate around the pans in the oven for
even heat to reach all parts of the oven. This
results in better baking.
Use this rack position when roasting food too large
to be placed on the first
rack position.
For proper roasting,
follow these guidelines:
•To avoid spillage,
remove food before
pulling out the rack.
•Tilt the rack up at the
,front before pulling it
rack position over the door.
•Use an adequate amount of liquid in the pan
(meat juices or water) so your food does not get
overdone.
Where to place pans:
1 pan In center of the oven rack. i
staggered.
3 or 4 pans In opposite corners on
each oven rack. Stagger
pans so no pan is directly i
over another. '_
Rack placement for specific foods:
i Frozen pies, large 1st or 2nd rack guide
! roasts, turkeys, from bottom
i anse! .....................................................................
Bundt cakes, most 2nd rack guide from
quick breads, yeast bottom
breads, casseroles,
meats
Cookies, biscuits, 2nd or 3rd rack guide
muffins, cakes, from bottom
nonfrozen pies
NOTE: For information on where to place your rack
when broiling, see "Broiling guidelines," pp. 19, 20.
9

BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light colored aluminum
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
Ovenproof glassware,
ceramic glass, or ceramic
Insulated cookie sheets or
baking pans
Stainless steel
Stoneware
BEST USED FOR
• Light golden crusts
• Even browning
• Brown, crisp crusts
•Brown, crisp crusts
•Little or no bottom browning
• Light, golden crusts
• Uneven browning
• Crisp crusts
GUIDELINES
• Use temperature and time recommended
in recipe.
•May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
•Place rack in center of oven.
• May reduce baking temperature 25°F.
•Place in the bottom third of oven.
• May need to increase baking time.
• May need to increase baking time.
• Follow manufacturer's instructions.
USING ALUMINUM FOIL
• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage
will occur to the oven bottom finish.
• Do not block the oven bottom vents.
• Do not cover the entire rack with aluminum foil.
Doing so will reduce air circulation and overall
oven performance.
•To catch spillovers from pies or casseroles place
foil on the oven rack below. Foil should be turned
up at edges and be at least 1 inch larger than
dish.
• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term masting. Remove foil for the last 30 minutes.
• Use narrow strips of foil to shield piecrust
edges if browning too quickly.
10

THE ELECTRONIC OVEN CONTROL
Oven
selector pads
(bake, pp. 15,
17-19, 21, 22,
24; broil, pp.
17-19)
ULTRABAKETM
electronic Clock pad
display (pp. 12, 13)
Kitchen timer
set and off pads
(pp. 13, 14)
® "°
SET _
AVERAGEo, TIME START
HEAVY H*
SELECT Tempera- Timed oven
CLEANTM pad lure pad control pads
(pp.27, 28) (pp. 15, 17, (pp. 11, 13,
19, 21,23, 21-24, 28)
24)
HOUA MIN
Manual
Hour Minute Start/enter and
pad pad off/cancel pads
(pp. 12, 14, (pp. 12, 14-19,
22-24, 28) 22-24, 27-29)
ovenlight
and oven
Iockout pad
(pp. 12,35)
•After you install the range according to the
installation instructions and connect the power
supply, everything on the display will light up for
about 5 seconds, then a time of day and "PF"
will appear on the temperature display. Press
OFF/CANCEL to clear "PF" from the display. If,
after you set the clock (see "Setting the clock,"
p. 12), "PF" again appears on the display, your
electricity was off for a while indicating a Power
Failure. Reset the clock, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or kitchen timer,
the display will show times, temperature settings,
and what command pads have been pressed.
• You can find out what time the oven turned on or
is going to turn on when the display is active by
pressing DELAY START.
• When showing the time of day, the display will
show the hour and minutes.
•When you are using the kitchen timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1 to 59 minutes, the display
will count down each second.
- For settings one hour or over, the display will
count down each minute.
•When you are using COOK TIME and DELAY
(_ START, the display will show
600K DIBAY hours and minutes or minutes
TIME START and seconds.
11

SETTING THE CLOCK
1. Press CLOCK, PRESS YOU SEE (denotesblinking)
®
(example for 12:00)
2. Set the time. PRESS YOU SEE
Press the HOUR/MIN (A) or (V) pad(s) until the
correct time of day shows on the display.
HOUR MIN
(example for 5:30)
3. Press START/ENTER or CLOCK. PRESS YOU SEE
NOTE: This is a 12-hour clock. It does not
show a.m. or p.m. STA.RT OR (_)
ENTER
USING THE OVEN LOCKOUT
The oven lock lets you prevent use of the control
panel command keypads. This feature comes in
handy when cleaning the control panel to avoid
accidentally turning on the oven.
NOTE: You can only lock the oven when the oven
is not in use or the control has not been set. The
oven will remain locked after a power failure if it
was locked before the power failure.
To lock the oven:
Press and hold the OVEN keypad for 5 seconds.
,',,C) You will hear a single tone and "Loc" and
{_ F_will appear on the display. Three tones
will sound when the oven is locked and
1_5_ you press any command pad other than
CLOCK, TIMER, START/ENTER,
OFF/CANCEL, TOP or OVEN.
To unlock the oven:
Press and hold the OVEN keypad for 5 seconds.
",,O You will hear a single tone and "Loc" and
_will disappear from the temperature
display.
12

TONES
Keypad tones let you know a keypad has been
pushed.
To remove keypad tones:
Press and hold the COOK TIME keypad for
5seconds. You will hear a short tone and
COOK
TIME see "Snd OFF" when the keypad tones
are turned off.
To bring back keypad tones:
Press and hold the COOK TIME keypad for
COOK 5 seconds. You will hear a short tone and
TIME see "Snd on" when the keypad tones are
turned on.
Repeater tones are four 1-second tones which
remind you that the set time has expired for a
kitchen timer or a timed oven control function.
To remove repeater tones:
Press and hold the SET keypad for 5 seconds. You
_MER will hear a short tone and see "rEP OFF"
r_ when the repeater tones are turned off.
To bring back repeater tones:
Press and hold the SET keypad for 5 seconds. You
_MER will hear ashort tone and see "rEP on"
when the repeater tones are turned on.
Error tones indicate a problem with the electronic
oven control. An error code will appear in the
display. See "Display Messages" in the
"Troubleshooting" section, p. 38.
Volume can be adjusted between high and low.
To adjust:
Press and hold the DELAY START keypad for
DELAY 5 seconds. You will hear a short tone and
S'l'td_" see either "Snd HI" or "Sr
and hold the DELAY STAF
for 5 seconds to change to desired
NOTE: You can remove "Snd on", "
on", "rEP OFF", "Snd HI" or "Snd L
display and bring back the time of (
any key.
dLo". Press
:T keypad again
retting.
3nd OFF", "rEP
)" from the
ay by pressing
USING THE 12-HOUR SHUT-OFF
The oven control is set to automatically shut the oven
off 12 hours after the oven turns on. This will not
interfere with any timed or delayed cook function.
To override the 12-hour shut-off:
For longer cooking periods and for religious
observances that require oven usage longer than
12 hours, press and hold the CLOCK keypad for 5
seconds. You will hear a tone and see "12H OFF"
when the feature is off. The oven will remain on
until turned off by the user.
NOTE: The oven light will come on
door is opened. To keep the light o_
turn the light on, by pressing the O_
instructions, p. 44.
To reset the 12-hour shut-off:
Press and hold the CLOCK keypad
You will hear a tone and see "12H c
feature is on. The oven will automal
after 12 hours.
Nhen the oven
continuously,
'EN keypad. See
rot 5 seconds.
n" when the
cally turn off
13

USING THE ELECTRONIC KITCHEN TIMER
The kitchen timer allows you to monitor time for
cooking and other tasks. It does not start or stop
the oven. See the "Using the Timed Oven Control"
section (p. 21) to start and stop the oven automati-
cally. It can be set in hours and minutes up to
12 hours, 59 minutes. The kitchen timer will display
minutes and seconds for settings under 1 hour.
You will hear four 1-second tones when the set
time is up.
1. Press TIMER SET. PRESS YOU SEE
TIMER
2. Set the time.
Press the HOUR/MIN (_,) or (V) pad(s) until the
correct length of time shows on the display.
PRESS
HOUR MIN
YOU SEE
(example for 10 minutes)
3. Press START/ENTER or TIMER SET.
The kitchen timer will begin counting down
immediately after the timer is started. The
display will count down in hours and minutes (if
remaining time is one hour or more) and in
minutes and seconds (if remaining time is less
than one hour).
PRESS YOU SEE
11MER
START r_
or
(display counts down)
YOU SEE
When the time is up:
You will hear four 1-second tones, then four
1-second repeater tones every minute until you
press TIMER OFF.
1. Press TIMER OFF, PRI=SS YOU SEt=
(time of day)
14

STARTING/CANCELING A FUNCTION
After setting afunction, you must press START/
ENTER to start the function. If you do not
START_ press START/ENTER within 5 seconds of
mR setting, "START?" will show on the
display as a reminder. If you do not press
START/ENTER within 5 minutes of setting, the time
of day will appear. You must reset the function and
press START/ENTER.
OFF/CANCEL willcancel any function except the
Clock, Timer, or Oven Lockout. When you
OFF press OFF/CANCEL, the display will show
CANCH the time of day or, if the minute timer is also
being used, the time remaining.
ULTRABAKE TMBAKING/ROASTING
Your oven is designed with the ULTRABAKETM
enhanced baking system to constantly monitor
oven temperature. The bake burner will cycle, as
needed, to maintain the desired temperature. This
feature is automatically activated when the oven is
in operation.
IMPORTANT:
•When using the oven for the first time, it is
necessary to light the surface burners first to
purge air from the gas lines.
• Do not try to light the oven burner during a
power failure.
• Never place food or cookware directly on the
oven door or the oven bottom.
1. Place the STURDIGLIDE TM rack(s) where you
need them in the oven. For more information, see
the "Positioning racks and pans" section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
3. Set the temperature (optional). PRESS
Do this step if you want to set a temperature TEMP
other than 350°F. Press TEMP (,k) or (_') pad(s) j_,
to raise or lower the temperature in 5°F amounts.
Use these pads until the desired temperature
shows on the small display.
YOU SEE
(example for bake at 375°F)
F
15

ULTRABAKE TMBAKING/ROASTING (contd.)
4. When roasting, preheating the oven is not
necessary unless your
recipe recommends it.
NOTE: The oven will heat
normally even though
"PrE HEAt" is displayed
and then maintain the
selected cooking
temperature.
• For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
• Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the meat
or poultry. Make sure the thermometer is not
touching bone, fat, or the bottom of the pan.
5. Press START/ENTER. PRESS YOU SEE
A preheat mode is entered after the oven
temperature has been set and START has been
pressed. Once the preheat conditioning ends,
the selected oven temperature replaces "PrE
HEAt" on the display. You will hear a 1-second
tone, indicating the oven is ready to use.
The ULTRABAKE TM system electronically
regulates the preheat and temperature to maintain
a precise temperature range for the best cooking
results.
START
E_
YOU SEE
NOTES:
•You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
•While the oven is in the preheat mode, you can
see the set temperature for 5 seconds by
pressing BAKE.
(example for set temperature
of 35001=)
6, When baking, put your food in the oven after
the preheat conditioning
ends. During baking/
roasting, the oven burner
will turn on and off to keep
the oven temperature at
the setting.
Saqsg
• To avoid loss of heat, open the oven door as little
as possible.
• Use the timer to keep track of cooking time.
• Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven. PRESS YOU SEE
OFF
C_,NCEL
(time of day)
16

READJUSTING THE OVEN TEMPERATURE CONTROL
(OPTIONAL)
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook
faster or slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the temperature calibration
by following the steps below.
1. Press and hold BAKE for 5 seconds.
The display will show the current temperature
calibration, for example "0," if you have not
already adjusted the temperature.
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.
PRESS YOU SEE
BAKE
(factory setting of "0")
2, Set the new offset temperature. PRESS
Press TEMP (&) or (V) pad(s) to raise or lower TEMP
the temperature in 1O°F amounts. You can set
the temperature change to as low as -30°F or as
high as +30°F. A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
YOU SEE
temperature setting.
(example when making oven
1O°F warmer)
3, Enter the adjustment. PRESS YOU SEE
NOTE: You must press START/ENTER after START
adjusting the calibration or your changes will not E_rE--_
be made.
(time of day)
Nowto the Qf
s@Jst®est
The chart at the right tells you how much to adjust
the temperature calibration to get the cooking
results you want. You can figure out cooking results
by the amount of browning, moistness, and rising
times for baked foods.
THIS NUMBER '
OF DEGREES
TO COOK FOOD (FAHRENHEIT)
o,o
A little more +10
Moderately more +20
Much more +30
A little less -10
Moderately less ............. -20 ..........
Much less -30
Press and hold BROIL for 5 seconds, You will hear a
short tone and the temperatures displayed will
BROIL switch to °C. To switch back to °F, repeat the
instructions above. Whenever you switch, "°C"
or "°F" wilr be displayed until another key is pressed.
17

BROILING
For best results, do not preheat when broiling
unless your recipe recommends it.
1. Place the STURDIGLIDF mrack so that the
surface of the food is no less than 3 inches away
from the broil burner. See "Broiling guidelines,"
pp. 19, 20.
2. Put your food on the broiler pan and place the
v
%•
pan in the center of
the oven rack. Close
the door.
3. Press BROIL. PRESS YOU SEE
BP,OIL
4. Press START/ENTER. PRESS YOU SEE
You can change the temperature setting any
time before or after pressing START/ENTER. START__
To change the temperature, see "Precision E_E.
broiling" later in this section.
5. After broiling, turn off the oven. PRESS YOU SEE
OR:
CANCEL
(time of day)
18

BROILING (contd.)
Use precision broiling if your food is cooking too
fast or if you want your food to broil slower from the
start. The lower the temperature, the slower the
cooking. Thicker cuts and unevenly shaped pieces
of meat, fish and poultry may cook better if you use
lower broiling temperatures.
1, Press BROIL. PRESS YOU SEE
w
BROIL
2. Press the TEMP (_r) keypad to lower the PRESS
temperature in 5°F amounts. The broil range is TEMP
range is 170°F - HI (525°F).
3. Press START/ENTER. PRESS YOU SEE
START
(example shows broil at 400°F)
•Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
•Pull out oven rack to stop position before turning
or removing food.
• After broiling, remove the pan from the oven
when removing the food, Drippings will bake on
the pan if left in the heated oven, making
cleaning more difficult.
• For easier cteaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
19

BROILING (contd.)
Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food 3
inches or more from the broil burner. Times are
guidelines only and may need to be adjusted for
individual tastes.
iAPPROXIMATE TIME
iRACK BROIL (MINUTES)
MEAT POSITION SETTING SIDE 1 SIDE 2
4 HI
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-10
Ground Meat Patties, _" thick, 4 HI 13-14 6-7
well done
Pork Chops, 1" thick 4 HI 18-21 8-10
_i_;,_siice:;_;:thi_p_cooked.......................4............................................Hi.....................8:i6............................_:_............
° 6;,co;;i"thic_siicod...............................................4..................................5_0_F.................8:9....................................i:2.........
Frankfurters 4HI 6-7 3-4 , :
Lamb Chops, 1" thick 4 HI 15-17 8-9
Chicken
bone-in pieces 3 HI 20-24 15-18
boneless breasts 4 HI 12-16 11-16
Fish 4
fillets ¼-Z" thick HI 8-10 4-5
steaks ¾-1" thick 500°F 13-15 10-13
2O
