Kenmore LAUNDRY CENTER 3405594 Operating instructions

Owner's Manual and
Installation Instructions
24-Inch Wide
LAUNDRY CENTER
Washer • Gas Dryer
IMPORTANT:
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PARTNO. 3405594 PRINTED IN U.S.A.

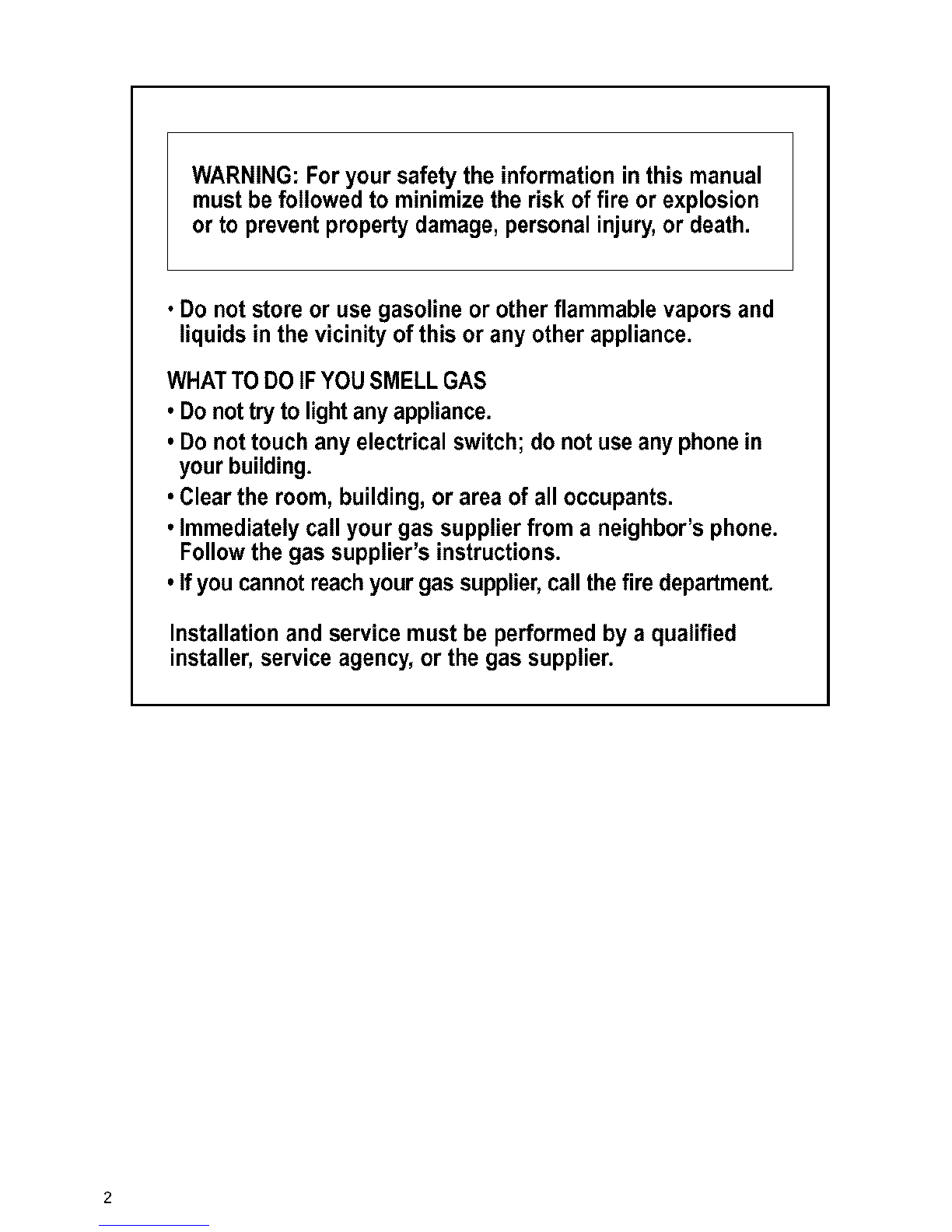

WARNING: For your safety the information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury, or death.
• Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DOIF YOU SMELL GAS
• Do nottry to lightany appliance.
•Do not touch any electrical switch; do not useany phone in
your building.
•Clear the room, building, or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•If you cannot reachyour gas supplier,call the fire department.
Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.

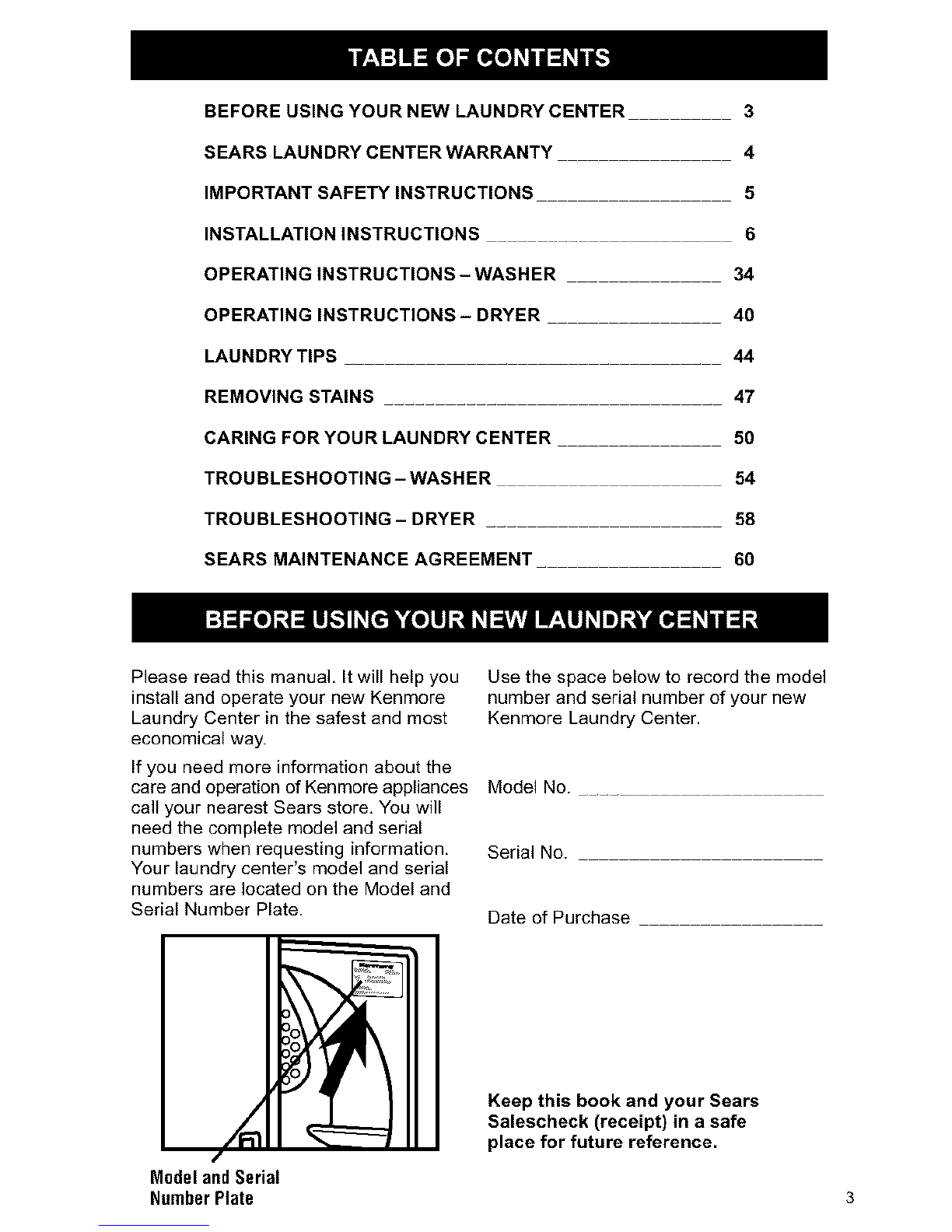

BEFORE USING YOUR NEW LAUNDRY CENTER

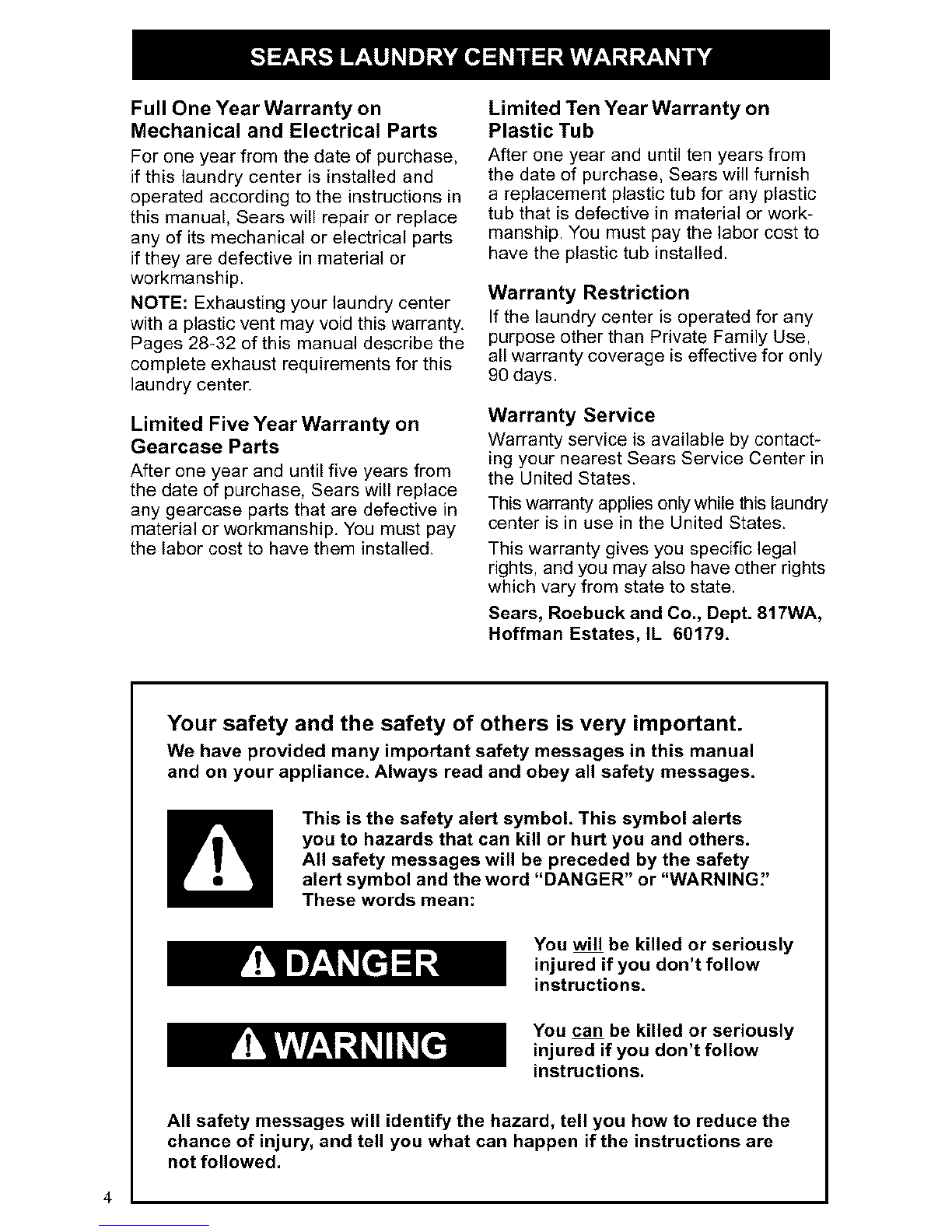

SEARS LAUNDRY CENTER WARRANTY
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
OPERATING INSTRUCTIONS - WASHER
OPERATING INSTRUCTIONS - DRYER
LAUNDRY TIPS
REMOVING STAINS
CARING FOR YOUR LAUNDRY CENTER
TROUBLESHOOTING - WASHER
TROUBLESHOOTING - DRYER
SEARS MAINTENANCE AGREEMENT
3
4
5
6
34
40
44
47
5O
54
58
60
Please read this manual, It will help you
install and operate your new Kenmore
Laundry Center in the safest and most
economical way.
If you need more information about the
care and operation of Kenmore appliances
call your nearest Sears store, You will
need the complete model and serial
numbers when requesting information,
Your laundry center's model and serial
numbers are located on the Model and
Serial Number Plate.
Use the space below to record the model
number and serial number of your new
Kenmore Laundry Center.
Model No.
Serial No.
Date of Purchase
Keep this book and your Sears
Salescheck (receipt) in a safe
place for future reference.
ModelandSerial
NumberPlate 3

Full One Year Warranty on
Mechanical and Electrical Parts
For one year from the date of purchase,
if this laundry center is installed and
operated according to the instructions in
this manual, Sears will repair or replace
any of its mechanical or electrical parts
if they are defective in material or
workmanship.
NOTE: Exhausting your laundry center
with a plastic vent may void this warranty,
Pages 28-32 of this manual describe the
complete exhaust requirements for this
laundry center.
Limited Five Year Warranty on
Gearcase Parts
After one year and until five years from
the date of purchase, Sears will replace
any gearcase parts that are defective in
material or workmanship, You must pay
the labor cost to have them installed.
Limited Ten Year Warranty on
Plastic Tub
After one year and until ten years from
the date of purchase, Sears will furnish
a replacement plastic tub for any plastic
tub that is defective in material or work-
manship. You must pay the labor cost to
have the plastic tub installed.
Warranty Restriction
If the laundry center is operated for any
purpose other than Private Family Use,
all warranty coverage is effective for only
90 days.
Warranty Service
Warranty service is available by contact-
ing your nearest Sears Service Center in
the United States.
This warranty applies only while this laundry
center is in use in the United States.
This warranty gives you specific legal
rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179,
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual
and on your appliance, Always read and obey all safety messages,
This is the safety alert symbol, This symbol alerts
you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word "DANGER" or "WARNING,"
These words mean:
You will be killed or seriously
injured if you don't follow
instructions,
You can be killed or seriously
injured if you don't follow
instructions.
All safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are
not followed.
4

YOUR SAFETY IS IMPORTANT TO US
WARNING: To reduce the risk of fire,
electric shock, or injury to persons when
using your laundry center, follow basic
precautions, including the following:
• Read all instructions before using
the laundry center.
• Do not wash or dry articles that have
been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-
cleaning solvents, or other flammable
or explosive substances as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry-cleaning
solvents, or other flammable or explosive
substances to the wash water. These
substances give off vapors that could
ignite or explode.
• Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for more
than 2 weeks. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system
has not been used for more than 2
weeks, turn on all hot water faucets
and let the water flow from each for
several minutes before using the
washing machine. This will release any
accumulated hydrogen gas. Because
the gas is flammable, do not smoke
or use an open flame during this time.
• Do not allow children to play on or in
the laundry center. Close supervision of
children is necessary when the laundry
center is used near children.
• Before the laundry center is removed
from service or discarded, remove the
washer lid and dryer door.
• Do not reach into the washer if the tub
or agitator is moving.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store this laundry
center where it will be exposed to
the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the
laundry center or attempt any servicing
unless specifically recommended in the
Owner's Manual or in published user-
repair instructions that you understand
and have the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each
load.
• Keep area around the exhaust opening
and adjacent surrounding areas free
from the accumulation of lint, dust, and
dirt.
• The interior of the machine and exhaust
vent should be cleaned periodically by
qualified service personnel.
SAVE THESE INSTRUCTIONS
IMPORTANT: The gas installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code, ANSI Z223.1.
The laundry center must be electrically grounded in accordance with local
codes, or in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70.

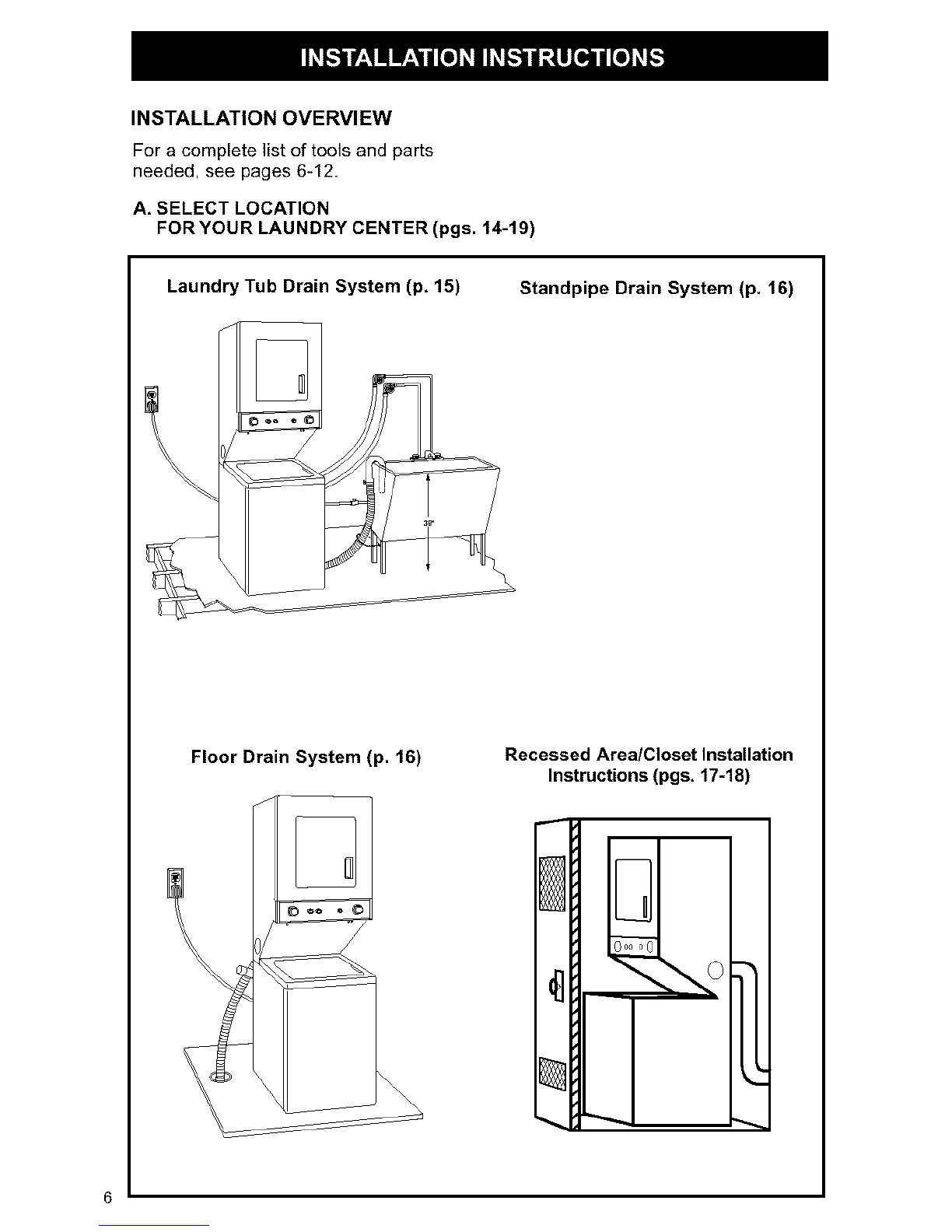

INSTALLATION OVERVIEW
For acomplete list of tools and parts
needed, see pages 6-12.
A, SELECT LOCATION
FOR YOUR LAUNDRY CENTER (pgs. 14-19)

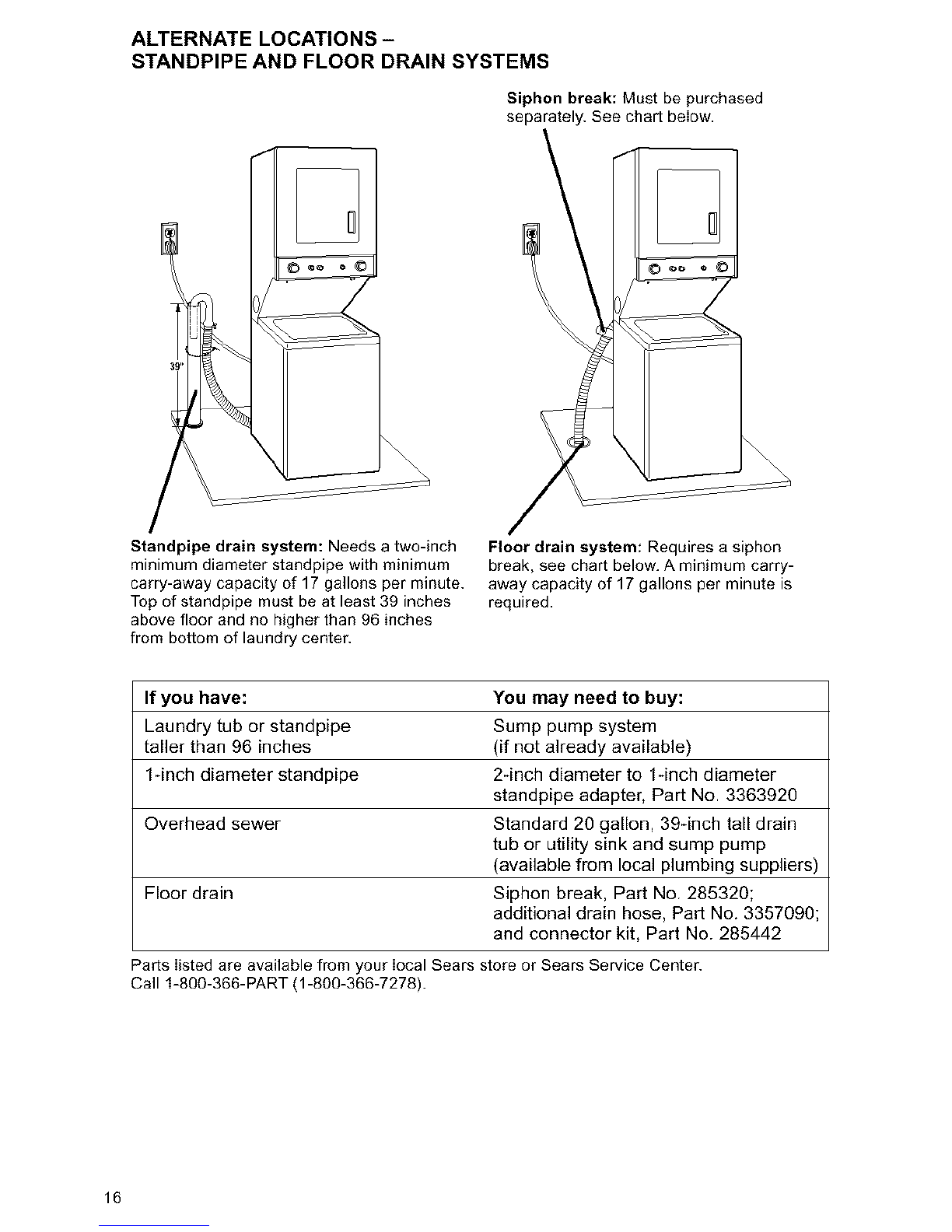

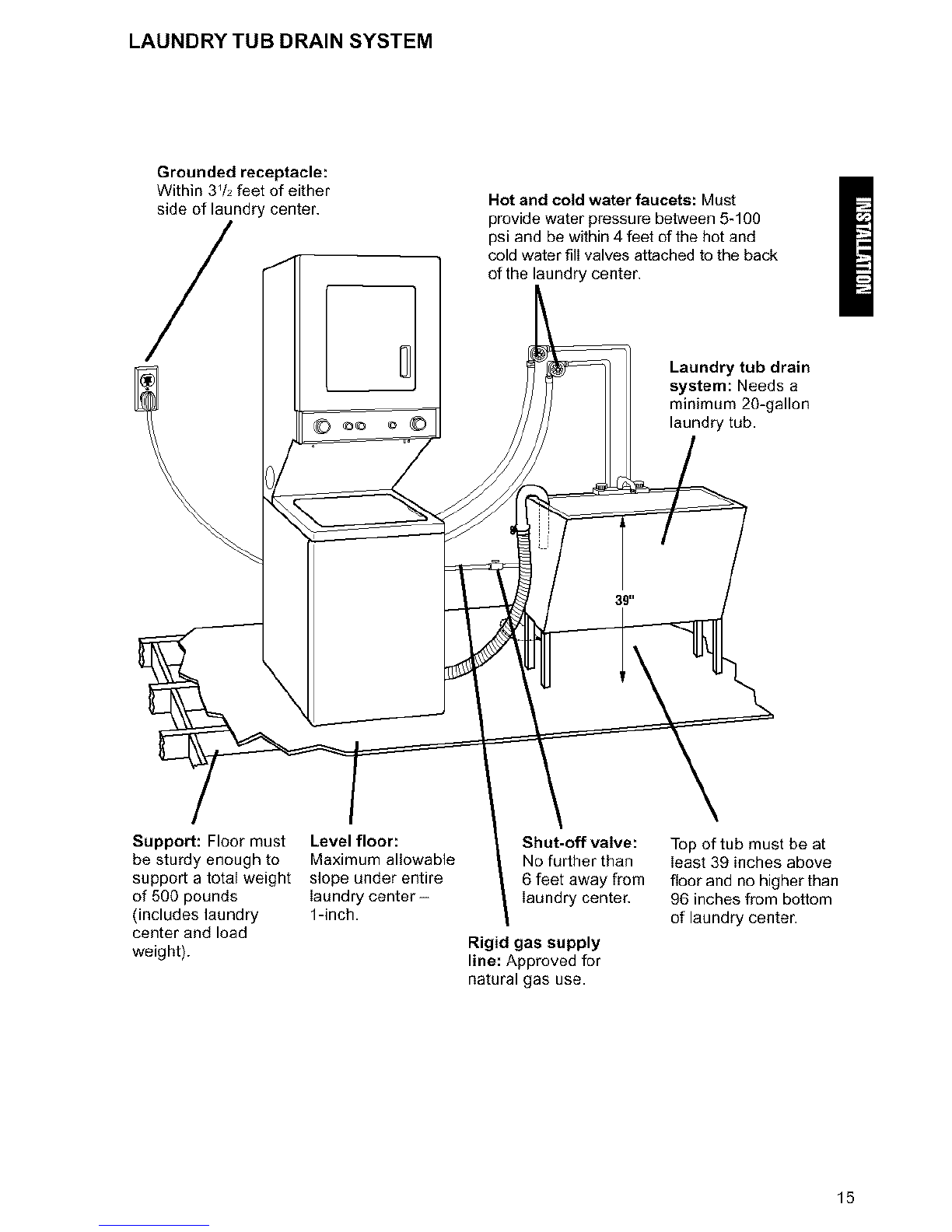

Laundry Tub Drain System (p, 15) Standpipe Drain System (p. 16)

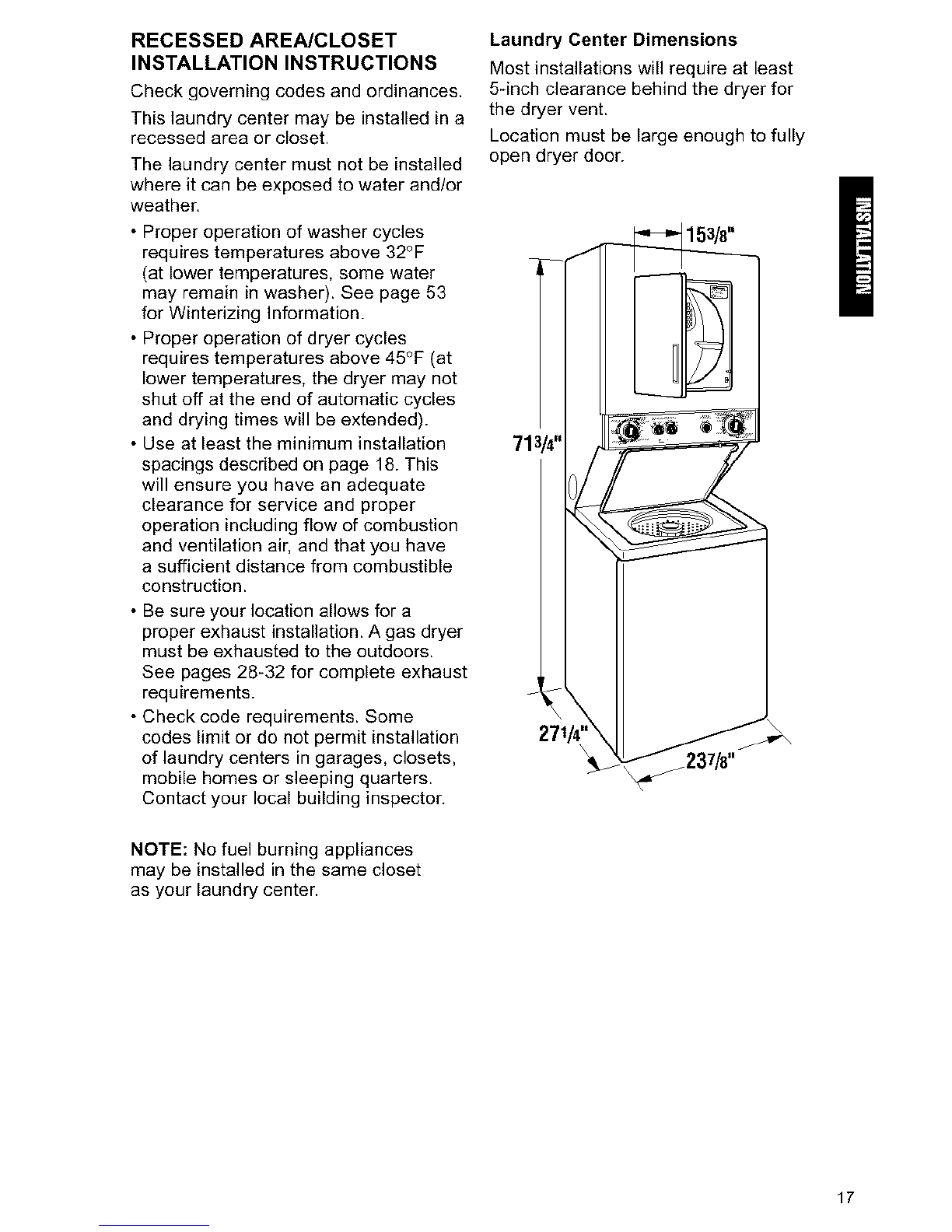

Floor Drain System (p. 16) Recessed Area/Closet Installation
Instructions (pgs, 17-18)
, !
°J

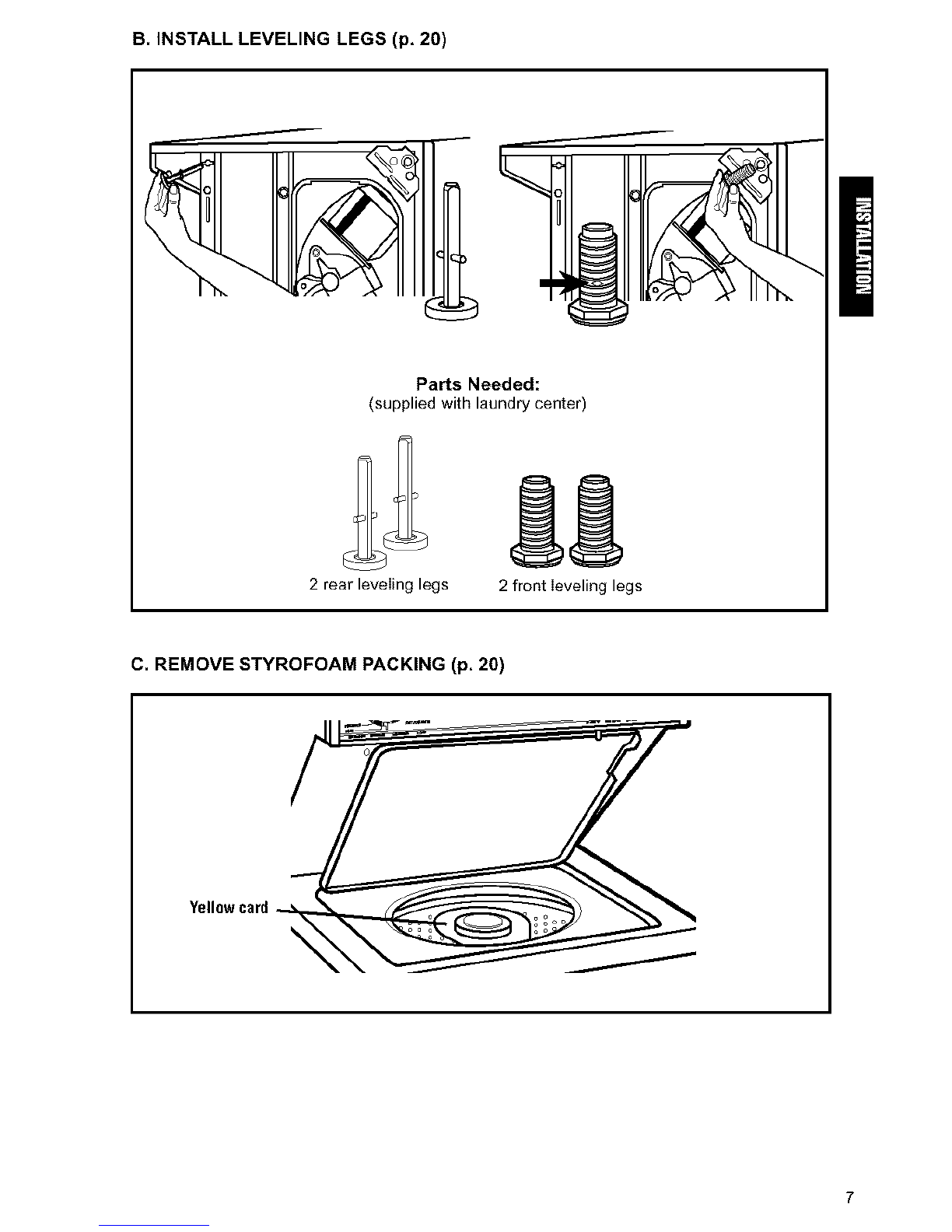

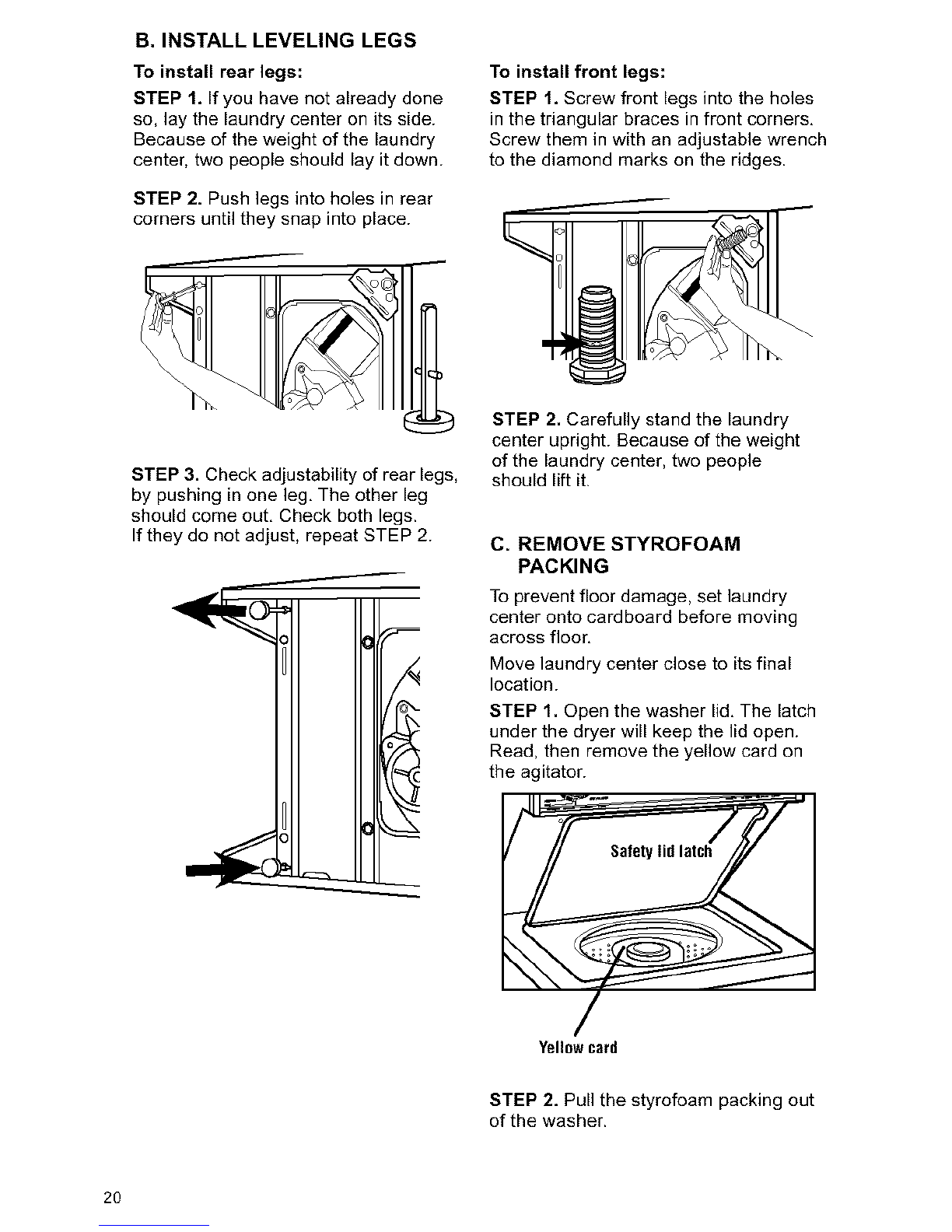

B. INSTALL LEVELING LEGS (p, 20)
)
Parts Needed:
(supplied with laundry center)
2 rear leveling legs 2 front leveling legs
C. REMOVE STYROFOAM PACKING (p, 20)
Yellowcard

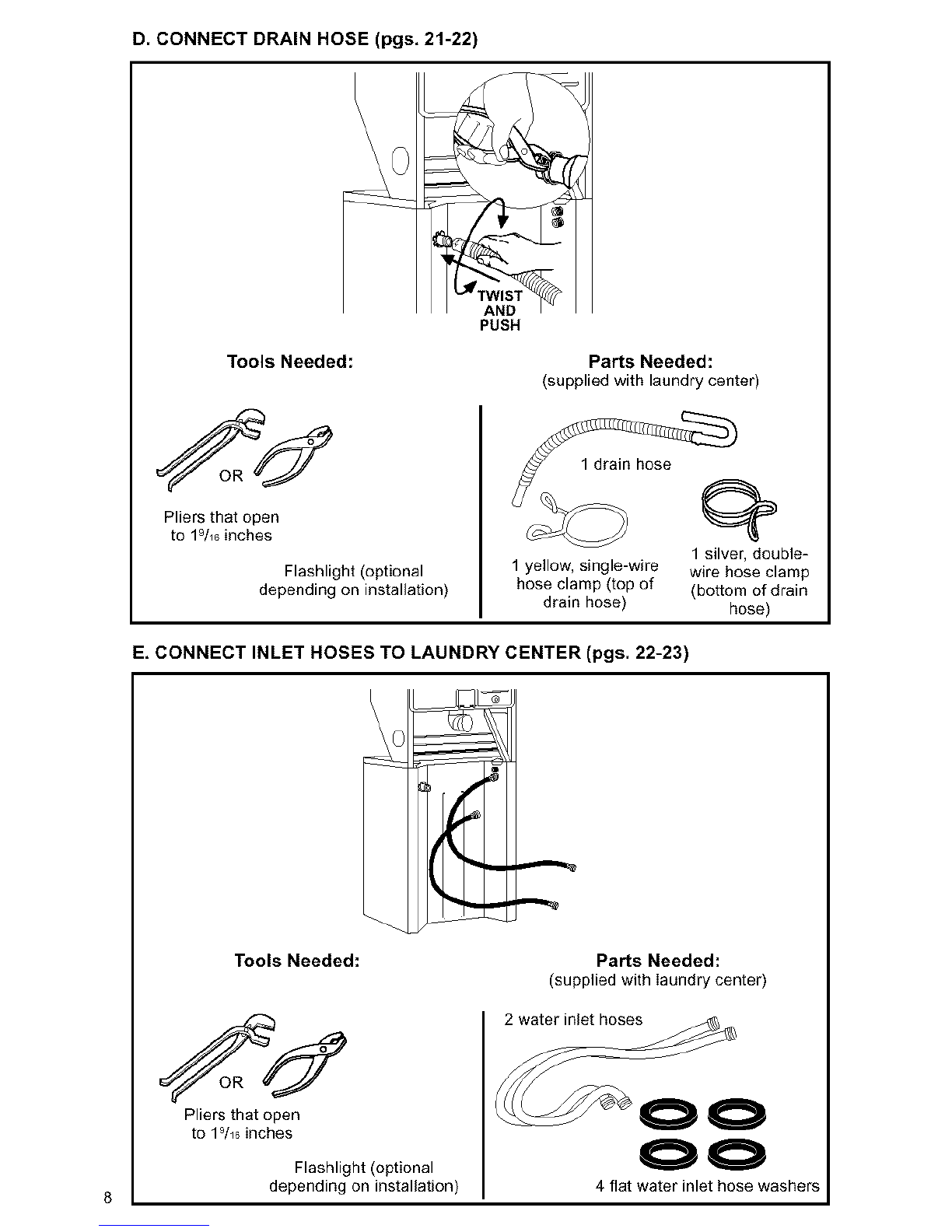

D.CONNECTDRAINHOSE(pgs,21-22)
\\\\\
AND
PUSH
Tools Needed:
Pliers that open
to 19/16inches
Flashlight (optional
depending on installation)
Parts Needed:
(supplied withlaundry center)
1 silver, double-
1 yellow, single-wire wire hose clamp
hose clamp (top of (bottom of drain
drain hose) hose)
E, CONNECT INLET HOSES TO LAUNDRY CENTER (pgs. 22-23)
Tools Needed:
Pliers that open
to 19/16inches
Flashlight (optional
depending on installation)
Parts Needed:
(supplied with laundry center)
2 water inlet hoses
4 flat water inlet hose washers

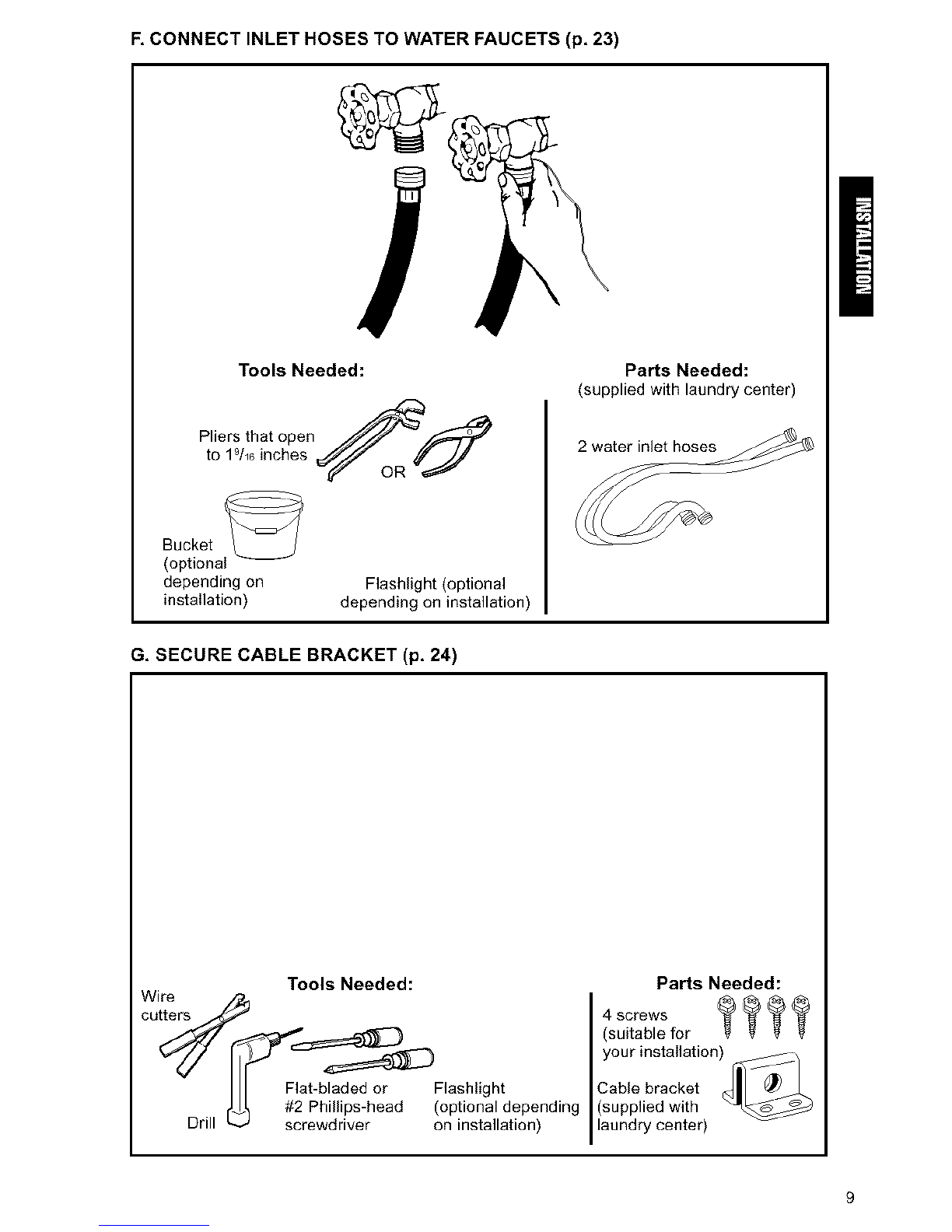

F, CONNECT INLET HOSES TO WATER FAUCETS (p, 23)
i
Tools Needed:
Pliers that open _"_'_./_
to 19/16inches _/S OR /_J
tu te a,
depending on Flashlight (optional
installation) depending on installation)
Parts Needed:
(supplied with laundry center)
2 waterinlethoses
G, SECURE CABLE BRACKET (p, 24)
Tools Needed:
cuWir_r_::::_
I I Flat-bladed or Flashlight
#2 Phillips-head (optional depending
Drill screwdriver on installation)
Parts Needed:
your installation) _
(Cablpelibedac_tl
laundry center)

H. SECURE DRAIN HOSE (p, 24)
Tools Needed:
Flashlight (optional
depending on installation)
Parts Needed:
(supplied with laundry center)
Plastic strap
I, LEVEL LAUNDRY CENTER (p. 25)
Tools Needed: Parts Needed:
_ open-enidnCwhrench
Flashlight (optional
depending on installation) Wood block
(supplied with laundry center)
2 front leveling legs
(installed previously)
10

J. INSTALL GAS LINE (pgs, 25-27)
Tools Needed: PaNs Needed:
8-inch Pipe joint
or lO-inch compound
pipe wrench resistant to
L.P. gas
Flashlight (optional
depending on installation)
Do not use pipe Use pipe joint
joint compound compound
3/8-inch male pipe flare V2-inch to
(optional depending 3/8-inch pipe
on installation) reducer
Rigid gas supply line approved for
natural gas use (NOTE: additional
fittings may be required)
11

K. CONNECT EXHAUST (pgs. 28-32)
I •
Tools Needed:
Tin snips
Flashlight (optional Flat-bladed
depending on installation) screwdriver
PaNs Needed:
4-inch metal elbow(s)
4-inch rigid or flexible (optional depending
heavy metal vent on installation)
4-inch outlet (4) 4-inch
exhaust hood diameter clamps
12

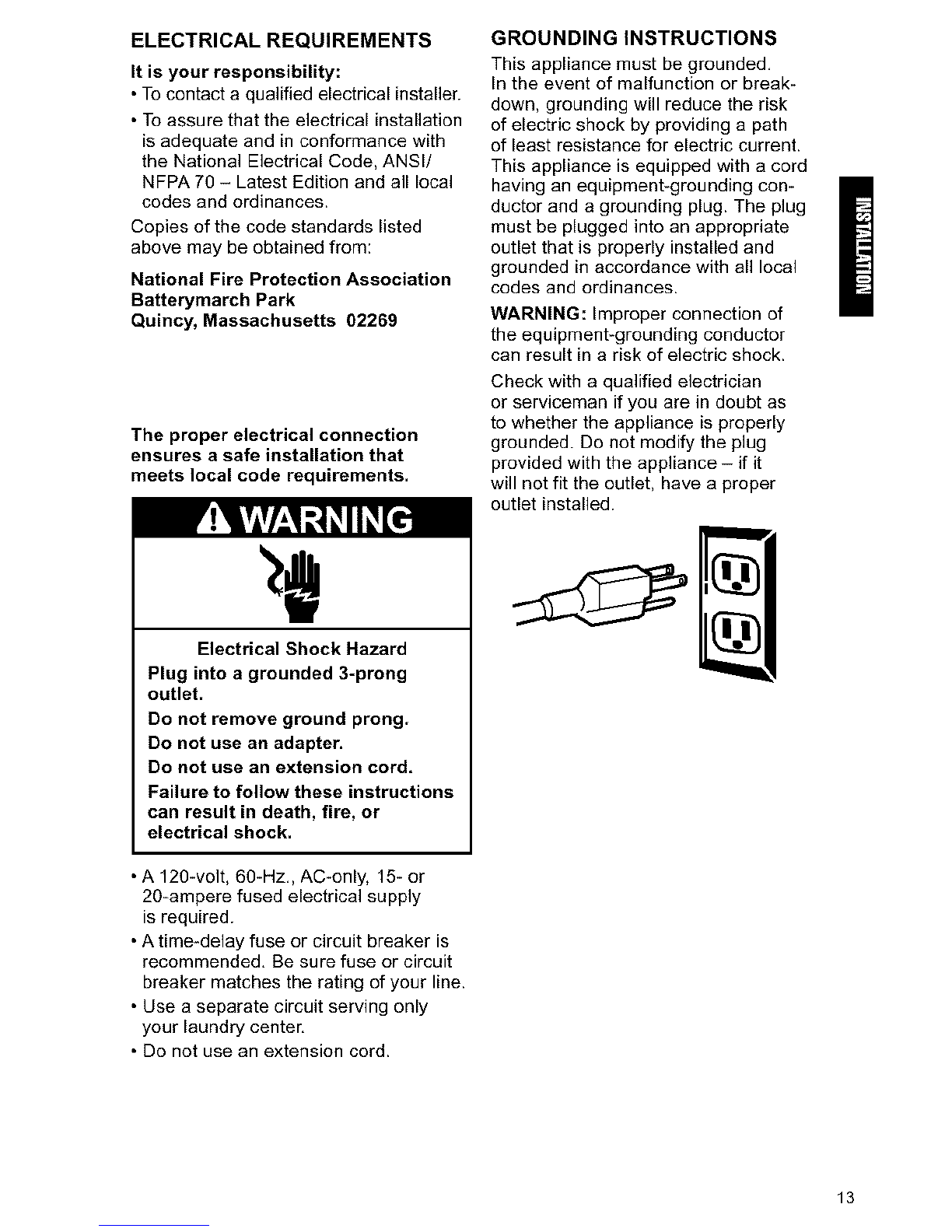

ELECTRICAL REQUIREMENTS
It is your responsibility:
•To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
the National Electrical Code, ANSI/
NFPA 70 - Latest Edition and all local
codes and ordinances.
Copies of the code standards listed
above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
The proper electrical connection
ensures asafe installation that
meets local code requirements.
Electrical Shock Hazard
Plug into a grounded 3-prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
• A 120-volt, 60-Hz,, AC-only, 15- or
20-ampere fused electrical supply
is required.
• A time-delay fuse or circuit breaker is
recommended, Be sure fuse or circuit
breaker matches the rating of your line.
• Use a separate circuit serving only
your laundry center,
• Do not use an extension cord.
GROUNDING INSTRUCTIONS
This appliance must be grounded,
in the event of malfunction or break-
down, grounding will reduce the risk
of electric shock by providing a path
of least resistance for electric current.
This appliance is equipped with a cord
having an equipment-grounding con-
ductor and a grounding plug. The plug
must be plugged into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.
WARNING: improper connection of
the equipment-grounding conductor
can result in a risk of electric shock.
Check with a qualified electrician
or serviceman if you are in doubt as
to whether the appliance is properly
grounded. Do not modify the plug
provided with the appliance - if it
will not fit the outlet, have a proper
outlet installed.
13

A. SELECT LOCATION FOR
YOUR LAUNDRY CENTER
Selecting the proper location
for your laundry center will improve
its performance, make installation
easier and minimize concerns like
washer walk or noise.
Check location where laundry center
will be installed. Proper installation is
your responsibility. Make sure you
have everything necessary for correct
installation (see pages 15-16).
This laundry center can be installed
using one of three systems:
• Laundry tub drain system (p. 15)
• Standpipe drain system (p. 16)
• Floor drain system (p. 16)
This laundry center must not be installed
where it can be exposed to water and/or
weather.
• Proper operation of washer cycles
requires temperatures above 32°F
(at lower temperatures, some water
may remain in washer). See page 53
for Winterizing Information.
• Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
• Use at least the minimum installation
spacings described on page 18. This
will ensure you have an adequate
clearance for service and proper
operation including flow of combustion
and ventilation air, and that you have
a sufficient distance from combustible
construction.
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Failure to do so can result in death,
explosion, or fire.
• Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 28-32 for complete exhaust
requirements.
• Check code requirements. Some
codes limit or do not permit installation
of laundry centers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
14

LAUNDRY TUB DRAIN SYSTEM
Grounded receptacle:
Within 3Vz feet of either
side of laundry center. Hot and cold water faucets: Must
provide water pressure between 5-100
psi and be within 4 feet of the hot and
cold water filI valves attached to the back
of the laundry center.
Laundry tub drain
system: Needs a
minimum 20-gallon
laundry tub.
Support: Floor must
be sturdy enough to
support a total weight
of 500 pounds
(includes laundry
center and load
weight).
Level floor:
Maximum allowable
slope under entire
laundry center-
1-inch.
Shut-off valve:
No further than
6 feet away from
laundry center.
Rigid gas supply
line: Approved for
natural gas use.
Top of tub must be at
Ieast 39 inches above
floor and no higher than
96 inches from bottom
of laundry center.
15

ALTERNATE LOCATIONS -
STANDPIPE AND FLOOR DRAIN SYSTEMS
Standpipe drain system: Needs a two-inch
minimum diameter standpipe with minimum
carry-away capacity of 17 gallons per minute.
Top of standpipe must be at least 39 inches
above floor and no higher than 96 inches
from bottom of laundry center.
Siphon break: Must be purchased
separately. See chart below.
Floor drain system: Requires a siphon
break, see chart below. A minimum carry-
away capacity of 17 gallons per minute is
required.
If you have: You may need to buy:
Laundry tub or standpipe Sump pump system
taller than 96 inches (if not already available)
14nch diameter standpipe 24nch diameter to 14nch diameter
standpipe adapter, Part No. 3363920
Overhead sewer Standard 20 gallon, 394nch tall drain
tub or utility sink and sump pump
(available from local plumbing suppliers)
Floor drain Siphon break, Part No. 285320;
additional drain hose, Part No. 3357090;
and connector kit, Part No. 285442
Parts iisted are available from your iocal Sears store or Sears Service Center.
Call 1-800-366-PART (1-800-366-7278).
16

RECESSED AREA/CLOSET
INSTALLATION INSTRUCTIONS
Check governing codes and ordinances.
This laundry center may be installed in a
recessed area or closet.
The laundry center must not be installed
where it can be exposed to water and/or
weather,
•Proper operation of washer cycles
requires temperatures above 32°F
(at lower temperatures, some water
may remain in washer). See page 53
for Winterizing Information.
• Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
• Use at least the minimum installation
spacings described on page 18. This
will ensure you have an adequate
clearance for service and proper
operation including flow of combustion
and ventilation air, and that you have
a sufficient distance from combustible
construction.
• Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 28-32 for complete exhaust
requirements.
• Check code requirements. Some
codes limit or do not permit installation
of laundry centers in garages, closets,
mobile homes or sleeping quarters.
Contact your local building inspector.
Laundry Center Dimensions
Most installations will require at least
5qnch clearance behind the dryer for
the dryer vent.
Location must be large enough to fully
open dryer door.
713/4"
271/4"
_23718"
NOTE: No fuel burning appliances
may be installed in the same closet
as your laundry center.
17

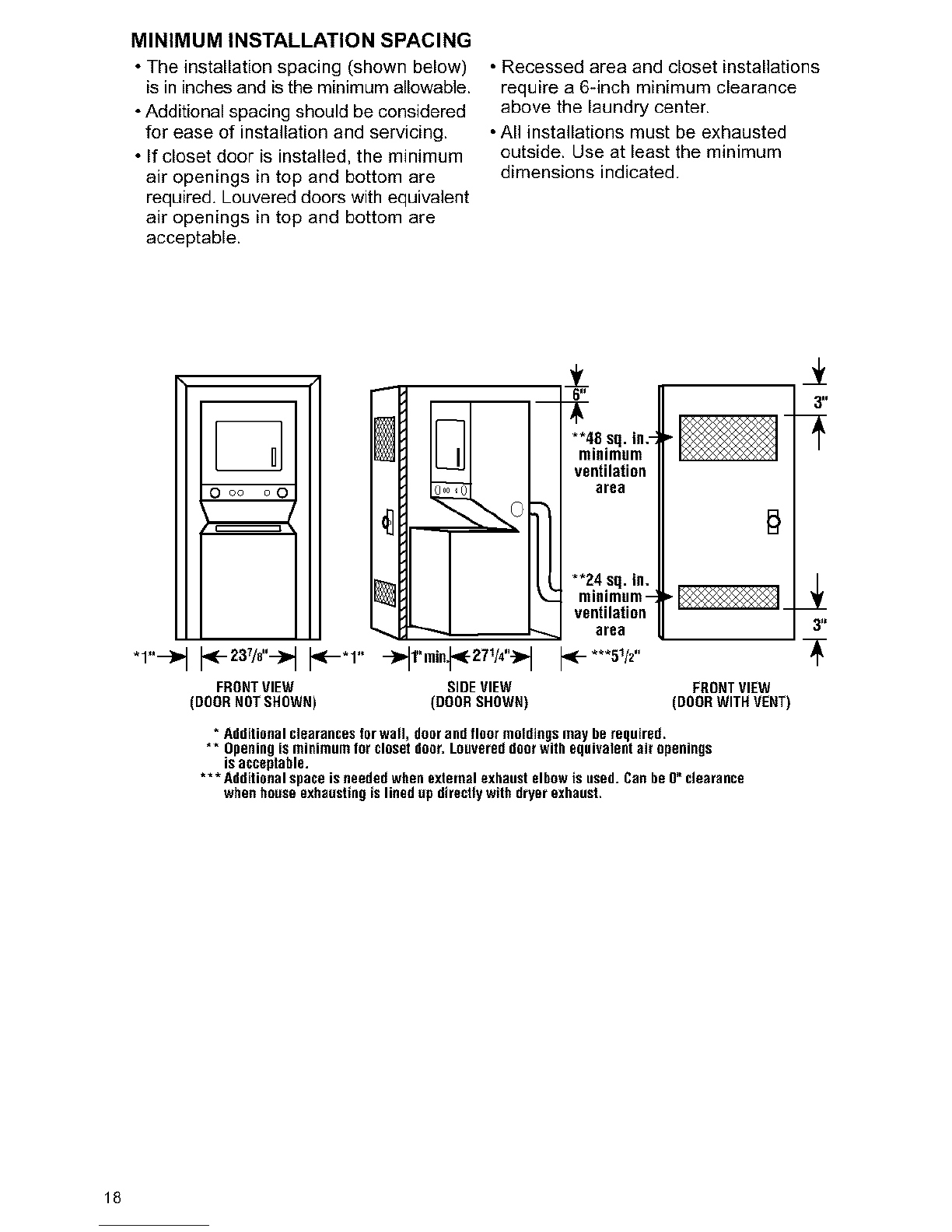

MINIMUM INSTALLATION SPACING
• The installation spacing (shown below)
is in inches and is the minimum allowable.
• Additional spacing should be considered
for ease of installation and servicing.
• If closet door is installed, the minimum
air openings in top and bottom are
required. Louvered doors with equivalent
air openings in top and bottom are
acceptable.
• Recessed area and closet installations
require a 6-inch minimum clearance
above the laundry center.
• All installations must be exhausted
outside. Use at least the minimum
dimensions indicated.
O oo oO
®
*t"÷ I
FRONTVIEW SIDEVIEW
(DOORNOT SHOWN) (DOOR SHOWN)
**48 sq.in.-
minimum
ventilation
area
**24 sq.in.
minimum.
ventilation
area
_L**'51/2"
FRONTVIEW
(DOORWITHVENT)
* Additionalclearancesforwail, doorandfloormoldingsmay berequired.
** Openingisminimumforclosetdoor.Lonvereddoorwithequivalentair openings
isacceptable.
** *Additionalspaceisneededwhenexternalexhaustelbowisused.Canhe0"clearance
whenhouseexhaustingis linedup directlywithdryer exhaust.
3"
3_
18

MOBILE HOME REQUIREMENTS
The laundry center must not be installed
where it can be exposed to water and/or
weather,
• Proper operation of washer cycles
requires temperatures above 32°F
(at lower temperatures, some water
may remain in washer). See page 53
for Winterizing Information.
• Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
• Use at least the minimum installation
spacings described on page 18. This
will ensure you have an adequate
clearance for service and proper
operation including flow of combustion
and ventilation air, and that you have
a sufficient distance from combustible
construction.
• Special provisions must be made
for the introduction of outside air into
the laundry center when installed in a
mobile home. The area of any opening
for the introduction of outside air (such
as a nearby window) should be at least
twice as large as the laundry center
exhaust opening.
This laundry center is suitable for mobile
home installations. The installation must
conform to the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 (formerly the Federal
Standard for Mobile Homes Construction
and Safety, Title 24, HUD Part 280).
• Laundry center exhaust vent must
not be connected with screws or other
devices which extend into the interior
of the vent.
• A gas laundry center must be exhausted
outdoors. The exhaust vent must be
securely fastened to a noncombustible
portion of the mobile home structure
and must not terminate beneath the
mobile home.
Floor /1Ootside
wall
Enclosure
For mobile home use, gas laundry centers
must be securely fastened to the floor.
Order Mobile Home Installation Kit
346764 from your Sears store or Sears
Service Center. Kit includes the neces-
sary fastening hardware and detailed
installation instructions. Exhaust system
hardware is also available through your
Sears store or Sears Service Center.
19

B. INSTALL LEVELING LEGS
To install rear legs:
STEP 1. If you have not already done
so, lay the laundry center on its side.
Because of the weight of the laundry
center, two people should lay it down.
STEP 2. Push legs into holes in rear
corners until they snap into place.
STEP 3. Check adjustability of rear legs,
by pushing in one leg, The other leg
should come out, Check both legs.
If they do not adjust, repeat STEP 2.
To install front legs:
STEP 1. Screw front legs into the holes
in the triangular braces in front corners,
Screw them in with an adjustable wrench
to the diamond marks on the ridges.
STEP 2. Carefully stand the laundry
center upright. Because of the weight
of the laundry center, two people
should lift it.
C. REMOVE STYROFOAM
PACKING
To prevent floor damage, set laundry
center onto cardboard before moving
across floor,
Move laundry center close to its final
location.
STEP 1. Open the washer lid, The latch
under the dryer will keep the lid open,
Read, then remove the yellow card on
the agitator.
/
Yellowcard
STEP 2. Pull the styrofoam packing out
of the washer.
2O
