General Safety Instructions 3
Product Overview 6
Getting Started 7
Operating Instructions 10
Other Useful Information 12
Contents

3
0800 422 274
NZ
Read this manual thoroughly before first use, even if you are familiar with this
type of product. The safety precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered to. Make sure you understand
all instructions and warnings. Keep the manual in a safe place for future
reference, along with any warranty information, your purchase receipt and the
original carton. If you sell or transfer ownership of this product, pass on these
instructions to the new owner.
Always follow basic safety precautions and accident prevention measures
when using an electrical appliance, including the following:
Electrical Safety and Cord Handling
• Voltage: Before plugging in the heater, make sure your outlet voltage and
frequency correspond to the voltage stated on the appliance rating label.
• Electrical circuit: To prevent overloading a circuit, do not plug the heater into
a circuit that already has other appliances working.
• No adaptor, no extension cord: Do not use the heater with a power board or
double adaptor as this may overheat and create a fire risk. Do not use it with an
extension cord because the cord may overheat and cause a risk of fire.
• WARNING: To reduce the risk of fire, electric shock or injury:
• Never touch the heater with wet or damp hands or feet.
• Do not use the heater if any part of it has become wet. Immediately call a
qualified service technician to inspect the heater and replace any part of the
electrical system that has been wet.
• Never spill liquid into the heater; never immerse the cord, plug or any part of
the appliance in water or any other liquid. Do not reach for an appliance that
has fallen into water. Switch off and unplug immediately.
• Damage: Do not operate the heater with a damaged cord or plug, or after the
heater malfunctions or has been dropped or damaged. If the supply cord is
damaged, it must be replaced by the manufacturer or an authorised service
agent in order to avoid a hazard. Contact our after sales support line to arrange
an examination and/or repair.
• Plug: It is normal for the plug to feel warm to the touch; however, a loose fit
between the AC outlet and plug may cause overheating and distortion of the
plug. Contact a qualified electrician to replace a loose or worn outlet.
• Protect the power cord:
• Do not twist or kink the cord or let it touch heated surfaces.
• Do not put any stress on the cord where it connects to the product.
• Arrange the cord away from any traffic area so no one will trip over it.
• Do not run the cord under carpeting; do not cover it with rugs, runners etc.
• Only operate the heater with the power cord fully unwound. Using it with the
cord coiled up could cause overheating and present a hazard.
General Safety Instructions

4
0800 422 274
NZ
• After use: Always disconnect power when the heater is not in use and before
cleaning, servicing or moving the heater. To disconnect the heater, switch it off and
remove the plug from outlet. When disconnecting, grip the plug, do not pull on the
cord.
• Safety switch: Unless your home is already fitted with a residual current device
(safety switch), we recommend installing an RCD with a rated residual operating
current not exceeding 30mA to provide additional safety protection when using
electrical appliances. See your electrician for professional advice.
Usage Conditions and Restrictions
• Indoor domestic use only: This appliance is intended for domestic use only. It is
not suitable for heavy duty commercial or trade use. Do not use it outdoors, on wet
surfaces or near a swimming pool.
• Space heating only: Do not use this appliance for anything other than its intended
purpose, and only use it as described in this manual. Any other use is not recom-
mended and may cause fire, electric shock or injury. Do not use this appliance as a
drying rack for clothing. Do not use the heater to dry or heat shoes, pipes or any
other item.
• Accessories: The use of accessory attachments not recommended by the
appliance distributor may result in fire, electric shock or personal injury.
• Ventilation: Only use this heater in a well ventilated area.
• Wall-mounting: To prevent a possible fire, do not block the space between the
heater and the wall, if wall-mounting the heater. This space is required for air
intake or exhaust. Only install the heater on an appropriate, sturdy wall that can
support the weight of the heater.
• Covers: The appliance housing is intended to prevent direct access to the heating
elements and must be in place when the appliance is in use.
• Keep openings clear: To prevent a possible fire, do not insert or allow objects to
enter any ventilation or exhaust openings. Keep airflow grilles free of dust and hair
build-up, especially if you have indoor pets. Do not block air intakes or exhaust
openings in any manner. Keep a free space of at least 1m at the front, sides and
rear of the appliance.
• WARNING: No external timer! Never operate the heater on a program switch,
separate timer switch or any other appliance for automatic operation, as there is a
risk of fire if the heater is covered or positioned incorrectly. In order to avoid a haz-
ard due to inadvertent resetting of the thermal cut-out, do not connect it to a circuit
that is regularly switched on and off by the utility.
• WARNING: Protect from water: Do not use this heater in the immediate surround-
ings of a bath, shower or swimming pool. Never locate the heater where it may fall
into a bathtub or otherwise become immersed in water.
• Unattended: Do not leave the appliance unattended while it is in use.
General Safety Instructions (Cont.)

5
0800 422 274
NZ
• Usage restriction: This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experi-
ence and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety.
• Children: Supervise children to ensure they do not play with the heater. Close su-
pervision is necessary when any appliance is used by or near children.
• CAUTION: Hot! Accessible parts of this heater can become very hot when in
use. To avoid burns, do not let bare skin touch hot surfaces. Be particularly
careful when children and vulnerable persons are present. Always let the heater
cool down before touching it, even if it is unplugged from the power supply.
• To ensure personal safety, do NOT install or use this heater:
• In front of or immediately below a socket outlet.
• Close to a radiant heat source.
• Behind a door.
• On long pile carpet or a flokati rug.
• Near a window where it may get splashed with rain.
• Near flammable materials or surfaces (such as furniture, curtains, pillows,
bedding, papers, clothes), or near open flames. Keep flammable materials at
least 1m away from the front, sides and rear of the heater.
• In an area where petrol, paint or other flammable liquids are stored, e.g. a garage or
workshop, as the heater has hot and arcing parts inside which may spark.
• Bathroom usage: If this heater is used wall-mounted in a bathroom, it must be
installed at a safe distance from the bath or shower. The heater must be installed
so that a person in the bath or shower is unable to touch the control. Any power
outlet in a bathroom must be located 3m from a bath or shower.
• Ingress protection: This heater has a ingress protection rating of IP24, which
means it is protected against ingress of solid objects up to 12mm (e.g., fingers),
and against water sprays from all directions.
• Service: This heater contains no user-serviceable parts inside. Do not attempt to
open and repair the heater yourself. Components should only be serviced by a
qualified technician.
• Malfunction: In case of malfunction, disconnect the plug immediately and
contact our after sales support line for advice.
• Storage: To avoid damaging the heater during storage or transport, keep the
heater in a dry place, free from excessive vibration.
• Improper use: Improper use or installation may result in the risk of fire, electric
shock and/or injury. We assume no liability for any eventual damages caused by
improper use or incorrect handling.
DANGER! Do not cover the heater in any manner as it may
overheat and become a fire risk.
General Safety Instructions (Cont.)

6
0800 422 274
NZ

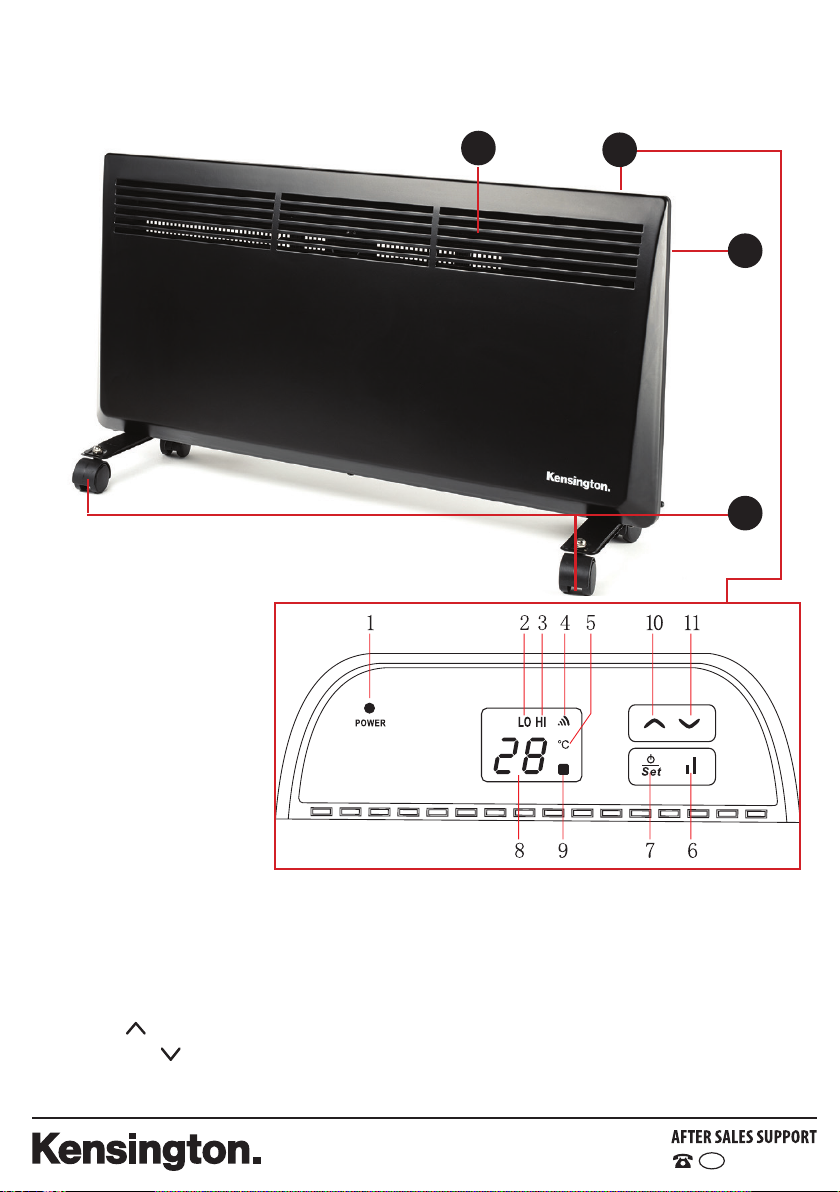

Scope of Delivery
Parts of the Heater
A Air Outlet
B Control Panel
C Power [I/O] Switch
D Castor Wheel
Assemblies
Control Panel
1 Power Indicator
2 Low Heat Indicator
3 High Heat Indicator
4 Heating Indicator
B
A
C
D
Product Overview
5 Temperature (°C) Indicator
6 Low/High Heat Button
7 Power & Setting Button
8 LED Number Display
9 Timer Indicator
10 UP Button
11 DOWN Button
Assembly Hardware (not pictured)
8x Small Screws (for castor wheel assembly)
4x Castor Wheels
4x Castor Mounting Bolts
2x Wheel Mounting Plates
2x Long Screws and Wall Plugs (for wall-mounting)

7
0800 422 274
NZ
Unpacking
• Carton: This product has been packaged to protect it against transportation
damage. Unpack the appliance and keep the original packaging carton and
materials in a safe place. It will help prevent any damage if the product needs
to be transported in the future, and you can use it to store the appliance when it
is not in use. In the event that the carton is to be disposed of, please recycle all
packaging materials where possible.
• Whilst every effort is made to ensure packing materials are kept outside the
plastic bag that covers your heater in the box, there is a remote chance that
some packaging may lodge itself in the heater part of the unit. If you notice this
on close inspection, please remove it.
• Plastic wrapping can be a suffocation hazard for babies and young children, so
ensure all packaging materials are out of their reach and disposed of safely.
• Cord: Inspect the power supply cord and plug, and all other parts of the
appliance, for visual damage. Do not use the appliance if anything appears to
be damaged or not working properly. In case of damage, contact our after sales
support centre using the details at the bottom of the page.
• Documentation: Make sure you have read and understood all instructions and
warnings in this manual. Refer to the Product Overview, opposite, to familiarise
yourself with the product and identify all parts. Pay particular attention to the
safety instructions on the previous pages.
• Assembly: Your new Convection Heater can be used freestanding, with the
supplied castor wheel assemblies, or mounted on an appropriate wall using
the wall-mounting brackets affixed to the back of the heater. Please choose
a convenient, low position for wall-mounting where you can easily access
the controls on top of the heater. Assembly instructions for both options are
provided on the following pages.
Getting Started
WARNING!
Do not connect the heater to the power supply until it is securely mounted to the
wall or until the castor wheel assemblies are securely fitted.

8
0800 422 274
NZ
Getting Started (Cont.)
Wall-Mounting
IMPORTANT!
• Only mount this heater on a structurally sound, heat-resistant wall area that
is strong enough to hold the weight of the heater. If in doubt, consult a builder.
• The instructions below are for wall-mounting the heater onto a masonry wall.
Please obtain expert advice if you want to wall-mount it to another type of wall.
• Make sure to install the heater at least 10cm above the floor.
• Do not connect the appliance to the mains power supply until completely
assembled, installed and adjusted.

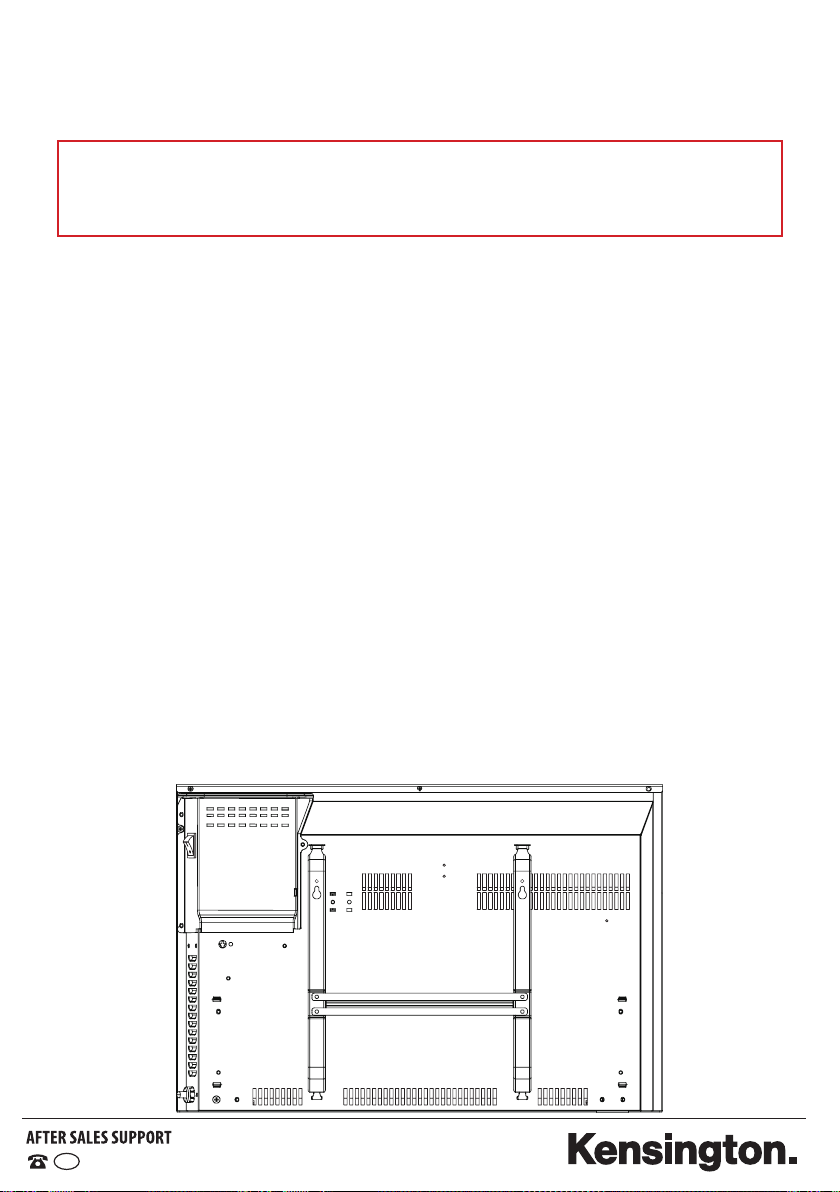

L = 830mm H = 400mm
L1 = 250mm H1 = 254mm
To wall-mount the heater, follow the instructions below, or consult an expert. If the
castor wheels are attached, take them off the heater (see page 9).
• Decide where you want to position the heater on
the wall and mark the positions for the wall plugs,
following the illustrations.
• Drill 2 holes in the wall -- their diameter should be
wide enough so they just tightly contain the supplied
wall plugs.
• Insert the wall plugs and screws into the holes,
leaving the head to protrude approximately 2–3mm.
• Carefully position the heater over the large size of the
holes in the brackets, then slide it slightly down and
drop it gently onto the screws.

9
0800 422 274
NZ
Castor Wheel Assembly (for freestanding use)
Before using the heater as a freestanding unit, you must attach the two castor
wheels assemblies so the heater can safely stand in an upright position.
• To install the castor wheel assemblies, put the heater upside down on a soft, flat
surface.
• Locate the screw holes at each end of the underside of the heater.
• Place a mounting plate over the screw holes and affix with 4 of the 8 screws
from the assembly hardware bag.
• Affix one castor wheel at each side of the mounting plate, using the castor
mounting bolts to secure.
• Affix the other castor wheel assembly the same way on the opposite side, en-
suring both wheel assemblies are securely attached.
• Your heater is now ready for freestanding use.
Getting Started (Cont.)
WARNING!
Do not connect the heater to the power supply until it is securely mounted to the
wall or until the stands are securely fitted.

10
0800 422 274
NZ
When turning your heater on for the first time it is normal for the
heater to emit a ‘new heater’ smell, which will quickly pass.
This is no cause for concern. Ensure good ventilation.
Location
If using the heater freestanding, place it in an upright position on a firm, level, dry
and heat-resistant surface, taking into considering all relevant safety information on
the previous pages. Ensure that there is sufficient distance from the wall, fixtures
and other appliances and at least 1m at the front of the heater to exclude the risk
of fire.
Connection and Standby Mode
• Make sure the POWER switch at the side of the appliance is in the OFF [ O ]
position, then plug the heater into an appropriate power point and switch on
power to the outlet.
• Always use a separate socket that has no other high wattage appliances
connected at the same time – do not plug it into a power board or socket
adaptor; do not use an extension cord.
• Press the ON/OFF switch to set the heater into standby mode. The unit will beep
briefly and the power indicator illuminates on the display.
Switching On / Off
• Press the POWER SET button to start heater operation. The ambient room
temperature will be displayed and the heater will start operation according to
the default settings (high heat selection, and 35°C temperature setting).
Switching Off
• Press and hold the POWER SET button for 3 seconds in any status to set
the heater to standby mode. All indicators will extinguish, except for the power
indicator.
• Press the POWER [ I / O ] switch at the side to switch off the heater.
Operating Instructions
Using the Heater
Before switching on the heater for the first time, check it again to be sure it is fully
assembled and did not get damaged during wall-mounting or wheel assembly.

11
0800 422 274
NZ
Operating Instructions (Cont.)
Low/High Heat Selection
• Press the LOW/HIGH HEAT button to select the output power. The heater
will work with full rated power output when [ HI ] is displayed, and with reduced
power when [ LO ] is displayed.
Temperature Setting
The heater has a thermostat which you can set to maintain the room temperature
at a certain level. When you switch on the heater, it displays the ambient room
temperature.
• To set the temperature, press the POWER SET button again until the temper-
ature starts flashing. Then use the UP or DOWN buttons to set the desired
temperature, in 1 degree steps, within the 5°C to 45°C range.
• The heater will now heat the room to the set temperature, and will cycle on and
off to maintain that temperature.
Timer Setting
The heater has a timer which you can set to switch off the appliance after a set
period of time. When the timer is set, the timer icon will illuminate on the display.
• To set the timer, press the POWER SET button again until the timer icon il-
luminates on the display and [ 0 ] starts flashing. Then use the UP or DOWN
buttons to set the desired time period, in 1 hour steps, after which you want the
heater to stop heating. The timer range is 0–24 hours.
• The timer countdown will start after a few seconds. When the set time period
has elapsed, the heater will switch to standby mode.
Child Safety Lock
The heater has a child safety lock which you can set to prevent unauthorised
tampering with the controls.
• To set the child safety lock, the heater must be in working mode.
• Press and hold both the UP and DOWN buttons at the same time for
3 seconds to lock the system. On the display, the child lock [ ] icon illuminates
for 3 seconds, indicating that the child safety lock is set. After 3 seconds, the
ambient temperature will again be displayed. When a button is pressed while
the system is locked, the child lock [ ] icon lights up for 3 seconds.
• To unlock the child safety lock, press and hold the UP and DOWN buttons
at the same time for 3 seconds. Alternatively, switch off the heater at the POWER
[ I / O ] switch. (If the timer is set, expiry of the timer also unlocks the system.)

12
0800 422 274
NZ
Troubleshooting
If your heater fails to operate, or you experience any other problem with the
appliance, contact our after sales support centre for advice or to arrange a
service. But before phoning for a service, please ensure that:
• Your heater is properly plugged in.
• The outlet is working and the circuit breaker or fuse are also working properly.
Other Useful Information
Overheat Protection and Prevention
This heater is equipped with an automatic thermal cut-off (overheat protection)
which switches the heater off automatically in the event of abnormal overheating.
While this features provides additional safety in case of overheating, first and
foremost you should make sure to eliminate all potential reasons that can lead to
overheating and create a fire risk.
If the overheat protection has been triggered, switch off the heater, unplug it from
the electrical socket and let the appliance cool for at least 10 minutes. Eliminate
the cause of the overheating (for example, excessive dust in the appliance, or the
air outlet is covered) and start it up again. If after eliminating the cause you still
cannot switch the heater back on, or if the overheating protection circuit switches
on without an apparent reason, contact our after sales support centre for advice.
IMPORTANT!
• A common cause of overheating is deposits of dust and fluff entering the
heater. Ensure these deposits are removed regularly by unplugging the
heater, allowing it to cool and cleaning it as described opposite.
• Also make sure that the appliance can sufficiently dissipate the heat
generated. This is particularly important in case the overheat protection has
been triggered. Ensure there is sufficient room all around the heater, and
nothing is covering or obstructing the air outlet or intake.
Tilt Protection (Tip-Over Switch)
The heater has a tip-over safety switch which will turn off the heater if it is
knocked over or tilted to a position where safe operation is in jeopardy. Should
this happen, place the heater back in the upright position and restart it.

13
0800 422 274
NZ
WARNING!
Always switch off and disconnect the appliance from the power supply
before attempting any maintenance or cleaning the heater.
Cleaning and Maintenance
The heater requires regular cleaning to ensure trouble-free operation.
• Before cleaning your heater, switch off the heater and allow it to cool.
Disconnect the electricity supply to the appliance.
• Use a vacuum cleaner to remove dust and fluff from around the safety grilles.
• Use a damp cloth (not wet!) to wipe the exterior of the heater to remove dust
and dirt. Allow some time for the heater to dry thoroughly before reconnecting
it to the power supply.
• Do not use harsh detergents, abrasive cleaning powders, petrol or
furniture polish.
• Do not immerse the cord, plug or heater in water or other liquid for
cleaning. Do not allow water to enter the heater.
Cleaning Behind the Wall-Mounted Heater
It is important that you also clean behind a wall-mounted heater in order to keep
the air intake grilles free of dust.
• Holding both sides of the heater, carefully lift it up and then pull it off the
screws and towards you.
• Clean the heater as described above, then position it over the large size of the
holes in the brackets, slide it slightly down and drop it gently onto the screws.
Other Useful Information (Cont.)

14
0800 422 274
NZ
WARNING!
Do not attempt to open the heater and repair it yourself. Any repairs must be
carried out by a qualified technician.
Service and Repair
• If your heater malfunctions, disconnect the plug immediately and contact our
after sales support centre using the details at the bottom of the page.
• Our customer service staff will also be able to help you should your heater
require servicing.
• If the power cord is damaged and needs replacing, it must be replaced by a
service agent or equivalent qualified person in order to prevent a hazard.
Other Useful Information (Cont.)
NOTE:
Due to continued product improvement, images and illustrations in this manual
may vary slightly from the product purchased. All images in this manual are for
reference purposes only. Parts are not necessarily pictured to scale.
Storage
• If you are not going to use the heater for an extended period of time, we
recommend that you clean the heater and then protect it from dust.
• For long term storage, you can dismantle it from the wall and store it in its
original carton (or cover it with some material) to protect it from dust.
• Store the heater in a cool, dry place, free from excessive vibration, and out of
children’s reach.

15
0800 422 274
NZ
Compliance
This appliance has been fully tested and meets all requirements as set out by
standards AS/NZS 60335.1 and AS/NZS 60335.2.30.
Technical Specifications
Model No CH-07D
Rated Power 2000W
Rated Voltage 220–240V~50–60Hz
Heat Settings 2
Safety Features Tip-Over Safety Switch
Overheat Protection
Ingress Protection IP24 -- protected against ingress of solid
objects up to 12mm (e.g., fingers), and
against water sprays from all directions
Dimensions (H x L x D)
with castor wheel assemblies
400 x 830 x 105 mm
455 x 830 x 240 mm
Weight approx. 5.9kg
Responsible Disposal
At the end of its working life, do not throw this appliance out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling. Contact your local authorities for advice on recycling facilities in
your area.
Other Useful Information (Cont.)

Warranty
We pride ourselves on producing a range
of quality home appliances that are both packed with features
and completely reliable. We are so confident in our products,
we back them up with a 3 Year Warranty.
Now you too can relax knowing that you are covered.
Customer Helpline NZ: 0800 422 274
This product is covered by a 3 Year Warranty
when accompanied by proof of purchase.
IM-V1.0
