430MHz FM TRANSCEIVER
TH-K40A/K40E
SERVICE MANUAL
This product uses Lead Free solder.This product complies with the RoHS directive for the European market.
© 2012-3 PRINTED IN JAPAN
B53-7017-00 (Y)70
CONTENTS
DISASSEMBLY FOR REPAIR .....................2
CLONE MODE .............................................3
CIRCUIT DESCRIPTION .............................4
SEMICONDUCTOR DATA ...........................7
COMPONENTS DESCRIPTION ..................9
PARTS LIST ...............................................10
EXPLODED VIEW......................................16
PACKING ...................................................17
ADJUSTMENT...........................................18
PC BOARD
TX-RX UNIT (X57-822X-XX)...................22
SCHEMATIC DIAGRAM ............................26
BLOCK DIAGRAM.....................................30
LEVEL DIAGRAM......................................32
OPTIONAL ACCESSORIES
BT-16 (Battery Case).............................33
EMC-11 (Clip Microphone with Earphone) ..33
KNB-65L (Li-ion Battery Pack).............33
KVC-22 (DC Vehicular Chager Adapter) ..33
SPECIFICATIONS......................................35
Helical antenna
(T90-1019-35)
Plastic cabinet assy
(A02-4159-03)
Knob (Volume)
(K29-9503-03)
Knob(Encoder)
(K29-9504-03)
Key top (16 keys)
(K29-9502-02)
When performing the TH-K40 adjustment, a personal
computer, programming interface and tuning software are
required.

TH-K40A/K40E
2
Document Copyrights
Copyright 2012 by JVC KENWOOD Corporation. All
rights reserved.
No part of this manual may be reproduced, translated,
distributed, or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or other-
wise, for any purpose without the prior written permission of
JVC KENWOOD Corporation.
Disclaimer
While every precaution has been taken in the preparation
of this manual, JVC KENWOOD Corporation assumes no
responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the informa-
tion contained herein. JVC KENWOOD Corporation reserves
the right to make changes to any products herein at any time
for improvement purposes.
DISASSEMBLY FOR REPAIR
1. Separating the Case Assembly from the
Chassis
1. Remove the two knobs (a).
2. Remove the two screws (b).
3. Pull off the cap from SP/MIC jack (c).
4. Expand the right and left sides of the bottom of the case
assembly, Iift the chassis, and remove it from the case as-
sembly (d).
5. Taking care not to cut the speaker lead wire with connec-
tor (e), open the chassis and case assembly.
b
b
a
a
c
d
2. Removing the TX-RX unit from the
Chassis
1. Remove the packing (f).
2. Remove the 13 screws (g).
3. Remove the packing (h) and two hexagon nuts (i).
4. Remove the solder from the antenna terminal using a sol-
dering iron then lift the unit off (j).
Note:
When reassembling the unit in the chassis, be sure to sol-
der the antenna terminal.
eRed
Black

TH-K40A/K40E
3
3. Removing the Rear Panel
1. Raise the rear panel on the chassis (k).
k
CLONE MODE
Programming data can be transferred from one trans-
ceiver to another by connecting them via their SP/MIC con-
nectors.
Cloning can copy the transceiver data to another trans-
ceiver even without the use of a personal computer.
The following data cannot be cloned.
• Tuning data
1. Connect the cloning cable (part No. E30-3410-05) to the
SP/MIC connectors on the source and target transceivers.
2. Turn the source and target transceiver power OFF.
3. Turn the source transceiver power ON while pressing the
[CALL] keys, to enter clone mode. ”CLONE” appears on
the display.
4. Turn the target transceiver power ON.
5. Press the [CALL] key on the source transceiver while
”SEND” is displayed.
The data of the source is sent to the target.
While the target is receiving data, ”RECV” appears on the
display.
When cloning is completed, the ”END” appears on the
source and target display.
6. Turn the source and target transceiver power OFF.
Note:
• The Model name and Market codes must be the same in
order to clone the transceiver.
• If a data transfer error occurs during Clone mode, ”ER-
ROR” appears on the target transceiver.
When you turn the target transceiver power ON again
while ”ERROR” is displayed, the target transceiver per-
forms a full reset. At this time, the source transceiver con-
tinues to send data.
DISASSEMBLY FOR REPAIR
Antenna terminal
f
g
h
i
j
i
Cloning cable
(E30-3410-05)

TH-K40A/K40E
4
1. Frequency Configuration
The receiver utilizes double conversion. The first IF is
38.85MHz and the second IF is 450kHz. The first Local os-
cillator is supplied from the PLL circuit.
The PLL circuit in the transmitter generates the neces-
sary frequencies.
Fig. 1 Frequency configuration
Fig. 2 Receiver system
2. Receiver System
The receiver system is shown in Figure 2.
2-1. RF Amplifier Circuit
The signal coming from the antenna passes through the
transmit/receive switching diode circuit (D101, D102, D103
and D104) and a BPF (L212, L213), and is then amplified by
the RF amplifier (Q204).
The resulting signal passes through a BPF (L209, L210,
L211 and L217) and goes to the mixer. These BPFs are ad-
justed by variable capacitors (D200, D201, D202, D203 and
D204). The input voltage to the variable capacitor is a regu-
lated voltage output from the DAC (IC300).
2-2. First Mixer
The signal from the front end is mixed with the first local
oscillator signal generated in the PLL circuit by Q203 to pro-
duce a first IF frequency of 38.85 MHz.
The resulting signal passes through the XF200 MCF to
cut the adjacent spurious and provide the optimum charac-
teristics, such as adjacent frequency selectivity.
RX: 400~469.995MHz(M,E)
361.150~
431.145MHz
1st MIX MCF SP
MIC
CF
450kHz
ANT
ANT
SW
RF
AMP
IF
SYSTEM
X2
doubler
PLL
VCO
38.85MHz 38.4MHz
TX
AMP
T/R
SW
AF
AMP
MIC
AMP
AF
filter
TCXO 19.2MHz
RF
AMP
1st Lo:
TX: 400~469.995MHz(M)
430~439.995MHz(E)
430~439.995MHz(E)
TX: 400~469.995MHz(M)
SP
ANT
IC200
IF,MIX,DET
Q203
1st MIX
IC303
CF200
ANT
SW
Q201
doubler
2nd Local
X1
TCXO
19.2MHz
BPF
BPF
Q204
RF AMP XF200
MCF
Q202
IF AMP
IC307
AF PA
BPF 1st Local
BPF AF filter VR300
CIRCUIT DESCRIPTION
Rating
Item
Nominal center frequency (fo)
Pass bandwidth
Attenuation bandwidth
Ultimate attenuation 70dB or more (fo –900 kHz)
Spurious response
1dB or lessRipple
Insertion loss
Terminating impedanc 610:// 3pF
MCF (L71-0669-05) characteristics (TX-RX unit XF200)
Nominal center frequency (fo)
3dB bandwidth
50dB bandwidth
3.0kHz)±of(Ripple
Guaranteed attenuation
50dB or more (fo
±
100kHz)
Insertion loss
I/O matching impedance
Ceramic filter (L72-1042-05) characteristics (TX-RX unit CF200)
5dB or less
±11.0kHz or less
38.850MHz
450kHz
6dB or less
1.5k:Item Rating
40dB or more (fo +1MHz)
±25.0kHz or less at 45dB
±5.0kHz or more at 3dB
±4.5kHz or more
2dB or less

TH-K40A/K40E
5
3. Transmitter System
3-1. Microphone Amplifier Circuit
The signal from microphone amplified by IC301 and goes
through mute switch (IC300).
IC304 is composed of high-pass filter, low-pass filter and
pre-emphasis/IDC circuit.
The output signal from the DAC IC (IC300) goes to the
VCO modulation input.
Fig. 3 Microphone amplifier circuit
3-2. Driver and Final Amplifier Circuit
The signal from the T/R switch (D8 is on) is amplified by
the pre-drive amplifier (Q101) to 30mW.
The output of the pre-drive amplifier is amplified by the
drive amplifier (Q102) and the RF final amplifier (Q103) to
5.0W (1W when the power is low).
The drive amplifier and the RF final amplifier consist of
two MOS FET stages.
The output of the RF final amplifier is then passed
through the harmonic filter (LPF) and antenna switch (D101
and D102) and is applied to the antenna terminal.
CIRCUIT DESCRIPTION
X1
TCXO
VCO
LSDO
IC300
MIC
DAC
AMP/LIM
IC304
MIC
IC301
MOD
AMP
MIC
Q3,D4
ANT
FINAL AMP ANT
SW
From
T/R SW
(D8)
D101,102
+B
POWC
Q102
DRIVE AMP
Q101
VDD
VG
Pre-DRIVE
Q103
R125
R127
R129
CURDET
Fig. 4 Drive and final amplifier circuit
2-3. IF Amplifier Circuit
The first IF signal is passed through a four-pole mono-
lithic crystal filter (XF200) to remove the adjacent channel
signal.
The filtered first IF signal is amplified by the first IF ampli-
fier (Q202) and then applied to the lF system IC (IC200).
The IF system IC provides a second mixer, second local
oscillator, limiting amplifier, quadrature detector and RSSI
(Received Signal Strength Indicator).The second mixer
mixes the first IF signal with the 38.4MHz of the second lo-
cal oscillator output (TCXO: X1) and produces the second IF
signal of 450kHz.
The second IF signal is passed through the ceramic filter
(CF200) to remove the adjacent channel signal. The filtered
second IF signal is amplified by the limiting amplifier and
demodulated by the quadrature detector with the ceramic
discriminator (CD200).The demodulated signal is routed to
the audio circuit.
2-4. Audio Amplifier Circuit
The demodulated signal from IC200 is amplified by
IC303, IC302 and goes to AF amplifier through IC307.
The signal then goes through a volume control (VR300),
and is routed to an audio power amplifier (IC307) where it is
amplified and output to the speaker.
To output sounds from the speaker, IC401 sends a high
signal to the SPMUT line and turns IC401 on through Q301,
Q302, Q303, Q305 and Q306.

TH-K40A/K40E
6
CIRCUIT DESCRIPTION
Realign the transceiver after replacing the EEPROM.
6. Signaling Circuit
6-1. Encode
■CTCSS/ DCS
The CTCSS and DCS signals are output from pin 49
(LSDO) of the MCU (IC401). The signal passes through a
low-pass CR filter. The signal is mixed with the audio signal
and goes to the VCO and TCXO (X1) modulation input after
signal processing in the DAC IC (IC300).
■DTMF
The DTMF signal is output from pin 50 (HSDO) of the
MCU.
The signal passes through a low-pass CR filter. TX devia-
tion making an adjustment by MCU is applied to the DAC IC
(IC300). The signal is mixed with the audio signal and goes
to the VCO and TCXO.
6-2. Decode
■CTCSS/DCS
The output signal from IF IC (IC200) enters the MCU
(IC401) through IC300. IC401 determines whether the
CTCSS or DCS matches the preset value, and controls the
SPMUT and the speaker output sounds according to the
squelch results.
Fig. 6 Encode
7. Power Supply
There are five 5V power supplies for the MCU:
5M is always output while the power is on.
5C is a common 5V and is output when SAVE is not set
to ON.
5R is 5V for reception and output during reception.
5T is 5V for transmission and output during transmission.
5MS is 5V for the SP/MIC connector and the DAC IC
(IC300).
4. Frequency Synthesizer Circuit
4-1. Frequency Synthesizer
The frequency synthesizer consists of the TCXO (X1),
VCO, PLL IC (IC1) and buffer amplifiers.
The TCXO generates 19.2MHz. The frequency stability is
5.0 ppm within the temperature range of –30 to +60°C.
The frequency tuning and modulation of the TCXO are
done to apply a voltage to pin 1 of the TCXO. The output of
the TCXO is applied to pin 1 of the PLL IC.
The VCO consists of 1VCO and covers a dual range of
the 400.00~469.995MHz and the 361.150~431.145MHz.
The VCO generates 361.150~431.145MHz for providing to
the first local signal in receive.
The PLL IC consists of a prescaler, reference divider,
phase comparator, charge pump (The frequency step of the
PLL circuit is 5 or 6.25 kHz).
PLL data is output from DAT (pin 19), CLK (pin 18) and
PLDL (pin 20) of the MCU (IC401). The data are input to the
PLL IC when the channel is changed or when transmission
is changed to reception and vice versa. A PLL lock condition
is always monitored by the pin 22 (PLUL) of the MCU. When
the PLL is unlocked, the PLUL goes low.
Fig. 5 PLL block diagram
5. Control Circuit
The control consists of the MCU (IC401) and its peripher-
al circuits. It controls the TX-RX unit. IC401 mainly performs
the following;
1) Switching between transmission and reception by PTT
signal input.
2) Reading channel information, frequency, and program
data from the memory circuit.
3) Sending frequency program data to the PLL.
4) Controlling squelch on/off via the DC voltage from the
squelch circuit.
5) Controlling the audio mute circuit via the decode data in-
put.
6) Transmitting tone and encode data.
7) Sending display data to the LCD assembly.
Note:
The EEPROM stores tuning data (Deviation, Squelch,
etc.).
HSDO
LSDO
IC401
MCU
IC300
DAC
AF POWER
AMP
TCXO
3
4
7
8
FREQ
VCO
12
MOD
9
BEEP
6
24
CTCSS/DCS
INV
VCO
PLL
MCU
IC401 DAT,CLK,PLLE
IC1
PLLD
8
1
5
14
RF
SW
LPF To mixer
LSDO
Q4
BUFF
Q5
TCXO
X1
SW To
Pre-AMP
SHIFT
(TX: Low)
D8
D7
Q6
CV
AMP
Q3
LD
AMP
TXRX
TXRX

TH-K40A/K40E
7
SEMICONDUCTOR DATA
MCU: R5F2L3ACCKEKA (TX-RX unit IC401 )
Pin No. Port Name I/O Function
1 KEYIT I Type detection
2 KEYIS I Type detection
3 HSDO O DTMF/BEEP/1750Hz tone output
4 LSDO O CTCSS/DCS tone output
5 WKUPO - Ground
6 VREF - Reference voltage input
7 MODE - MCU mode select
8 XCIN - Not used (Pull-up)
9 XCOUT - Not used
10 RESET I MCU reset
11 XOUT O 11.0592MHz MCU clock output
12 VSS - Ground
13 XIN I 11.0592MHz clock input for MCU
14 VCC - 5V power supply (5M)
15 BSFT O Beat shift control
16 INPTT I INT PTT switch input
L: Active
17 5RC O 5R RX power switch control
L: Active
18,19 ENC2-ENC1 I Encoder input 2,1
20 RxD I Serial data input from PC
21 TxD O Serial data input to PC
22 W/N O Wide/Narrow control
H: Narrow
23 PLLE O PLL-IC enable
H: Active
24 PLPS O PLL-IC save control
L: Save ON
25 PLLD I PLL unlock detect
L: Unlock
26 EXPTT I EXT-PTT input
L: Active
27 LAMP O BacKlight LED control
H: Lights
28 NC O Not used
29 E2PCS O EEPROM chip select
L: Active
30 E2PIN I Data input from EEPROM
31-34 COM0-COM3 O LCD common output
H: Active
35-66 SEG0-SEG31 O LCD segment output
H: Active
67 LEDR O TX LED (Red) control
H: Lights
68 LEDG O BUSY LED (Green) control
H: Lights
69 5VC O
5V MIC AMP power switch control
L: Active
70 5MSC O 5MS main power switch control
L: Active
71 SPM O Speaker mute control
L: Mute
Pin No. Port Name I/O Function
72 MONI I [MONI] key switch input
L: Active
73 CLK O Common serial clock output
74 DATA O Common serial data output
75 5CC O 5C Common power switch control
L: Active
76 5TC O 5T TX power switch control
L: Active
77 VOLCS O DAC-IC chip select
L: Active
78 VDCSW O Voltage discharge control
H: Active
79 CURRENT I TX current detect
80 VOX I VOX level detect
81 REM I Remote control microphone key
detect
82 BATT I Battery voltage detection
83 THERM I Temperture detect
84 RSSI I RSSI level detect
85 SQL I Squelch level detect
86 LSDI I CTCSS/DCS tone detect
87 CVDET I VCO controle voltage detect
88-90 KEYO4-
KEYO2 O Key matrix output 4-2
91-93 VL1-VL3 - LCD drive power supply
94 SHIFT O VCO TX/RX control
H: TX
95 KEYO1 O Key matrix output 1
96 VL4 - LCD drive power supply
97-100 KEYI1-KEYI4 I Key matrix input 1-4

TH-K40A/K40E
8
FM IC: TA31136FNG (TX-RX unit IC200)
Pin No. Port Name I/O Function
1 OSCIN I 2nd Local oscillator input
2 OSCOUT O 2nd Local oscillator output
3 MIXOUT O MIX output
4 VCC - Power supply (5.0V)
5 IFIN I 2nd IF input and decoupling
6 DEC - 2nd IF input and decoupling
7 FILOUT O INVERTER AMP output
8 FILIN I INVERTER AMP input
9 AFOUT O Demodulate signal output
10 QUAD I Phase shift signal input of FM
demodulator
11 IFOUT O Output terminal of IF AMP
12 RSSI O This terminal outputs DC
13 NOISEDET - level according to input (Not use)
14 NOISEREC - signal level to IF AMP
15 GND - Ground
16 MIXIN I 1st IF signal input
D/A Converter IC: R2A20178NP
(TX-RX unit IC300)
Pin No. Port Name I/O Function
1 Vin2 I FROM AF filter signal input
2 VDD - Power supply voltage (5.0V)
3 LD I Load enable signal input
4 CLK I Control data input
5 DI I Control clock input
6 Vin3 I From MIC AMP and limiter signal
input
7 Vout3 O Load enable signal input
8 Vout4 O Tone deviation adjust
9 Vin4 I Tone signal input
10 Vin5 I Connect to ground
11 Vout5 O VCO assist voltage adjust
12 Vout6 O TCXO frequency adjust
13 Vin6 I Connect to ground
14 VDAREF1 - Reference voltage 1 for DAC
(1.8V)
15 VDAREF2 - Reference voltage 1 for DAC
(5.0V)
16 /RESET I Reset
17 GND - Ground
18 Vin7 I Connect to ground
19 Vout7 O RX BPF tuning adjust
20 Vout8 O TX power adjust
21 Vin8 I Connect to ground
22 Vin1 I From MIC output
23 Vout1 O MIC level contorol and mute
24 Vout2 O RX AF mute control
PLL IC: MB15E03SL-E1 (TX-RX unit IC1)
Pin No. Port Name I/O Function
1 OSCIN I Programmable reference divider
input
2 OSCOUT O Oscillator output
3VP -
Power supply voltage input for the
charge pump
4 VCC - Power supply voltage (3.0V)
5 DO O Charge pump output
6 GND - Ground
7 XFIN I
Prescaler complementary input
which should be grounded via a
capacitor
8 FIN I Prescaler input
9 ClOCK I Clock input for the 19-bit shift reg-
ister
10 DATA I Serial data input using binary
code
11 LE I Load enable signal input
12 PS I
Power saving mode control
This pin must be set at “L” at
Power-ON.
13 ZC I Forced high-impedance control
for the charge pump
14 LD/FOUT O Lock detect signal output
15 PO
Phase comparator N-channel
open drain output for an external
charge pump (Not use)
16 RO
Phase comparator CMOS output
for an external charge pump (Not
use)
SEMICONDUCTOR DATA

TH-K40A/K40E
9
COMPONENTS DESCRIPTION
Ref. No. Use/Function Operation/Condition/Compatibility
IC1 PLL system Frequency control
IC200 FM IF system 2nd mixer, IF amplifier, FM
detector
IC300 D/A converter AF mute/MOD level and fre-
quency adjust
IC301 OP AMP 2.5V reference voltage/MIC
amplifier
IC302 OP AMP Detect AF filter
IC303 OP AMP CTCSS/DCS filter
IC304 OP AMP MIC amplifier/IDC
IC305 Voltage
detector/3.3V MCU reset
IC306 Voltage
regulator/5.0V 5M/5MS power supply
IC307 AF power ampli-
fi e r Speaker output
IC308 Voltage
regulator/5.0V 5C/5T/5R power supply
IC400 EEPROM Tuning data/Memory data
IC401 MCU
Q1 VCO shift control
switch TX: ON
Q2 Ripple filter for VCO power supply
Q3 Oscillator TX/RX VCO
Q4 Buffer amplifier for VCO output
Q5 RF amplifier for VCO output
Q6 Logic invert for unlock signal
Q7 Power supply
(3.0V) for PLL IC
Q101
Pre drive amplifier
Q102 Drive amplifier
Q103 Final amplifier 5.0W RF power
Q104 Voltage dis-
charge switch
for FET bias voltage.
Active ON (VDCSW: H)
Q200 Wide/Narrow
switch
for ceramic filter selector
Wide: ON (W/L: L)
Q201 Doubler 2nd Lo: 38.4MHz
Q202 1st IF amplifier 1st IF: 38.85MHz
Q203 1st mixer
Q204 RF amplifier RX 1st amplifire
Q300 Power supply
(5.0V) switch Active ON (5VC: L)
Q301 SP mute control
switch Active ON (SM: H)
Q302 SP mute control
switch for pop-noise Active ON
Q303 Speaker mute
switch for AF signal line Active ON
Ref. No. Use/Function Operation/Condition/Compatibility
Q304 Power supply
(5MS) switch Active ON (5MSC: L)
Q305 Speaker mute
switch for AF signal line Active ON
Q306 IC power supply
switch for AF power IC Active ON
Q307 Power supply
(5R) switch Active ON (5RC: L)
Q308 Power supply
(5T) switch Active ON (5TC: L)
Q400 Beat shift switch Active ON (BSFT: H)
Q401 Backlight LED
switch Active ON
Q402 Backlight control
switch Active ON (LAMP: H)
Q403 Busy LED switch Active ON (LEDG: H)
Q404 TX LED switch Active ON (LEDR: H)
D1,D2 VCO frequency
control
D3 RF switch for frequency range change
TX: ON
D4 VCO modulation for frequency modulation
D5 Assist frequency
control
D6 Speed up for ripple filter
D7 RF switch for TX signal TX: ON
D8 RF switch for RX signal
D9, D10 Speed up for ripple filter
D11 Speed up for VCO shift control line
D101-104 Antenna switch TX: ON
D200-204 Band-pass filter
tuning UHF band for receiver
D300 VOX signal detect
D301 Reverse connec-
tion protection Battry terminal
D302 Reverse current
prevention for IC306 input
D304 Reverse current
prevention for IC308 input
D305 Surge protection Mic line
D401 Over voltage limit-
ter 3.6V zener diode
D404-412 Reverse current
prevention Key matrix
D414, D415 LCD backlight
LED
D416-425 Key backlight
LED
D426 Busy LED Busy: light
D427 TX LED TX: light
TX-RX unit (X57-822X-XX)

TH-K40A/K40E
10

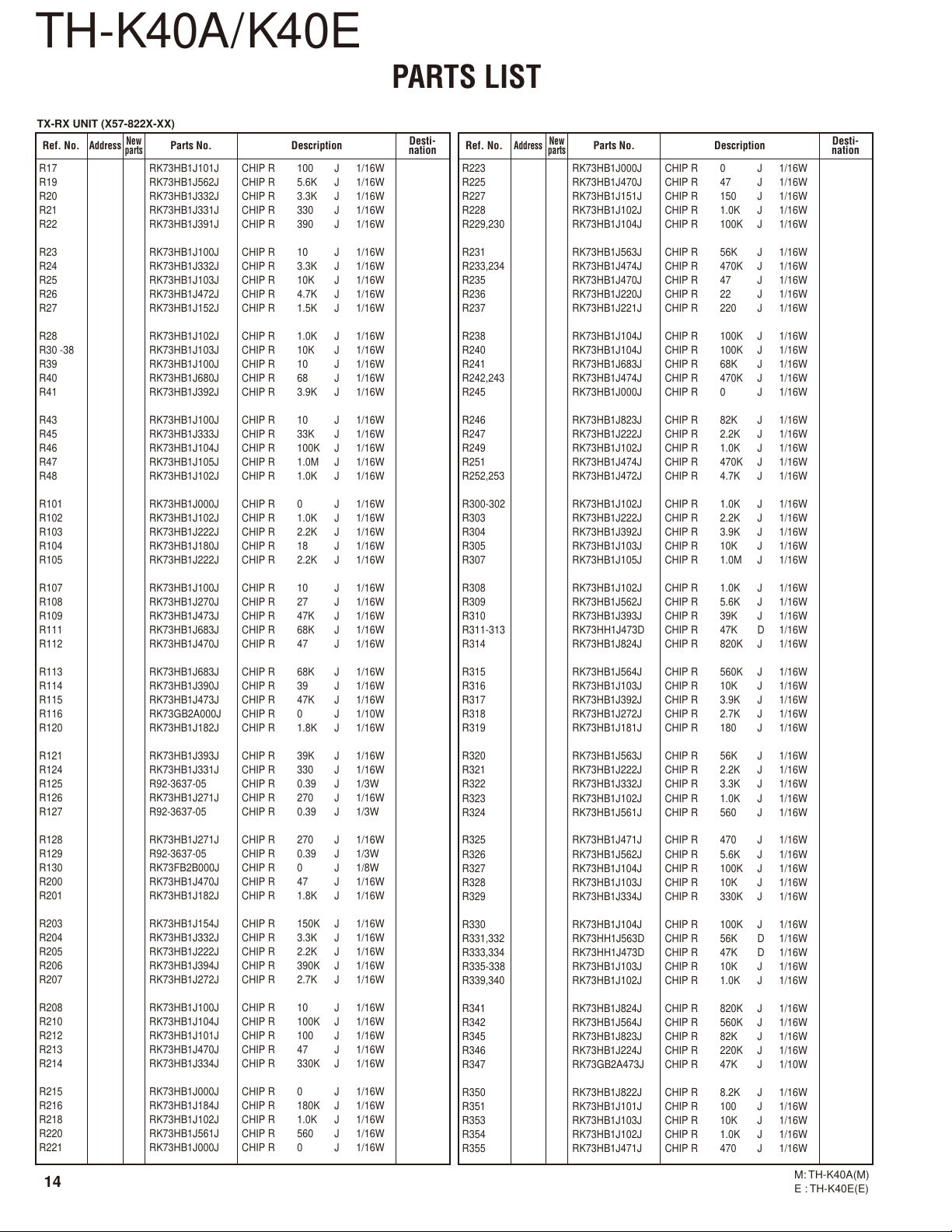

PARTS LIST
Chip capacitor
Code L W T
Empty 5.6±0.5 5.0±0.5 Less than 2.0
A 4.5±0.5 3.2±0.4 Less than 2.0
B 4.5±0.5 2.0±0.3 Less than 2.0
C 4.5±0.5 1.25±0.2 Less than 1.25
D 3.2±0.4 2.5±0.3 Less than 1.5
E 3.2±0.2 1.6±0.2 Less than 1.25
F 2.0±0.3 1.25±0.2 Less than 1.25
G 1.6±0.2 0.8±0.2 Less than 1.0
H 1.0±0.05 0.5±0.05 0.5±0.05
Chip resistor
Code L W T
E 3.2±0.2 1.6±0.2 1.0
F 2.0±0.3 1.25±0.2 1.0
G 1.6±0.2 0.8±0.2 0.5±0.1
H 1.0±0.05 0.5±0.05 0.35±0.05
฀฀Code Wattage Code Wattage Code Wattage
1J 1/16W 2C 1/6W 3A 1W
2A 1/10W 2E 1/4W 3D 2W
2B 1/8W 2H 1/2W
฀฀
Code B C D F G
(pF) ±0.1 ±0.25 ±0.5 ±1 ±2
C C 4 5 T H 1 H 2 2 0 J
1 2 3 4 5 6
1 = Type ... ceramic, electrolytic, etc. 4 = Voltage rating
2 = Shape ... round, square, etc. 5 = Value
3 = Temp. coefficient 6 = Tolerance
฀฀1st Word C L P R S T U
Color* Black Red Orange Yellow Green Blue Violet
ppm/°C 0 –80 –150 –220 –330 –470 –750
฀฀฀฀Code C D G J K M X Z P No code
(%) ±0.25 ±0.5 ±2 ±5 ±10 ±20 +40 +80 +100 More than 10µF : –10~+50
–20 –20 –0 Less than 4.7µF : –10~+75
฀฀
2nd word A B C D E F G H J K V
1st word
0 1.0 1.25 1.6 2.0 2.5 3.15 4.0 5.0 6.3 8.0 –
1 10 12.5 16 20 25 31.5 40 50 63 80 35
2 100 125 160 200 250 315 400 500 630 800 –
3 1000 1250 1600 2000 2500 2150 4000 5000 6300 8000 –
฀฀(EX) C C 7 3 F S L 1 H 0 0 0 J Refer to the table above.
1 2 3 4 5 6 7 1 = Type
(Chip) (CH, RH, UJ, SL) 2 = Shape
3 = Dimension
(EX) C K 7 3 F F 1 H 0 0 0 Z 4 = Temp. coefficient
1 2 3 4 5 6 7 5 = Voltage rating
(Chip) (B, F) 6 = Value
7 = Tolerance
฀฀฀(EX) R D 7 3 E B 2 B 0 0 0 J
1 2 3 4 5 6 7
(Chip) (B, F)
฀฀฀฀
(EX) R D 1 4 B B 2 C 0 0 0 J
1 2 3 4 5 6 7
1 = Type 5 = Rating wattage
2 = Shape 6 = Value
3 = Dimension 7 = Tolerance
4 = Temp. coefficient
CC45 Color*
2nd Word G H J K L
ppm/°C ±30 ±60 ±120 ±250 ±500
Example : CC45TH = –470±60ppm/°C
฀฀010 = 1pF 2 2 0 = 22pF
100 = 10pF
101 = 100pF Multiplier
102 = 1000pF = 0.001µF 2nd number
103 = 0.01µF 1st number
L
W
T
฀

TH-K40A/K40E
✽New Parts. indicates safety critical components.
Parts without Parts No. are not supplied.
Les articles non mentionnes dans le Parts No. ne sont pas fournis.
Teile ohne Parts No. werden nicht geliefert.
11
Ref. No. Address Parts No. Description Desti-
nation
New
parts
Ref. No. Address Parts No. Description Desti-
nation
New
parts
M: TH-K40A(M)
E : TH-K40E(E)
PARTS LIST
L: Scandinavia K: USA P: Canada
Y: PX (Far East, Hawaii) T: England E: Europe
C: China X: Australia M: Other Areas
TH-K40A/K40E
TX-RX UNIT (X57-822X-XX)
1 1A A02-4159-03 PLASTIC CABINET ASSY
2 3A A10-4158-01 CHASSIS
3 3B A82-0085-02 REAR PANEL
4 3B B09-0749-03 CAP(EXT SP/MIC) ACSESSORY
6 1A B10-6010-03 FRONT GLASS
7 2B B11-1892-03 ILLUMINATION GUIDE(TX/BUSY)
8 1A
✽
B11-1897-12 ILLUMINATION GUIDE(16KEY)
9 1D B62-2365-00
INSTRUCTION MANUAL ACSESSORY
11 1D B62-2369-00 I
NSTRUCTION MANUAL ACSESSORY E
12 1D B62-2370-00
INSTRUCTION MANUAL ACSESSORY E
13 1D B62-2371-00
INSTRUCTION MANUAL ACSESSORY E
14 1D B62-2372-00
INSTRUCTION MANUAL ACSESSORY E
15 1D B62-2373-00
INSTRUCTION MANUAL ACSESSORY E
16 1D B62-2374-00
INSTRUCTION MANUAL ACSESSORY E
18 1D B62-2375-00
INSTRUCTION MANUAL ACSESSORY M
19 2B E04-0488-05 RF COAXIAL RECEPTACLE(SMA)
21 2A E23-1373-04 TERMINAL
23 1B E37-1543-05
LEAD WIRE WITH CONNECTOR(SP)
24 2A E72-0437-03 TERMINAL BLOCK
26 3B G01-4571-04 COIL SPRING
27 2A G11-4437-04 SHEET(Q103-CHASSIS)
29 3B G13-2366-04 CUSHION(TERMINAL)
31 3A G13-2368-04 CUSHION(BATTERY)
32 2A G53-1867-13 PACKING(CHASSIS)
33 2B G53-1880-02 PACKING(TOP)
34 2A G53-1881-04 PACKING(MIC)
36 3B G53-1882-03 PACKING(SP/MIC)
42 2C J29-0756-05 BELT CLIP ACSESSORY
46 3A K29-9491-03 LEVER KNOB
47 1A K29-9502-02 KEY TOP
48 1B K29-9503-03 KNOB(VOL/PSW)
49 1B K29-9504-03 KNOB(ENCODER)
51 1A K29-9505-03 KNOB(PTT)
52 1A K29-9506-03 BUTTON KNOB(SIDE)
A 2B N09-2438-05 BINDING HEAD SCREW(ANT)
B 3A N80-2608-43 PAN HEAD TAPTITE SCREW
C
1A,2A,2B N83-2005-48 PAN HEAD TAPTITE SCREW(X57)
54 1B T07-0787-05 SPEAKER
56 2C T90-1019-35
HELICAL ANTENNA ACSESSORY
58 1C
✽
W08-1246-25 AC ADAPTER ACSESSORY
61 2D W08-1249-35 CHARGER ACSESSORY
62 1C W09-1073-25 BATTERY ASSY ACSESSORY
✽
X57-8220-21 TX-RX UNIT(FOR SERVICE) M
✽
X57-8222-21 TX-RX UNIT(FOR SERVICE) E
101 3A B11-1895-03 ILLUMINATION GUIDE(LCD)
102 3A B11-1896-04 FILTER(LCD)
D414,415 B30-2261-05 LED(YELLOW)
D416-425 B30-2337-05 LED(YELLOW)
D426 B30-1782-05 LED(GREEN)
D427 B30-1779-05 LED(RED)
103 2A B38-0939-05 LCD
C1 CC73HCH1H271J CHIP C 270PF J
C3 CK73HB1A105K CHIP C 1.0UF K
C4 CK73HB1A104K CHIP C 0.10UF K
C6 CK73HB1A104K CHIP C 0.10UF K
C7 CC73HCH1H100B CHIP C 10PF B
C9 CC73HCH1H271J CHIP C 270PF J
C10 CC73HCH1H121J CHIP C 120PF J
C11 CK73HB1A105K CHIP C 1.0UF K
C12
✽
CS77BP0J010M CHIP TNTL 1.0UF 6.3WV
C13 CK73HB1H102K CHIP C 1000PF K
C14 ,15 CC73HCH1HR75B CHIP C 0.75PF B
C16 CS77MA1A220M CHIP TNTL 22UF 10WV
C17 ,18 CC73HCH1H271J CHIP C 270PF J
C19 -21 CC73HCH1H040B CHIP C 4.0PF B
C22 CC73GCH1H0R5B CHIP C 0.5PF B
C23 CC73HCH1H271J CHIP C 270PF J
C25 CC73HCH1H271J CHIP C 270PF J
C26 CC73HCH1H060B CHIP C 6.0PF B
C27 CC73HCH1H330J CHIP C 33PF J
C28 CC73HCH1H030B CHIP C 3.0PF B
C29 CC73HCH1H060B CHIP C 6.0PF B
C31 CC73HCH1H150G CHIP C 15PF G
C32 ,33 CK73HB1H102K CHIP C 1000PF K
C34 CC73HCH1H040B CHIP C 4.0PF B
C36 CC73HCH1H271J CHIP C 270PF J
C37
✽
CS77MA1ER47M CHIP TNTL 0.47UF 25WV
C38
✽
CS77MA1A4R7M CHIP TNTL 4.7UF 10WV
C39
✽
CS77MA1ER68M CHIP TNTL 0.68UF 25WV
C41 CK73HB1E103K CHIP C 0.010UF K
C42 CK73HB1H102K CHIP C 1000PF K
C43 CK73HB1E103K CHIP C 0.010UF K
C44 CC73HCH1H271J CHIP C 270PF J
C45 CC73HCH1H220J CHIP C 22PF J
C46 CK73HB1H102K CHIP C 1000PF K
C47 CC73HCH1H040B CHIP C 4.0PF B
C48 CK73HB1E103K CHIP C 0.010UF K
C49 CC73HCH1H271J CHIP C 270PF J
C50 CC73HCH1H050C CHIP C 5.0PF C
C51 CC73GCH1H220J CHIP C 22PF J
C62 ,63 CC73HCH1H471J CHIP C 470PF J
C64 CC73HCH1H101J CHIP C 100PF J
C65 CC73HCH1H471J CHIP C 470PF J
C100 CK73HB1A104K CHIP C 0.10UF K
C101 CC73HCH1H100B CHIP C 10PF B
C102 CC73HCH1H220J CHIP C 22PF J
C103 CC73HCH1H020C CHIP C 2.0PF C
TH-K40A/K40E TX-RX UNIT (X57-822X-XX) 0-20: M 2-71: E
If a part reference number is listed in a shaded box, that part does not come with the PCB.

TH-K40A/K40E
12
Ref. No. Address Parts No. Description Desti-
nation
New
parts
PARTS LIST
Ref. No. Address Parts No. Description Desti-
nation
New
parts
M: TH-K40A(M)
E : TH-K40E(E)
TX-RX UNIT (X57-822X-XX)
C104,105 CC73HCH1H271J CHIP C 270PF J
C107 CC73HCH1H120J CHIP C 12PF J
C108 CC73HCH1H090B CHIP C 9.0PF B
C109 CC73HCH1H271J CHIP C 270PF J
C111 CC73HCH1H560J CHIP C 56PF J
C112 CC73HCH1H271J CHIP C 270PF J
C113 CC73HCH1H221J CHIP C 220PF J
C115 CC73HCH1H271J CHIP C 270PF J
C118 CC73GCH1H390J CHIP C 39PF J
C119 CC73GCH1H150J CHIP C 15PF J
C121 CC73GCH1H180J CHIP C 18PF J
C128 CC73GCH1H090B CHIP C 9.0PF B
C130 CC73GCH1H090B CHIP C 9.0PF B
C132 CC73GCH1H040B CHIP C 4.0PF B
C134 CC73GCH1H181J CHIP C 180PF J
C135 CC73GCH1H040B CHIP C 4.0PF B
C136 CC73GCH1H181J CHIP C 180PF J
C137 CC73GCH1H050B CHIP C 5.0PF B
C138 CC73GCH1H020B CHIP C 2.0PF B
C139 CC73GCH1H080B CHIP C 8.0PF B
C140 CC73GCH1H020B CHIP C 2.0PF B
C141 CC73GCH1H030B CHIP C 3.0PF B
C144 CC73GCH1H050B CHIP C 5.0PF B
C145 CC73HCH1H080B CHIP C 8.0PF B
C147 CK73HB1A104K CHIP C 0.10UF K
C148 CC73HCH1H271J CHIP C 270PF J
C150 CC73HCH1H271J CHIP C 270PF J
C151 CK73FB1A225K CHIP C 2.2UF K
C152-157 CC73HCH1H271J CHIP C 270PF J
C159
✽
CK73FB1A335K CHIP C 3.3UF K
C160 CC73HCH1H271J CHIP C 270PF J
C161 CK73HB1E103K CHIP C 0.010UF K
C162 CC73HCH1H271J CHIP C 270PF J
C163 CC73GCH1H010B CHIP C 1.0PF B
C200 CK73FB1A106K CHIP C 10UF K
C201 CK73HB1H102K CHIP C 1000PF K
C202 CK73HB1E103K CHIP C 0.010UF K
C203 CC73HCH1H271J CHIP C 270PF J
C204 CK73HB1H182K CHIP C 1800PF K
C205 CK73HB1A104K CHIP C 0.10UF K
C206,207 CC73HCH1H221J CHIP C 220PF J
C208 CK73HB1A104K CHIP C 0.10UF K
C209 CC73HCH1H470J CHIP C 47PF J
C211 CK73HB1A104K CHIP C 0.10UF K
C212 CK73HB1C333K CHIP C 0.033UF K
C213 CK73HB1A104K CHIP C 0.10UF K
C214 CK73HB1A224K CHIP C 0.22UF K
C215 CK73HB1E103K CHIP C 0.010UF K
C216 CC73HCH1H220J CHIP C 22PF J
C217 CK73HB1E103K CHIP C 0.010UF K
C218 CC73HCH1H050C CHIP C 5.0PF C
C219 CC73HCH1H220J CHIP C 22PF J
C220 CK73HB1H102K CHIP C 1000PF K
C221 CK73HB1E103K CHIP C 0.010UF K
C223 CK73HB1E103K CHIP C 0.010UF K
C226,227 CC73HCH1H080B CHIP C 8.0PF B
C228 CK73HB1E103K CHIP C 0.010UF K
C229 CC73HCH1H050B CHIP C 5.0PF B
C230 CC73HCH1H1R5B CHIP C 1.5PF B
C231 CC73HCH1H030B CHIP C 3.0PF B
C233 CK73HB1H471K CHIP C 470PF K
C234,235 CK73HB1E103K CHIP C 0.010UF K
C236 CK73HB1H471K CHIP C 470PF K
C237 CC73HCH1H180J CHIP C 18PF J
C238 CK73HB1H471K CHIP C 470PF K
C239 CK73HB1E103K CHIP C 0.010UF K
C240 CC73HCH1H471J CHIP C 470PF J
C244 CK73HB1H471K CHIP C 470PF K
C245 CC73HCH1H050B CHIP C 5.0PF B
C246 CC73HCH1H220G CHIP C 22PF G
C247 CK73HB1A104K CHIP C 0.10UF K
C248 CC73HCH1H0R5B CHIP C 0.5PF B
C249 CC73HCH1H220J CHIP C 22PF J
C250 CC73HCH1H040B CHIP C 4.0PF B
C251 CK73HB1H471K CHIP C 470PF K
C253 CK73HB1H471K CHIP C 470PF K
C254 CK73HB1A104K CHIP C 0.10UF K
C255,256 CK73HB1H471K CHIP C 470PF K
C257 CC73HCH1H030B CHIP C 3.0PF B
C258 CC73HCH1H220G CHIP C 22PF G
C259 CK73HB1A104K CHIP C 0.10UF K
C260 CC73HCH1H1R5B CHIP C 1.5PF B
C261 CC73HCH1H220G CHIP C 22PF G
C262 CC73HCH1H010B CHIP C 1.0PF B
C263 CC73HCH1H100B CHIP C 10PF B
C265 CK73HB1H471K CHIP C 470PF K
C270 CC73HCH1H040B CHIP C 4.0PF B
C271 CC73HCH1H220G CHIP C 22PF G
C273 CC73HCH1H0R5B CHIP C 0.5PF B
C275 CC73HCH1H1R5B CHIP C 1.5PF B
C276 CK73HB1H471K CHIP C 470PF K
C277 CK73HB1A104K CHIP C 0.10UF K
C278 CK73HB1H471K CHIP C 470PF K
C301,302 CK73HB1A104K CHIP C 0.10UF K
C304 CK73HB1C473K CHIP C 0.047UF K
C305,306 CK73HB1A105K CHIP C 1.0UF K
C307 CK73HB1A224K CHIP C 0.22UF K
C308 CK73HB1A104K CHIP C 0.10UF K
C310 CK73HB1A104K CHIP C 0.10UF K
C311 CK73HB1C273K CHIP C 0.027UF K
C312 CK73HB1H472K CHIP C 4700PF K
C313 CK73HB1A104K CHIP C 0.10UF K
C314 CK73HB1E103K CHIP C 0.010UF K
C316 CK73HB1A184K CHIP C 0.18UF K
C317 CK73HB1A104K CHIP C 0.10UF K
C318-321 CK73HB1A184K CHIP C 0.18UF K
C322 CK73HB1A394K CHIP C 0.39UF K
C323 CK73HB1H332K CHIP C 3300PF K
C324 CK73HB1A184K CHIP C 0.18UF K
C325 CK73HB1A104K CHIP C 0.10UF K
C326 CC73HCH1H181J CHIP C 180PF J
C327 CK73HB1H472K CHIP C 4700PF K
C328 CK73HB1E103K CHIP C 0.010UF K
C329 CK73GB1C225K CHIP C 2.2UF K
C330,331 CC73HCH1H271J CHIP C 270PF J
C332 CK73HB1A105K CHIP C 1.0UF K
C333 CK73HB1H822K CHIP C 8200PF K
C334 CK73HB1C273K CHIP C 0.027UF K
C335 CC73HCH1H271J CHIP C 270PF J
C336 CK73HB1H821K CHIP C 820PF K

TH-K40A/K40E
13
PARTS LIST
Ref. No. Address Parts No. Description Desti-
nation
New
parts
Ref. No. Address Parts No. Description Desti-
nation
New
parts
M: TH-K40A(M)
E : TH-K40E(E)
TX-RX UNIT (X57-822X-XX)
C337 CK73HB1E103K CHIP C 0.010UF K
C338 CK73HB1H102K CHIP C 1000PF K
C339 CC73HCH1H100B CHIP C 10PF B
C340,341 CK73HB1E103K CHIP C 0.010UF K
C342 CK73HB1H102K CHIP C 1000PF K
C344 CC73HCH1H271J CHIP C 270PF J
C345 CC73HCH1H101J CHIP C 100PF J
C347 CK73HB1H102K CHIP C 1000PF K
C351 CK73HB1H102K CHIP C 1000PF K
C352 CC73HCH1H271J CHIP C 270PF J
C353 CK73HB1C473K CHIP C 0.047UF K
C354 CK73HB1H102K CHIP C 1000PF K
C356 CK73FB1A106K CHIP C 10UF K
C357 C92-0953-05 ELECTRO 10UF 10WV
C358 CK73FB1A475K CHIP C 4.7UF K
C359 CK73HB1H332K CHIP C 3300PF K
C360,361 CK73HB1A224K CHIP C 0.22UF K
C363 CK73HB1H102K CHIP C 1000PF K
C364 CK73HB1A105K CHIP C 1.0UF K
C365 CK73HB1H102K CHIP C 1000PF K
C366 CK73FB1A106K CHIP C 10UF K
C367 CK73GB1E105K CHIP C 1.0UF K
C369 CK73HB1C473K CHIP C 0.047UF K
C371 CK73HB1C273K CHIP C 0.027UF K
C372 CK73FB1A106K CHIP C 10UF K
C373 CC73HCH1H101J CHIP C 100PF J
C374 CK73HB1A563K CHIP C 0.056UF K
C375 CK73GB1E105K CHIP C 1.0UF K
C376 CK73FB1A475K CHIP C 4.7UF K
C377 CK73GB1E105K CHIP C 1.0UF K
C379 CC73HCH1H221J CHIP C 220PF J
C380 CC73HCH1H271J CHIP C 270PF J
C381 CK73HB1A104K CHIP C 0.10UF K
C382-385 CC73HCH1H271J CHIP C 270PF J
C386 CK73HB1A154K CHIP C 0.15UF K
C388 CC73HCH1H471J CHIP C 470PF J
C390 CK73HB1E103K CHIP C 0.010UF K
C391 CK73HB1A104K CHIP C 0.10UF K
C400,401 CK73HB1E103K CHIP C 0.010UF K
C402 CK73HB1H102K CHIP C 1000PF K
C403 CC73HCH1H471J CHIP C 470PF J
C404-407 CK73FB0J226M CHIP C 22UF M
C408-410 CC73HCH1H471J CHIP C 470PF J
C411 CC73HCH1H120J CHIP C 12PF J
C412 CC73HCH1H010B CHIP C 1.0PF B
C413 CK73HB1A104K CHIP C 0.10UF K
C414 CC73HCH1H271J CHIP C 270PF J
C415 CC73HCH1H120J CHIP C 12PF J
C417,418 CK73HB1H471K CHIP C 470PF K
C419 C93-1803-05 CHIP C 10UF M
C420 CK73HB1H471K CHIP C 470PF K
C421 CC73HCH1H271J CHIP C 270PF J
C423 CC73HCH1H271J CHIP C 270PF J
C424,425 CK73HB1E103K CHIP C 0.010UF K
C427 CK73HB1H102K CHIP C 1000PF K
C428 CK73HB1E103K CHIP C 0.010UF K
C432 CC73HCH1H471J CHIP C 470PF J
C435-438 CC73HCH1H471J CHIP C 470PF J
J300 2B E11-0484-05 3.5D PHONE JACK(3.5D/MIC)
J301 2B E11-0717-05 2.5D PHONE JACK(2.5D/SP)
104 3A E29-1235-04 INTER CONNECTOR(LCD)
CN300 E40-6900-05 PIN ASSY(INT-SP)
F101 F53-0287-05 FUSE(0.5A)
F300 F53-0372-05 FUSE(3.15A)
F301 F53-0467-05 FUSE(0.315A)
105 2A G11-4563-04 SHEET(LCD)
106 2A J21-8639-03 MOUNTING HARDWARE(LCD)
107 2A J30-1267-04 SPACER(MIC)
CD200 L79-1474-05 TUNING COIL(450KHZ)
CF200 L72-1042-05 CERAMIC FILTER(450KHZ)
L1 -3 L40-2785-92
SMALL FIXED INDUCTOR(270NH)
L4 L41-4763-14
SMALL FIXED INDUCTOR(4.7NH)
L5 L40-2785-92
SMALL FIXED INDUCTOR(270NH)
L6 L41-1578-08
SMALL FIXED INDUCTOR(15NH)
L7 ,8 L40-2785-92
SMALL FIXED INDUCTOR(270NH)
L9 L40-1875-71
SMALL FIXED INDUCTOR(18NH)
L10 L40-1575-71
SMALL FIXED INDUCTOR(15NH)
L11 L40-3375-71
SMALL FIXED INDUCTOR(33NH)
L13 L40-4763-92
SMALL FIXED INDUCTOR(4.7NH)
L101 L40-1575-71
SMALL FIXED INDUCTOR(15NH )
L103 L40-3375-71
SMALL FIXED INDUCTOR(33NH)
L104 L40-1275-71
SMALL FIXED INDUCTOR(12NH)
L105 L41-3375-53
SMALL FIXED INDUCTOR(33NH )
L106 L34-4572-05 AIR-CORE COIL(4T)
L107 L34-4571-05 AIR-CORE COIL(3T)
L108 L41-2285-43
SMALL FIXED INDUCTOR(220NH)
L109,110 L34-4572-05 AIR-CORE COIL(4T)
L112 L34-4572-05 AIR-CORE COIL(4T)
L113 L41-1075-53
SMALL FIXED INDUCTOR(10NH)
L200,201 L40-5681-86
SMALL FIXED INDUCTOR(0.56UH )
L202 L40-8281-86
SMALL FIXED INDUCTOR(0.82UH)
L204 L40-2775-71
SMALL FIXED INDUCTOR(27NH)
L206 L41-5685-39
SMALL FIXED INDUCTOR(0.56UH )
L207 L40-1885-92
SMALL FIXED INDUCTOR(180NH)
L209,210 L41-8268-14
SMALL FIXED INDUCTOR(8.2NH)
L211 L41-2785-45
SMALL FIXED INDUCTOR(270NH)
L212,213 L41-8268-14
SMALL FIXED INDUCTOR(8.2NH)
L215 L40-2763-71
SMALL FIXED INDUCTOR(2.7NH)
L216 L40-4775-71
SMALL FIXED INDUCTOR(47NH)
L217 L41-8268-14
SMALL FIXED INDUCTOR(8.2NH)
X1 L77-3074-05 TCXO(19.2MHZ)
X400 L77-2974-05
CRYSTAL RESONATOR(11.0592MHZ)
XF200 L71-0669-05 MCF(38.85MHZ)
VR300 2B R31-0684-05 VARIABLE RESISTOR
CP1 RK74HB1J102J CHIP-COM 1.0K J 1/16W
R2 RK73HB1J272J CHIP R 2.7K J 1/16W
R4 RK73HB1J223J CHIP R 22K J 1/16W
R5 RK73HB1J272J CHIP R 2.7K J 1/16W
R6 ,7 RK73HB1J104J CHIP R 100K J 1/16W
R8 RK73HB1J103J CHIP R 10K J 1/16W
R9 RK73HB1J104J CHIP R 100K J 1/16W
R10 RK73HB1J470J CHIP R 47 J 1/16W
R11 RK73HB1J472J CHIP R 4.7K J 1/16W
R12 RK73HB1J221J CHIP R 220 J 1/16W
R14 RK73HB1J102J CHIP R 1.0K J 1/16W
R15 RK73GB2A473J CHIP R 47K J 1/10W
R16 RK73HB1J000J CHIP R 0 J 1/16W
If a part reference number is listed in a shaded box, that part does not come with the PCB.

TH-K40A/K40E
14
Ref. No. Address Parts No. Description Desti-
nation
New
parts
PARTS LIST
Ref. No. Address Parts No. Description Desti-
nation
New
parts
M: TH-K40A(M)
E : TH-K40E(E)
TX-RX UNIT (X57-822X-XX)
R17 RK73HB1J101J CHIP R 100 J 1/16W
R19 RK73HB1J562J CHIP R 5.6K J 1/16W
R20 RK73HB1J332J CHIP R 3.3K J 1/16W
R21 RK73HB1J331J CHIP R 330 J 1/16W
R22 RK73HB1J391J CHIP R 390 J 1/16W
R23 RK73HB1J100J CHIP R 10 J 1/16W
R24 RK73HB1J332J CHIP R 3.3K J 1/16W
R25 RK73HB1J103J CHIP R 10K J 1/16W
R26 RK73HB1J472J CHIP R 4.7K J 1/16W
R27 RK73HB1J152J CHIP R 1.5K J 1/16W
R28 RK73HB1J102J CHIP R 1.0K J 1/16W
R30 -38 RK73HB1J103J CHIP R 10K J 1/16W
R39 RK73HB1J100J CHIP R 10 J 1/16W
R40 RK73HB1J680J CHIP R 68 J 1/16W
R41 RK73HB1J392J CHIP R 3.9K J 1/16W
R43 RK73HB1J100J CHIP R 10 J 1/16W
R45 RK73HB1J333J CHIP R 33K J 1/16W
R46 RK73HB1J104J CHIP R 100K J 1/16W
R47 RK73HB1J105J CHIP R 1.0M J 1/16W
R48 RK73HB1J102J CHIP R 1.0K J 1/16W
R101 RK73HB1J000J CHIP R 0 J 1/16W
R102 RK73HB1J102J CHIP R 1.0K J 1/16W
R103 RK73HB1J222J CHIP R 2.2K J 1/16W
R104 RK73HB1J180J CHIP R 18 J 1/16W
R105 RK73HB1J222J CHIP R 2.2K J 1/16W
R107 RK73HB1J100J CHIP R 10 J 1/16W
R108 RK73HB1J270J CHIP R 27 J 1/16W
R109 RK73HB1J473J CHIP R 47K J 1/16W
R111 RK73HB1J683J CHIP R 68K J 1/16W
R112 RK73HB1J470J CHIP R 47 J 1/16W
R113 RK73HB1J683J CHIP R 68K J 1/16W
R114 RK73HB1J390J CHIP R 39 J 1/16W
R115 RK73HB1J473J CHIP R 47K J 1/16W
R116 RK73GB2A000J CHIP R 0 J 1/10W
R120 RK73HB1J182J CHIP R 1.8K J 1/16W
R121 RK73HB1J393J CHIP R 39K J 1/16W
R124 RK73HB1J331J CHIP R 330 J 1/16W
R125 R92-3637-05 CHIP R 0.39 J 1/3W
R126 RK73HB1J271J CHIP R 270 J 1/16W
R127 R92-3637-05 CHIP R 0.39 J 1/3W
R128 RK73HB1J271J CHIP R 270 J 1/16W
R129 R92-3637-05 CHIP R 0.39 J 1/3W
R130 RK73FB2B000J CHIP R 0 J 1/8W
R200 RK73HB1J470J CHIP R 47 J 1/16W
R201 RK73HB1J182J CHIP R 1.8K J 1/16W
R203 RK73HB1J154J CHIP R 150K J 1/16W
R204 RK73HB1J332J CHIP R 3.3K J 1/16W
R205 RK73HB1J222J CHIP R 2.2K J 1/16W
R206 RK73HB1J394J CHIP R 390K J 1/16W
R207 RK73HB1J272J CHIP R 2.7K J 1/16W
R208 RK73HB1J100J CHIP R 10 J 1/16W
R210 RK73HB1J104J CHIP R 100K J 1/16W
R212 RK73HB1J101J CHIP R 100 J 1/16W
R213 RK73HB1J470J CHIP R 47 J 1/16W
R214 RK73HB1J334J CHIP R 330K J 1/16W
R215 RK73HB1J000J CHIP R 0 J 1/16W
R216 RK73HB1J184J CHIP R 180K J 1/16W
R218 RK73HB1J102J CHIP R 1.0K J 1/16W
R220 RK73HB1J561J CHIP R 560 J 1/16W
R221 RK73HB1J000J CHIP R 0 J 1/16W
R223 RK73HB1J000J CHIP R 0 J 1/16W
R225 RK73HB1J470J CHIP R 47 J 1/16W
R227 RK73HB1J151J CHIP R 150 J 1/16W
R228 RK73HB1J102J CHIP R 1.0K J 1/16W
R229,230 RK73HB1J104J CHIP R 100K J 1/16W
R231 RK73HB1J563J CHIP R 56K J 1/16W
R233,234 RK73HB1J474J CHIP R 470K J 1/16W
R235 RK73HB1J470J CHIP R 47 J 1/16W
R236 RK73HB1J220J CHIP R 22 J 1/16W
R237 RK73HB1J221J CHIP R 220 J 1/16W
R238 RK73HB1J104J CHIP R 100K J 1/16W
R240 RK73HB1J104J CHIP R 100K J 1/16W
R241 RK73HB1J683J CHIP R 68K J 1/16W
R242,243 RK73HB1J474J CHIP R 470K J 1/16W
R245 RK73HB1J000J CHIP R 0 J 1/16W
R246 RK73HB1J823J CHIP R 82K J 1/16W
R247 RK73HB1J222J CHIP R 2.2K J 1/16W
R249 RK73HB1J102J CHIP R 1.0K J 1/16W
R251 RK73HB1J474J CHIP R 470K J 1/16W
R252,253 RK73HB1J472J CHIP R 4.7K J 1/16W
R300-302 RK73HB1J102J CHIP R 1.0K J 1/16W
R303 RK73HB1J222J CHIP R 2.2K J 1/16W
R304 RK73HB1J392J CHIP R 3.9K J 1/16W
R305 RK73HB1J103J CHIP R 10K J 1/16W
R307 RK73HB1J105J CHIP R 1.0M J 1/16W
R308 RK73HB1J102J CHIP R 1.0K J 1/16W
R309 RK73HB1J562J CHIP R 5.6K J 1/16W
R310 RK73HB1J393J CHIP R 39K J 1/16W
R311-313 RK73HH1J473D CHIP R 47K D 1/16W
R314 RK73HB1J824J CHIP R 820K J 1/16W
R315 RK73HB1J564J CHIP R 560K J 1/16W
R316 RK73HB1J103J CHIP R 10K J 1/16W
R317 RK73HB1J392J CHIP R 3.9K J 1/16W
R318 RK73HB1J272J CHIP R 2.7K J 1/16W
R319 RK73HB1J181J CHIP R 180 J 1/16W
R320 RK73HB1J563J CHIP R 56K J 1/16W
R321 RK73HB1J222J CHIP R 2.2K J 1/16W
R322 RK73HB1J332J CHIP R 3.3K J 1/16W
R323 RK73HB1J102J CHIP R 1.0K J 1/16W
R324 RK73HB1J561J CHIP R 560 J 1/16W
R325 RK73HB1J471J CHIP R 470 J 1/16W
R326 RK73HB1J562J CHIP R 5.6K J 1/16W
R327 RK73HB1J104J CHIP R 100K J 1/16W
R328 RK73HB1J103J CHIP R 10K J 1/16W
R329 RK73HB1J334J CHIP R 330K J 1/16W
R330 RK73HB1J104J CHIP R 100K J 1/16W
R331,332 RK73HH1J563D CHIP R 56K D 1/16W
R333,334 RK73HH1J473D CHIP R 47K D 1/16W
R335-338 RK73HB1J103J CHIP R 10K J 1/16W
R339,340 RK73HB1J102J CHIP R 1.0K J 1/16W
R341 RK73HB1J824J CHIP R 820K J 1/16W
R342 RK73HB1J564J CHIP R 560K J 1/16W
R345 RK73HB1J823J CHIP R 82K J 1/16W
R346 RK73HB1J224J CHIP R 220K J 1/16W
R347 RK73GB2A473J CHIP R 47K J 1/10W
R350 RK73HB1J822J CHIP R 8.2K J 1/16W
R351 RK73HB1J101J CHIP R 100 J 1/16W
R353 RK73HB1J103J CHIP R 10K J 1/16W
R354 RK73HB1J102J CHIP R 1.0K J 1/16W
R355 RK73HB1J471J CHIP R 470 J 1/16W

TH-K40A/K40E
15
PARTS LIST
Ref. No. Address Parts No. Description Desti-
nation
New
parts
Ref. No. Address Parts No. Description Desti-
nation
New
parts
M: TH-K40A(M)
E : TH-K40E(E)
TX-RX UNIT (X57-822X-XX)
R357 RK73HB1J561J CHIP R 560 J 1/16W
R358 RK73HB1J473J CHIP R 47K J 1/16W
R359 RK73HB1J331J CHIP R 330 J 1/16W
R360 RK73HB1J182J CHIP R 1.8K J 1/16W
R361 RK73HB1J473J CHIP R 47K J 1/16W
R362 RK73HB1J334J CHIP R 330K J 1/16W
R363,364 RK73HB1J102J CHIP R 1.0K J 1/16W
R365 RK73HB1J222J CHIP R 2.2K J 1/16W
R367 RK73HB1J334J CHIP R 330K J 1/16W
R368 RK73HB1J274J CHIP R 270K J 1/16W
R369 RK73HB1J000J CHIP R 0 J 1/16W
R370 RK73HB1J474J CHIP R 470K J 1/16W
R372 RK73HB1J473J CHIP R 47K J 1/16W
R374 RK73HB1J103J CHIP R 10K J 1/16W
R376 RK73HB1J000J CHIP R 0 J 1/16W
R377 RK73HB1J473J CHIP R 47K J 1/16W
R378 RK73HB1J273J CHIP R 27K J 1/16W
R379 RK73HB1J104J CHIP R 100K J 1/16W
R380 RK73HB1J2R2J CHIP R 2.2 J 1/16W
R382 RK73HB1J182J CHIP R 1.8K J 1/16W
R383 RK73HB1J103J CHIP R 10K J 1/16W
R385 RK73HB1J102J CHIP R 1.0K J 1/16W
R386 RK73HB1J823J CHIP R 82K J 1/16W
R387 RK73HB1J333J CHIP R 33K J 1/16W
R388 RK73HB1J102J CHIP R 1.0K J 1/16W
R389 RK73HH1J153D CHIP R 15K D 1/16W
R400,401 RK73HB1J224J CHIP R 220K J 1/16W
R402 RK73HB1J473J CHIP R 47K J 1/16W
R403 RK73HB1J224J CHIP R 220K J 1/16W
R405 RK73HB1J472J CHIP R 4.7K J 1/16W
R414 RK73HB1J472J CHIP R 4.7K J 1/16W
R415 RK73HB1J473J CHIP R 47K J 1/16W
R419 RK73HB1J472J CHIP R 4.7K J 1/16W
R422 RK73HB1J102J CHIP R 1.0K J 1/16W
R424 RK73HB1J102J CHIP R 1.0K J 1/16W
R425 RK73HB1J474J CHIP R 470K J 1/16W
R431 RK73HB1J000J CHIP R 0 J 1/16W M
R432 RK73HB1J000J CHIP R 0 J 1/16W E
R437 RK73HB1J332J CHIP R 3.3K J 1/16W
R438 RK73HB1J681J CHIP R 680 J 1/16W
R439 RK73HB1J333J CHIP R 33K J 1/16W
R440 RK73HB1J473J CHIP R 47K J 1/16W
R441 RK73HB1J101J CHIP R 100 J 1/16W
R442 RK73GB2A221J CHIP R 220 J 1/10W
R443 RK73HB1J101J CHIP R 100 J 1/16W
R444,445 RK73GB2A221J CHIP R 220 J 1/10W
R446 RK73GB2A331J CHIP R 330 J 1/10W
R447-451 RK73HB1J122J CHIP R 1.2K J 1/16W
R452,453 RK73HB1J104J CHIP R 100K J 1/16W
R454-462 RK73HB1J102J CHIP R 1.0K J 1/16W
R464 RK73HB1J273J CHIP R 27K J 1/16W
R465 RK73HB1J473J CHIP R 47K J 1/16W
R466 RK73GB2A000J CHIP R 0 J 1/10W
R470 RK73HB1J473J CHIP R 47K J 1/16W
S417 S70-0514-05 TACT SWITCH(MONI)
S418 2B S70-0414-05 TACT SWITCH(PTT)
MIC300 2A T91-0673-05 MIC ELEMENT
D1 ,2 1SV325F VARIABLE CAPACITANCE DIODE
D3 HSC277 DIODE
D4 ,5 HVC350B VARIABLE CAPACITANCE DIODE
D6 DA2S101 DIODE
D7 ,8 HSC277 DIODE
D9 -11 DA2S101 DIODE
D101-104 HVC131 DIODE
D200-204 HVC350B VARIABLE CAPACITANCE DIODE
D300 KDR731 DIODE
D301 GN1G DIODE
D302 RB521S-30 DIODE
D304 RB521S-30 DIODE
D305 DZ2S068(M) ZENER DIODE
D401 DZ2S036(0) ZENER DIODE
D404-407 1SS388F DIODE
D408 DA2S101 DIODE E
D409-412 DA2S101 DIODE M
D410-412 DA2S101 DIODE E
IC1 MB15E03SL-E1 MOS-IC
IC200 TA31136FNG MOS-IC
IC300 R2A20178NP DAC IC
IC301-304 NJM12904RB1 MOS-IC
IC305 XC6120N302N-G MOS-IC
IC306 XC6209B502P-G MOS-IC
IC307 TA7368PL MOS-IC
IC308 XC6209B502P-G MOS-IC
IC400 EX25064ATA00A ROM IC
IC401 R5F2L3ACCKEKA MCU
Q1 RT1N141U-T111 TRANSISTOR
Q2 2SC5383-T111 TRANSISTOR
Q3 MCH3914(7)-H FET
Q4 2SC5108(Y)F TRANSISTOR
Q5 2SC5636 TRANSISTOR
Q6 RT1N141U-T111 TRANSISTOR
Q7 2SC5383-T111 TRANSISTOR
Q101 2SC4926YD TRANSISTOR
Q102 RFM01U7P FET
Q103 RD07MUS2BT112 FET
Q104 RT1N141U-T111 TRANSISTOR
Q200 RT1P237U-T111 TRANSISTOR
Q201,202 KTC4080E-P TRANSISTOR
Q203,204 3SK318 FET
Q300 RT1P237U-T111 TRANSISTOR
Q301,302 LTC044EEBFS8 TRANSISTOR
Q303 2SK3577-A FET
Q304 SSM3J05FU-F FET
Q305 2SK3577-A FET
Q306 SSM6J08FU(F) FET
Q307 RT1P237U-T111 TRANSISTOR
Q308 SSM3J05FU-F FET
Q400 2SC4649(N,P) TRANSISTOR
Q401 12A02CH TRANSISTOR
Q402 2SC4617(R) TRANSISTOR
Q403,404 LTC014YEBFS8 TRANSISTOR
TH101 B57331V2104J THERMISTOR(100K)
TH200 NCP18WM474J0S THERMISTOR(470K)
S419 2B W02-3766-05 ENCODER
If a part reference number is listed in a shaded box, that part does not come with the PCB.

TH-K40A/K40E
16
EXPLODED VIEW
Parts with the exploded numbers larger than 700 are not supplied.
If a part reference number is listed in a box on the exploded view of the PCB, that part does not come with the PCB.
These parts must be ordered separately.
A
A
B
B
Cx13
: M
: E
48
49
51
52
54
33
23
1
47
TX-RX unit
32
46
26 3
29
36
19
7
VR300
S419
7
J300
J301
2
A : N09-2438-05
B : N80-2606-43
C : N83-2005-48
107
MIC300
21
24
27
34
4
8
31
106
105
103
101
102
104
X57
X57
X57
X57
X57
X57
X57
700
700
702
S418
X57
6
3
2
1
BA

TH-K40A/K40E
17
PACKING
Parts with the exploded numbers larger than 700 are not supplied.
(B62-2365-00)
9INSTRUCTION MANUAL
(B62-2369-00): E
11 INSTRUCTION MANUAL
(B62-2370-00) : E
712 WARRANTY CARD: E
61 CHARGER
711 ITEM CARTON CASE
58 AC ADAPTER
56 HELICAL ANTENNA
(T90-1019-35)
42 Belt clip
(J29-0756-05)
62 BATTERY ASSY
(W09-1073-25)
(B62-2371-00) : E
(B62-2372-00) : E
(B62-2373-00) : E
(B62-2374-00) : E
713 PACKING FIXTURE
(W08-1249-35)
12~16 INSTRUCTION MANUAL
(W08-1246-25)
(B62-2375-00): M
18 INSTRUCTION MANUAL
M: TH-K40A(M)
E: TH-K40E(E)
714 PACKING FIXTURE
3
2
1
DC

TH-K40A/K40E
18
ADJUSTMENT
Note:
• When performing the TH-K40 adjustment, a personal
computer, programming interface cable (PG-4Y, KPG-
22A/22U), tuning cable (E30-3216-05) and tuning software
(MCP-5T) are required.
• When you do not want to lose data such as memory
channels or menu items, save the data using the MCP-
5A (Memory control program), then write the data to the
transceiver after performing the adjustment.
To download the MCP-5A software, go to:
http://www.kenwood.com/i/products/info/amateur/software_download.html
(This URL may change without notice.)
1. PC Tuning
The tuning software can be used with a PC. Figure 1
shows the setup of a PC for programming.
Note:
• You must install the KPG-22U driver in the computer to
use the USB programming interface cable (KPG-22U).
The KPG-22U driver runs under Windows XP, Vista, or 7.
2. Tuning Software MCP-5T Description
The MCP-5T is the tuning software for the TH-K40. This
software runs under Windows XP, Vista, or 7 on a PC. The
software allows a user to tuning the transceiver via Program-
ming interface cable (PG-4Y, KPG-22A/22U) and tuning
cable (E30-3216-05).
Refer to the MCP-5T help file for the details on how to
use the MCP-5T.
3. Firmware version information
Press and hold the [ENT] key while turning the transceiv-
er power ON , the firmware version information appears on
the LCD.
Required Test Equipment
1. Stabilized Power Supply
1) The supply voltage can be changed between 3V and 16V
and the current is 3A or more.
2) The standard voltage is 7.5V. (Power supply voltage
range: 6V-9V)
2. DC Ammeter (DC. A)
1) Class 1 ammeter (17 ranges and other features)
2) The full scale can be switched between 300mA and 3A.
3) A cable with low internal loss must be used.
3. Frequency Counter (f. counter)
1) Frequencies of up to 1GHz or so can be measured.
2) The sensitivity can be changed to 250MHz or below and
measurements are highly stable and accurate (about
0.2ppm).
4. Power Meter (terminal type)
1) Measurable frequency: Up to 500MHz
2) Impedance: 50, unbalanced
3) Measuring range: Full scale of 10W
4) The specified special connection cable must be used.
5. RF VM (RF V.M)
1) Measurable frequency: Up to 500MHz or so
6. Linear Detector
1) Measurable frequency: Up to 500MHz
2) Characteristic is fl at and CN is 60dB or more.
7. Digital Voltmeter
1) Voltage range: FS = 18V or so
2) Input resistance: 1Mor more
8. Oscilloscope
1) Measuring range: DC to 30MHz
2) Provides highly accurate measurements for 5 to 25MHz
9. AF Voltmeter (AF V.M)
1) Measurable frequency: 50Hz to 1MHz
2) Maximum sensitivity: 1mV or more
10. Spectrum Analyzer
1) Measuring range: 10kHz to 1GHz or more
11. Standard Signal Generator (SSG)
1) Maximum frequency: 500MHz or more
2) Output: –133dBm (0.05µV) to –13dBm (50mV)
3) Output impedance: 50
12. Tracking Generator
1) Center frequency: 50kHz to 200MHz
2) Frequency deviation: ±35MHz
3) Output voltage: 100mV or more
13. Dummy Load
1) 8, 3W or more
Fig. 1
PC PG-4Y or KPG-22A/22U
Illustration is KPG-22A.
MCP-5T
Tuning cable
(E30-3216-05) D-SUB
Transceiver Transceiver
PG-4Y or
KPG-22A
PC
Gray
Gray/Black
1.5D-XV Lead wire
1.5D-XV Shield wire
+
–
+
–
SP
MIC
(9-pin) USB
KPG-22U
PC

TH-K40A/K40E
19
ADJUSTMENT
Frequency and Signaling
The transceiver has been adjusted for the frequencies
shown in the following table. When required, re-adjust them
following the adjustment procedure to obtain the frequencies
you want in actual operation.
■Test Frequency
CH Receive (MHz) Transmit (MHz)
1 435.05000 435.10000
2 400.05000 400.10000
3 469.95000 469.90000
4 435.00000 435.00000
5 435.20000 435.20000
6 435.40000 435.40000
7~16 - -
■Signaling
No. RX (Decode) TX (Encode)
1 None None
2 None 100Hz Square Wave
3 CTCSS 67.0Hz CTCSS 67.0Hz
4 CTCSS 151.4Hz CTCSS 151.4Hz
5 CTCSS 210.7Hz CTCSS 210.7Hz
6 CTCSS 254.1Hz CTCSS 254.1Hz
7 DCS D023N DCS D023N
8 DCS D754I DCS D754I
9 None DTMF
(Code: 159D)
10 None DTMF
(Code: D)
11 None 1633Hz Tone
Preparations for Tuning the Transceiver
Before attempting to tune the transceiver, connect the
unit to a suitable power supply.
Whenever the transmitter is tuned, the unit must be con-
nected to a suitable dummy load (i.e. power meter).
The speaker output connector must be terminated with a
8dummy load and connected to an AC voltmeter and an
audio distortion meter or a SINAD measurement meter at all
times during tuning.
■Tuning frequency
Tuning point Receive (MHz) Transmit (MHz)
Low 400.05000 400.10000
Center 435.05000 435.10000
High 469.95000 469.90000
Adjustment Points
TX-RX UNIT
Component side view
Foil side view
Note: When replacing CF200 and CD200, apply bond to
the point shown in the figure.
CN300
CV
SPG
SPK
MIC300
+B
GND
ANT
BATT+
BATT-
CD200
S417
CF200
S418
PTT
MONI
VR300
S419
J301 J300
MIC
SP
POW/VOL
ENCODER
BATT+ (7.5V)
BATT– (GND)
–+

TH-K40A/K40E
20
ADJUSTMENT
Common Section
Item Condition
Measurement Adjustment
Specifications / Remarks
Test-
equipment
Unit Terminal Unit Parts Method
1. Setting 1) BATT terminal voltage: 7.5V
2) SSG standard modulation
[Wide]
MOD: 1kHz, DEV: 3kHz
[Narrow]
MOD: 1kHz, DEV: 1.5kHz
2. VCO Lock
Voltage
1) Adj item: High Power
meter
TX-RX ANT
(CV)
MCP-
5T
[],[ ] 4.0V
[V] indicator on the
PC window shows
VCO lock voltage.
Change the adjust-
ment value to get
VCO lock voltage
within the limit of the
specified voltage.
±0.1V
Press [Apply] button to store
the adjustment value.
Note:
• Press [Apply] button to store the adjustment value. (For single adjustment point)
• Press [Apply All] button to store the adjustment value after all adjustment points have been adjusted. (For 3 adjustment point)
Transmitter Section
Item Condition
Measurement Adjustment
Specifications / Remarks
Test-
equipment
Unit Terminal Unit Parts Method
1. Frequency 1) Tuning point: High
Press [Transmit] button.
f. counter TX-RX ANT MCP-
5T
[],[ ] 469.900MHz ±50Hz
2.
High Transmit
Power and
Protective
Current
*Note
1) Tuning point: Low, Center,
High (3 points)
BATT terminal voltage: 7.5V
Press [Transmit] button.
Power
meter
Ammeter
MCP-
5T
[],[ ] 5.0W ±0.1W
2.0A or less
3. Low
Transmit
Power
1) Tuning point: Low, Center,
High (3 points)
BATT terminal voltage: 7.5V
Press [Transmit] button.
1.0W ±0.1W
1.0A or less
4. Mid
Transmit
Power
1) Tuning point: Low, Center,
High (3 points)
BATT terminal voltage: 7.5V
Press [Transmit] button.
2.0W ±0.1W
1.5A or less
5. DCS
Balance
[Wide]
1) Tuning point: Low, Center,
High (3 points)
(Signaling Square Wave)
Deviation meter filter
LPF: 3kHz
HPF: OFF
Press [Transmit] button.
Power
meter
Deviation
meter
Oscilloscope
AG
AF VM
TX-RX ANT
SP/MIC
connector
MCP-
5T
[],[ ] Make the modulation
wave into square
waves.
6. Maximum
Deviation
[Wide]
1) Tuning point: Center, Low,
High (3 points)
AG: 1kHz/150mV
Deviation meter filter
LPF: 15kHz
HPF: OFF
Press [Transmit] button.
4.0kHz
(According to
the larger +, –)
±100Hz
*Note: Please do not adjust High Transmit power without connecting TX Power meter or 50 ohm dummy load to the Antenna terminal.
