TK-2212LK/3212LK
Compact VHF/UHF FM Portable Radios
•Call Key5
•Time Out Timer
•Busy Channel Lockout
•LCD Battery Status Indicator
•Low Battery Alert
•Battery Saver
•Weather-sealed ACC Connector
•Speaker Mic Options
•Windows®Programming & Tuning6
•Field Programming & Tuning
•Wireless Cloning
•MIL-STD-810 C/D/E/F
•MIL-STD “Driven-Rain”
•IP-54/55 Water & Dust Intrusion
FleetSync®
•PTT ID Digital ANI
•Selective Call & Group Call7
•Status Messaging7
•Caller ID Display7
•Short Text Message7
GENERAL FEATURES
•5 W (136-174 MHz) Model
•4 W (450-490, 470-512 MHz) Models
•Conventional Zones
•128 Channels / 128 Zones1
•Single Priority Scan
•Single & Multi-Zone Scan
•8 Character Alphanumeric Aliases
•Backlit LCD
•Function / Status LCD Icons
•Transmit / Busy / Call Alert / Warn LED
•4 Front Panel PF keys
•2 Side PF Keys
•500 mW Audio Power
•Enhanced Kenwood Audio
•Companded Audio
•VOX Ready
•Voice Inversion Scrambler Built-in
•T / D T
•Operator Selectable Tone2
•DTMF Encode / Decode3
•Special Alert Tone Pattern 4

ADS#07809 Printed in USA
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
JQA-QMA1205
TK-2212LK TK-3212LK
GENERAL
Frequency Range
Type 1 136-174 MHz 450-490 MHz
Type 2 - 470-512 MHz
Number of Channels
Zone/Channel Max. 128 per Radio / Max. 128 per Zone
Channel Spacing
Wide/Narrow 25, 30 kHz/12.5,15 kHz 25 kHz/12.5 kHz
Battery Voltage 7.5V DC±20%
Battery Life (5-5-90 duty cycle, during hi-power, battery saver off)
with KNB-45L (2,000mAh) Approx. 12 hours
perating Temperature Range -22°F ~ +140°F (-30°C ~ +60°C)
Frequency Stability ±2.5ppm (-22°F ~ +140°F)
Antenna Impedance 50 Ω
Channel Frequency Spread
Type 1 38 MHz 40 MHz
Type 2 - 42 MHz
Dimensions (W x H x D), Projections not Included
Radio nly 2.13” x 4.8” x 1.19” (54 x 122 x 30.1 mm)
with KNB-45L 2.13” x 4.8” x 1.65” (54 x 122 x 42 mm)
Weight (net)
Radio nly 6.3 oz (180 g)
with KNB-45L 10.6 oz (300 g)
FCC ID
Type 1 ALH37683110 ALH37693110
Type 2 - ALH37693120
IC Certification
Type 1 282D-37683110 282D-37693110
TK-2212LK TK-3212LK
RECEIVER (Measurements made per TIA/EIA-603)
Sensitivity (12dB SINAD)
Wide 0.25 µV
Narrow 0.28 µV
Selectivity
Wide 70 dB
Narrow 60 dB
Intermodulation Distortion
Wide 65 dB
Narrow 60 dB
Spurious Response 65 dB 60 dB
Audio utput (8 Ω impedance) 500 mW with less than 10% distortion
TRAN MITTER (Measurements made per TIA/EIA-603)
RF utput Power
High 5 W 4 W
Low 1 W 1 W
Spurious Response 65 dB
Type of Emission
Wide 16KØF3E
Narrow 11KØF3E
FM HUM & Noise
Wide 45 dB
Narrow 40 dB
Audio Distortion Less than 5%
Kenwood reserves the right to change specifications and features without prior notice.
FleetSync®is not compatible with FleetSync II offered in some Kenwood products.
FleetSync®is a registered trademark of Kenwood Corporation in the United States and/or other countries.
All other trademarks are property of their respective owners.

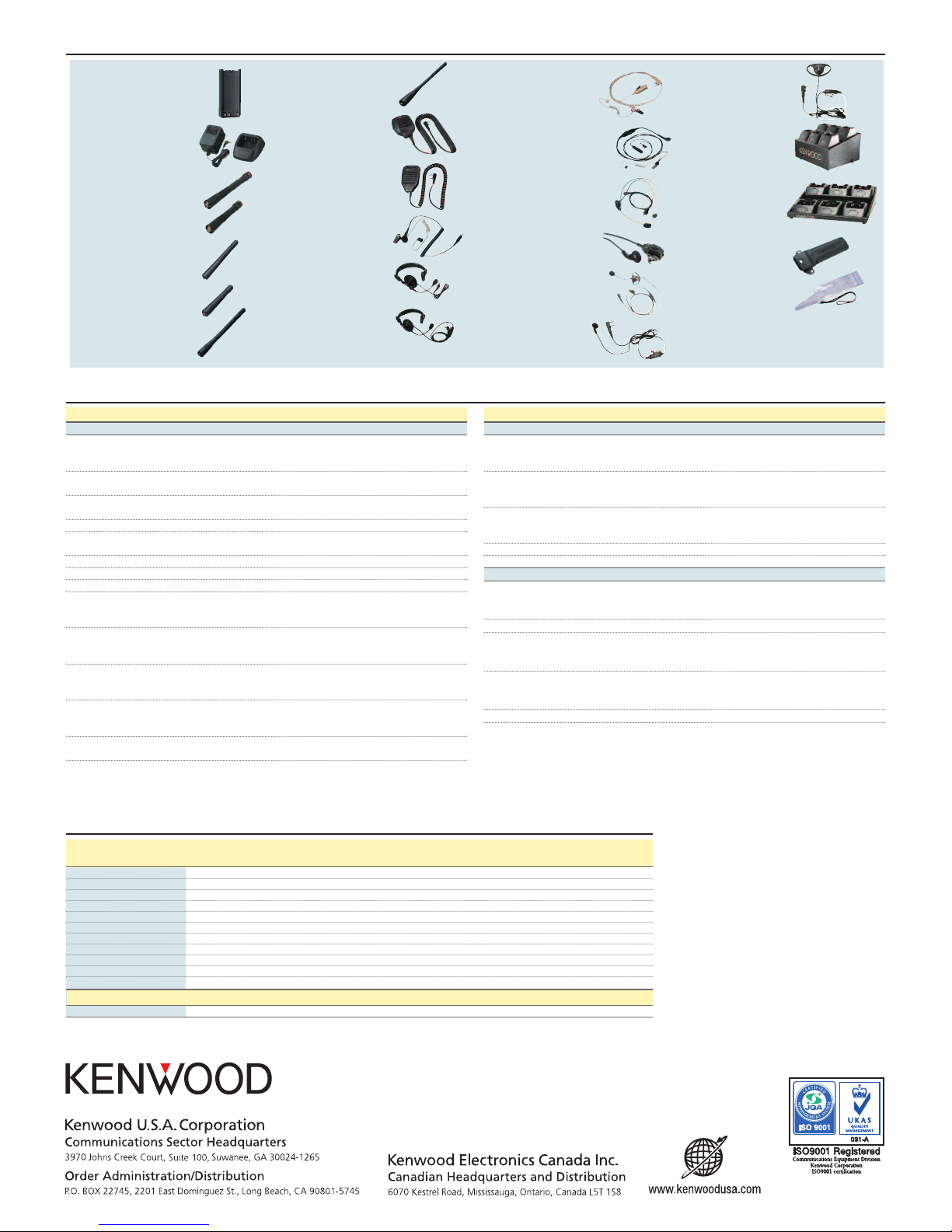

Options
pecifications
JQA-QMA1205
■KNB-45L
Li-Ion Battery Pack
(2000 mAh)
■K C-35K
Fast Charger (3-Hour)
■KRA-16
VHF Stubby Antenna
■KRA-17
UHF Stubby Antenna
■KRA-22
VHF Low Profile
Helical Antenna
■KRA-23
UHF Low Profile
Helical Antenna
■KRA-26
VHF Helical Antenna
■KRA-27
UHF hip Antenna
■KMC-45
Speaker Microphone
■KMC-21
Compact Speaker
Microphone
■KEP-2
Earphone Kit
(2.5mm plug)
■KH -7
Single-Muff Headset
■KH -7A
Single-Muff Headset
with In-line PTT
■KH -8BL/BE
2-wire Palm Mic with
Earphone (Black/Beige)
■KH -9BL/BE
3-wire Lapel Mic
with Earphone (Black/Beige)
■KH -22
Behind-the-head
Headset with PTT
■KH -23
2-wire Palm Mic
■KH -25
D-Ring Ear Hanger
with PTT & Boom Mic
■KH -26
Earbud In-line
PTT Headset
■KH -27
D-Ring In-line
PTT Headset
■KMB-25
Six Unit Charger
Adapter
■KMB-28
Six Unit Charger
Adapter for six
KSC-35K chargers
■KBH-10
Belt Clip
■KWR-1
ater Resistance Bag
(chargers not included)
(chargers not included)
Footnotes from front:
1Conventional Zones: 128 Channels /128 Zones max. per
radio; 128 CH max. per Zone.
2Operator Selectable Tone (40 QT.DQT code pairs).
3DTMF Encode: PTT ID, Emergency ANI, Auto-Dial
(16 numbers); ,DTMF Decode: Code Squelch (3-10 digit),
Selective Call (9-digit with status) Group Codes A,B, C, D,
# & *) and radio Stun.
4Special Alert Tone Patterns operate for DTMF, FleetSync®
selective call decode.
5Call Key 1 & 2: operates for DTMF and FleetSync®
status encode.
6 KPG-100D required: Windows®98/ NT/ 2000/ Me/XP
compatible; English/Spanish screen languages.
7 ID ist capacity is 100 ID's; Short Text Message is CD
displayed; Status Message ist capacity is 50.
tandard MIL 810C MIL 810D MIL 810E MIL 810F
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II
Temperature hock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II
olar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4
alt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I
hock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV
International Protection tandard
Dust & Water Protection IP54/55
*To meet MI 810 and IP grade, the 2-pin connector cover has to be connected.
Applicable MIL- TD & IP
