Kenwood KW-V940BW User manual

B5A-2487-00 b (K)© 2018 JVC KENWOOD Corporation
MONITOR WITH DVD RECEIVER
KW-V940BW
MONITOR WITH RECEIVER
KW-M845BW
INSTRUCTION MANUAL
• Updated information (the latest Instruction Manual, system updates, new
functions, etc.) is available from
<http://www.jvc.net/cs/car/>.
!B5A-2487-00b_18KWV_K_En.indb 1 2019/04/26 11:16

2
Contents
Before Use 4
Precautions................................................................... 4
How to read this manual ......................................... 5
Basic Operations 6
Functions of the Buttons on the Front Panel ... 6
Turning on the Unit ................................................... 7
Initial Settings.............................................................. 7

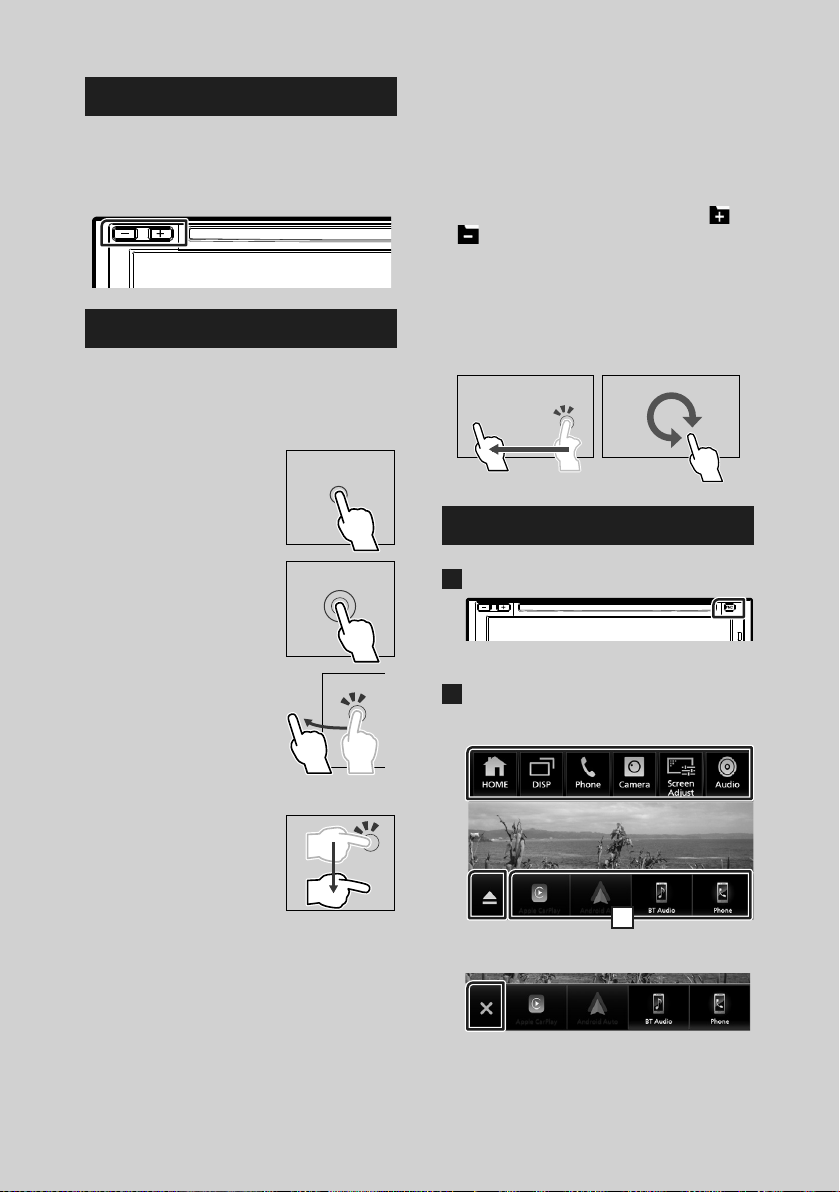

Adjusting the volume.............................................10
Touch screen operations .......................................10
Popup menu ..............................................................10

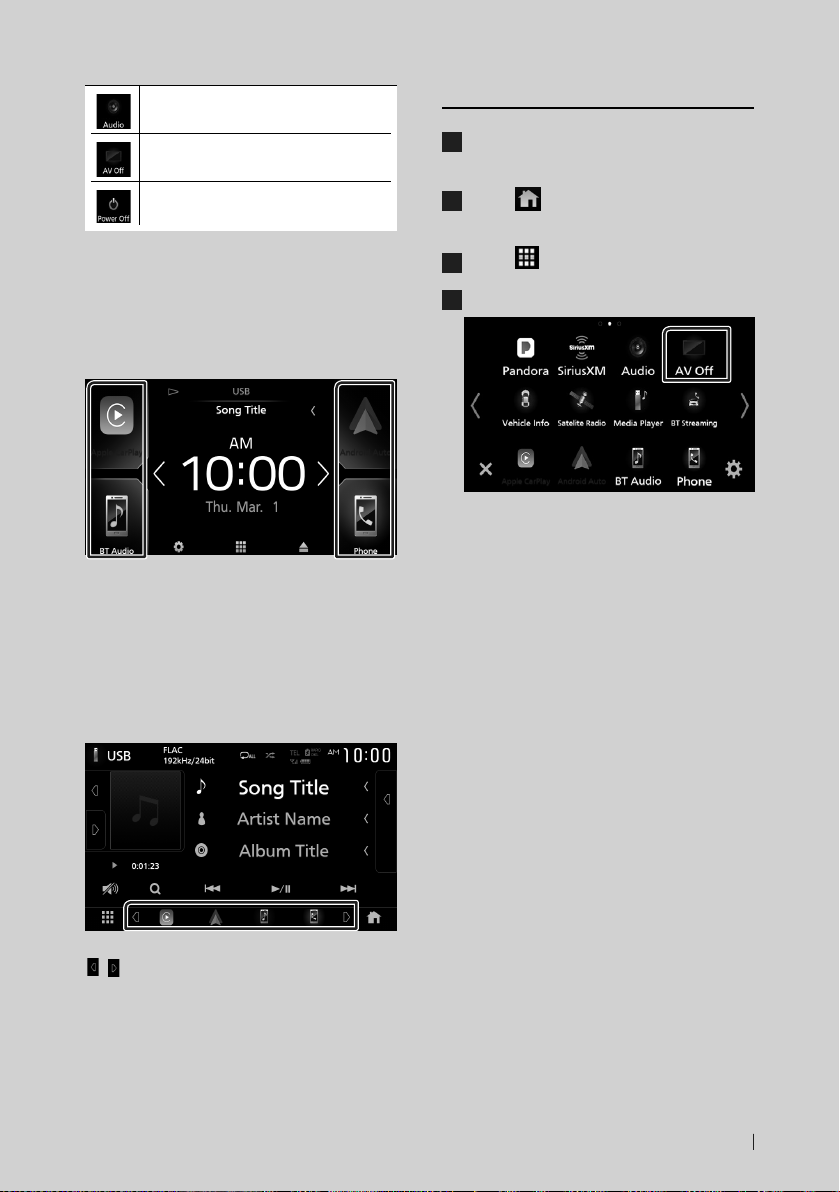

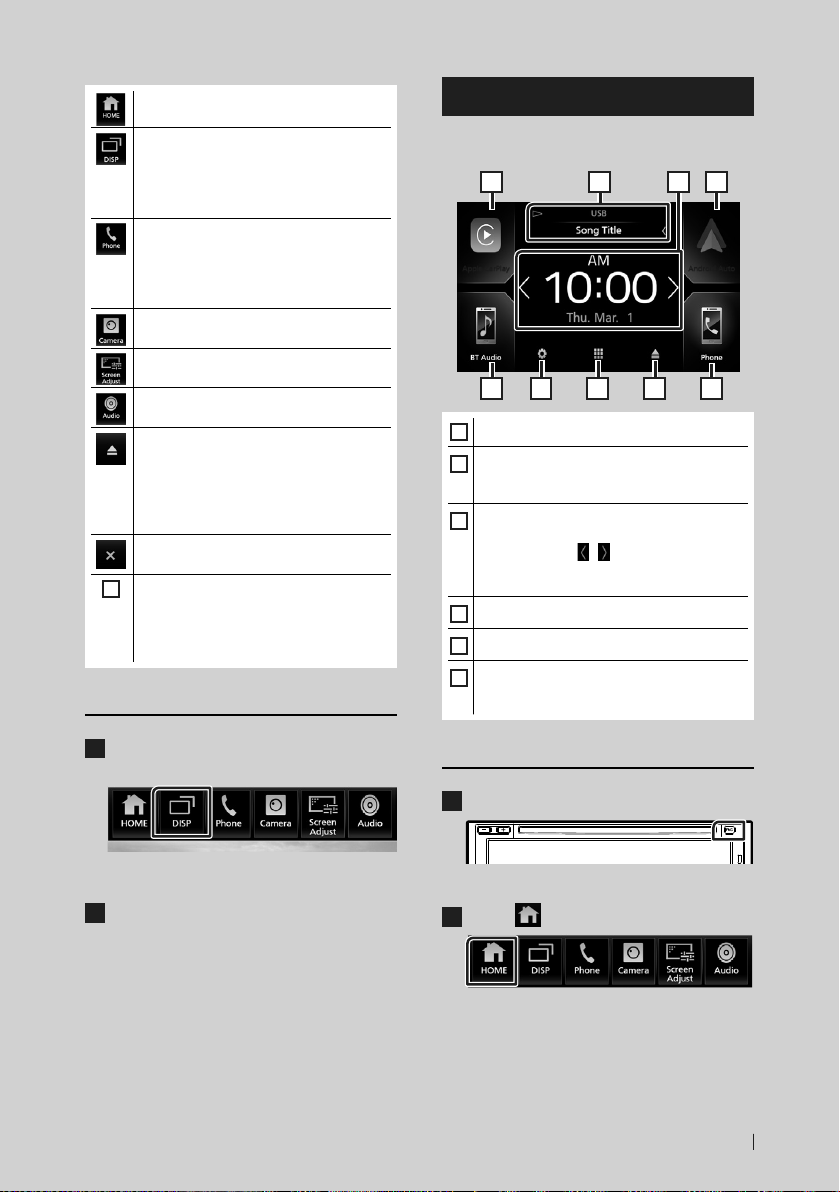

HOME screen descriptions....................................11

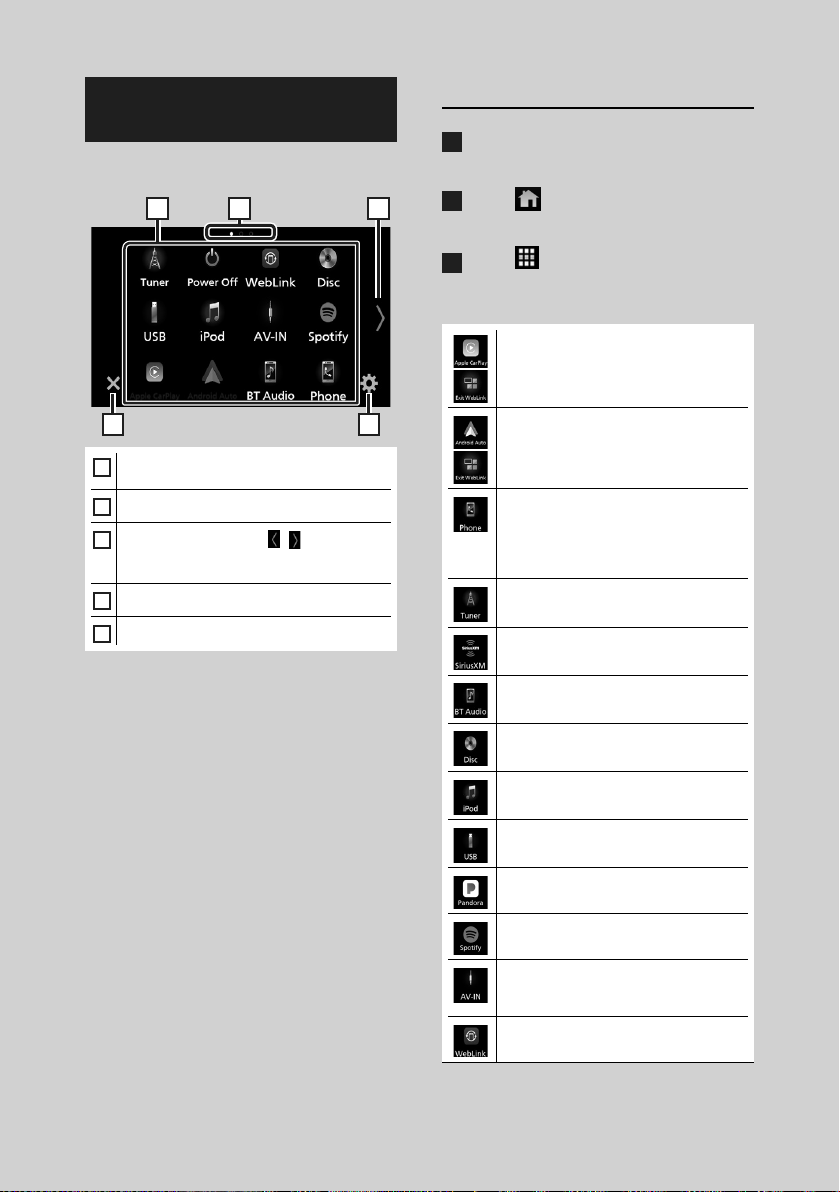

Source selection screen description..................12
Source control screen descriptions ...................14

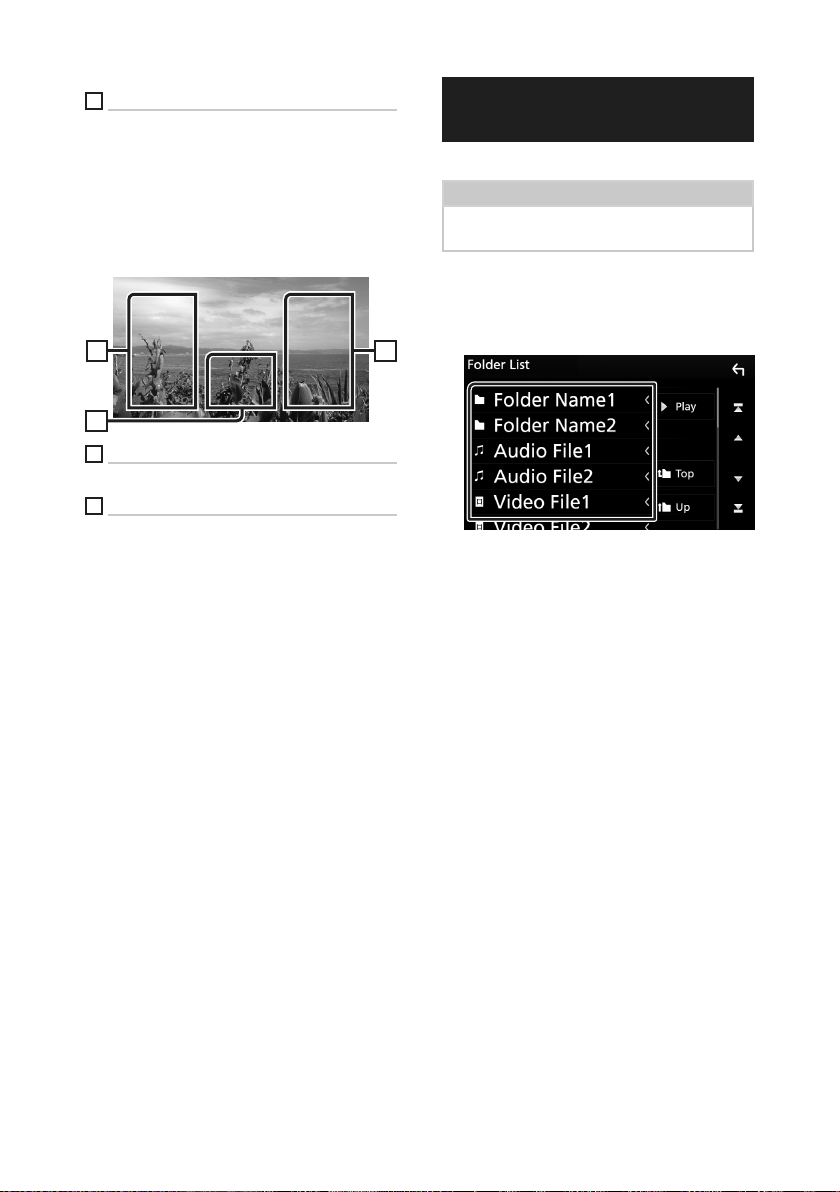

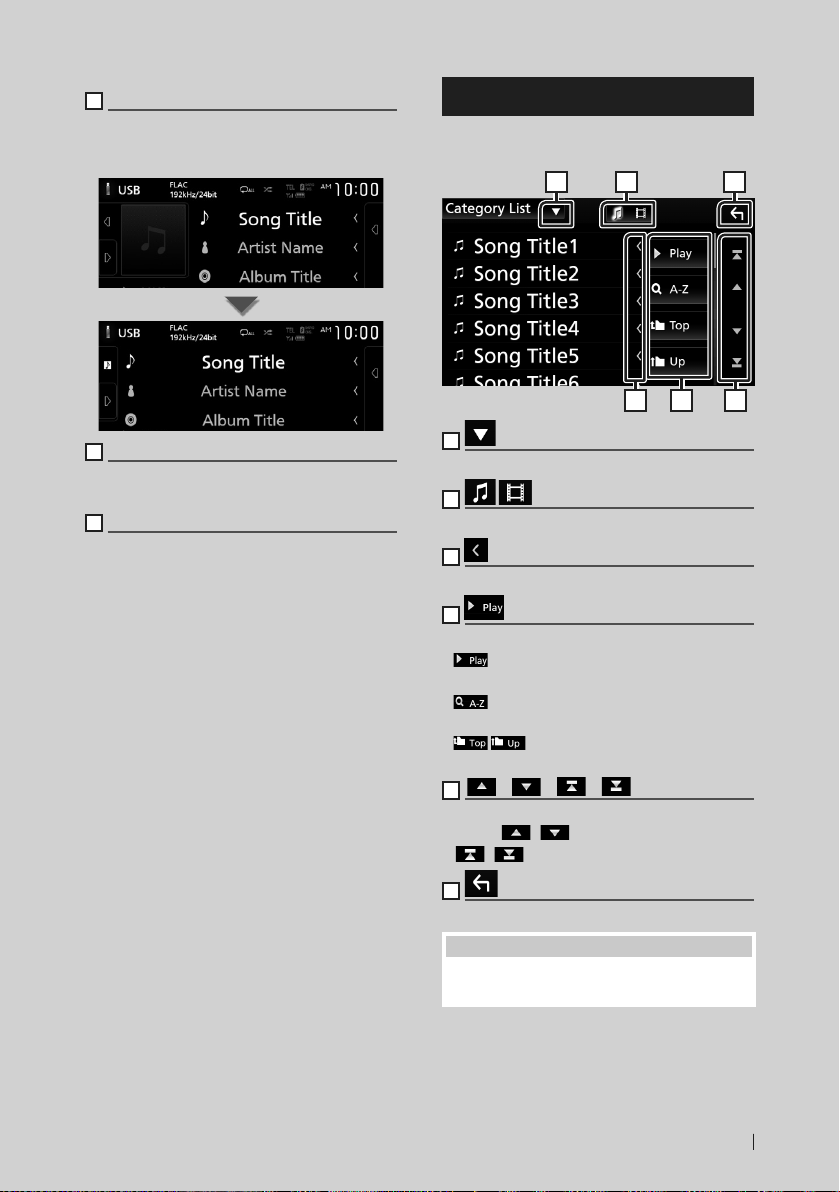

List screen ...................................................................15
Information Window 16
Photo Frame...............................................................16
Disc 17

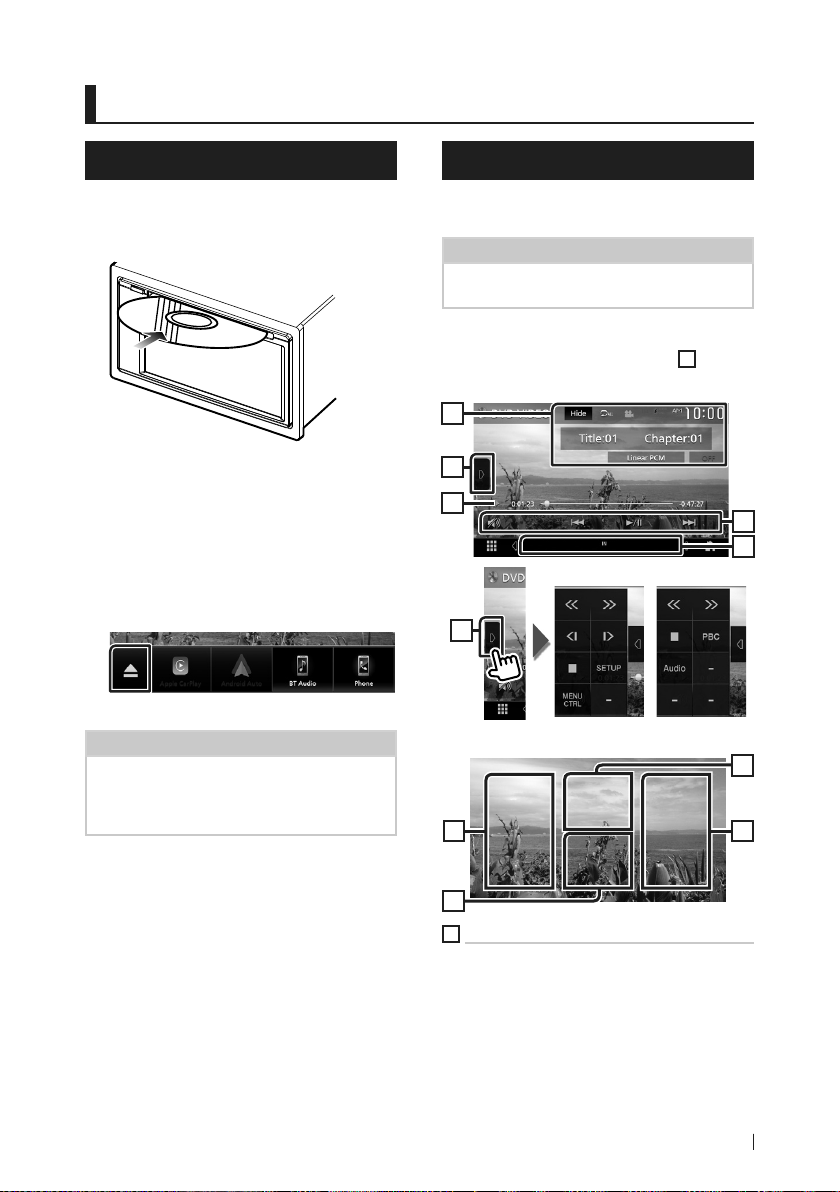

Playing a disc .............................................................17
DVD/ VCD Basic Operation....................................17

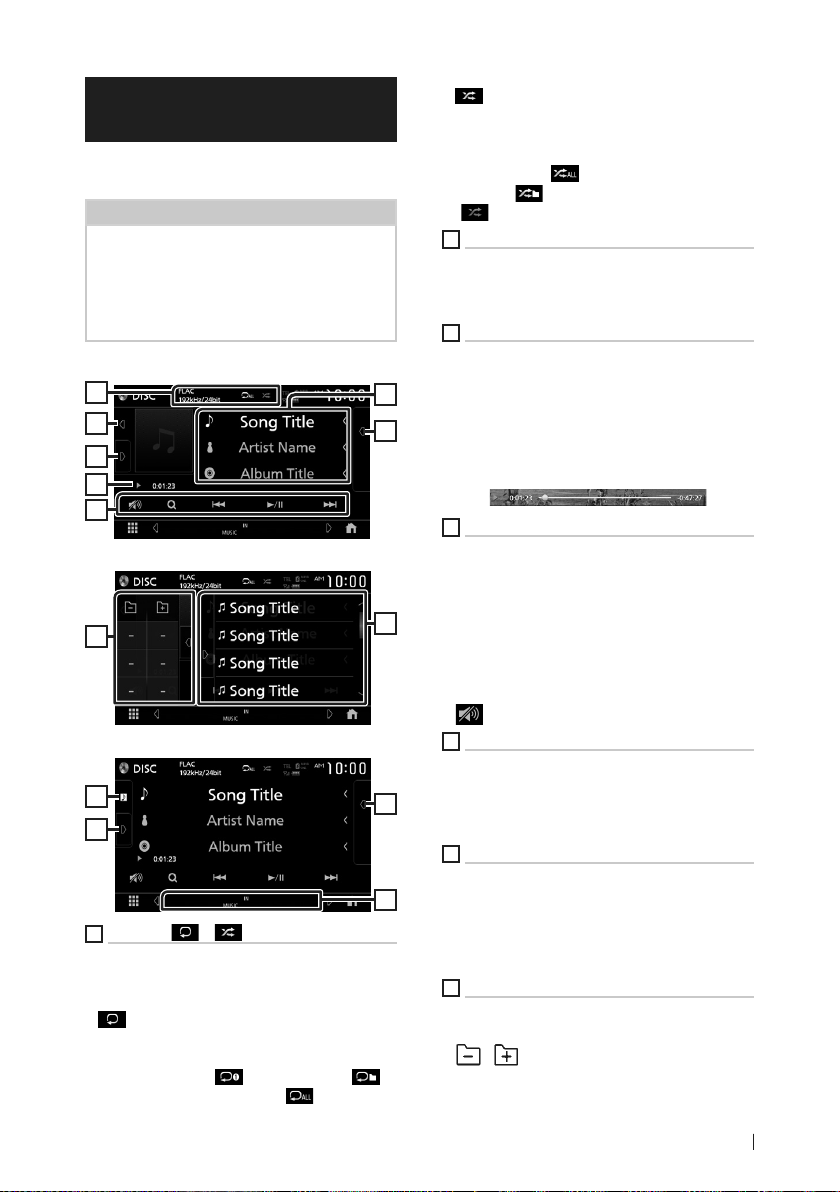

Music CD/ Disc media Basic Operation ............19
File search Operation..............................................20
DVD Disc Menu Operation....................................21
DVD Setup...................................................................22
APPS—Android Auto™/
Apple CarPlay 23
Apple CarPlay Operation .......................................23
Android Auto™ Operation.....................................24
WebLink™ Operation...............................................26
Spotify Operation.....................................................27
Pandora® Operation ................................................29
USB 31
Connecting a USB device ......................................31
USB Basic Operation................................................31
Search Operation......................................................33
iPod/iPhone 34
Preparation.................................................................34
iPod/iPhone Basic Operation ...............................35
Search Operation......................................................36
Tuner 37
Tuner Basic Operation ............................................37
Memory Operation ..................................................38
Selecting Operation ................................................38
Traffic Information ...................................................39
Tuner Setup ................................................................39
!B5A-2487-00b_18KWV_K_En.indb 2 2019/04/26 11:16

3English
SiriusXM® 40
SiriusXM® Basic Operation ....................................40
Storing Channels in Preset Memory..................42
Preset select ...............................................................42
Direct search ..............................................................42
Category/Channel search......................................43
Replay...........................................................................43
TuneMix™ ....................................................................44
SmartFavorites, TuneStart™ ..................................44
TuneScan™..................................................................44
Traffic & Weather Now™ .........................................45
Content Alerts............................................................45
SportsFlash™ ..............................................................46
SiriusXM Setup ..........................................................46
Other External Components 52
View Camera ..............................................................52
External audio/video players (AV-IN).................53
OEM Features Operation .......................................54
Bluetooth Control 55
Information for using Bluetooth® devices.......55
Register the Bluetooth device .............................56
Bluetooth Setup........................................................56
Playing the Bluetooth Audio Device .................58
Using the Hands-Free Unit....................................60
Hands-Free Setup.....................................................65
Setup 66
Monitor Screen Setup.............................................66
System Setup .............................................................66
User Interface Setup................................................67
Special Setup .............................................................68
Display Setup.............................................................69
AV Setup ......................................................................71
Controlling Audio 72
3 way speaker system setup.................................72
Speaker/ X’over setup.............................................73
Controlling General Audio....................................75
Equalizer Control ......................................................75
Volume Offset............................................................76
Zone Control ..............................................................77
Sound Effect...............................................................78
Listening Position/ DTA ..........................................79
Audio Setup memory .............................................81
Remote control 82
Functions of the Remote control Buttons.......82
Connection/Installation 84
Before Installation ....................................................84
Installing the unit .....................................................86
Troubleshooting 91
Problems and Solutions.........................................91
Error Messages ..........................................................91
Appendix 93
Playable Media and Files........................................93
Region Codes in the World ...................................95
DVD Language Codes.............................................96
Specifications.............................................................97
About this Unit....................................................... 100
!B5A-2487-00b_18KWV_K_En.indb 3 2019/04/26 11:16

Before Use
4
Before Use
Precautions
#WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select a language to display menus,
audio file tags, etc. See User Interface Setup
(P.67).
• The Radio Data System or Radio Broadcast
Data System feature won’t work in areas
where the service is not supported by any
broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew may form on the lens in the
disc player of the unit due to condensation.
This condensation on the lens (also called lens
fogging) may not allow discs to play. In such a
situation, remove the disc and wait for the dew
to evaporate. If the unit still does not operate
normally after a while, consult your JVC dealer.

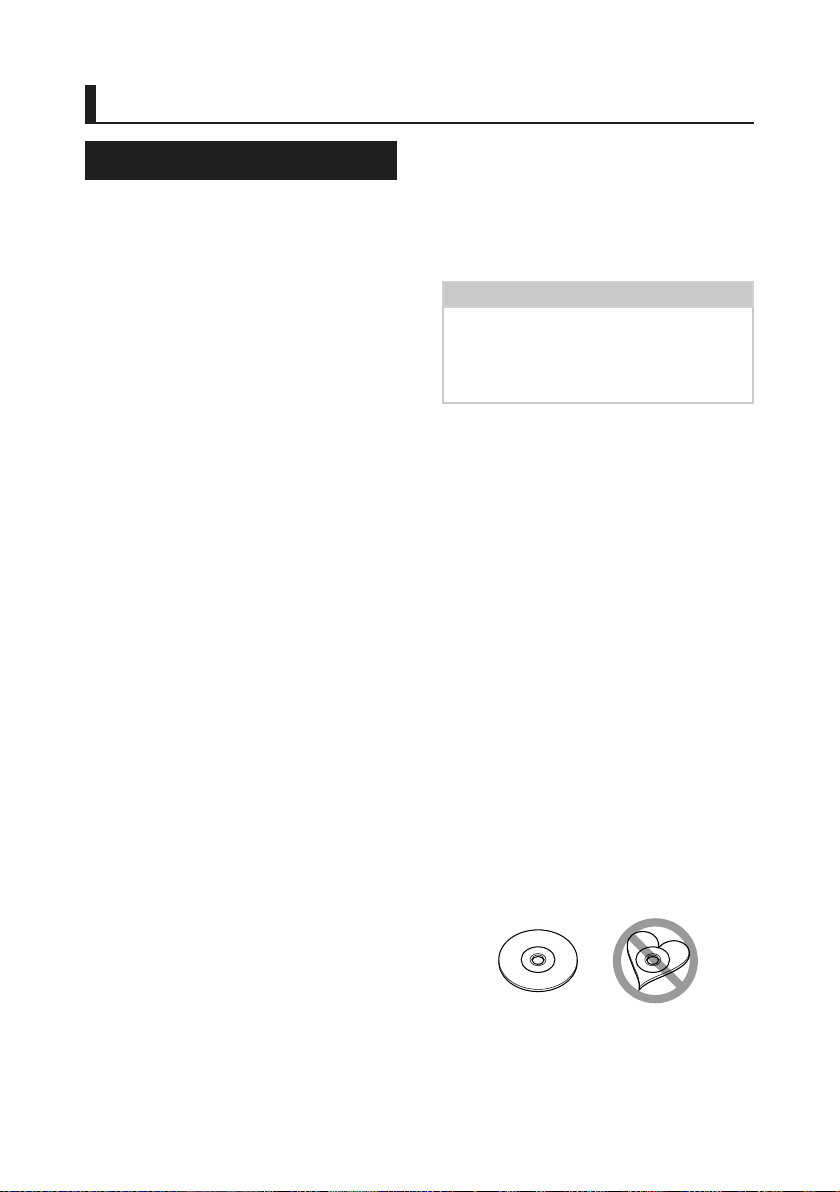

Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean the disc from the center toward the
outside rim.
• When removing a disc from this unit, pull it out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
!B5A-2487-00b_18KWV_K_En.indb 4 2019/04/26 11:16

Before Use
5English
• This unit can only play the following tyeps of
CDs
.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process, see
your writing software and your recorder's
instruction manual.)
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Display language: English is used for the purpose
of explanation. You can select a display language
from the [SETUP]menu. See User Interface Setup
(P.67).
!B5A-2487-00b_18KWV_K_En.indb 5 2019/04/26 11:16

Basic Operations
6
Basic Operations
Functions of the Buttons on the Front Panel
KW-V940BW
1 2 3 4
KW-M845BW
1 3 4
NOTE
• The panels shown in this guide are examples used to provide a clear explanation of operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
–, +
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you keep pressing [+].
2
Disc insert
slot
• A slot to insert a disc media.
3
FNC • Displays the popup menu screen.
• Pressing for 1 second displays the Voice Recognition screen (P.62).
• When the power is off, turns the power on.
4
Remote
Sensor
• Receives the remote control signal.
!B5A-2487-00b_18KWV_K_En.indb 6 2019/04/26 11:16

Basic Operations
7English
Turning on the Unit
The method of turning on is different
depending on the model.
1
Press the [FNC]button.
 The unit is turned on.
NOTE
• If it is your first time to turn the unit on after
installation, it will be necessary to perform Initial
setup (P.7).
●To turn off the unit:
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [Power Off].

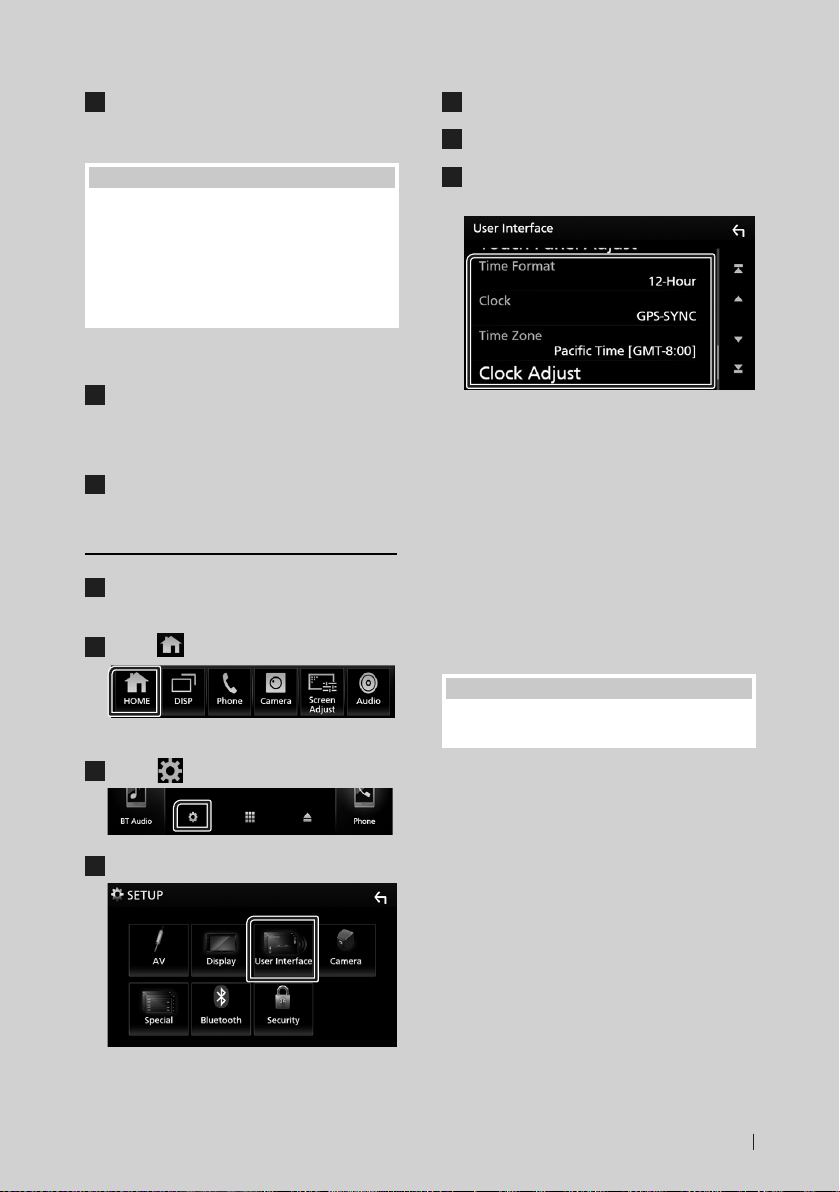

Initial Settings

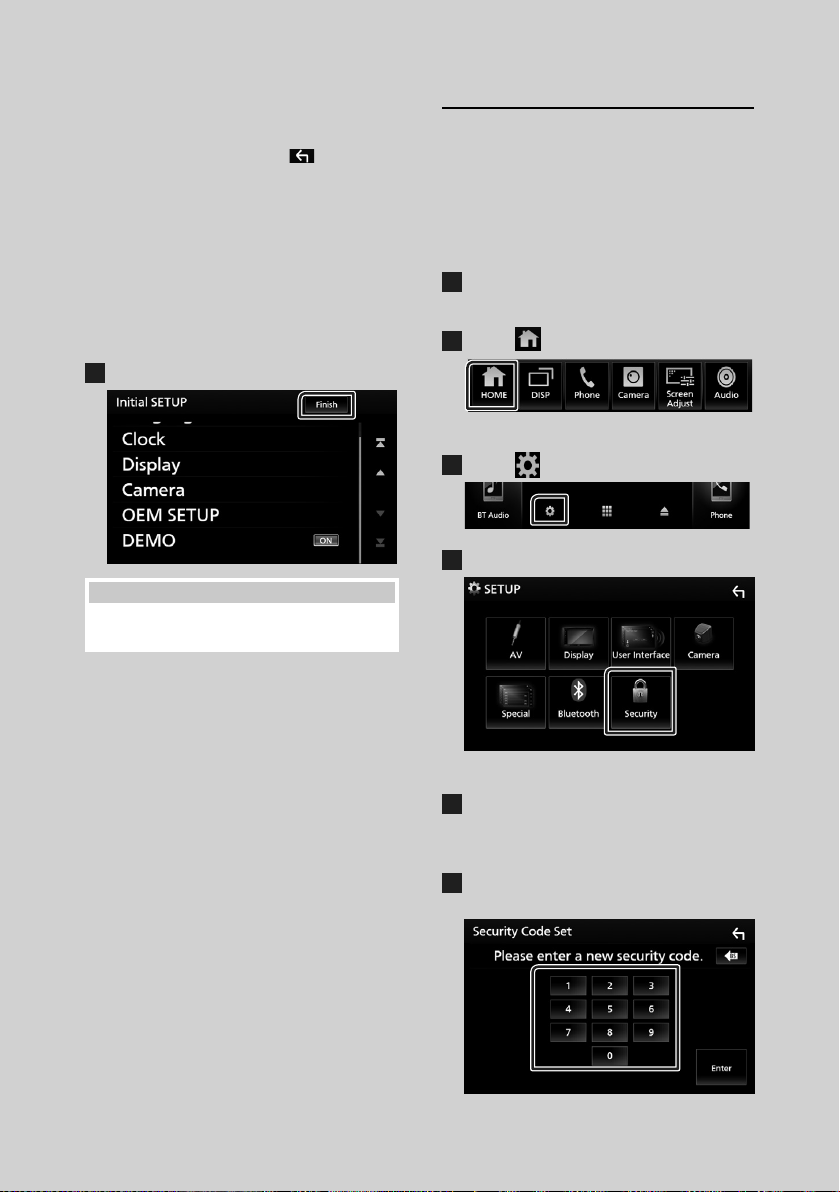

Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■[Language]
Select the language used for the control
screen and setting items. Default is“American
English (en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For details of operation, see User Interface
Setup (P.67).
■[Clock]
Sets the synchronization of the clock and
adjusts it.
For details of, see Calendar/clock settings
(P.9).
■[Display]
Set the button illumination color.
If it is hard to see the image on the screen
even, adjust the viewing angle.
1Touch [Display].
2Touch [Viewing Angle].
3Select an angle
4Touch [
].
For details of, see Display Setup (P.69).
!B5A-2487-00b_18KWV_K_En.indb 7 2019/04/26 11:16

Basic Operations
8
■[Camera]
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For detailed operation, see Camera Setup
(P.52).
■[OEM SETUP]
This function requires a commercial adaptor.
Consult your JVC dealer for details.
■[DEMO]
Set the demonstration mode. Default is “ON”.
1Touch [DEMO]and select ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be made from the SETUP
menu. See Setup (P.66).
Security Code Setup
You can set up a security code to protect your
receiver system against theft.
When the Security Code function is activated,
the code cannot be changed and the function
cannot be deactivated. Note that the Security
Code can be set with a 4 to 8 digit number of
your choice.
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [Security].
 Security screen appears.
5
Touch [Security Code Set]on the Security
screen.
 Security Code Set screen appears.
6
Enter a security code with 4 to 8 digits
and touch [Enter].
!B5A-2487-00b_18KWV_K_En.indb 8 2019/04/26 11:16

Basic Operations
9English
7
Enter the same code again and touch
[Enter].
Now, your security code is registered.
NOTE
• Touch [BS]to delete the last entry.
• If you enter a different security code, the
procedure returns to step 6 (for first code entry).
• If you have disconnected the Receiver from the
battery, enter the correct security code as that
you have entered in step 6 and touch [Enter]. You
can use your receiver.
To change the security code:
1
Touch [Security Code Change]on the
Security screen, then repeat step 6 and 7.
To clear the security code:
1
Touch [Security Code Cancellation]on
the Security screen, then repeat step 6.
Calendar/clock settings
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [User Interface].
 User Interface screen appears.
5
Touch [Time Zone].
6
Select the time zone.
7
Set each item as follows.
Scroll the page to show hidden items.
■[Time Format]
Select the time display format.
[12-Hour](Default)/ [24-Hour]
■[Clock]
[GPS-SYNC ](Default): Synchronizes the clock
time with the GPS.
[Manual]: Set the clock manually.
■[Time Zone]
Select the time zone.
■[Clock Adjust]
If you select [Manual]for Clock, adjust the
date and time manually. (P.68)
NOTE
• Please set the date and time. If they not set, some
functions may not work.
!B5A-2487-00b_18KWV_K_En.indb 9 2019/04/26 11:16

Basic Operations
10
Adjusting the volume
To adjust the volume (0 to 40),
Press [+]to increase, and press [–]to decrease.
Holding [+]increases the volume continuously
to level 15.
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display a setting menu screen
or change pages.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll a list screen
by flicking up/ down on the
screen.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Monitor Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the gesture control function is not
available).
• Sliding the finger upward/downward:
Equivalent to the operation of pressing []/
[](Media). Tuner Preset broadcast stations
are switched.
• Sliding the finger leftward/rightward:
Equivalent to the operation of pressing [E]
/ [F].
• Moving your finger clockwise or counter-
clockwise: Increases/decreases the volume.
Popup menu
1
Press the [FNC]button.
 Popup menu appears.
2
Touch to display the popup menu.
KW-V940BW
1
KW-M845BW
The contents of the menu are as follows.
!B5A-2487-00b_18KWV_K_En.indb 10 2019/04/26 11:16

Basic Operations
11English
• Displays the HOME screen. (P.11)
• Switches between screens.
The screen to be switched to depends
on the [DISP Key]setting on the [User
Interface]screen. (P.67).
• Touch and hold to turns the screen off.
• Displays the Hands Free screen. (P.60)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Displays the view camera screen. (P.52)
• Displays the Screen Adjustment screen.
(P.66)
• Displays the Audio screen. (P.72)
• Touch to eject the disc.
• Touch and hold to forcibly eject the disc.
• To forcibly eject the disc, touch it for 2
seconds and then touch [Ye s ]after the
message is displayed.
KW-V940BW only
• Close the popup menu.
KW-M845BW only
1
• Short-cut buttons: The source changes to
the one you have set with a short-cut. For
the short-cut setting, refer to Customize
Short-cut buttons on HOME screen
(P.14).
Turn off the screen
1
Touch and hold [DISP]on the popup
menu.
●To turn on the screen
1
Touch the display.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
1 14 5 6
12 3
1
• Short-cut playback source icons (P.13)
2
• Current source information.
• Touch to display the control screen of the
current source.
3
• Information Window (P.16)
– You can change the information window
by touching [
]/[ ].
– Touch the Information Window to display
the detailed screen.
4
• Displays the SETUP Menu screen. (P.66)
5
• Displays the source selection screen. (P.12)
6
• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc.
KW-V940BW only
Display the HOME screen
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
!B5A-2487-00b_18KWV_K_En.indb 11 2019/04/26 11:16

Basic Operations
12
Source selection screen
description
You can display icons of all playback sources
and options on the source selection screen.
4 5
3
21
1
• Changes playback sources.
For playback sources, see P.12.
2
• Page indication
3
• Changes pages. (Touch []/[ ])
You can also change pages by flicking left or
right on the screen.
4
• Returns to the previous screen.
5
• Displays the SETUP Menu screen. (P.66)
Select the playback source
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
From the screen, you can select the
following sources and functions.
• Switches to the Apple CarPlay screen
from the connected iPhone. (P.23)
• Switches to the Android Auto screen
from the connected Android device.
(P.24)
• Displays the Hands Free screen. (P.60)
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Switches to the Radio broadcast.
(P.37)
• Switches to the SiriusXM® satellite radio
broadcast. (P.40)
• Plays a Bluetooth audio player. (P.55)
• Plays a disc. *1(P.17)
• Plays an iPod/iPhone. (P.34)
• Plays files on a USB device. (P.31)
• Switches to Pandora. (P.29)
• Switches to Spotify. (P.27)
• Switches to an external component
connected to the AV-IN input terminal.
(P.53)
• Displays the WebLink screen. (P.26)
!B5A-2487-00b_18KWV_K_En.indb 12 2019/04/26 11:16

Basic Operations
13English
• Displays the Audio screen. (P.72)
• Turns off the AV source. (P.13)
• Turns off the unit. (P.7)
• For sources and information displayed when
an ADS adapter is connected, see OEM
Features Operation (P.54).
*1KW-V940BW only
To select the playback source on the
HOME screen
The 4 items displayed on the source selection
screen with large icons are shown on the
HOME screen.
You can change the items displayed on this
area by customizing the source selection
screen. (P.14)
To select the playback source on the
source control screen
Display source selection buttons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
To turn off the AV source
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch [AV Off].
!B5A-2487-00b_18KWV_K_En.indb 13 2019/04/26 11:16

Basic Operations
14
Customize Short-cut buttons on
HOME screen
You can arrange the positions of the source
icons as you like.
1
Press the [FNC]button.
 Popup menu appears.
2
Touch [ ].
 HOME screen appears.
3
Touch [ ].
4
Touch and hold the icon which you want
to move in the customizing mode.
5
Drag the icon to the desired position.
Changes the page
Source control screen
descriptions
There are some functions which can be
performed from most screens.
Indicators
5
6
7
1 2
3
4
Short-cut buttons
1
All sources icon
Displays all sources.
2
Secondary screen
• [
]/[ ] : The Secondary screen changes to
another one every time you touch it. You can
also change the Secondary screen by flicking
left or right on the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is active.
– [LOUD]: The loudness control function is active.
• Short-cut buttons: The source changes to the
one you have set with a short-cut. For the
short-cut setting, refer to Customize Short-
cut buttons on HOME screen (P.14).
3
Content list
Displays the track/file/station/channel list.
4
• Connected Bluetooth device information.
• : Lights up during quick charging of
the battery of the connected iPod/ iPhone/
Smartphone.
!B5A-2487-00b_18KWV_K_En.indb 14 2019/04/26 11:16

Basic Operations
15English
5
Artwork & information
You can select whether to display an artwork
and song information or only song information
in more detail.
6
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
7
HOME button
Displays the HOME screen. (P.11)
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays the list type selection window.
2
Displays a music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• : Jumps to the letter you entered
(alphabetical search).
• : Moves to the upper hierarchy
level.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change pages to display more items by
pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to the previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
!B5A-2487-00b_18KWV_K_En.indb 15 2019/04/26 11:16

Information Window
16
Information Window
Photo Frame
You can display a slideshow of the image
files stored in the USB memory on the Home
screen.
Ñ Acceptable Picture files
Max. Picture size
JPEG (.jpg, .jpeg) *15,000 × 5,000
PNG (.png) 1,000 × 1,000
BMP (.bmp) 1,000 × 1,000
• This unit can only play back files which are less
than 50 MB.
• The maximum number of files per device is
500.
• Picture files may not be played depending on
their condition.
*1 A progressive format is not supported.
Ñ Photo Frame
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ] / [ ] in the Information Window
area to select the photo frame.
Ñ Photo Frame Setup
Make settings related to display of the photo
frame.
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [ ].
 HOME screen appears.
3 Touch [ ].
 SETUP screen appears.
4 Touch [User Interface].
 User Interface screen appears.
5 Touch [Information Window SETUP]in
the User Interface screen.
6 Set each item as follows.
■[Photo Frame]
Determine whether to use the photo frame.
"ON" (Default)/ "OFF"
■[Photo Frame SETUP]
Make settings related to photo play display.
7 Touch [].
To Photo Frame Setup
1 Touch [Photo Frame SETUP]on the
Information Window SETUP screen.
2 Set each item as follows.
■[Sort Order]
Specify a file sorting criterion.
"By Name(Ascending)"/ "By
Name(Descending)"/ "By Date(Newest First)"
(Default)/ "By Date(Oldest First)"
■[Slide Show Interval]
Specify the slideshow interval.
"5" (Default) to "30" seconds
■[Photo Frame is •••••]
Display help topics about the photo frame.
3 Touch [].
!B5A-2487-00b_18KWV_K_En.indb 16 2019/04/26 11:16

Disc
17English
Disc (KW-V940BW)
Playing a disc
Ñ Insert a disc
1 Insert the disc into the slot.
 The unit loads the disc and playback
starts.
Ñ Eject a disc
1 Press the [FNC]button.
 Popup menu appears.
2 Touch [G].
When removing a disc, pull it horizontally.
NOTE
• This is not displayed on the popup menu screen
of Apple CarPlay or Android Auto source. Change
Apple CarPlay or Android Auto source to other
one to display the popup menu screen.
DVD/ VCD Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• The screen shot below is for DVD. It may be
different from the one for VCD.
1 When the operation buttons are not
displayed on the screen, touch
7
area.
Control screen
1
2
3
4
5
DVD VCD
2
Video screen
7
6
8
6
1
Information display area
Displays the following information.
• Title #, Chapter #: DVD title and chapter
number
• Track #/Scene #: VCD track or scene number.
Scene # is displayed only when Playback
control (PBC) is on.
• Linear PCM, etc.: Audio format
!B5A-2487-00b_18KWV_K_En.indb 17 2019/04/26 11:16

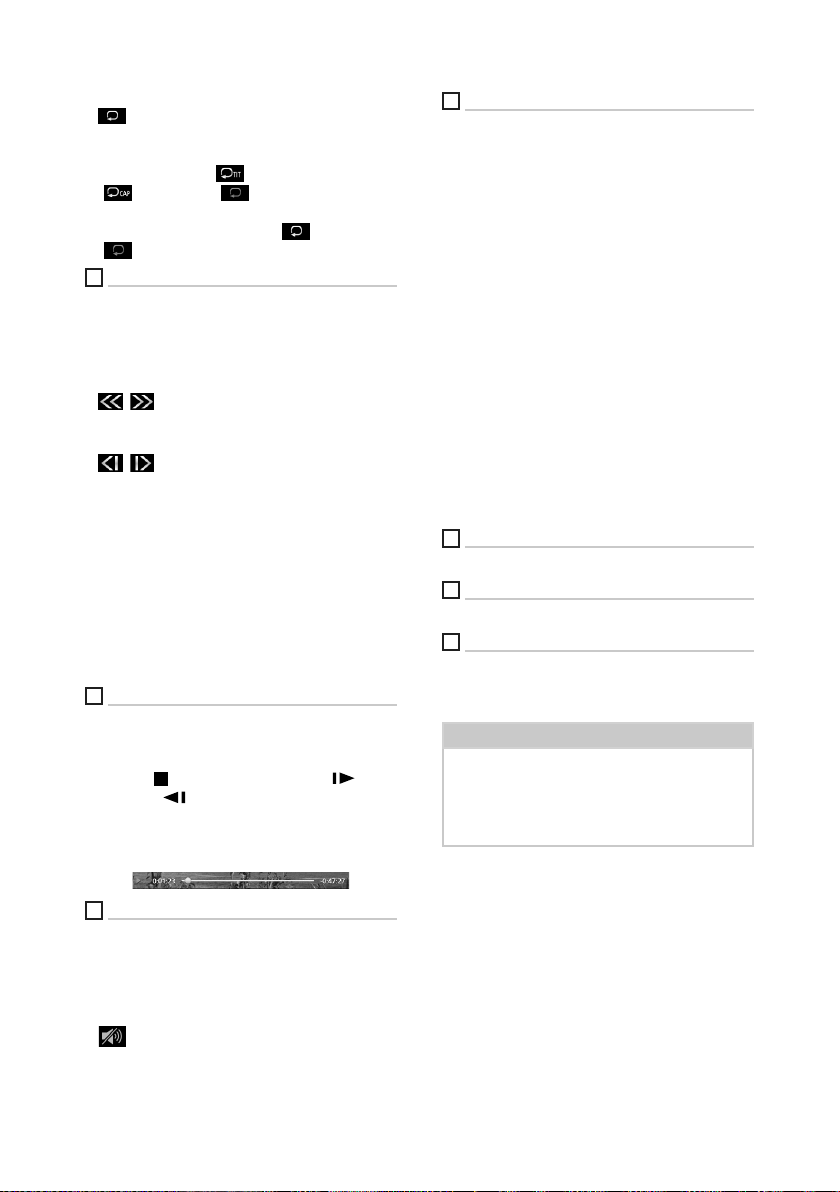

Disc
18
• [Hide]: Hides the control screen.
• [
]: Repeats the current content. Each time
you touch the key, repeat modes are switched
in the following sequence;
DVD: Title repeat ( ), Chapter repeat
( ), Repeat off ( )
VCD (PBC On): Does not repeat
VCD (PBC Off ): Track repeat ( ), Repeat off
( )
2
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• I]: Stops playback. Touching twice will play
the disc from the beginning when you play it
next time.
• [
][ ]: Fast-forwards or fast-backward the
disc. Each time you touch the key, the speed
changes. 2 times, 10 times.
• [
][ ] (DVD only): Plays in slow motion
forward or backward.
• [SETUP](DVD only): Touch to display the DVD
SETUP screen. See DVD Setup (P.22).
• [MENU CTRL](DVD only): Touch to display
the DVD-VIDEO disc menu control screen. See
DVD Disc Menu Operation (P.21).
• [PBC](VCD only): Touch to turn Playback
control (PBC) on or off.
• [Audio](VCD only): Touch to change audio
output channels.
3
Play mode indicator/ Playing time
• D, B, I, etc.: Current play mode indicator
Meanings of the icons are as follows: D(play),
B(fast forward), A(fast backward),
I(stop), R(resume stop), H(pause), (slow
playback), (slow reverse playback).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
4
Operation keys
• [E][F]: Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH]: Plays or pauses.
• [
]: Touch to attenuate/restore the sound.
5
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
VCD
• [1chLL/2chLL]: Identifies the left audio output
of channel 1 or 2.
• [1chLR/2chLR]: Identifies the monaural audio
output of channel 1 or 2.
• [1chRR/2chRR]: Identifies the right audio
output of channel 1 or 2.
• [1chST/2chST]: Identifies the stereo audio
output of channel 1 or 2.
• [LL]: Identifies the left audio output.
• [LR]: Identifies the monaural audio output.
• [RR]: Identifies the right audio output.
• [ST]: Identifies the stereo audio output.
• [PBC]: The PBC function is on.
• [VER1]: The VCD version is 1.
• [VER2]: The VCD version is 2.
6
Searching area
Touch to search for the next/previous content.
7
Key display area
Touch to display the control screen.
8
[MENU CTRL](DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.21).
NOTE
• The control screen disappears when no operation
is done for 5 seconds.
• If you use a remote control, you can jump directly
to the desired image by entering the chapter
number, scene number, play time, etc. (P.83).
!B5A-2487-00b_18KWV_K_En.indb 18 2019/04/26 11:16

Disc
19English
Music CD/ Disc media Basic
Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• In this manual,“Music CD”means a general CD
which includes music tracks.
“Disc media” means a CD/DVD disc which
includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.
Control screen
7
3
4
5
2
1
6
Open the drawer
5
7
Close the drawer
5
7
6
8
1
CODEC / [ ] / [ ]
• When a high-resolution source is played, its
format information is displayed. (Disc media
only)
• [
]: Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
Track/ File repeat ( ), Folder repeat ( )
(Disc media only), Repeat all ( )
• [ ] : Randomly plays all tracks in current
folder/disc. Each time you touch the key,
random mode switches in the following
sequence;
Track random ( ) (Music CD only), Folder
random ( ) (Disc media only), Random off
( )
2
Track information
Displays the information of the current track/ file.
Only a file name and a folder name are displayed
if there is no tag information. (Disc media only)
3
Play mode indicator/ Playing time
• D, B, etc.: Current play mode indicator
Meanings of the icons are as follows: D(play),
B(fast forward), A(fast backward),
H(pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
4
Operation keys
• [1](Disc media only) : Searches files. For
details on search operation, see File search
Operation (P.20).
• [E][F]: Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc.
• [DH]: Plays or pauses.
• [
]: Touch to attenuate/restore the sound.
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Artwork/ Analog meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed. (Disc media only)
• When touched, switches the artwork to the
analog meter.
7
Function panel (Disc media only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
][ ] : Searches for the previous/next
folder.
!B5A-2487-00b_18KWV_K_En.indb 19 2019/04/26 11:16

Disc
20
8
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
10
99
9
File search area (Video file only)
Touch to search for the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
File search Operation
(Disc media only)
You can search for a file according to hierarchy.
NOTE
• For operations in the list screen, see List screen
(P.15).
1 Touch [1].
 Folder List screen appears.
2 Touch the desired folder.
 When you touch a folder its contents are
displayed.
3 Touch the desired item in the content list.
 Playback starts.
!B5A-2487-00b_18KWV_K_En.indb 20 2019/04/26 11:16
