About the supplied remote control
Compared to standard remote controls, the remote control supplied with this receiver has several
operation modes. These modes enable the remote control to control other audio/video components. In
order to effectively use the remote control it is important to read the operating instructions and obtain a
proper understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
*5332/01-07/1EN 03.3.13, 11:03 AM1

2EN
ENGLISH
Before applying the power
Caution : Read this page carefully to ensure safe
operation.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to the
receiver and prepare the surround processor.
Since this receiver works with all of your audio and video components,
we will guide you in setting up your system to be as easy as possible.
Operations
Shows you how to operate the various functions available on the
receiver.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have registered your components with the proper setup codes, you’ll
be able to operate both this receiver and your other AV components (TV,
VCR, DVD player, CD player, etc.) using the remote control supplied with
this receiver.
Additional Information
Shows you additional information such as “In case of difficulty”
(troubleshooting) and “Specifications”.
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
Units are designed for operation as follows.
U.S.A. and Canada ........................................... AC 120 V only
Australia ........................................................... AC 240 V only
Europe and U.K. ............................................... AC 230 V only
China and Russia ............................................. AC 220 V only
Other countries .......... AC 110-120 / 220-240 V switchable*
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaner because it could cause a malfunction. Be
specially careful not to use contact cleaners containing oil, for they
may deform the plastic component.
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
• Power mode. • SUBWOOFER ON/OFF.
• Input selector settings. • SW RE-MIX ON/OFF.
• Picture output. • Distance setting timer.
• Speaker ON/OFF. • Input mode setting.
• Volume level. • Midnight mode setting.
• BASS, TREBLE, INPUT level. • PRO LOGIC II mode setting.
• TONE ON/OFF. • Broadcast band.
• LOUDNESS ON/OFF. • Frequency setting.
• Dimmer level. • Preset stations.
• MD/TAPE settings. • Tuning mode.
• Listen mode setting. • ACTIVE EQ mode.
• SP SYSTEM. • DSP mode.
• Speaker settings.
*5332/01-07/1EN 1/21/03, 10:04 PM2

3EN
ENGLISH
Contents
Caution : Read the pages marked carefully to ensure
safe operation.
Before applying the power
Preparations
Operations
Additional
Information
Remote
Control
Before applying the power .............................. 2
Safety precautions ............................................. 2
How to use this manual ..................................... 2
Unpacking .......................................................... 4
Preparing the remote control ............................ 4
Special features ................................................. 5
Names and functions of parts ......................... 6
Main Unit ........................................................... 6
Remote control unit ........................................... 7
Setting up the system........................................ 8
Connecting audio components .......................... 9
Connecting video components ........................ 10
Digital connections .......................................... 11
Connecting a DVD player (6-channel input) ..... 12
Connecting the speakers ................................. 13
Connecting the terminals ................................ 14
Connecting the antennas ................................. 14
Connecting the system control ....................... 15
Preparing for surround sound ....................... 15
Speaker settings .............................................. 15
Normal playback.............................................. 18
Preparing for playback ..................................... 18
Listening to a source component .................... 18
Adjusting the sound ......................................... 19
Recording .......................................................... 20
Recording audio (analog sources) ................... 20
Recording video ............................................... 20
Recording audio (digital sources) .................... 20
Listening to radio broadcasts ....................... 21
Tuning (non-RDS) radio stations ...................... 21
Using RDS (Radio Data System) ..................... 21
Presetting radio stations manually .................. 21
Receiving preset stations ................................ 22
Receiving preset stations in order (P.Call) ...... 22
Using the RDS Disp. (Display) key .................. 22
Presetting RDS stations (RDS AUTO
MEMORY) ........................................................ 23
Tuning by Program TYpe (PTY search) ............ 23
Ambience effects ............................................. 24
Surround modes .............................................. 24
Surround play ................................................... 26
DVD 6-channel playback .................................. 27
Convenient functions ....................................... 27
Basic remote control operations for other
components ....................................................... 29
Registering setup codes for other
components ..................................................... 29
Searching for your code ................................... 29
Checking the codes ......................................... 29
Re-assigning device keys ................................ 30
Operating other components .......................... 30
Setup code chart .............................................. 31
CASSETTE deck, CD player & MD recorder
operations ........................................................ 35
Other components’ operations ....................... 36
In case of difficulty.......................................... 38
Specifications .................................................. 40
*5332/01-07/1EN 1/21/03, 10:04 PM3

4EN
ENGLISH
Before applying the power
4
¢
+ +
+
6 m
POWER
RCVR
Operation
When the STANDBY indicator is lit, the power turns ON when you press
the POWER RCVR key on the remote control. When the power comes
ON, press the key you want to operate.
• When pressing more than one remote control key successively,
press the keys securely by leaving an interval of 1 second or more
between keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Preparing the remote control
Loading the batteries
1Remove the cover. 2Insert the batteries.
3Close the cover.
• Insert two AA-size (R6) batteries as indicated by the polarity markings.
Operating range
(Approx.) Remote sensor
Infrared ray system
Unpacking
Unpack the unit carefully and make sure that all accessories are
present.
FM indoor antenna (1) AM loop antenna (1)
Remote control unit (1) Batteries (R6/AA) (2)
RC-R0825
4 ¢
+
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If your unit was shipped to you directly,
notify your shipper immediately. Kenwood recommend that you retain
the original carton and packing materials in case you needs to move or
ship the unit in the future.
Keep this manual handy for future reference.
*5332/01-07/1EN 1/21/03, 10:04 PM4

5EN
ENGLISH
Before applying the power
Special features
True home theater sound
This receiver incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy! ¢
Dolby Digital and Dolby Digital EX
The DOLBY DIGITAL mode lets you enjoy full digital surround from
software processed in the Dolby Digital format. Dolby Digital provides up
to 5.1 channels of independent digital audio for better sound quality and
more powerful presence than conventional Dolby Surround. As for Dolby
Digital EX, it creates six full-bandwidth output channels from the 5.1
channel sources. This is done using a matrix decoder that derives three
surround channels from the two in the original recording. For best result,
Dolby Digital EX should be used with movie soundtracks recorded with
Dolby Digital Surround EX.
Dolby PRO LOGIC II
DOLBY PRO LOGIC II, whilst totally compatible with its predecessor
PRO LOGIC, provides greater advantages in surround sound. It allows
user to enjoy the conventional stereo or Dolby Surround with a convincing
“5.1 like” presentation. PRO LOGIC II offers special features for controlling
the overall spatial, dimensionality and frontal sound field imaging. PRO
LOGIC II produces an impressive surround sound from video software
marked and three-dimensional space from music CD.
When listening to music, you will be able to enjoy the experience of sheer
STEREO surround sound.
DTS
DTS (Digital Theater System) is a 5.1 channel digital audio format that
provides five full-spectrum channels and one low-frequency (subwoofer)
channel for unprecedented clarity, optimum channel separation and a
(wide) dynamic range.
In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD
disc (carrying the “DTS” marking) can be played in Digital Surround.
Important:
When a DTS disc is played on a CD, LD or DVD player, noise may be
output from the analog output. It is recommended that you connect the
digital output of the player to the digital input of this unit.
DSP surround modes
The DSP (Digital Signal Processor) used for this receiver incorporates a
variety of high quality adjustable sound fields, like “ARENA”, “JAZZ
CLUB”, THEATER”, STADIUM” and “DISCO”. It is compatible with
almost any kind of program source.
DVD 6-channel input
If you own a DVD player equipped with 6-channel output, this receiver
allows you to obtain the full surround sound impact of DVD source
material featuring multi-channel encoding. Since the source signals are
digital and each channel is input independently, the resulting ambience
is far superior to what can be achieved with conventional surround sound
systems.
ACTIVE EQ
ACTIVE EQ mode will produce a more dynamic sound quality in any
condition. You can enjoy a more impressive sound effect when ACTIVE
EQ is turned on during Dolby Digital and DTS playback.
Universal IR (InfraRed) remote control
In addition to the basic receiver, the remote control supplied with this
receiver can also operate almost all of your remote controllable audio and
video components. Just follow the simple setup procedure to register
the components you have connected.
RDS (Radio Data System) tuner
The receiver is equipped with an RDS tuner that provides several
convenient tuning functions: RDS Auto Memory, to automatically preset
up to 40 RDS stations broadcasting different programs; station name
display, to show you the name of the current broadcast station; and PTY
search to let you tune stations by program type.
PTY (Program TYpe) search
Tune the stations by specifying the type of program you want to hear.
*5332/01-07/1EN 1/21/03, 10:04 PM5

6EN
ENGLISH
AB
POWER
STANDBY
DIMMER
SPEAKERS ON ⁄ OFF
PHONES
ACTIVE EQ
LISTEN MODE
INPUT MODE BAND AUTO MEMORY
ACTIVE EQ DTS
SOUND
MULTI CONTROL INPUT SELECTOR
DOWN
MUTE
UP
VOLUME CONTROL
ON OFF
ON ⁄ STANDBY
DOLBY
DIGITAL EX
SETUP
Names and functions of parts
1POWER ON/OFF key %
Use to turn the main power ON/OFF.
2ON/STANDBY key %
Use to switch the power ON/STANDBY when
the POWER is turned ON.
STANDBY indicator
3DIMMER key
Use to select the REC MODE. )
Use to adjust the brightness of the display.
•
4LISTEN MODE key §
Use to select the listening mode.
5Surround LED (light-emitting diode)
indicators
ACTIVE EQ mode LED indicator (
Lights when the receiver is in the ACTIVE EQ
mode.
DTS mode LED indicator §
Lights when the receiver is in the DTS mode.
DOLBY DIGITAL EX mode LED indicator
§
Lights when the receiver is in the Dolby
Digital EX mode.
6SOUND key ¶
Use to adjust the sound quality and the
ambience effects.
7MULTI CONTROL knob %
Use to control a variety of settings.
8INPUT SELECTOR knob *
Use to select the input sources.
9VOLUME CONTROL knob *
0PHONES jack (
Use for headphone listening.
!SPEAKERS ON/OFF key *
Use to turn the speakers ON/OFF.
@ACTIVE EQ key (
Use to select ACTIVE EQ setting.
#INPUT MODE key 8
Use to switch between full auto, digital and
analog inputs.
$BAND key ¡
Use to select the broadcast band.
%AUTO key
Use to change “TAPE” indication to “MD”.
*
Use to select the auto tuning mode. ¡
^MEMORY key ¡
Use to store radio stations in the preset
memory.
&SETUP key %
Use to select the speakers' settings etc.
*MUTE key (
Use to temporarily mute the sound.
Main Unit
Standby mode
While the standby indicator is lit, a small amount of power is supplied to
the system to back-up the memory. This is called standby mode. Under
the condition, the system can be turned ON by the remote control unit.
Display
Speaker selection indicators
Input channel indicators
Output channel indicators
Band indicators
STEREO indicator
Frequency display,
Input display,
Preset channel display,
Surround mode display
Speaker indicator
PRO LOGIC
indicator
AUTO DETECT
indicator
DOLBY DIGITAL
indicator
DTS indicator
CLIP indicator
AUTO indicator
MEMO. indicator
ST. indicator
TUNED indicator
MUTE indicator
TONE indicator
LOUDNESS indicator
96kHzfs indicator
DSP indicator
DIGITAL indicator
6CH INPUT indicator
Connection at POWER ON/OFF key
The power in this equipment will not be completely cut off from the AC
wall outlet when the main switch is turned OFF.
RDS indicator
*5332/01-07/1EN 1/21/03, 10:04 PM6

7EN
ENGLISH
Names and functions of parts
Remote control unit
This remote control unit can be use not only for Kenwood products but also for non-Kenwood products by setting the appropriate manufacturer’s setup
codes. ⁄
If the name of a function is different on
the receiver and on the remote control,
the name of the remote control key in
this manual is indicated in parentheses.
S
R
C
P
o
w
e
r
T
V
P
o
w
e
r
5
6
8
9
4
3
2
1
0
7
Dimmer
Setup
Top MenuAuto
Info
/ Flip
Loudness
Listen
Mode
Input
Mode
Sound
Tone
TV
VOL
Mute
4
¢
VOL
+
–
CH
+
–
Menu
Disc Sel.
Input Sel.
OSD
Guide
Return
Exit
Page
TV Mute
Disc Skip
Last / A/B
+ 10 + 100
Multi
Multi
P. Call
P. Call
Enter
TV
PHONO
POWER
RCVR
VID2
VID1
DVD
6CH
CD
DVD
MD
TAPE
TUNER
–+
TV Input
Bass
Boost
Remote
Setup
Active
EQ
RDS Disp. PTY
Tune –Tune +Band
1
2
3
6
7
)
™
•
ª
º
⁄
¤
^
(
!
4
5
8
9
@
&
*
¡
¶
£
¢
∞
#
0
$
%
1Source keys (PHONO, VID2, VID1, TUNER,
DVD/6CH, CD/DVD, MD/TAPE) ª
When press and hold for more than 3 seconds,
they are used to select the registered
components.
Input Selector keys (PHONO, VID2, VID1,
TUNER, DVD/6CH, CD/DVD, MD/TAPE)
*
When press and release in less than 3 seconds,
they are used to select the input sources.
2SRC (source) Power key
Use to turn the other source components on
and off.
3Numeric keys ª
Provide functions identical to those of the
original remote control supplied with the
component you are controlling.
Multi (multi control) %/fikeys %
Use to control a variety of settings.
Use to operate other components.
P.Call @/#keys ™
If tuner is selected as the input source, these
keys function as preset channel call keys.
Enter key
Use to operate other components.
4Return key
Use to operate the DVD component.
Exit key
Use to operate other components.
5Disc Skip key
If CD is selected as the input source, this key
functions as the multi-CD player disc skip
key.
Last/A/B key
If TAPE is selected as the input source, this is
A and B deck of a double cassette deck.
Use to operate other components.
6Disc Sel. key
Use to operate other components.
Input Sel. key
Use to operate other components.
7CH +/– keys
Use to select the channels.
4/¢keys
If CD, MD or DVD is selected as the input
source, these keys function as skip keys.
8Tone key (
Use to switch the status of TONE control.
Sound key ¶
Use to adjust the sound quality and ambience
effects.
9TV VOL +/– keys
Use to adjust the TV’s volume.
08key
Use to operate other components.
Dimmer key •
Use to adjust the brightness of the display.
!6key
If CD is selected as the input source, this key
functions as the play/pause key. If MD or
TAPE is selected as the input source, this key
functions as the play key.
Band key ¡
Use to select the broadcast band.
@Input Mode key 8
Use to switch between full auto, digital and
analog inputs.
#Listen Mode key §
Use to select the listening mode.
$2key
If TAPE is selected, this key functions as
reverse play key.
Info/Flip key
Use to operate other components.
%Active EQ key (
Use to select ACTIVE EQ setting.
^LED (light-emitting diode) indicator
Blinks to show that signals are being
transmitted.
&TV key
Use to select the TV equipment.
*POWER RCVR (receiver) key %
Use to turn the receiver on and off.
(TV Power key
Use to turn the TV on and off.
)+100 key
Use to select the disc number with the multi-
CD player.
TV Mute key
Use to temporarily mute the TV sound.
¡Page ∞/5keys
Use to operate other components.
RDS Disp. key ™
Use for RDS function.
PTY key £
Use for PTY search.
™OSD (on screen display) key
Use to operate the DVD component.
Guide key
Use to operate other components.
£Menu key
Use to operate other components.
¢Mute key (
Use to temporarily mute the sound.
∞VOL +/– keys
Use to adjust the receiver’s volume.
TV Input key
Use when in TV operation.
¶Bass Boost key (
Use to select the maximum adjustment
setting for the low frequency range.
•1/¡key
If CD, MD or TAPE is selected as the input
source, these keys function as search key.
Tune –/+ key
Use to operate the tuner mode.
ª¶key
If MD or TAPE is selected, this key functions
as record key.
If VCR is selected, this key functions as
record key when it is pressed twice
sequentially.
Top Menu key
Use to operate other components.
Setup key %
Use to select the speakers' settings etc.
ºLoudness key (
Use to switch the status of LOUDNESS.
⁄Remote Setup key
Use to register other components.
¤7key
If CD, MD or TAPE is selected as the input
source, this key functions as the stop key.
Auto key ¡
Use to select the auto tuning mode.
*5332/01-07/1EN 1/21/03, 10:04 PM7

8EN
ENGLISH
Setting up the system
Make connections as shown in the following pages.
When connecting the related system components, be
sure to refer to the instruction manuals supplied with
the components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Notes
1. Be sure to insert all connection cords securely. If their connections are
imperfect, the sound may not be produced or there will be noise
interference.
2. Be sure to remove the power cord from the AC outlet before plugging
or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctions
and may damage the unit.
3. Do not connect power cords from components whose power
consumption is larger than what is indicated on the AC outlet at the
rear of this unit.
Analog connections
Audio connections are made using RCA pin cords. These cables transfer
stereo audio signal in an “analog” form. This means the audio signal
corresponds to the actual audio of two channels. These cables usually
have 2 plugs at each end, red for the right channel and white for the left
channel. These cables are usually packed together with the source unit,
or are available at your local electronics retailer.
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the
microcomputer by referring to “In case of difficulty”. °
Input mode settings
CD/DVD, VIDEO2 and DVD/6CH inputs each include jacks for digital
audio input and analog audio input.
After completing connections and turning on the receiver, follow the
steps below.
1Use the INPUT SELECTOR knob to select CD/DVD, VIDEO2,
DVD/6CH.
2Press the INPUT MODE key.
Each press switches the setting as follows:
In DTS play mode
1F-AUTO (digital input, analog input)
2D-MANUAL (digital input)
In CD/DVD, VIDEO2, DVD/6CH play mode
1F-AUTO (digital input, analog input)
2D-MANUAL (digital input)
36CH INPT (DVD/6CH input)
4ANALOG (analog input)
Digital input:
Select this setting to play digital signals from a DVD, CD, or LD
player.
Analog input:
Select this setting to play analog signals from a cassette deck, VCR,
or record player.
Auto detect:
In “F-AUTO” (full auto) mode (AUTO DETECT and DIGITAL
indicators light up), the receiver detects the digital or analog input
signals automatically. Priority is given to digital signal during input
mode selection. The receiver will select the input mode and listening
mode automatically during playback to match the type of input
signal (Dolby Digital, PCM, DTS ) and the speaker setting. The initial
factory setting is full auto.
To keep the receiver set to the currently selected listening mode,
use the INPUT MODE key to select “D-MANUAL” (digital manual).
However, even when this setting is selected, there may be cases
in which the listening mode is selected automatically to match a
Dolby Digital source signal depending on the combination of listening
mode and source digital.
In D-MANUAL mode, if the audio reproduction stops in the middle
due to change in the input signals etc, press the LISTEN MODE key.
If the INPUT MODE key is pressed quickly, sound may not be
produced. Press the INPUT MODE key again.
INPUT MODE
INPUT SELECTORLISTEN MODE
*5332/08-15/1EN 1/21/03, 10:05 PM8

9EN
ENGLISH
+
-
+
-
PHONO
GND
CD/DVD REC OUT PLAY IN
VIDEO1
REC OUT PLAY IN
MD / TAPE
L
R
AUDIO
Setting up the system
Connecting audio components
IN
OUTIN
OUT
OUT
OUT
To AC wall outlet
SYSTEM CONTROL
jacks %
Record player
Cassette deck or MD recorder
CD or DVD player
Video component )
Moving coil (MC) cartridge
record player cannot be used
directly from the receiver unit. It
can only be used when another
equalizer amplifier is connected.
Shape of AC outlets
U.K.
EUROPE
*5332/08-15/1EN 1/21/03, 10:05 PM9

10 EN
ENGLISH
Setting up the system
Connecting video components
A video component with digital audio outputs should be connected to the VIDEO 2 jacks.
+
-
+
-
PLAY IN
VIDEO 2
REC OUT PLAY IN
VIDEO1
VIDEO 1
OUT
VIDEO 1
IN
VIDEO 2
IN
DVD
IN MONITOR
OUT
VIDEO
AUDIO
VIDEO 2
IN DVD IN MONITOR OUT
S-VIDEO
Video inputs and
outputs
(Yellow RCA pin cords)
Audio inputs
and outputs
OUT OUT
Monitor TV
Video inputs
(Yellow RCA pin cords)
VIDEO
IN
Video deck
IN
OUT DVD player or LD player
About the S-VIDEO
jacks
S-VIDEO
Use the S-VIDEO jacks to
make connections to
video components with
S-VIDEO IN/OUT jacks.
•
If you use the S-VIDEO
jacks to connect your video
playback components, be
sure to use the S-VIDEO
jacks when connecting
your monitor and video
recording components.
OUT
IN
VIDEO
IN/OUT
AUDIO
IN/OUT
S-VIDEO jacks
*5332/08-15/1EN 1/21/03, 10:05 PM10

11 EN
ENGLISH
+
-
+
-
VIDEO 2
DVD / 6CH
CD / DVD
COAXIAL OPTICAL
DIGITAL IN
Setting up the system
Digital connections
The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD)
format digital signals.
If you have connected any digital components to the receiver, be sure to read the “Input mode settings” section carefully. 8
Component with DTS,
Dolby Digital, or PCM
COAXIAL DIGITAL OUT
COAXIAL
DIGITAL
OUT
(AUDIO)
DOLBY DIGITAL RF
OUT (AUDIO)
LD player
PCM OUT
RF digital demodulator
(DEM-9991D)
(sold separately)
CD or DVD player
OPTICAL DIGITAL OUT (AUDIO)
Optical fiber cable
COAXIAL DIGITAL OUT
(AUDIO)
Connect the video signal and analog
audio signals to the VIDEO 2 jacks.
(See “Connecting video components”.)
0
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver.
Connect the video signal and analog audio signals to the VIDEO 2 jacks. (See “Connecting video components”.)
*5332/08-15/1EN 1/21/03, 10:05 PM11

12 EN
ENGLISH
+
-
+
-
CENTER
SUB
WOOFER
SURROUND FRONT
VIDEO 1
OUT
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
MONITOR
OUT
VIDEO 2
DVD / 6CH
CD / DVD
COAXIAL OPTICAL
DVD / 6CH INPUT
VIDEO
DIGITAL IN
DVD
IN
Setting up the system
Connecting a DVD player (6-channel input)
CAUTION
Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.
• Do not place any object impairing heat radiation onto the top of the unit.
• Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm
If you have connected a DVD player to the receiver with digital connection, be sure to read the “Input mode settings” section carefully. 8
SURROUND
OUT L/R
VIDEO OUT
(Yellow RCA
pin cord)
DVD player
SUBWOOFER
OUT
CENTER OUT
FRONT
OUT L/R
COAXIAL
DIGITAL
OUT
(AUDIO)
S-VIDEO
OUT
S-VIDEO cord
*5332/08-15/1EN 1/21/03, 10:05 PM12

13 EN
ENGLISH
+
-
+
-
CENTER
FRONT
+
-
CR L
RED WHITE GREEN
SURROUND
BACK
SURROUND
+
-
R
GRAY
L
BLUE BROWN
SB
SPEAKERS (6-16Ω)
SUB WOOFER
PRE OUT
SPEAKERS (6-16Ω)
Setting up the system
Connecting the speakers
Center
Speaker
Front Speakers
Right Left
Surround
Back
Powered
sub woofer
Right Left
(Be sure to connect both
surround speakers)
Surround Speakers
*5332/08-15/1EN 03.3.13, 11:04 AM13

14 EN
ENGLISH
1Strip coating. 2Push the lever.
3Insert the cord. 4Return the lever.
+
-
+
-
GND
AM FM
75Ω
ANTENNA
Setting up the system
Connecting the terminals
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of the receiver, connect speakers with matching impedance
ratings. Using speakers with a rated impedance other than that
indicated on the rear panel of the receiver could result in malfunctions
or damage to the speakers or receiver.
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be
unnatural with ambiguous acoustic imaging. Be sure to connect the
speakers correctly.
Connecting the antennas
AM loop antenna
The supplied loop antenna is for use indoors. Place it as far as possible
from the receiver, TV set, speaker cords and power cord, and adjust
the direction for best reception.
FM indoor antenna
The supplied indoor antenna is for temporary use only. For stable
signal reception we recommend using an outdoor antenna. Disconnect
the indoor antenna when you connect one outdoors.
FM outdoor antenna
Lead the 75Ωcoaxial cable connected to the FM outdoor antenna into
the room and connect it to the FM 75Ωterminal.
AM antenna terminal connections
1Push lever. 2Insert cord. 3Release lever.
FM antenna terminal connections
Insert cord.
Use an antenna
adapter
(Commercially
available)
Attach to the
stand
AM loop antenna
FM indoor antenna
FM outdoor antenna
Speaker placement
Front speakers : Place to the front left and right of the listening
position. Front speakers are required for all surround modes.
Center speaker : Place front and center. This speaker stabilizes the
sound image and helps recreate sound motion. Required for surround
playback.
Surround speakers : Place to the direct left and right, or slightly
behind, the listening position at even heights, approximately 1 meter
above the ears of the listeners. These speakers recreate sound
motion and atmosphere. Required for surround playback.
Subwoofer : Reproduces powerful deep bass sounds.
Surround back speaker : Place the speaker directly at the rear of the
listening position. The optimum position depends mainly on the room
condition.
• Although the ideal surround system consists of all the speakers
listed above, if you don't have a center speaker or a subwoofer, you
can divide those signals between the available speakers in the
speaker settings steps to obtain the best possible surround
reproduction from the speakers you have available. %
Front
speaker
Subwoofer
Surround
speaker
Center speaker
Listening
position
Surround back
speaker
*5332/08-15/1EN 1/21/03, 10:05 PM14

15 EN
ENGLISH
Receiver
Cassette deck
or MD recorder
CD player
Record player
Connecting system control cords after connecting a KENWOOD
audio component system lets you take advantage of convenient
system control operations.
This unit is compatible only with the [SL-16] mode. The system
control operation is not available if the unit is connected in the
[XS8], [XS], or [XR] connection mode.
If your component has the mode select switch, set the connected
components to the [SL16] mode.
• You may connect the system control cord to either the up or down
jack.
EXAMPLE: [SL16] mode connections
The underlined portion represents the setting of the system control
mode.
• In order to take advantage of the system control operations, the
components must be connected to the correct jacks. To use a CD
player it must be connected to the CD jacks. To use a cassette deck
(or MD recorder) it must be connected to the MD/TAPE jacks.
When using more than one CD player (etc.) only the one connected
to the specified jacks may be connected for system control.
• Some CD players and cassette decks are not compatible with the
[SL16] system control mode. Do not make system connections
with equipment that is not [SL16] compatible.
• Some MD players are not system control compatible. You cannot
make system control connections to this kind of equipment.
Notes
1. [SL16] equipment cannot be combined with [XR], [XS], and [XS8]
equipment for system operations. If your equipment consists of
this kind of combination, please do not connect any system control
cords. Even without system control cords, normal operations can
be carried out without affecting performance.
2. Do not connect system control cords to any components other
than those specified by KENWOOD. It may cause a malfunction
and damage your equipment.
3. Be sure the system control plugs are inserted all the way in to the
system control terminals.
Connecting the system control
Setting up the system
SYSTEM CONTROL
cord
System control operations
Remote Control
Lets you operate this unit with the system remote supplied with the
receiver.
Automatic Operation
When you start playback from a source component, the input selector
on this unit switches to that component automatically.
Synchronized Recording
Lets you synchronize recording with the start of playback when
recording from CD, MD or analog discs.
S
Y
S
TEM
CO
NTR
OL
SYSTEM
CONTROL
cord
[SL16]
[SL16] [XS] [XS8] [XR]
[SL16] [XS] [XS8]
[XS]
1 Turn on the power to this receiver by pressing POWER ON/OFF
and ON/STANDBY or POWER RCVR key.
2 For the remote control, press and hold the TUNER key for more
than 3 seconds to switch to receiver mode.
3 Press the SETUP key to enter the SETUP mode and use the
MULTI CONTROL knob or Multi
% / fi keys for the following
displays.
1SP SETUP
2TESTTONE
3DISTANCE
4EXIT
The flow of the SETUP is as follows;
SP SETUP TESTTONE DISTANCE EXIT
Front Left
Center
Front Right
Surround Right
Surround Back
Surround Left
Subwoofer
SP System
L
C
R
SR
SB
SL
SW
L
C
R
SR
SB
SL
SW
MANUAL
AUTO
2Way 2Speaker
2Way 3Speaker
Others
Subwoofer
Front
Center
Surround
Subwoofer Re-mix
4 Select a speaker system.
1Select SP SETUP and press the SETUP key again so that the
speaker system indication “SP SYSTEM” scrolls across the
display.
Preparing for surround sound
Speaker settings
To enable you to obtain optimum enjoyment from the receiver’s listening
modes, make sure to complete the speaker settings (subwoofer, front,
center, and surround speakers) as described below.
4
¢
+ +
+
MULTI CONTROL
SETUP
Setup
POWER RCVR
Multi % / fi
POWER
ON/OFF
ON/STANDBY
Continued to next page
*5332/08-15/1EN 1/21/03, 10:05 PM15

16 EN
ENGLISH

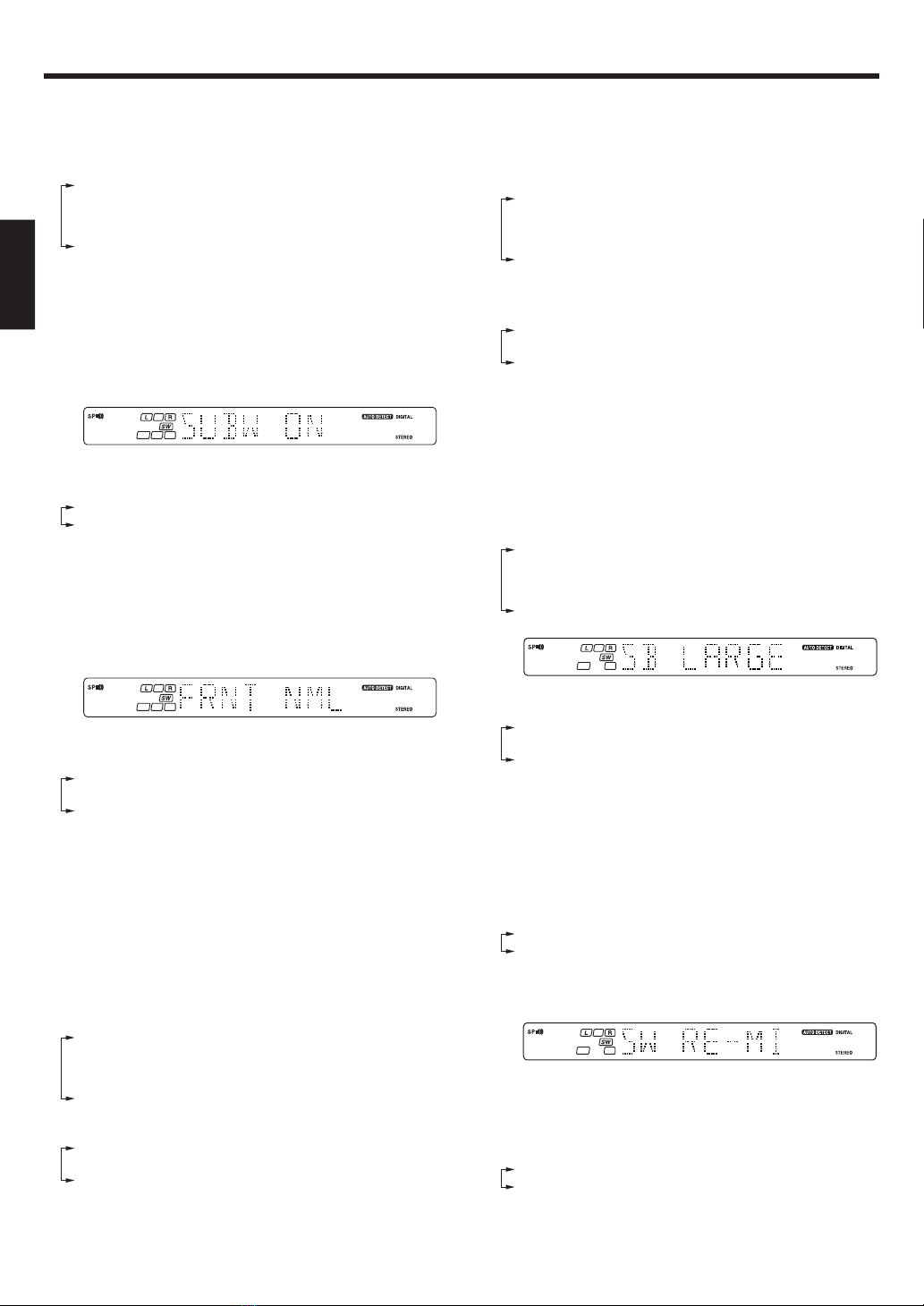

0Use the MULTI CONTROL knob or Multi %/fikeys to select
the appropriate surround speaker setting.
If you have selected “LRG” as the center speaker setting,
1SURR NML (normal) :Average size surround speakers are
connected to the receiver.
2SURR LRG (large) :Large surround speakers are connected
to the receiver.
3SURR OFF : Surround speaker setting mode to the
receiver is OFF.
If you have selected other than “LRG” as the center speaker
setting,
1SURR ON : Surround speaker setting mode to the receiver is
ON.
2SURR OFF : Surround speaker setting mode to the receiver is
OFF.
• When the setting “SURR OFF” is selected, the procedure skips
to step %.
!Press the SETUP key to accept the setting.
• The surround back speaker setting indication “SB” appears.
@Use the MULTI CONTROL knob or Multi %/fikeys to select
the appropriate surround back speaker setting.
If you have selected “LARGE” as the surround speaker setting,
1SB NORMAL : Average size surround back speaker is
connected to the receiver.
2SB LARGE : Large surround back speaker is connected to
the receiver.
3SB OFF : Surround back speaker setting mode to the
receiver is OFF.
If you have selected “NORMAL” as the surround speaker
setting,
1SB ON : Surround back speaker setting mode to the receiver
is ON.
2SB OFF : Surround back speaker setting mode to the receiver
is OFF.
#Press the SETUP key to accept the setting.
• The surround mix setting indication “SURR MIX” appears.
• SURR MIX is when the SL and SR speakers signals are mixed to
produce sound from the surround back speaker which would
enable the listener to enjoy sound coming from the back.
$Use the MULTI CONTROL knob or Multi %/fikeys to select
the surround mix setting.
1MIX OFF : Surround mix setting mode is OFF.
2MIX ON : Surround mix setting mode is ON.
%Press the SETUP key again to accept the setting.
• The subwoofer re-mix setting indication “SW RE-MIX” scrolls
across the display.
• If subwoofer is turned OFF, subwoofer re-mix setting is not
visible.
^Use the MULTI CONTROL knob or Multi %/fikeys to
select the appropriate subwoofer re-mix setting.
1 RMX ON : Subwoofer re-mix set mode to the receiver is ON.
2 RMX OFF : Subwoofer re-mix set mode to the receiver is OFF.
&Press the SETUP key to accept the setting.
• The receiver enters the speaker volume level adjustment mode.
• In step 5and 6, indications appear only for the selected channels
of the speakers that require adjusting.
2Use the MULTI CONTROL knob or Multi %/fikeys to select the
speaker system setting.
12WAY 2SPKR : For selected Kenwood speaker – for example,
KS-307HT.
22WAY 3SPKR : For selected Kenwood speaker – for example,
KS-707HT.
3OTHERS : For general speakers.
• The selection of 2WAY 2SPKR or 2WAY 3SPKR should only be
used with 6 channels speaker system setting.
• When the setting 2WAY 2SPKR or 2WAY 3SPKR is selected, the
procedure skips to step 5.
3For general speaker setting, use the MULTI CONTROL knob or
Multi %/fikeys to select OTHERS and press the SETUP key
again.
• The subwoofer setting indication “SUBW ON” appears.
4Use the MULTI CONTROL knob or Multi %/fikeys to select
the appropriate subwoofer setting.
1SUBW ON : Subwoofer setting mode to the receiver is ON.
2SUBW OFF :
Subwoofer setting mode to the receiver is OFF.
• The initial setting is “SUBW ON”.
• When the setting “SUBW OFF” is selected, the front speakers
are automatically set to “FRNT LRG” and the procedure skips to
step 7.
Before step 7, press the SETUP key to accept the setting.
• When subwoofer output sound is required, select “FRNT NML”.
5Press the SETUP key to accept the setting.
• The front speakers setting indication “FRNT NML” appears.
6Use the MULTI CONTROL knob or Multi %/fikeys to select
the appropriate front speakers setting.
1 FRNT NML (normal) :Average size front speakers are
connected to the receiver.
2 FRNT LRG (large) :Large front speakers are connected to
the receiver.
• For “FRNT LRG” selection, no sound will be heard from subwoofer
speaker even when it is set to ON. However, if you select “SW
RE-MIX ON” when subwoofer is selected, you will be able to
hear sound from the subwoofer.
When in STEREO mode, the sound goes directly to front speaker.
7Press the SETUP key to accept the setting.
• The center speaker setting indication “CNTR NML” appears.
8Use the MULTI CONTROL knob or Multi %/fikeys to select the
appropriate center speaker setting.
If you have selected “LRG” as the front speakers setting,
1CNTR NML (normal) :An average size center speaker is
connected to the receiver.
2CNTR LRG (large) :A large center speaker is connected to
the receiver.
3CNTR OFF : Center speaker setting mode to the
receiver is OFF.
If you have selected “NML” as the front speakers setting,
1CNTR ON : Center speaker setting mode to the
receiver is ON.
2CNTR OFF : Center speaker setting mode to the
receiver is OFF.
9Press the SETUP key again to accept the setting.
•The surround speaker setting indication “SURR NML” appears.
Preparing for surround sound
*5332/16-23/1EN 1/23/03, 2:39 PM16

17 EN
ENGLISH
Preparing for surround sound
5 Adjust the speaker volume level.
From your usual listening position, adjust the volume levels. The
volume levels from each speaker should be the same.
1Press the SETUP key to begin TEST TONE.
The selection of AUTO/MANUAL TEST TONE is done by the
MULTI CONTROL knob or Multi %/fikeys.
1AUTO
2MANUAL
2Press the SETUP key again to select either AUTO or MANUAL.
Use the MULTI CONTROL knob or Multi %/fikeys to adjust
the volume level of the test tone output from the speaker
channel to be adjusted.
For AUTO selection, the test tone is heard from the speakers
in the following sequence for 2 seconds each:
• If you change the volume level settings for the speakers while
listening to music, the settings referred to on this page are also
changed. ¶
• If any of the speaker is set as OFF during SP SETUP, the TEST
TONE adjustment for the speaker will be skipped.
3Press the SETUP key.
• The test tone is turned off. The receiver enters the mode for
inputting the distance to the speakers.
4For MANUAL selection, press the SETUP key each time to
select the speaker channel.
6 Input the distance to the speakers.
1Select the DISTANCE from the set up displays and press the
SETUP key again.
2Measure the distance from the listening position to each of
the speakers.
Jot down the distance to each of the speakers.
Distance to Front left speaker (L) : ____ feet (meters)
Distance to Center speaker (C) : ____ feet (meters)
Distance to Front right speaker (R) : ____ feet (meters)
Distance to Surround right (SR) : ____ feet (meters)
Distance to Surround back (SB) : ____ feet (meters)
Distance to Surround left (SL) : ____ feet (meters)
Distance to Subwoofer (SW) : ____ feet (meters)
3Use the MULTI CONTROL knob or Multi %/fikeys to select the
distance to the front speakers.
Indication in feet Indication in meters
• The allowable setting range is 1 to 30 feet (0.3m to 9.0m),
adjustable in 1 foot (0.3m) increments.
4Press the SETUP key to accept the settings.
5Repeat steps 3and 4to input the distance for each of the
speakers.
6Setup is complete when the EXIT indication appears.
• The speakers you have selected should appear on the display.
Confirm that all the speakers have been correctly selected.
7Press the SETUP key to exit the SETUP mode.
Input level adjustment (analog sources only)
If the input level of an analog source signal is too high, the CLIP indicator
will blink to indicate the source signal. Adjust the input level.
1Use the INPUT SELECTOR knob to select the source of which the
input level you want to adjust.
• You can store a separate input level for each input source.
2Press the SOUND key repeatedly until the “INPUT” indication
appears.
3Use the MULTI CONTROL knob or Multi %/fikeys to adjust the
input level.
• The input level may be adjusted to any one of three settings: 0dB,
-3dB, and -6dB. (The initial setting is 0dB.)
4Press the SOUND key again to return to the input indication.
*5332/16-23/1EN 1/21/03, 10:05 PM17

18 EN
ENGLISH
Listening to a source component
1
Use the INPUT SELECTOR knob or keys to select the source
you want to listen to.
The input sources change as shown below:
1“PHONO”
2“TUNER”
3“CD/DVD”
4“TAPE” or “MD”
5“VIDEO1”
6“VIDEO2”
7“DVD/6CH”
2
Start playback from the selected source.
3
Use the VOLUME CONTROL knob or VOL +/– keys to adjust
the volume.
Normal playback
Preparing for playback
Some preparatory steps are needed before starting playback.
Turning on the receiver
1Turn on the power to the related components.
2Turn on the power to this receiver by pressing POWER ON/
OFF and ON/STANDBY key.
Selecting the input mode
If you have selected a component connected to the CD/DVD, VIDEO2,
DVD/6CH jacks, make sure that the input mode setting is correct for the
type of audio signal to be used. 8
Selecting MD/TAPE
Select the source name corresponding to the component connected to
the MD/TAPE jacks. The initial factory setting is “TAPE”. To change the
source to “MD”, follow the steps below:
1Use the INPUT SELECTOR knob to select “TAPE”.
2Hold down the AUTO key for more than 2 seconds.
• The source indication changes to “MD”.
• To return to the original indication, repeat procedure 2.
Setting the speaker status
Press the SPEAKERS ON/OFF key to switch the speaker on or off.
AUTO INPUT SELECTORPOWER
ON/OFF
SPEAKERS
ON/OFF ON/STANDBY
4
¢
+ +
+
INPUT SELECTOR
VOLUME CONTROL
Input
Selector
VOL
The speaker indicator lights up.
*5332/16-23/1EN 1/21/03, 10:06 PM18

19 EN
ENGLISH
Normal playback
Adjusting the sound
Adjusting the Tone (remote control only)
You can adjust the sound quality when the receiver is in the PCM stereo
and analog stereo mode.
1For the remote control, press and hold the TUNER key for more
than 3 seconds to switch to receiver mode.
2Press the Tone key to select the TONE mode.
3Use the MULTI CONTROL knob or Multi %/fikeys to select TONE
ON/OFF.
4When in TONE ON selection, press the Tone key for the following
displays.
BASS : Select this to adjust the low frequency range.
TREB : Select this to adjust the high frequency range.
5Use the MULTI CONTROL knob or Multi %/fikeys to adjust the
sound quality.
• The bass and treble levels are adjustable from -10 to +10 in 2 step
increments.
Once-touch low frequency emphasis (Bass Boost)
(remote control only)
You can adjust the sound quality when the receiver is in the PCM stereo
and analog stereo modes.
Press the Bass Boost key.
• Press the key once to select the maximum (+10) low frequency
emphasis setting.
• TONE will automatically be turned ON.
• This key does not function when the receiver is in the sound quality
or ambience effects adjustment mode. ¢~•
Switching back the previous setting
Press the Bass Boost key again.
4
¢
+
–
+
–
– +
ACTIVE EQ
VOLUME CONTROL
PHONES MULTI CONTROL
SPEAKERS ON/OFF
MUTE
Loudness
Tone
Bass Boost
Active EQ
Mute
VOL +/–
Multi % / fi
Adjusting the Loudness mode (remote control only)
You can adjust the Loudness function which controls the low volume
settings to maintain the music’s richness. The adjustment can be made
when the receiver is in the PCM stereo and analog stereo mode.
Press the Loudness key to turn the LOUDNESS setting ON.
To cancel
Press the Loudness key again so that the “LOUDNESS” indicator
goes off.
Muting the sound
The MUTE key lets you mute the sound of the speakers.
Press the MUTE key.
To cancel
Press the MUTE key again so that the “MUTE” indicator goes off.
• MUTE ON can also be deactivated by turning the volume control
knob.
ACTIVE EQ mode
You can enjoy a more impressive sound effect when ACTIVE EQ is
turned ON during Dolby Digital and DTS playback and, when in PCM and
analog stereo mode.
Press the ACTIVE EQ key for the following selections;
1ACTIVE EQ MUSIC : Effective when listening to music.
(The ACTIVE EQ LED indicator lights up.)
2ACTIVE EQ CINEMA : Effective when watching a movie.
(The ACTIVE EQ LED indicator lights up.)
3ACTIVE EQ TV : Effective when watching TV.
(The ACTIVE EQ LED indicator lights up.)
4ACTIVE EQ OFF : The ACTIVE EQ function is turned OFF.
(The ACTIVE EQ LED indicator goes off.)
• ACTIVE EQ function will not be available when REC MODE, AUTO
TUNING or PRESET MEMORY is ON and during 96kHz LPCM
playback.
Listening with headphones
1Press the SPEAKERS ON/OFF key so that the speaker indicator
goes off.
• If you turn off all of the speakers when in surround mode, the
surround mode will be canceled as well, resulting in stereo playback.
2Connect headphones to the PHONES jack.
PHONES
3Use the VOLUME CONTROL knob or VOL +/– keys to adjust the
volume.
Make sure the SP indicator is turned OFF.
*5332/16-23/1EN 1/21/03, 10:06 PM19

20 EN
ENGLISH
Recording audio (analog sources)
Recording a music source
1Use the INPUT SELECTOR knob to select the source (other than
“MD/TAPE”) you want to record.
2Set the MD or TAPE recorder to record.
3Start playback, then start recording.
Recording video
1Use the INPUT SELECTOR knob to select the video source (other
than “VIDEO1”) you want to record.
2Set the video deck connected to VIDEO 1 to record.
• Select the REC MODE to record a digital input source.
3Start playback, then start recording.
• Recording may not be normal for some video software. This is due to
the copy guard condition. °
Recording audio (digital sources)
Switch on the REC mode to record a digital input source.
Usually use the A-REC (Auto-Record) mode to record audio input
sources. When the digital mode changes during recording in the A-REC
mode, the audio input source may be interrupted momentarily.
Recording music in A-REC or M-REC mode
INPUT SELECTOR
DIMMER
1Use the INPUT SELECTOR knob to select the source (CD/DVD,
DVD/6CH or VIDEO2) you want to record.
2Set the MD or TAPE recorder to record.
3Press and hold the DIMMER key for more than 2 seconds to select
the A-REC or M-REC mode during digital input.
1Rec mode off : The digital input record mode is switched off.
2A-REC mode : The digital input signals (DTS, Dolby Digital,
or PCM) are identified automatically and
converted into stereo signals that are ready
for recording.
3M-REC mode : The input signal type at the moment this
mode is selected is held throughout this
mode.
For A-REC mode:
For M-REC mode:
4Start playback, then start recording.
• If the audio reproduction stops in the middle due to change in the
input signals, etc., press the DIMMER key.
INPUT SELECTOR
Recording
*5332/16-23/1EN 1/21/03, 10:06 PM20
