Kenwood KRF-V7090D User manual

About the supplied remote control
Compared to standard remote controls, the remote control supplied with this model has several
operation modes. These modes enable the remote control unit to control other KENWOOD DVD players.
In order to effectively use the remote control it is important to read the operating instructions and obtain
a proper understanding of the remote control and how to switch its operation modes (etc.).
Using the remote control without completely understanding its design and how to switch the operation
modes may result in incorrect operations.
AUDIO VIDEO SURROUND RECEIVER
KRF-V7090D
INSTRUCTION MANUAL
KENWOOD CORPORATION
B60-5536-00 00 CS (E) 0412
ESPAÑOL
ITALIANO
DEUTSCH
FRANÇAIS
ENGLISH
NEDERLANDS
*5536/01-09/EN 05.2.8, 4:00 PM1

2EN
ENGLISH
Units are designed for operation as follows.
U.S.A. and Canada ........................................... AC 120 V only
Australia ........................................................... AC 240 V only
Europe ............................................................... AC 230 V only
Other countries ............ AC 110-120 / 220-240 V switchable
Before applying the power
Caution : Read this page carefully to ensure safe
operation.
Maintenance of the unit
When the front panel or case becomes dirty, wipe with a soft, dry
cloth. Do not use thinner, benzine, alcohol, etc. for these agents may
cause discoloration.
In regard to contact cleaner
Do not use contact cleaners because it could cause a malfunction. Be
specially careful not to use contact cleaners containing oil, for they
may deform the plastic component.
How to use this manual
This manual is divided into four sections, Preparations, Operations,
Remote Control, and Additional Information.
Preparations
Shows you how to connect your audio and video components to this
model and prepare the surround processor.
Since this model works with all your audio and video components, kindly
follow the instructions in this manual for the correct connections.
Operations
Shows you how to operate the various functions available on this model.
Remote Control
Shows you how to operate other components using the remote control,
as well as a detailed explanation of all remote control operations. Once
you have setup the remote control, you’ll be able to operate both this
model and your KENWOOD DVD player using the remote control
supplied with this model.
Additional Information
Shows you additional information such as “In case of difficulty”
(troubleshooting) and “Specifications”.
Safety precautions
WARNING :
TO PREVENT FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
*5536/01-09/EN 05.2.8, 4:00 PM2

3EN
ENGLISH
Basic remote control operations for KENWOOD
DVD players ...................................................... 36
DVD player operation keys .............................. 36
In case of difficulty .......................................... 37
Specifications .................................................. 39
Before applying the power ...................................................... 2
Safety precautions ..................................................................... 2
How to use this manual ............................................................. 2
Unpacking .................................................................................. 4
Preparing the remote control ..................................................... 4
Special features ......................................................................... 5
Names and functions of parts ................................................. 6
Main Unit .................................................................................... 6
Remote control unit ................................................................... 7
Setting up the system ........................................ 8
Connecting the terminals .................................. 9
Connecting a DVD player (6-channel input) ..... 10
Connecting audio components ........................ 11
Connecting video components ........................ 12
Digital connections .......................................... 13
Connecting video components
(COMPONENT VIDEO) .................................... 14
Connecting the speakers ................................. 15
Connecting to the AV AUX jacks ..................... 16
Connecting the antennas ................................. 16
Preparing for surround sound ....................... 17
Speaker settings .............................................. 17
Normal playback.............................................. 20
Preparing for playback ..................................... 20
Listening to a source component .................... 20
Input level adjustment (analog sources only) .. 21
Adjusting the sound ......................................... 21
Recording .......................................................... 22
Recording audio (analog sources) ................... 22
Recording video ............................................... 22
Recording audio (digital sources) .................... 23
Listening to radio broadcasts ....................... 24
Tuning (non-RDS) radio stations ...................... 24
Using RDS (Radio Data System) ..................... 24
Presetting radio stations manually .................. 25
Receiving preset stations ................................ 25
Receiving preset stations in order (P.CALL) ... 25
Using the RDS DISP (Display) key .................. 26
Presetting RDS stations (RDS AUTO
MEMORY) ........................................................ 26
Tuning by Program TYpe (PTY search) ............ 27
Ambience effects ............................................. 28
Surround modes .............................................. 28
Surround play ................................................... 30
DVD 6-channel playback .................................. 32
Convenient functions ...................................... 32
Adjusting the sound ......................................... 32
Display dimmer adjustment ............................ 34
Sleep timer ....................................................... 34
Preparations
Contents
Caution : Read the pages marked carefully to ensure
safe operation.
Operations
Additional
Information
Remote
Control
Before applying the power
*5536/01-09/EN 05.2.9, 0:47 PM3

4EN
ENGLISH
Preparing the remote control
Loading the batteries
1Remove the cover. 2Insert the batteries.
3Close the cover.
•Insert two AAA-size (R03) batteries as indicated by the polarity
markings.
Operation
When the standby indicator is lit, the power turns ON when you press the
RECEIVER ON key on the remote control. When the power comes ON,
press the key you want to operate.
RECEIVER ON
6 m
•When pressing more than one remote control key successively, press
the keys securely by leaving an interval of 1 second or more between
keys.
Notes
1. The supplied batteries may have shorter lives than ordinary batteries
due to use during operation checks.
2. When the remote-controllable distance gets shorter than before,
replace both batteries with new ones.
3. Placing the remote sensor in direct sunlight, or in direct light from a
high frequency fluorescent lamp may cause a malfunction.
In such a case, change the location of the system installation to
prevent malfunction.
Unpacking
Unpack the unit carefully and make sure that all accessories are
present.
FM indoor antenna (1) AM loop antenna (1)
Remote control unit (1) Batteries (R03/AAA) (2)
RC-R0731E
If any accessories are missing, or if the unit is damaged or fails to operate,
notify your dealer immediately. If the unit was shipped to you directly,
notify your shipper immediately. Kenwood recommends that you retain
the original carton and packing materials in case you need to move or ship
the unit in the future.
Keep this manual handy for future reference.
Remote sensor
Operating range
(Approx.)
Infrared ray system
Before applying the power
*5536/01-09/EN 05.2.8, 4:00 PM4

5EN
ENGLISH
Special features
True home theater sound •
This model incorporates a wide variety of surround modes to bring you
maximum enjoyment from your video software. Select a surround mode
according to your equipment or the software you are going to play and
enjoy!
•Dolby Digital EX
•Dolby Pro Logic IIx, Dolby Pro Logic II
•Dolby Digital
•DTS-ES
•DTS Neo:6
•DTS 96/24
•DTS
•DSP Mode
ACTIVE EQ
ACTIVE EQ mode will produce a more dynamic sound quality in any
condition. You can enjoy a more impressive sound effect when
ACTIVE EQ is turned on.
GAME mode function )
When you connect a game machine to the AV AUX jacks on the front
panel, the input selector of the receiver switches automatically to
"GAME" and the optimum sound field for enjoying games is set.
This feature improves your convenience in playing video games.
IR (InfraRed) remote control
In addition to the basic receiver operations, this IR remote control
supplied can also control KENWOOD DVD players directly without
using the DVD Special features.
RDS (Radio Data System) tuner
This model is equipped with an RDS tuner that provides several
convenient tuning functions: RDS Auto Memory, to automatically
preset up to 40 RDS stations broadcasting different programs; station
name display, to show you the name of the current broadcast station;
and PTY search to let you tune stations by program type.
PTY (Program TYpe) search
Tune the stations by specifying the type of program you want to hear.
Before applying the power
*5536/01-09/EN 05.2.8, 4:01 PM5

6EN
ENGLISH
L
SL S SB SR
CR
SP MUTE
6CH INPUT
DIGITAL DOLBY DIGITAL EX
DOLBY EX
DOLBY PL II x
DTS 96/24
ES MATRIX6.1
ES DISCRETE6.1
STEREO
96kHzfs
LOUDNESS
NEO:6
SLEEP
CLIP
AUTO DETECT
AUTO
MEMORY
STEREO
TUNED
SW
LFE
AB
DSP MODE
PTY
RDS
VOLUME CONTROL
DOWN UP
MUTE
AV AUX/GAME
S VIDEO VIDEO L-AUDIO-R
LISTEN MODEMULTI CONTROL
SETUPTONESOUND
MEMORYBAND
TUNERPHONOCD/DVDDVD/6CH
MD/TAPEVIDEO 3VIDEO 2VIDEO 1
ACTIVE EQ BASS BOOST LOUDNESS DSP STEREO INPUT MODE DIMMER
DSP
96kHz-fs
ACTIVE EQ
DOLBY DIGITAL
DTS
LOUDNESS
A SPEAKERS B
PHONES
AUTO/MONO
Names and functions of parts
Main unit
Display
*Input channel indicators
Output channel indicators
AUTO indicator
MEMORY indicator
STEREO indicator
TUNED indicator
Frequency display
Input display
Preset channel display
Surround mode display
Speaker
indicators RDS indicators
MUTE
indicator
CLIP
indicator
Input mode
indicators
Listen mode indicators
SLEEP indicator
1(POWER ON/STANDBY) key &
Use to turn the power ON/STANDBY.
Standby indicator
2SPEAKERS A/B keys )
Use to turn the A/B speakers on or off.
3ACTIVE EQ key ¡
Use to select ACTIVE EQ setting.
4BASS BOOST key ¡
Use to select BASS BOOST setting.
5Surround LED (lighting-emitting diode)
indicators
DSP mode indicator ⁄
Lights when the receiver is in the DSP mode.
96kHz fs mode indicator ›
Lights when the receiver is in the 96kHz
LPCM playback mode.
ACTIVE EQ mode indicator ™
Lights when the receiver is in the ACTIVE EQ
mode.
DOLBY DIGITAL mode indicator ⁄
Lights when the receiver is in the Dolby
Digital mode.
DTS mode indicator ⁄
Lights when the receiver is in the DTS mode.
LOUDNESS indicator ¡
Lights when the LOUDNESS is ON.
6LOUDNESS key ¡
Use to switch the status of LOUDNESS.
7DSP key º
Use to select any of the DSP mode.
8STEREO key º
Use to switch the listen mode to STEREO.
9INPUT MODE key 8
Use to select the Input mode.
0DIMMER key
Use to select the REC MODE. £
Use to adjust the brightness of the display.
¤
!VOLUME CONTROL knob )
@MUTE key ¡
Use to temporarily mute the sound.
#PHONES jack ¡
Use for headphone listening.
$Input Selector keys )
(DVD/6CH, CD/DVD, PHONO, TUNER,
VIDEO 1, VIDEO 2, VIDEO 3, MD/TAPE)
Use to select the input sources.
%SOUND key ¤
Use to adjust the sound quality and the
ambience effects.
^BAND key ¢
Use to select the broadcast band.
&AUTO/MONO key ¢
Use to select the auto or manual tuning
mode.
*TONE key ¡
Use to switch the status of TONE control.
(MEMORY key ∞
Use to store radio stations in the preset
memory and to start the Auto Memory.
)SETUP key &
Use to select the speakers' settings etc.
¡keys &
Use for selection adjustments during sound,
set up and preset channel functions.
™MULTI CONTROL knob
Use to control a variety of settings.
£LISTEN MODE knob º
Use to select the listening mode.
¢AV AUX (S VIDEO, VIDEO, L-AUDIO-R)
jacks ^
∞AV AUX/GAME key )
Use to switch the input to AV AUX or GAME.
Standby mode
While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called standby mode. Under the condition,
the system can be turned ON by remote control unit.
*Input channel
indicators
Input channel indicators
light up according to the
incoming audio signals.
"S" indicator will light up
when the surround com-
ponent of the audio sig-
nals is only 1 channel.
*5536/01-09/EN 05.2.8, 4:01 PM6

7EN
ENGLISH
Names and functions of parts
Remote control unit
STANDBY
RECEIVER
ON DVD
TONE SOUND
SLEEP
SETUP
DIMMER
ANGLE REPEAT
SUBTITLE
AUDIO
VOLUME
ENTER
BAND
MUTE
AUTO/MONO
P. CALL TUNING
DVD/6CH VIDEO 1 VIDEO 2 VIDEO 3
AV AUXPHONO
MD/TAPE
CD/DVD
INPUT MODE
TUNER
PAG E
BASS BOOST
LOUDNESS
DSP MODE RDS DISP.
PTY
ACTIVE EQ DISC SEL.
STEREO
LISTEN MODE
RC-R0731E
TOP MENU
RETURN ON SCREEN
MENU
REMOTE CONTROL UNIT
MULTI
MULTI
1RECEIVER ON key &
Use to turn the receiver on.
RECEIVER STANDBY key
Use to turn the receiver off (standby).
2DIMMER key
Use to adjust the brightness of the display.
¤
Use to operate the DVD player.
3SETUP key
Use to select the speakers’ settings etc.&
Use to operate the DVD player.
4Numeric keys
Use to select preset radio stations. ∞
Use to operate the DVD player.
5AUDIO key
SUBTITLE key
ANGLE key
REPEAT key
Use to operate the DVD player.
6%/fi/@/#keys
TOP MENU key
MENU key
RETURN key
ON SCREEN key
ENTER key
Use to operate the DVD player.
78key
Use to operate the DVD player.
8P.CALL 4/¢keys ∞
Use for selection adjustments during sound,
set up and preset channel functions.
9
Input Selector keys (DVD/6CH, VIDEO 1,
VIDEO 2, VIDEO 3, CD/DVD, MD/TAPE, PHONO,
AV AUX, TUNER)
)
Use to select the input sources.
0INPUT MODE key 8
Use to select the Input mode.
!LISTEN MODE %/fikeys º
Use to select the listening mode.
@STEREO key º
Use to switch the listen mode to STEREO.
#DSP MODE key º
Use to select any of the DSP mode.
$SLEEP key ¤
Use to set the Sleep timer.
%DVD key
Use to turn the DVD player on or off.
^SOUND key ¤
Use to adjust the sound quality and the
ambience effects.
&TONE key ¡
Use to switch the status of TONE control.
*MULTI #/@keys
MULTI %/fikeys
Use to control a variety of settings.
(VOLUME %/fikeys )
Use to adjust the receiver’s volume.
)BAND key ¢
Use to select the broadcast band.
3/8key
Use to operate the DVD player.
AUTO/MONO key ¢
Use to select the auto or manual tuning
mode.
7key
Use to operate the DVD player.
¡MUTE key ¡
Use to temporarily mute the sound.
™TUNING 1/¡keys ¢
Use to operate the tuner mode.
£DISC SEL. key
Use to operate the DVD player.
¢ACTIVE EQ key ¡
Use to select ACTIVE EQ’s setting.
∞PAGE %/fikeys
Use to operate the DVD player.
RDS DISP. key §
Use to receive RDS broadcast.
PTY key ¶
Use for PTY search.
§LOUDNESS key ¡
Use to switch the status of LOUDNESS.
¶BASS BOOST key ¡
Use to select the maximum adjustment
setting for the low frequency range.
• Some keys can be used for operating KENWOOD DVD players by pressing CD/DVD or
DVD/6CH key beforehand. fl
*5536/01-09/EN 05.2.8, 4:01 PM7

8EN
ENGLISH
Make connections as shown in the following pages.
When connecting the related system components, be sure
to refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all
connections are completed.
Notes
1.
Be sure to insert all connection cords securely. If their connections are
imperfect, sound may not be produced or there will be noise inference.
2. Be sure to remove the power cord from the AC outlet before plugging
or unplugging any connection cords. Plugging/unplugging connection
cords without disconnecting the power cord can cause malfunctions
and may damage the unit.
3. Do not connect power cords from components whose power
consumption is larger than what is indicated on the AC outlet at the
rear of this unit.
Analog connections
Audio connections are made using RCA pin cords. These cables transfer
stereo audio signal in an “analog” form. This means the audio signal
corresponds to the actual audio of two channels. These cables usually
have 2 plugs on each end, one red for the right channel and one white for
the left channel. These cables are usually packed together with the
source unit, or are available at your local electronics retailer.
Microcomputer malfunction
If operation is not possible or an erroneous display appears, even
though all connections have been made properly, reset the
microcomputer referring to “In case of difficulty”. ‡
Setting up the system
Input mode settings
CD/DVD, VIDEO 2, VIDEO 3 and DVD/6CH inputs each include jacks
for digital audio input and analog audio input.
The initial factory settings for audio signal playback for CD/DVD,
DVD/6CH and VIDEO 2 and VIDEO 3 are FULL AUTO.
After completing connections and turning on this model, follow the
steps below.
INPUT MODE
Input Selector keys LISTEN MODE
1Use the Input Selector keys to select CD/DVD, VIDEO 2,
VIDEO 3 or DVD/6CH.
2Press the INPUT MODE key.
Each press switches the setting as follows:
In DTS play mode
1FULL AUTO (digital input, analog input)
2DIGITAL MANUAL (digital input)
In CD/DVD, VIDEO 2, VIDEO 3 or DVD/6CH play mode
1FULL AUTO (digital input, analog input)
2DIGITAL MANUAL (digital input)
36CH INPUT (DVD/6CH input only)
4ANALOG (analog input)
Auto detect:
In FULL AUTO mode ("AUTO DETECT" indicator lights up), the
receiver detects the digital or analog input signals automatically.
The receiver will select the input mode and listening mode auto-
matically during playback to match the type of input signal (Dolby
Digital, PCM, DTS) and the speaker setting. º
The "DIGITAL" indicator lights up when a digital signal is
detected. The "DIGITAL" indicator is extinguished when no
digital signal is detected.
Fixed to digital input:
Select this mode if you want to keep the decoding condition (Dolby
Digital, DTS, PCM, etc.) in the current listen mode.
When DIGITAL MANUAL mode is selected, the set listen modes
may be changed automatically depending on the input signal. º
Fixed to analog input:
Select this setting to play analog signals from a VCR, etc.
If the INPUT MODE key is pressed quickly, sound may not be
produced. Press the INPUT MODE key again.
• Distance setting
•Input mode setting
•Sound mode settings
•Broadcast band
•Frequency setting
•Preset stations
•Tuning mode
•ACTIVE EQ mode
•GAME mode setting
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 1 day.
•Power mode
•Input selector settings
•Speaker ON/OFF
•Volume level
•BASS, TREBLE, INPUT level
• TONE ON/OFF
• LOUDNESS ON/OFF
•Dimmer level
•Listen mode setting
•Speaker settings
*5536/01-09/EN 2/9/05, 9:47 AM8

9EN
ENGLISH
Connecting the terminals
1Strip coating. 2Loosen.
3Insert. 4Secure.
1Strip coating. 2Push the lever.
3Insert the cord. 4Return the lever.
•Never short circuit the + and – speaker cords.
•If the left and right speakers are connected inversely or the speaker
cords are connected with reversed polarity, the sound will be unnatu-
ral with ambiguous acoustic imaging. Be sure to connect the speakers
correctly.
Setting up the system
Speaker impedance
After confirming the speaker impedance indications printed on the
rear panel of this model, connect speakers with matching
impedance ratings. Using speakers with a rated impedance other
than that indicated on the rear panel of this model could result in
malfunctions or damage to the speakers or this model.
Speaker placement
*For Surround Back Speaker, you may place either two Surround
Back Speakers (Surround Back Left Speaker and Surround Back
Right Speaker) for 7.1 channel surround sound system or one
Surround Back Speaker for 6.1 channel surround sound system.
Front (left and right) Speakers
Place at the front left and right of the listening position. Front speakers
are required for all surround modes.
Center Speaker
Place front and center. This speaker stabilizes the sound image and
helps recreate sound motion. Required for surround playback.
Surround (left and right) Speakers
Place at the direct left and right, or slightly behind, the listening
position at even heights, approximately 1 meter above the ears of the
listeners. These speakers recreate sound motion and atmosphere.
Subwoofer
Usually, place the subwoofer in the front center position in the
listening room, near one of the front speakers near the center
speaker. (Since the subwoofer has less directivity than other speak-
ers, it can be placed almost in any position that can offer the best low
frequency reproduction according to the room layout.)
Surround Back Speaker/s
Place the surround back speaker behind the listening position, at the
same height as the left and right surround speakers.
•Although the ideal surround system consists of all the speakers
listed above, if you don't have a center speaker or a subwoofer, you
can divide those signals between the available speakers in the
speaker settings steps to obtain the best possible surround
reproduction from the speakers you have available. &
*Surround Back Speaker
Subwoofer
Center Speaker
Front Speakers
(L, R)
Surround Speakers
(L, R)
Listening
position
*Surround Back
Left Speaker *Surround Back
Right Speaker
*5536/01-09/EN 05.2.8, 4:01 PM9

10EN
ENGLISH
DVD/6CH INPUT
FRONT SURROUND
SUB
WOOFER
CENTER
PLAY IN
PLAY IN
VIDEO 2 VIDEO 3
S VIDEO
IN
VIDEO
S VIDEO
IN
VIDEO
S VIDEO
IN
VIDEO
VIDEO
OUT
S VIDEO
OUT
OUT
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
VIDEO
OUT
COAXIAL OPTICAL OPTICAL
VIDEO 3CD/DVD
DIGITAL IN
DVD/
6CH
VIDEO
2
MONITOR
DVD
DVD MONITOR
Connecting a DVD player (6-channel input)
If you have connected a DVD player to this model with digital connection, be sure to read the “Input mode settings” section carefully. 8
FRONT
OUT L/R
S VIDEO
OUT
COAXIAL
DIGITAL OUT
(AUDIO)
DVD Player
S VIDEO cord
SURROUND
OUT L/R
VIDEO OUT
CENTER
OUT
SUBWOOFER
OUT
Setting up the system
For COMPONENT VIDEO
connection $
*5536/10-16/EN 05.2.8, 11:50 AM10

11EN
ENGLISH
IN IN REC OUT PLAY IN
CD/DVD MD/TAPE PHONO
R
L
R
L
Connecting audio components
Record Player
Setting up the system
To AC wall outlet
Cassette Deck or
MD Recorder
DVD Player or CD Player
IN
OUT
Moving coil (MC) cartridge record
player cannot be used directly
from this model unit. It can only
be used when another equalizer
amplifier is connected.
OUT
OUT
CAUTION
Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.
•Do not place any object impairing heat radiation onto the top of the unit.
• Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm
•The earth terminal with
the Hsymbol is used
for noise reduction of
record player. It is not
for safety earth.
*5536/10-16/EN 05.2.8, 11:50 AM11

12EN
ENGLISH
OUT
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
VIDEO
OUT
VIDEO 1 VIDEO 2 VIDEO 3
PLAY INPLAY INPLAY INREC OUT
S VIDEO
OUT
VIDEO
S VIDEO
IN
VIDEO
S VIDEO
IN
VIDEO
S VIDEO
IN
VIDEO
S VIDEO
IN
VIDEO
S VIDEO
OUT
MONITOR
DVD
(DVD) (MONITOR)
Connecting video components
IN
Video Recorder
Monitor TV
OUT
S Video Jacks
About the S VIDEO
Jacks
Use the S VIDEO Jacks to
make connections to
video components with
S VIDEO IN/OUT Jacks.
•
If you use the S VIDEO
jacks to connect your video
playback components, be
sure to use the S VIDEO
jacks when connecting
your monitor and video
recording components.
Video
IN
Setting up the system
Video Audio
DVD Player or LD Player
A video component with digital audio outputs should be connected to the VIDEO 2 or VIDEO 3 jacks.
DVD Player or LD Player
S VIDEO
OUT
Video Audio
IN
OUT
OUT
OUT
OUT
Video Audio
OUT
* DVD IN input jack is used for
either CD/DVD input or DVD/
6CH input.
*5536/10-16/EN 05.2.8, 11:50 AM12

13EN
ENGLISH
COAXIAL OPTICAL OPTICAL
VIDEO 3CD/DVD
DIGITAL IN
VIDEO
2
DVD/
6CH
Digital connections
The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD)
format digital signals.
If you have connected any digital components to this model, be sure to read the “Input mode settings” section carefully. 8
COAXIAL
DIGITAL
OUT
(AUDIO)
DOLBY DIGITAL RF
OUT (AUDIO)
OPTICAL DIGITAL
OUT (AUDIO)
LD Player
PCM OUT
Setting up the system
RF digital demodulator
(Commercially available)
DVD Player or CD Player
Optical
fiber cable Component with DTS,
Dolby Digital, or PCM
OPTICAL DIGITAL OUT
OPTICAL DIGITAL
OUT (AUDIO)
Connect the video signal and
analog audio signals to the VIDEO
3 jacks.
(See “Connecting video compo-
nents”.) @
To connect an LD player with a DIGITAL RF OUT, connect the LD player to the RF digital demodulator (Commercially available).
Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of this model.
Connect the video signal and analog audio signals to the VIDEO 2 or VIDEO 3 jacks. (See “Connecting video components”.)
Component with DTS,
Dolby Digital, or PCM
COAXIAL DIGITAL OUT
COAXIAL DIGITAL
OUT (AUDIO)
Connect the video signal and
analog audio signals to the VIDEO
2 jacks.
(See “Connecting video compo-
nents”.) @
Optical fiber cable
*5536/10-16/EN 05.2.8, 11:50 AM13

14EN
ENGLISH
DVD
IN
VIDEO
3
IN
MONITOR OUT
C R C B
Y
C R
C B
Y
C R IN
C
B IN
YIN
C
R OUT
C
B OUT
YOUT
C
R OUT
C
B OUT
YOUT
COMPONENT VIDEO
Setting up the system
Connecting video components (COMPONENT VIDEO)
If you have connected this model to a video component with COMPONENT jacks, you can get a better picture quality than by connecting to the S-VIDEO
jacks.
When connecting the TV to the COMPONENT jacks, be sure to connect all the other components to the COMPONENT jacks.
Monitor TV
(with component jacks)
Video Recorder, DVD Recorder,
Satellite Cable Tuner & Game
Player (with component jacks)
DVD Player (with component jacks)
* DVD IN input jack is used for
either CD/DVD input or DVD/
6CH input.
*5536/10-16/EN 05.2.8, 11:50 AM14

15EN
ENGLISH
++ --
FRONT B
RL
SUB
WOOFER
PRE OUT
GRAY
SURROUND
RL
-
+
-
+
-
+
-
+
BLUE
TAN
RLBROWN
GREENWHITERED
RLCENTERFRONT A
-
+
SURROUND
BACK
Right
Front Speakers B
Right
Left
Connecting the speakers
Setting up the system
Left
Center
Speaker
Right Left
Front Speakers A
Surround Speakers
Powered
Subwoofer
Left
Right
Surround Back Speaker/s
When connecting a single
Surround Back Speaker,
connect it to SURROUND
BACK L terminals and se-
lect “SB LARGEx1” or “SB
NORMALx1” at Speaker
settings. *
• To make sure that each speaker has been connected properly, pay attention to the test tone from each speaker.
Refer to “5
Adjust the speaker volume level .” *
• When you wish to connect the second pair of Front speakers or to connect the speakers in a different room to this unit, use the
SPEAKERS FRONT B terminals for connection.
*5536/10-16/EN 05.2.8, 8:20 PM15

16EN
ENGLISH
FM
75
GND
AM
ANTENNA
Connecting the antennas
The broadcast reception cannot be made unless the antennas are
connected. Connect the antennas correctly as instructed below.
AM Loop Antenna
Place the supplied loop antenna as far as possible from the receiver, TV
set, speaker cords and power cord, and adjust the direction for best
reception.
AM Antenna Terminal connections
1Push lever. 2Insert cord. 3Release lever.
FM Indoor Antenna
The supplied indoor antenna is for temporary use only. For stable signal
reception we recommend using an outdoor antenna. Disconnect the
indoor antenna when you connect one outdoors.
FM Antenna Terminal connections
Insert cord.
FM Outdoor Antenna
Lead the 75Ωcoaxial cable connected to the FM outdoor antenna into the
room and connect it to the 75ΩFM terminal.
S VIDEO VIDEO L-AUDIO-R
AV AUX/GAME
S VIDEO OUT
S VIDEO cord
VIDEO OUT
AUDIO OUT
AM Loop Antenna
FM Indoor Antenna
Use an antenna
adaptor
(Commercially
available)
Attach to the stand
Setting up the system
Connecting to the AV AUX jacks
The AV AUX jacks are convenient for connection of video components
such as a camcorder or a video game.
•This model has a game function which is convenient for using
game equipment.
It is recommended that the game equipment be connected to
AV AUX jacks and the game mode be turned ON. )
•To select the source connected to the AV AUX jacks press AV
AUX/GAME key. )
•When you connect the audio source such as the MD player, you
do not need to connect the video cable.
•When you connect the unit and the component with the S
VIDEO cord, you can get better picture quality.
Video game, Camcorder,
other VCR or Portable
MD Player
FM Outdoor Antenna
*5536/10-16/EN 05.2.8, 11:50 AM16

17EN
ENGLISH
Preparing for surround sound
Speaker settings
To enable you to obtain optimum enjoyment from the receiver’s listening
modes, make sure to complete the speaker settings (Subwoofer, Front,
Center, Surround and Surround Back Speakers) as described below.
SETUP MULTI CONTRO
L
RECEIVER ON
SETUP MULTI %/fi,
@/#
SOUND
1
Turn on the power to this receiver by pressing the (POWER
ON/STANDBY) key or RECEIVER ON key.
If you want to use the remote control unit, press the VIDEO 1,
VIDEO 2, VIDEO 3, MD/TAPE, PHONO, AV AUX or TUNER key on
the remote control unit to set it to the receiver control mode.
2
Press the SETUP key to enter the SETUP mode.
Use the keys or MULTI
@ / # keys for the following displays.
1SP SETUP
2CROSSOVER
3TEST TONE
4SP DISTANCE
5LFE LEVEL
6DISP MODE
7EXIT
The flow of the SETUP is as follows:
Display Selector
Display Listen
LFE
LEVEL
DISP
MODE
EXIT
Front Left
Center
Front Right
Surround Right
Surround Back Right
Surround Back Left
Surround Left
Subwoofer
SP
DISTANCE

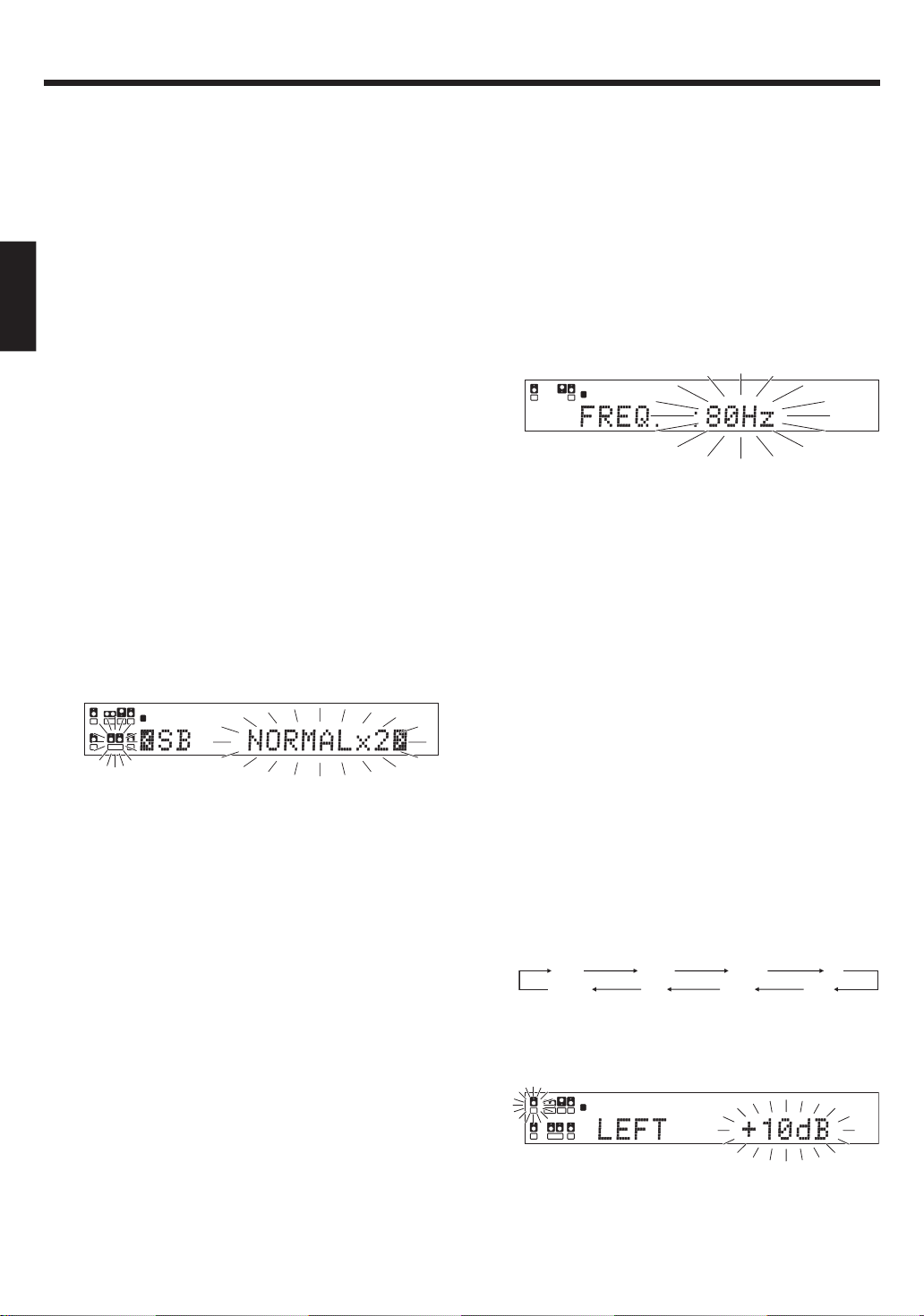

FREQ:40Hz
FREQ:60Hz
FREQ:80Hz
FREQ:100Hz
FREQ:120Hz
FREQ:150Hz
L
C
R
SR
SBR
SL
SBL
SW
L
C
R
SR
SBR
SBL
SL
SW
SP
SETUP
Subwoofer
Front
Center
Surround
Surround
Back
Subwoofer
Re-mix
TEST
TONE
T. T O N E
MANUAL
T. T O N E
AUTO
CROSSOVER
3
Select a speaker system.
1Select the SP SETUP and press the SETUP key again so that
the subwoofer setting indication “SUBW ON” appears.
L
SL SB SR
CR
SP MUTE
AB CLIP
SW
LFE
STEREO
2Use the MULTI CONTROL knob or MULTI %/fikeys to select
the appropriate subwoofer setting.
1SUBW ON : Subwoofer setting mode to the receiver is ON.
2SUBW OFF : Subwoofer setting mode to the receiver is OFF.
•The initial setting is “SUBW ON”.
•When the setting “SUBW OFF” is selected, the Front Speakers
are automatically set to “FRNT LARGE” and the procedure skips
to step 6.
•When Subwoofer output sound is required, select “FRNT
NORMAL”, or select both “FRNT LARGE” and “SW RE-MIX
ON”.
3Press the ∧key or MULTI #key to accept the setting.
•The front speakers setting indication “FRNT” appears.
L
SL SSB SR
CR
SP MUTE
AB CLIP
SW
LFE
STEREO
4Use the MULTI CONTROL knob or MULTI %/fikeys to select
the appropriate front speakers setting.
1FRNT NORMAL : Average size Front Speakers are con-
nected to the receiver.
2FRNT LARGE : Large size Front Speakers are connected
to the receiver.
5Press the ∧key or MULTI #key to accept the setting.
•The Center Speaker setting indication “CNTR” appears.
6Use the MULTI CONTROL knob or MULTI %/fikeys to select
the appropriate Center Speaker setting.
If you selected “FRNT LARGE” as the Front Speakers setting,
1CNTR NORMAL : An average size Center Speaker is con-
nected to the receiver.
2CNTR LARGE : A large size Center Speaker is connected
to the receiver.
3CNTR OFF : Center Speaker setting mode to the re-
ceiver is OFF.
If you selected “FRNT NORMAL” as the Front Speakers
setting,
1CNTR NORMAL : An average size Center Speaker is
connected to the receiver.
2CNTR OFF : Center Speaker setting mode to the
receiver is OFF.
7Press the ∧key or MULTI #key again to accept the setting.
•The Surround Speaker setting indication “SURR” appears.
Continued to next page.
*5536/17-27/EN 05.2.8, 11:57 AM17

18EN
ENGLISH
8Use the MULTI CONTROL knob or MULTI %/fito select the
appropriate Surround Speaker setting.
If you selected “FRNT LARGE” as the Front Speaker setting,
1SURR NORMAL : Average size Surround Speakers are con-
nected to the receiver.
2SURR LARGE : Large size Surround Speakers are
connected to the receiver.
3SURR OFF : Surround Speaker setting mode to the
receiver is OFF.
If you selected “FRNT NORMAL” as the Front Speaker setting,
1SURR NORMAL : Average size Surround speakers are
connected to the receiver.
2SURR OFF : Surround speaker setting mode to the
receiver is OFF.
•When the setting “SURR OFF” is selected, the procedure skips
to step !.
9Press the ∧key or MULTI #key again to accept the setting.
•The Surround Back Speaker setting indication “SB” appears.
0Use the MULTI CONTROL knob or MULTI %/fikeys to select
appropriate Surround Back Speaker setting.
If you selected “SURR LARGE” as the Surround Speaker
setting,
1SB NORMALx1 : A single average size Surround Back
Speaker is connected to the receiver.
2SB NORMALx2 : A pair of average size Surround Back Speak-
ers are connected to the receiver.
3SB LARGEx1 : A single large size Surround Back Speaker
is connected to the receiver.
4SB LARGEx2 : A pair of large size Surround Back Speak-
ers are connected to the receiver.
5SB OFF : Surround Back Speaker setting mode to
the receiver is OFF.
L
SL SSB SR
CR
SP MUTE
AB CLIP
SW
LFE
STEREO
If you selected “SURR NORMAL” as the Surround Speaker
setting,
1SB NORMALx1 : A single average size Surround Back
Speaker is connected to the receiver.
2SB NORMALx2 : A pair of average size Surround Back Speak-
ers are connected to the receiver.
3SB OFF : Surround Back Speaker setting mode to
the receiver is OFF.
!Press the ∧key or MULTI #key again to accept the setting.
•The Subwoofer remix setting indication “SW RE-MIX” appears.
@Use the MULTI CONTROL knob or MULTI %/fikeys to select
the appropriate Subwoofer re-mix setting.
1SW RE-MIX ON : Subwoofer re-mix setting mode to the
receiver is ON.
2SW RE-MIX OFF : Subwoofer re-mix setting mode to the
receiver is OFF.
•If Subwoofer is turned off or “FRNT NORMAL” is selected at the
Front Speaker setting, Subwoofer re-mix setting is not visible.
#Press the SETUP key again to return to the main setup
displays.
4
Select the CROSSOVER frequency.
CROSSOVER function is to adjust the receiver’s audio output character-
istics with the speakers’ characteristics which differs depending on the
size of the speakers. You will be able to enjoy a more natural and
dynamic sound experience even with small size speakers.
1Press the ∧/∨keys
or MULTI @/#keys to select the CROSS-
OVER and press the SETUP key.
2Use the MULTI CONTROL knob or MULTI %/fikeys to select
the CROSSOVER frequency.
1FREQ. : 40Hz
2FREQ. : 60Hz
3FREQ. : 80Hz
4FREQ. : 100Hz
5FREQ. : 120Hz
6FREQ. : 150Hz
LR
SP MUTE
AB CLIP
STEREO
• CROSSOVER function will not be available when “LARGE” is
selected for all the speakers and “SW RE-MIX OFF” is selected
in step 3.
3Press the SETUP key again to return to the main setup displays.
5
Adjust the speaker volume level.
From your usual listening position, adjust the volume levels. The
volume levels from each speaker should be the same.
•The receiver enters the speaker volume level adjustment mode.
•Indicators appear only for the channels of the speakers selected
in step 3.
1Press the ∧/∨keys or MULTI @/#keys to select the TEST TONE.
2Press the SETUP key for the following displays:
1T.TONE AUTO
2T.TONE MANUAL
3The selection of AUTO/MANUAL TEST TONE is done by the
MULTI CONTROL knob or MULTI %/fikeys.
Press the SETUP key again to begin TEST TONE.
Use the MULTI CONTROL knob or MULTI %/fikeys to adjust
the volume level of the test tone output from the speaker
channel to be adjusted.
For AUTO selection, the test tone is heard from the speakers in
the following sequence for 2 seconds each starting from the
Front Left speaker.
LEFT CNTR RIGHT SR
SL SBLSUBW SBR
•If you have selected “SB NORMALx1” or ”SB LARGEx1”,
“SBR” and “SBL” are not appeared but “SB” is appeared on the
Display.
The channel indication blinks while the test tone is being output.
L
SL SB SR
CR
SP MUTE
AB CLIP
SW
LFE
•If the speaker setting selects are OFF, the speaker level
settings are reset.
For MANUAL selection, press the ∧/∨keys
or MULTI @/#
keys each time to select the speaker channel.
4Press the SETUP key again.
•The test tone is turned off and return to the main setup displays.
Preparing for surround sound
*5536/17-27/EN 05.2.8, 11:57 AM18

19EN
ENGLISH
Preparing for surround sound
6
Input the distance to the speakers.
•Indicators appear only for the channels of the speakers selected
in step 3.
1Press the ∧/∨keys
or MULTI @/#keys to select the SP
DISTANCE on setup displays and press the SETUP key again.
2Measure the distance from the listening position to each of
the speakers.
Jot down the distance to each of the speakers.
Distance to Front Left Speaker (L) : ____ feet (meters)
Distance to Center Speaker (C) : ____ feet (meters)
Distance to Front Right Speaker (R) : ____ feet (meters)
Distance to Surround Right (SR) : ____ feet (meters)
Distance to Surround Back Right (SBR) : ____ feet (meters)
Distance to Surround Back (SB) : ____ feet (meters)
Distance to Surround Back Left (SBL) : ____ feet (meters)
Distance to Surround Left (SL) : ____ feet (meters)
Distance to Subwoofer (SW) : ____ feet (meters)
•If you have selected “SB NORMALx1” or ”SB LARGEx1”,
“SBR” and “SBL” are not appeared but “SB” is appeared on the
Display.
3Use the ∧/∨keys
or MULTI @/#keys to select the speakers
and the MULTI CONTROL knob or MULTI %/fikeys to adjust
the distance to the Front Speakers.
The speaker indicator to be adjusted blinks.
L
SL SSB SR
CR
SP MUTE
AB CLIP
SW
LFE
STEREO
Indication in feet Indication in meters
•The allowable setting range is 1 to 30 feet (0.3 to 9.0 m),
adjustable in 1 foot (0.3 m) increments.
4Repeat steps 3to input the distance for each of the speakers.
5Press the SETUP key again to return to main setup displays.
•The speakers you have selected should appear on the display.
Confirm that all the speakers have been correctly selected.
7
Adjust the LFE LEVEL (Low Frequency Effects).
1Press the ∧/∨keys or MULTI @/#keys to select the LFE
LEVEL.
2Use the MULTI CONTROL knob or MULTI %/fikeys to adjust
the LFE LEVEL.
LR
SP MUTE
AB CLIP
STEREO
•The LFE LEVEL can be adjusted from 0dB to -10dB in 1dB
decrements.
3Press the SETUP key again to return to main setup displays.
8
Select the display mode.
1Press the ∧/∨keys or MULTI @/#keys to select the DISP
MODE.
2Use the MULTI CONTROL knob or MULTI %/fikeys to select
the display mode.
1DISP SELECTOR : Displays the current input selector.
2DISP LISTEN : Displays the current listen mode.
SP MUTE
AB CLIP
LR
STEREO
3Press the SETUP key again to accept the setting.
4Use the ∧key or
MULTI #key to select EXIT.
LR
SP MUTE
AB CLIP
SL S SB SR
STEREO
5Press the SETUP key to exit the SETUP mode.
*5536/17-27/EN 05.2.8, 11:57 AM19

20EN
ENGLISH
Normal playback
Listening to a source component
VOLUME CONTROL
AV AUX/GAMEInput Selector keys
VOLUME %/fi
Input Selector
keys
1
Use the Input Selector keys or AV AUX/GAME key to select
the source you want to listen to.
Selecting a source using each key.
1TUNER
2CD/DVD
3MD/TAPE
4VIDEO 1
5VIDEO 2
6VIDEO 3
7DVD/6CH
8PHONO
9AV AUX [GAME] (or AV AUX)
2
Start playback from the selected source.
3
Use the VOLUME CONTROL knob or VOLUME % / fi keys to
adjust the volume.
Set up the AV AUX jacks on the front panel
Perform the setup for convenience of playing a video game using the
receiver.
1Use the AV AUX/GAME key or Input Selector keys to select “AV
AUX [GAME]” (or “AV AUX”).
2Press and hold the AV AUX/GAME key for more than 2 seconds
for the following selections;
1AV AUX [GAME] : When the connected game player is turned
ON, the input selector is switched automati-
cally to “AV AUX [GAME]”. In addition, the
ACTIVE EQ function is switched to “ACTIVE
EQ GAME”, and the Listen mode is switched
to the appropriate mode for games.
2AV AUX : The game mode is switched off.
•
The game mode is not activated if no video signal is input to the VIDEO
or S-VIDEO jack in the AV AUX jack section.
Preparing for playback
Some preparatory steps are needed before starting playback.
INPUT MODE
SPEAKERS
(POWER
ON/STANDBY)
Turning on the receiver
1Turn on the power to the related components.
2Turn on the power to this receiver by pressing the (POWER
ON/STANDBY) key.
Selecting the input mode
If you have selected a component connected to the CD/DVD, VIDEO 2,
VIDEO 3 or DVD/6CH jacks, make sure that the input mode setting is
correct for the type of audio signal to be used. 8
Selecting the speaker system
Press the SPEAKERS key to select the speaker system to be used.
A ON :
Sound from the speakers connected to the SPEAKERS A
terminals on the rear panel.
B ON : Sound from the speakers connected to the SPEAKERS B
terminals on the rear panel. No sound will be heard from the
subwoofer.
A+B ON : Sound from both the speakers connected to the SPEAKERS
A and B terminals on the rear panel.
A+B OFF : No sound from the speakers. The display segments are
different depending on the type of input signal.
The indicator for the speakers
you want to use should be lit.
L
SL S SB SR
CR
SP MUTE
AB CLIP
LFE
•Selecting “6CH INPUT” by pressing the INPUT MODE key, whereby
“DVD/6CH” is the input source will cause SPEAKERS A to be selected
automatically.
•When the SPEAKERS B is turned ON, the Listen mode will be
switched to STEREO.
*5536/17-27/EN 05.2.8, 11:57 AM20
