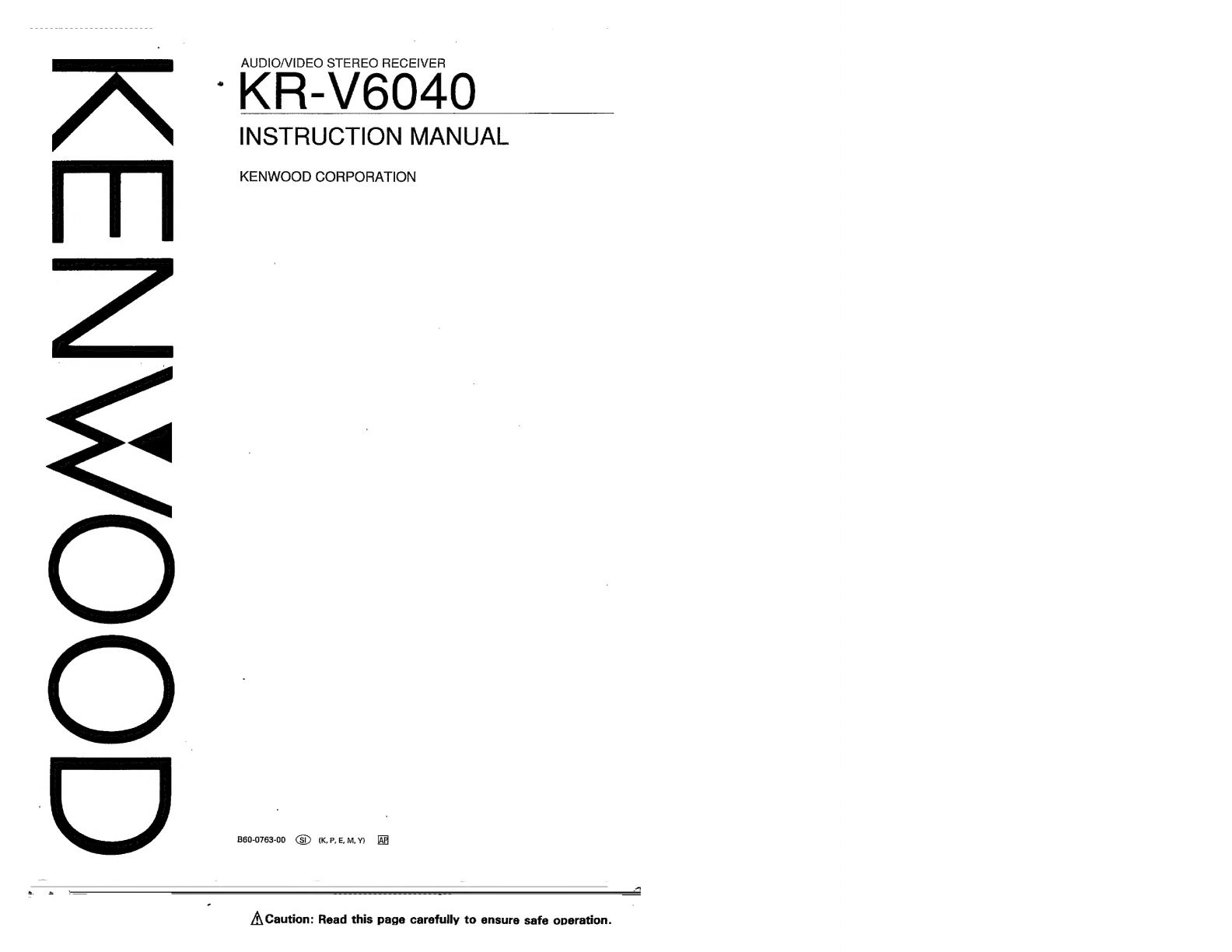

Kenwood KR-V6040 User manual

AUDIO/VIDEO STEREO RECEIVER
‘KR-V6040
KENWOOD CORPORATION
BG60-0763-00 (SID (k,P,E.M.Y) [AB
GOO/*ANS
A\ Caution: Read this page carefully to ensure safe operation.

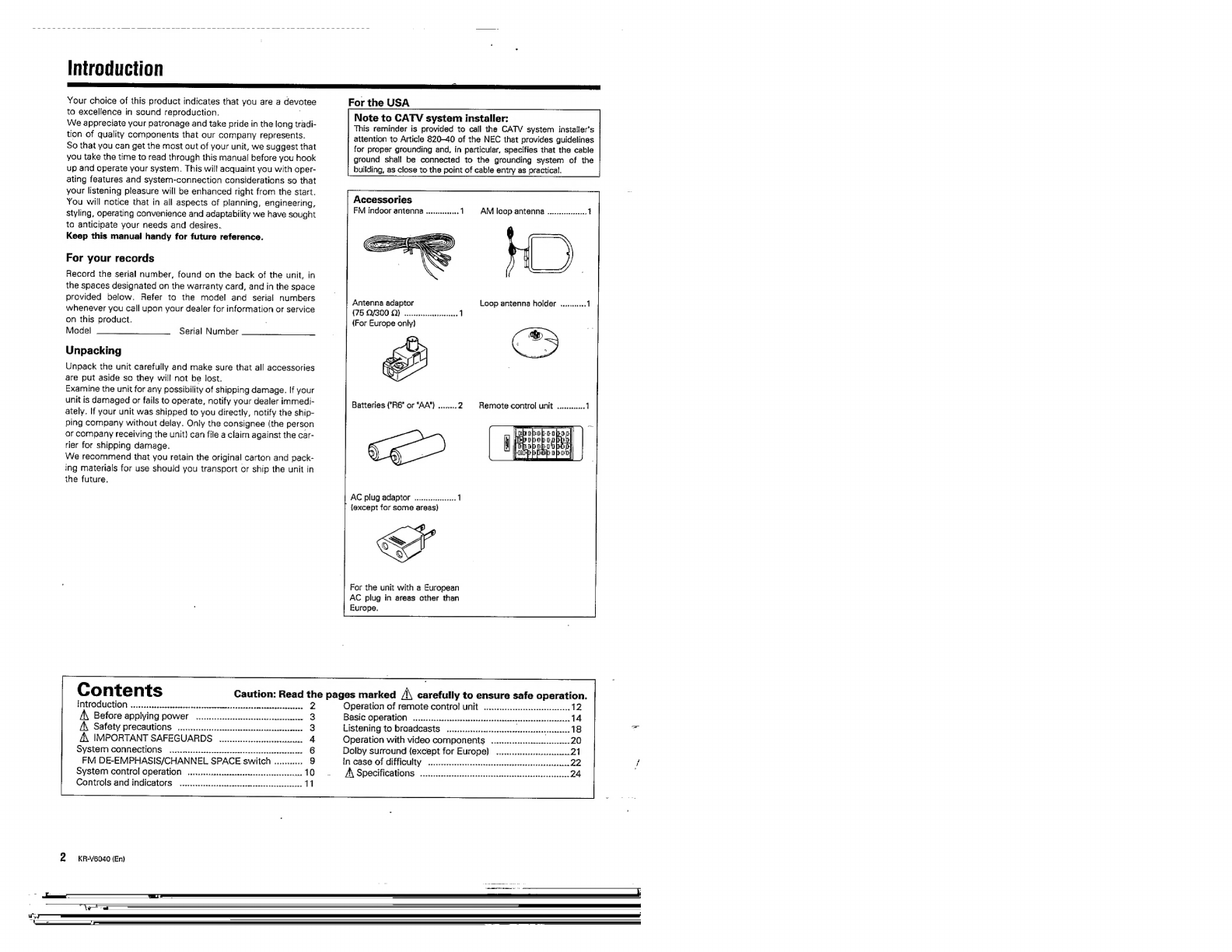

Introduction
Your choice of this product indicates that you are a devotee
to excellence in sound reproduction. ;
We appreciate your patronage and take pride in the long tradi-
tion of quality components that our company represents.
So that you can get the most out of your unit, we suggest that
you take the time to read through this manual before you hook
up and operate your system. This will acquaint you with oper-
ating features and system-connection considerations so that
your listening pleasure will be enhanced right from the start.
You will notice that in all aspects of planning, engineering,
Styling, operating convenience and adaptability we have sought
to anticipate your needs and desires.
Keep this manual handy for future reference.
For your records
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service
on this product.
Medel __ ss —~C*‘«SSrral Numiee@r
Unpacking
Unpack the unit carefully and make sure that all accessories
are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If your
unit is damaged or fails to operate, notify your dealer immedi-
ately. If your unit was shipped to you directly, notify the ship-
ping company without delay. Only the consignee (the person
or company receiving the unit) can file a claim against the car-
rier for shipping damage.
We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.
Contents
WYROGUGHION .tscin tet ecta esate o ts wee, YD
A\ Before applying power .........
[AN Safety precautions ....cccecscessscscccccceccessessceseseceseeeeee
A\ IMPORTANT SAFEGUARDS. .......esescscseesseeee
System connections
FM DE-EMPHASIS/CHANNEL SPACE switch
System control operation oo... teeesseescccceceeeeseees . 10
Controls and indicators
Se ne eee een 3
2 KR-V6040 (En)
For the USA
Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Accessories
FM indoor antennae
Antenna adaptor
{75 Q/300 Q)
(For Europe only)
~
AC plug adaptor
{except for some areas)
For the unit with a European
AC plug in areas other than
Europe.
Caution: Read the pages marked AY carefully to ensure safe operation.
Operation of remote control unit
Basic operation
Listening to broadcasts
Operation with video components
Dolby surround {except for Europe)
in case of difficulty
A\ Specifications

{A\ Caution: Read this page carefully to ensure safe operation.

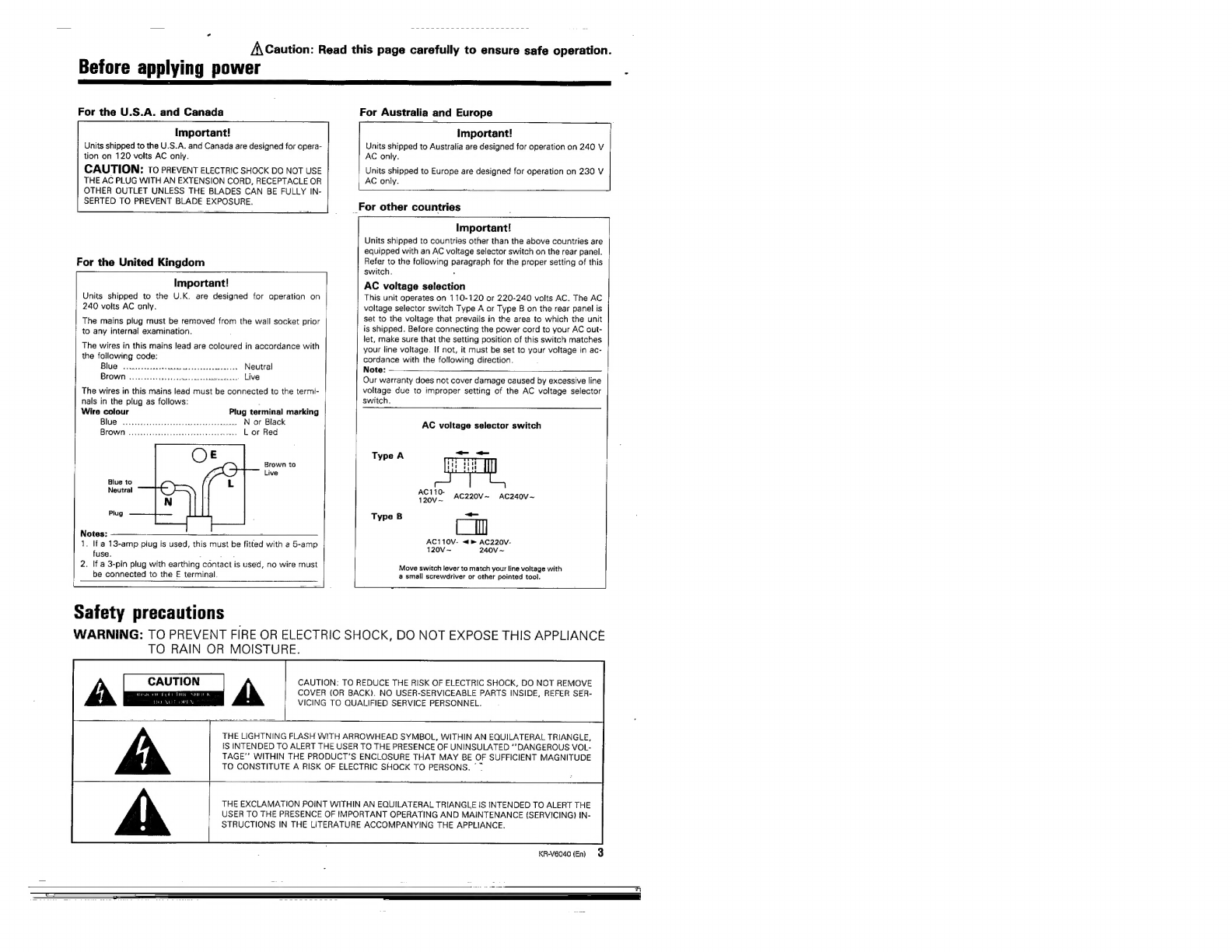

Before applying power
eg
For the U.S.A. and Canada
Important!
Units shipped to the U.S.A. and Canada are designed for opera-
tion on 120 volts AC only.
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE
THE AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY IN-
SERTED TO PREVENT BLADE EXPOSURE.
For the United Kingdom
Important!
Units shipped to the U.K. are designed for operation on
240 volts AC only.
The mains plug must be removed from the wall socket prior
to any interna! examination.
The wires in this mains lead are coloured in accordance with
the follawing code:
Blue ..uu........e
Brown ...........9086
The wires in this mains lead must be connected to the termi-
nals in the plug as follows:
Wire colour
wansascterencececeseee--s Neutral
usec... Live re
Plug terminal marking
N or Black
L or Rec
Brown to
Live
Neutral
Plug
Notes: ———_ ——__—_________-_
1. If a 13-amp plug is used, this must be fitted with a 5-amp
fuse. . 4s
2. If a 3-pin plug with earthing contact is used, no wire must
be connected to the E terminal.
Safety precautions
For Australia and Europe
important!
Units shipped to Australia are designed for operation on 240 V
AC only.
Units shipped to Europe are designed for operation on 230 V
AC only.
_For other countries
Important!
Units shipped to countries other than the above countries are
equipped with an AC voltage selector switch on the rear panel.
Refer to the following paragraph for the proper setting of this
switch. ;
AC voltage selection
This unit operates on 110-120 or 220-240 volts AC. The AC
voltage selector switch Type A or Type B on the rear panel is
set to the voltage that prevails in the area to which the unit
is shipped. Before connecting the power cord to your AC out-
let, make sure that the setting position of this switch matches
your line voltage. If not, it must be set to your voltage in ac-
cordance with the following direction.
Note: .
Our warranty does not cover damage caused by excessive line
voltage due to improper setting of the AC voltage selector
switch,
AC voltage selector switch
_=_ «ah
ACTION pcozov~
aN AC240V ~
—_—
[i
AC1I10V- <1» AC220V-
T20V ~ 240V ~
Move switch lever ta match your line valtage with
a small screwdriver or other pointed tool.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION
Bless che Be é i TR SRO
tir) Wee T CHEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE,
IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED ‘’DANGEROUS VOL-
TAGE” WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. | ~
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) IN-
STRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
KR-V6040 (En) 3

_ IMPORTANT SAFEGUARDS
™~
/A\ Caution : Read this page carefully to ensure
safe operation.
Please read all of the safety and operating instructions
before operating this unit. For best results, follow all
warnings placed on the unit and adhere to the operat-
ing and use instructions. These safety and operating in-
structions should be retained for future reference.
1. Power sources — -The unit should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
2. Power-cord protection — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them, pay particular attention to cords at
plugs, convenience receptacles, and the point where
they exit from the unit.
Never pull or stretch
the cord.
3.Grounding or polarization — The precautions
should be taken so that the grounding or polariza-
tion means of this unit is not defeated.
4. Ventilation — The unit should be situated so that
its location or position does ‘not interfere with its
proper ventilation.
To maintain good ventilation, do not put records or
a table-cloth on the unit. Place the unit at least
10 cm away from the walls.
Do not use the unit on a bed, sofa, rug or similar
surface that may block the ventilation openings.
5. Water and moisture — The unit should not be
used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet base-
ment, or near a swimming pool, etc.
6. Temperature — The unit may not function pro-
perly if used at extremely tow, or freezing tempera-
tures. The ideal ambient temperature is above + 5°C
(41°F). ;
4 kR-v6040 {En}
7.Heat — The unit should be situated away from
heat sources such as radiators, heat registers,
stoves, or other units (including amplifiers) that
produce heat.
8. Electric shock — Care should be taken so that ob-
jects do not fall and liquid is not spilled into the en-
closure through openings. If a metal object, such as
a hair pin or a needle, comes into contact with the
inside of this unit, a dangerous electric shock may
result. For families with children, never permit chil-
dren to put anything, especially metal, inside this
unit.
9.Enclosure removal — Never remove the en-
closure. If the internal parts are touched accidentally,
a serious electric shock might occur.
10.Magnetic fields — Keep the unit away from
sources of magnetic fields such as TV sets, speaker
systems, radios, motorized toys or magnetized
objects.
41. Cleaning — Do not use volatile solvents such as
alcohol, paint thinner, gasoline, or benzine, etc. to
clean the cabinet. Use a clean dry cloth.
Ankh

ACaution : Read this page carefully to ensure safe
operation.
12. Carts and stands — An appliance and cart com- © ductors, location of antenna-discharge unit, connection
bination should be moved with care. Quick stops, to grounding electrodes, and requirements for the
excessive force, and uneven surfaces may cause ~ grounding electrode. See Figure.
the appliance and cart combination to overturn. ee ts
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
13. Nonuse periods — The power cord of the unit GROUNDING CONDUCTORS
should be unplugged from the outlet when left un- GROUND CLAMPS
used
for
a
long
period_of
time.
:
FLECTRODE
SYSTEM
NS
NEC — NATIONAL ELECTRICAL CODE (NEC ART 250, PART H)
14. Abnormal smell — If an abnormal smell or smoke beet hs fe et ee ae ah
is detected, immediately turn the power OFF and pull ’ 18. Power lines — An outdoor antenna should be lo-
out the power cord. Contact your dealer or nearest cated away from power lines.
service center.
POWER OFF! 19. AC outlets — Do not connect other audio equip-
ment with a power consumption larger than that
specified to the AC outlet on the rear panel. Never
connect other electrical units, such as an iron or
toaster, to it to prevent fire or electric shock.
15. Damage requiring service — The unit should be
serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into
the unit; or
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or
exhibits a marked change in performance; or
E. The unit has been dropped, or the enclosure
damaged.
16. Servicing — The user should not attempt to ser-
vice the unit beyond that described in the operating
instructions. All other servicing should be referred
to qualified service pérsonnel.
17. Outdoor antenna grounding — If an outside an-
tenna is connected to the receiver, be sure the an-
tenna system is grounded so as to provide some
protection against voltage surges and built up stat-
ic charges. Section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and sup-
porting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding con-
Notes: ; - ; ——
1. Item 3 is not required except for grounded or polarized equipment.
2. Item 17 and 18 are not required except for units provided with antenna terminals.
3. Itam 17 complies with UL in the U.S.A,
KR-V6040 (En) 5

System connections
Make connections as shown in the diagram below. When connecting the related system components, refer also to the.
instruction manuals of the related components.
Do not plug in the power lead until all connections are completed.
@ Connection of audio components
For the connection of video components, please refer to page 20.
.
Rear speakers Speaker system A Speaker system B
Right Left Right Left Right Left
FM DE-EMPHASIS/ ee
CHANNEL SPACE switch
{Except for some areas.)
AC voltage
selector switch
Refer to the “Antenna acllbishaed SPEAKER {Except for some
connections” section. (Except for Europe) areas.)
AC outlets for U.S.A. and CANADA
=_ q To AC
C= outlet
AC outlets
N
For other
countries
Refer to the "Setting
the speaker IMPEDANCE
SELECTOR" section.
Refer to the
“System contral
operation section. Tape deck 2
Tape deck 1
Turntable
Notes: =
1. Connect all cords firmly. If connections are loose there cauld be loss of sound or noise produced.
2. Do not connect up a power source which is larger than that indicated on the socket at the rear of the unit.
3. When plugging and unplugging connection cords, be sure to first remove the power cord from the AC outlet. Plugging/unplugging connec-
tion cords without removal of the power cord can cause malfunctions or damage to the unit.
6 KR-V6040 [En)
1IREMANRTA LIT NAFFMIIARNRA A Cautinn : Raad thie nade rarafilly to ansure

@ Push lever down. @ Insert cord. @ Lock lever.
dl €
Front speaker terminals for Europe
@® Turn counterclock- @Insertcord. @ Lock knob.
wise to loosen.
@ Never short-circuit the + and - speaker cords, .
@ If the left and right speakers are connected inversely or if the” becomes unnatural with ambiguous acoustic image positioning. |
speaker cords are connected with reversed polarity, the sound Be sure to connect the speakers and speaker cords correctly.
M Setting the SPEAKER IMPEDANCE SELECTOR
| When using the speaker A or speaker B separately According to the impedance of the speakers used, set the |
= SPEAKER IMPEDANCE SELECTOR on the rear panel as shown |
Speaker Impedance Selector position
in the table.
Kor 8: LESS THAN
82 OR MORE @ When the IMPEDANCE SELECTOR switch is set to “8 Q OR
MORE’, it is impossible to use the A and B speakers at the
same time.
When using the speaker A and B simultaneously Therefore, when using the speakers A and B simultaneously,
Speaker Impedance be sure to set the IMPEDANCE SELECTOR switch to the ‘A
0160 Az , OR MORE and B: 8 Q OR MORE’ position.
and B: 8 OR MOR @ During speaker system connection and operation of the
SPEAKER IMPEDANCE SELECTOR, set the POWER key to
OFF.
(MPEDANCE SELECTOR
AorB:
LESS THAN 89 AorB:
4andB:89 OR MORE “ais 8&0 OR MORE
Lol
—
KR-V6040 (En) 7

System connections
Connection of antennas
a
f The supplied antenna is for indoor use. Place it as far as possible from the main system, TV set, speaker cords and power cord, and set it
to a direction which provides the best reception.
Antenna stand
The supplied antenna is for indoor use. . For stable reception, remove the indoor antenna after installing an outdoor antenna as soon as
possible.
® Find the position that provides best reception.
@ Fix two ends. :
@ FM outdoor antenna connection
It is recommended to install an exclusive FM outdoor antenna to capture FM broadcasts with high sound quality. Use a coaxial cable for
the connection between the outdoor antenna and FM ANTENNA termina! on the rear panel.
8 KR-V6040 (En)
= | eee eee ee ee ee eee eee =.= = = 7 -_ -

M 752 coaxial cable connection (For Europe)
® Arrange the coaxial cable as illustrated.
Quter shield
(Braid) Jane
, conductor:
RG-6 (5C-2V) or RG-59 (3C-2V)
® Insert into the slit on the clip. Fasten the
bands A and B, using a pair of pliers.
FM DE-EMPHASIS/CHANNEL SPACE switch
{Except for some areas)
The FM DE-EMPHASIS/CHANNEL SPACE switch on the rear panel
is set to the correct setting that prevails in the area to which the
unit is shipped. However, if the FM DE-EMPHASIS/CHANNEL
SPACE setting is not matched to the area where the unit is to be
used; for instance, when you move from area 1 to area 2 or vice
versa, desired reception of AM/FM broadcasts is not expected. In
this case, change the FM DE-EMPHASIS/CHANNEL SPACE setting
in accordance with the area corresponding to the table. The FM
DE-EMPHASIS is switched over at the same time.
@ When changing the setting of the FM DE-EMPHASIS/CHANNEL
SPACE switch, first disconnect the power cord, then reset the
channel space switch, connect the power cord again, and turn
the power on.
® Open the antenna adaptor.
Open the claws with the fingers to
release the lock and pull out the cover.
@ Remove the inner conductor from the
groove of pole @ and insert it in the
groove of pole ® .
® Connect the adapter to the antenna |
terminal.
CHANNEL FM DE-
SPACE freq. EMPHASIS
FM : 100 kHz 75us
AM : 10 kHz
1) U.S.A., Canada, and
South American
countries.
2| Other countries FM :50 kHz ~ 50yus
AM : 9 kHz
DE~
EMPHASIS CHANNEL SPACE
AM FM
50ys Fy A ookHz = 50kHz
T5ys 7 10 kHz 100 kHz
KR-Ve040 (En) 9
;

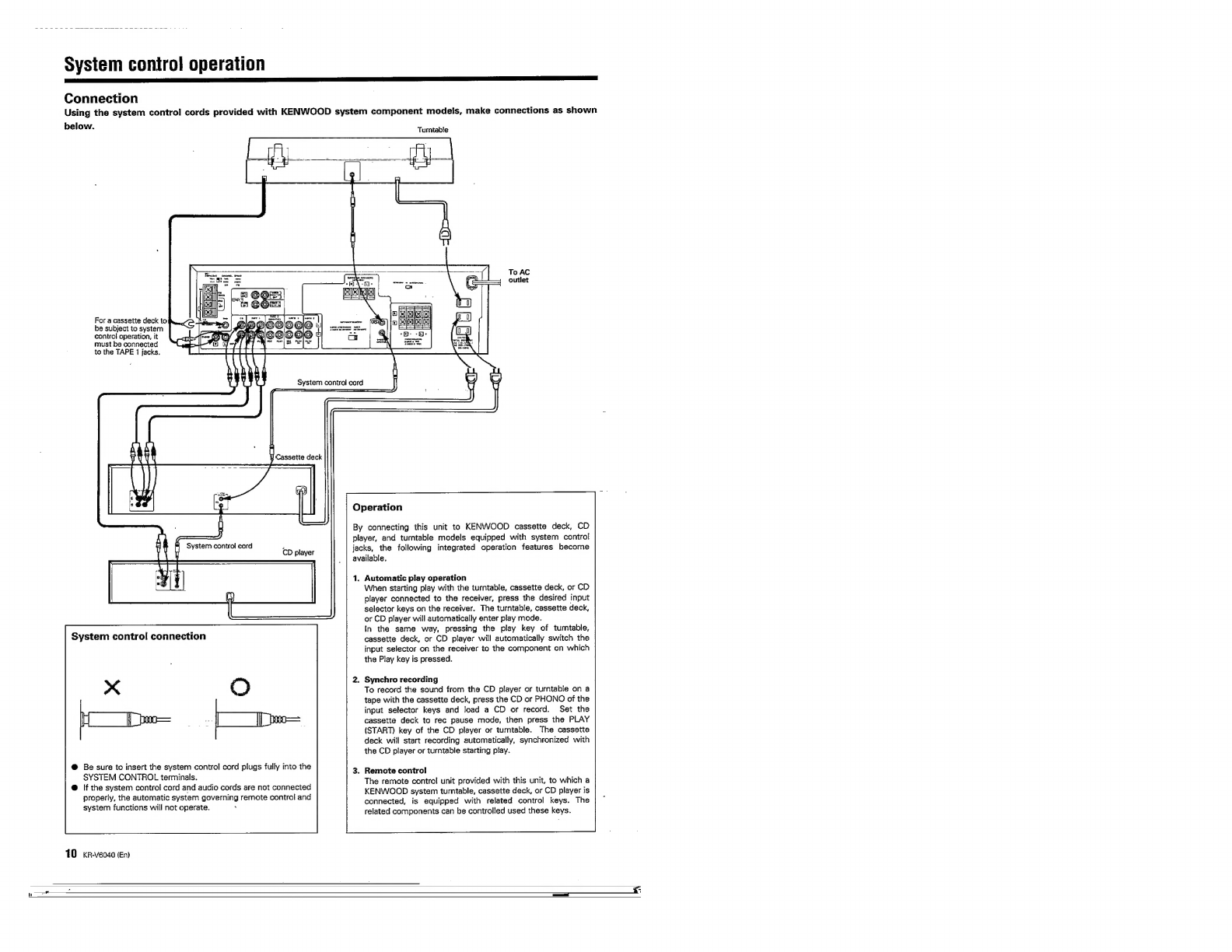

System conirol operation
Connection
Using
the
system
control
cords
provided
with
KENWOOD
system
component
models,
make
connections
as
shown
below. Turntable
AISI
For a cassette deck to
be subject to system
control operation, it
must be connected
to the TAPE 1 jacks.
Operation
By connecting this unit to KENWOOD cassette deck, CD
player, and turntable models equipped with system control
jacks, the following integrated operation features become
available,
1. Automatic play operation
When starting play with the turntable, cassette deck, or CD
player connected to the receiver, press the desired input
selector keys on the receiver. The turntable, cassette deck,
or CD player will automatically enter play mode.
In the same way, pressing the play key of turntable,
cassette deck, or CD player will automatically switch the
input selector on the receiver to the component on which
the Play key is pressed.
System control connection
. Synchro recording
To record the sound from the CD player or turntable on a
tape with the cassette deck, press the CD or PHONO of the
input selector keys and load a CD or record. Set the
cassette deck to rec pause mode, then press the PLAY
(START) key of the CD player or turntable. The cassette
deck will start recording automatically, synchronized with
the CD player or turntable starting play.
_——
@ Be sure to insert the system control cord plugs fully into the
SYSTEM CONTROL terminals.
@ If the system control cord and audio cords are not connected
properly, the automatic system governing remote control and
system functions will not operate.
Remote control
The remote control unit provided with this unit, to which a
KENWOOD system turntable, cassette deck, or CD player is
connected, is equipped with related control keys. The
related components can be controlled used these keys.
10 KR-veo40 (En)

Controls and indicators
TUNED
indicator
MEMORY
indicator
STEREO
reception
indicator
Dolby SURROUND
indicator
AUTO mode
indicator
TUNED MEMORY DOSURROUND
STEREO
\
1
n
|
TAPE
2
indicator
kHz VIDEO
. Woo co eI 0 TA a nd
roc awo——{ Fe EE PE LIEW Lt te em Be ee coe
BAND key DIRECT key
MEMORY key Remote control TUNING key
STAND BY indicator BOE = ea CD DIRECT indicator
oni Rey AUTO key vol UME CONTROL -
POWER
knob
with
point
key
indicator
x aun STEREO kR-Ve040 =
KENWOOD VOLUMETCON TROL
Ee oo SR
PoWwER eS eee ae
2 BOBSESE
DUsSTANO DY
SPEAKERS
A
ae
SURROUND
key
INPUT
BALANCE
knob
for Dolby surround
Tone control knobs CD DIRECT key REAR LEVEL knob
(BASS TREBLE}
PHONES jack
Input select keys Numeric keys BALANCE
contro! knob
+ VOLUME CONTROL
1419 18 47 18
cD OPRECT
Europe
version
:
without
CDOIRECT
OIRGCT
v_
THNING
fay
DOLBY
SURROUND
ae
ea
function.
Jeercace
CENToM
2 2? BALANCE
4
LOUDNESS control knob
SPEAKERS A and B switches
A,
B
OFF
@
This
position
silences
all
speakers
to
permit
private
BON
@
Activates
the
speakers
connected
to
the
SPEAKERS
use of headphones. B terminals on the rear panel.
AON ® Activates speakers connected to the SPEAKERS A A,BON @ Activates the speakers connected to the SPEAKERS
terminals on the rear panel. A and B terminals simultaneously.
KR-V6040 (En) 11

Operation of remote control unit
In addition to the remote control of the receiver unit, the provided remote
control unit can control a KENWOOD cassette tape deck, CD player, turnta- : :
ble, graphic equalizer, etc., connected via the KENWOOD system control ™@ Loading batteries
cords.
Double cassette deck
Tuitsbie 1 Remove the cover.
Jo fo] eseocs es x
Insert two AA-size (R6/SUM-
3) batteries as indicated by
the polarity marking.
M@ Operation procedure
Plug the power cord of the system into an AC wall outlet, and 7 sie
E ; : . ae oe emote control light sensor
press the |POWER| key.on the remote control unit to turn the ; ariihe easineaveient
power on.
When the power is turned on, press the key of the source com-
ponent to be operated.
Approx. 6m
@ When two operation keys on the remote control unit are
pressed successively, press each key securely reserving an
interval of more than 1 second for each press.
@ Be sure to read the instruction manuals of the components
connected via the system control cords.
Remote control unit
operating range
Notes:
1. The supplied batteries are intended for use in operation checks. Therefore, their lives may be shorter than ordinary batteries.
2. When the remote-controllable distance becomes gradvally shorter, replace both batteries with new ones.
3. Malfunction may occur if direct sunlight or the light of a high-frequency lighting fluorescent lamp enters the remote control light sensor. In
such a case, change the system installation position to prevent the malfunction.
12 «R-V6040 (En)

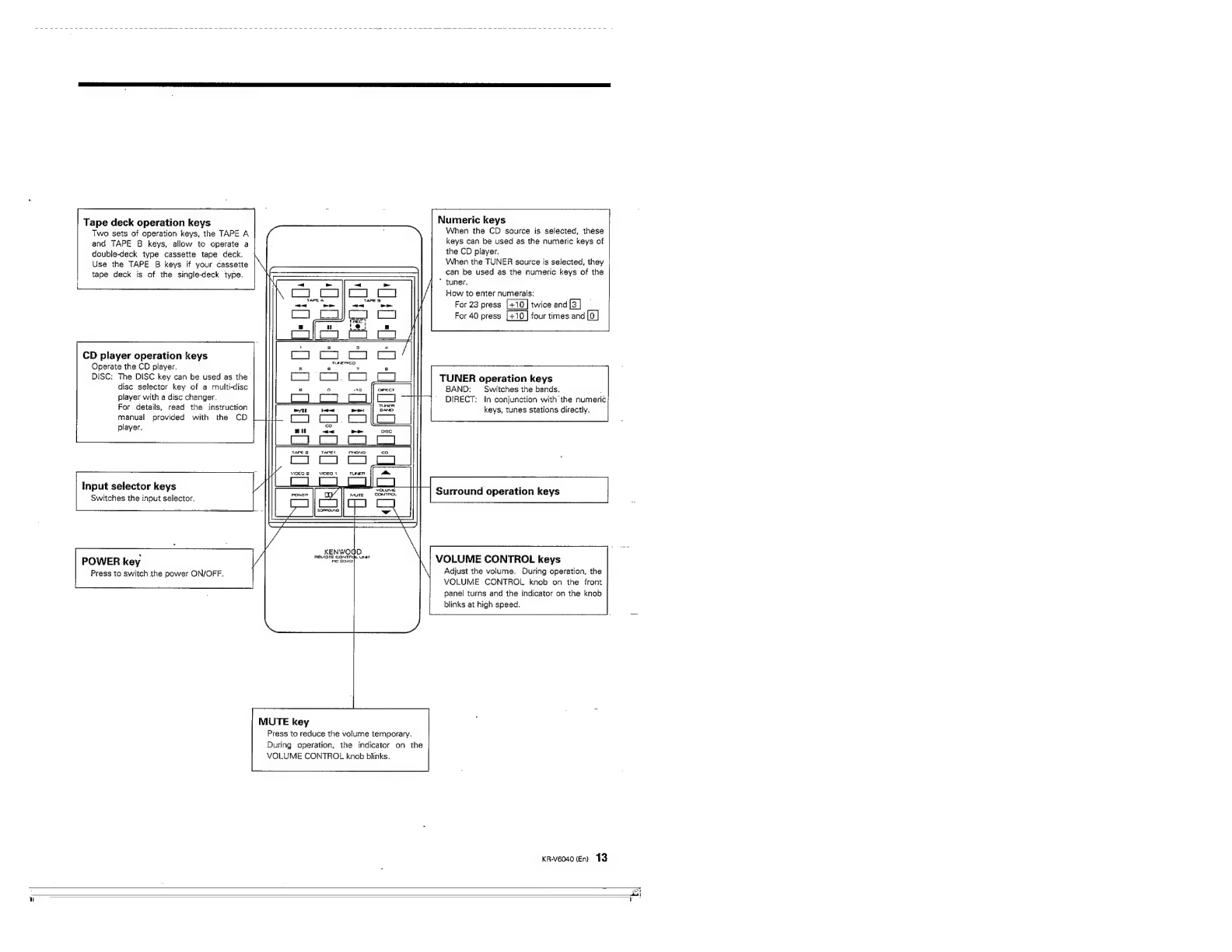

Numeric keys
When the CD source is selected, these
keys can be used as the numeric keys of
the CD player.
When the TUNER source is selected, they
can be used as the numeric keys of the
* tuner.
How to enter numerals:
For 23 press twice and =
For 40 press four times and [0]
Tape deck operation keys
Two sets of operation keys, the TAPE A
and TAPE B keys, allow to operate a
double-deck type cassette tape deck.
Use the TAPE B keys if your cassette
tape deck is of the single-deck type.
CD player operation keys
Operate the CD player.
DISC: The DISC key can be used as the
disc selector key of a multi-disc
player with a disc changer.
For details, read the instruction
manual provided with the CD
player,
TUNER operation keys
BAND: Switches the bands. :
DIRECT: In conjunction with the numeric
keys, tunes stations directly.
Input selector keys
Switches the input selector.
Surround operation keys
VOLUME CONTROL keys
Adjust the volume, During operation, the
VOLUME CONTROL knob on the front
panel turns and the indicator on the knob
blinks at high speed,
POWER key
Press to switch the power ON/OFF.
MUTE key
Press to reduce the volume temporary.
During operation, the indicator on the
VOLUME CONTROL knob blinks.
KR-V6040 (En) 13
i
an

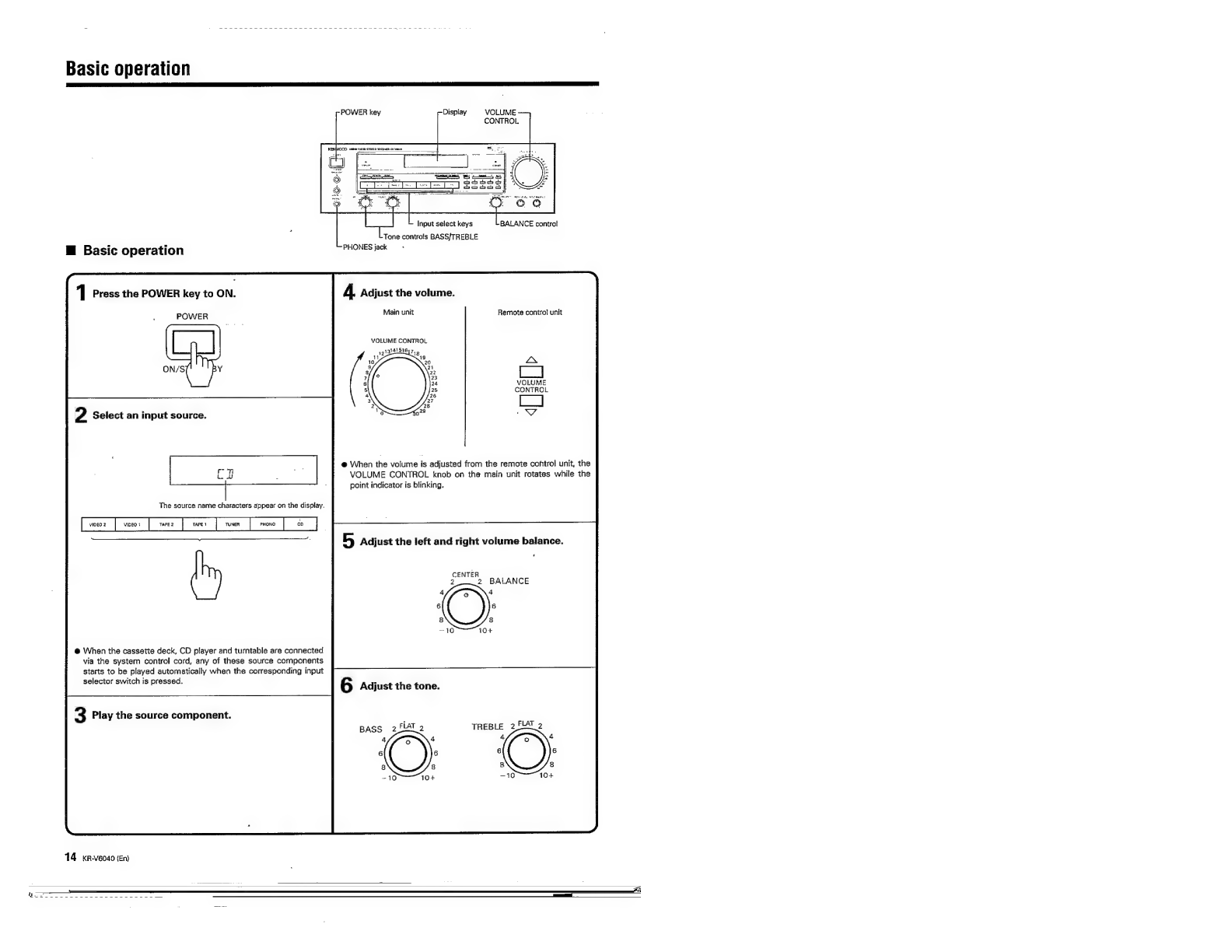

Basic operation
H Basic operation
1 Press the POWER key to ON.
POWER
2 Select an input source.
The source name characters appear on the display.
@ When the cassette deck, CD player and turntable are connected
via the system control cord, any of these source components
starts to be played automatically when the corresponding input
selector switch is pressed.
3 Play the source component.
14 KR-v6e040 (En)
VOLUME
CONTROL
Input select keys BALANCE contro!
Tone controls BASS/TREBLE
PHONES jack
4. Adjust the volume.
Main tunit Remote control unit
VOLUME CONTROL
ggasi 748
1
a
VOLUME
CONTROL
[
7
@ When the volume is adjusted from the remote control unit, the
VOLUME CONTROL knob on the main unit rotates while the
point indicator is blinking.
5 Adjust the left and right volume balance.
CENTER
2 BALANCE
6 Adjust the tone.
BASS 2 FLAT 2 TREBLE 2FLAT 2
‘ 4
6 6
8 8
—10

@ To mute the sound temporarily M@ Listening through headphones
REMOTE CONTROL ONLY
Press the MUTE key on the remote control unit.
VOLUME CONTROL
@ The indicator on the VOLUME CONTROL knob on the
front panel blinks.
@ Pressing the key again resumes the previous volume.
Note on LOUDNESS control (For Europe only)
Listening at high volume allows to enjoy dynamic sound, but
human ears tend to feel low frequencies insufficient when
listening at low volume. When the VOLUME CONTROL is set
to a low position, the insufficiency of low frequencies felt by
human ears can be compensated by turning the LOUDNESS
control clockwise.
Enhances low frequencies.
LOUDNESS
@ The effect of LOUDNESS conirol is less sensible if the
VOLUME CONTROL is set to the "5" position or above.
1 Insert the headphone plug into the
headphones jack.
. a,
7 @ Set the SPEAKERS switch so that both speaker systems A
and B are OFF.
2 Adjust the volume.
VOLUME CONTROL
121 SAlb16)7 48
1 '
@ Be sure to minimize the volume before unplugging the head-
phone plug.
Notes:
1. When the TAPE 2 key is set to ON, the source selected with
the INPUT SELECTOR cannot be heard from the speakers.
To listen to a source other than cassette deck 2, be sure to
set the TAPE 2 key to OFF.
2. The source selected with the INPUT SELECTOR is backed
up for a few days even when the power cord is unplugged.
After this period, the tuner is automatically selected when
the power ts supplied,
STAND BY mode of POWER switch
When the power cord of this system is plugged into an AC
outlet, the STAND BY indicator lights up regardless of the
ON/OFF setting of the POWER switch. This indicates that a
small amount of current is being supplied to the unit to back up
the memory contents. This mode is referred to as the Stand By
mode. While the STAND BY indicator is lit, the power of the
system can be switched ON/OFF from the remote control unit.
KR-V6040 (En) 49

Basic operatians

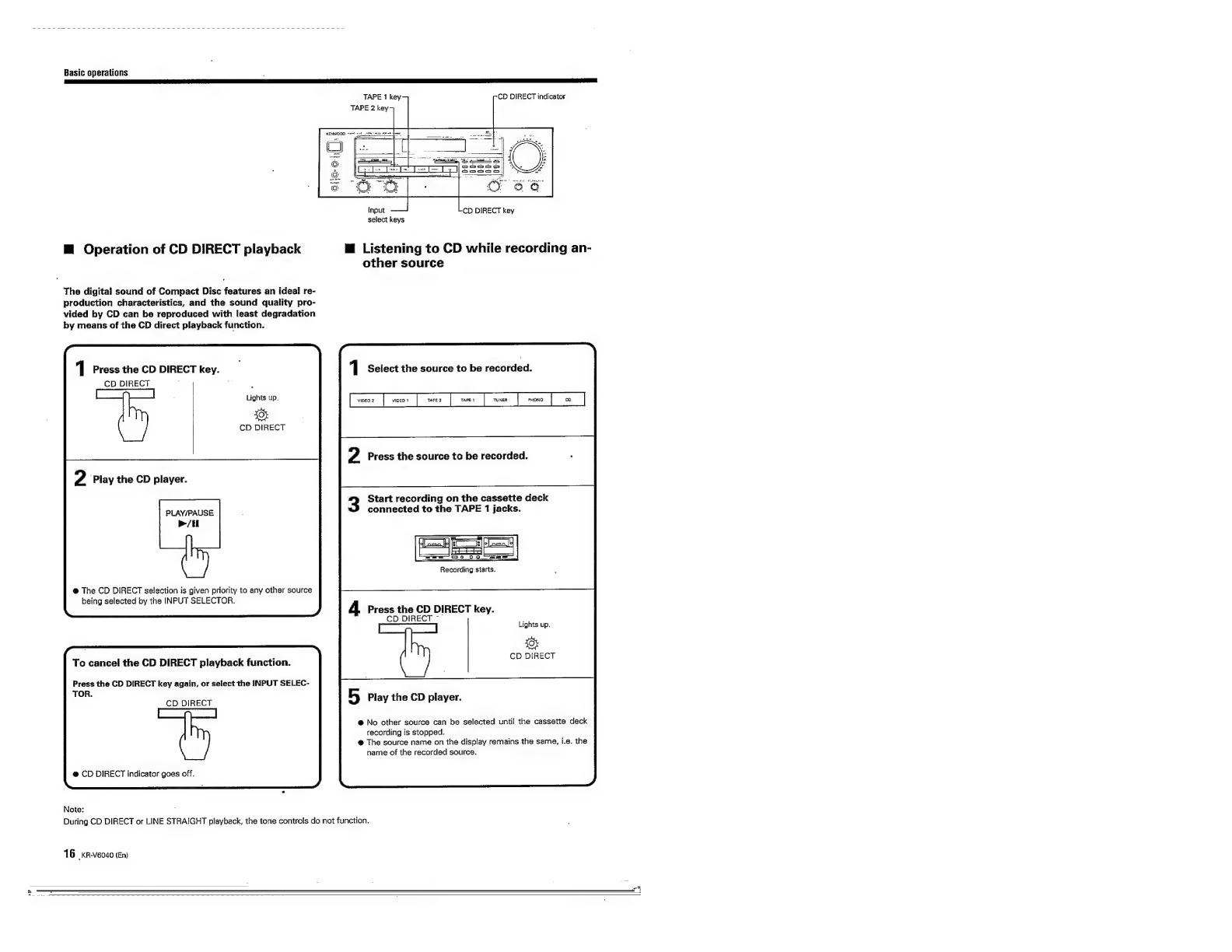

M@ Operation of CD DIRECT playback
The digital sound of Compact Disc features an ideal re-
production characteristics, and the sound quality pro-
vided by CD can be reproduced with least degradation
by means of the CD direct playback function.
1 Press the CD DIRECT key.
CD DIRECT
Lights up.
Lo
CD DIRECT
2 ‘Play the CD player.
PLAY/PAUSE
P/E
@ The CD DIRECT selection is given priority to any other source
being selected by the INPUT SELECTOR.
To cancel the CD DIRECT playback function.
Press the CD DIRECT key again, or select the INPUT SELEC-
TOR.
CD DIRECT
@ CD DIRECT indicator goes off.
Note:
During CD DIRECT or LINE STRAIGHT playback, the tone controls do not function.
16 kR-Ve040 (En)
lke oh,
CD DIRECT indicator
input CD DIRECT key
select keys
m@ Listening to CD while recording an-
other source
1 Select the source to be recorded.
2 Press the source to be recorded.
3 Start recording on the cassette deck
connected to the TAPE 1 jacks.
4. Press the CD DIRECT key.
CD DIRECT ~ :
Lights up.
503
CD DIRECT
5 Play the CD player.
@ No other source can be selected until the cassette deck |
recording is stopped.
@ The source name on the display remains the same, i.e. the |
name of the recorded source.
shu

M Ordinary tape recording — Tape dubbing (TAPE2 » TAPE)
Select the source to be . 1
recorded. Press the TAPE 2 key. indicator
PHONG vz
VIDEO 1
Set cassette deck 1 or 2 in the record-pause 2 Saietha source other than TAPEA
2
Record-pause mode
Play cassette deck 2 and start recording on
3 Play the source component to be recorded, 3
and start recording it on the cassette deck. | cassette deck 1.
Play cassette deck 2. Start recording on deck 1,
Recording starts.
@ In case of tape dubbing {TAPE 1 + TAPE 2}, play the cassette j
deck connected ta TAPE 1 and record on the cassette deck
7 J @ Do not select TAPE 1 while dubbing.
connected to TAPE 2.
Note:
For the tape-to-tape dubbing procedure using a double-deck
type cassette tape deck, please read the instruction manual pro-
vided with the double-deck type cassette tape deck.
KR-Ve040 (En) 17

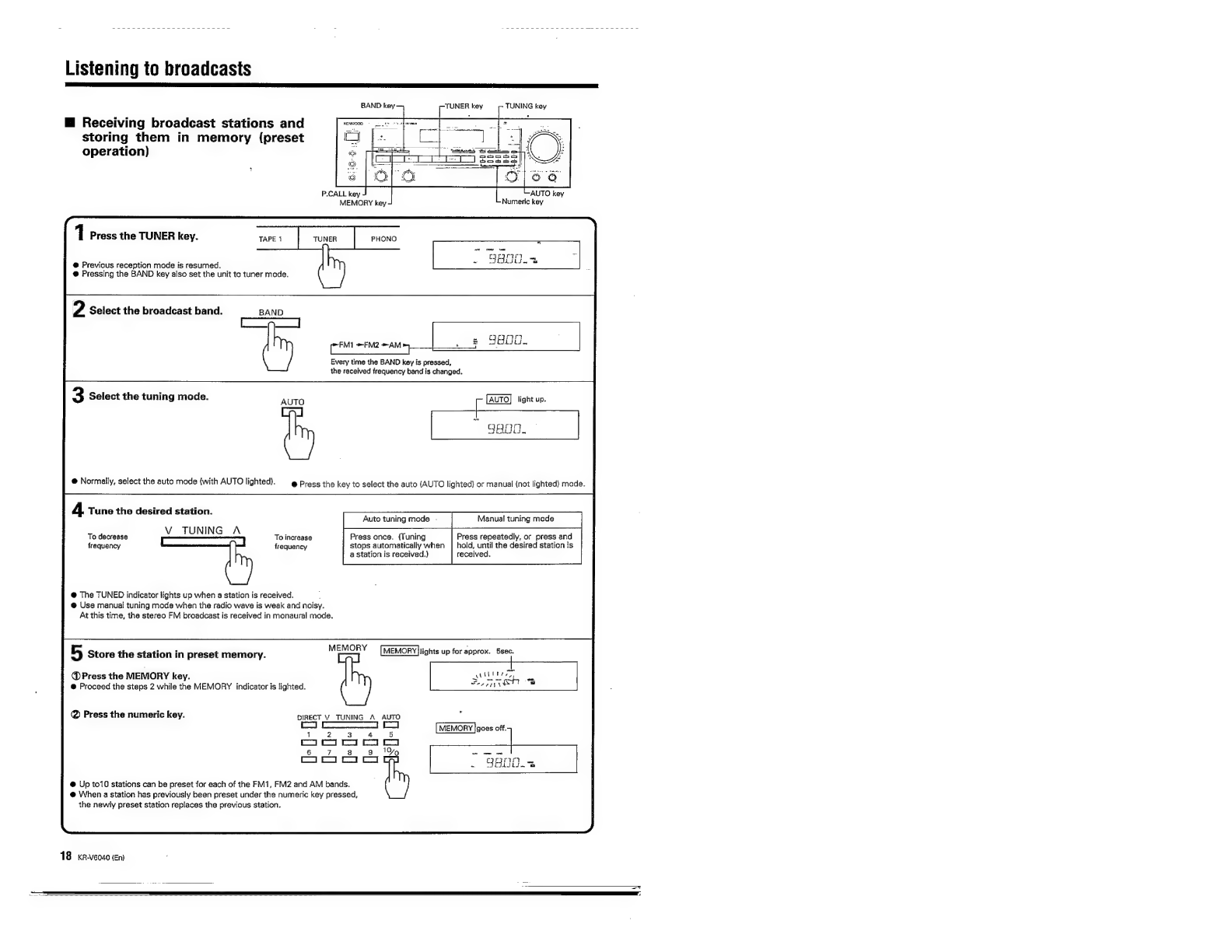

Listening to broadcasts
M@ Receiving broadcast stations and
storing them in memory (preset
operation)
AUTO key
Numeric key
P.CALL key
MEMORY key
1 Press the TUNER key.
@ Previous reception mode is resumed.
@ Pressing the BAND key also set the unit to tuner made.
2 Select the broadcast band.
Every time the BAND key is pressed,
the received frequency band is changed.
3 Select the tuning mode. light up.
@ Normally, select the auto mode {with AUTO lighted). —_ Press the key to select the auto (AUTO lighted) or manual (not lighted) mode.
4 Tune the desired station. -
V TUNING A
To decrease To increase Press once. {Tuning Press repeatedly, or press and
frequency frequency stops automatically when | hoid, until the desired station is
a station is received.) received,
@ The TUNED indicator lights up when a station is received.
@ Use manual tuning mode when the radio wave is weak and noisy.
At this time, the stereo FM broadcast is received in monaural mode.
P . MEMORY A -
5
Store
the
station
in
preset
memory.
[MEMORY
lights
up
for
approx.
Ssec.
gill ttte,,
@ Press the MEMORY key. == hy
@ Proceed the steps 2 while the MEMORY indicator is lighted. ed iiks
| eid,
a
x
MEMORY |goes off.
@ Press the numeric key. DIRECT V TUNING A AUTO
CT Ce ES)
a a. ee ae)
Ee ee ae
g 1%,
Ea Co
@ Up to10 stations can be preset for each of the FM1, FM2 and AM bands.
@ When a station has previously been preset under the numeric key pressed,
the newly preset station replaces the previous station.
18 «R-veo40 (En)

M@ Receiving a preset station
1 Select the broadcast band.
poe ee
Every time the BAND key is pressed,
the received frequency band is changed.
2 Select the desired station.
Press the numeric key for the
preset station you want.
DIRECT V TUNING A AUTO
Co oo) Co
1 2 3 4 «5
Coa) Co £7 Coco
6 7 g g 1%
Ej Co Co Co
The frequency of the station received will be displayed.
mM Listening to all preset stations in
sequence (PRESET CALL)
1 Select the broadcast band.
cairo mal
Every time the BAND key is pressed,
the received frequency band is changed.
| 2 Select the desired station.
P.CALL
@ Every time the P.CALL key is pressed, the received preset |
station is changed as shown below.
FM1 or FM2 band.
FM1(1—»2 8 ........10} =FM2(1 2-3
AM band
AM(1—+2-»-3-~-4
@ Direct tuning of radio station
If you know the frequency of the desired station, it can
be received directly by inputting the frequency using
the numeric keys.
1 Select the broadcast band.
FM1--FM2-~AM
© Every time the BAND key is pressed,
the received frequency band is changed.
2 Press the DIRECT key.
DIRECT
3 Input the frequency of the desired station
by pressing the numeric keys.
DIRECT V TUNING A AUTO
EF Fat ES
3 4 85
ca coco
8 g 10%
mc
:
Desired station Order of pressing numeric keys
FM $0 MHz
ews
(50
kHz
space)
FM 102.5 MHz Gt [o| Hi [s] (oo Rune Paee!
[7], fo], [2], [5], [0] Go kHz space)
ee:
Ea) Ea
6 7
ee il Se
Example of input
raion [fad
fannie |G) BS
Last channel memory
When the tuner’s band selector is switched or when the input
selector is switched from another source to TUNER, the fast re-
ceived station is received for each of FM, AM when the receiver
power is switched ON.
KR-V6040 (En) 19

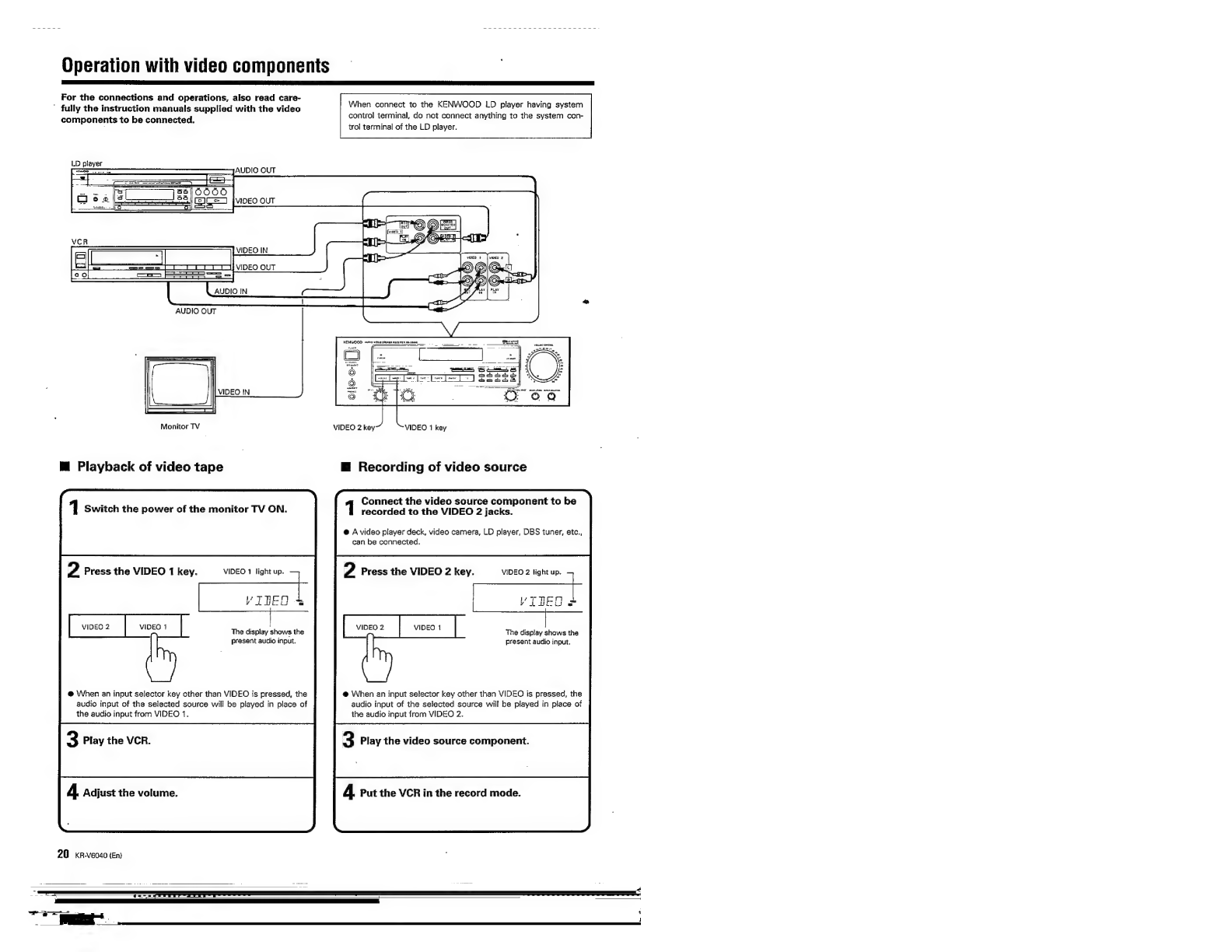

Operation with video components
For the connections and operations, also read care-
' fully the instruction manuals supplied with the video
components to be connected.
When connect to the KENWOOD LD player having system
control terminal, do not connect anything to the system con-
tro! terminal of the LD player.
LD player
AUDIO OUT
Monitor TV
M@ Recording of video source
mM Playback of video tape
1 Connect the video source component to be
1 Switch the power of the monitor TV ON. recorded to the VIDEO 2 jacks.
@ A video player deck, video camera, LD player, DBS tuner, etc.,
can be connected.
2 Press the VIDEO 2 key. ViDE02 light up.
2 Press the VIDEO Tkey. VIDEO 1 light up.
VIDEO 1 VIBEO 2 .
The display shows the
present audio input.
VIDEO 2 VIDEO 1
The display shows the
present audio input,
@ When an input selector key other than VIDEO is pressed, the @ When an input selector key other than VIDEO is pressed, the
audio input of the selected source will be played in place of
the audio input from VIDEO 1.
3 Play the VCR.
4. Adjust the volume.
20 KR-ve040 (En)
audio input of the selected source will be played in place of |
the audio input from VIDEO 2.
3 Play the video source component.
4 Put the VCR in the record mode.
Ah,
