INSTRUCTION MANUAL
UHF FM TRANSCEIVER
TK-3501
B62-2606-10

i
THANK YOU
We are grateful you have chosen KENWOOD for your PMR 446
applications.
This Instruction manual covers only the basic operations of your PMR446
(Private Mobile Radio). Ask your dealer for information on any customized
features they may have added to your radio.
OPERATING CONDITIONS
Open locations (no obstructions) : Up to 9.0 km
Note:
◆The above range is based on field testing and may vary with your
operating conditions and individual transceiver.
NOTICES TO THE USER
Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and
understands, hazards common to the operation of any
transceiver.
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in
KENWOOD product memories are reserved for JVC KENWOOD
Corporation.

ii
PRECAUTIONS
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the
transceiver and the battery pack.
• Do not use options not specified by KENWOOD.
• If the die-cast chassis or other transceiver part is damaged, do not
touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce
the transceiver volume. Pay attention to the volume level when
turning the squelch off.
• Do not place the microphone cable around your neck while near
machinery that may catch the cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for transmission for many hours, the
radiator and chassis will become hot. Do not touch these locations
when replacing the battery pack.
• Do not immerse the transceiver in water.
• Always switch the transceiver power offbefore installing optional
accessories.
• The charger is the device that disconnects the unit from the AC
mains line.The AC plug should be readily accessible.
Turn the transceiver power offin the following locations:
• In explosive atmospheres (inflammable gas, dust particles, metallic
powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
• Near explosives or blasting sites.
• In aircraft. (Any use of the transceiver must follow the instructions and
regulations provided by the airline crew.)
• Where restrictions or warnings are posted regarding the use of radio
devices, including but not limited to medical facilities.
• Near persons using pacemakers.

iii
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while the
vehicle is running.When the airbag inflates, the transceiver may be
ejected and strike the driver or passengers.
• Do not transmit while touching the antenna terminal or if any metallic
parts are exposed from the antenna covering.Transmitting at such a
time may result in a high-frequency burn.
• If an abnormal odor or smoke is detected coming from the
transceiver, switch the transceiver power offimmediately, remove
the battery pack from the transceiver, and contact your KENWOOD
dealer.
• Use of the transceiver while you are driving may be against traffic
laws. Please check and observe the vehicle regulations in your area.
• Do not expose the transceiver to extremely hot or cold conditions.
• Do not carry the battery pack with metal objects, as they may short
the battery terminals.
• Danger of explosion if the battery is incorrectly replaced; replace only
with the same type.
• When attaching a commercial strap to the transceiver, ensure that
the strap is durable. In addition, do not swing the transceiver around
by the strap; you may inadvertently strike and injure another person
with the transceiver.
• If a commercially available neck strap is used, take care not to let the
strap get caught on nearby machine.
• When operating the transceiver in areas where the air is dry, it is
easy to build up an electric charge (static electricity).When using
an earphone accessory in such conditions, it is possible for the
transceiver to send an electric shock through the earphone and to
your ear. We recommend you use only a speaker/microphone in
these conditions, to avoid electric shocks.

iv
Information concerning the battery pack:
The battery pack includes flammable objects such as organic
solvent. Mishandling may cause the battery to rupture producing
flames or extreme heat, deteriorate, or cause other forms of
damage to the battery. Please observe the following prohibitive
matters.
• Do not disassemble or reconstruct the battery!
The battery pack has a safety function and protection circuit to avoid
danger. If they suffer serious damage, the battery may generate heat
or smoke, rupture, or burst into flame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such as a
paper clip or wire). Do not carry or store the battery pack in containers
holding metal objects (such as wires, chain-necklaces or hairpins). If
the battery pack is short-circuited, excessive current will flow and the
battery may generate heat or smoke, rupture, or burst into flame. It will
also cause metal objects to heat up.
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function is
damaged, or the electrolyte is ignited, the battery may generate heat
or smoke, rupture, or burst into flame.
• Do not leave the battery near fire, stoves, or other heat
generators (areas reaching over 80°C/ 176°F)!
If the polymer separator is melted due to high temperature, an
internal short-circuit may occur in the individual cells and the battery
may generate heat or smoke, rupture, or burst into flame.
• Avoid immersing the battery in water or getting it wet by other
means!
If the battery becomes wet, wipe it offwith a dry towel before use. If
the battery’s protection circuit is damaged, the battery may charge
at extreme current (or voltage) and an abnormal chemical reaction
may occur. The battery may generate heat or smoke, rupture, or
burst into flame.

v
• Do not charge the battery near fire or under direct sunlight!
If the battery’s protection circuit is damaged, the battery may charge
at extreme current (or voltage) and an abnormal chemical reaction
may occur. The battery may generate heat or smoke, rupture, or
burst into flame.
• Use only the specified charger and observe charging
requirements!
If the battery is charged in unspecified conditions (under high
temperature over the regulated value, excessive high voltage or
current over regulated value, or with a remodeled charger), it may
overcharge or an abnormal chemical reaction may occur.The battery
may generate heat or smoke, rupture, or burst into flame.
• Do not pierce the battery with any object, strike it with an
instrument, or step on it!
This may break or deform the battery, causing a short-circuit.The
battery may generate heat or smoke, rupture, or burst into flame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat or smoke,
rupture, and/or burst into flame. If the battery’s protection circuit
is damaged, the battery may charge at an abnormal current (or
voltage), and an abnormal chemical reaction may occur.The battery
may generate heat or smoke, rupture, or burst into flame.
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into flame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety function is
damaged, the battery may generate heat or smoke, rupture, or burst
into flame.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical reaction
may occur. In some cases, an unexpected large amount of current
may flow upon discharging.The battery may generate heat or smoke,
rupture, or burst into flame.

vi
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery pack
does not smoothly connect with a charger or operating equipment,
do not force it; check the polarity of the battery. If the battery pack is
reverse-connected to the charger, it will be reverse-charged and an
abnormal chemical reaction may occur. The battery may generate
heat or smoke, rupture, or burst into flame.
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes, wash your
eyes with fresh water as soon as possible, without rubbing your eyes.
Go to the hospital immediately. If left untreated, it may cause eye-
problems.
• Do not charge the battery for longer than the specified time!
If the battery pack has not finished charging even after the regulated
time has passed, stop it.The battery may generate heat or smoke,
rupture, or burst into flame.
• Do not place the battery pack into a microwave or high
pressure container!
The battery may generate heat or smoke, rupture, or burst into flame.
• Keep ruptured and leaking battery packs away from fire!
If the battery pack is leaking (or the battery emits a bad odor),
immediately remove it from flammable areas. Electrolyte leaking
from battery can easily catch on fire and may cause the battery to
generate smoke or burst into flame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different
coloring, is deformed, or seems abnormal for any other reason,
remove it from the charger or operating equipment and do not use it.
The battery may generate heat or smoke, rupture, or burst into flame.

1
CONTENTS
UNPACKING AND CHECKING EQUIPMENT ...................................1
PREPARATION...................................................................................2

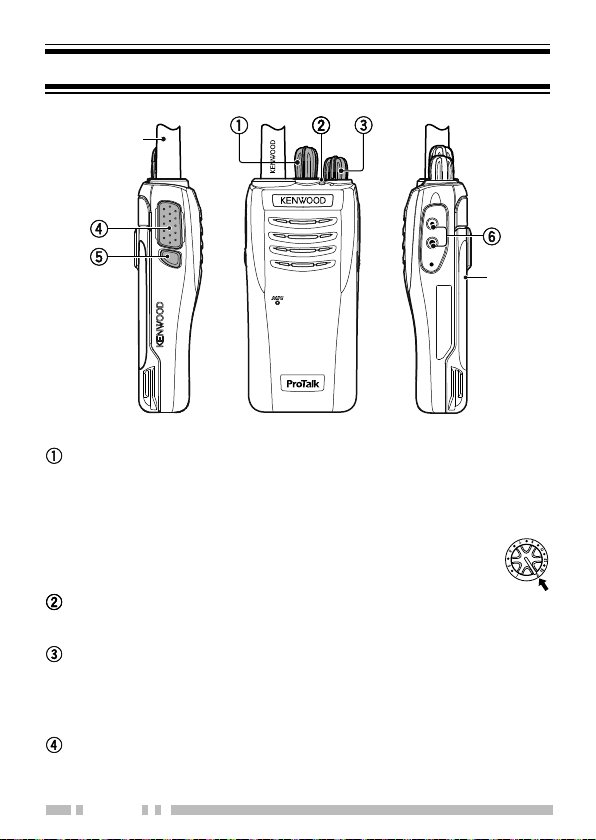

ORIENTATION....................................................................................6
BASIC OPERATIONS ........................................................................8
VOICE OPERATED TRANSMISSION (VOX) .....................................9
BACKGROUND OPERATIONS........................................................10
CHANNEL SETUP MODE................................................................11
PROGRAMMABLE FUNCTIONS.....................................................17
ALL RESET MODE ..........................................................................20
TROUBLESHOOTING GUIDE .........................................................21
OPTIONAL ACCESSORIES ............................................................22
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the transceiver. If any of the items listed
below are missing or damaged, file a claim with the carrier
immediately.
SUPPLIED ACCESSORIES
• Battery charger/ AC adapter (KSC-35S) ................................. 1
• Li-ion Battery pack (KNB-63L) ................................................1
• Cap.........................................................................................1
• Belt clip ................................................................................... 1
• Quick Reference Guide........................................................... 1
Note:
◆Refer to “PREPARATION” {p.2} for accessory installation
instructions.

2
PREPARATION

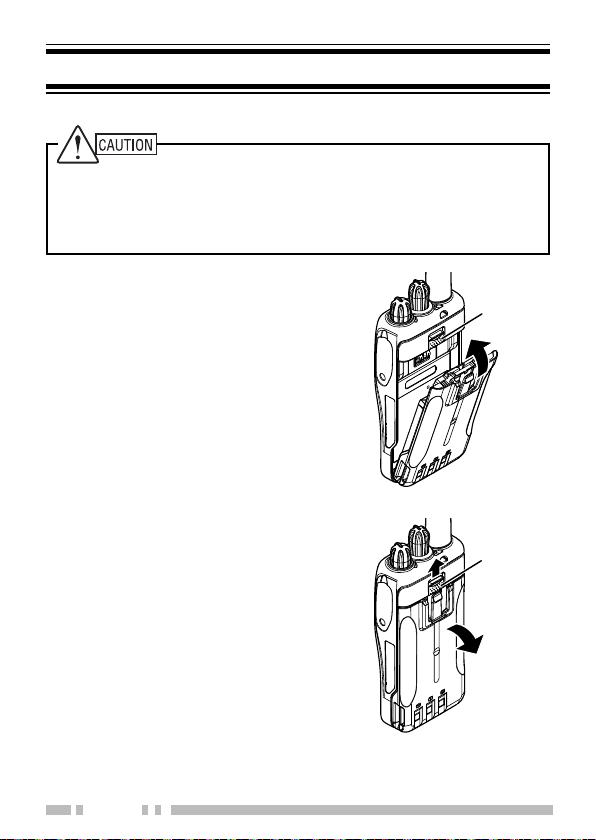

INSTALLING/ REMOVING THE BATTERY PACK
◆Do not short the battery terminals or dispose of the battery by fire.
◆Never attempt to remove the casing from the battery pack.
◆Install the battery pack after cleaning the battery pack contacts
and the transceiver terminals.
1To install the battery pack, align the
base of the battery pack with the
transceiver, then press the battery
pack into place until the lock lever is
secure.
2To remove the battery pack,
push the lock lever up, then pull
the battery pack away from the
transceiver.
Lock lever
Lock lever

3

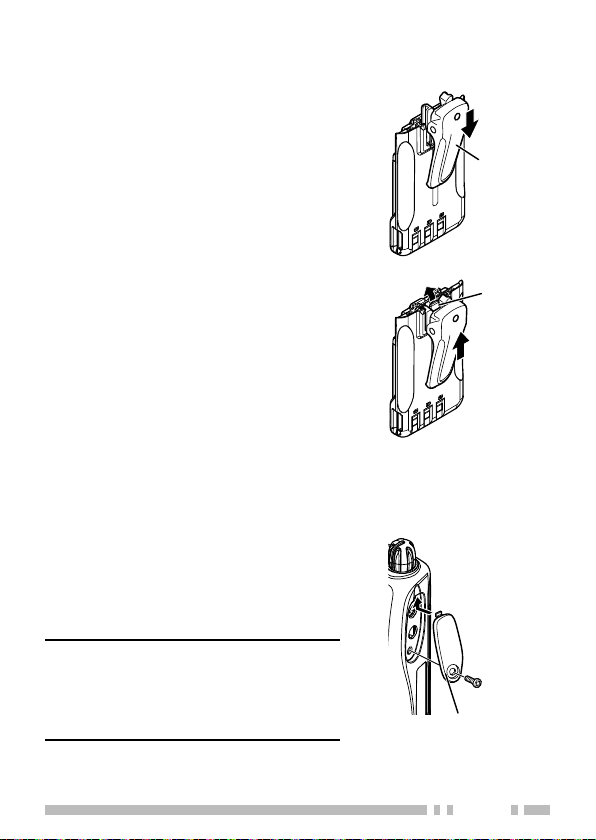

INSTALLING THE BELT CLIP
1Remove the battery pack. {p. 2}
2To install the belt clip, align the
guides of the belt clip with the
grooves on the rear of the battery
pack, then slide the belt clip into
place until the lock lever is secure.
Belt clip
If you are not using a speaker/
microphone or Headset, install the
cap over the speaker/ microphone
jacks using the supplied M3 x 6 mm
screws.
Note:
◆To keep the transceiver water
resistant, you must cover the
speaker/ microphone jacks with the
supplied cap.
INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE
JACKS
cap
Lock lever
3To remove the belt clip, push the
lock lever towards the transceiver
while sliding the belt clip up.

4

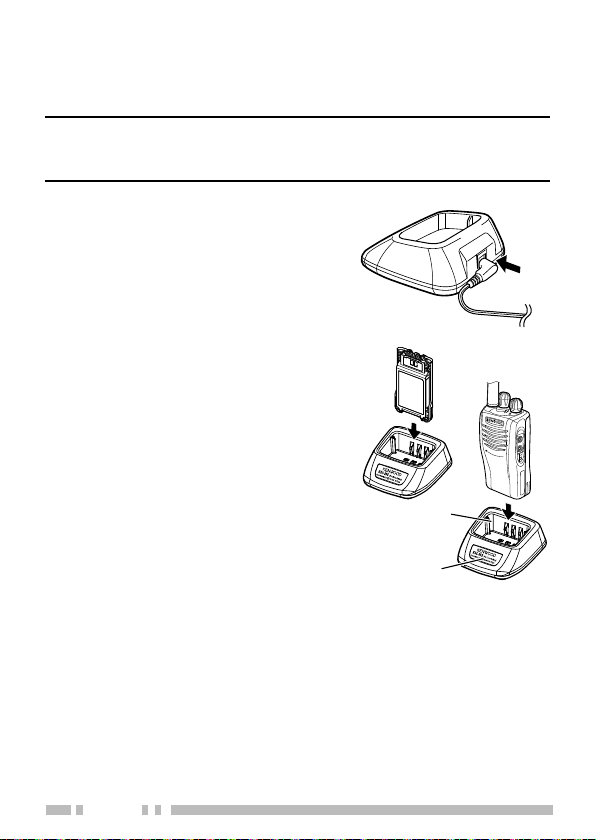

CHARGING THE BATTERY PACK
The battery pack is not charged at the factory; charge it before
use.
ATTENTION:
◆Always switch OFF a transceiver equipped with a battery pack
before inserting the transceiver into the charger.
1Plug the AC adapter cable into
the jack located on the rear of
the charger.
2Plug the AC adapter into an AC
outlet.
3Slide a battery pack or a
transceiver equipped with a
battery pack into the charging
slot of the charger.
• Make sure the metal contacts of
the battery pack mate securely
with the charger terminals.
• The indicator lights red and
charging begins.
4When charging is completed,
the indicator lights green.
Remove the battery pack or the
transceiver from the charging
slot of the charger.
• It takes approximately 3 hours to
charge the battery pack.
• When the charger will not be
used for a long time, unplug the
AC adapter from the AC outlet.
Charging slot
Indicator

5
Note:
◆When an abnormality occurs during charging, the indicator
performs as follows:
Blinks Red: The battery pack is either defective or the battery
pack contacts are not properly mated with those of the charger.
Alternates Flashing Green and Orange: The battery pack
has not satisfied the charging start temperature. Remove the
battery pack from the charger and wait until it reaches a normal
temperature before charging it again.
◆The ambient temperature should be between 5°C and 40°C while
charging is in progress. Charging outside this range may not fully
charge the battery.
◆The battery pack life is over when its operating time decreases
even though it is fully and correctly charged. Replace the battery
pack.
◆While operating the transceiver using a Li-ion battery pack in
areas of an ambient temperature of –10°C and lower, operating
time may be shortened.
◆Attention should be drawn to the environmental aspects of battery
pack disposal.
BATTERY LIFE
The operating times listed in the table below are measured
under the following cyclic conditions:
Calculated using 5% transmit time, 5% receive time, and 90%
standby time.
Battery Type Operating Time/ Hours (Approx.)
Battery Saver On Battery Saver Off
KNB-63L 20 h 14 h
KNB-65L 26 h 18 h

6
ORIENTATION
Channel selector
Rotate to change the operating channel.
• To change the operating frequency or QT/DQT settings of a
channel, refer to “CHANNEL SETUP MODE” {p.11}.
• If enabled by your dealer, setting the Channel selector to
the “S” position begins Scan. Refer to Scan for details on
how Scan operates. {p.18}
LED indicator
Refer to the LED indicator status. {p.7}
Power switch/ Volume control
Turn clockwise to switch the transceiver ON. To switch the
transceiver OFF, turn counterclockwise until a click sounds.
Rotate to adjust the volume level.
PTT (Push to Talk) switch
Press and hold, then speak into the microphone to transmit.
Antenna
Battery
pack

7
Side key
Press to activate its programmable function. The default
press setting is [Squelch OffMomentary]. The default hold
setting is None (no function).
• Refer to “PROGRAMMABLE FUNCTIONS” {p.17}.
Speaker/ microphone jacks
Insert the Speaker/ microphone or Headset plug into this
jack.
LED Indicator Status
Indicator Color Meaning
Lights red Transmitting
Lights green Receiving a call
Blinks red Battery power is low
Blinks green Scanning
Blinks red/orange The selected channel has not been
programmed and cannot be used.

8

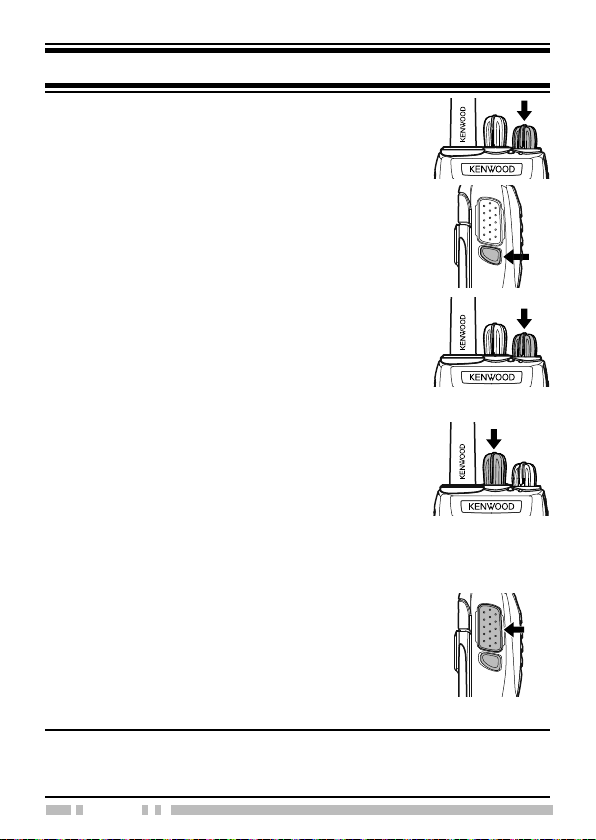

BASIC OPERATIONS
1Turn the Power switch/ Volume control
clockwise to switch the transceiver power ON.
• A beep sounds if enabled by your dealer.
2Press the key programmed with [Monitor/
Monitor Momentary] or [Squelch Off/
Squelch OffMomentary] (Side key default)
to hear background noise, then rotate the
Power switch/ Volume control to adjust the
volume.
3Rotate the Channel selector to select your
desired channel. Refer to the channel list.
{p.11}
• When you receive an appropriate signal, you
will hear audio from the speaker.
• If enabled by your dealer, setting the Channel
selector to the “S” position begins Scan. Refer
to Scan for details on how Scan operates.
{p.18}
4To make a call, press and hold the PTT
switch, then speak into the microphone using
your normal speaking voice.
• Hold the microphone approximately 3 to 4 cm
(1.5 inches)from your lips.
5Release the PTT switch to receive.
Note:
◆When the battery pack voltage becomes too low, transmission will
stop and an alert tone will sound.

9
VOICE OPERATED TRANSMISSION (VOX)
If enabled by your dealer, VOX operation allows you to transmit
hands-free.VOX can only be used if you are using a supported
headset. This function can be turned offfor specific channels by
your dealer. To activate VOX and set the VOX Gain level, perform
the following steps:
1Connect the headset to the transceiver .
• The VOX function does not activate when a headset is not
connected to the accessory terminal of the transceiver.
2With the transceiver power OFF, press and hold the Side key
while turning the transceiver power ON.
• Continue to hold the Side key until the LED blinks green and red,
and a beep sounds.
3 Rotate the Channel selector to set the VOX Gain level.
• The VOX Gain level can be adjusted from level 1 to 10 and OFF.
Channel numbers 1 to 10 represent VOX Gain levels 1 to 10.
Channel numbers 11 to S set the VOX Gain to OFF.
• To turn the VOX function off, set the VOX Gain level to OFF.
4Press and hold the Side key for 2 seconds to save the
setting.
• A beep will sound.
• To test the setting, speak into the microphone in your normal
voice. The LED will light orange when the VOX function is
operating.
5Turn the transceiver power OFF and then ON again to
activate VOX.
Note:
◆If a headset is connected to the transceiver while the VOX function
is switched ON and the VOX Gain level is configured to a higher,
more sensitive level, louder received signals may cause the
transceiver to start transmission.
◆The VOX Gain Level can only be adjusted if it is activated by your
dealer.

10
BACKGROUND OPERATIONS
TIME-OUT TIMER (TOT)
The Time-out Timer prevent callers from using a channel for
an extended duration. If you continuously transmit for the
duration programmed by your dealer (default is 60 seconds),
transmission will stop and an alert tone will sound. To stop the
tone, release the PTT switch.
BATTERY SAVER
When activated by your dealer, the Battery Saver function
decreases the amount of power used after no signal is present and
no operations are being performed for 5 seconds. When a signal is
received or an operation is performed, Battery Saver turns off.
Note: While the Battery Saver is operating, the LED may flash green
when receiving a QT/DQT signal which does not match the QT/DQT
tone/code set up in your transceiver.
LOW BATTERY WARNING
While operating the transceiver, the Low Battery Warning
sounds an alert tone every 30 seconds and the LED indicator
blinks red when the battery needs recharged or replaced.
BUSY CHANNEL LOCKOUT
When activated, BCL prevents you from interfering on a channel
that is already in use. Pressing the PTT switch will cause an
alert tone to sound and the transceiver will not transmit. Release
the PTT switch to stop the tone.
Note: Ask your dealer for an explanation on how BCL functions when
using QT or DQT signaling.
PROCEED TONE
If enabled by your dealer, when transmitting by pressing the
PTT switch, the Proceed tone will sound.

11
CHANNEL SETUP MODE
This transceiver allows you to reprogram each of the channels
with different frequencies and QT (Quiet Talk)/ DQT (Digital
Quiet Talk) settings. The table below lists the default channel
settings.
Channel
Number
Channel
Setup
Number
Frequency (MHz) Tone
Number QT/DQT Setting
101 446.00625 10 94.8 Hz
208 446.09375 08 88.5 Hz
303 446.03125 13 103.5 Hz
406 446.06875 05 79.7 Hz
504 446.04375 17 118.8 Hz
602 446.01875 18 123.0 Hz
707 446.08125 19 127.3 Hz
805 446.05625 07 85.4 Hz
901 446.00625 14 107.2 Hz
10 08 446.09375 15 110.9 Hz
11 03 446.03125 16 114.8 Hz
12 06 446.06875 06 82.5 Hz
13 04 446.04375 27 D132N
14 02 446.01875 28 D155N
15 05 446.05625 29 D134N
16 07 446.08125 30 D243N
Note:
◆You must first select an operating frequency for a channel before
you can select a QT/ DQT setting for that same channel.

12
CHANNEL OPERATING FREQUENCIES
To change the operating frequency of a channel:
1Select your desired channel using the Channel selector.
2With the transceiver power OFF, press and hold the PTT
switch while turning the transceiver power ON.
• Continue to hold the PTT switch until the LED lights orange
(approximately 2 seconds).
3Release the PTT switch.
• The transceiver emits a morse code of the current channel
setting. Refer to the table below for the morse code output.
4Press and hold the Side key for 1 second to change the 10’s
digit of the Channel Setup number to 0. Press the Side key to
change the 10’s digit of the Channel Setup number to 1.
• Channel Setup numbers and their corresponding operating
frequencies are provided in the table. {p.13}
• After 1 second, the transceiver will emit a morse code of the
current Channel Setup setting.
5 Press and hold the Side key for 1 second to change the 1’s
digit of the Channel Setup number to 0. Press the Side key to
change the 1’s digit of the Channel Setup number to (1 ~ 9).
• After 1 second, the transceiver will emit a morse code of the
current 1’s digit Channel Setup number setting.
6Press the PTT switch to save the setting.
• The LED will blink red and a beep will sound.
• The transceiver will automatically return to normal operation
when no action is performed for approximately 6 seconds.
Setting
Number Morse Code Setting Number Morse Code
0—5• • • • •
1• — 6— • • • •
2• • — 7— • • •
3• • • — 8— • •
4• • • • — 9— •
