Kenwood TS-450S User manual

HF TRANSCEIVER
TS-450S
ALL MODE MULTI BANDER
TS-6905
INSTRUCTION MANUAL
KENWOOD CORPORATION
©PRINTED IN JAPAN B62-0095-00(K)(MC)
93/12 1110987654321 92/121110987654321
CGOO/ANS>)I

Thank you for purchasing this new transceiver.
IMPORTANT
Please read this Instruction Manual
carefully before placing the transceiver
in service.
SAVE THIS INSTRUCTION
MANUAL.
The following explicit definitions apply in
this manual:
Note : If disregarded, inconvenience
only, no risk of equipment
damage or personal injury.
Caution : Equipment damage may
occur, but not personal injury.
This instruction manual covers the
following models.
HF TRANSCEIVER
© TS-450S
WITH AUTOMATIC ANTENNA TUNER
© TS-450S
WITHOUT AUTOMATIC ANTENNA
TUNER
ALL MODE MULTI BANDER
© TS-690S
WITHOUT AUTOMATIC ANTENNA
TUNER
IMPORTANT
The 6m (50MHz) BAND IS NOT
AVAILABLE IN SOME AREAS.
Notice to the user:
One or more of the following statements
may be applicable to this equipment.
FCC WARNING
This equipment generates or uses radio
frequency energy. Changes or
modifications to this equipment may
cause harmful interference unless the
modifications are expressly approved in
the instruction manual. The user could
lose the authority to operate this
equipment if an unauthorized change or
modification is made.
Information to the digital device user |
required by the FCC:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can generate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that the interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
-- Reorient or relocate the receiving
antenna.
-- Increase the separation between
the equipment and receiver.
- Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer for technical
assistance.

1. BEFORE OPERATION

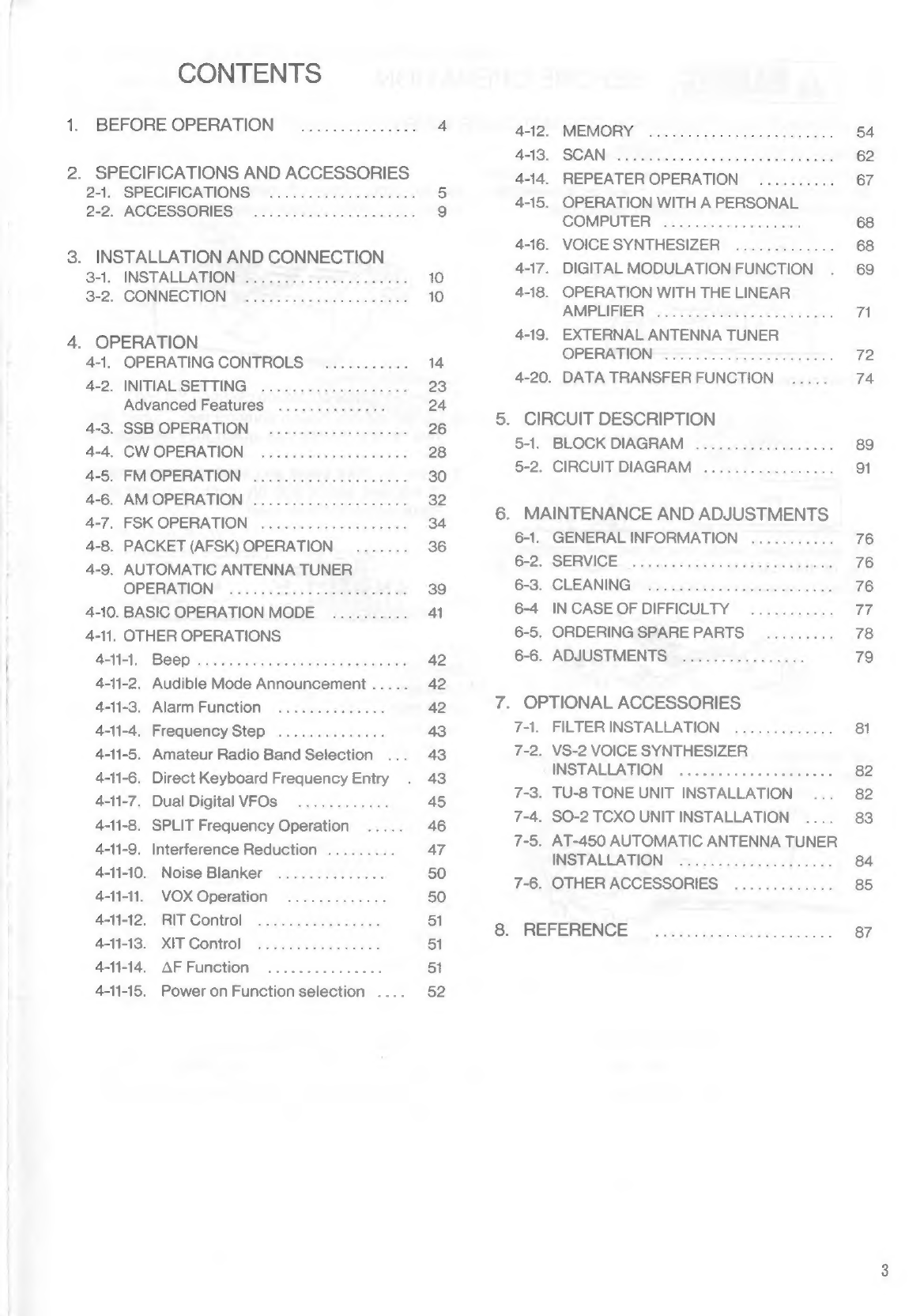

CONTENTS
2. SPECIFICATIONS AND ACCESSORIES
2-1. SPECIFICATIONS

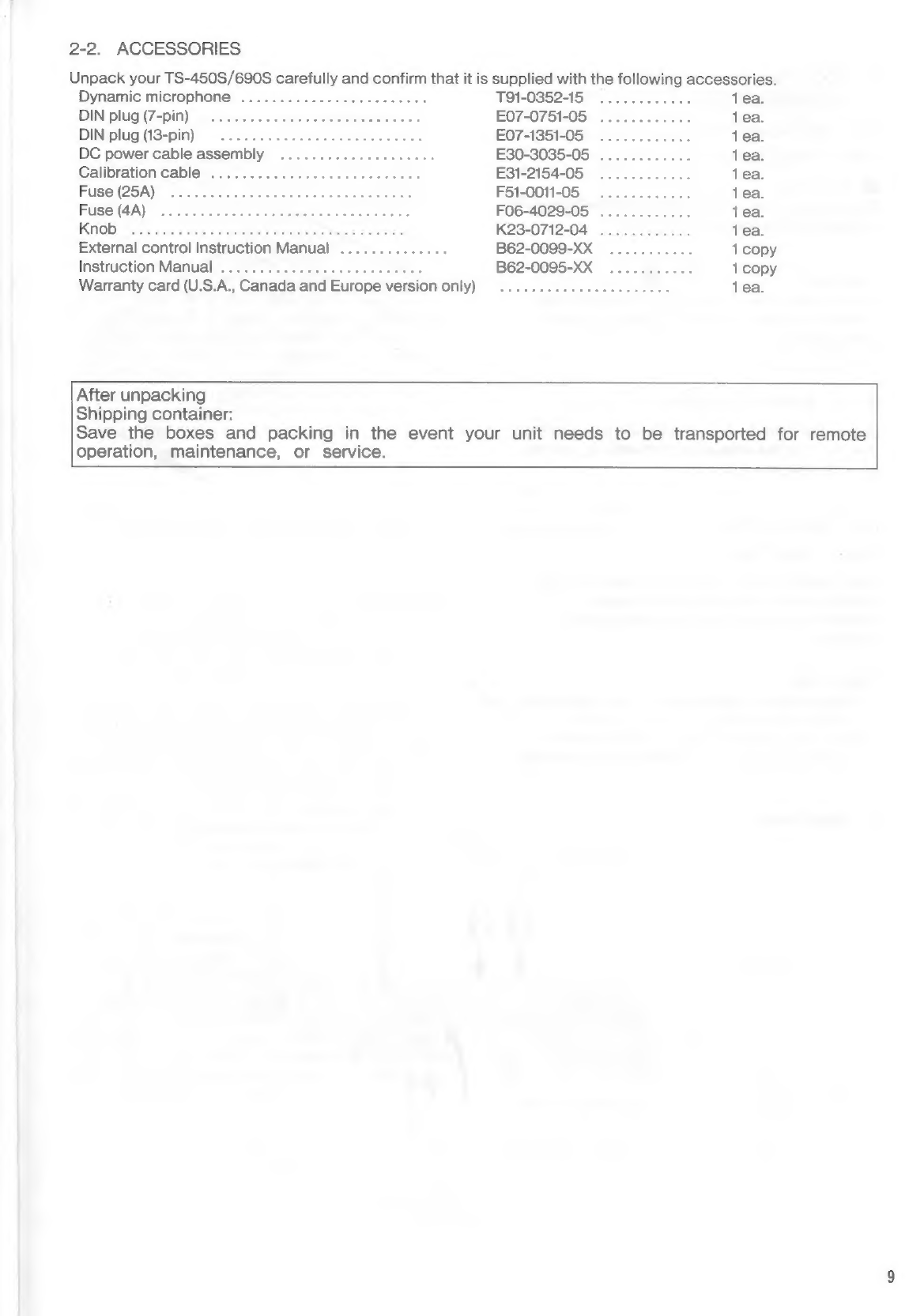

2-2. ACCESSORIES
3. INSTALLATION AND CONNECTION
3-1. INSTALLATION

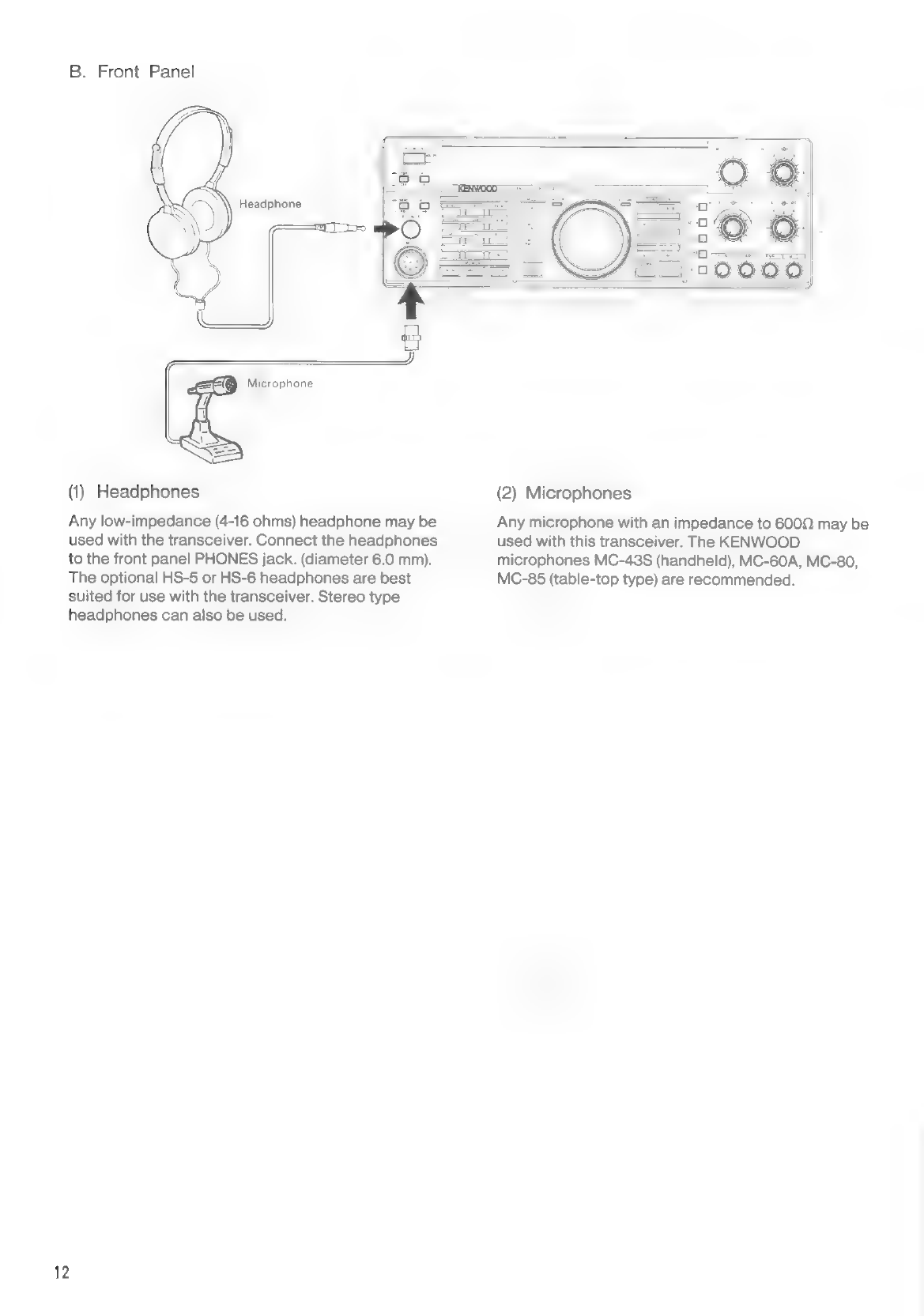

3-2. CONNECTION
4. OPERATION
4-1.
4-2.
4-3.
4-4,
4-5.
4-6.
4-7.
4-8.
4-9.

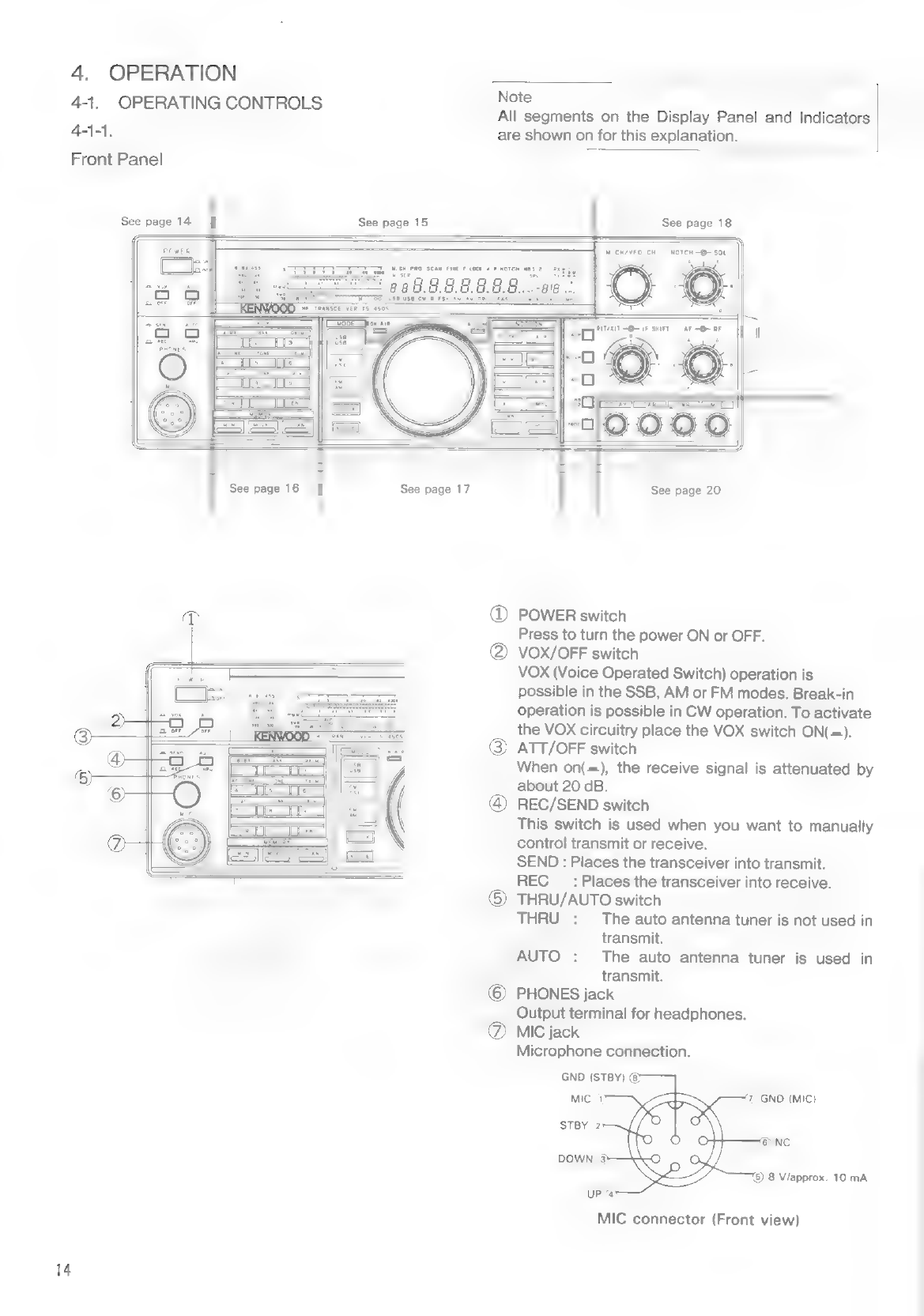

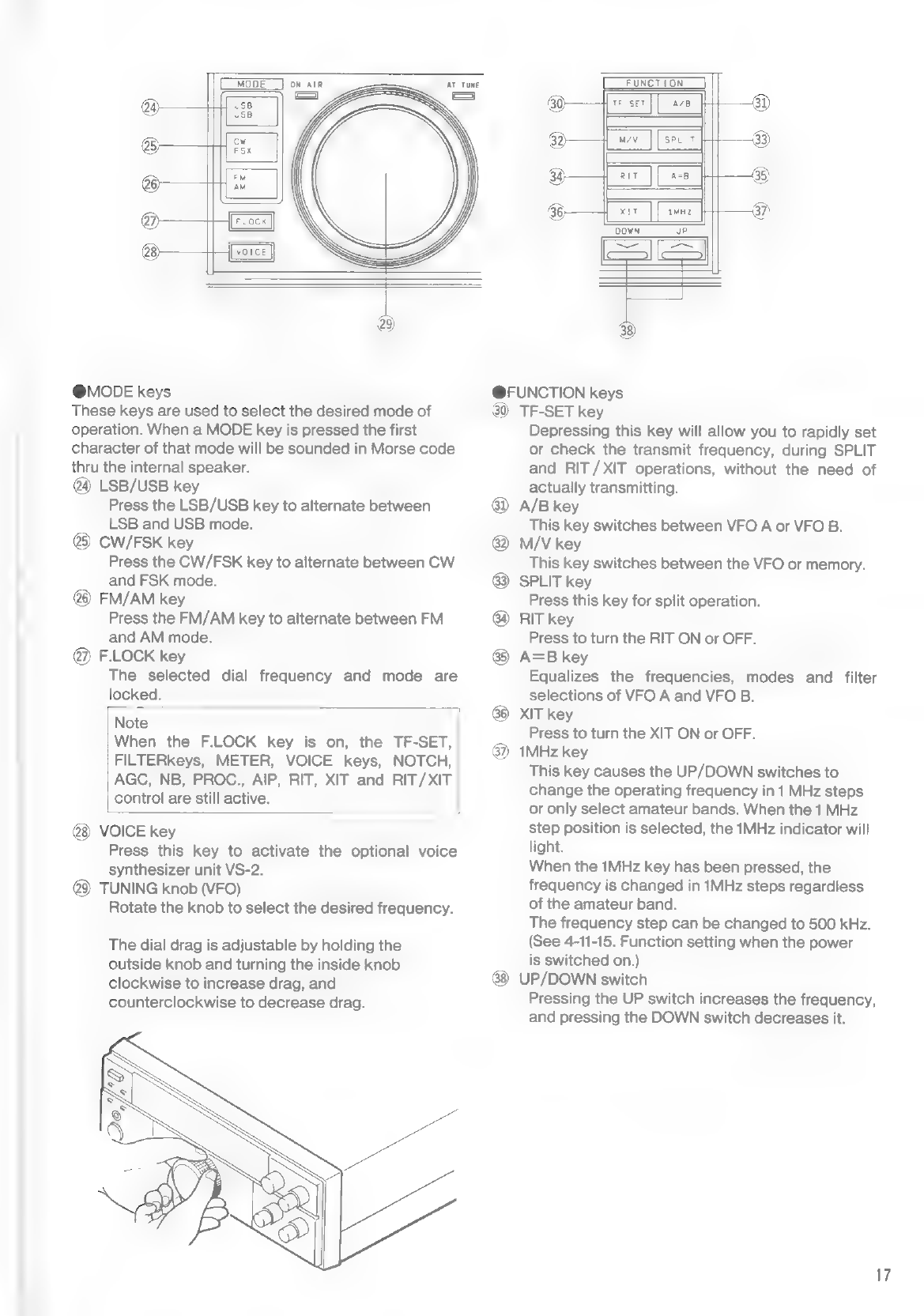

OPERATING CONTROLS
FM OPERATION
AM OPERATION
FSK OPERATION
PACKET (AFSK) OPERATION
AUTOMATIC ANTENNA TUNER
OPERATION
4-10. BASIC OPERATION MODE
4-11. OTHER OPERATIONS
4-1-1.
4-1-2.
4-11-3.
4-11-4.
4-11-5.
4-11-6.
4-11-7.
4-11-8.
4-1-9.
4-11-10.
4-11-11.
4-11-12.
4-11-13.
4-11-14.
4-11-15.
Frequency Step
Amateur Radio Band Selection
Direct Keyboard Frequency Entry
Dual Digital VFOs
SPLIT Frequency Operation
Interference Reduction
Noise Blanker
VOX Operation

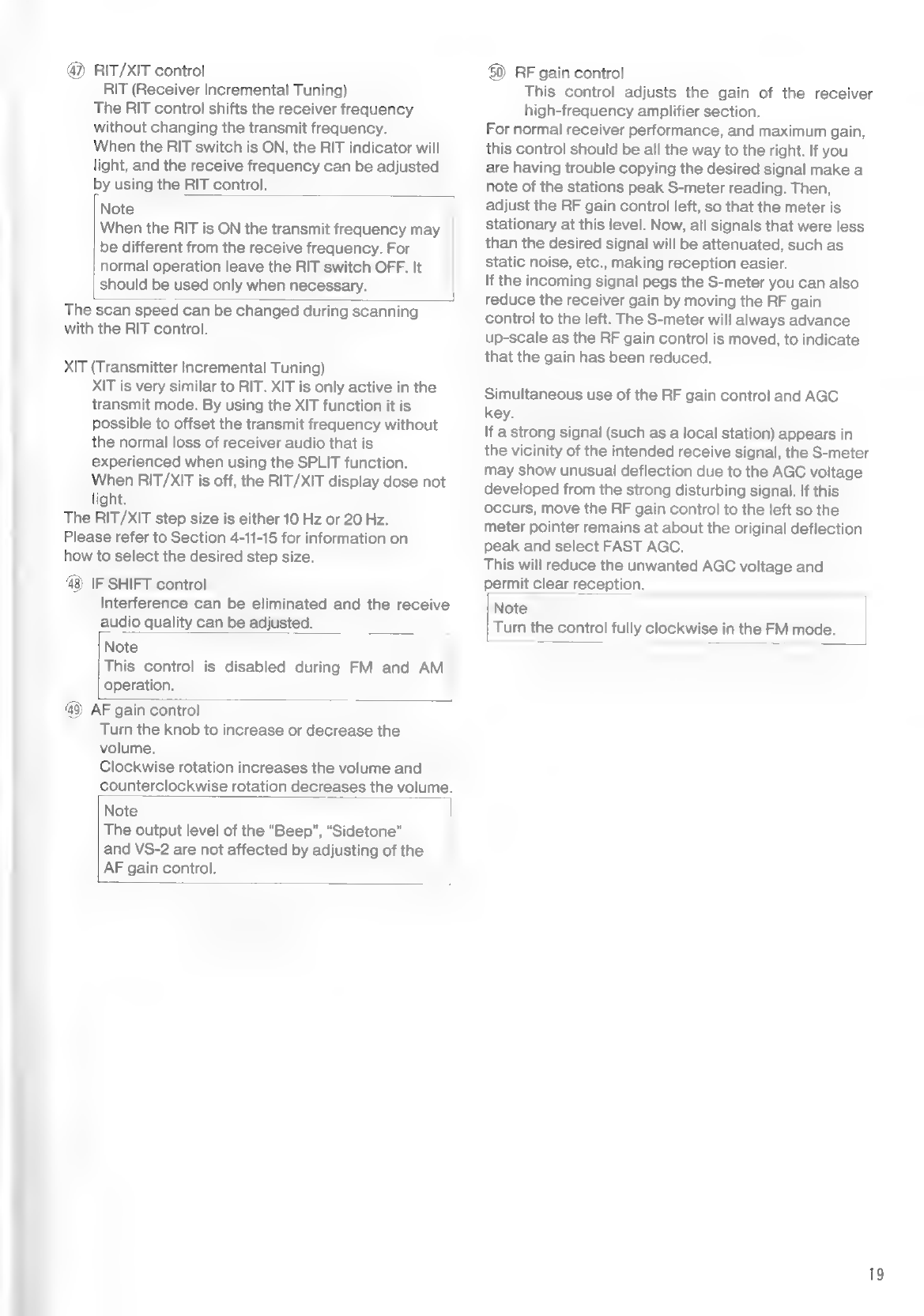

RIT Control
XIT Control
APiFUNCHON® ssid cgaccce ances
Power on Function selection ....
46
47
50
50
51
51
51
52
4-12.
4-13.
4-14.
4-15.
4-16.
4-17.
4-18.
4-19.
4-20.
SCAN
OPERATION WITH A PERSONAL
COMPUTER
DIGITAL MODULATION FUNCTION
OPERATION WITH THE LINEAR
AMPLIFIER
EXTERNAL ANTENNA TUNER
OPERATION
5. CIRCUIT DESCRIPTION
5-1.
5-2.
BLOCK DIAGRAM
CIRCUIT DIAGRAM
6. MAINTENANCE AND ADJUSTMENTS
6-1.
6-2.
6-3.
6-4
6-5.
6-6.
GENERAL INFORMATION
SERVICE
ORDERING SPARE PARTS
ADJUSTMENTS
7. OPTIONAL ACCESSORIES
TAA.
7-2,
7-3.
7-4.
7-5.
7-6.
FILTER INSTALLATION
VS-2 VOICE SYNTHESIZER
INSTALLATION .............e0e eee
TU-8 TONE UNIT INSTALLATION
SO-2 TCXO UNIT INSTALLATION
AT-450 AUTOMATIC ANTENNA TUNER
INSTALLATION
82
83

A

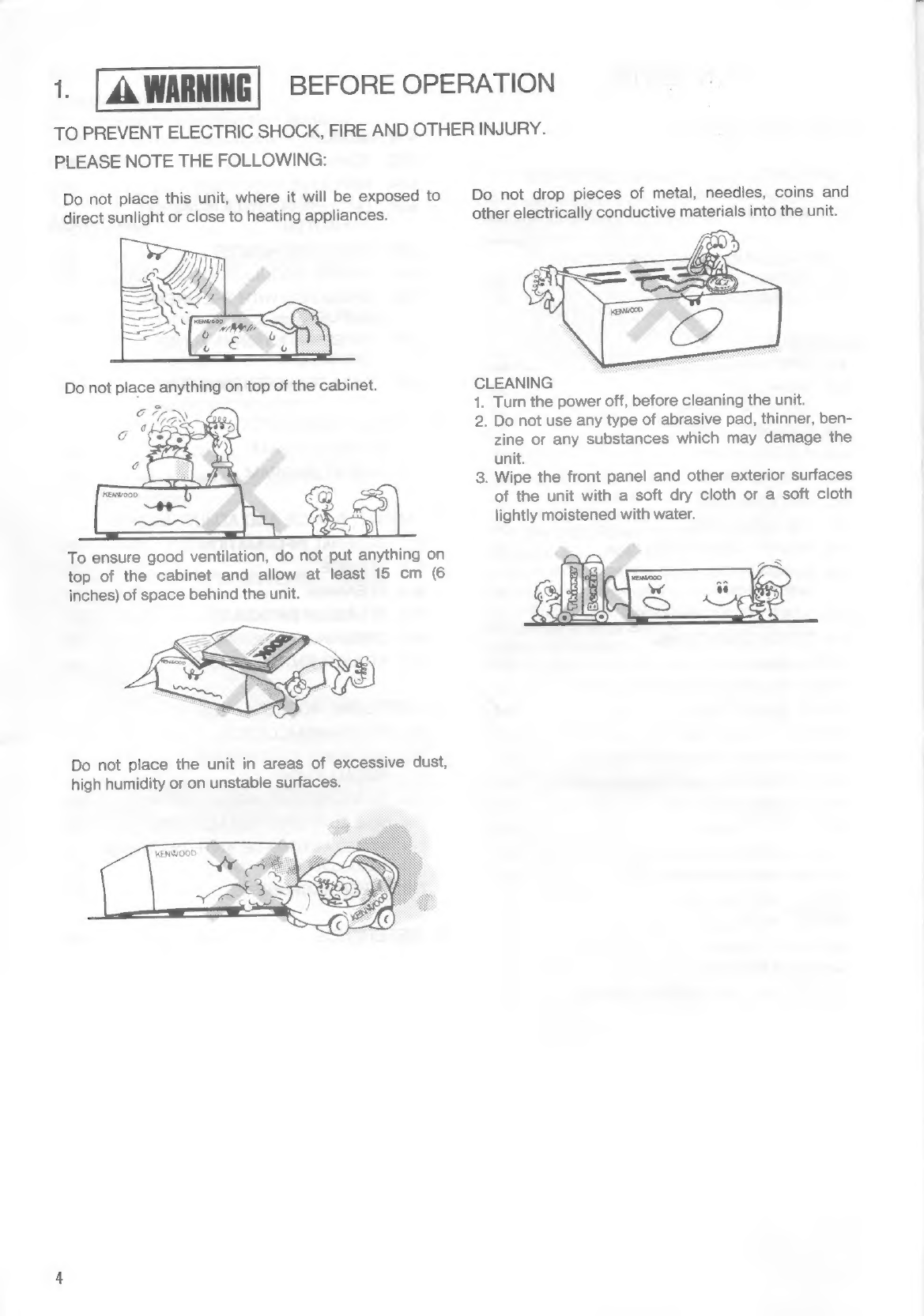

WARNING)
BEFORE
OPERATION
TO
PREVENT
ELECTRIC
SHOCK,
FIRE
AND
OTHER
INJURY.
PLEASE
NOTE
THE
FOLLOWING:
Do
not
place
this
unit,
where
it
will
be
exposed
to
Do
not
drop
pieces
of
metal,
needles,
coins
and
direct
sunlight
or
close
to
heating
appliances.
other
electrically
conductive
materials
into
the
unit.
CLEANING
1. Turn the power off, before cleaning the unit.
2.
Do
not
use
any
type
of
abrasive
pad,
thinner,
ben-
zine
or
any
substances
which
may
damage
the
unit.
3.
Wipe
the
front
panel
and
other
exterior
surfaces
of
the
unit
with
a
soft
dry
cloth
or
a
soft
cloth
lightly
moistened
with
water.
je | Fx
To
ensure
good
ventilation,
do
not
put
anything
on
top
of
the
cabinet
and
allow
at
least
15
cm
(6
inches)
of
space
behind
the
unit.
Do
not
place
the
unit
in
areas
of
excessive
dust,
high
humidity
or
on
unstable
surfaces.

2. SPECIFICATIONS AND ACCESSORIES
2-1. SPECIFICATIONS
TS-450S
Specifications
Mode J3E(LSB, USB), A1A(CW), AS3E(AM), F3E(FM),
FiA(FSK)
Memory Channels 100
Antenna i dance SO'ohms
nes
With
AT-450
Antenna
Tuner
20~150
ohms
Power requirement 12 to 16 VDC (13.8 VDC reference)
= Grounding Negative
G Receive mode with ON
& Current drain no input signal
Transmit mode 20.5A
Operating temperature —10°C to +50°C (+14°F to + 122°F)
Frequency stability Less than +10 PPM
Frequency accuracy Less than +10 PPM
Dimensions [W XHXD] 270 X 96 X 305mm(10-5/8” X 3-25/32” x 12-1/64”)
(Projections included) (280 X107 X340mm)(11-1/32” X 4-1/4” X13-25/64”")
With AT unit 7.5kg (16.5Ibs)
Weight
7
:
Without AT unit 6.3kg (13.9lbs)
160m band 1.8 to 2.0 MHz
80m band 3.5 to 4.0 MHz
40m band 7.0 to 7.3 MHz
30m band 10.1 to 10.15 MHz
Frequency range 20m band 14.0 to 14.35 MHz
17m band 18.068 to 18.168 MHz
15m band 21.0 to 21.45 MHz
12m band 24.89 to 24.99 MHz
10m band 28.0 to 29.7 MHz
5 SSB, CW, MAX 100W
= loupue |+be FSK,FM | MIN Less than 20W
D +
& | Power 28MHz MAX 40W
~& | (Without AM
AT) MIN Less than 10W
SSB Balanced modulation
Modulation FM Reactance modulation
AM Low level modulation
Spurious radiation Less than —50dB
Carrier suppression (with 1.5kHz reference) More than 40dB

Specifications
egwanted
sideband
suppression
(with
1.5kHz
More
than
40dB
5
|
Maximum
frequency
deviation
(FM)
Less
than
=5kHz
=
=
Frequency
response
(—6dB)
400
to
2600Hz
=
©
10
Hz
step
More
than
+1.1kHz
=
.
XIT
variable
range
20
Hz
step
More
than
+2.2kHz
Microphone
impedance
6000
Circuitry
Triple
conversion
superheterodyne
Frequency
range
500kHz
to
30MHz
Intermediate
frequency
1st
:
73.05MHz,
2nd
:
8.83MHz,
3rd
:
455kKHz
500kHz~1.62MHz*
Less
than
4
nV
SSB,
CW,
FSK
*1.62MHz
(at
10dB
~21.5MHz
Less
than
0.2
nV
(S+N)/N)
21.5MHz~30MHz
Less
than
0.13
uV
Sensitivity
T
500kHz~™1.62MHz*
Less
than
32
nV
AM
1.62MHz
(at
10dB
~21.5MHz
Less
than
2
nV
(S+N)/N)
21.5MHz~30MHz
Less
than
1.3
nV
§
eM
as
sinan)
|
28MHz~30MHz
Less
than
0.25
nV
()
&
SSB,
CW,
FSK
—6dB:More
than
2.2kHz,
—60dB:Less
than
4.4kHz
Selectivity
AM
—6dB:More
than
5kHz,
—50dB:Less
than
18kHz
FM
—6dB:More
than
12kHz,
—50dB:Less
than
25kHz
ratio
More
than
70dB
1st
IF
rejection
More
than
70dB
Notch
filter
attenuation
More
than
20dB
10
Hz
step
More
than
+1.1kHz
RIT
variable
range
20
Hz
step
More
than
+2.2kHz
Squelch
=e
ee.
500kHz~1.62MHz*
Less
than
20
nV
sensitivity
*1.62MHz~30MHz
Less
than
2
uV
FM
28MHz~30MHz
Less
than
0.25
nV
Output
1.5W
across
8
ohms
load
(10%
distortion)
Output
load
impedance
8
ohms
+
Notes
1.
Circuit
and
ratings
are
subject
to
change
without
notice
due
to
advancements
in
technology.
2.
Remember
to
keep
the
transmit
output
power
within
the
power
limitations
of
your
license.
3. *: The U.S.A. version is 1.705 MHz.

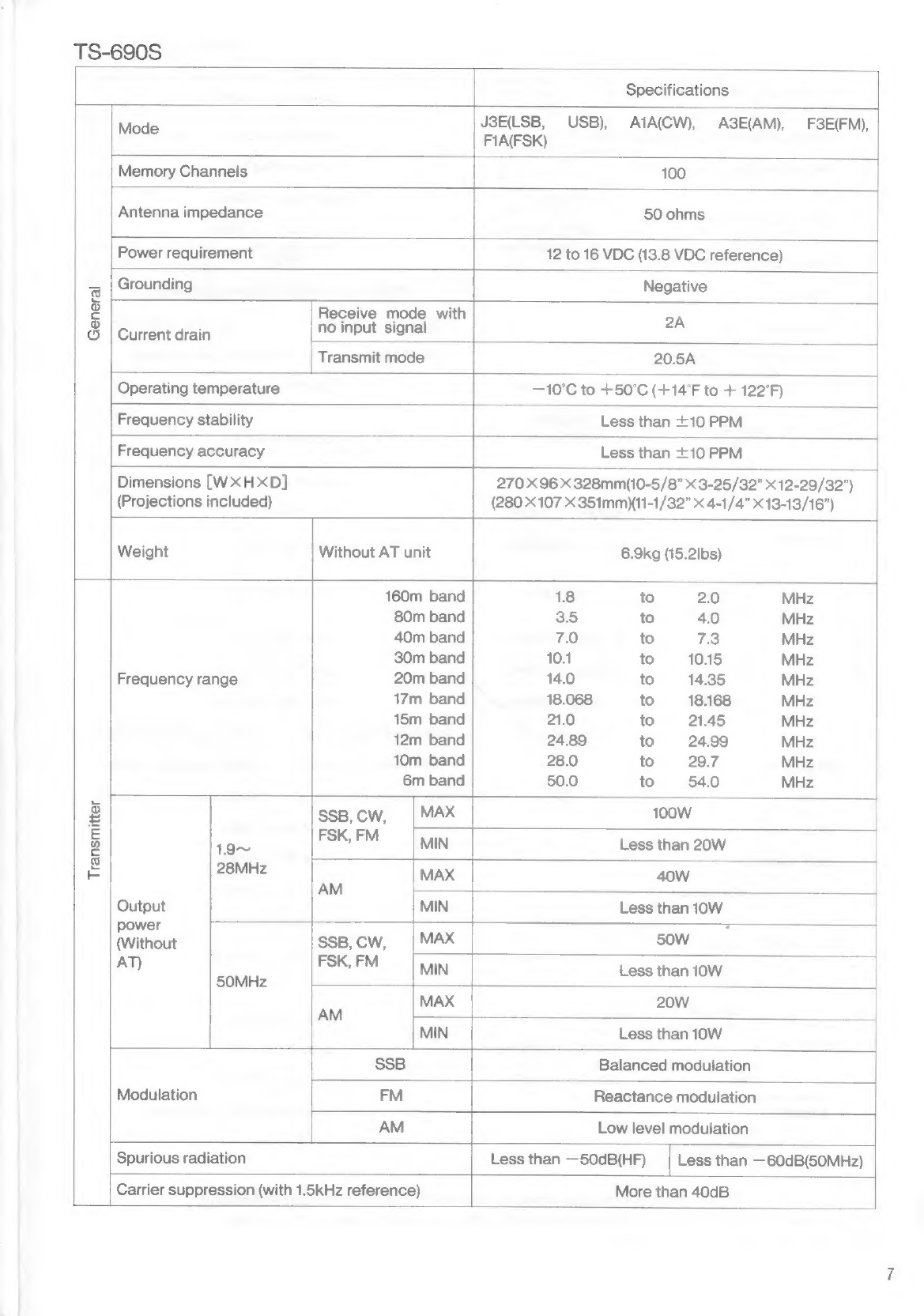

TS-690S
Specifications
J3E(LSB, USB), A1A(CW), A3E(AM), F3E(FM),
Mode FIA(FSK)
Memory Channels 100
Antenna impedance 50 ohms
Power requirement
12 to 16 VDC (13.8 VDC reference)
3 Grounding Negative
@ Receive mode with oA
5 Current drain no input signal
Transmit mode 20.5A
Operating temperature —10°C to +50°C (+14°F to + 122°F)
Frequency stability Less than +10 PPM
Frequency accuracy Less than +10 PPM
Dimensions
[WXH
XD]
270
X96
X
328mm(10-5/8”
X
3-25/32”
x
12-29/32")
(Projections
included)
(280
X107
X
351mm)(11-1/32”
X
4-1/4”
X13-13/16")
Weight Without AT unit 6.9kg (15.2Ibs)
160m band 1.8 to 2.0 MHz
80m band 3.5 to 4.0 MHz
40m band 7.0 to 7.3 MHz
30m band 10.1 to 10.15 MHz
Frequency range 20m band 14.0 to 14.35 MHz
17m band 18.068 to 18.168 MHz
15m band 21.0 to 21.45 MHz
12m band 24.89 to 24.99 MHz
10m band 28.0 to 29.7 MHz
6m band 50.0 to 54.0 MHz
nF
£ SSB, CW, MAX 100W
5
nee
FSK,
FM
iN
Less
than
20W
©
e 28MHz MAX 40w
AM
Output MIN Less than 10W
power 2
(Without
SSB,
cw,
|
MAX
50W
AT)
FSK,FM
|
MIN
Less
than
10W
50MHz
MAX 20W
AM
MIN Less than 10W
SSB Balanced modulation
Modulation FM Reactance modulation
AM Low level modulation
Spurious radiation
Less than —50dB(HF) Less than —60dB(50MHz)
Carrier suppression (with 1.5kHz reference)
More than 40dB

Specifications
Unwanted sideband suppression
(with 1.5kHz reference) More than 40dB
5
|
Maximum
frequency
deviation
(FM)
Less
than
+5kHz
P=
€ Frequency response (— 6dB) 400 to 2600Hz
c
© 10 Hz step More than +1.1kKHz
F ;
XIT variable range
20 Hz step More than +2.2kHz
Microphone impedance 6000
Circuitry Triple conversion superheterodyne
Frequency range 500kHz to 30MHz 50MHz to 54MHz
Intermediate frequency 1st : 73.05MHz, 2nd : 8.83MHz, 3rd : 455kHz
500kHz™1.62MHz* Less than 4 nV
SSB, CW, *1,.62MHz
FSK ~21.5MHz Less than 0.2 nV
(at 10dB
(S+N)/N) 21.5MHz~30MHz Less than 0.13 nV
50MHz~54MHz Less than 0.13 nV
Sensitivity 500kHz~1.62MHz* Less than 32 uV
AM “1.62MHz
(at 10dB ~21.5MHz Less than 2 nV
| (S+N)/N)
(7)
2 21.5MHz~30MHz Less than 1.3 nV
[o}
& FM 28MHz~30MHz Less than 0.25 nV
(at 12dB
SINAD) 50MHz~54MHz Less than 0.25 nV
SSB, CW, FSK —6dB:More than 2.2kHz, —60dB:Less than 4.4kHz
Selectivity
AM
—6dB:More
than
5kHz,
—S5O0dB:Less
than
18kHz
FM —6dB:1More than 12kHz, —5OdB:Less than 25kHz
Image ratio More than 70dB
ist IF rejection More than 70dB
Notch filter attenuation More than 20dB
10 Hz step More than +1.1kHz
RIT variable range
20 Hz step More than +2.2kHz
Squetch a rit 500kHz~1.62MHz* Less than 20 V
sensitivity *4.62MHz~30MHz Less than 2 nV
FM 28MHz~50MHz Less than 0.25 nV
Output 1.5W across 8 ohms load (10% distortion)
Output load impedance 8 ohms
Notes
1. Circuit and ratings are subject to change without notice due to advancements in technology.
2. Remember to keep the transmit output power within the power limitations of your license.
3. *: The U.S.A. version is 1.705 MHz.

2-2. ACCESSORIES
Unpack your TS-450S/690S carefully and confirm that it is supplied with the following accessories.
Dynamic microphone ..................200005 T91-0352-15 1ea.
DIN: DUG (FADIA). sk hanced ks pi Oat EES ine E07-0751-05 lea.
DIN plugiS-pin) cncecaiccencerecccas need oe E07-1351-05 .. 1ea.
DC power cable assembly E30-3035-05 .. 1ea.
Calibration Gable cic ies ci sete ase eaainaes teen E31-2154-05 1ea.
FuSe(Q5A)> 2 Stess cock cs bec eetc rus Secceics cae F51-0011-05 lea.
FUROIOAD a rceanee tanec teabe a vicina shee FO6-4029-05 .. lea.
KNOB! i itreaeedice sinex nine aaMtaltche fe iag sanokets K23-0712-04 tea.
External control Instruction Manual .............. B62-0099-XX ........... 1 copy
Instruction: Manual . 27 52.5 Sob. sc. coer a Mews B62-0095-XX ........... 1 copy
Warranty card (U.S.A., Canada and Europe version only)... 6... eee eee ee eee 1ea.
After unpacking
Shipping container:
Save the boxes and packing in the event your unit needs to be transported for remote
operation, maintenance, or service.

3. INSTALLATION AND
CONNECTION
3-1. INSTALLATION
3-1-1. Fixed Station
@ Front Bail
By extending the front bail, the front panel can be
elevated for operating convenience.
CAUTION
Do not carry the transceiver by holding the bail.
Grasp the handle on the right side to carry the
transceiver.
8-1-2. Mobile Installations
Secure the transceiver with the optional mounting
bracket. For the installation instructions, see the
MB-430 Instruction Manual.
3-2. CONNECTION
3-2-1. Fixed Station
The TS-450S/690S requires more than 20.5 A at
13.8 VDC when transmitting at full power.
Use the PS-53 power supply for fixed station
operation.
CAUTION
1. Before connecting the power supply, switch the
transceiver and the DC power supply off.
2. Do not plug the DC power supply into the AC
outlet until all the connections have been made.
A. Rear Panel
To HF~50MHz
antenna
External speaker
SP-23
To 5OMHz
antenna
To AC outlet
DC power
supply
PS-53
|
.
AY,
OL.ee8
oo 0
@0)0)0j0'
nse
Ground

(1) Antenna
Caution
Protect your equipment — Use a LIGHTNING
ARRESTER.
The type of antenna that is used will greatly affect
the performance of the transceiver. Use a properly
adjusted antenna, of good quality, to enable your
transceiver to perform at its best. The antenna input
impedance is 50 ohms. Use 50-ohm coaxial cable
such as 5D-2V or RG-213/U (RG-8A/U) for this
connection. If the antenna is far from the transceiver
the use of low loss coaxial cable, such as 5D-2V or
RG-213/U (RG-8A/U) are recommended. Match the
impedance of the coaxial cable and that of the
antenna so that the SWR is less than 1.5 to 1. The
protection circuit in the transceiver will activate if the
SWR is particularly poor (greater than 3 to 1). High
SWR values will cause the transmitter output to
drop, and may lead to TVI or BCI reports.
(2) Grounding
Warning
Never use a gas pipe or electrical conduit pipe.
(4) Key connection
Your key should be connected as illustrated in the
figure below. When using an electronic keyer, make
sure that the polarity is set for positive or direct.
Always use shielded line from the key to transceiver.
(diameter 6.0 mm)
HiTo use external straight key
+7V, Contact
Current about 1
| | ) mA
(|
Ground Not used +
or —_— +7V, Contact
Current about 1
a Bc mA
al | '
Ground +
Note
| Check the polarity of the plug when you use an
electronic keyer.
Notes
1. A ground connection that is a 1/4 wavelength or
its multiple may provide a good DC ground, but
will not provide a good RF ground.
2. A city water pipe cannot be used as a good
ground in some cases.
Making a good ground connection is important for
preventing dangers such as electric shock and for
emitting a high quality signal with minimum spurious
radiation. Bury a commercially available ground rod
or copper plate under the ground and connect it to
the GND terminal. A thick wire, cut as short as
possible, should be used for the connection. To
make a good earth connection, connect the GND
terminal to a grounded metal water pipe.
(3) External speaker
The TS-450S/690S includes a built-in speaker. If you
would like to use an external speaker, such as the
SP-23, it may be connected to the EXT SP jack on
the rear of the transceiver. The speaker may be any
good 8 ohm permanent magnet type speaker. The
diameter should be at least 4 inches for good audio
quality. If you plan on using a speaker other than the
SP-23 it should be equipped with a miniature phone
jack plug. (diameter 3.5 mm)

B. Front Panel
Headphone
(1) Headphones
Any low-impedance (4-16 ohms) headphone may be
used with the transceiver. Connect the headphones
to the front panel PHONES jack. (diameter 6.0 mm).
The optional HS-5 or HS-6 headphones are best
suited for use with the transceiver. Stereo type
headphones can also be used.
(2) Microphones
Any microphone with an impedance to 600. may be
used with this transceiver. The KENWOOD
microphones MC-43S (handheld), MC-60A, MC-80,
MC-85 (table-top type) are recommended.

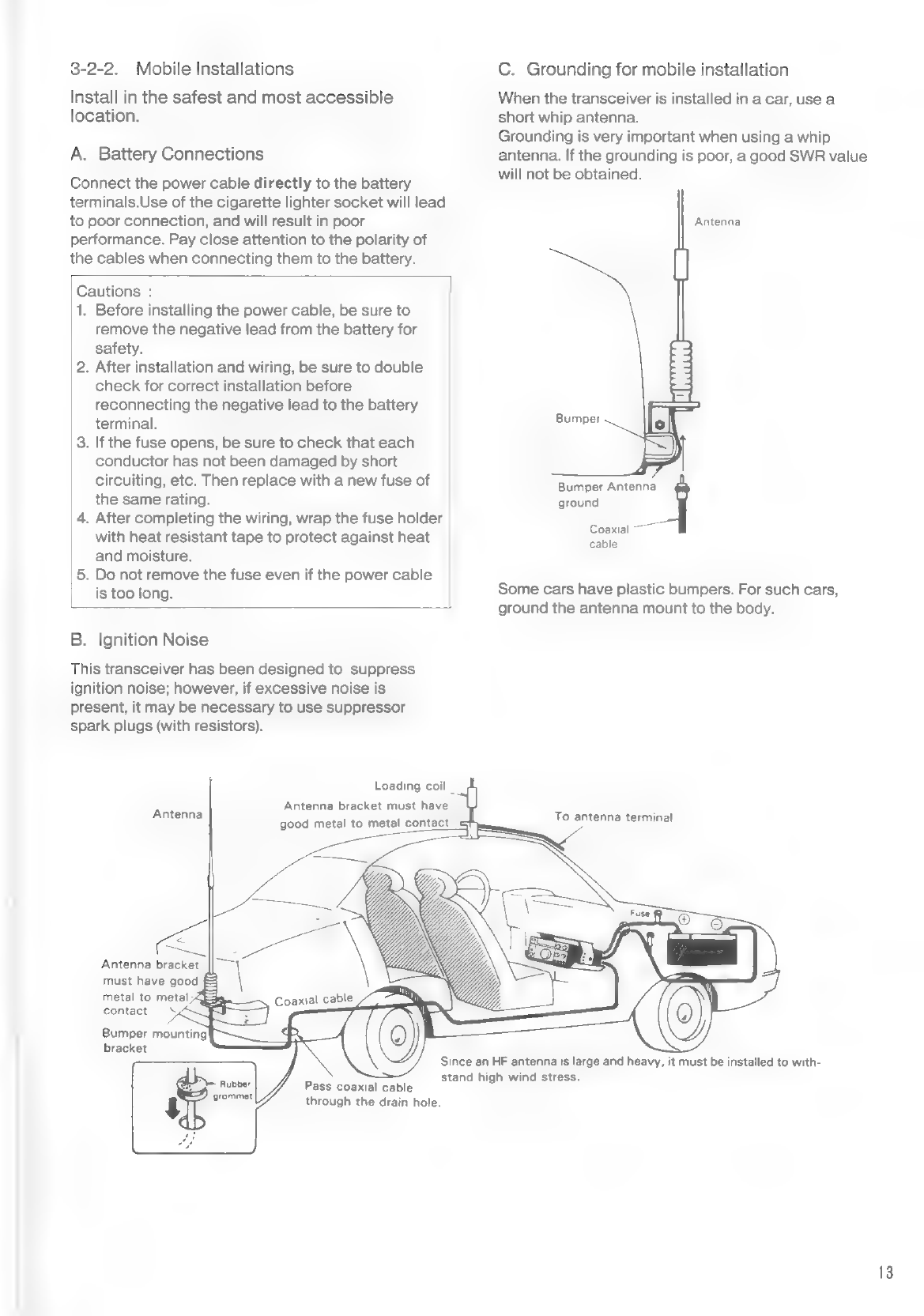

3-2-2. Mobile Installations
Install in the safest and most accessible
location.
A. Battery Connections
Connect the power cable directly to the battery
terminals.Use of the cigarette lighter socket will lead
to poor connection, and will result in poor
performance. Pay close attention to the polarity of
the cables when connecting them to the battery.
Cautions :
1. Before installing the power cable, be sure to
remove the negative lead from the battery for
safety.
2. After installation and wiring, be sure to double
check for correct installation before
reconnecting the negative lead to the battery
terminal.
3. If the fuse opens, be sure to check that each
conductor has not been damaged by short
circuiting, etc. Then replace with a new fuse of
the same rating.
4. After completing the wiring, wrap the fuse holder
with heat resistant tape to protect against heat
and moisture.
5. Do not remove the fuse even if the power cable
is too long.
B. Ignition Noise
This transceiver has been designed to suppress
ignition noise; however, if excessive noise is
present, it may be necessary to use suppressor
spark plugs (with resistors).
Antenna
Antenna bracket
must have good
Bumper mounting Gas RB,
bracket
Pass coaxial cable
through the drain hole.
Loading coil _
Antenna bracket must have
good metal to metal contact
C. Grounding for mobile installation
When the transceiver is installed in a car, use a
short whip antenna.
Grounding is very important when using a whip
antenna. If the grounding is poor, a good SWR value
will not be obtained.
Antenna
Bumper
Bumper Antenna
ground
Coaxial
cable
Some cars have plastic bumpers. For such cars,
ground the antenna mount to the body.
To antenna terminal
Since an HF antenna is large and heavy, it must be installed to with-
stand high wind stress.

4. OPERATION
44.
4-1-1.
OPERATING CONTROLS
Front Panel
9 —-e
@
e7T-© ZS
See page 14 See page 15
Note
All segments on the Display Panel and Indicators
are shown on for this explanation.
See page 18
M.CH/VFO CH NOTCH ~®- SaL
STOTT ae OH RG SAN FINE F Loce
joreeooneyoeress se use cw 8 FS:
WF TRANSCEIVER TS-4508
1 NOTCH MOL 2
acu 008.8088.8-8..-06 id
Oo
ce On ALP “
ise
3 use
yas SHIFT
AF ORF |
26 O)
See page 16 See page 17
|
an Yo
|
sexo aur0
See page 20
@ POWER switch
2)
Press to turn the power ON or OFF.
VOX/OFF switch
VOX
(Voice
Operated
Switch)
operation
is
possible
in
the
SSB,
AM
or
FM
modes.
Break-in
operation
is
possible
in
CW
operation.
To
activate
the
VOX
circuitry
place
the
VOX
switch
ON(—).
ATT/OFF
switch
When on(=), the receive signal is attenuated by
about 20 dB.
REC/SEND switch
This switch is used when you want to manually
control transmit or receive.
SEND : Places the transceiver into transmit.
REC _ : Places the transceiver into receive.
THRU/AUTO switch
THRU The auto antenna tuner is not used in
transmit.
The auto antenna tuner is used in
transmit.
PHONES jack
Output terminal for headphones.
MIC jack
Microphone connection.
AUTO :
GND (STBY) @)
tS) 8 V/approx. 10 mA
MIC connector (Front view)

ALE
== ee
TTT oT) |M. CH PRG SCAN FINE F. LOC!
13 6 7 9 20 40 soddl iy coe
plsialelelleehieeiaealealsiaaieeaisaaiieaiaah ws
os ee 0 vl 9
Kl AIP_NOTCH NB1 2 T RX eco
of am |
Filter indicators
Indicates which filters have been selected.
@ Meter
The signal strength is displayed during reception
(S meter), and the transmisstter power is
displayed during transmission (power meter).
When the RX M or TX M key is pressed, the AF
level (dB), SWR, and ALC values are displayed. A
peak hold function is also incorporated.
(Please refer to Section 4-11-15.)
Note
One or two segments of the S meter may light
when there is no signal, due to atmospheric
noise.
40) M.CH (Memory channel) indicator
Turns ON during Memory Channel operation.
M.SCR (Memory scroll) indicator
Lights when the M.IN key is pressed. When the
memory scroll function is active you can review
the contents of the memory channels without a
loss of the incoming receive frequency.
PRG (Program) indicator
Lights during selection or operation on memory
channels 90 to 99.
SCAN indicator
Turns ON during scanning.
FINE indicator
Indicates the FINE tuning function has been
selected.
F.LOCK indicator
Lights when the F.LOCK key is ON.
AIP(Advanced Intercept Point) indicator
Lights when the AIP switch is ON.
NOTCH indicator
Lights when the NOTCH switch is ON.
NB1 2 indicator
The selected noise blanker operation is
displayed.
SPLIT indicator
Turns ON during split operation.
T indicator
Indicates the TONE function has been selected.
RX
TX
ore
oxo
3
The state of the VFO or memory operating
during transmission and reception is displayed.
® Frequency display
Indicates the operating frequency. The 10 Hz
digit may be suppressed.
(Please refer to Section 4-11-15.)
® Memory Channel number display
Memory Channel Number is displayed.
43) Memory Channel Lockout Indicator
The @ display indicates the Memory Channel
currently in the display will be skipped during
Memory Channel scan.
LSB indicator
Indicates LSB has been selected.
USB indicator
Indicates USB has been selected.
CW indicator
Indicates CW has been selected.
R indicator
Indicates CW/FSK-R(Reverse) has been
selected.
FSK indicator
Indicates FSK has been selected.
FM indicator
Indicates FM has been selected.
AM indicator
Indicates AM has been selected.
PROC indicator
Indicates the PROCESSOR is ON.
FAST indicator
Lights when the AGC time constant is fast.
SLOW indicator
Lights when the AGC time constant is slow.
RIT indicator
Turns ON when using RIT.
XIT indicator
Turns ON when using XIT.
1MHz indicator
Lights when the 1 MHz key is ON.
45) ON AIR indicator
Lights during transmit.
@6) AT TUNE (Antenna Tuner) indicator
Lights to show that the automatic antenna tuner
is in operation. Do not continue until it goes off.
@ RIT/XIT frequency display
Shows the amount of RIT/XIT offset to the
nearest 100 Hz. Minus “—” appears in the
display when the RIT/XIT offset is below the
transmit/receive frequency.
Shows the scan speed during scanning.

19
katgdaret 4 eal
MEMORY.
MOVEO.
Numeric keypad
When used in conjunction with the ENT key, the
keypad is used to directly enter a frequency.
The keypad also has the folloeingfunctions:
O
8.83 FILTER key
Selects the desired 8.83MHz filter regardless of
mode.
© 455 FILTER key
Selects the desired 455kHz filter regardless of
mode.
RX M key
When this key is pressed during reception, the
dB display turns on and off. The AF level is
displayed on the scale (dB), independent from
the AF volume control setting.
AT TUNE key
When the THRU/AUTO switch is placed in the
AUTO position, the automatic tuner will be
engaged and the tuner will try to match the
antenna.
TONE key
Press this key to turn the repeater Sub audible
tone encoder on.
TX M key
The meter indication during transmission can be
switched as follows.
ALC SWR
—— No indicator a=
AF key
Press this key while pressing TF SET key to
display the offset from the current receiving
frequency.
FINE key
One turn of the tuning knob is made equivalent
to 1kHz (1Hz step) in the SSB,CW, and FSK
modes to facilitate tuning. When the key is
pressed again, the original tuning rate of 10KHz
per revolution returns.
REV key
The BFO uses USB for normal CW reception.
With this key, reception becomes possible on
LSB. The BFO uses LSB for normal FSK
operation. With this key, reception becomes
possible on USB.
@
CLR (Clear) key
Used when reentering memory channel data,
erasing a memory channel, clearing scan, or
when specifying the channels that will be
skipped during scan operations.
20) ENT (Enter) key
Used to directly enter a frequency from the
numeric keypad.
@1) MIN key
Used to enter data into a memory channel.
2) MP VFO key
Used to transfer a frequency from memory to
the VFO.
@3) SCAN key
Pressed during VFO operation will initiate
program scan, and pressed during memory
operation will initiate memory scan.

© ®@
¢
MODE ON AIR AT TUNE
(_—] _—)
@MODE keys
These keys are used to select the desired mode of
operation. When a MODE key is pressed the first
character of that mode will be sounded in Morse code
thru the internal speaker.
@4) LSB/USB key
Press the LSB/USB key to alternate between
LSB and USB mode.
@5) CW/FSK key
Press the CW/FSK key to alternate between CW
and FSK mode.
(26) FM/AM key
Press the FM/AM key to alternate between FM
and AM mode.
@7) F.LOCK key
The selected dial frequency and mode are
locked.
Note
When the F.LOCK key is on, the TF-SET,
FILTERkeys, METER, VOICE keys, NOTCH,
AGC, NB, PROC., AIP, RIT, XIT and RIT/XIT
control are still active.
VOICE key
Press this key to activate the optional voice
synthesizer unit VS-2.
@9 TUNING knob (VFO)
Rotate the knob to select the desired frequency.
The dial drag is adjustable by holding the
outside knob and turning the inside knob
clockwise to increase drag, and
counterclockwise to decrease drag.
FUNCTION
@FUNCTION keys
TF-SET key
Depressing this key will allow you to rapidly set
or check the transmit frequency, during SPLIT
and RIT/XIT operations, without the need of
actually transmitting.
A/B key
This key switches between VFO A or VFO B.
M/V key
This key switches between the VFO or memory.
SPLIT key
Press this key for split operation.
RIT key
Press to turn the RIT ON or OFF.
A=B key
Equalizes the frequencies, modes and filter
selections of VFO A and VFO B.
XIT key
Press to turn the XIT ON or OFF.
1MHz key
This key causes the UP/DOWN switches to
change the operating frequency in 1 MHz steps
or only select amateur bands. When the 1 MHz
step position is selected, the 1MHz indicator will
light.
When the 1MHz key has been pressed, the
frequency is changed in 1MHz steps regardless
of the amateur band.
The frequency step can be changed to 500 kHz.
(See 4-11-15. Function setting when the power
is switched on.)
68) UP/DOWN switch
Pressing the UP switch increases the frequency,
and pressing the DOWN switch decreases it.
® ® ® ® ® ®
i)

@ ®
M. CH/VFO CH
NOTCH —@>- SQL
4 6
eS) | ef RIT/KIT a (F SHIF
@—Joor]
y
O30) mea cee (wie
>
OOOO
——y
—
AIP(Advanced Intercept Point) key
Use AIP when good signal reception can not be
obtained. When switched on, it reduces
interference from strong signals.
When
the
frequency
falls
below
9.5MHz,
AIP
turns
on automatically. AIP can be turned off on individual
bands below 9.5MHz by pressing the AIP key.
Note
When AIP is on, the sensitivity of the receiver is
reduced by about 10 dB in the range 100kHz to
21.5 MHz, and by about 15 dB in the range of
above 21.5MHz.
NOTCH key
When this key is ON, the notch filter is
activated.
Note
This switch is disabled during FM operation.
AGC key
Pressing this key toggles the AGC time constant
between SLOW and FAST.
FAST : For CW, FSKand data communications.
SLOW: For SSB and AM.
Note
This switch is disabled during FM operation.
@ NB 1/2 key
NB1: For pulse type noise, such as that
generated by automotive ignition systems,
select NB 1.
NB 1 will not help to eliminate
atmospheric or line noises, only pulse
type noise.
NB2: The NB2 only works on woodpecker type
noise.
Noise blanker 2 is used for long duration pulse noise,
like the “woodpecker”. To reduce “woodpecker”
radar noise interference, select NB 2 (NB 2's
effectiveness depends on the specific type of
interference). If you use NB 2 for short duration pulse
noise, the receive signal may become distorted,
making it difficult to hear.
Unfortunately no noise blanker can remove all
different types of interference; but the two noise
blankers that have been provided in the TS-
450S/690S are effective in most cases.
If there is no “woodpecker” present, turn NB2 off.
PROC key
Effective transmit power output will increase
when the PROC is turned ON during SSB mode
operations.
@) M.CH/VFO CH control
This control is used to select the desired
memory channel during Memory Channel
Operation.
This control is also used to change the
frequency in 10 kHz steps during VFO
operations.
The control is also used to select the desired
power on function you wish to change. See
section 4-11-15.
@) NOTCH control
The NOTCH function is used to reduce or
eliminate heterodyne, or CW type signals. The
NOTCH filter will not be effective against SSB,
AM or FM type signals.
@) SQL control
This control is used to eliminate atmospheric
noise, and receiver static noise during no signal
periods. Slowly rotate the control clockwise to
the point where the ambient noise just
disappears, and the speaker shuts off. This point
is known as the squelch threshold point. Now
you will only hear output from the speaker when
an incoming signal is present. For weak signal
reception this control should be fully
counterclockwise.

@) RIT/XIT control
RIT (Receiver Incremental Tuning)
The RIT control shifts the receiver frequency
without changing the transmit frequency.
When the RIT switch is ON, the RIT indicator will
light, and the receive frequency can be adjusted
by using the RIT control.
Note
When the RIT is ON the transmit frequency may
be different from the receive frequency. For
normal operation leave the RIT switch OFF. It
should be used only when necessary.
The scan speed can be changed during scanning
with the RIT control.
XIT (Transmitter Incremental Tuning)
XIT is very similar to RIT. XIT is only active in the
transmit mode. By using the XIT function it is
possible to offset the transmit frequency without
the normal loss of receiver audio that is
experienced when using the SPLIT function.
When RIT/XIT is off, the RIT/XIT display dose not
light.
The RIT/XIT step size is either 10 Hz or 20 Hz.
Please refer to Section 4-11-15 for information on
how to select the desired step size.
IF SHIFT control
Interference can be eliminated and the receive
audio quality can be adjusted.
Note
This control is disabled during FM and AM
operation.
AF gain control
Turn the knob to increase or decrease the
volume.
Clockwise rotation increases the volume and
counterclockwise rotation decreases the volume.
Note
The output level of the “Beep”, “Sidetone”
and VS-2 are not affected by adjusting of the
AF gain control.
60 RF gain control
This control adjusts the gain of the receiver
high-frequency amplifier section.
For normal receiver performance, and maximum gain,
this control should be all the way to the right. If you
are having trouble copying the desired signal make a
note of the stations peak S-meter reading. Then,
adjust the RF gain control left, so that the meter is
stationary at this level. Now, all signals that were less
than the desired signal will be attenuated, such as
static noise, etc., making reception easier.
If
the
incoming
signal
pegs
the
S-meter
you
can
also
reduce the receiver gain by moving the RF gain
control to the left. The S-meter will always advance
up-scale as the RF gain control is moved, to indicate
that the gain has been reduced.
Simultaneous use of the RF gain control and AGC
key.
If a strong signal (such as a local station) appears in
the vicinity of the intended receive signal, the S-meter
may show unusual deflection due to the AGC voltage
developed from the strong disturbing signal. If this
occurs, move the RF gain control to the left so the
meter pointer remains at about the original deflection
peak and select FAST AGC.
This will reduce the unwanted AGC voltage and
permit clear reception.
Note
Turn the control fully clockwise in the FM mode.
19

(DELAY J[_CAR_J(“PwR ("Mic
36
oy
62) DELAY control
This control adjusts the delay time in VOX
operation. Set it to an appropriate position.
The DELAY control is turned fully
counterclockwise in CW mode for full break-in
(QSKk) operation.
62) CAR(Carrier level) control
Used to adjust carrier level during CW, AM, FM
and FSK.
63) PWR(Power) control
Power can be controlled in all modes. Power is
increased by turning the control clockwise.
Keep the transmit power within the output power
limits of your license.
MIC gain control
Microphone gain can be adjusted during SSB
and AM operations. Gain is increased by turning
the control clockwise.
Mi Top of case (TS-690S only)
65) ANTENNA SELECT switch
Select the desired antenna HF or 50MHz.
20
Hl Left side of case
66) VOX control
This control adjusts the sensitivity of the VOX
amplifier. Adjust this control for your personal
preference.
67) ANTI control
VOX operations are sometimes difficult with
high speaker volume control settings. The ANTI
control is used to reduce the tendency of the
VOX to activate from inputs from the speaker.
The ANTI control is not active when headphones
are connected.
68) ACC-1 connector
The optional DSP-100 or the optional IF-232C is
connected here.
Hi Microphone
@@UP/DWN(Up/Down) switches
These switches are used to step the VFO frequency
or memory channel up and down. The frequency will
change continuously if the switches are pressed and
held.
@ PTT (Push To Talk) switch
The transceiver will be placed into Transmit whenever
this switch is pressed.
