Kenwood K814WM18 Service manual

8KG washing machine
K814WM18 / K814WMT18
installation / instructions manual
Kenwood 8kg Washing Machine K814WM18 Manual.indd 1 21/06/2018 08:12

Kenwood 8kg Washing Machine K814WM18 Manual.indd 2 21/06/2018 08:12

Contents
safety warnings .................................................................................................................. 5
unpacking............................................................................................................................ 8
moving and installing......................................................................................................... 9
removing the transit bolts ................................................................................................ 9
moving the washing machine from one location to another ............................................ 9
installing your washing machine.................................................................................... 10
choosing the right location for your washing machine................................................... 10
hose and cable lengths ..................................................................................................11
levelling the washing machine........................................................................................11
water supply hose ..........................................................................................................11
connecting to the mains supply ..................................................................................... 12
rst time use .................................................................................................................. 12
product overview.............................................................................................................. 13
the unit........................................................................................................................... 13
the control panel............................................................................................................ 14
preparation........................................................................................................................ 15
organising laundry ......................................................................................................... 15
preparing laundry .......................................................................................................... 15
important information ...................................................................................................... 16
washing delicates (wool and silk) .................................................................................. 16
adding delicate laundry items to the drum..................................................................... 16
which detergent to use .................................................................................................. 16
adding detergent and softener ...................................................................................... 17
selecting the programme............................................................................................... 18
wash setting...................................................................................................................... 20
rst washing operation .................................................................................................. 20
standard washing .......................................................................................................... 20
manual soaking ............................................................................................................. 21
half-load detection system............................................................................................. 21
optional functions .......................................................................................................... 21
washing water temperature selection............................................................................ 21
spin speed ..................................................................................................................... 21
delay timer..................................................................................................................... 22
how to set the child lock ............................................................................................... 22
selecting a prewash....................................................................................................... 22
removing laundry........................................................................................................... 22
maintenance - cleaning the washing machine .............................................................. 23
cleaning the drum.......................................................................................................... 23
cleaning the exterior of your washing machine ............................................................. 23
cleaning the detergent drawer and siphon plug ............................................................ 23
cleaning the door seal and window ............................................................................... 23
cleaning the drain lter .................................................................................................. 24
cleaning the lter net of the water supply hose ............................................................. 24
troubleshooting ................................................................................................................ 25
error codes........................................................................................................................ 27
product che..................................................................................................................... 28
Kenwood 8kg Washing Machine K814WM18 Manual.indd 3 21/06/2018 08:12

energy label....................................................................................................................... 29
specications.................................................................................................................... 29
Kenwood 8kg Washing Machine K814WM18 Manual.indd 4 21/06/2018 08:12

5
safety warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
WARNING!
• If you will not be using the washing machine for a while such as when you
go on holiday, disconnect the plug from the mains supply and turn off the
water supply to the washing machine. This is particularly important if there
is no drainage around the washing machine.
• If the water supply is left on, water pressure may build up and cause a leak.
General Use
• Transit bolts are used to transport the washing machine. You should
remove these using a spanner or similar tool before you install the washing
machine. If you do not, it will cause strong vibrations when the washing
machine is spinning.
• Do not install your washing machine anywhere that is damp or exposed
to the weather. If you do, it may cause an electric shock, fire, failure or
deterioration.
• Do not pour water directly onto any part of the washing machine. It may
cause a short circuit or electric shock.
• Keep burning objects such as candles or cigarettes, away from the washing
machine. They may cause a fire or damage.
• Keep flammable substances well away from the washing machine – for
example kerosene, gasoline, benzene, paint thinner and alcohol, or clothing
soaked with these. They may cause an explosion or a fire.
• This washing machine is only suitable for washing textiles labelled ‘washing
machine washable’.
• Do not connect the washing machine to hot water. The washing machine
works with cold water supply only.
• Before you start using the washing machine, turn the tap on to check that
the hose is properly connected. If it’s not, there may be a water leak.
• Do not put too much laundry or detergent into the washing machine. It may
cause issues with the washing machine or laundry.
• Be careful not to get your laundry caught in the door when you close it. This
could cause a water leak or damage your laundry.
• This washing machine is for household (domestic) use only.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 5 21/06/2018 08:12

6
Power Source and Cable
• Use an independent household dedicated mains socket, rated at 13
Amp 220V to 240V AC. If the washing machine is plugged in with other
appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly into the socket. A loose
connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable
is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an
electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains
plug, it could cause a fire. To prevent this, unplug the cable and clean the
mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable.
Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adapter or extension cable. It may overheat and
cause a fire.
• Make sure your home voltage matches the voltage displayed on the
washing machine. If you are not sure, contact an electrician.
• The mains plug must remain accessible to allow disconnection or an all
pole switch must be incorporated in the fixed wiring in accordance with the
wiring regulations.
To Prevent Injury / Damage
• Do not climb on the washing machine. You may hurt yourself or damage the
washing machine.
• When opening and closing the door ensure you keep fingers away from the
door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They
could damage your laundry or the washing machine.
• To prevent any large, heavy objects (e.g., buckles, large buttons, etc.) from
hitting the glass door, turn your clothing inside out or remove the heavy
objects. They could damage your laundry or the washing machine.
• Do not wash, rinse or spin water-proof sheets or clothing. These may cause
vibration or washing machine failure during spin-drying, which could lead to
injury, damage to the washing machine or damage due to water leaking.
• Be careful when draining hot water or any detergent from the drum.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 6 21/06/2018 08:12

7
• Do not dismantle, repair or modify the washing machine. The washing
machine could malfunction and cause a fire or injury.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children unless they are older
than 8 and supervised.
• Children should be supervised to ensure that they do not play with the
appliance.
• Children of less than 3 years should be kept away unless continuously
supervised.
• Do not touch the laundry inside the washing machine, until the drum has
completely stopped. Even if the drum is spinning at low speed it can cause
an injury. Take particular care of children in this respect.
• The appliance is to be connected to the water mains using the new hose-
set supplied. Old hose-sets should not be reused.
• The ventilation openings in the base of the washing machine must not be
obstructed by a carpet.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 7 21/06/2018 08:12

8
unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Main Unit Water Supply Hose x 1
U-Shape Drain Hose HolderTransport Bolt Covers x 4
Temp. Spin Delay Start/Pause
Selectons
60°C
40°C
O Cotton90°C
Eco20°C
Cotton
Cotton
EasyCare
Wool
Rinse
AllergySafe
e
Spin
Daily60°/60'
Sport
Rapid15'
Mix
HandWash
Delicate
Shirts
K814WM18
PreWash
Thank you for purchasing your new Kenwood Washing Machine.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this installation/instruction
manual in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Liquid detergent guide x1
200
150
100
Kenwood 8kg Washing Machine K814WM18 Manual.indd 8 21/06/2018 08:12

9
installation
Don’t run the washing machine without removing the transit bolts, as this can cause
excessive vibrations and may damage your machine.
moving and installing
removing the transit bolts
Four transit bolts keep the interior of the washing machine in place while it’s being moved.
They need to be removed before installation. Use a spanner (not supplied) and follow the
instructions detailed below.
to remove the transit bolts:
1. Ensure the unit is fully disconnected from the mains power by unplugging it from the mains.
2. Unscrew the four (4) transit bolts.
3. They are located at the rear side of the washing machine. Use a spanner (not included) to
loosen the four (4) transit bolts, then pull out the bolts horizontally. Ensure the plastic bolt
guides (if any) are also removed.
4. Snap in the plastic caps to cover the transit bolt holes.
moving the washing machine from one location to another
Before you move the washing machine:
• Shut off the tap and run the washing machine to drain the water. Drain any remaining water
from the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.
Make sure to fix the transit bolts prior to moving the washing machine.
1
2
3
4
Keep the four (4) transit bolts in a safe
place, in case you need to move the washing machine.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 9 21/06/2018 08:12

10
installation
An additional space (approximately 60mm) is required at the rear of the washing
machine. This is to allow enough space for the water hose and drain hose connections.
installing your washing machine
Please Read And Follow The Instructions Carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and
power supply companies may apply. If in doubt, have the washing machine connected by a
qualified technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components
(e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or
where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.
choosing the right location for your washing machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibrations and
noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures can
reach freezing.
• The ventilation openings in the base of the washing machine must not be obstructed by
carpet.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person
should grip the bottom feet at the front.
• Check that you have all the required accessories for installation.
• We recommend that you entrust the installation of the washing machine to a qualified
technician.
Two or more people are required to move
the washing machine.
ÒÒÒ
Sloping
surface
Unstable Bumpy
surface
xSloping
surface
xUnstable xBumpy
surface
Kenwood 8kg Washing Machine K814WM18 Manual.indd 10 21/06/2018 08:12

11
installation
Temp. Spin Delay Start/Pause
Selectons
60°C
40°C
O Cotton90°C
Eco20°C
Cotton
Cotton
EasyCare
Wool
Rinse
AllergySafe
e
Spin
Daily60°/60'
Sport
Rapid15'
Mix
HandWash
Delicate
Shirts
K814WM18
PreWash
levelling the washing machine
There are 4 levelling feet on the underside. They MUST be adjusted to make sure the washing
machine is level.
Ensure all four lock rings are tightened securely. Check the feet are still bolted to the washing
machine - if they’re unbolted, the washing machine will move around.
hose and cable lengths
How to connect from the left side
~95cm
~145cm
~95cm ~150cm
min. 60cm
max. 100cm
~95cm
~140cm
How to connect from the right side
* All images are for indication only; please refer to your individual unit for actual item.
water supply hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• This machine is designed to connect to the cold water supply. Do not connect to the hot
water supply.
• Use only the new water supply hose supplied. Old hose sets should not be reused.
• The mains water pressure must be 0.1MPa - 1MPa.
• If your washing machine is delivered in freezing weather conditions, leave it at room
temperature for 24 hours after you’ve set it up before using it. This ensures there’s no ice
blocking the water supply hose. If your water supply hose freezes, add 2 or 3 litres of warm
water to the drum. Then run a “Spin” only programme.
Adjust all four
feet by rotating
each upwards or
downwards.
On each foot,
loosen the lock
ring by turning
clockwise.
Use a spirit level
to ensure the
washing machine
is level.
Tighten each lock ring by
turning them anti-clockwise
(towards the washing
machine body).
Temp. Spin Delay Start/Pause
Selectons
60°C
40°C
O Cotton90°C
Eco20°C
Cotton
Cotton
EasyCare
Wool
Rinse
AllergySafe
e
Spin
Daily60°/60'
Sport
Rapid15'
Mix
HandWash
Delicate
Shirts
K814WM18
PreWash
1 2 3 4
Kenwood 8kg Washing Machine K814WM18 Manual.indd 11 21/06/2018 08:12

12
installation
Connecting the water supply hose
1. To prevent leakage from the connection
joints, ensure the rubber washer seals
are fitted to each end of the water supply
hose. Do not use without the seals in
place.
2. Fit the straight end of the water supply
hose to the cold water tap.
3. Connect the angled end of the white headed hose to the
water inlet valve on the machine. Hand tighten the plastic
parts of the connections. If you are unsure,
please call a qualified plumber.
4. Open the tap slowly and check that there are no leaks
around the connection joints.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through is sufficient to
prevent overflowing.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to
flow back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
connecting to the mains supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, disconnect from the main, stop using them
and call a qualified technician for assistance.
• Mains cord of your washing machine is equipped with an Earthed plug. This plug must
always be inserted to an earthed socket capable of supplying 13 Amps. If you don’t have
such a socket and fuses in your house, please call a qualified electrician.
first time use
Some water may be left in your machine due to tests carried out during production. To dispose
of this water, it is recommended to perform the first washing operation with the programme
(Cotton 90ºC) and without laundry by inserting ½ portion of detergent in the main detergent (II)
compartment of the detergent drawer.
* All images are for indication only; please refer to your individual unit for actual item.
3/4”
min. 10 mm
3/4”
min. 10 mm
Plastic joint
Cold water inlet
(White lter valve)
When connecting to
the drain ensure the
blanking plate has
been removed.
During initial start-up and use of the unit, there may be a slight smell while the motor is
settling in. This is not a fault; this is normal operation.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 12 21/06/2018 08:12

13

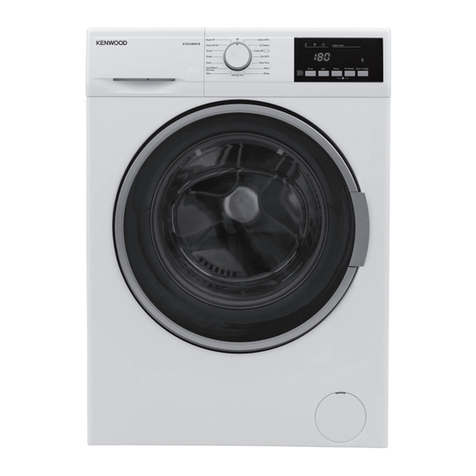

product overview
the unit
Detergent
Compartment Control Panel
Service Panel
Temp. Spin Delay Start /Pause
Selectons
60°C
40°C
O Cotton 90°C
Eco 20°C
Cotton
Cotton
Easy Care
Wool
Rinse
Allergy Safe
e
Spin
Daily 60°/60'
Sport
Rapid 15'
Mix
Hand Wash
Delicate
Shirts
K814WM18
PreWash
Door
Kenwood 8kg Washing Machine K814WM18 Manual.indd 13 21/06/2018 08:12

14
the control panel
Temp. Spin Delay Start /Pause
Selectons
60°C
40°C
O Cotton 90°C
Eco 20°C
Cotton
Cotton
Easy Care
Wool
Rinse
Allergy Safe
e
Spin
Daily 60°/60'
Sport
Rapid 15'
Mix
Hand Wash
Delicate
Shirts
Pre Wash
Programme Dial
Different wash programmes can
be selected according to your
wash requirements.
LED Display
• The delay icon will be on to indicate the delay time.
• After the wash procedure begins, the display will show the wash
remaining time, spin speed and other function options.
• When the child lock function is selected, the Child Lock icon will be
illuminated.
• When the door is at the lock state, the Door Lock icon will be illuminated.
If you want to cancel any programme running:
• Switch the programme knob to OFF position.
• Your machine will stop the washing operation and the programme will be cancelled.
(Ensure the Child Lock is off, otherwise the original programme will continue.)
• To empty the water accumulated in the machine switch the programme knob to any
programme.
• Your machine will perform the necessary discharge operation and cancel the programme.
• You can then select a new programme.
During initial start-up and use of the unit, there may be a slight smell
while the motor is settling in. This is not a fault; this is normal operation.
Button Function
Temp
Press continuously to select the desired temperature of the selected wash
programme. You can only select a temperature lower than the selected
programmes temperature. 90°C - 60°C - 40°C - 30°C or - - (cold)
Spin Press continuously to select the desired spin speed of the selected wash
programme. 1400 - 1200 - 800 - 600 - 400 - OFF (- -)
Delay This button is used to delay the wash. Press continuously to select the time you
want to start the wash. You can set a delay time of up to 23 hour.
Pre Wash Press this button to get an extra wash before main wash.
Child Lock Press and hold the Delay and Pre Wash buttons at the same time until you see
‘CL’ in the display to activate the child lock.
Start/Pause Press to start your wash. Press while in operation to pause your wash.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 14 21/06/2018 08:12

15
preparation
Read the following to understand how best to prepare your laundry for washing.
organising laundry
• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is. This will help you choose the
correct programme and temperature for each wash.
• Do not exceed the maximum load!
preparing laundry
• Treat stains before washing.
• Some items should be put into a cleaning net before going
into the washing machine, i.e. bras with metal wires, tights
and lace clothing to prevent damage.
• Check that pockets do not contain any objects which may
damage your clothes and the washing machine.
• Tie up any loose strings on laundry, close zippers and
reverse clothing with zips inside out.
• To prevent any large, heavy objects (e.g., buckles, large
buttons, etc.) from hitting the glass door, turn your clothing
inside out, or remove the heavy objects. These could
damage your laundry or the washing machine.
• Remove any surplus hair, animal fur, sand, and other
materials with a brush before washing.
• If clothes have raised fabric turn them inside out.
• Clothes that are not colour fast should be washed separately.
• Insert your clothes into the washing machine. Close the
washing machine door. Ensure that you do not trap any items
of clothing between the loading door and the rubber seal.
Fibre Type Maximum Loading Capacity
Cotton 8.0kg
Synthetic 3.5kg
Wool 2.5kg
Delicate 3.5kg
Kenwood 8kg Washing Machine K814WM18 Manual.indd 15 21/06/2018 08:12

16
important information
washing delicates (wool and silk)
• Silk laundry loads: 2kg or less
• Approximate Weights:
-Wool sweater (400g)
-Silk blouse / under garment (200g)
-Trousers (400g)
adding delicate laundry items to the drum
• Close zips and buttons.
• Add items one by one on top of each other.
• Don’t overload the drum as it may cause excessive
vibrations or damage the washing machine.
which detergent to use
• For woolen items, use a mild liquid detergent. Other detergents may damage your woolen
clothes.
• With wool or silk, you may need to use an extra rinse cycle to remove excess detergent from
your clothes. This depends on the amount of detergent you use, and the amount of foam that
develops in the main wash cycle.
Washing and type of textile Washing
temperature Detergent
Boil washable white washing
made of linen or cotton 30°C - 90°C (Max) Standard detergent containing bleach and optical brighteners
Coloured washing made of linen
or cotton 30°C - 60°C (Max) Colour detergent without bleach and optical brighteners
Coloured washing made of
easy-care fibres, synthetic
materials
30°C - 60°C (Max) Colour/mild detergent without optical
brighteners
Delicate fine textiles, silk or
viscose 30°C - 40°C (Max) Mild detergent
Wool 30°C - 40°C (Max) Detergent for woollens
Kenwood 8kg Washing Machine K814WM18 Manual.indd 16 21/06/2018 08:12

17
II
I
Main wash
detergent
Softener
Pre-wash
detergent
Main
Detergent
Prewash
Detergent
Softener
adding detergent and softener
• Add detergent into the appropriate dispenser.
• Apply softener before you start washing.
• Apply detergent and softener according to the washing
amount, the soiling level, the water hardness in your area
and the manufacturer’s instructions of these products.
• For slightly dirty clothes, put a small amount of detergent
in compartment (II) of the detergent drawer.
• For excessively dirty clothes, put ¼ of the detergent to be
used in compartment (I) of the detergent drawer and the
remaining amount in compartment (II).
Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the
overflow.
• Do not use the washing machine when the detergent drawer is removed. It may cause water
leak or it may not work normally.
• If you forget to add detergent, you can drain the washing machine by running a drain only
programme. Then you can add detergent and start the programme again. Detergent only
reaches the drum when water flushes through the detergent drawer.
• To prevent powder detergent staying in the drawer, dry the inside of the drawer with a cloth.
Make sure the powder isn’t lumpy when you add it into the drawer.
• If the rinse cycle isn’t removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has
finished.
• You can use liquid detergents in all programmes.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 17 21/06/2018 08:12

18
selecting the programme
Here are the available programmes, additional functions and option settings.
Temperature can be selected separately for certain programmes.
Program Description Prewash
Function†
Max
Temperature
Max Load
(kg)
Preset Setting
Default Spin
(rpm)
Approximate
Time (Min)
Cotton
1 90°C For average soiled
cottons, household
linens and work / play
clothes.
Available ✓90°C 8.0* 1400 187
2Cotton Pre set ✓60°C 8.0* 1400 164
3 Cotton e Available ✓60°C 8.0* 1400 240
4Eco
20°C
For less than average
soiled cottons,
household linens and
work / play clothes.
NOT
Available ✓20°C 4.0** 1400 96
5Easy
Care
Very dirty or synthetic-
mixed textiles. Available ✓40°C 3.5 1200 110
6 Wool For machine washable
woollens.
NOT
Available ✓30°C 2.5 600 43
7 Rinse
Separate rinse
procedure
NOT
Available ✗Water temp 8.0 1400 42
8Allergy
Safe For baby laundry Available ✓60°C 4.0 800 226
9 Spin
Separate spin procedure
NOT
Available ✗- 8.0 1400 17
10
Hand
Wash
Delicate
Laundry recommended
for hand wash or
sensitive laundry
NOT
Available ✓30°C 2.5 600 90
11 Sport Sportswear Available ✓30°C 3.5 800 80
12 Mix
Dirty cotton, synthetics,
colour and ax textiles
can be washed together.
Available ✓30°C 3.5 800 81
13 Shirts
Dirty cotton, synthetics,
and synthetic mixed
shirts/blouses can be
washed together.
Available ✓60°C 4.0 600 114
14 Daily
60°/60’ 60 minute wash NOT Available ✓60°C 4.0 1400 60***
15 Rapid
15’
15 minute quick wash
for lightly soiled laundry
NOT
Available ✓30°C 2.0 800 15
* Maximum of 4kg of towelling material. ** Maximum of 2kg of towelling material. *** If 2kg or less of laundry is
inserted the wash time will be reduced to 30 mins.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 18 21/06/2018 08:12

19
• Standard washing cycle programs are the Standard 60° C Cotton Program and the
Standard 40°C Cotton Program. These cycles are suitable for cleaning naturally-soiled
laundry and are the most efficient washing cycles in terms of combined energy and water
consumption.
• For all washing programs, please following the detergent recommendations on the garment
label or on the detergent’s packaging.
• Washing times depend on the program type, ambient water temperature and wash load (weight
and type).
• Energy and water consumption will vary according to wash load and type, extra functions, tap
water and ambient temperatures.
• The actual water temperature may differ from the declared cycle temperature.
• Your washing machine will automatically detect if you have only inserted half a load or
less of laundry, it will automatically reduce the washing time, water consumption and
energy in some programs.
• Your washing machine has an Auto Balance feature. Washing times will be longer if the
laundry in the drum needs to be balanced.
Kenwood 8kg Washing Machine K814WM18 Manual.indd 19 21/06/2018 08:12

20
wash setting
first washing operation
Some water may be left in your machine due to tests carried out during production. To dispose of
this water, it is recommended to perform the first washing operation with the programme (Cotton
90ºC) and without laundry by inserting ½ portion of detergent in 2nd compartment of the detergent
drawer.
7. Press the Start / Pause button to start the washing.
8. The washing machines End LED will light when the programme is complete.
• If the door is locked and you switched the washing machine off - or if there’s a power cut
- it will stay locked for 2 minutes.
• If the machine is full of water, do not open the door.
Temp. Spin Delay Start /Pause
Selectons
60°C
40°C
O Cotton 90°C
Eco 20°C
Cotton
Cotton
Easy Care
Wool
Rinse
Allergy Safe
e
Spin
Daily 60°/60'
Sport
Rapid 15'
Mix
Hand Wash
Delicate
Shirts
Pre Wash
During initial start-up and use of the unit, there may be a slight smell while the motor is
settling in. This is not a fault; this is normal operation.
standard washing
1. Pull the door handle and put the laundry in the drum.
Make sure no laundry gets caught in the door.
2. Close the door and turn the Programme Dial to select
your wash programme and water temperature.
3. Adjust the temperature (if required). The temperature
can not be set higher than the programmes set
temperature.
4. Adjust the Spin Speed (if required).
5. Select any Optional Functions.
6. Add detergent into the detergent drawer. The quantity
of detergent will depend on the amount of laundry,
the degree of soiling and the water hardness. Use the
amount of detergent suggested on the packaging of the
detergent.
To pause the programme you have selected, press
the Start / Pause button. The Start/Pause symbol
will blink when the machine is in pause mode.
Temp. Spin Delay Start /Pause
Selectons
60°C
40°C
Pre Wash
Kenwood 8kg Washing Machine K814WM18 Manual.indd 20 21/06/2018 08:12
