CAT5/6
Monitor
Cable Box
Component
CAT5/6
CAT5/6
Component
Audio
Audio
KD-CAT5XRCA KD-CAT5XRCA
KD-CAT5XRCA
KD-CAT5XRCA is a Video/Audio Balun with RCA and CAT5 connections
4Converts analog video and analog or digital
audio signals for transmission over CAT5
cable for distances up to 1000ft*
4Can handle virtually any analog video signal
and any analog or digital audio signal on any
port regardless of silk screen label
4Shielded RJ45 connections
4Image quality performance up to 1000’
(Good), 500’ (Better), 300’ (Best)
4Can be configured to ground individual
signals to Earth via four DIP switches to help
reduce artifacts due to grounding issues
4Each unit can act as either transmitter
or receiver
Key Benefits General Info
Regulation: RoHS
50Hz and 60Hz
Mounting Bracket
Enclosure: Molded ABS
Dimensions:
4.25” x 1.25” x 3.25”
Shipping Carton Dimensions:
4.75” x 2” x 3.5”
Product Weight: > 1 lbs
Shipping Weight: 1 lbs
›
›
›
›
›
›
›
›
CAT5 Video/Audio Balun Devices
KD-CAT5XST
KD-CAT5XST is an Audio balun with RCA and CAT5 connections.
CAT5/6
CAT5/6
CAT5/6
Audio
Audio
Monitor
Cable Box
RGBHV
RGBHV

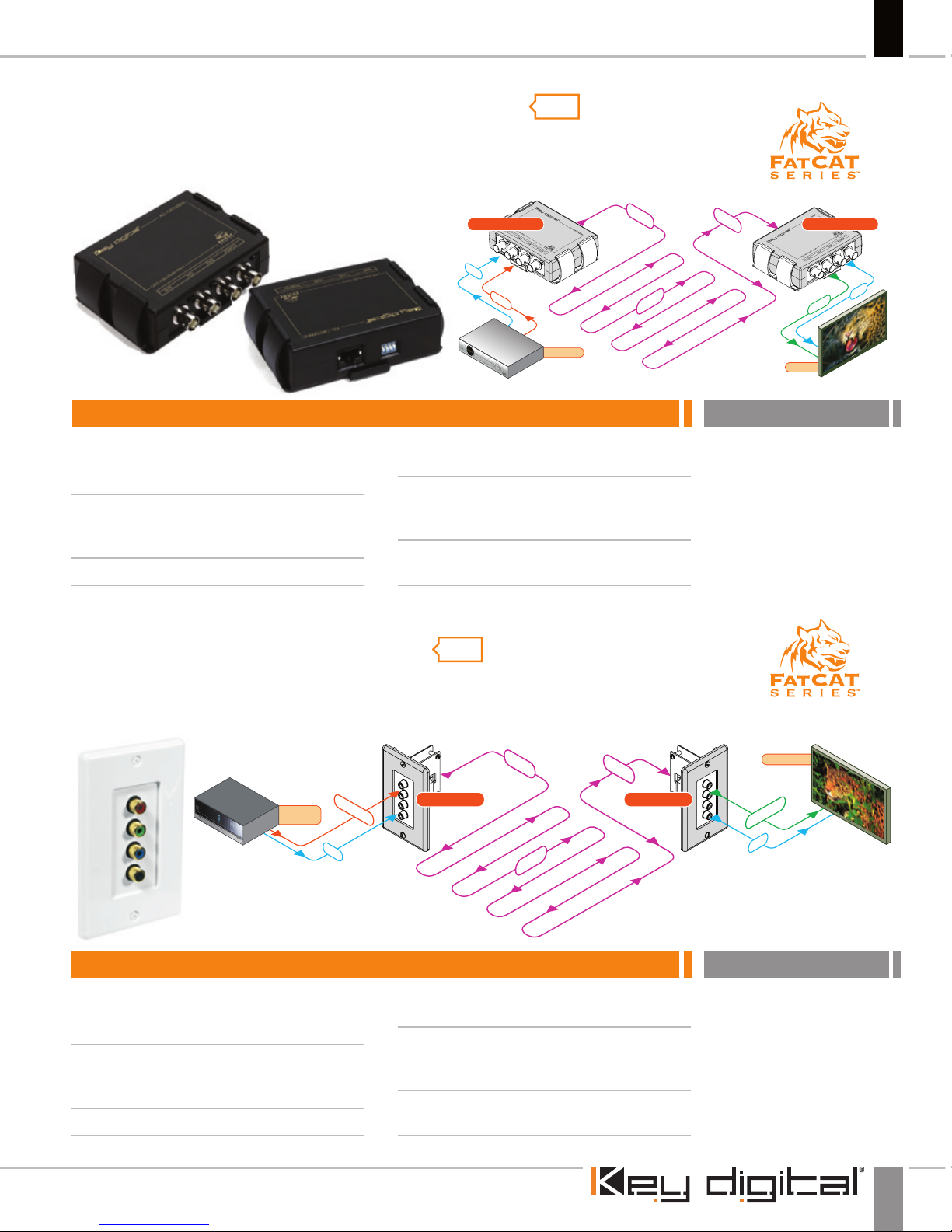

KD-CAT5XBNC KD-CAT5XBNC
KD-CAT5XBNC
KD-CAT5XBNC is a Video/Audio Balun with BNC and CAT5 connections
4Converts analog video and analog or digital
audio signals for transmission over CAT5
cable for distances up to 1000ft*
4Can handle virtually any analog video signal
and any analog or digital audio signal on any
port regardless of silk screen label
4Shielded RJ45 connections
4Image quality performance up to 1000’
(Good), 500’ (Better), 300’ (Best)
4Can be configured to ground individual
signals to Earth via four DIP switches to help
reduce artifacts due to grounding issues
4Each unit can act as either transmitter
or receiver
Key Benefits General Info
Regulation: RoHS
50Hz and 60Hz
Mounting Bracket
Enclosure: Molded ABS
Dimensions:
4.25” x 1.25” x 3.25”
Shipping Carton Dimensions:
4.75” x 2” x 3.5”
Product Weight: > 1 lbs
Shipping Weight: 1 lbs
›
›
›
›
›
›
›
›
CAT5/6
CAT5/6
CAT5/6
KD-C5CWP KD-C5CWP
LCD/Plasma
HD DVD or
Blu-Ray
Audio
Component
Audio
Component
KD-C5CWP
KD-C5CWP is a Video/Audio Balun wall plate with RCA and CAT5 connections
4Converts analog video and analog or digital
audio signals for transmission over CAT5
cable for distances up to 1000ft*
4Can handle virtually any analog video signal
and any analog or digital audio signal on any
port regardless of silk screen label
4Shielded RJ45 connections
4Image quality performance up to 1000’
(Good), 500’ (Better), 300’ (Best)
4Can be configured to ground individual
signals to Earth via four DIP switches to help
reduce artifacts due to grounding issues
4Each unit can act as either transmitter
or receiver
Key Benefits General Info
Regulation: RoHS
50Hz and 60Hz
Wall Plate
Enclosure: Molded ABS
Dimensions:
4.25” x 1.25” x 3.25”
Shipping Carton Dimensions:
4.75” x 2” x 3.5”
Product Weight: > 1 lbs
Shipping Weight: 1 lbs
›
›
›
›
›
›
›
›
* Increase in distance and resolution will result in loss of image sharpness or drop in video synch. Digital audio up to 500’.
CAT5/6
CAT5/6
CAT5/6
Media Center
Surround Sound
KD-CAT5XST KD-CAT5XST
Audio
Audio
4Engineered for extended bass performance
and superior frequency response
4Can handle virtually any analog video signal
and any analog or digital audio signal on any
port regardless of silk screen label
4Shielded RJ45 connections
4Can be configured to ground individual
signals to Earth via four DIP switches to help
reduce artifacts due to grounding issues
4Each unit can act as either transmitter
or receiver
Key Benefits General Info
Regulation: RoHS
50Hz and 60Hz
Mounting Bracket
Enclosure: Molded ABS
Dimensions:
4.25” x 1.25” x 3.25”
Shipping Carton Dimensions:
4.75” x 2” x 3.5”
Product Weight: > 1 lbs
Shipping Weight: 1 lbs
›
›
›
›
›
›
›
›
* Increase in distance and resolution will result in loss of image sharpness or drop in video synch. Digital audio up to 500’.
