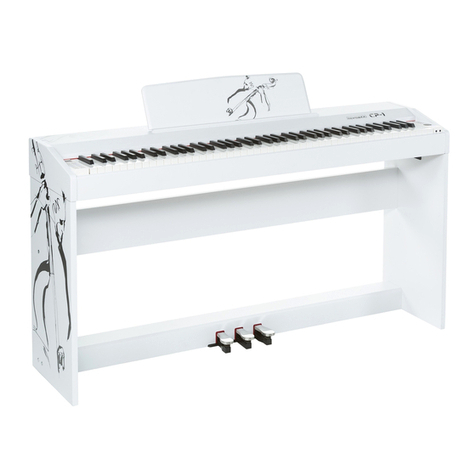

keymaXX DP-200 User manual

DP-200
02/2023
KEY0005482-000
user manual

Congratulations on your new keymaXX DP-200E-Piano!
Thank you for choosing a keymaXX product. Thanks to efficient development and
economical production, keymaXX makes high-quality products at a fantastic price possible.
Please read these operating instructions carefully to be informed about all functions of
this product and keep them for future reference
Have fun with your new product!
Your keymaXX Team
Guarantee:
The current general terms and conditions and guarantee conditions of Music Store
professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions, please contact us:
Music Store professional GmbH Istanbulstr. 22-26
51103 Köln
Managing Director: Michael Sauer WEEE-Reg.-Nr. DE 41617453
Tel: [phone]
Fax: [phone]
[email protected]
Intended use:
The keymaXX DP-200 is a digital E-Piano, designed to play sounds on the keyboard and
make them audible through built-in speakers or headphones. Improper use of the product is
considered improper and can lead to personal injury or property damage. No liability is
assumed for damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users
who are in full possession of their mental, physical and sensory abilities. The use by other
persons is only permit-ted under the supervision or guidance of a person responsible for their
safety.

Important safety instructions! Please read before connection!
CAUTION! (Electro Magnetic Interference)
The normal function of the product may be disturbed by Strong Electro Magnetic
Interference. If so, simply reset the product to resume normal operation by following
the owner‘s manual. In case the function could not resume, please use the product
in other location.
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be
kept out of the reach of babies and children due to the danger of suffocation .
Make sure that children never use the device unattended! In addition, make sure
that children do not remove (small) parts from the device, as they could suffocate by
swallowing parts!
DANGER! (Electric shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the
device. Inside the unit there are components which are under high electrical
voltage.
Before each use, check the device for damage or the absence of components,
protective devices or housing parts. If this is the case, do not use the device! Leave
maintenance and repair work to a qualified service workshop or contact your
dealer.
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is
damaged, it must be replaced immediately with an original spare part from the
manufacturer. Failure to do so may result in fire or death due to electric shock!
WARNING! (Damage to hearing)
The unit may generate volumes that may cause temporary or permanent hearing-
loss. Over time, even seemingly uncritical levels can cause hearing damage.
Reducethe volume immediately if ear noise or hearing loss occurs. If this is not
possible, keep a greater distance or use adequate hearing protection.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a place with adequate ventilation, out of the reachof
direct heat sources, naked flames and combustible materials and liquids.
The ventilation slots of the device must not be taped or covered.

Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation
(IP20). Never expose the device to rain, moisture or liquids as this may cause
damage.
Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not
apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the instrument. If this happens,
remove the electric plug from the outlet. Then have the instrument inspected by
qualified service personnel.
Disconnect all cables before moving the instrument.
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains
voltage. It is highly recommended that you fuse your mains socket with a residual
current circuit breaker (FI).
Please connect the designated AC adaptor to an AC outlet.
If you do not use your device for a longer period of time, disconnect it from the
power supply in order to minimize danger. The same applies to storm conditions
such as thunderstorms, floods, etc.
Hint! (Commissioning)
All connections of the device should be made before switching on. Use only high-
quality cables for connections.
Hint! (Installation)
Be sure to inspect the device for damage before using. Optimum use of the
original packaging or suitable transport or storage packaging to protect the product
when not in use. Optimally against influences such as dust or moisture, etc.
Hint! (Possible damage due to magnetic fields)
Loudspeakers generate a static magnetic field. Please keep an appropriate
distance from other equipment that may be affected or damaged by an external
magnetic field.

Hint! (Interferences with other electrical devices)
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with theinstructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
Symbols on device and packaging:
The lightning flash symbol warns the user about non-insulated current and the risk
of electrocution
The exclamation mark symbol warns the user about important maintenance and
operating instructions in the manual
Intended for indoor use
Read manual

Cleaning:
A regular cleaning of the device from impurities and dust increases the durability of the product.
Always disconnect the device from the power supply before cleaning it! Never clean the appliance
wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Environmental Protection:
The company MUSIC STORE professional GmbH always strives to reduce the
burden of packaging to a minimum. The use of environmentally friendly and
recyclable materials is of fundamental importan ce to us. Please recycle the
packaging components after use.
Disposal of packaging:
Ensure that paper packaging, plastic material, etc. are recycled separately. Observe
the labels and the corresponding regulations.
Disposal of batteries:
Batteries do not belong in the garbage! Please dispose of batteries in accordance
with official regulations at collection points or disposal stations.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the
WEEE Directive (Waste Electrical and Electronic Equipment) in its currently valid
version.
The device is to be disposed of by an approved disposal company or your local
waste disposal service. The regulations applicable in your country must be
obser ved!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstr. 22-26, 51103 Cologne, Germany

JACK SOCKET

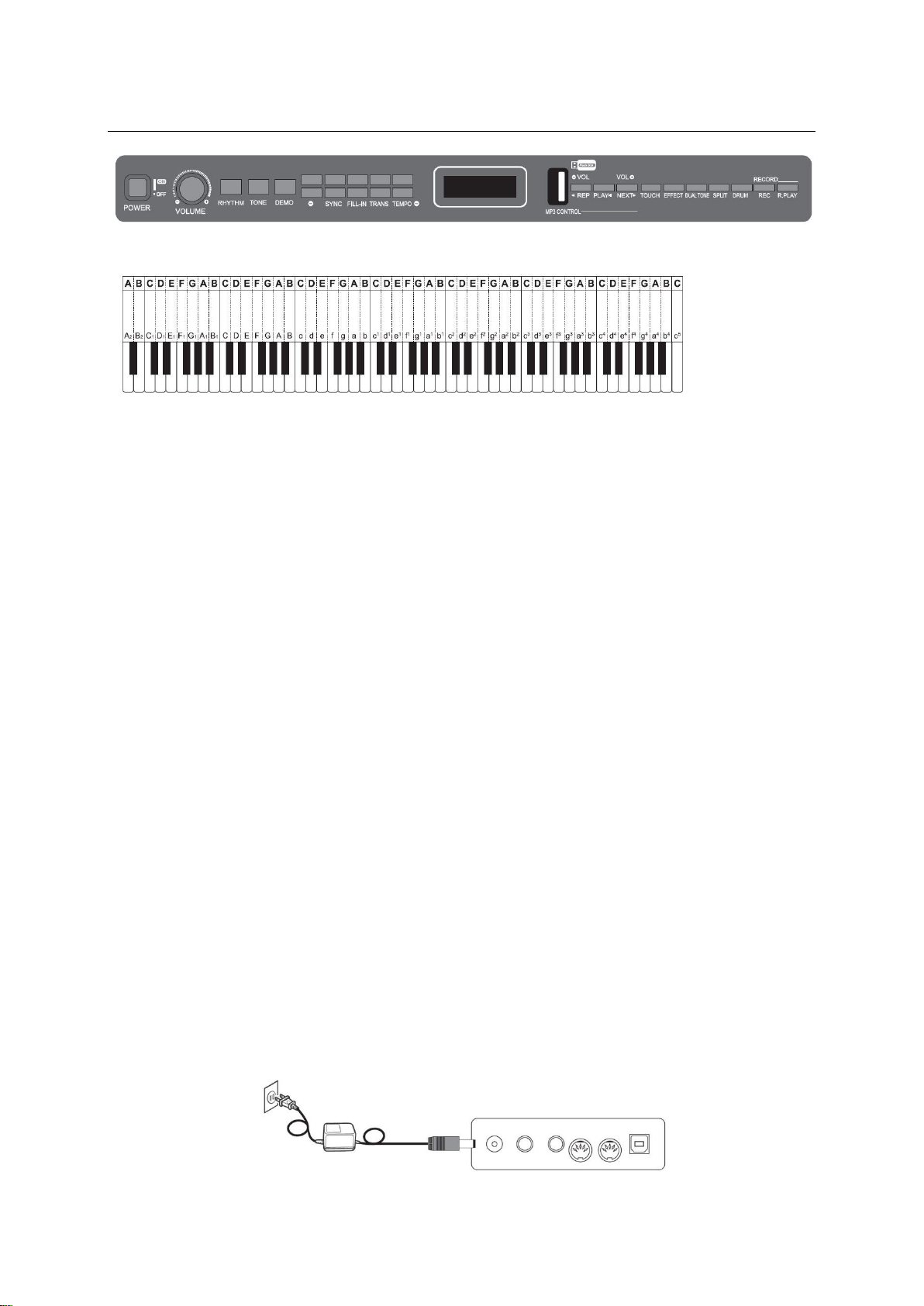

[1] Power Cord Connection
 When using, connect the power cord as shown in the figure, insert one end into
the electrical socket in the operation panel at the bottom of the piano, and the other
end into the 220V household power socket. (Fig. 1)
 If you do not use this product for a long time, please pull out the power cord plug
and keep it properly.
[2] Audio input / output plug
 Audio output socket can be connected to large speaker equipment. (Fig.2)
 The audio input socket connects the external sound source to the electric piano
for playback. (Fig. 2)
[3] MIDI input / output socket
The MIDI interface of the digital piano can be used to interact with the music device
with MIDI. T hrough the music software pre installed on the computer and tablet, we can
learn or play the keyboard to perform, compose, store and other functions. (Fig.3)
[4] Pedal jack
The foot pedal connector is located on the bottom left of the piano. Insert the pedal
wire end plug into the circular socket at the bottom of the piano, and you can connect
three kinds of pedal sound effect functions!
The order is: weak tone, delayed sound, delayed sound. (Fig-4)
[5] Double headphone jack
The headphone jack is located on the bottom left side of the piano. Connecting
headphones will automatically cut off the output of the built-in speakers of the
electronic organ so that you don't bother others while playing.There are two headphone
sockets in this product, which can be inserted into two headphones at the same time.
(Fig.5)
[6] USB interface
Using the USB transmission interface to connect with the computer Through the
computer installed Music software, to learn or play the keyboard to play, composition,
storage and other functional operations. Edited music and built-in accompaniment to
music software.lt can be played by software connected to the digital piano or played by
accompaniment music (Fig.6)

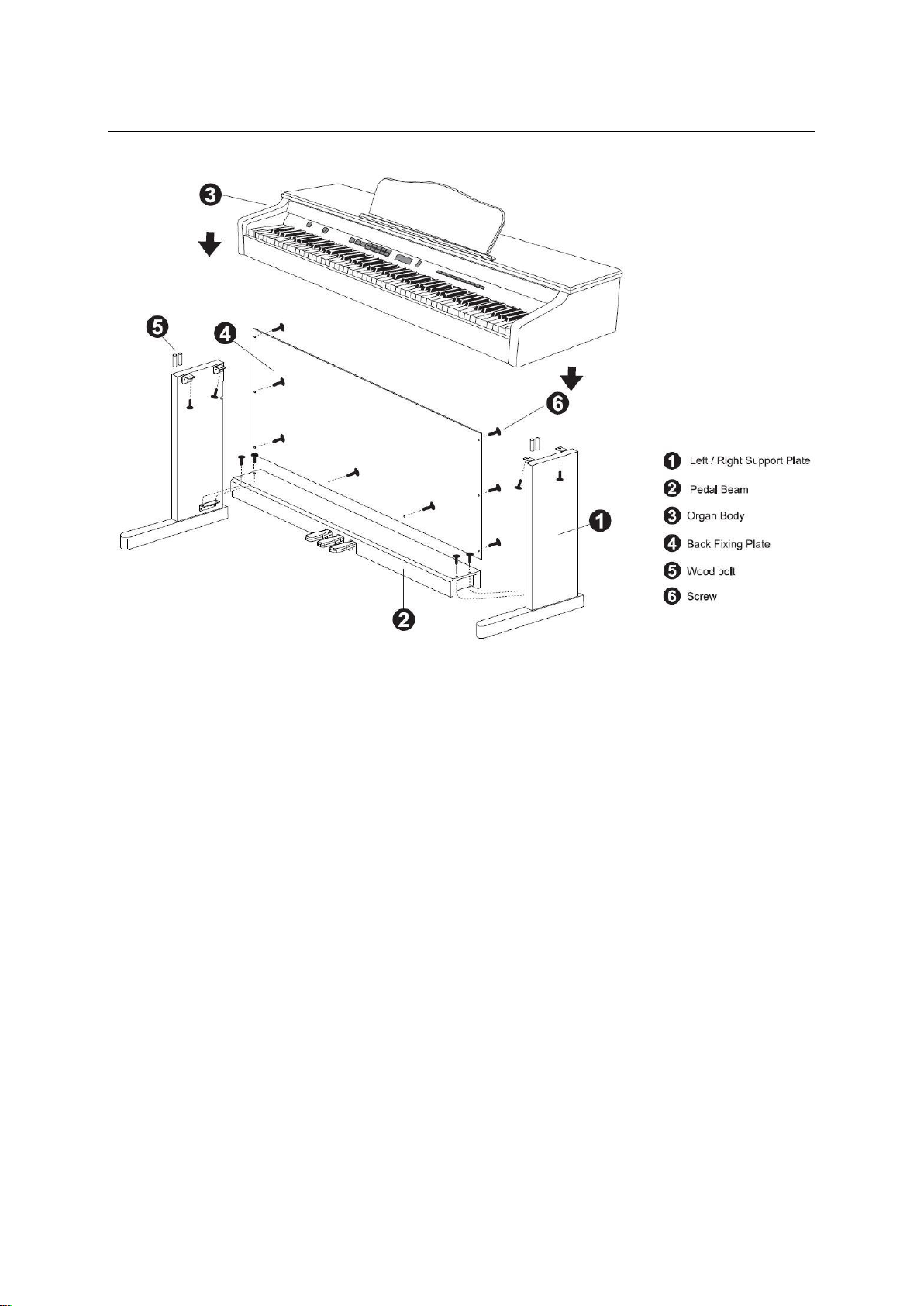

INSTALLATION

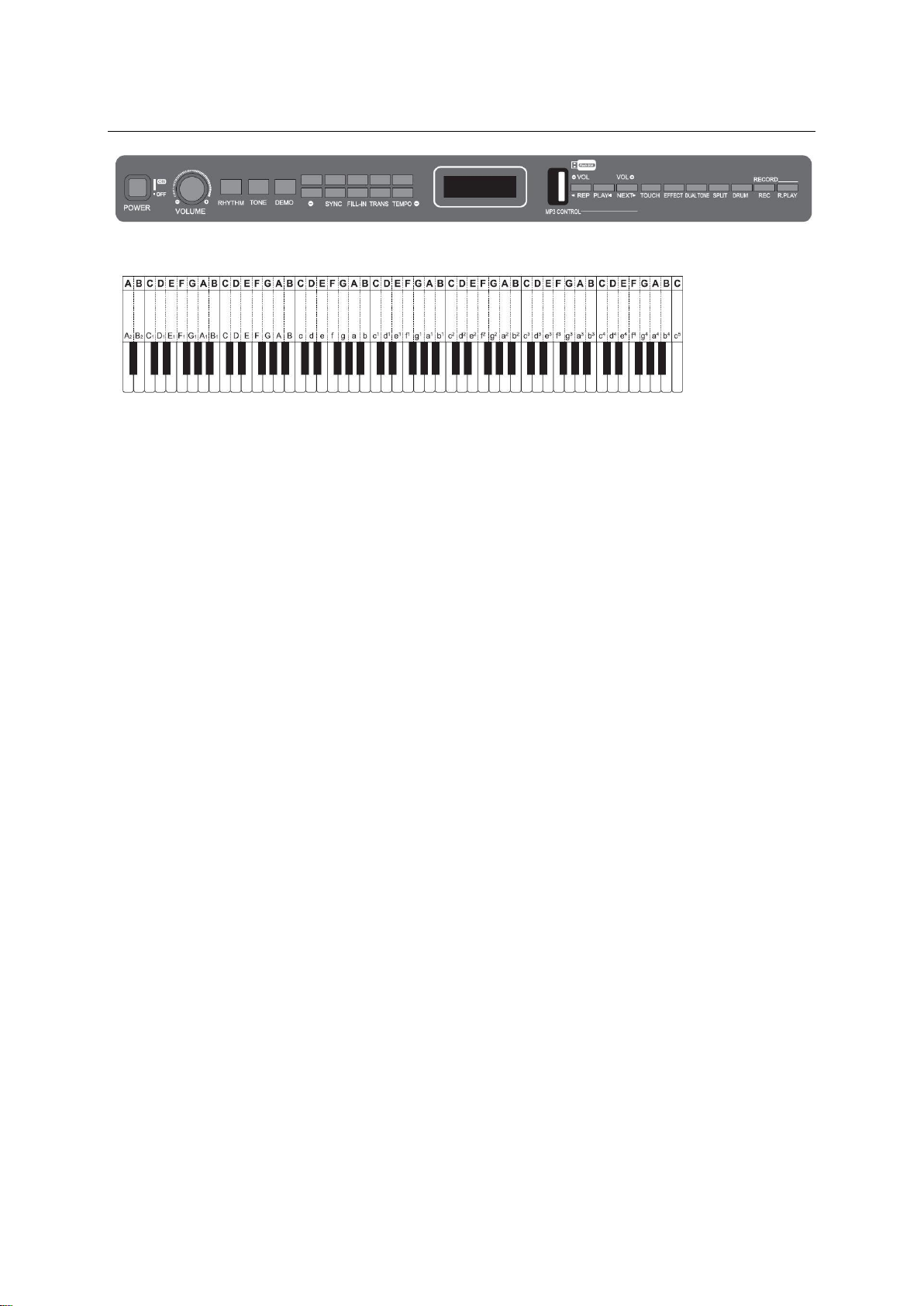

OPERATION GUIDE
Power On
Connect the power adapter to the power socket and turn an the power switch to operate
normally. The default voice is grand piano.
Master Volume
Adjust the main volume knob an the control panel, turn the knob clockwise to increase the
volume, and turn the knob anticlockwise to decrease the volume.
Tone Setting
1. This machine contains 238 kinds of voice colors.
2. The default voice is grand piano (000). Press the [voice] button, the display will
change the voice through the [+ / -] button. (see Appendix 1 for timbre table)
3. Double click the voice to return to the piano voice.
Demonstration Song
Demonstration music playing:
Press the [demo] button to start playing the demo. Select the track with the [+ / -] key,
and press the [demo] key again to stop playing the demo (see Appendix 2 for the list of
demo tracks)
Strength Curve
1. Three force curves can be set: light, standard, heavy (t00-t02) and force switch.
The default power is T01
2. Press the [force] button repeatedly to enter the force curve setting, and select
the corresponding curve: t00-t02, TOF.
Accompaniment Function
rhythm selector
There are 200 rhythms, 000-200. (refer to Appendix 3 for rhythm table) after power on,
the default is No. 000 rhythm. Press the [rhythm] key to enter the rhythm selection state,
and use the [+/-] key to select the corresponding rhythm.

OPERATION GUIDE
Adjust style speed
1. Use the [metronome + / -] key to adjust the accompaniment speed. The
adjustable range is 20-280 beats / min.
2. When the accompaniment stops, select the rhythm, and the speed is
automatically set as the preset value of the rhythm; when the rhythm is played,
switch the rhythm, and the speed does not return to the preset value.
3. Press [+/-] at the same time to return to the default.
Opening Accompaniment
There are two modes of accompaniment on:
Press the [sync / start] key to enter the accompaniment preparation status. Start playing,
the accompaniment will start automatically, press the [start / stop] button, the
accompaniment will stop.
1. Manual start
Press the [start / stop] key, the style will start immediately; press the [start / stop] key
again, the style will stop immediately.
Insert settings
In style mode, press the [insert] key to insert an interval in the rhythm. Lang press will
continue to insert the style. After releasing the key, the interlude will play for a while and
enter the rhythm.
Automatic Chord
This instrument contains two chord modes: single finger and multi finger. Press the
[integrated chord] key to turn on the automatic chord function. At this time, playing the
lefl half of the keyboard will automatically identify single finger and multi finger, and
match the corresponding chord. Press the [integrated chord] button again to close the
automatic chord function.
Metronome
Press the [metronome] key, metronome function starts, and the default speed is the
speed of the first rhythm.
Use the [metronome +/-] key to adjust the metronome speed range: 20-280 beats / min.
Press the [metronome] key again to exit the metronome function, and the current speed
will be saved.
Note: restarting the electric piano will restore the default speed.

OPERATION GUIDE
Beat settings
Long press the [metronome] key to enter the metronome type selection state. Use the
[+/-] key to select the corresponding beat type:
(1-4, 2-4, 3-4, 4-4, 3-8, 6-8). After selection, press the [metronome] key or there is no
operation for more than 2 seconds to confirm the metronome type selection.
Transpose settings
At the same time, press the [+] and [-] keys to enter the transfer selection status. Press
the [+/-] key to select the corresponding transfer plus or minus 12 levels.
Press [voice] or [rhythm] to exit the mode or wait for 2 seconds to exit the mode
automatically
Dual voice settings
This function key is an on / off sequential function
Select the first tone by pressing the [+/-] key, and then press the [dual tone] key to enter
the second tone selection [+/-] key to select the second tone.
Dual keyboard settings
When the function key on / off sequence function is on, the scale of piano keys a1-b4 will
be played as a scale of a2-b5, and the scale of C5-C9 will be played as a scale of C4-
C8.
You can use the [+/-] key to select the main voice to replace the original voice of C5-C9
keys.
Dual keyboard settings
This function key is on / off sequential function. Press this key to get the drum beating
tone on the corresponding piano key.

OPERATION GUIDE
Recording settings
Press the [record] key to enter the recording mode, and make metronome sound. lf you
do not need metronome, you can use the [metronome] key to turn off. At this time, press
any piano key to start recording, and then press the [record] key to stop recording.
Playback settings
After recording the track, press the [play] button to start playing the recorded track.
Effect Settings
This function key on / off sequential function
Press this key to turn on the DSP effect.
MP3 Settings
Press the [MP3 play] key to play or pause the MP3 song
Press the start [MP3 previous] button to play the previous MP3 song
Press the long [last MP3] button to reduce the volume of MP3
Press the start [next MP3] button to play the next MP3 song
Press the long [next MP3] button to increase the volume of MP3
Power Supply
This product can be powered by standard indoor wall socket. Please use only the power
cord specified by this product. Please turn off the power supply when it is not used
temporarily. When it is not used for a long time, please unplug the power cord and keep
it properly.

APPENDIX 1

APPENDIX 1

APPENDIX 2

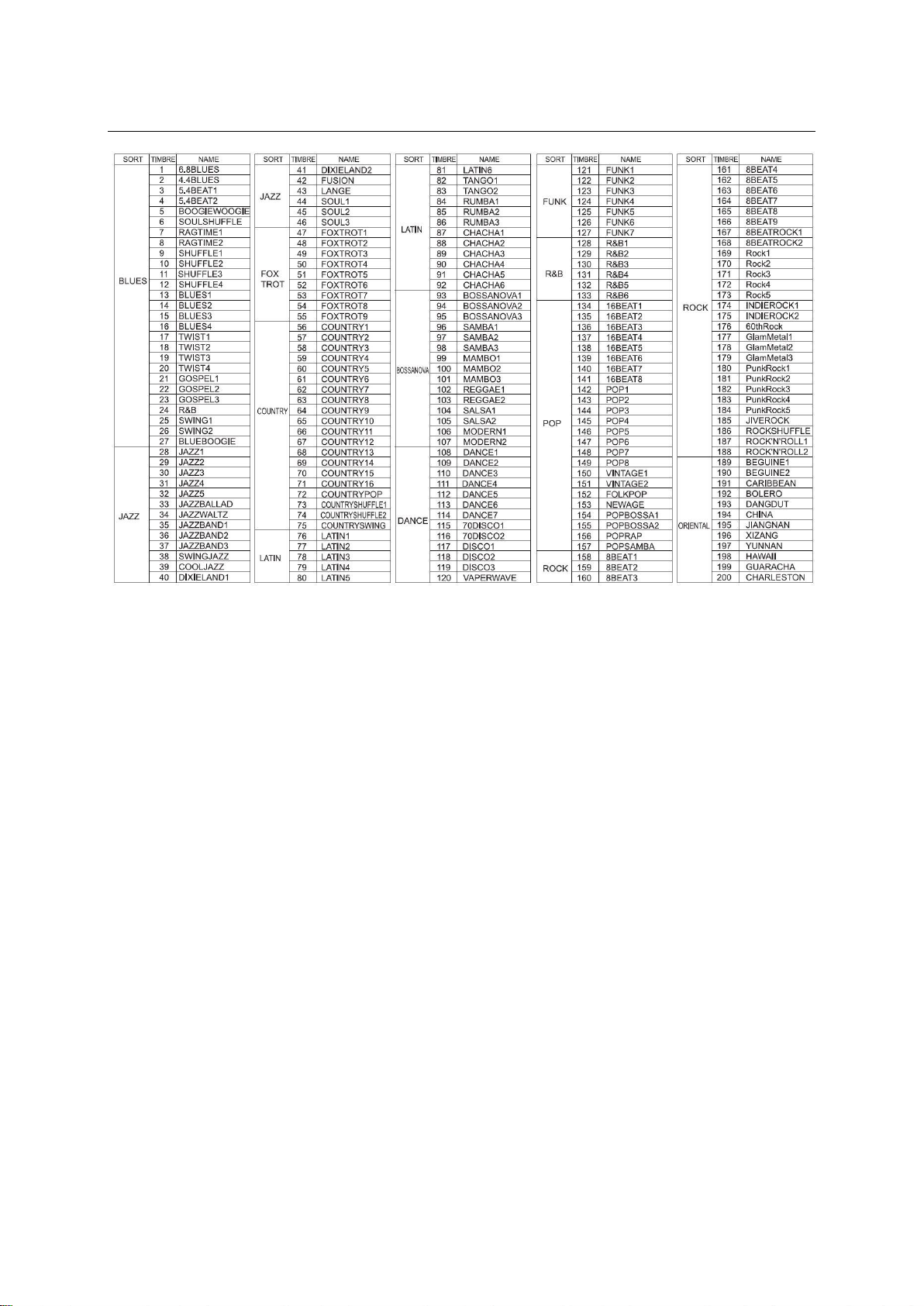

APPENDIX 3
