keymaXX SP-13 User manual

SP-13
02/2023
KEY0005407-000
user manual

Congratulations on your new keymaXX SP-13 E-Piano!
Thank you for choosing a keymaXX product. Thanks to efficient development and
economical production, keymaXX makes high-quality products at a fantastic price possible.
Please read these operating instructions carefully to be informed about all functions of
this product and keep them for future reference
Have fun with your new product!
Your keymaXX Team
Guarantee:
The current general terms and conditions and guarantee conditions of Music Store
professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions, please contact us:
Music Store professional GmbH Istanbulstr. 22-26
51103 Köln
Managing Director: Michael Sauer WEEE-Reg.-Nr. DE 41617453
Tel: [phone]
Fax: [phone]
[email protected]
Intended use:
The keymaXX SP-13 is a digital home keyboard, designed to play sounds on the keyboard
and make them audible through built-in speakers or headphones. Improper use of the
product is considered improper and can lead to personal injury or property damage. No
liability is assumed for damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users
who are in full possession of their mental, physical and sensory abilities. The use by other
persons is only permit-ted under the supervision or guidance of a person responsible for their
safety.

Important safety instructions! Please read before connection!
CAUTION! (Electro Magnetic Interference)
The normal function of the product may be disturbed by Strong Electro Magnetic
Interference. If so, simply reset the product to resume normal operation by following
the owner‘s manual. In case the function could not resume, please use the product
in other location.
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be
kept out of the reach of babies and children due to the danger of suffocation .
Make sure that children never use the device unattended! In addition, make sure
that children do not remove (small) parts from the device, as they could suffocate by
swallowing parts!
DANGER! (Electric shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the
device. Inside the unit there are components which are under high electrical
voltage.
Before each use, check the device for damage or the absence of components,
protective devices or housing parts. If this is the case, do not use the device! Leave
maintenance and repair work to a qualified service workshop or contact your
dealer.
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is dama-
ged, it must be replaced immediately with an original spare part from the
manufacturer. Failure to do so may result in fire or death due to electric shock!
WARNING! (Damage to hearing)
The unit may generate volumes that may cause temporary or permanent hearing-
loss. Over time, even seemingly uncritical levels can cause hearing damage.
Reduce the volume immediately if ear noise or hearing loss occurs. If this is not
possible, keep a greater distance or use adequate hearing protection.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a place with adequate ventilation, out of the reachof
direct heat sources, naked flames and combustible materials and liquids.
The ventilation slots of the device must not be taped or covered.

Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation
(IP20). Never expose the device to rain, moisture or liquids as this may cause
damage.
Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not
apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the instrument. If this happens,
remove the electric plug from the outlet. Then have the instrument inspected by
qualified service personnel.
Disconnect all cables before moving the instrument.
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains
voltage. It is highly recommended that you fuse your mains socket with a residual
current circuit breaker (FI).
Please connect the designated AC adaptor to an AC outlet.
If you do not use your device for a longer period of time, disconnect it from the
power supply in order to minimize danger. The same applies to storm conditions
such as thunderstorms, floods, etc.
Hint! (Commissioning)
All connections of the device should be made before switching on. Use only high-
quality cables for connections.
Hint! (Installation)
Be sure to inspect the device for damage before using. Optimum use of the
original packaging or suitable transport or storage packaging to protect the product
when not in use optimally against influences such as dust or moisture, etc.
Hint! (Possible damage due to magnetic fields)
Loudspeakers generate a static magnetic field. Please keep an appropriate
distance from other equipment that may be affected or damaged by an external
magnetic field.

Hint! (Interferences with other electrical devices)
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interfe- rence in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with theinstructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
Symbols on device and packaging:
The lightning flash symbol warns the user about non-insulated current and the risk
of electrocution
The exclamation mark symbol warns the user about important maintenance and
operating instructions in the manual
Intended for indoor use
Read manual

Cleaning:
A regular cleaning of the device from impurities and dust increases the durability of the product.
Always disconnect the device from the power supply before cleaning it! Never clean the appliance
wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Environmental Protection:
The company MUSIC STORE professional GmbH always strives to reduce the
burden of packaging to a minimum. The use of environmentally friendly and
recyclable materials is of fundamental importan- ce to us. Please recycle the
packaging components after use.
Disposal of packaging:
Ensure that paper packaging, plastic material, etc. are recycled separately. Observe
the labels and the corresponding regulations.
Disposal of batteries:
Batteries do not belong in the garbage! Please dispose of batteries in accordance
with official regulations at collection points or disposal stations.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the
WEEE Directive (Waste Electrical and Electronic Equipment) in its currently valid
version.
The device is to be disposed of by an approved disposal company or your local
waste disposal service. The regulations applicable in your country must be obser-
ved!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstr. 22-26, 51103 Cologne, Germany

KEYBOARD STAND ASSEMBLY (for optional stand & pedal unit)
Be careful not to confuse any of the parts, and be sure to install all parts in
the correct direction. Please assemble according to the sequence given
below.
Use only the screws provided when assembling the stand. Use of any other
screws may result in an inadequate assembly that may cause damage to
both the keyboard stand and the pedal unit.
 Always use the pedal unit properly installed on the specified keyboard
stand. Also make sure to unplug the pedal cord when putting the
instrument on a desk or table, since leaving it connected can damage the
pedal unit.
Protect the floor by placing a mat or area rug underneath the pedals. The
pedals may damage the floor after an extended period oftime.
Make sure the stand is sturdy and safe, and all screws have been tight and
firm before use. lf not, the stand may overturn, the keyboard may drop, or
may result in injury to the user.
To disassemble, reverse the assembly sequence given below.

PIANO ASSEMBLY
1. Place keyboard on the stand and secure it to the brackets with 2
screws on each side
2.
Insert the music rest into the top slots of the piano
3.
Connect the pedal unit connector to the PEDAL UNIT socket at the
rear of the piano
4.
Connect the supplied mains lead or power supply to the power
socket at the rear of the piano
5.
Adjust the screw located in the middle of the pedal unit to your
floor level

OPERATION
POWER ON/OFF
1. Connect the AC power adaptor to the DC IN jack.
2. Plug the AC power adaptor into an AC outlet.
3. Flip the (Standby/On) switch to turn onthepower.
The power lamp lights up.To turn off thepower, flip this switch again.

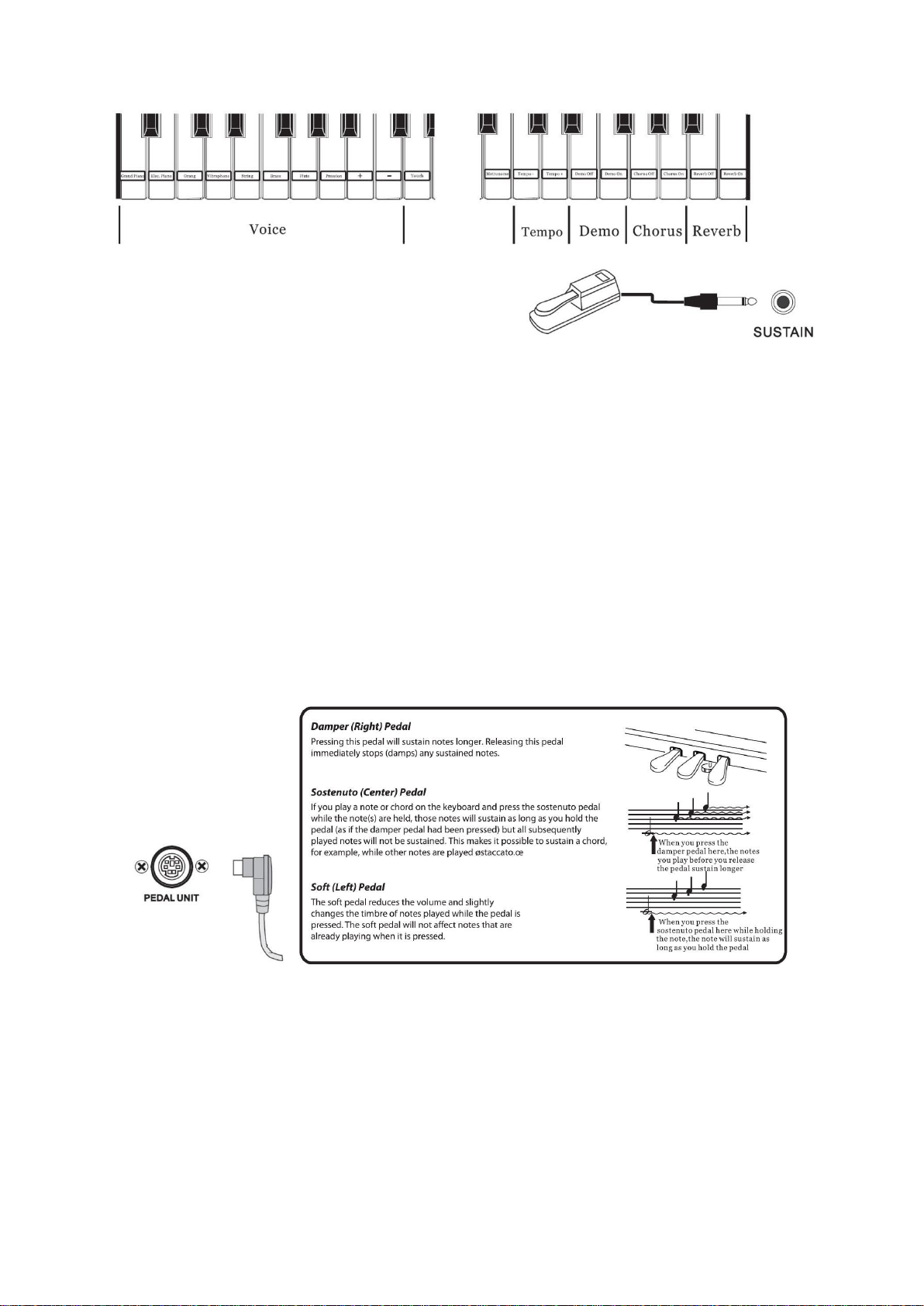

VOLUME CONTROL
When you start playing, use the [MASTER VOLUME]
slider to adjust the volume of the entire keyboard sound.

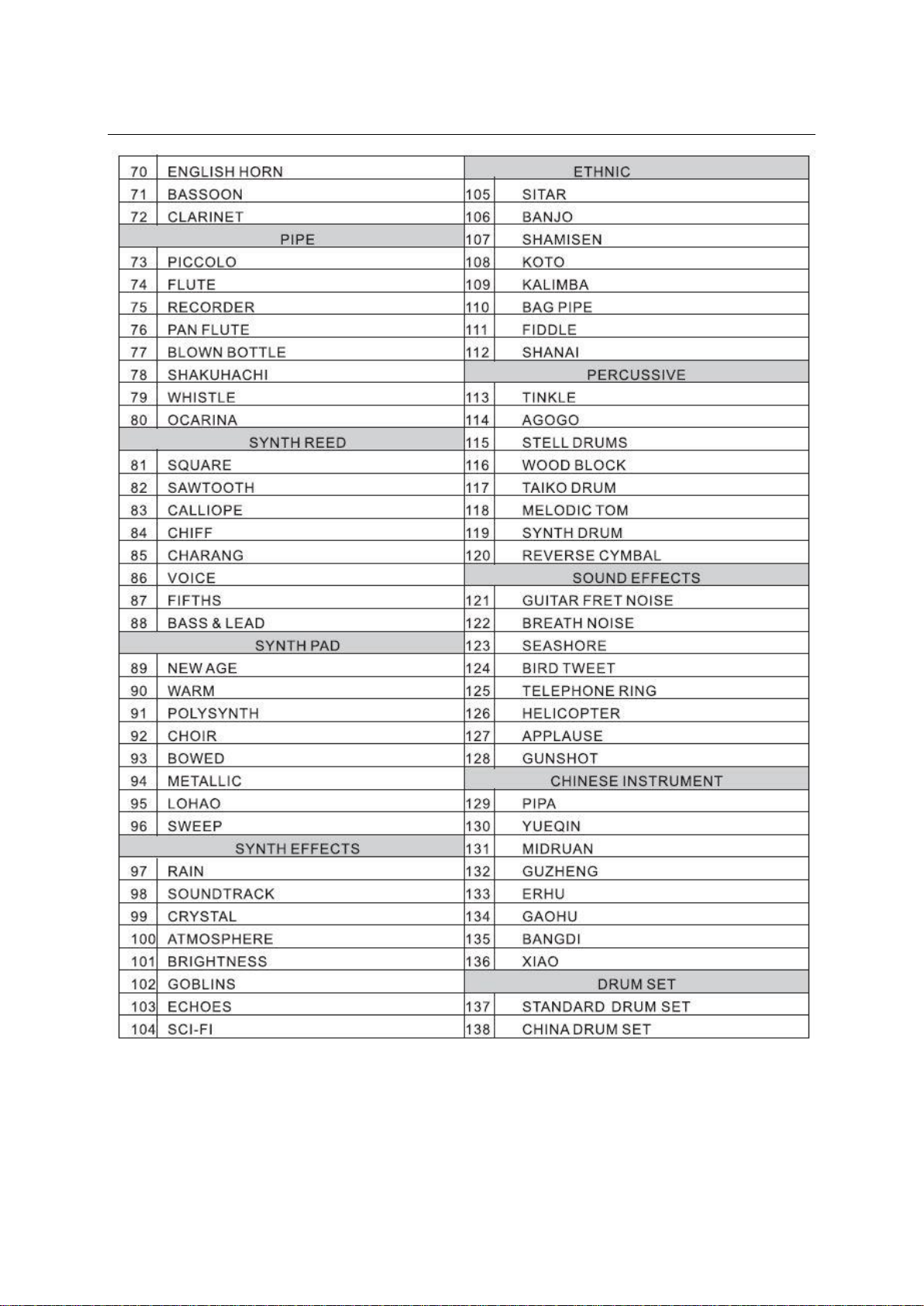

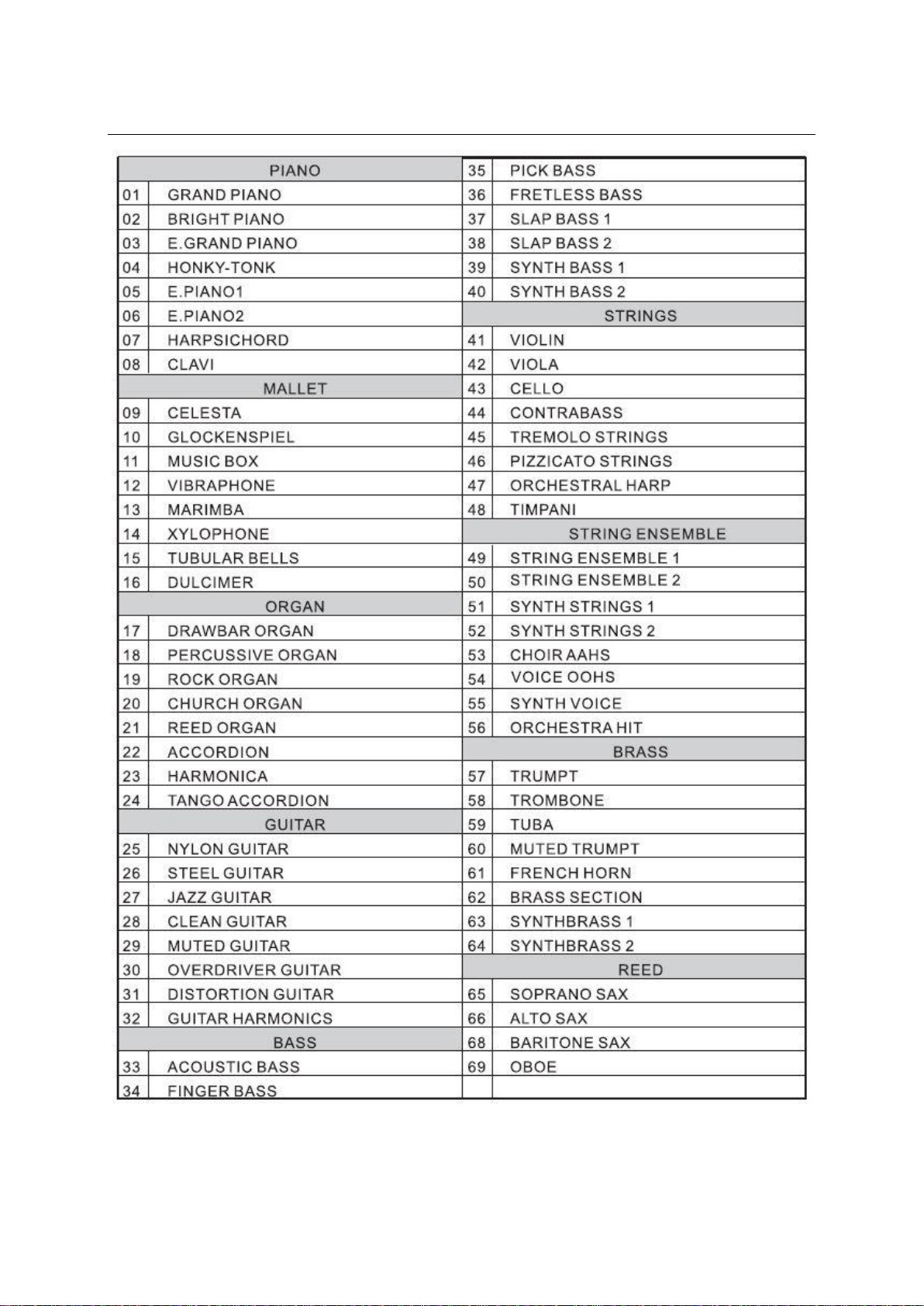

To select any of the other voices press and hold the [FUNCTION] button and press the
[+] or [-] keys (B1 & Cl). To select other voices, you can press and hold down the
[FUNCTION] button and press the numerical keys which you canfind from the key
ofC until D.
TOUCH
This Digital Piano has 3 different touch presets. To adjust
the key touch to your preference press and and hold the
[FUCNTION] button and press the [TOUCH] key D1.Repeat
the above step to change to the next touch preset.

USING THE METRONOME
The metronome is convenient for practicing with an accurate tempo.
1. While holding down the [FUNCTION] button, press the
B6 key [METRONOME] to start the metronome.
2. Repeat the above process to stopthe metronome.
3. There are four different beats available for selection
from 1/4 to 4/4 which can be accessed from keys E3
to A3.
ADJUSTING THE TEMPO
The metronome's tempo can be adjusted from 30bpm to 240bpm. By default it is set to
120bpm (beats per minute).
After switching on the metronome, the tempo can be adjusted by holding down the
[FUNCTION] button and then choosing your tempospeed from the numerical keys
(which can be found from middleC).
USING DIGITAL EFFECTS
This Digital piano has 2 different DSP effects to simulate reverb and chorus. lf you want to
switch the reverb on or off press and hold the [FUNCTION] button together with theB7 or C8
key. B7 will switch the reverb off,C8 will turn it back on.
To turn the chorus effect on or off press and hold the [FUNCTION] button together with the
G7 or A7 keys. G7 will switch the chorus effect off.Press A7 to switch it on.
USING TRANSPOSE
This Digital Piano comes complete with a transpose-/+
function. If you wish to adjust the transpose level, press
and hold the {FUNCTION} button together with either the E
of the F key (E to lower pitch and F to raise it). The
transpose function works upto -6/+6.
DEMO SONG
lf you want to listen to the demo song, press and hold
[FUNCTION] and press the F7 key.To stop the demo song
use the E7 key while holding the [FUNCTION] button.

USING THE SUSTAIN PEDAL
To use the included sustain pedal CSP-005 simply plug it into the [SUSTAIN] socket at
the back of your digital piano. Should the sustain effect be reversed, please flip the
switch on the side of the sustain pedal.
The sustain pedal works in the same way as a damper pedal on an acoustic piano.
Also the optional piano style foot pedal Chase CSP-001 can be connected to the
[SUSTAIN] socket.
USING THE 3-PEDAL-UNIT (optional}
This Digital Piano has the facility to plug in the optional 3 pedal unit LP-65. After
assembling the 3 pedal unit LP-65, plug the pedal connector jack into the[PEDAL UNIT]
socket at the rear of the piano.

MP3 USB MEDIA PLAVER AND RECORDER
This Digital Piano is equipped witha USB MP3 media player and recorder. You can
use the media player and recorder with a standard formatted USB pen drive with a
size of up to 8GB (pendrive not included).
lf you want to playback your favourite songs on the Digital piano, use your computer to
copy the MP3 files onto the pen drive.
Insert your USB pen drive into the USB jack socket located at the right side of the front
panel on your digital piano. The music playback will automatically start if there is music
already loaded onto the drive.
You can record as many tracks as you like.
Please unplug the USB pen drive when you have finished playing the piano.

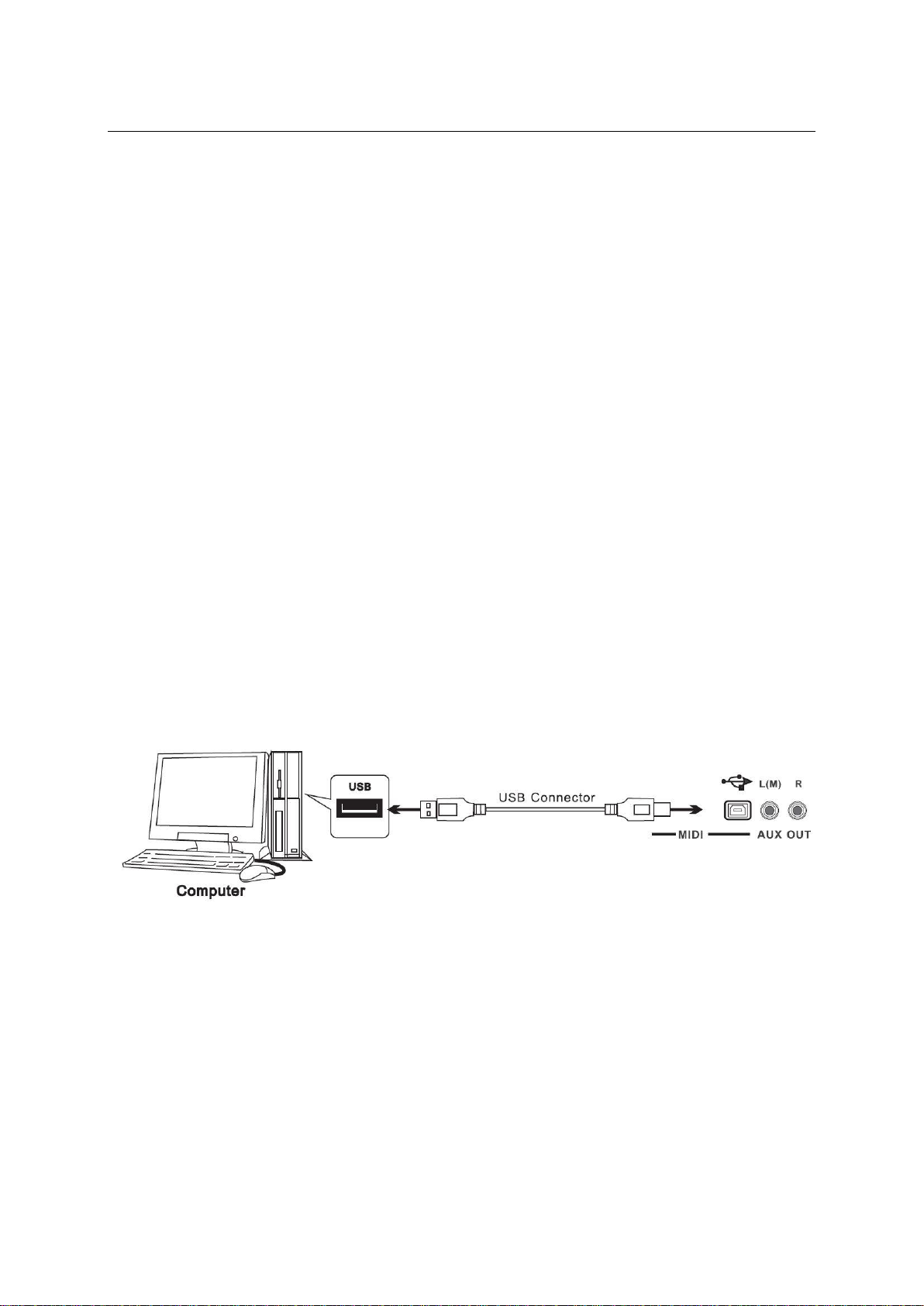

USB MIDI INTERFACE
Many digital musical instruments support the MIDI (Musical Instrument Digital Interface).
With this technology, the instrument can communicate with a connected computer
transmitting/receiving the MIDI data, including keyboard performance information and
Song playback data.
When connecting the computer to the USB TO HOST terminal, make sure to observe the
following points. Failing to do so risks freezing the computer and corrupting or losing the
data. lf the computer or the instrument freezes, restart the application software or the
computer OS, or turn the power to the instrument off then on again.
NOTICE
Use an AB type USB cable of less than 3 meters. USB 3.0 cables cannot be used.
Before connecting the computer to the USB TO HOST terminal, exit from any power-saving
mode ofthe computer (such as suspend, sleep, standby).
 Before turning on the power to the instrument, connect the computer to the USB TO HOST
terminal.
 While the computer is connected to the instrument, you should wait for six seconds or
more betweenthese operations: (1) when turning the power of the instrument off then on
again, or (2) when alternately connecting/disconnecting the USB cable.
Operating System (OS)
Windows XP SP3 or later (32-bit}, Windows Vista (32-bit}, Windows 7 (32-bit/64-bit),
Windows 8 (32-bit/64-bit) Mac OS X Version 70.5.0 70.8. X, iOS 6 &later
The USB-Midi Interface on this digital piano can be used for:
Playing Back Songs on a Computer via the Instrument Sounds
With the use of MIDI file playback software on your computer, you can play back Songs
(MIDI files) via the sounds of the connected instrument. For detailed instructions, refer to the
manual of your particular MIDI file playback software.
Recording Your Keyboard Performance to a Computer
By using Music Production software on the computer, you can record your keyboard
performance as MIDI data. For detailed instructions, refer to the manual of the application.

VOICE LIST

VOICE LIST
