keymaXX SP-11 User manual

SP-11
02/2023
EPI0001201-000
user manual

Congratulations on your new keymaXX SP-11 E-Piano!
Thank you for choosing a keymaXX product. Thanks to efficient development and
economical production, keymaXX makes high-quality products at a fantastic price possible.
Please read these operating instructions carefully to be informed about all functions of
this product and keep them for future reference
Have fun with your new product!
Your keymaXX Team
Guarantee:
The current general terms and conditions and guarantee conditions of Music Store
professional GmbH apply.
Can be viewed under: www.musicstore.de
If you have any questions or suggestions, please contact us:
Music Store professional GmbH Istanbulstr. 22-26
51103 Köln
Managing Director: Michael Sauer WEEE-Reg.-Nr. DE 41617453
Tel: [phone]
Fax: [phone]
[email protected]
Intended use:
The keymaXX SP-11 is a digital home keyboard, designed to play sounds on the keyboard
and make them audible through built-in speakers or headphones. Improper use of the
product is considered improper and can lead to personal injury or property damage. No
liability is assumed for damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users
who are in full possession of their mental, physical and sensory abilities. The use by other
persons is only permit-ted under the supervision or guidance of a person responsible for their
safety.

Important safety instructions! Please read before connection!
CAUTION! (Electro Magnetic Interference)
The normal function of the product may be disturbed by Strong Electro Magnetic
Interference. If so, simply reset the product to resume normal operation by following
the owner‘s manual. In case the function could not resume, please use the product
in other location.
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be
kept out of the reach of babies and children due to the danger of suffocation .
Make sure that children never use the device unattended! In addition, make sure
that children do not remove (small) parts from the device, as they could suffocate by
swallowing parts!
DANGER! (Electric shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the
device. Inside the unit there are components which are under high electrical
voltage.
Before each use, check the device for damage or the absence of components,
protective devices or housing parts. If this is the case, do not use the device! Leave
maintenance and repair work to a qualified service workshop or contact your
dealer.
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is dama-
ged, it must be replaced immediately with an original spare part from the
manufacturer. Failure to do so may result in fire or death due to electric shock!
WARNING! (Damage to hearing)
The unit may generate volumes that may cause temporary or permanent hearing-
loss. Over time, even seemingly uncritical levels can cause hearing damage.
Reduce the volume immediately if ear noise or hearing loss occurs. If this is not
possible, keep a greater distance or use adequate hearing protection.
Hint! (Fire hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a place with adequate ventilation, out of the reachof
direct heat sources, naked flames and combustible materials and liquids.
The ventilation slots of the device must not be taped or covered.

Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation
(IP20). Never expose the device to rain, moisture or liquids as this may cause
damage.
Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not
apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the instrument. If this happens,
remove the electric plug from the outlet. Then have the instrument inspected by
qualified service personnel.
Disconnect all cables before moving the instrument.
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains
voltage. It is highly recommended that you fuse your mains socket with a residual
current circuit breaker (FI).
Please connect the designated AC adaptor to an AC outlet.
If you do not use your device for a longer period of time, disconnect it from the
power supply in order to minimize danger. The same applies to storm conditions
such as thunderstorms, floods, etc.
Hint! (Commissioning)
All connections of the device should be made before switching on. Use only high-
quality cables for connections.
Hint! (Installation)
Be sure to inspect the device for damage before using. Optimum use of the
original packaging or suitable transport or storage packaging to protect the product
when not in use optimally against influences such as dust or moisture, etc.
Hint! (Possible damage due to magnetic fields)
Loudspeakers generate a static magnetic field. Please keep an appropriate
distance from other equipment that may be affected or damaged by an external
magnetic field.

Hint! (Interferences with other electrical devices)
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interfe- rence in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with theinstructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
Symbols on device and packaging:
The lightning flash symbol warns the user about non-insulated current and the risk
of electrocution
The exclamation mark symbol warns the user about important maintenance and
operating instructions in the manual
Intended for indoor use
Read manual

Cleaning:
A regular cleaning of the device from impurities and dust increases the durability of the product.
Always disconnect the device from the power supply before cleaning it! Never clean the appliance
wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation
grilles and openings should always be cleaned of dust and dirt. Suitable compressed air sprays
are recommended for this application.
Environmental Protection:
The company MUSIC STORE professional GmbH always strives to reduce the
burden of packaging to a minimum. The use of environmentally friendly and
recyclable materials is of fundamental importan- ce to us. Please recycle the
packaging components after use.
Disposal of packaging:
Ensure that paper packaging, plastic material, etc. are recycled separately. Observe
the labels and the corresponding regulations.
Disposal of batteries:
Batteries do not belong in the garbage! Please dispose of batteries in accordance
with official regulations at collection points or disposal stations.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the
WEEE Directive (Waste Electrical and Electronic Equipment) in its currently valid
version.
The device is to be disposed of by an approved disposal company or your local
waste disposal service. The regulations applicable in your country must be
obser ved!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstr. 22-26, 51103 Cologne, Germany

CONNECTING SOCKET
1 POWER LINE CONNECTION
 When in use, the power cord is connected according to the figure. One end is inserted into the power outlet in
the back socket board, and the other end is inserted into the 110-240V household power outlet. (Fig. 1)
 When you do not use this product for a long time, please pull out the plug and keep it properly.
2 AUDIO INPUT/OUTPUT PLUG
 Audio output outlet can be connected with large speaker equipment. (Fig. 2)
 Audio input socket can connect external sound source to electric piano for playing. (Fig. 2)
3 MIDI INPUT/OUTPUT AND USB INTERFACE
 MIDI interface and USB interface of digital piano can interact with music equipment with MIDI.Through thepre-
installed Music software on computers and tablets, we can learn or play keyboards for playing.
 Write music works, storage and other functions. (Fig. 3)
4 SINGLE PEDAL JACK
 Connecting the single pedal socket and then stepping on the pedal can control the delay effect of the digital
piano. (Fig. 4)
 Note: This socket is a simplified version with only one pedal socket. The 3 pedal socket with wooden footrest is
at the bottom of the host.
5 THREE PEDAL JACK
 Insert the pedal wire end plug into the circular socket at the bottom of the piano to connect three pedal sound
effect functions. The order is: weak tone, follow-up delayed tone, delayed tone.(Fig. 5)
6 DOUBLE EARPHONE SOCKET
 Connecting the headphone will automatically cut off the output of the built-in speaker of the electronic organ.
Playing does not disturb others.This product has two headphone jacks, which can be inserted into two
headphones at the same time. (Fig. 6)

INSTALLATION
Note!

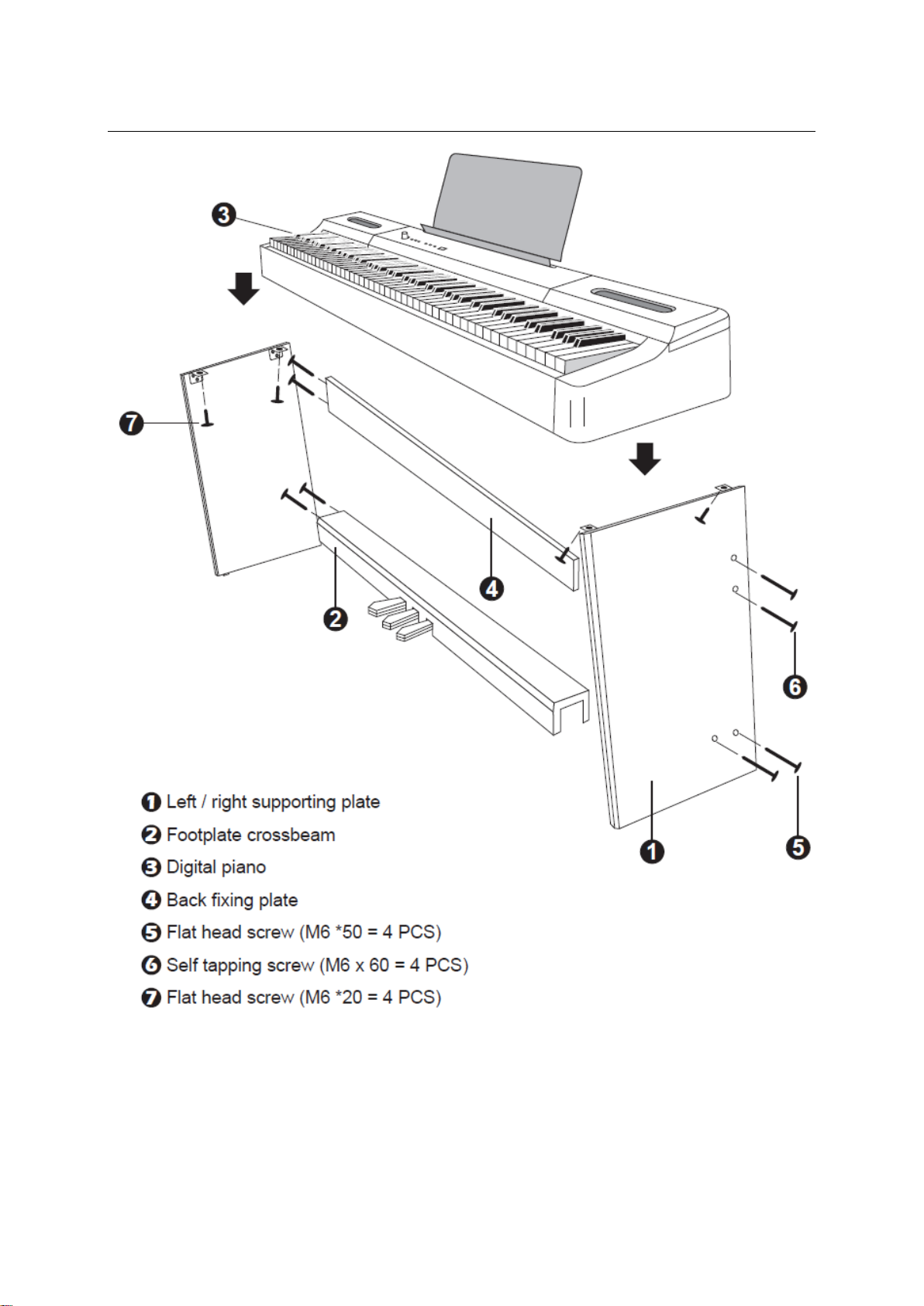

 Simple edition only mainframe, no scaffolding, this assembly drawing is only suitable for the
installation with wooden scaffolding!

OPERATION GUIDE
1 PIANO PERFORMANCE
1. Push the "POWER" switch to the open position, and you can play on the keyboard.
2. Turn off the power supply when not in use for the time being.
 Processor chips of this product are complex, similar to computer systems. Sometimes they can not respond.
Please turn off the power switch and then turn it on to work properly.
2 VOLUME ADJUSTING
 Use the "VOLUME" adjusting knob to increase or decrease the piano volume, please adjust the volume to a
satisfactory position.
3 DEMONSTRATION SONGS
1. Hold down the "TONE/DEMO" button and press a corresponding "keyboard" in the demo area to play different
demo tracks.
2. Different keyboards correspond to different songs. If you want to choose other tracks, you can repeat the
previous step.
3. Stop playing demo music: Hold down the "TONE/DEMO" button and press the "white key A2" to stop playing
demo music.
Demonstration Song List:

OPERATION GUIDE
4 CHOOSING INSTRUMENT TIMBRE
 Hold down the "TONE/DEMO" button and press the corresponding one in the timbre area. "White key c4-c5"
can play different instrument timbre.
 The default is "piano triangle" timbre whenever you are powered.
5 DOUBLE INSTRUMENT TIMBRE
1. Hold down the "TONE/DEMO" button and press two arbitrary white keys "c4-c5" in the timbre area to select
different timbre effects.
2. Hold down the "TONE/DEMO" button and press the "white key C5" in the timbre area to turn off the timbre
function of double instruments.3. In the dual-instrument timbre mode, holding the "TONE/DEMO" button and
pressing the "white key A3 or b3" in the balance area can adjust the volume balance of the timbre of the two
instruments.
6 METRONOME
1. Hold down the "EFFECT" button and press the "white key F1" to start and close the metronome.
2. Hold down the "EFFECT" button and press a corresponding "white key G1-E" in the metronomic selection area
to select the metronomic type. There are six types.
3. Hold down the "EFFECT" button and press a corresponding "white key G-A" in the speed regulation area to
adjust the metronome speed.

OPERATION GUIDE
7
TOUCH ADJUSTMENT
 Hold down the "EFFECT" button and press a corresponding "white key c1-e1" in the strength selection area to
adjust the keyboard response time.
 There are three levels of regulation, the strongest in "c1" and the weakest in "e1".
8 CHORUS SOUND EFFECT
1. Hold down the "EFFECT" button and press a corresponding "white key e3-b3" in the chorus effect area to
produce the chorus sound effect. There are five effects to choose from.
2. Hold down the "EFFECT" button and press the "white key c4" to turn off the chorus sound effect.
9 REVERBERATION EFFECT
1. Hold down the "EFFECT" button and press a corresponding "white key e4-a4" in the reverberation effect area to
produce reverberation effect. There are four kinds of effects to choose from.
2. Hold down the "EFFECT" button and press the "white key c5" to turn off the reverberation effect.
10 RECORDING
Track 1 Recording and Playing:
1. Hold down the "EFFECT" button, and press the "white key A2" in track 1 area to start track 1 recording.
2. When you play the keys or step on the pedals, you begin to record notes.
3. Hold down the "EFFECT" button again and press the "white key A2" in track 1 area to stop track 1 recording.
4. Hold down the "EFFECT" button and press the "white key B2" in track 1 area to start playing the notes
recorded in track 1.
Track 2 Recording and Playing:
1. Hold down the "EFFECT" button, and press the "white key C1" in track 2 area to start track 2 recording.
2. When you play the keys or step on the pedals, you begin to record notes.
3. Hold down the "EFFECT" button again and press the "white key C1" in track 2 area to stop track 2 recording.
4. Hold down the "EFFECT" button and press the "white key D1" in track 2 area to start playing the notes
recorded in track 2.
Track 1/2 joint broadcasting:
Hold down the "EFFECT" button and press the "white key E1" to play the notes recorded by track 1 and track 2 at the
same time. Operate the metronome before recording with the metronome. The metronome will be recorded. The type of
metronome can not be changed while recording, and the speed of metronome can not be changed when recording.

OPERATION GUIDE
11 TRANSPOSE
The transfer function can change the pitch of the keyboard without changing the keyboard finger movement.
1. Hold down the "MIDI/TRANSPOSE" button and press the "white key F2 and f3" to select the transpose
function.
2. Hold down the "MIDI/TRANSPOSE" button and press the "white key f3" to close the transpose function.
12 MP3 PLAY
1. Insert the flash disk with MP3 songs into "USB socket" and play MP3 songs automatically in about 3 seconds.
2. By pressing the "PLAY/PAUSE" key, MP3 songs can be paused or replayed.
3. Press the "MP3 SELECT" control button in a short time to select the front/back MP3 songs.
4. Pressing the control button of "MP3 VOLUME" for a long time can adjust the volume of songs. Maximum peak
sound requires volume runner control.
Note! Only MP3 format songs can be played!
13 POWER SUPPLY
This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When
not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.
