Keys Fitness HealthTrainer HT95T User manual

Owner’s Manual
Health Trainer 95t Treadmill
Customer Service
[phone]
Keys Fitness Products
4009 Distribution Drive
Suite 250
Garland, TX 75041
www.keysfitness.com
Model Name : HT95T/HT95T-CE
Serial Number :
Write down for future reference
Serial Number Decal Location
415-00015
07/05 Rev A
CAUTION! Read all precautions and
instructions in this manual before
using this equipment.
+7+7+7

Table of Contents
2
Important Safety Information 3
Before You Start 4
Assembly 5-9
Moving Instructions 10
Power Requirements 11
Console Panel Functions 12
Program Operation 13-14
Program Profiles 15
Monitoring Your Heart Rate 16-17
Warm Up Exercises 18
Changing to MPH or KM 19
Calibration Sequence 20
Belt Adjustment 21
Maintenance Instructions 22
Error Messages 23
Troubleshooting 24
Parts List 25-26
Exploded View 27-28
Warranty Information 29

Important Safety Information
3
WARNING! Before using this treadmill or starting any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 and/or persons with pre-existing health problems. The man-
ufacturer or distributor assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
WARNING! To reduce the risk of electrical shock, burns, fire, or other possible injuries to the user, it is impor-
tant to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS
1. It is the owner's responsibility to ensure that all users of this treadmill have read the Owner's Manual and
are familiar with warnings and safety precautions.
2. This treadmill has a user maximum capacity of 325 pounds.
3. The treadmill should only be used on a level surface and is intended for indoor use only. The treadmill
should not be placed in a garage, patio, or near water and should never be used while you are wet. Keys
Fitness recommends a treadmill mat be placed under the treadmill to protect floor or carpet and for easier
cleaning.
4. Follow safety information in regards to plugging in your treadmill. Keep the power cord away from the
incline wheels and do not run the power cord underneath your treadmill. Do not operate the treadmill with a
damaged or frayed power cord.
5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use the treadmill
with bare feet, sandals, socks or stockings.
6. Always straddle the belt and allow it to start moving before stepping onto the belt.
7. Hold on to handrail when adjusting speed, incline, or other controls.
8. Always examine your treadmill before using to ensure all parts are in working order.
9. Allow the belt to fully stop before dismounting.
10. Pets should never be allowed near or on the treadmill.
11. Do not leave children unsupervised near or on the treadmill.
12. Never operate the treadmill where oxygen is being administered, or where aerosol products are being used.
13. Never insert any object or body parts into any opening.
14. For safety and to prevent damage to your treadmill, no more than one person should use the treadmill at a
time.
15. Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be
performed by an authorized service representative, unless authorized and/or instructed by the manufacturer.
16. Failure to follow these instructions will void the treadmill warranty.
17. Never leave the treadmill unattended while it is running.

Before You Start
4
Thank you for purchasing the Health Trainer 95t Treadmill! This quality product you have chosen was
designed to meet your needs for cardiovascular exercise. Before you start, please read the Owner's Manual and
become familiar with the operation of your new treadmill.
Remember to take the time to perform the stretching exercises provided to avoid injury.
Do not stand on the walking belt while pressing the Power button or Start/Stop button.
Always adjust the speed of the treadmill in small increments as this treadmill is capable of high speeds.
If you are taking medication, consult your physician to see if the medication will affect your exercise heart
rate.
If you have heart problems, you are not active, and/or are over the age of 35 years, do not use the pre-set
treadmill programs or start an exercise program without first contacting and receiving approval from your
physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the console. Keys
Fitness recommends a sealed water bottle for beverages consumed while using the treadmill.
Please review the following drawing below to familiarize yourself with the listed parts. This manual
covers several treadmills, so the one pictured below may not be identical to your particular model.

Assembly
5
The Health Trainer 95t Treadmill will require assembly before operating. After opening the box, remove any
packing material from the treadmill.
Do not throw away any packing materials until the unit is working properly.
Place the base on a clean, level surface. Make sure the electrical cord will easily reach an electrical outlet.
Locate the hardware pack and identify the following parts required for assembly.

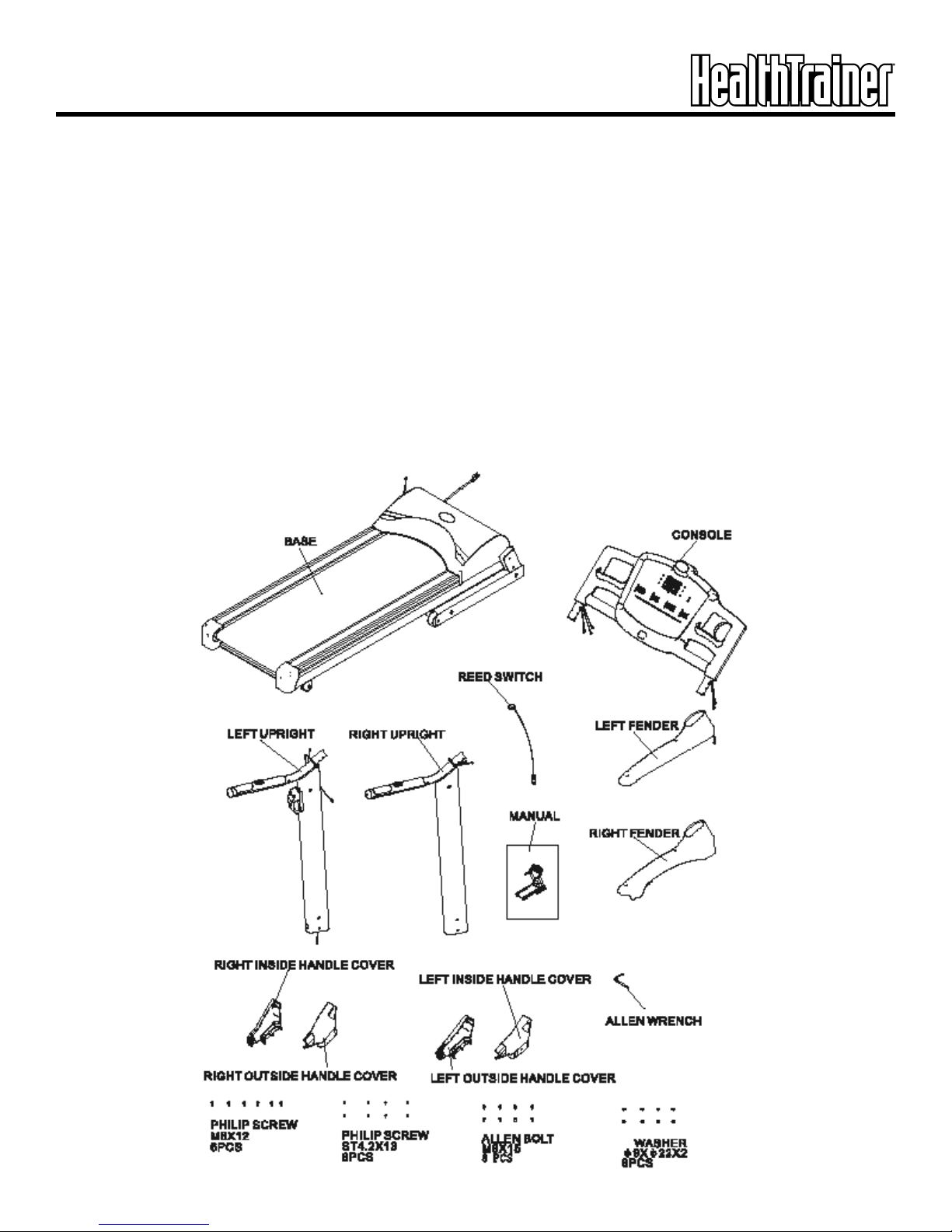

Parts List:
1. Owner’s Manual
2. Base Assembly
3. Console Assembly
4. Left and Right Upright
5. Left and Right Fender
6. Safety Key (Reed Switch)
7. Left and Right Inside Handle Covers
8. Left and Right Outside Handle Covers
9. Allen Wrench
10. Philip Screw M6x12 (Qty. 6)
11. Philip Screw ST4.2x13 (Qty. 8)
12. Allen Bolt M8x15 (Qty. 8)
13. Washer 9x22x2 mm (Qty. 8)

Assembly
6
Assembly requires the included allen wrench.
Do not plug in the power cord until all assembly steps are completed.

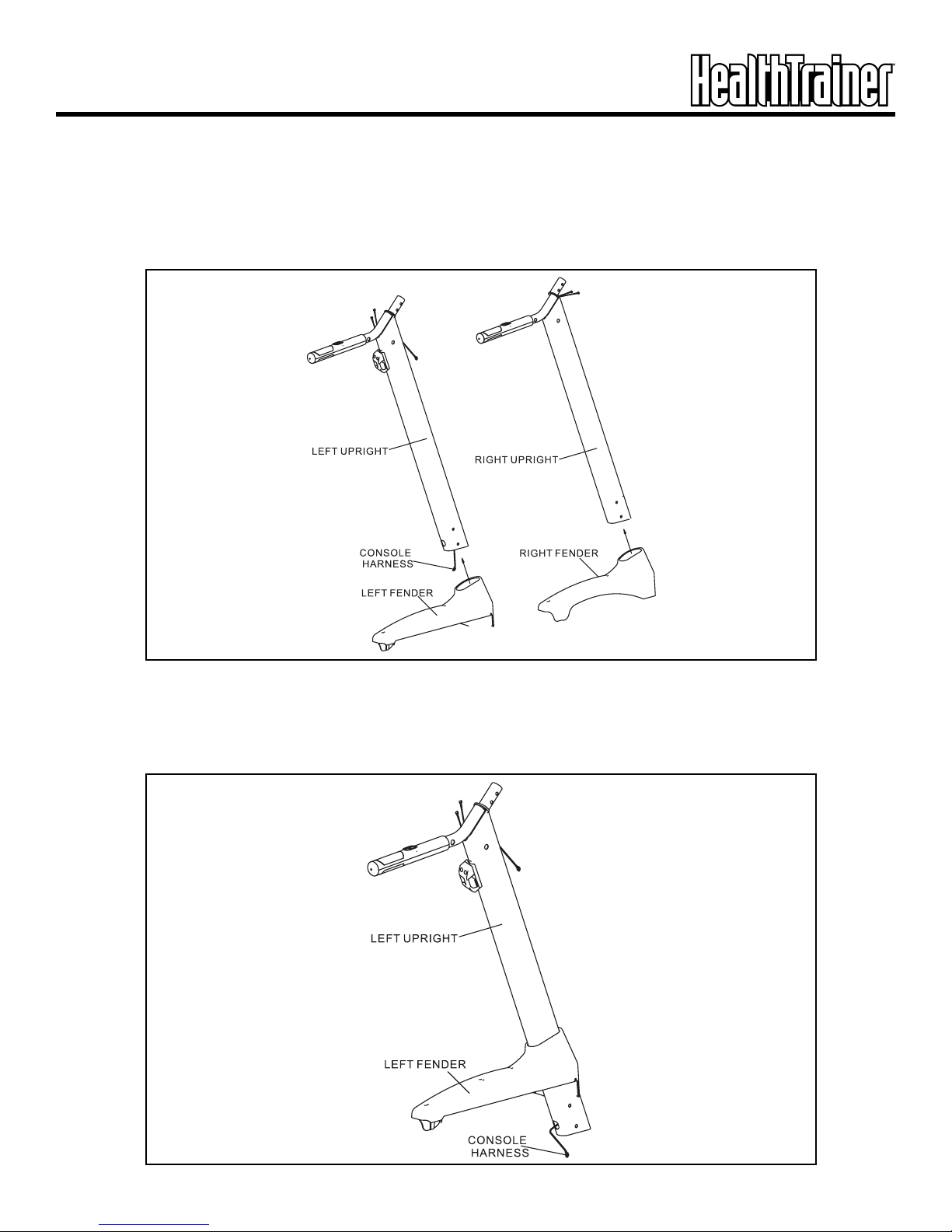

1. Place the left and right fenders through the tube of the left and right uprights as shown in Figure 1.
Figure 1
Figure 2
2. Slide the fenders up the upright assembly and pull the console harness through the hole in bottom of the left
upright tube as shown in Figure 2.

Assembly
7
Figure 3
Figure 4
3. Attach the console harness together from inside the left upright and base assembly as shown in Figure 3.
Next, attach left upright and right upright to base using allen bolts M8x15 (Qty. 8) and washer 9x22x2 mm
(Qty. 8). Do not tighten bolts.
4. Attach the console assembly by connecting the console harness, incline harness, EKG harness, and speed
harness as shown in Figure 4.
Next, attach the console assembly to the left and right uprights using philip screw M6x12 (Qty. 4).

Assembly
8
5. Attach left inside handle cover and left outside handle cover to left upright using philip screw ST4.2x13
(Qty. 3) as shown in Figure 5.
Repeat assembly step for right side handle covers.
Figure 5
Figure 6
6. Tighten all allen bolts (Qty. 8) installed in Step 3. Note: Move the fenders up to access the allen bolts.
Next, attach both left and right fenders to base using philip screw ST4.2x13 (Qty. 2) and philip screw M6x12
(Qty. 2).

Assembly
9
Congratulations!!
You have completed the assembly of your new Health Trainer 95t Treadmill.

Moving Instructions
10
CAUTION! TO AVOID THE RISK OF INJURY, NEVER ATTEMPT TO MOVE THE TREADMILL WHILE
IT IS IN THE UNFOLDED OPERATING POSITION. TO REDUCE THE POSSIBILITY OF INJURY
WHILE LIFTING, BEND YOUR LEGS AND KEEP YOUR BACK STRAIGHT. AS YOU RAISE THE
TREADMILL, LIFT USING YOUR LEGS, NOT YOUR BACK. IN ORDER TO RAISE OR LOWER THE
TREADMILL SAFELY, YOU MUST BE ABLE TO LIFT 45 POUNDS (20KG). IT IS SUGGESTED YOU
ALWAYS USE THE AID OF A SECOND PERSON WHEN MOVING THE TREADMILL.
With the treadmill in the folded locked position (safety latch is engaged), grasp the handrail and place one foot

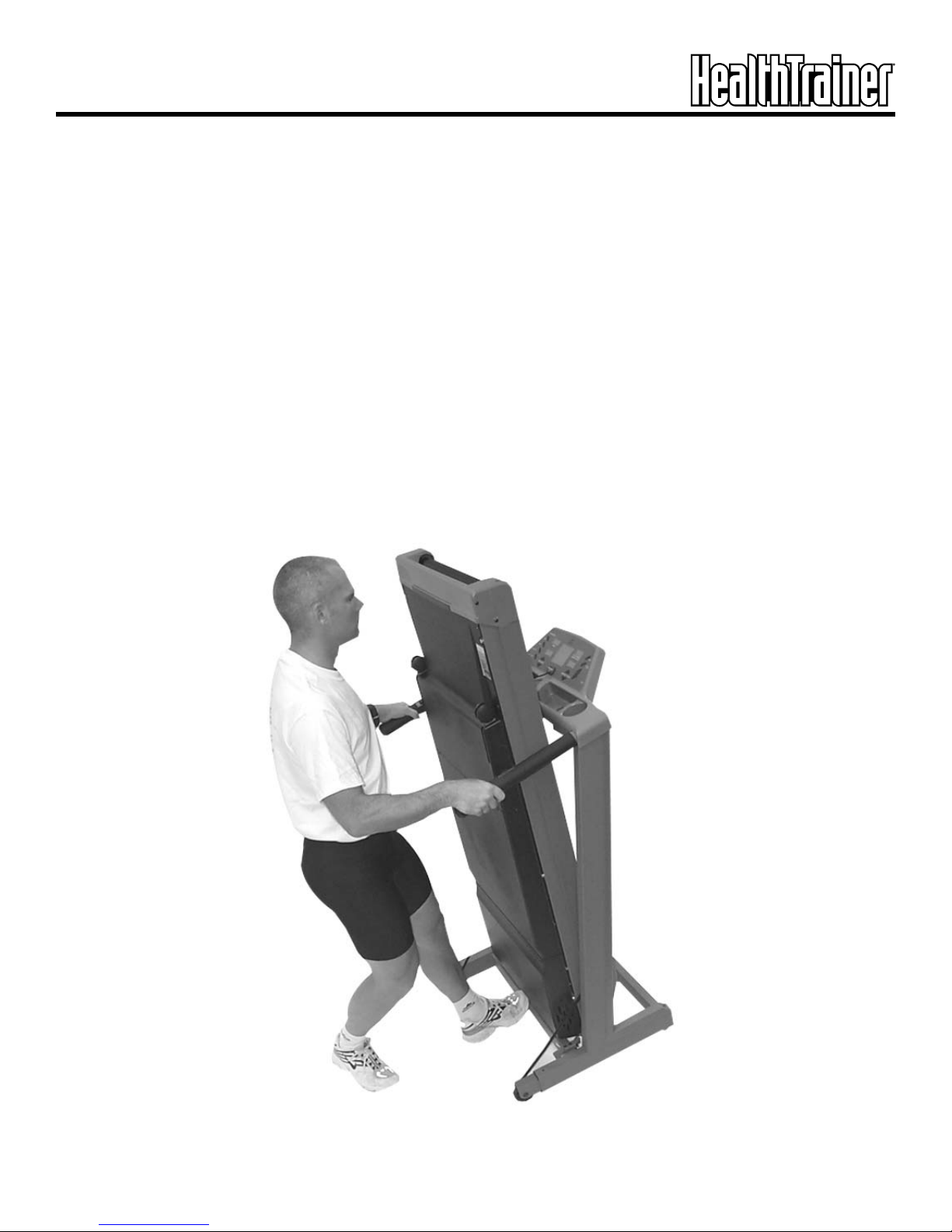

on the center of the base crossbar as shown in the photo below. Next, with a firm grasp on the handrail, care-
fully tilt the treadmill back until it rolls freely on the wheels. Using extreme caution, move the treadmill to the
desired location. To set the treadmill down, place one foot on the center of the base crossbar and carefully
lower treadmill onto base in resting position. Do not attempt to move the treadmill over an uneven or rough
surface.
Note: The treadmill pictured below may not be identical to your particular model.

Power Requirements
11
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT
IN A RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR
SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY
GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT. IF PLUG
WILL NOT FIT THE OUTLET, HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED
ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage
spikes, surges, and noise interference can result from weather conditions or from other appliances being turned
on or off. To reduce the possibility of treadmill damage, always use a dedicated surge protector (not includ-
ed) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet
surge protector with UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with UL suppressed
voltage rating of 400V or less and an electrical rating of 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least
resistance for electric current should the treadmill malfunction. This treadmill comes with an electrical cord
with an equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge pro-
tector, and plug the surge protector into an appropriate outlet that is properly installed and grounded in accor-
dance with all local codes and ordinances. Do not connect other equipment to the surge protector or this could
cause permanent damage to your treadmill.

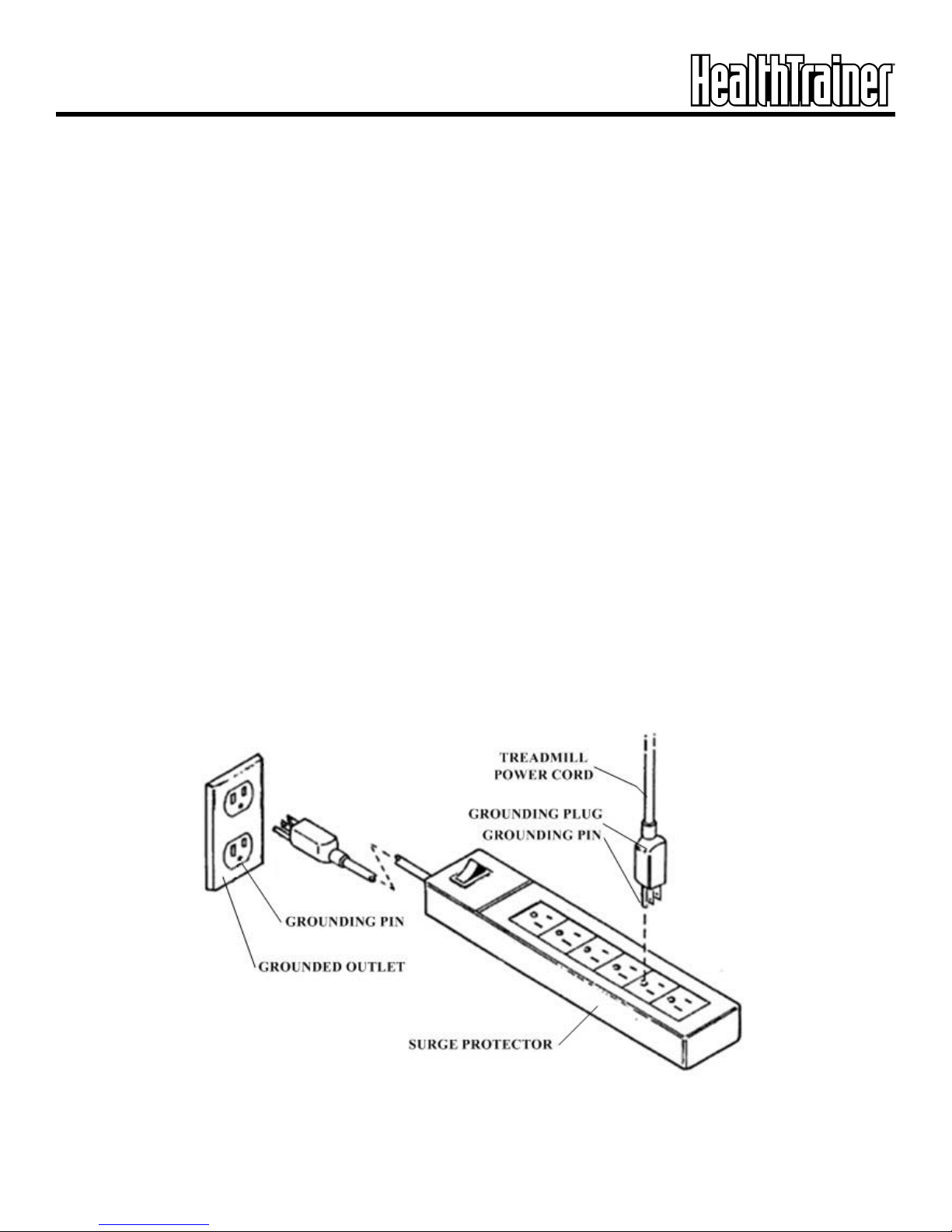

This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrat-
ed in the drawing below.

Console Panel Functions
12

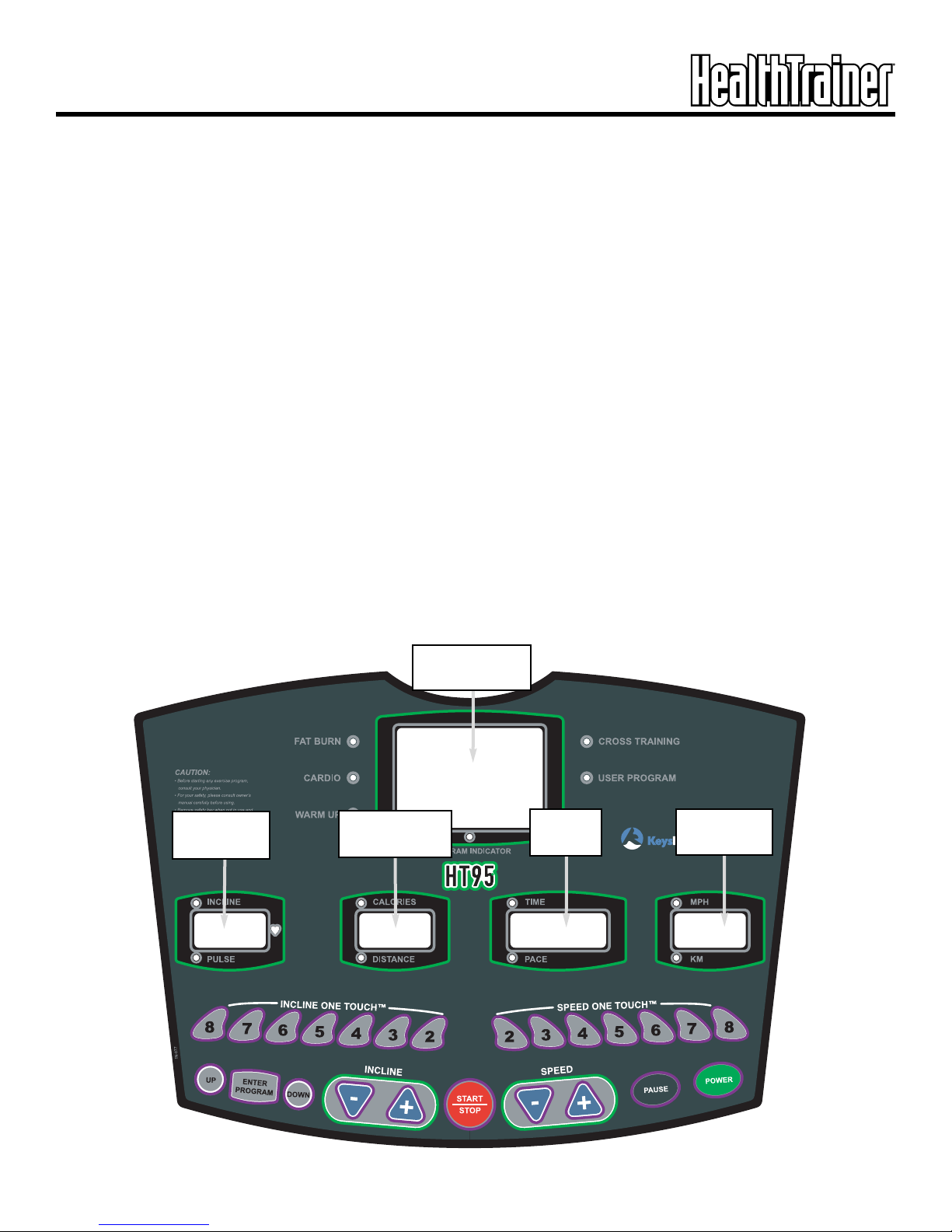

There are five display windows on the control panel to provide feedback information.
INCLINE / PULSE WINDOW:
INCLINE: Indicates incline in percent of grade 0-10% in 0.5 increments.
CALORIES / DISTANCE WINDOW:
CALORIES: Indicates estimated calories used based on 150 lb. person at the indicated speed, incline, and
time.
DISTANCE: Indicates Miles or Kilometers traveled in .01 increments up to 9.99 and .1 increments starting at
10.0
TIME / PACE WINDOW:
TIME: Indicates elapsed time after pressing start in minutes and seconds (0-99 minutes, 0-59 seconds)
INTERVAL TIME: Indicates countdown in seconds to the next interval starting at 5 seconds and counting to 0
seconds.
SPEED WINDOW:
SPEED: Indicates MPH (miles per hour) or KPH (kilometer per hour) in .1 increments.
CENTER BRICKYARD WINDOW
Displays quarter mile track in Manual mode. Indicates position on track by a blink. In program mode, shows
the change in speed profile across the interval range (1-10) and shows position with a blinking action.
In Program mode, the treadmill will display the name of the program selected. This is shown on the left hand
side of the window. In Manual mode, the LAP counter will appear in the top center of the window, count-
ing each 1/4 mile lap in sequence of completion (1, 2, 3, etc.).
TIME /
PACE
SPEED
MPH / KM
CALORIES /
DISTANCE
INCLINE /
PULSE
CENTER
BRICKYARD

Program Operation
QUICK START / MANUAL MODE
1. Plug into a surge protector outlet. Attach the Safety Key on to the treadmill console.
2. Stand on the treadmill and straddle belt. Attach safety key clip to your clothes.
3. Press POWER button. There will be an eight (8) second delay after pressing the POWER button before data
can be entered.
4. Press START/STOP button. Belt will begin to move after 4 seconds. Step on belt slowly after the belt starts
moving. Speed or incline may be adjusted by using the appropriate + (increase) or – (decrease) button.
5. To end your workout, press START/STOP button. Belt will gradually slow to zero.
6. To pause your workout, press PAUSE.
7. To re-start after pausing: Press the PAUSE button. WARNING: THE TREADMILL BELT WILL
RESUME AT THE SPEED THE TREADMILL WAS MOVING BEFORE PAUSING.
8. Countdown Time, Preset Speed and/or Incline: Time, Speed, and Incline may be preset prior to getting
started. First, press the POWER button, then press the ENTER PROGRAM button, the time window will
blink. Use the SPEED + or - buttons to select your workout time, then press the ENTER PROGRAM but-
ton. The SPEED window will now be flashing. Using the same + or - buttons, select the speed for your
workout, then press ENTER PROGRAM. Now the INCLINE window will be flashing. Use the INCLINE
+ or - buttons to set your workout incline, then press ENTER PROGRAM. To start, press the
START/STOP button.
13

Program Operation
14
PROGRAM MODE
Plug treadmill into a surge protector outlet. Attach the Safety Key on to the treadmill console.
1. Stand on the treadmill and straddle belt. Attach safety key clip to your clothes.
2. Press POWER button. There will be an eight (8) second delay before data can be entered.
3. There are four (4) pre-set and eight (8) semi-custom pre-set programs on this unit. The treadmill includes FAT BURN,
CARDIO, WARM-UP, and CROSS TRAINING programs. Press the PROGRAM UP or DOWN button to select
which program you wish to use. Press ENTER PROGRAM.
4. Press START/STOP button. Belt will begin to move after 4 seconds. Step on belt slowly after the belt starts moving.
CUSTOMIZING PROGRAMS in P1 and P2 Mode:
Each pre-set program (Fat Burn, Cardio, Warm-up, and Cross Training) can be customized in the P1 or P2 mode.
After making the program selection, the CAL/DIST window will read “OP”. The “OP” refers to “original program”
and is preset. The program name you select will illuminate on the console display. Press the PROGRAM DOWN
button once more and the CAL/DIST window will read P1. The “P1” mode is now accessed. You can now program
the Time, Speed, and Incline in P1 mode, which will be saved for future workouts.
1) The TIME window will blink. Use the SPEED + or – arrows to select your workout time. Press ENTER PROGRAM.
2) The SPEED window will then blink. Use the same + or – arrows to select the speed for your workout. Press ENTER
PROGRAM.
3) The INCLINE window will then blink. Use the INCLINE + or – arrows to set your workout incline. Press ENTER
PROGRAM.
To start, press the START/STOP button. To access P2 mode, press the PROGRAM UP or DOWN button for desired
program, then press the PROGRAM UP or DOWN button (once for OP, twice for P1, three times for P2). Follow
the above steps 1-3 to customize P2 settings.
TO CHANGE A PREVIOUSLY PROGRAMMED P1, P2, or user program:
Once you have programmed the P1 or P2 modes, you will need to use the PAUSE button to change the program you
previously entered. For instance to change to a new setting in P1-FAT BURN, press the PROGRAM UP or DOWN
to select the FAT BURN program. Next, press the same button once more to access P1. Then press the PAUSE but-
ton to get the TIME window to flash. Follow the directions above to continue to change the program.
PAUSE POWER
INCLINE
SPEED
ENTER
PROGRAM START / STOP

Program Profiles
15
The Fat Burn Program is
designed to vary the treadmill
elevation, while maintaining a
constant walking belt speed.
The Cardio Program is
designed to vary the treadmill
Speed, while maintaining a con-
stant Elevation.
The Warm Up Program is designed to gradually
increase the treadmill Speed and Elevation in the
first segment (warm up) and gradually decrease the
treadmill Speed and Elevation in the last segment
(cool down). This is also known as a Plateau pro-
gram.
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10
SPEED
INCLINE
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10
SPEED
INCLINE
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10
SPEED
INCLINE
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10
SPEED
INCLINE
The Cross Training Program is designed to
control the walking belt speed and elevation
inversely in alternating segments.

Monitoring Your Heart Rate
16
Monitoring Your Heart Rate
To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your
target heart rate zone. The American Heart Association (AHA) defines this target as 60%-75% percent of your
maximum heart rate.
Your maximum heart rate may be roughly calculated by subtracting your age from 220. Your maximum heart
rate and aerobic capacity naturally decreases as you age. This may vary from one person to another, but use
this number to find your approximate effective target zone. For example, the maximum heart rate for an aver-
age 40 year-old is 180 bpm. The target heart rate zone is 60%-75% of 180 or 108-135 bpm. See Fitness Safety
below.
Before beginning your workout, check your normal resting heart rate. Place your fingers lightly against your
neck, or against your wrist over the main artery. After finding your pulse, count the number of beats in 10 sec-
onds. Multiply the number of beats by six to determine your pulse rate per minute. We recommend taking your
heart rate at these times; at rest, after warming up, during your workout and two minutes into your cool down,
to accurately track your progress as it relates to better fitness.
During your first several months of exercising, the AHA recommends aiming for the lower part of the target
heart rate zone-60%, then gradually progressing up to 75%.
According to the AHA, exercising above 75% of your maximum heart rate may be too strenuous unless you
are in top physical condition. Exercising below 60% of your maximum will result in minimal cardiovascular
conditioning.
Check your pulse recovery rate – If your pulse is over 100 bpm five minutes after you stop exercising, or if
it’s higher than normal the morning after exercising, your exertion may have been too strenuous for your cur-
rent fitness level. Rest and reduce the intensity next time.
Fitness Safety The target heart rate chart indicates average rate zones for different ages. A variety of different
factors (including medication, emotional state, temperature and other conditions) can affect the target heart
rate zone that is best for you. Your physician or health care professional can help you determine the exercise
intensity that is appropriate for your age and condition.
(MHR) = Maximum Heart Rate
(THR) = Target Heart Rate
220 - age = maximum heart rate (MHR)
MHR x .60 = 60% of your maximum heart rate.
MHR x .75 = 75% of your maximum heart rate.
For example, if you are 30 years old, your calculations will be as follows:
220 - 30 = 190
190 x .60 = 114 (low end or 60% of MHR)
190 x .75 = 142 (high end or 75% of MHR)
30 year-old (THR) Target Heart Rate would be 114-142
See Heart Rate Table (on next page) for additional calculations.

Monitoring Your Heart Rate
17
100%
85%
75%
60%
Serious
athletic
training range
Cardiovascular
conditioning
range
Fat burning
range
20 25 30 35 40 45 50 55 60 65
AGE
200 195 190 185 180 175 170 165 160 155
170 166 162 157 153 149 145 140 136 132
150 146 143 139 135 131 128 124 120 116
120 117 114 111 108 105 102 99 96 93
TARGET HEART RATE ZONE

Warm Up Exercises
18
TOE TOUCH STRETCH
Stand, bending your knees slightly and slowly bend forward from your hips.
Allow your back and shoulders to relax as you reach down toward your toes
as far as possible. Hold for 15 counts, then relax. This will stretch your ham-
strings, back of knees, and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite foot toward you and
rest it against the inner thigh of your extended leg. Reach toward your toes as
far as possible. Hold for 15 counts, then relax. This will stretch your ham-
strings, lower back, and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place your hands against
a wall. Keep your back leg straight and your back foot flat on the floor. Bend
your front leg, lean forward and move your hips toward the wall. Hold for 15
counts, then relax. To cause further stretching of the Achilles tendon, bend
your back leg as well. This will stretch your calves, Achilles tendons, and
ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and grasp one foot with
your other hand. Bring your heel as close to your buttocks as possible. Hold
for 15 counts, then relax. This will stretch your quadriceps and hip muscles.
INNER THIGH STRETCH (not pictured)
Sit with the soles of your feet together and your knees outward. Pull your
feet toward your groin area as far as possible. Hold for 15 counts, then relax.
This will stretch your quadriceps and hip muscles.
EXERCISE GUIDELINES
WARNING! Before beginning this or any exercise program, you should consult your physician. This is espe-
cially important for individuals over the age of 35 or individuals with pre-existing health problems.
Warming up prepares the body for the exercise by increasing circulation, supplying more oxygen to the mus-
cles and raising body temperature. Begin each workout with 5 to 10 minutes of stretching and light exercise
to warm up. The photos on this page show several forms of basic stretching you may perform before your
workouts. In order to achieve an adequate warm-up, perform each stretch three times.

Change to MPH or KPH
19
Your treadmill will operate in British Units (miles per hour) or International Units (kilometers per hour). All
treadmills are calibrated at the factory for British Units (miles per hour). To change the display to read in kilo-
meters, follow the steps described here:
1) Turn power OFF on the console. (Do not unplug treadmill.) Attach the magnet safety key to the console.
2) Activate the calibration mode switch by inserting the eraser end of a pencil into the opening in the backside
of the console (see diagram below).
3) Depress the calibration mode switch ONCE. CL11 should appear in the TIME window.
4) Pressing the SPEED +/- button will activate your choice.
5) To accept the setting, press the POWER button.
Note: The treadmill pictured below may not be identical to your particular model.

Calibration Sequence
20
Do not attempt to calibrate the treadmill unless an Error Code is present. See Error Messages (page 23).
Our treadmill is equipped with a software package that will perform a calibration sequence unique to your
specific model number.
Please perform the following steps to calibrate the Health Trainer 95t Treadmill.
1. Unplug power cord from outlet strip.
2. Attach Safety Key to console.
3. Plug power cord into outlet strip.
4. Initiate calibration sequence. Locate the hole on the back of the console and insert the eraser end of a pencil
through the hole and press the calibration switch twice. As show on page 19.
5. CL21 should appear in the Time window, if not, continue to press the calibration switch until CL21
appears.
Note: During the calibration sequence, the Time window will display which step you are at in the process
(C21, C22, C23 and so on). The CAL/DIST window will display which key should be pressed next. For
example, “E” for Enter, “P” for Power, or “SS” for Start / Stop.
6. CL21: MPH or KPH will be flashing in the Speed window, pressing the Speed +/ - button will toggle
options. Choose MPH (KPH), press Enter.
7. CL22: 8, 10, or 12 (13, 16, or 20 in KPH mode) will be displayed in the Speed window, pressing the Speed
+/ - button will toggle options. Choose 10 (or 16 for KPH mode), press Enter.
8. CL23: FFF, UUU, or HHH will be displayed in the Speed window, pressing the Speed +/ - button will tog-
gle options. Choose UUU, press Enter.
9. CL24: 111 or 222 will be displayed in the Speed window, pressing the Speed +/ - button will toggle
options. Choose 222, press Enter.
10. CL25: Verify “---” is displayed, press Enter.
11. CL26: OPA or OPI will be displayed in the Speed window, pressing the Speed +/ - button will toggle
options. Choose OPA, press Enter.
12. CL27: Blank (nothing), “a”, “b”, “c”, “d” or “e” will be displayed in the Incline window, pressing the
Speed +/ - button will toggle options. Choose “blank”, press Enter.
13. CAL/DIST window will display “55”. Press Start / Stop. “E” will display in CAL/DIST window.
14. Press Enter Program button.
15. At this time, make sure you are not standing on the walking belt, as the machine will automatically initiate
belt movement and run through a complete calibration and diagnostic routine.
Press Enter. Belt will begin to move. Unit will begin self-calibration.
16. When Speed and Incline calibration has finished, press Power button twice, display should be blank, and
treadmill should be ready for use.
To avoid possible damage to the treadmill and the possibility of injury, do not operate the treadmill
until the problem is corrected. Call Keys Fitness Customer Service at (888)-340-0482 if problem per-
sists.
