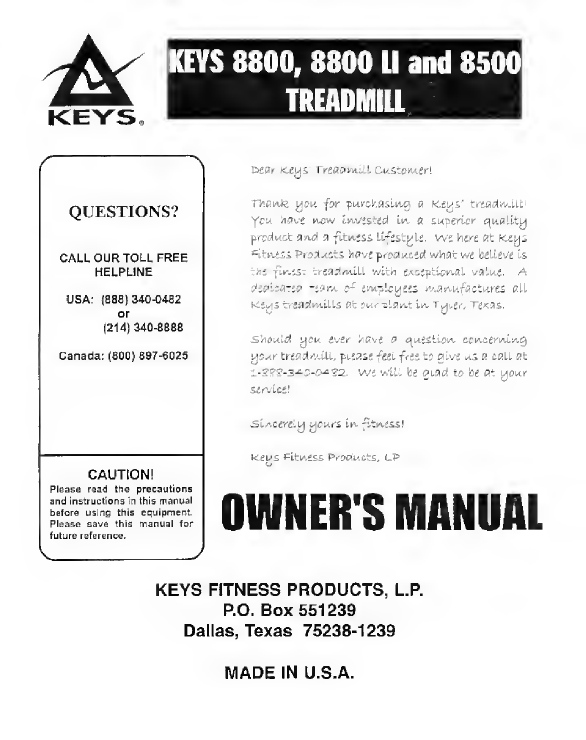

KEYS 8800,8800II and 8500
OWNER’S MANUAL
A
KEY'S,
TABLE OF CONTENTS page
Warranty card
2-3
Important safety information
4-5
Before you start
5
[Assembly instructions
6-7-8
How to plug in the power cord 9
jConsole functions 10
Console descriptions
11
Program profiles 12
Operating instructions 13
Heart rate control operating instructions 14
Maintenance instructions 14
Belt adjustments and tension 15
Troubleshooting guide 16
Exploded view and parts list
17
Exercise guide
18
Contacting customer service (back cover) Back Cover

Important Safety Information
WARNING!
1) Before using this treadmill or starting any exercise program, consult your physician. This is
especially important for persons over the age of 35 and/or persons with pre-existing health
problems. Keys Fitness Products LP assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
2 ) To reduce the risk of electrical shock, bums, fire, or other possible injuries to the user, it is
important to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS
■ It is the owner’s responsibility to ensure that all users of this treadmill have read the Owner"
Manual and are familiar with warnings and safety precautions.
■ This treadmill has a user capacity of 300 pounds maximum user weight.
■ The treadmill should only be used on a level surface and is intended for indoor use only.
The treadmill should not be placed in a garage, patio, or near water and should never be
used while you are wet Keys recommends a treadmill mat be placed under the treadmill to
protect floor or carpet and for easier cleaning
■ Follow safety information in regards lo plugging in your treadmill. Keep the power cord
away from the incline wheels and do not run the power cord underneath your treadmill. Do
not operate the treadmill with a damaged or frayed power cord.
■ Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not
use the treadmill with bare feet, sandals, socks or stockingsl
■ Always straddle the belt and allow it to start moving before stepping onto the belt.
■ Hold on to handrails when adjusting speed, incline, or other controls.
■ Always examine your treadmill before using to ensure all parts are in working order.
■ Allow the belt to fully stop before dismounting.
■ Pets should be never be allowed near or on the treadmill.
■ Do not leave children unsupervised near or on the treadmill.
■ Never operate the treadmill where oxygen is being administered, or where aerosol products
are being used.
■ Never insert any object or body parts into any opening.
4

■ Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill
should only be performed by an authorized service representative, unless authorized and/or
instructed by a Keys treadmill technician. Failure to follow these instructions will void the
treadmill warranty.
■ Never leave the treadmill unattended while it is running.
Before You Start
Thank you for purchasing a Keys treadmill! This quality product you have chosen was
designed to meets your needs for cardiovascular exercise.
• Before you start, please read the Owner's Manual and become familiar with the operation of
your new treadmill.
• Do not stand on the walking belt wile pressing the Power button or Start/Stop button.
• Always adjust the speed of the treadmill in small increments as this treadmill is capable of high
speeds.
• If you are taking medication, consult your physician to see if the medication will affect your
exercise heart rate.
■ If you have heart problems, you are not active, and/or are over the age of 50 years, do not use
the pre-set treadmill programs or start an exercise program without first contacting a getting
approval from your physician.
• To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the
console. Keys recommends a sealed water bottle for beverages consumed while using the
treadmill.
5

CAUTION
IMPORTANT; PLEASE NOTE
WEN ASSEMBLING SIOE HANDRAILS TO CONSOLE, BE CARER! NOT
TO PINCH WIRES BETWEEN HANDRAIL TUBES AND METAL CONSOLE.
FAILURE TO COMPLY WILL RESULT IN ELECTRICAL DAMAGE TO THE
UPPER ELECTRONICS.

Assembly Instructions
Keys treadmills are shipped in two pieces: the console assembly and the base The following
steps should be followed for assembling the treadmill:
Remove ary packing materials from the treadmill. Do not throw away any packing materials
until assembly is completed.
Place the base on a clean, level surface. Make sure the electrical cord will easily reach an
electrical outlet.
1. Raise the console into an upright position and install 3.5" x 5/16” bolts (2) with washers and
secure using 5/16" nyloc nuts (2) (Diagram 1).
2. Find the wire harness exiting from the left upright Plug wire harness into motor controller
circuit board. Tie off excess wire with the attached plastic tie (Diagram 1).
3. Install motor hood cover using 5/8" phillips head screws (8 screws) (Diagram 1).
4. Handlebar installation. Handlebars include toggle switches for speed and incline. Incline
toggle switch is on the left (as you stand on the treadmill). Plug in wire harnesses for each
side and push excess wire into holes (Diagram 2).
5. Attach left and right handlebars with 5" all thread bolts Loosely tighten (Diagram 3).
6. Loosely attach bottom side of handrails to uprights with 1” button head screws (Diagram 3).
7. Install cross handlebar with 2 l h button screws (Diagram 3).
8 Securely tighten all handrail bolts and screws.
9. Be sure that the treadmill is level to the floor. The rear feet can be adjusted to level the
treadmill. Assembly is complete!
7

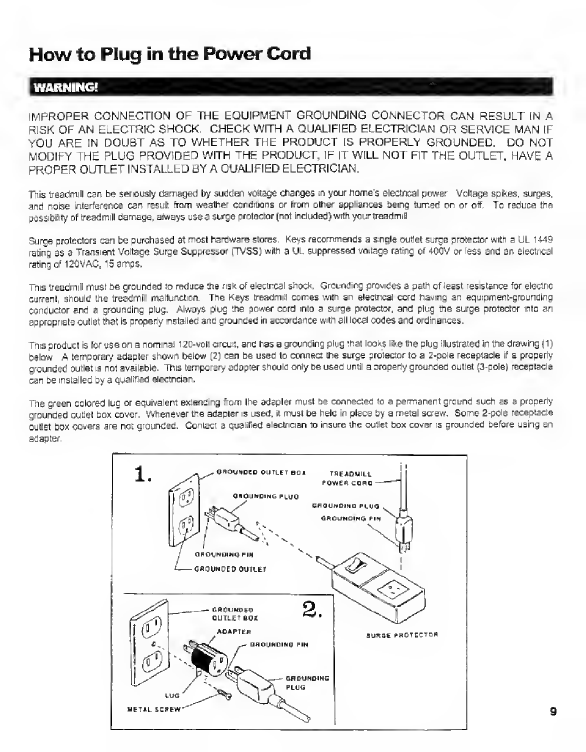

How to Plug in the Power Cord
improper connection of the equipment grounding connector can result in a
RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF
YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT
MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT THE OUTLET. HAVE A
PROPER OUTLET INSTALLED BY a QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes m your home's electrical power Vollage spikes, surges,
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. Keys recommends a single outlet surge protector with a UL 1449
rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voitage raling of 400V or less and an electrical
rating of 120VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric
current, should the treadmill malfunction. The Keys treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing (1)
below A temporary adapter shown below (2) can be used to connect the surge protector to a 2-pole receptacle if a properly
grounded outlet is not available. This temporary adapter should oniy be used until a nroperly grounded outlet (3-pole) receptacle
can be installed by a qualified electrician.
The green colored lug or equivalent extending from the adapter must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. Some 2-pole receptacle
outlet box covers are not grounded. Contact a qualified electrician to insure the outlet box cover is grounded before using an
adapter
g

Console Functions
There are five display windows on the control panel to provide you with vital feedback information.
TIME WINDOW
* TIME: Indicates elapsed time after pressing start in minutes and seconds {0-99 minutes, 0-59 seconds)
• INTERVAL TIME: Indicates countdown in seconds to the next interval starting at 5 seconds and counting to 0
seconds
SPEED WINDOW
• SPEED: Indicates MPH (miles per hour) or KMH {kilometer per hour) in .1 increments
DISTANCE I CALORIES WINDOW
• DISTANCE: Indicates Miles or Kilometers traveled in .01 increments up to 9.99 and 1 increments starting at
10.0
• CALORIES: Indicates estimated calories used based on 150 lb person at the indicated speed, incline, and time
INCLINE WINDOW
• INCLINE: Indicates incline in percent of grade 0-15% in .5 increments
• PULSE (8800 Model Only): Indicates current heart rate
• HEART (8800 Model Only): Indicates control panel is receiving a signal from heart rate transmitter. Heart
will blink on and off if receiving signal from Heart Rate Transmitter chest strap
CENTER BRICKYARD
• Displays quarter mite track in Manual mode. Indicates position on track by a blink. In program mode, shows the
change in speed profile across the interval range (1-10) and shows position with a blinking action.
SPEED BAR
• The Speed Bar allows the user to adjust speed quickly. The Speed Bar works in all manual and program
modes To use the Speed Bar, the bell must already be moving. Press the desired speed (2 through 8), and
the treadmill will slowly reach the speed selected. In program mode, the change in speed with the Speed Bar
will only work in the current interval. Once the program switches to another interval, the speed will revert back
to the programmed speed.
TOGGLE SWITCHES IN HANDLEBARS FOR SPEED AND INCLINE
Your treadmill is equipped with toggle switches to conveniently change the incline and speed without reaching
up to the console. In program mode, the change in speed and/or incline with the toggle switches will only work
in the current interval Once the program switches to another interval, the speed and incline will revert back to
the programmed speed and incline.
10
