Keysight Technologies 34330A User manual

Keysight 34330A Current Shunt
©Keysight Technologies, Inc.
2003 - 2014
Part Number: 34330-90001
Edition 3, September 2014
Printed in Malaysia
Keysight Technologies, Inc.
5301 Stevens Creek Blvd.
Santa Clara, CA 95052 USA
Safety Notices
Do not attempt to repair this sealed device.
Do not use this device for any purpose
other than indicated in these instructions.
Doing so may expose you to bodily injury
or cause equipment damage.
Do not install substitute parts or
perform any unauthorized modification to
the product. Return the product to an Key-
sight Technologies Sales and Service
Office for service and repair to ensure that
safety features are maintained.
WARNING
A WARNING notice denotes a hazard.
It calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in personal injury or death. Do
not proceed beyond a WARNING notice
until the indicated conditions are fully
understood and met.
CAUTION
A CAUTION notice denotes a hazard.
It calls attention to an operating proce-
dure, practice, or the like that, if not
correctly performed or adhered to,
could result in damage to the product or
loss of important data. Do not proceed
beyond a CAUTION notice until the
indicated conditions are fully understood and
met.
Symbols
Instructions for Use
The Keysight 34330A Current Shunt is
a precision 0.001W resistor housed in a
plastic case surrounded by epoxy.
Output is 1 mV per A of current
passing through the shunt.
WARNING
Install the shunt in the multimeter voltage
input terminals before use. Do not remove
the shunt with a current source still con-
nected, as there may be danger of shorting
the banana plugs to ground. Observe the
current and voltage limits listed under
“Specifications.”

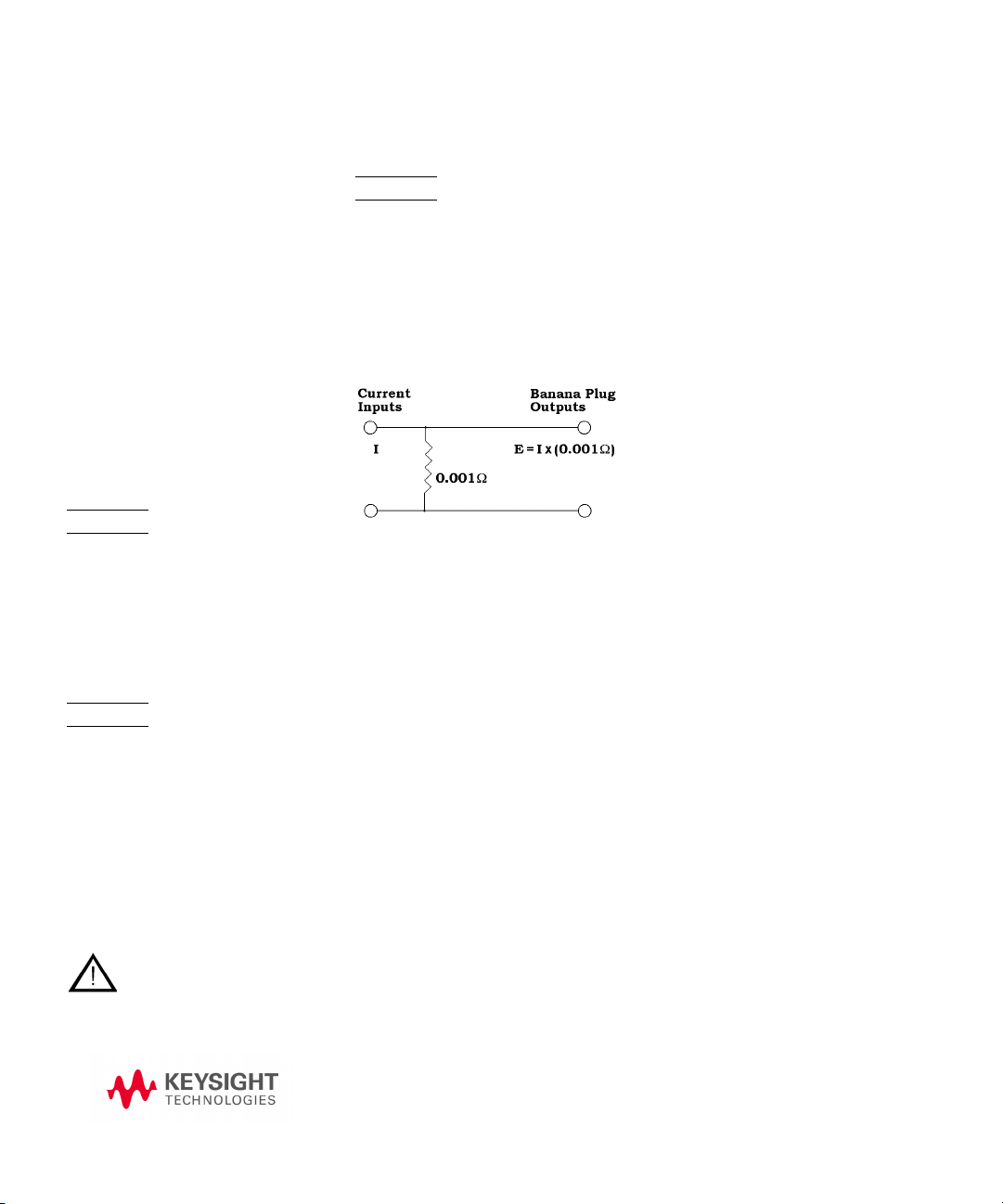

The following simplified diagram shows
how the shunt is used:
Insert the shunt’s banana-plug outputs
into the main voltage inputs on the multi-
meter (not the high ampere inputs). Then
connect the current source to be mea-
sured to the shunt’s input terminals
(binding posts). The multimeter will read
the IR drop caused by the input current
through the shunt.
The precision resistance of the shunt is
0.001W, so the voltage measured by the
multimeter is equal to the current
multiplied by 0.001W. Thus, the voltage
reading sensitivity is 1 mV/A. For a
15 A current, the voltage reading is
15 mV. Select an appropriate voltage
range on the multimeter. See your
multimeter User’s Guide for further
information.
Cleaning Instructions
Wipe with a soft cloth, moistened slightly
with water, if needed.
*34330-90001*
34330-90001
Specifications
Operating Environment: Indoor use
only
Operating Temperature: 5 to 40 °C
Operating Humidity: 0 to 80% RH
Storage Temperature: -30 to 70 °C
Input Current:
15 A (continuous)
30 A (15 minutes, max)
Safety Limit, Max Voltage to Ground:
60 Vdc, max
30 Vac (rms), max
Voltage Sensitivity: 1 mV/A
Accuracy (DC - 1 kHz): ±0.3%
Accuracy (1 kHz - 5 kHz): ±5%
Assistance
Product maintenance agreements and
other customer assistance agreements are
available for Keysight Technologies prod-
ucts. For assistance, contact your nearest
Keysight Technologies Sales and Service
Office. Further information is available on
the Keysight web site at
www.keysight.com/find/assist.
Certification
Keysight Technologies certifies that this
product met its published specifications at
the time of shipment from the factory. The
shunt is not subject to periodic calibration.
Warranty
The material contained in this
document is provided “as is,” and is
subject to being changed, without notice,
in future editions. Further,
to the maximum extent permitted by appli-
cable law, Keysight disclaims all warranties,
either express or implied with regard to
this manual and any information con-
tained herein, including but not limited to
the implied warranties of merchantability
and fitness for a particular purpose. Key-
sight shall not be liable for errors or for
incidental or consequential
damages in connection with the
furnishing, use, or performance of this doc-
ument or any information contained
herein. Should Keysight and the user have
a separate written agreement with war-
ranty terms covering the material in this
document that conflict with these terms,
the warranty terms in the separate agree-
ment will control.
instructions for import-
Refer to the operating
ant safety information.
