Keysight U4206A User manual

U4206A 34 Channel, Soft Touch Pro, Single-Ended,
Quad x 160-Pin Direct Connect
Quick Start and Accessory Guide
Probe Cable
PROBE CABLE ASSEMBLY
Clock Qualifier Connections
Logic Analyzer
Connection Pods
Soft Touch Pro
Connector
Pin Protector
Extra E5390-25201 Pin
Protectors are included
DO NOT DISCARD THIS
PIN PROTECTOR
To protect the Soft
Touch Pro pins from
being damaged, use the
Pin Protector when
probe is not connected.
POD 7 POD 5 POD 3 POD 1
KEYSIGHT
U4206A
SOFT TOUCH PRO QUAD SAMPLE
KEYSIGHT
U4206A
SOFT TOUCH PRO QUAD SAMPLE
KEYSIGHT
U4206A
SOFT TOUCH PRO QUAD SAMPLE
SOFT TOUCH PRO QUAD SAMPLE
U4206A
KEYSIGHT
KEYSIGHT
SAVE
PIN PROTECTOR
TO COVER PINS WHEN NOT CONNECTED
Kit Of 34 Pieces
E5381-82102
Kit Of 34 Pieces
E5381-82104
Kit Of 34 Pieces
E5381-82101
Kit Of 5 Pieces
E5405-68702
1 Piece
01131-94309
Soft Touch Pro
Retention Module
82 Ohm Resistor
Template
Tip Resistor
82 ohm Coaxial
3-Pin HeaderSocket Adapter

123

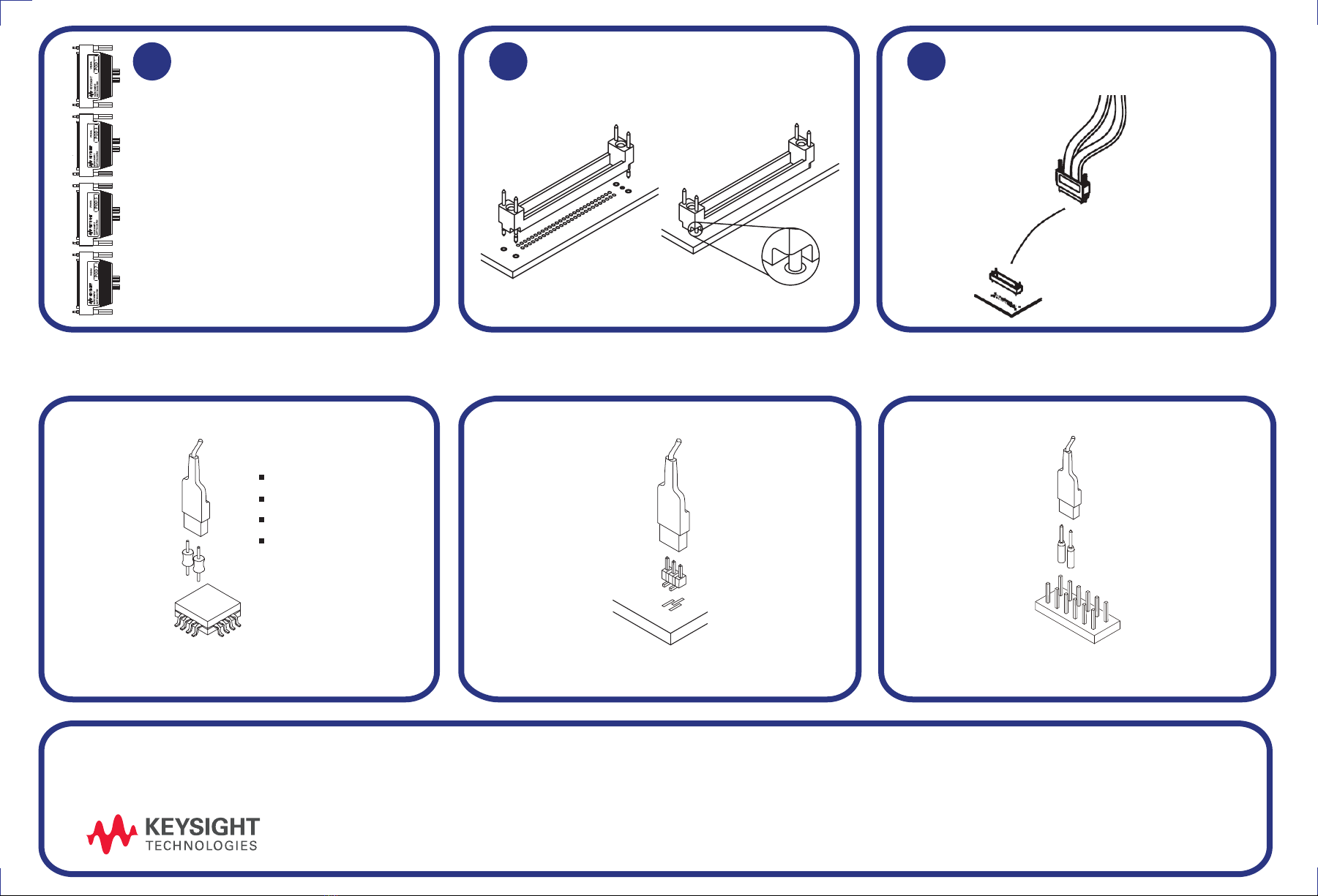

CONNECT PODS TO LOGIC
ANALYZER
U4206A Connector Pod - To - LA Connector
APPLY SOFT TOUCH PRO RETENTION
MODULE TO SYSTEM UNDER TEST
CONNECT PROBE CABLE TO SOFT
TOUCH PRO RETENTION MODULE
CLOCK QUALIFIER CONNECTIONS ARE MADE USING THE INCLUDED ACCESSORIES
Coaxial Tip Resistor 82 Ohm
Total Lumped Input C 0.9 pF Total Lumped Input C 1.0 pF Total Lumped Input C 1.1 pF
Soft Touch Pro
Probe Cable
Solder Attach To:
3-Pin Header Socket Adapter
Pod 1 Pods 1/2
Pod 3 Pods 3/4
Pod 5 Pods 5/6
Pod 7 Pods 7/8
Insert Solder pins from
top of board
Detailed information on the U4206A Probe Cable is available at http://www.keysight.com/find/U4206A. On this webpage, click the Document Library tab and download
the user guide.
*U4206-92000*
© Keysight Technologies 2015
U4206-92000, June 2015, Printed in USA
Components
Traces
Pads
VIAs
.
.
.
.
Retention
Module
POD 7 POD 5 POD 3 POD 1
KEYSIGHT
U4206A
SOFT TOUCH PRO
QUAD SAMPLE
KEYSIGHT
U4206A
SOFT TOUCH PRO
QUAD SAMPLE
KEYSIGHT
U4206A
SOFT TOUCH PRO
QUAD SAMPLE
SOFT TOUCH PRO
QUAD SAMPLE
U4206A
KEYSIGHT
