GETTING TO KNOW YOUR SEDONA
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable
driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your
new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations help to ensure the instructions are
easy to follow.
This Features & Functions Guide, and the specific operational and safety information it provides, is not a substitute for your Owner’s
Manual. In the interest of your safety and that of your family, and to help you avoid risks that may result in death or serious injury,
Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without
notice in advance or after the fact, and assumes no liability in connection with such changes.
www.kia.com
Consumer - Roadside Assistance
1-800-333-4KIA (4542)
See Back Pages for Vehicle Maintenance Schedule
Always check the Owner’s Manual for complete operating information and safety warnings.

VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . 02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . . 05
Fuel Economy. . . . . . . . . . . . . . . . . . . . . . . . 05
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 06
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . . 07
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . 07
Drive Mode Integrated Control System* . . . . . . . . . . 08
Active ECO System* . . . . . . . . . . . . . . . . . . . . 08
DRIVER’S PANEL
Electronic Stability Control (ESC) . . . . . . . . . . . . . . 09
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . 09
Instrument Panel Dimmer . . . . . . . . . . . . . . . . . 09
AC Inverter*. . . . . . . . . . . . . . . . . . . . . . . . . 09
Blind Spot Detection (BSD) System* . . . . . . . . . . . . 10
Lane Departure Warning System (LDWS)* . . . . . . . . . 11
Forward Collision Warning System (FCWS)* . . . . . . . . 11
Power Windows, Window Lock & Central Door Lock . . . . 12
Power Folding Outside Mirrors* . . . . . . . . . . . . . . 12
Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 12
Automatic Door Lock/Unlock . . . . . . . . . . . . . . . 12
Fuel Door Release Button . . . . . . . . . . . . . . . . . 12
Reverse Parking Aid Function* . . . . . . . . . . . . . . . 13
Engine Start/Stop Button. . . . . . . . . . . . . . . . . . 13
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . 14
Headlights & High Beams. . . . . . . . . . . . . . . . . . 14
Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . 15
Windshield/Rear Wipers & Washers* . . . . . . . . . . . . 15
Bluetooth®Wireless Technology . . . . . . . . . . . . . . 16
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . 18
Standard Cruise Control . . . . . . . . . . . . . . . . . . 18
Smart Cruise Control System (SCC)* . . . . . . . . . . . . 19
AUDIO SYSTEM
Standard Audio System* . . . . . . . . . . . . . . . . . . 20
UVO eServices System* . . . . . . . . . . . . . . . . . . 21
UVO eServices with Premium Navigation* . . . . . . . . . 22
CENTER PANEL
Surround View Monitor (SVM)* . . . . . . . . . . . . . . . 23
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . 24
Aux/USB/iPod®Port, AC Inverter* and Power Outlets . . . . 24
Automatic Gear Shift with Sportmatic®Shifting . . . . . . 25
Automatic Climate Control*. . . . . . . . . . . . . . . . . 26
Manual Climate Control* . . . . . . . . . . . . . . . . . . 28
Heated Steering Wheel* . . . . . . . . . . . . . . . . . . 29
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . 29
SEATING
Front Seat Headrest Adjustment . . . . . . . . . . . . . . 30
Driver Position Memory System* . . . . . . . . . . . . . . 30
Power Adjustable Driver's Seat* . . . . . . . . . . . . . . 31
Manual Adjustable Driver's Seat*. . . . . . . . . . . . . . 31
2nd-Row Seat . . . . . . . . . . . . . . . . . . . . . . . 32
2nd-Row Slide-N-Stow Seat* . . . . . . . . . . . . . . . 32
2nd-Row First-Class Lounge Seating* . . . . . . . . . . . 33
2nd-Row Tumble (Center) Seat* . . . . . . . . . . . . . . 34
3rd-Row Seat - Folding and Stowing . . . . . . . . . . . . 35
OTHER KEY FEATURES
Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . 36
Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . 36
Power Sliding Doors . . . . . . . . . . . . . . . . . . . . 36
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . 37
HomeLink®with Auto-Dimming Rearview Mirror* . . . . . 38
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . 39
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . 40
Parking Assist System*. . . . . . . . . . . . . . . . . . . 40
Back-Up Warning System (Rear Parking Assist System)* . 41
Rear-Camera Display* . . . . . . . . . . . . . . . . . . . 41
Power Liftgate (Tailgate)*. . . . . . . . . . . . . . . . . . 42
Hood Release Lever and Latch . . . . . . . . . . . . . . . 43
Fuel Cap / Malfunction Indicator (Check Engine Light) . . . 43
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . 43
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . 44
Seat Belts. . . . . . . . . . . . . . . . . . . . . . . . . . 44
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . . 44
NORMAL MAINTENANCE SCHEDULE . . . . . 45
LEGAL DISCLAIMERS (See Back Inside Cover Page)
ESSENTIAL FEATURES
SEDONA FEATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control* . . . . . .26
Audio System – Standard Audio System* . . . . . . . . 20
Audio System – UVO eServices System* . . . . . . . . 21
Audio System – UVO eServices / Premium Navigation* . 22
Aux/USB/iPod®Port, AC Inverter* and Power Outlets . .24
Bluetooth®Wireless Technology . . . . . . . . . . . . .16
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 18
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 24
Passenger Airbag Off Indicator. . . . . . . . . . . . . . 44
Service Mode. . . . . . . . . . . . . . . . . . . . . . . 07
Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . 37
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Trip Computer / Tripmeter . . . . . . . . . . . . . . . . 06
User Settings . . . . . . . . . . . . . . . . . . . . . . . 07
Windshield/Rear Wipers & Washers*. . . . . . . . . . . 15
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and death.
The driver’s primary responsibility is in the safe and legal
operation of a vehicle, and use of any handheld devices, other
equipment or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle
or that are not permissible by law should never be used during
operation of the vehicle.

SEDONA FEATURES & FUNCTIONS GUIDE
2*IF EQUIPPED
VIDEOS & QR CODES - SMARTPHONES, TABLETS AND COMPUTERS
Kia provides a number of video resources at your disposal to assist you with becoming familiar with the features and
functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your smartphone/tablet
(mobile devices) or by visiting the following website: www.KuTechVideos.com/yp13/2016. Continue reading for a more
in-depth look at QR Codes and for instructions on how to use them.
REMINDER: When accessing videos
on your mobile device, standard
cellular data rates may apply.
One-Click Fuel Cap Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
www.KuTechVideos.com/yp13/2016
What are QR Codes?
A QR Code is a square, 2-dimensional barcode that can be
read by mobile devices loaded with an appropriate barcode
or QR Code Reader App. The app reads the barcode image
and then launches/uploads the specific information the
code contains, such as URLs, text, photos, videos and so
much more.
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic. For
example, in the Fuel Cap section, if you would like additional
information, just snap the code with your mobile device to
view the selected Kia Features & Functions Video.
How to snap a QR Code
1. With your mobile device, download a QR Code Reader
App. With many devices, you can do this through an app
store or marketplace
2. Open the QR Code Reader App on your mobile device
3. The app will utilize your device’s camera. Center the code
in the camera viewing area:
•With some apps, as soon as the app recognizes the
code, it will launch the corresponding video
•With other apps, you will have to snap or take a
picture of the code. The app will then launch the
corresponding video
•For operation specifics, refer to the instructions that
come with the QR Code Reader App
QR CODE
1. If you’re having trouble scanning codes, check the following:
•The code should be centered and focused in your mobile device’s camera screen
•Consider moving your device closer to or farther away from the code
•The code should be well lit, without significant shadow
2. After scanning, if a “connecting” message appears and then nothing happens or there’s a “connection error” message, this typically indicates that your device is having trouble
connecting to the Internet
3. When accessing videos on your mobile device, standard cellular data rates will apply
QUICK TIPS
•Avoid scanning from a significant angle
•Confirm that the device’s app supports 2D QR Code scanning.
•Try another QR Code Reader App; not all apps are created equal

3
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
(Type B Cluster)
A C
BB
F
D
E
H
G

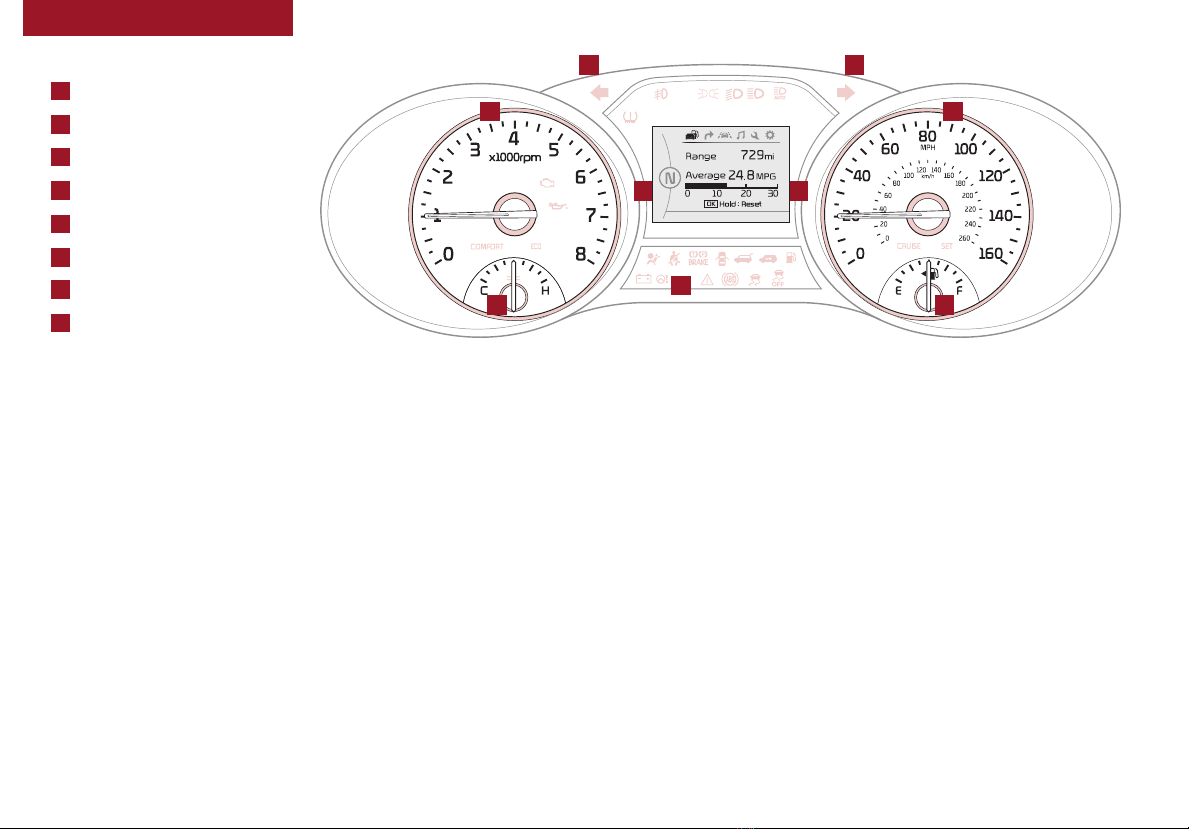

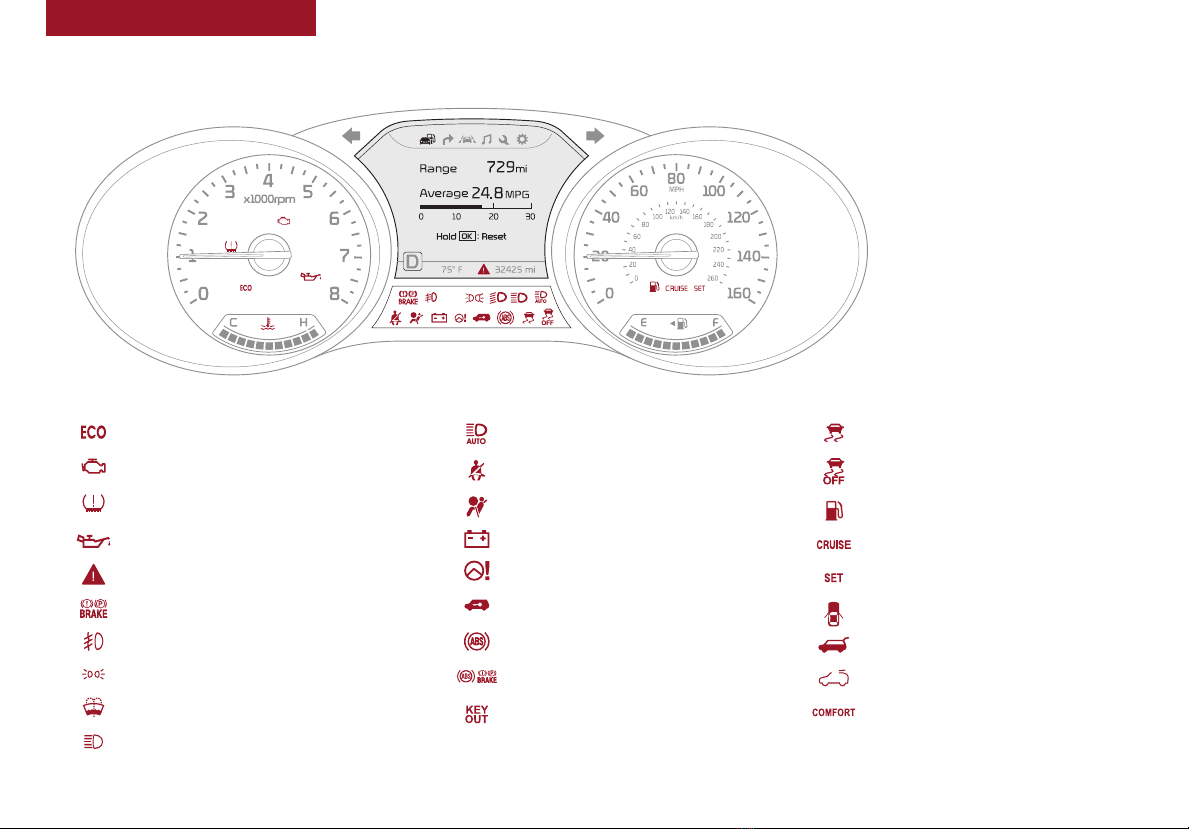

Instrument Cluster Overview
[A] Tachometer
[B] Turn Signal Indicators
[C] Speedometer
[D] Engine Temperature Gauge
[E] Indicators & Warning Lights
[F] Gear Shift Position Indicator
[G] Odometer/Trip Computer/Tripmeter
[H] Fuel Gauge
REMINDERS:
•Your vehicle’s instrument cluster & indicator light locations
may differ from those in the illustrations
•For more information on the instrument cluster and the
function of all indicator and warning lights, please refer to the
Owner’s Manual
A
B
C
D
E
F
G
H
INSTRUMENT CLUSTER

SEDONA FEATURES & FUNCTIONS GUIDE
4*IF EQUIPPED
Indicators & Warning Lights
REMINDERS:
•Your vehicle’s instrument cluster &
indicator light locations may differ from
those in the illustrations
•For more information on the instrument
cluster and the function of all indicator
and warning lights, please refer to the
Owner’s Manual
ECOMINDER®Indicator
Malfunction Indicator Lamp (MIL)
Low Tire Pressure Light / Tire Pressure Monitoring
System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Master Warning Light
Parking Brake & Brake Fluid Warning Light
Front Fog Light Indicator*
Light ON Indicator Light
Washer Fluid Warning Light*
High Beam Indicator
High Beam Assist Indicator*
Seat Belt Warning Light
Airbag Warning Light
Charging System Warning Light
Electronic Power Steering (EPS) Warning Light*
Immobilizer Indicator Light*
Anti-Lock Braking System (ABS) Warning Light
Electronic Brake Force Distribution (EBD) System
Warning Light
KEY OUT Indicator*
Electronic Stability Control (ESC) Indicator Light
Electronic Stability Control (ESC) OFF Indicator Light
Low Fuel Level Warning Light
Cruise Indicator Light*
Cruise SET Indicator
Door Ajar Warning Light*
Liftgate (Tailgate) Open Warning Light*
Sunroof Open Warning Light*
COMFORT Mode Indicator Light*
(Type C Cluster)
INSTRUMENT CLUSTER

5
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Tire Pressure Monitoring System (TPMS)
REMINDER: Consult your dealer for service if Low Tire
Pressure Light remains illuminated after inflating your tire(s).
Fuel Economy
There are several factors that contribute to your vehicle’s fuel economy, including maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle aerodynamics. Below are tips on how to help improve fuel economy:
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
REMINDER: Driving range varies depending on a vehicle’s fuel tank size, (e.g., 12-gal. vs. 24-gal). Even though the two vehicles MPG may be the same, the
vehicle with the larger tank will have the greater range.
For more information on Fuel Economy, you can snap the QR code above to view a video or refer to the brochure “GETTING MORE OUT OF EVERY GALLON, FUEL-
SAVING TIPS TO DRIVE BY” available at your local dealership.
To view these videos on
your mobile device, snap
these QR Codes or visit the
listed website.
Refer to page 2 for more
information.
Tire Pressure
Monitoring System
Fuel Economy Video
QR CODES
www.KuTechVideos.com/yp13/2016
www.KuTechVideos.com/yp13/2016
•Even with TPMS, tire pressure should be checked
manually at least once a month. Only adjust tire
pressure on “cold tires”
•For proper maintenance and optimal fuel
economy, maintain recommended tire inflation
pressures and stay within the load limits and
weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may
illuminate if the tire pressure was adjusted to
the recommended tire inflation pressure during
warm weather
QUICK TIPS
The TPMS indicator [~] functions as both Low Tire Pressure
Light and TPMS Malfunction Indicator.
The indicator [~] will illuminate if one or more tires is significantly
underinflated, the vehicle has a spare tire installed without TPMS or the
outside temperature becomes significantly lower.
Inflate tire(s) to specifications using an accurate digital tire pressure
gauge to turn off Low Tire Pressure Light [~]. See front driver’s door
jamb for PSI specification.
When there is a problem with the TPMS, the TPMS Malfunction
Indicator [~] will blink for approximately one minute and then illuminate.
See dealer for service.
INSTRUMENT CLUSTER

SEDONA FEATURES & FUNCTIONS GUIDE
6*IF EQUIPPED
(Type B and C cluster)
FUEL ECONOMY
• RANGE
• Average MPG
• Instant MPG
TRIP A
• Tripmeter A
• Average MPH
• Elapsed Time (E/T)
TRIP B
• Tripmeter B
• Average MPH
• Elapsed Time (E/T)
DIGITAL SPEED
Trip Computer Mode: Displays driving information
for tripmeter, fuel economy, etc.
Turn-by-Turn Mode*: Displays the state of the
navigation system
Smart Cruise Control (SCC) / Lane Departure
Warning System (LDWS)*: Displays the state of the
SCC and LDWS
A/V Mode: Displays the state of the A/V System
Information Modes: Informs on service intervals /
Informs of warning messages related to washer
fluid, Blind Spot Detection (BSD) system malfunction
and other systems / Informs when any door is not
securely closed
User Settings Mode: Change settings of the lamps
and other features
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
(Type B/C; Buttons located on Steering Wheel)
A
B
C
Trip Computer / Tripmeter
The Trip Computer is a driver information
system that displays information related
to driving on the display when the ENGINE
START/STOP button is in the ON position.
To cycle through the LCD Instrument Cluster
modes, press the Mode button [A].
Trip Computer:
•To select and enter Trip Computer mode
[~], roll the OK button [B] and then press
to enter
•To cycle through and select the different
screens (Fuel Economy, Trip A, Trip B), roll
the OK button [B] and then press enter
•When displaying TRIP A or TRIP B
screens, press and hold the OK button [B]
to reset the Tripmeter to zero.
•Press the Return button [C] to go back to
the previous mode/item
REMINDERS:
•Appearance of Tripmeter display may differ
as equipped
•All stored driving information (except Odometer and
Range) is reset if the battery is disconnected
B
B
C
A
LCD Instrument Cluster Modes
Press Mode button [A] to cycle through different LCD
Instrument Cluster Modes:
A
B
INSTRUMENT CLUSTER

7
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
(Type B/C clusters):
Driving Assist
•Smart Cruise Control
Response*
•Rear Cross Traffic Alert*
•Forward Collision Warning*
Door/Liftgate (Tailgate)
•Automatic Unlock
•Two Press Unlock
•Horn Feedback
•Smart Liftgate (Tailgate)*
Lights
•One-Touch Turn Signal
•Head Lamp Delay*
•Welcome Light*
Sound
•Park Assist System Volume*
•Blind Spot Detection Sound*
•Welcome Sound*
Seat/Steering
•Easy Seat Access*
•Steering Position
Service Interval
•ON/OFF
•Set mileage/months
Other Features
•Fuel Economy Auto
Reset ON/OFF
•Auto Rear Wiper (Reverse)
•Fuel Economy Unit
•Temperature Unit
•Language
To view these videos on
your mobile device, snap
these QR Codes or visit the
listed website.
Refer to page 2 for more
information.
LCD Display Video
LCD Display:
Maintenance Video
QR CODES
www.KuTechVideos.com/yp13/2016
www.KuTechVideos.com/yp13/2016
(Type B cluster)
(Buttons located on right
side of steering wheel)
A
B
C
User Settings
To enter the User Settings mode in the LCD
Instrument Cluster Modes, press the Mode
button [A] when the vehicle is at a standstill
and with the ENGINE START/ STOP button in
the ON position and select User Settings [~] by
pressing the OK button [B].
You can navigate the selections on the display
by rolling the OK button [B], and then selecting
the item by pressing the OK button [B].
Press the Return button [C] to go back to the previous mode/item
User Settings modes
A
B
B
B
C
Service Mode
To enter Service Mode, press the Mode button [A], scroll
to Service Mode [~] by rolling the OK button [B]. Then
press the OK button [B] to enter. System will display
number of miles remaining until next service is due, as
well as the type of service due.
When service is required, the following will be displayed:
Service Required.
To reset the Service Mode system, press and hold the
OK button [B] for more than 1 second.
Press the Return button [C] to go back to the previous
mode/item
To turn Service In OFF, go to User Settings.
Service Interval Setting
To set the service interval in User
Settings mode:
•Press the Mode button [A]
to cycle to User Settings and
press the OK button [B] to enter
•If Service Interval is OFF, press
the OK button [B] to turn ON
•Roll the OK button [B] to select/
change the interval setting
•Press the OK button [B] to
select the interval
C
B
B
A
B
A
B
B
B
B
INSTRUMENT CLUSTER

SEDONA FEATURES & FUNCTIONS GUIDE
8*IF EQUIPPED
Active ECO System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/yp13/2016
REMINDER: When Active ECO button is ON, and ignition is cycled, the system defaults in the ON position
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
(Located below Gear Shift)
(Located on Center Panel below Gear Shift)*
(Located in Instrument Cluster)
To help improve your fuel economy:
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Be sure the wheels are properly aligned
QUICK TIPS
A
D
C
B
Active ECO System*
The Active ECO system helps improve fuel economy by
controlling several vehicle components. When activated,
it optimizes drivetrain operations such as engine power
and transmission to help improve fuel economy.
To turn ON, press the ACTIVE ECO button [C]. The button
light will turn on, and the green ECO indicator light [D]
in the instrument cluster will illuminate, indicating that
Active ECO is operating.
The Active ECO system will remain on even when the
ignition is cycled.
To turn the Active ECO system OFF, press the ACTIVE
ECO button [C] again.
C
C
D
Drive Mode Integrated Control System*
The Drive Mode may be selected depending on driver’s
preferences and road conditions.
To cycle through the different Drive Modes [A], press the
DRIVE MODE button [B]. The Instrument Cluster will display
COMFORT or ECO when selected. When in Normal mode, it
will not display in the Instrument Cluster.
B
A
REMINDERS:
•The system is turned ON and in Normal mode when ignition is in
the ON position
•When ECO mode is selected, the indicator will display and system
remains on, even when ignition is cycled
Your vehicle’s steering wheel buttons may differ from those in the
illustrations. See your Owner’s Manual for more details.
INSTRUMENT CLUSTER

9
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backwards when accelerating
from a stop while on a steep incline. The HAC automatically activates
whether the ESC is OFF or ON but does NOT activate when the ESC
has malfunctioned.
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the
N (Neutral) position.
•HAC provides a 2-second delay before the vehicle may start rolling
backwards
•When HAC is active (e.g., during initial acceleration from a stop on an incline),
you may notice that the brakes will momentarily remain engaged after you
depress the accelerator – this is normal HAC operation.
QUICK TIPS

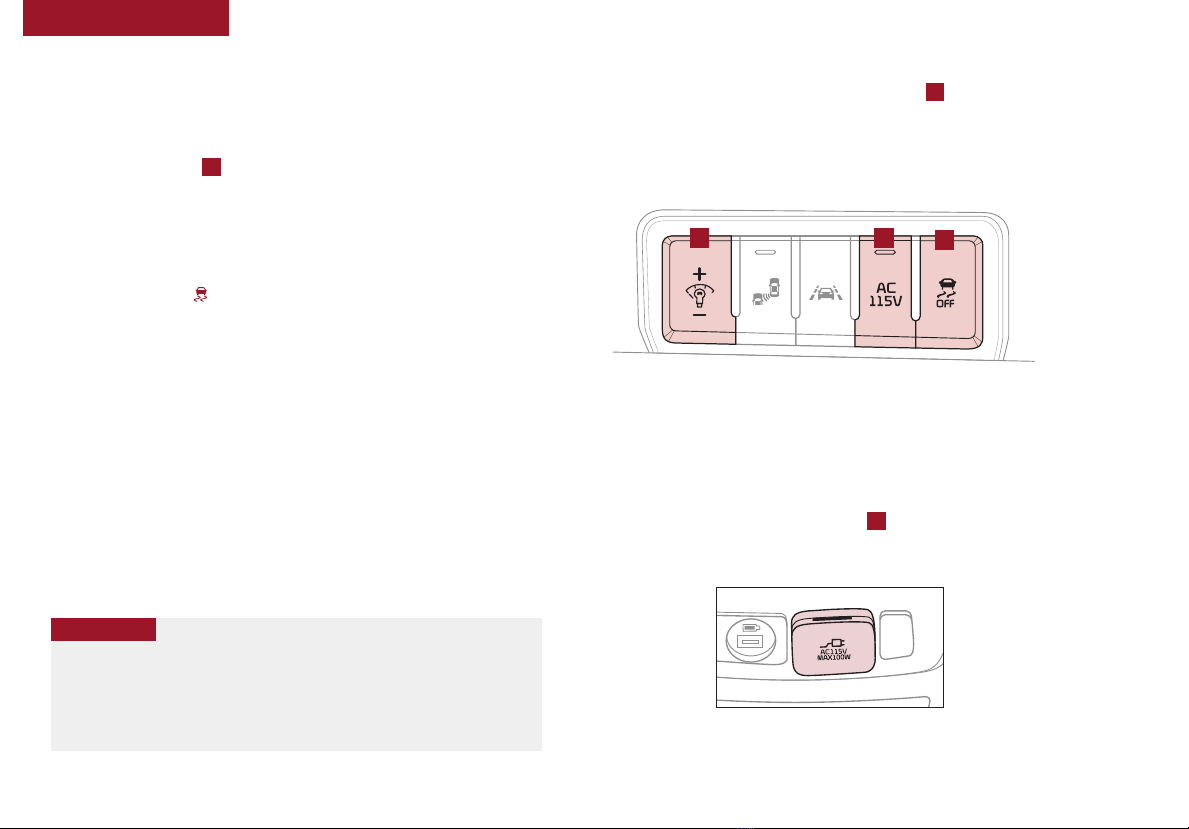

(Button panel located left of Steering Wheel)
(Outlet located on back of Center Console
and the Luggage Zone*)
A
B C
Instrument Panel Dimmer
With parking lights/headlights ON, press button [B] (+) or (-) to adjust the
brightness of the instrument panel illumination.
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the Standard Audio
System/UVO eServices System/UVO eServices with Premium Navigation System* screens. Use
the system setup menu to adjust brightness on the screen.
B
AC Inverter*
The AC Inverter supplies 115V/100W electrical power to operate accessories
or equipment. Press AC Inverter button [C] to activate.
C
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers. It is a good idea to keep the ESC turned on for daily driving
whenever possible.
Press ESC OFF button [A] to turn Traction Control OFF/ON.
To turn OFF both the Traction Control and Stability Control, press and hold
for more than 3 seconds. Press again to turn ON.
REMINDERS:
•ESC is turned ON by default at vehicle start-up. If vehicle power is cycled, ESC will turn ON again
•The ESC Indicator Light [~] in the instrument cluster will illuminate whenever the ESC is
in operation
For more information on Electronic Stability Control (ESC) and its specific features and
operations, please refer to your Owner’s Manual.
A
DRIVER'S PANEL

SEDONA FEATURES & FUNCTIONS GUIDE
10 *IF EQUIPPED
Blind Spot Detection (BSD) System*
The BSD system uses radar sensors to help alert the driver before changing
lanes. The light on the BSD button [A] will illuminate when turned ON. The
outside rearview mirror warning lights will also illuminate for 3 seconds.
The system will become active when the vehicle is traveling more than 9 mph
and will alert the driver if another vehicle is detected by the radar sensor.
Blind Spot Detection / Lane Change Assist
1st-stage alert: When another vehicle is detected within the BSD System
boundary [B], a yellow indicator will illuminate on the outside rearview mirrors.
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn
signal, a flashing yellow indicator will illuminate on the outside rearview mirrors
and the system will sound an alert.
RCTA (Rear Cross Traffic Alert)
If the RCTA system sensors detect approaching vehicles from the left or right
side [C], the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, when these conditions are met:
•The gear shift is in Reverse
•The vehicles moves in reverse
•The vehicle is moving less than 6 mph
•The RCTA can be set to on/off in User Settings from the LCD Instrument
Cluster modes.
REMINDERS:
•When the BSD is ON and the vehicle power is cycled to OFF then ON again, the BSD system returns
to ON
•The RCTA feature can be turned OFF/ON in User Settings. When vehicle power is cycled, the RCTA
will remain in the previous state
For more information on the above systems, please refer to the Owner’s Manual.
Blind Spot Detection
System w/ RCTA Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/yp13/2016
A D
B
C
A
B
C
(Button panel located left of Steering Wheel)
DRIVER'S PANEL

11
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Lane Departure Warning
System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/yp13/2016
Lane Departure Warning System (LDWS)*
With the ENGINE START/STOP button in the ON position, press
the LDWS button [D] to turn system ON. The instrument cluster
indicator [~] will illuminate green.
If the LDWS detects that you are veering outside of your lane,
the system may issue a warning on the LCD screen and an alert
may sound, under these conditions:
•The vehicle exceeds approximately 43 mph
•The LDWS system recognizes the lane the vehicle is
traveling in
REMINDERS:
•LDWS will not issue a warning if the turn signal is activated
•If the LDWS button is ON and ignition is cycled, the system will turn ON again.
If the LDWS button is OFF, the system remains OFF
The Lane Departure Warning System (LDWS) is not a substitute for safe and
proper driving. Always drive safely and use caution. LDWS may not always alert
the driver if the vehicle is driven outside of its lane.
Forward Collision Warning System (FCWS)*
The FCWS helps to alert the driver when rapidly approaching a vehicle that is slowing down, braking or
stopped. A warning message will appear on the LCD screen and a chime will sound. The FCWS will become
active when the vehicle is traveling more than 25 mph.
To turn the FCWS off, go to User Settings in the LCD Instrument Cluster modes.
REMINDERS:
•The FCWS will be activated by default when vehicle power is cycled on, even when previous setting to off
•The FCWS will not operate when the vehicle is traveling more than approximately 50 mph
The Forward Collision Warning System (FCWS) is not a substitute for safe and proper driving. Always drive safely and use caution. FCWS may
not always alert the driver when the vehicle is approaching another vehicle.
When the LDWS sensor detects
the lane traveling in, both lanes
are illuminated
When the LDWS sensor does not
detect the lane traveling in the
lanes are not illuminated
When the LDWS sensor detects the vehicle veering outside of the lane traveling
in, a yellow indicator will illuminate either on the left or right lane (shown in both
images above)
D
DRIVER'S PANEL

SEDONA FEATURES & FUNCTIONS GUIDE
12 *IF EQUIPPED
(Button located left of
Steering Wheel)
Power Windows, Window Lock & Central Door Lock
[A] Pull/Press to operate Front Windows Auto Up/Down*
[B] Press to Unlock/Lock All Doors
[C] Press to disable Rear Passenger Windows
REMINDER: When pressed [C], window controls for the Rear Passenger Windows are disabled.
Power Folding Outside Mirrors*
Press the L or R buttons [D] to select the mirror to adjust.
Press button arrows [E] left/right or up/down to adjust mirror position.
Toggle button [F] left/right to unfold/fold the outside rearview mirrors.
Toggle button [F] to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
REMINDERS:
•When mirror button [f] is in the center, press the Lock button on the Smart Key to automatically
fold the mirrors
•To lock position of mirrors, toggle switch to the neutral (center) position
Heated Outside Mirrors*
Mirror heaters are controlled with Rear Defroster.
Automatic Door Lock/Unlock
Auto Door Lock/Unlock will engage when the gear shift is moved
in to or out of the P (Park) position.
Fuel Door Release Button
Press the Fuel Door Release
button to release the fuel door.
(Button/switch panel located on Driver's Door )
The mirrors will automatically unfold when the Smart Key* is within close proximity
to the vehicle.
QUICK TIP
ABC
D
D
E
F
A
B
C
D
E
F
F
F
C
DRIVER'S PANEL

13
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Reverse Parking Aid Function*
When the gear shift lever is moved into R (Reverse)
and while the vehicle is moving backwards, the outside
rearview mirrors [A] will rotate downward to aid in
reverse parking.
When the left or right mirror buttons [B] are depressed,
the Reverse Parking Aid Function will operate.
To turn OFF the function, press the switches again.
The outside rearview mirrors will automatically return to
their original positions when:
•The ENGINE START/STOP Button is in the
OFF position
•The gear shift lever is moved to any position except
R (Reverse)
•Outside rearview mirror switches are not depressed
REMINDER: When the outside rearview mirror switches are not
depressed, the Reverse Parking Aid Function will not operate and the
outside rearview mirrors will not rotate downward.
(Button/switch panel located on Driver's Door )
A
B
Engine Start/Stop Button
& Smart Key Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/yp13/2016
Engine Start/Stop Button
To start the engine:
1. Depress the brake pedal
2. Press the ENGINE START/STOP button
while gear shift is in P (Park)
To turn the engine OFF: Press the ENGINE START/STOP button.
To use the ENGINE START/STOP button, you must have the
Smart Key fob on your person or inside the vehicle.
REMINDERS:
•In an emergency situation while the vehicle is in motion, you are able to
turn the engine off and to the ACC position by pressing the ENGINE START/
STOP button for more than 2 seconds or 3 times successively within
3 seconds
•If Smart Key fob battery is dead, with the lock button facing the ENGINE
START/STOP button, hold the fob up against the ENGINE START/STOP
button and press
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP
button once (orange light)
ON position
•When already in the ACC position (orange light) and without depressing the brake pedal, press the
ENGINE START/STOP button again (red light)
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP
button twice (red light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning engine on
may discharge the vehicle’s battery.
QUICK TIPS
A
B
B
DRIVER'S PANEL

SEDONA FEATURES & FUNCTIONS GUIDE
14 *IF EQUIPPED
Tilt/Telescoping Steering Wheel
To adjust the Steering Wheel, press the Lock-Release Lever [A] down and
adjust [B] the distance and [C] desired angle.
When finished, pull the Lock-Release Lever [A] up to lock Steering Wheel
in place.
A
B
C
Headlights & High Beams
To operate:
•Rotate lever to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
AUTO Light function — When the light switch is in the AUTO Light
position, the tail lights and headlights will turn ON/OFF automatically
depending on the amount of light outside the vehicle.
Headlight position
Parking light position
AUTO Automatic Headlights position
OFF OFF position
A
C
B
A
STEERING WHEEL CONTROLS

15
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Turn Signals & Fog Lights*
To operate:
•Turn Signals - Move lever Up/Down for Right/Left Turn Signal
•Fog Lights - Push toggle switch to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for Fog Light operation.
One-Touch Lane Change Signal is activated by moving the Turn Signal
Lever slightly for less than 1 second and then releasing. The lane change
signal will blink 3 times.
To change how many times (3/5/7) the Lane Change Signal blinks, go to
User Settings Mode in the LCD Instrument Cluster modes.
For more information on the User Settings Mode, please refer to your Owner’s Manual.
Windshield Wipers & Washers
To operate:
•Move lever Up/Down to change Wiper modes
•Press button [A] to adjust Intermittent Wipe
•Pull lever to spray and wipe MIST: Single wipe
OFF: Wiper off
INT: Intermittent Wipe
LO: Slow wipe
HI: Fast wipe
PUSH
FRONT
PULL
FRONT
PUSH
PULL
PUSH
FRONT
PULL
FRONT
PUSH
PULL
A
Rear Wiper & Washer*
To operate:
•Rotate Rear Wiper switch to change Wiper modes
•Push to spray and wipe
HI: Fast wipe
LO: Slow wipe
OFF: Wiper off
A
Pressing button up increases Intermittent
wipe frequency and wipe speed. Pressing
button down decreases frequency of wipes.
QUICK TIP
LO and HI sets wiper speed. No intermittent
wipe function on Rear Wipers.
QUICK TIP
STEERING WHEEL CONTROLS

SEDONA FEATURES & FUNCTIONS GUIDE
16 *IF EQUIPPED
Bluetooth
®Wireless Technology
For more information, if equipped, refer to the Car Multimedia System User's Manual or the UVO System User’s Manual. For Bluetooth®Wireless Technology FAQs, go to www.kia.com, Owners section, or call
Consumer Information for Bluetooth®Technology at (800) 333-4KIA. Refer to your Owner’s Manual for more specific Bluetooth®Wireless Technology phone pairing and operation instructions.
[D] Receive/Place Call button: Press to receive/place/transfer calls. Press
to place a call using voice command prompts from the system, or to
answer an incoming call
[E] End Call button: Press to end a call or cancel a function
[A] Talk button: Press to activate voice recognition/bring up menus/place
calls with minimal voice command prompts from the system
[B] Volume button: Roll up/down to raise/lower speaker volume
[C] Mute button: Press to mute the microphone during a call
REMINDER: Your vehicle’s steering wheel buttons may differ from those in the illustrations. See
your Owner’s Manual for more details.
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to
driving and always exercise caution when using the steering-wheel-mounted controls
while driving.
When using the voice command feature, wait for the system BEEP before speaking
the command.
QUICK TIP
•Phonebook transfer upload time varies by phone model and with number of
phonebook entries
•Because of differences in phone quality, service providers and Bluetooth®
Wireless Technology chip programming, functionality may differ from one phone
to another
•Changing language setting may delete paired phones
QUICK TIPS
C
B
DE
A
A
B
C
D
E
STEERING WHEEL CONTROLS

17
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Voice Recognition
Tips Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/yp13/2016
Voice Recognition and Phone
Contact Tips
The Kia Voice Recognition System may
have difficulty understanding some accents
or uncommon names. When using Voice
Recognition to place a call, speak in a
moderate tone, with clear pronunciation.
Help your Bluetooth®Wireless Technology
Voice Recognition performance by making a
few simple changes to your phone contacts:
•Use full names vs. short or single-syllable
names (“John Smith” vs. “Dad”; “Smith
Residence” vs. “Home”)
•Avoid using special characters or hyphens
(@, &, #, /, -, *, +, etc.)
•Avoid using acronyms (“In Case
Emergency” vs. “ICE”)
•Spell words completely, no abbreviations
(“Doctor Goodman” vs. “Dr. Goodman”)
Bluetooth
®Wireless Technology (Continued)
Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user’s
guide or your vehicle’s Quick Start Guide.
How to Place a Call
When using the voice command feature, wait for the system BEEP before
speaking the command.
There are two options for placing a call using the Steering Wheels controls:
Standard Audio System*
•Option 1: Press the Receive/Place Call button [D] (system will prompt you
through call process)
•Option 2: Press the Talk button [A] (system will BEEP to indicate it is ready
for call placement). Then say the command “Call {name}” or “Dial {number}”
UVO eServices System / UVO eServices with Premium Navigation*
•Option 1: Press the Receive/Place Call button [D] (displays the phone
screen with number keypad)
•Option 2: Press the Talk button [A]. Then say the command “Call {name}”
or “Dial {number}”
During the pairing process, be sure to accept the connection requests on the
phone for phonebook download and to allow acceptance of all future Bluetooth®
connection requests.
QUICK TIP
A
D
A
D
STEERING WHEEL CONTROLS

SEDONA FEATURES & FUNCTIONS GUIDE
18 *IF EQUIPPED
REMINDER: Standard Cruise Control is a part of the Smart Cruise Control System (SCC) and can be
set as the operating mode. To switch from SCC to Standard Cruise Control, press and hold the CRUISE
button (the SCC system must not be activated to change modes). Repeat to switch back to SCC mode
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s
Manual for more details
Audio Controls Standard Cruise Control
[E] CRUISE Control ON/OFF button: Press to turn the Cruise Control ON/OFF
[F] Resume Cruising Speed button: Press up to resume or increase
cruising speed
[F] Set Cruising Speed button: Press down to set or decrease cruising speed
[G] Cruise Control CANCEL button: To cancel Cruise Control setting, do one
of the following:
•Press the brake pedal
•Press the CANCEL button
[A] Audio MODE button: Press to cycle through FM 1-2/AM/SiriusXM®
1-3/USB/iPod®/Aux/Bluetooth®Audio Streaming/My Music modes
[B] Seek/Preset button: FM/AM/SiriusXM®Modes: Press up/down to
advance through Preset Stations. Press and hold to auto seek
Media Modes: Press up/down to move track up/down.
Press and hold to fast forward / rewind
[C] Volume buttons: Roll up/down to raise/lower volume
[D] Mute button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive
to driving and always exercise caution when using the steering-wheel-mounted controls
while driving.
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
CANCEL
CRUISE
RES
SET
VOL
VOL
MUTE
MODE
Pressing the Audio MODE button for more than 1 second will turn Audio Mode
ON/OFF.
QUICK TIP
•Cruise Control is designed to function above 25 mph
•The Cruise Control system will not activate until the brake pedal has been depressed
at least once after ignition ON or engine start
QUICK TIPS
A
D
CB
E
F
G
AE
F
F
G
B
C
D
STEERING WHEEL CONTROLS
