Kia SOUL 2016 User manual

6

Kia, THE COMPANY
Thank you for becoming the owner of a new Kia vehicle.
As a global car manufacturer focused on building high-quality vehi-
cles with exceptional value, Kia Motors is dedicated to providing you
with a customer service experience that exceeds your expectations.
All information contained in this Owner’s Manual was accurate at the
time of publication. However, Kia reserves the right to make changes
at any time so that our policy of continual product improvement can
be carried out.
This manual applies to all models of this vehicle and includes descrip-
tions and explanations of optional as well as standard equipment. As a
result, you may encounter material in this manual that is not applica-
ble to your specific Kia vehicle.
Drive safely and enjoy your Kia!

Foreword
Thank you for choosing a Kia vehicle.
When you require service, remember that your Kia dealer
knows your vehicle best. Your dealer has factory-trained tech-
nicians, recommended special tools and genuine Kia replace-
ment parts. It is dedicated to your complete customer satisfac-
tion.
Because subsequent owners require this important information
as well, this publication should remain with the vehicle if it is
sold.
This manual will familiarize you with operational, mainte-
nance and safety information about your new vehicle. It is sup-
plemented by a Warranty and Consumer Information manual
that provides important information on all warranties regarding
your vehicle.
We urge you to read these publications carefully and follow the
recommendations to help assure enjoyable and safe operation
of your new vehicle.
Kia offers a great variety of options, components and features
for its various models. Therefore, some of the equipment
described in this manual, along with the various illustrations,
may not be applicable to your particular vehicle.
The information and specifications provided in this manual
were accurate at the time of printing. Kia reserves the right to
discontinue or change specifications or design at any time
without notice and without incurring any obligation. If you
have questions, always check with your Kia dealer.
We assure you of our continuing interest in your motoring
pleasure and satisfaction in your Kia vehicle.
© 2015 Kia MOTORS AMERICA, Inc.
All rights reserved. May not be reproduced or translated in
whole or in part without the written consent of Kia Motors
America, Inc.
Printed in Korea

We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strong-
ly recommend that you read the
entire manual. In order to minimize
the chance of death or injury, you
must read the WARNING and CAU-
TION sections in the manual.
Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you will learn about fea-
tures, important safety information,
and driving tips under various road
conditions.
The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all located in
the back of this manual.
Sections:This manual has eight sec-
tions plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want.
You will find various types of safety
instructions in this manual. These
instructions were prepared to
enhance your personal safety.
Carefully read and follow ALL proce-
dures and recommendations provid-
ed in these instructions.
✽✽NOTICE
A NOTICE indicates interesting or
helpful information is being provided.
WARNING
AWARNING indicates a situation
in which harm, serious bodily
injury or death could result if the
warning is ignored.
CAUTION
A CAUTION indicates a situation
in which damage to your vehicle
could result if the caution is
ignored.
How To Use This Manual

2
1
Table of contents
3
4
5
6
7
8
I
Introduction
Vehicle data collection and event data recorders
Electric Vehicle Guide
Review of Electric Vehicle / High voltage battery / Charge / Driving Electric Vehicle / Etc.
Your vehicle at a glance
Exterior overview / Interior overview / Instrument panel overview / Motor room compartment
Safety features of your vehicle
Seats / Seat belts / Child restraint system / Air bag
Features of your vehicle
Smart key / Door locks / Tailgate / Windows / Steering wheel / Mirrors / Instrument cluster / Lighting / Etc.
Driving your vehicle
Before driving / POWER button / Active ECO system / Reduction gear / Brake system / Etc.
What to do in an emergency
Road warning / Emergency while driving / Emergency starting / Vehicle overheat / TPMS / Flat tire / Towing / Etc.
Maintenance
Motor room compartment / Maintenance service / Coolant / Brake fluid / Washer fluid / Lights bulbs / Etc.
Specifications, Consumer information and Reporting safety defects
Index

Electric Vehicle Guide
❈This is an electric vehicle guide to assist drivers with
understanding their vehicle.
Refer to the following content for electric vehicle details
and precautions
Review of Electric Vehicle ........................................................2
Main Components of Electric Vehicle.......................................4
High voltage battery.................................................................5

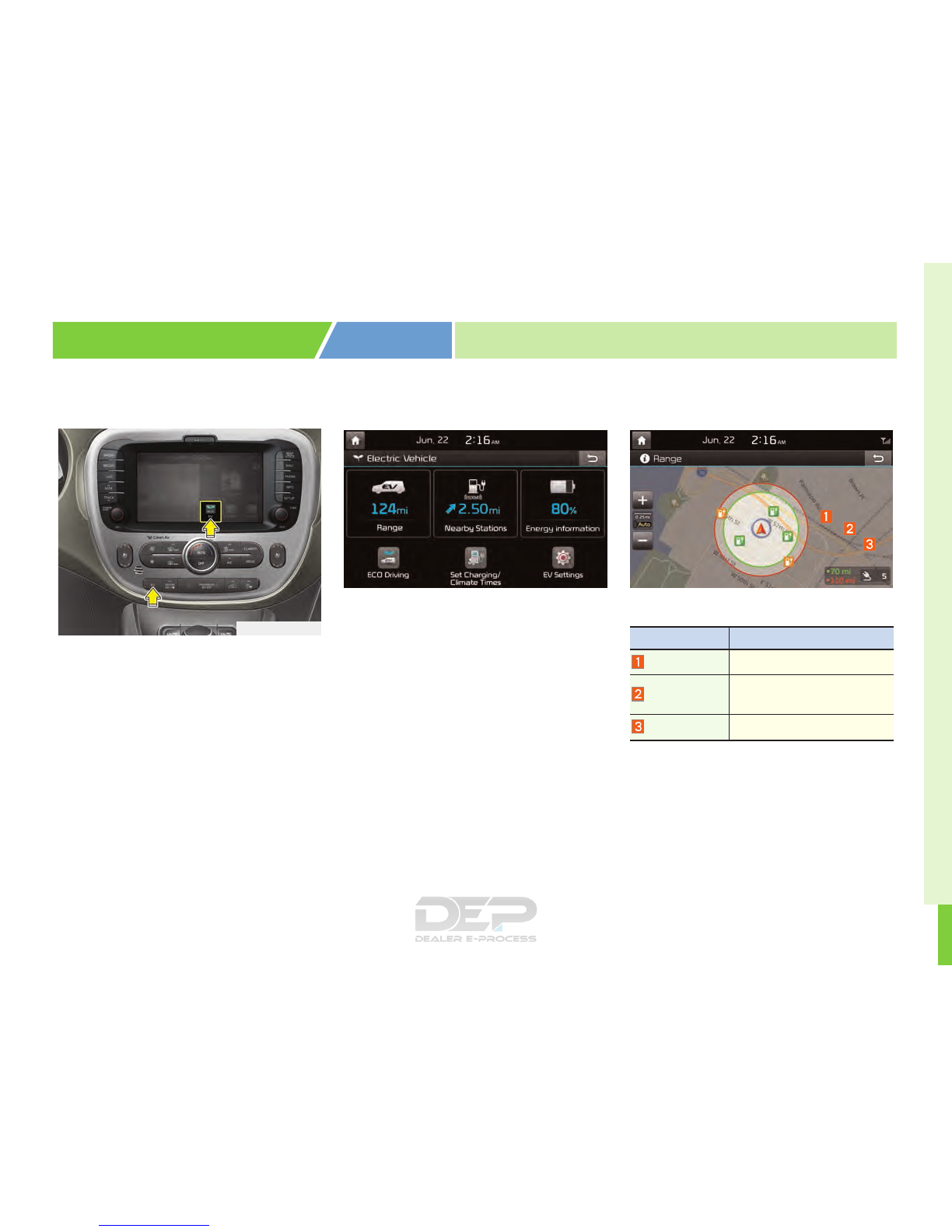

EV Mode ..................................................................................7
■ Available Range .................................................................7

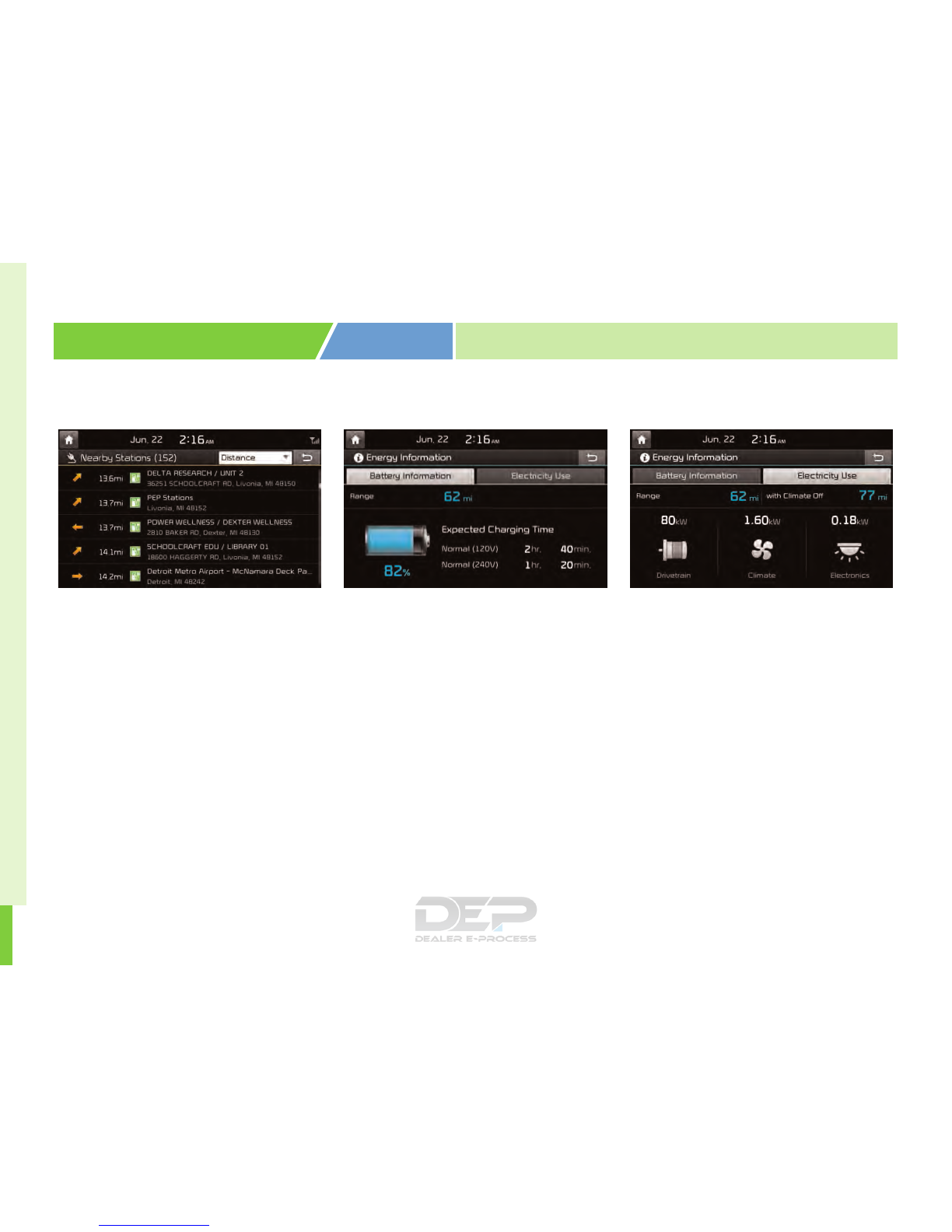

■ Near by stations .................................................................8
■ Energy Information.............................................................8
■ ECO Driving .......................................................................9
■ Setting Charging Times.....................................................9
■ Setting Climate Times ......................................................10

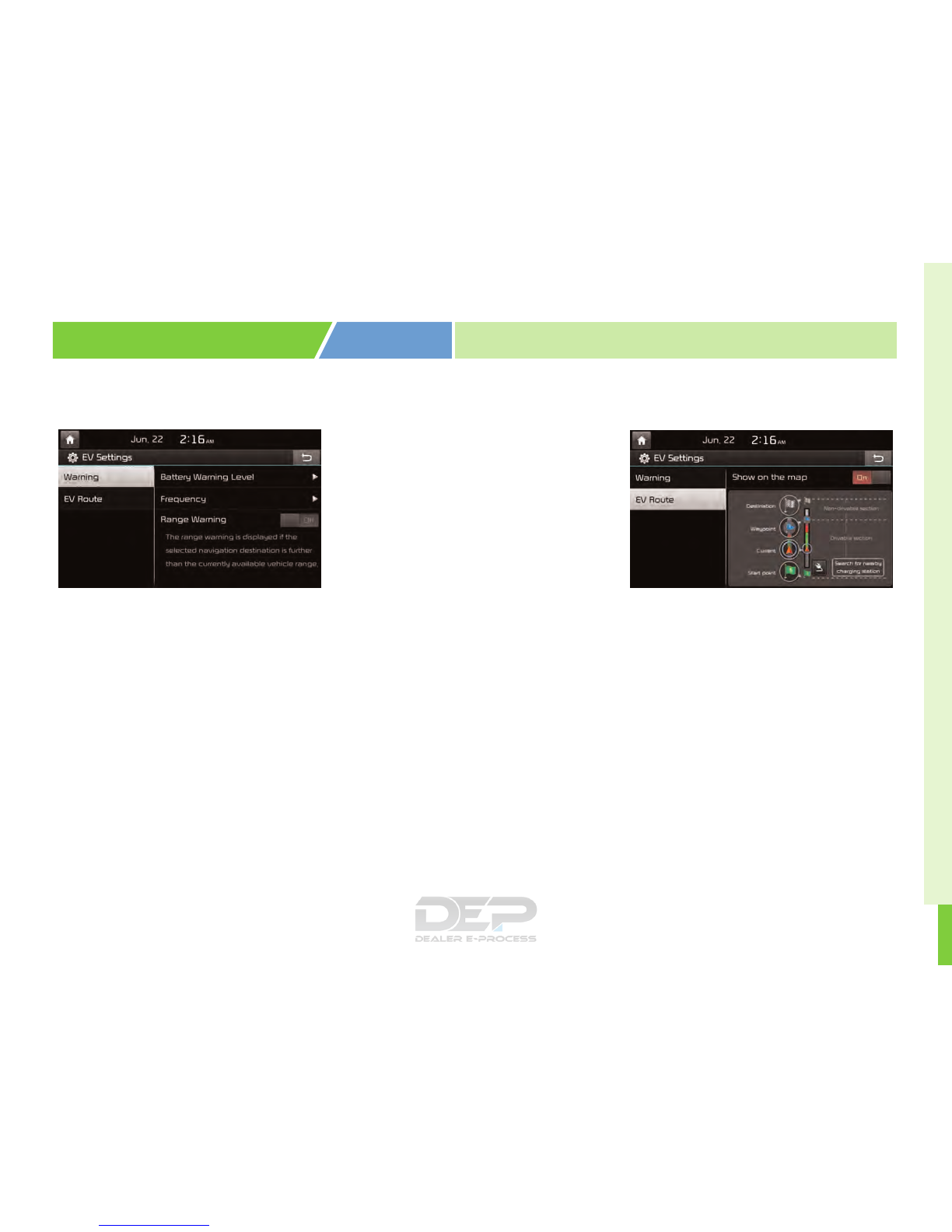

■ EV Setting ........................................................................11
Charge Types for Electric Vehicle...........................................12

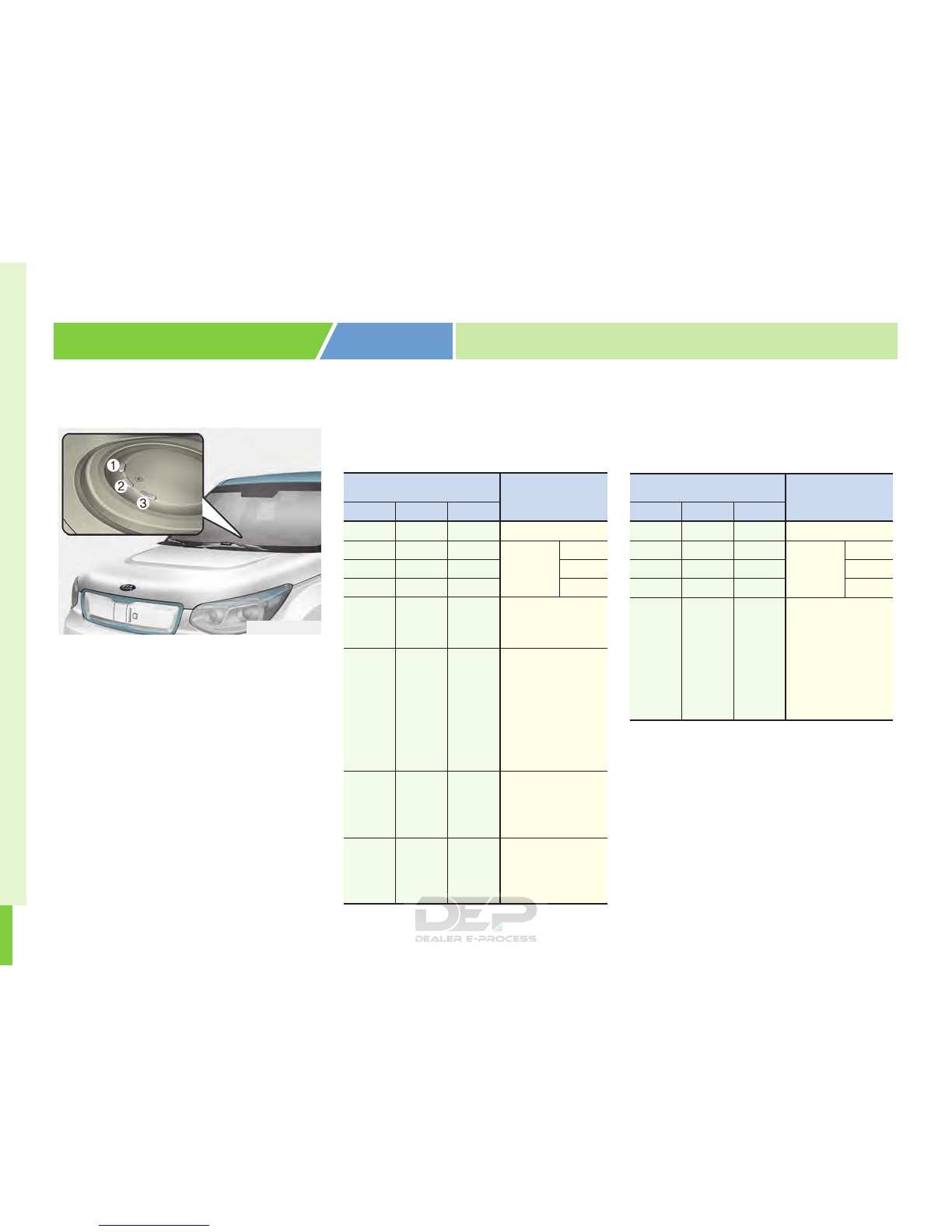

Charge Indicator Lamp for Electric Vehicle............................14
Reserved Charging................................................................15
Reserved Climate Control.....................................................17
Precautions for Charging Electric Vehicle..............................18
Charging Electric Vehicle (Normal Charge)...........................21
■ How to Connect Normal Charger.....................................21
■ Unlock Charging Door in Emergency...............................24
■ Emergency Release of the Charging connector
lock system.......................................................................25
■ Checking Charging Status................................................25
■ How to Disconnect Normal Charger ................................26
Charging Electric Vehicle (Quick Charge)..............................27
■ How to Connect Quick Charger .......................................27
■ Unlock Charging Door in Emergency...............................30
■ Checking Charging Status................................................30
■ How to Disconnect Quick Charger...................................31
Charging Electric Vehicle (Trickle Charge).............................33
■ How to Connect Portable Charging Cable
(ICCB: In-Cable Control Box)...........................................33
■ Unlock Charging Door in Emergency...............................37
■ Emergency Release of the Charging connector
lock system.......................................................................38
■ Checking Charging Status................................................38
■ Charging Status Indicator Lamp for Portable Charging
Cable................................................................................39
■ How to Disconnect Portable Charging Cable
(ICCB: In-CableControl Box) ............................................40
■ Precautions for Portable Charging Cable
(ICCB: In-Cable Control Box)...........................................42
Driving Electric Vehicle...........................................................43
■ How to Start the Vehicle...................................................43
■ How to Stop the Vehicle...................................................44
■ Pedestrian Warning System.............................................45
■ Active ECO system ..........................................................45
■ Range...............................................................................46
■ Tips for Improving Distance to Empty..............................47
■ Motor Operation Gauge....................................................47
■ State of charge (SOC) gauge for high voltage battery.....48
■ Warning Message on LCD Display (related to charge)....49
■ Warning Lamp and Indicator Lamp
(related to electric vehicle) ...............................................52
Safety Precautions for Electric Vehicle...................................55
■ Service Plug .....................................................................58
Environmental Friendliness Mark...........................................58

2
An electric vehicle is driven using a
battery and an electric motor. While
general vehicles use an internal
combustion engine and gasoline as
fuel, electric vehicles use electrical
energy that is stored inside the high
voltage battery. As a result, electric
vehicles are eco-friendly in that they
do not require fuel and do not emit
exhaust gases.
1. It is driven using the electrical ener-
gy that is stored inside the high
voltage battery. This method pre-
vents air pollution since fuel, like
gasoline, is not required, negating
the emission of exhaust gases.
2. A high performance motor is used
in the vehicle as well. Compared
to standard, internal combustion
engine vehicles, engine noise and
vibrations are much more minimal
when driving.
3. When decelerating or driving down-
hill, regenerative braking is utilized
to charge the high voltage battery.
This minimizes energy loss and
increases the distance to empty.
4. When the battery charge is not
sufficient, normal charge, quick
charge and trickle charge are
available. (Refer to “Charge Types
for Electric Vehicle” for details.)
REVIEW OF ELECTRICVEHICLE
Review of Electric Vehicle Characteristics of Electric
Vehicles
What does regenerative braking
do?
It uses an electric motor when
decelerating and braking and
transforms kinetic energy to elec-
trical energy in order to charge the
high voltage battery. (Torque is
applied in the opposite direction
when decelerating to generate
braking force and electric energy.)
Note

3
• The vehicle is composed of a high
voltage battery that drives the
motor and air-conditioner, and an
auxiliary battery (12 V) that drives
the lamps, wipers, and audio sys-
tem.
• The auxiliary battery is automati-
cally charged when the vehicle is
in the ready ( ) mode or the high
voltage battery is being charged.
REVIEW OF ELECTRICVEHICLE

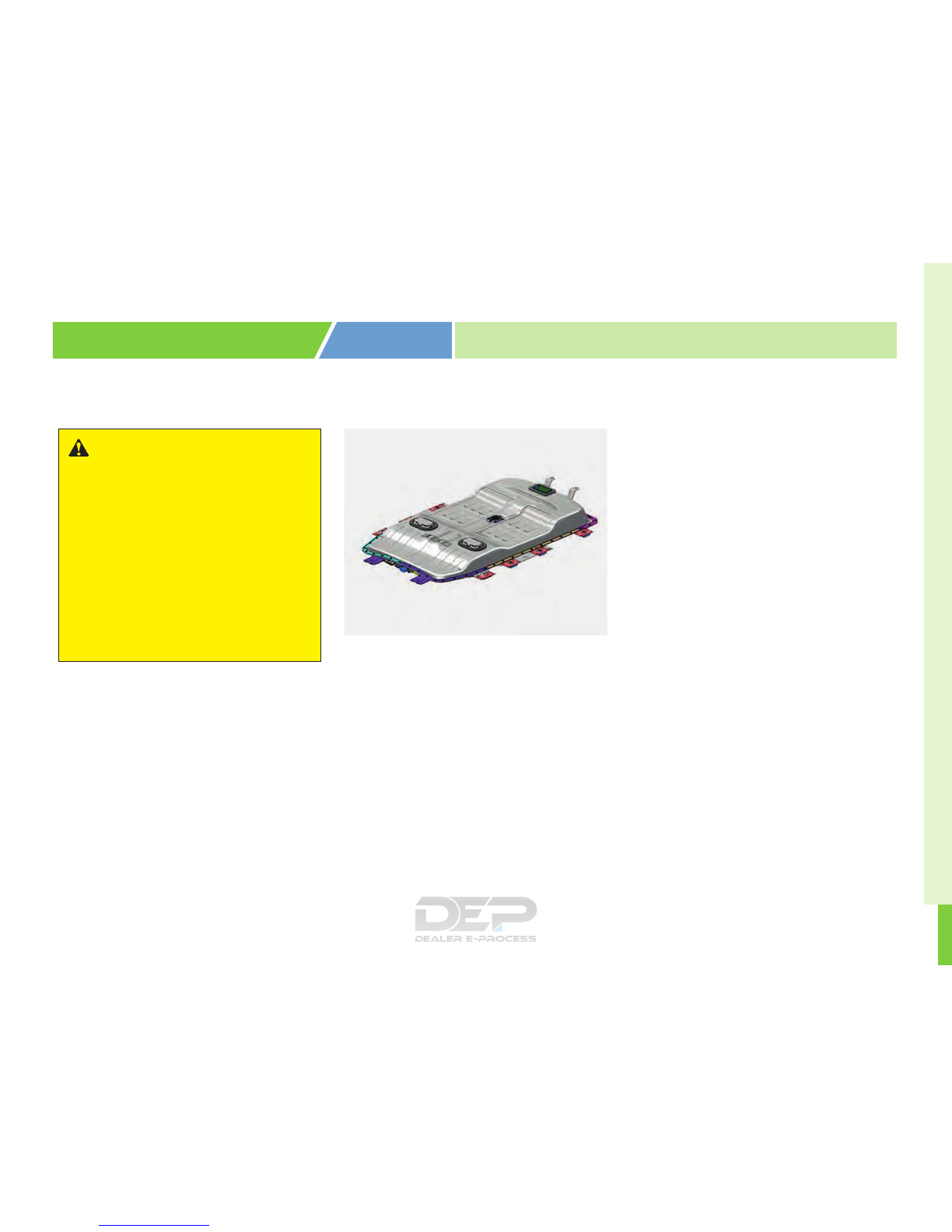

Battery Information

4
•High Voltage Junction Block: Supplies power from the high voltage bat-
tery to the inverter, LDC, air-conditioner compressor, and PTC heater.
•On-Board Charger (OBC): External device (low speed) to charge the high
voltage battery.
•Inverter: Transforms direct current into alternating current to supply power
to the motor, and transforms alternating current into direct current to
charge the high voltage battery.
•LDC: Transforms power from the high voltage battery to low voltage (12 V)
to supply power to the vehicle (DC-DC).
•Motor: Uses electrical energy stored inside the high voltage battery to
drive the vehicle (functions like an engine in a standard vehicle).
•Reduction Gear : Delivers rotational force of the motor to the tires at
appropriate speeds and torque.
•High voltage battery (lithium-
ion polymer) : Stores and sup-
plies power necessary for the
electric vehicle to operate (12 V
auxiliary battery provides power to
the vehicle features such as lights
and wipers).
❈ OBC : On-Board Charger
❈ LDC :LowVoltage DC-DC Converter
MAIN COMPONENTS OF
ELECTRICVEHICLE
Main Components of Electric Vehicle
OPSE0Q4002
High Voltage
Junction Block
On-Board Charger
(OBC) High Voltage
Battery
EPCU
(Inverter + LDC)
Motor/
Reduction Gear
