Kia OPTIMA HYBRID 2018 Parts list manual

GETTING TO KNOW YOUR OPTIMA HYBRID
AND PLUG-IN HYBRID
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving. Kia is
committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your new Kia
vehicle. The flipbook format facilitates information access, while the detailed illustrations help to ensure the instructions are easy to follow.
This Features & Functions Guide, and the specific operational and safety information it provides, is not a substitute for your Owner’s Manual.
In the interest of your safety and that of your family, and to help you avoid risks that may result in death or serious injury, Kia reminds you to
carefully read your Owner’s Manual in order to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in
advance or after the fact, and assumes no liability in connection with such changes.
www.kia.com
Consumer - Roadside Assistance
1-800-333-4KIA (4542)
See Back Pages for Vehicle
Maintenance Schedule
Always check the Owner’s Manual for complete
operating information and safety warnings.
Available on the App Store, the Kia AR Owner’s Manual
App uses AR (Augmented Reality) technology to
provide tips and useful information about your vehicle.
To use the Kia AR Owner’s Manual App:
• Simply scan the interior or engine (motor) room of
your vehicle with your smart phone or tablet, select
feature/component and view the video guide.
• If you are unable to scan the vehicle, use the
AR Manual (without scan) menu, select feature/
component and view the video guide.

VIDEOS & QR CODES . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . 03
Indicators & Warning Lights . . . . . . . . . . . . . . . 04
Tire Pressure Monitoring System (TPMS) . . . . . . . . 05
Hybrid/Plug-In Indicators at Startup . . . . . . . . . . . 06
LCD Instrument Cluster Modes . . . . . . . . . . . . . . 07
Trip Modes / Trip Computer. . . . . . . . . . . . . . . . 07
Fuel Economy. . . . . . . . . . . . . . . . . . . . . . . 08
User Settings . . . . . . . . . . . . . . . . . . . . . . . 09
Service Mode . . . . . . . . . . . . . . . . . . . . . . . 09
Drive Mode Integrated Control System* . . . . . . . . . 10
Plug-In Hybrid Modes* . . . . . . . . . . . . . . . . . . 10
HYBRID / PLUG-IN SYSTEM
UVO eServices with Premium Navigation* Display . . . . 11
Instrument Cluster - Energy Flow. . . . . . . . . . . . . 12
Charging the Plug-In Hybrid* . . . . . . . . . . . . . . . 14
DRIVER’S PANEL
Blind Spot Detection System* . . . . . . . . . . . . . . 16
Lane Departure Warning System (LDWS)* . . . . . . . . 17
Autonomous Emergency Braking (AEB) /
Front Collision Warning (FCW)* . . . . . . . . . . . . 17
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 18
Auto Hold* . . . . . . . . . . . . . . . . . . . . . . . . 18
Instrument Panel Dimmer . . . . . . . . . . . . . . . . 18
Electronic Stability Control (ESC) . . . . . . . . . . . . . 18
Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . 18
Engine Start/Stop Button. . . . . . . . . . . . . . . . . 19
Power Windows, Window Lock & Central Door Lock . . . 20
Automatic Door Lock/Unlock . . . . . . . . . . . . . . . 20
Power/Heated Outside Mirrors* . . . . . . . . . . . . . 20
Power Folding Mirrors* . . . . . . . . . . . . . . . . . . 20
STEERING WHEEL CONTROLS
Headlights & High Beams. . . . . . . . . . . . . . . . . 21
High Beam Assist* . . . . . . . . . . . . . . . . . . . . 21
Turn Signals & Fog Lights . . . . . . . . . . . . . . . . 21
Windshield Wipers & Washers . . . . . . . . . . . . . . 22
Heated Steering Wheel Button*. . . . . . . . . . . . . . 22
Bluetooth®Wireless Technology . . . . . . . . . . . . . 24
Audio Controls . . . . . . . . . . . . . . . . . . . . . . 25
Cruise Control . . . . . . . . . . . . . . . . . . . . . . 25
Advanced Smart Cruise Control (ASCC)* . . . . . . . . . 26
Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . 27
AUDIO SYSTEM
UVO eServices / Android Auto™/ Apple CarPlay®Setup* . 28
UVO eServices System* . . . . . . . . . . . . . . . . . 29
UVO eServices with Premium Navigation* . . . . . . . . 30
CENTER PANEL
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . 31
Aux/USB/iPod®Port & Power Outlets . . . . . . . . . . 31
Surround View Monitoring (SVM) System* . . . . . . . . 32
Automatic Climate Control (UVO eServices)* . . . . . . . 33
Automatic Climate Control
(UVO eServices with Premium Navigation System)* . . . 34
Automatic Gear Shift with Sportmatic®Shifting . . . . . 35
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . 35
Electric Parking Brake (EPB)* . . . . . . . . . . . . . . 36
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . 36
SEATING
Driver Position Memory System* . . . . . . . . . . . . . 37
Front Seat Headrest Adjustment . . . . . . . . . . . . . 37
Power Adjustable Driver’s Seat* . . . . . . . . . . . . . 38
6-Way Manual Adjustable Driver’s Seat* . . . . . . . . . 38
OTHER KEY FEATURES
Smart Key . . . . . . . . . . . . . . . . . . . . . . . . 39
Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . 39
Smart Trunk* . . . . . . . . . . . . . . . . . . . . . . . 40
Map/Room Lamps . . . . . . . . . . . . . . . . . . . . 41
Panoramic Sunroof Operation* . . . . . . . . . . . . . . 41
Hood Release Lever and Latch . . . . . . . . . . . . . . 42
Fuel Door and Trunk Release . . . . . . . . . . . . . . . 42
Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . 42
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . 42
Rear Parking Assist System* . . . . . . . . . . . . . . . 43
Rear-Camera Display* . . . . . . . . . . . . . . . . . . 43
Hybrid/Plug-In Battery Vent (Air Intake) . . . . . . . . . . . . 44
Child-Protector Rear Door Lock . . . . . . . . . . . . . 45
Tire Mobility Kit. . . . . . . . . . . . . . . . . . . . . . 45
SAFETY FEATURES
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator . . . . . . . . . . . . . . 46
Seat Belts. . . . . . . . . . . . . . . . . . . . . . . . . 46
Seat Belt Retractor Locks . . . . . . . . . . . . . . . . 46
NORMAL MAINTENANCE SCHEDULE. . . . 47
LEGAL DISCLAIMERS. . (See Back Inside Cover Page)
ESSENTIAL FEATURES
*IF EQUIPPED
PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OPTIMA HYBRID /
Air Conditioning / Climate Control . . . . . . . . . . . . . 33
Audio System - UVO eServices / Android Auto™/
Apple CarPlay®Setup* . . . . . . . . . . . . . . . . . . . 29
Audio System – UVO eServices System* . . . . . . . . . .29
Audio System – UVO eServices / Premium Navigation* . . 30
Aux/USB/iPod®Port & Power Outlets . . . . . . . . . . . . 31
Bluetooth®Wireless Technology . . . . . . . . . . . . . . 24
Charging the Plug-In Hybrid EV Battery* . . . . . . . . . .14
Cruise Control. . . . . . . . . . . . . . . . . . . . . . . . 25
Digital Clock. . . . . . . . . . . . . . . . . . . . . . . . . 31
ECO Mode (Active ECO) . . . . . . . . . . . . . . . . . . .10
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . .08
Hybrid/Plug-In Hybrid Displays . . . . . . . . . . . . . . .11
Instrument Cluster - Hybrid/Plug-In Displays . . . . . . . . 12
Passenger Airbag Off Indicator . . . . . . . . . . . . . . .46
Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . .45
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . 05
Windshield Wipers & Washers . . . . . . . . . . . . . . . 22
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and
death. The driver’s primary responsibility is in the safe and
legal operation of a vehicle, and use of any handheld devices,
other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a
vehicle or that are not permissible by law should never be
used during operation of the vehicle.

OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
2*IF EQUIPPED
1. If you’re having trouble scanning codes, check the following:
•The code should be centered and focused in your mobile device’s camera screen
•Consider moving your device closer to or farther away from the code
•The code should be well lit, without significant shadow
2. After scanning, if a “connecting” message appears and then nothing happens or there’s a “connection error” message, this typically indicates that your device is having trouble
connecting to the Internet
QUICK TIPS
VIDEOS & QR CODES - SMARTPHONES, TABLETS AND COMPUTERS
One Click Fuel Cap Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
www.youtube.com/KiaFeatureVideos
QR CODE
Kia provides a number of video resources at your disposal to assist you with becoming familiar with the features and
functions found in your Kia vehicle. You can access these resources by snapping the QR Codes with your smartphone/tablet
(mobile devices) or by visiting the following website: www.youtube.com/KiaFeatureVideos . Continue reading for a more
in-depth look at QR Codes and for instructions on how to use them.
What are QR Codes?
A QR Code is a square, 2-dimensional barcode that can be
read by mobile devices loaded with an appropriate barcode
or QR Code Reader App. The app reads the barcode image
and then launches/uploads the specific information the
code contains, such as URLs, text, photos, videos and so
much more.
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic. For
example, in the Fuel Cap section, if you would like additional
information, just snap the code with your mobile device to
view the selected Kia Features & Functions Video.
How to Snap a QR Code
1. With your mobile device, download a QR Code Reader
App. With many devices, you can do this through an app
store or marketplace
2. Open the QR Code Reader App on your mobile device
3. The app will utilize your device’s camera. Center the code
in the camera viewing area:
•With some apps, as soon as the app recognizes the
code, it will launch the corresponding video
•With other apps, you will have to snap or take a
picture of the code. The app will then launch the
corresponding video
•For operation specifics, refer to the instructions that
come with the QR Code Reader App
•Avoid scanning from a significant angle
•Confirm that the device’s app supports 2D QR Code scanning
•Try another QR Code Reader App; not all apps are created equal
REMINDER: When accessing videos
on your mobile device, standard
cellular data rates may apply.

3
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.

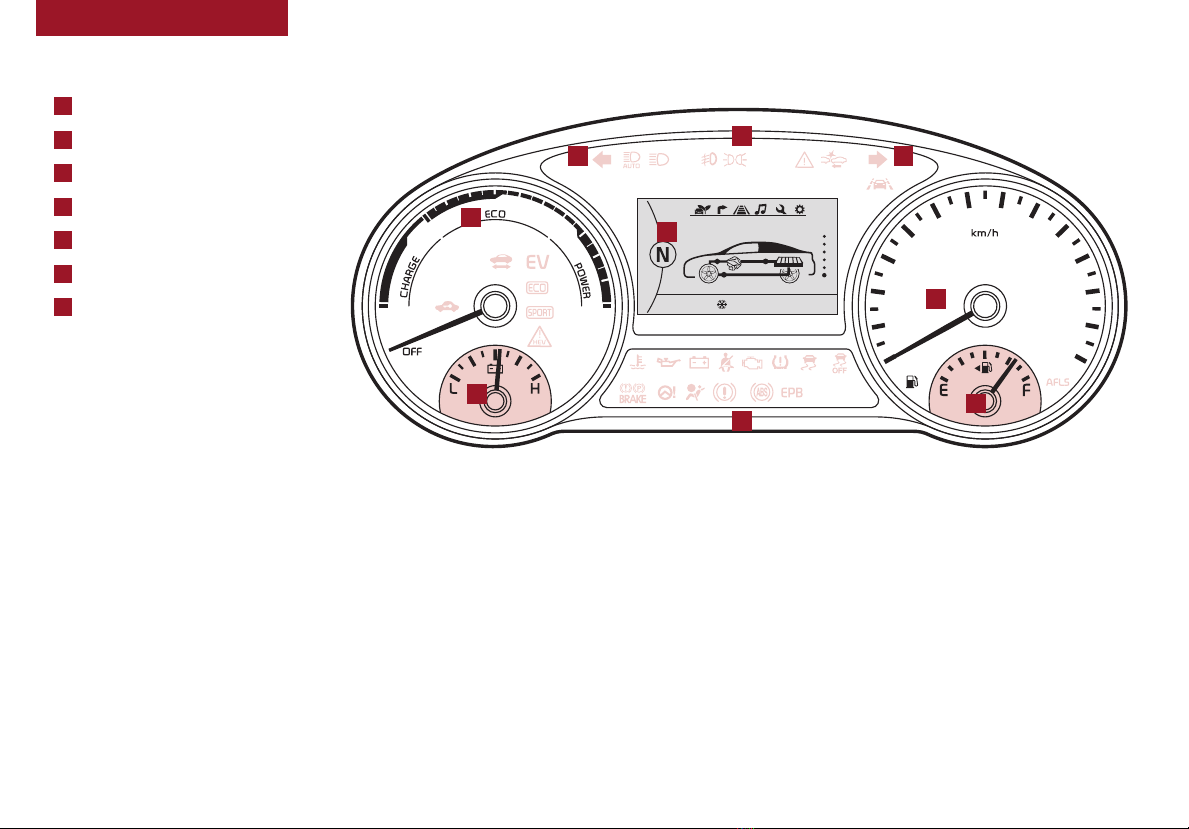

AECO Guide
BState of Charge (SOC) Gauge
CTurn Signal Indicators
DGear Shift Position Indicator
EIndicator and Warning Lights
FSpeedometer
GFuel Gauge
324025 km -12 °C
0 260
20 240
40 220
20060
18080
100 160
120 140
A
G
F
B
E
E
D
C C
Instrument Cluster Overview
Your vehicle’s instrument cluster & indicator light locations may differ from those in the
illustrations. For more information on the instrument cluster, the LCD Warning Messages
and the function of all indicator and warning lights, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

4*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
324025 km -12 °C
0 260
20 240
40 220
20060
18080
100 160
120 140
Indicators & Warning Lights
High Beam Assist Indicator*
High Beam Indicator
Tail Light Indicator
Front Fog Light Indicator*
Master Warning Light*
Autonomous Emergency Braking (AEB)*
Lane Departure Warning System (LDWS)
On/Off Indicator Light
Electronic Brake Force (EBD) System Warning Light
(Two separate indicators on Instrument Cluster lit
at same time)
Immobilizer Indicator*
READY Indicator
EV EV Mode Indicator
Active ECO Indicator
SPORT Mode Indicator Light*
Hybrid System Warning Light*
Engine Coolant Temperature Warning Light*
Engine Oil Pressure Warning Light
12V Charging System Warning Light
Seat Belt Warning Light
Malfunction Indicator
Low Tire Pressure Light / Tire Pressure Monitoring
System (TPMS) Malfunction Indicator
Electronic Stability Control (ESC) Indicator / ESC
Malfunction Indicator
Electronic Stability Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Light
Electronic Power Steering (EPS) System Warning Light*
Airbag Warning Light
Parking Brake Light
Anti-lock Braking System (ABS) Warning Light
Electronic Parking Brake Indicator
Low Fuel Level Warning Light
Cruise ON/OFF Indicator*
Trunk Open Warning Light
Auto Hold Indicator
Door Ajar Warning Light
(red color) (yellow color) Regenerative Brake Warning Light
Your vehicle’s instrument cluster & indicator
light locations may differ from those in the
illustrations. For more information on the
instrument cluster, the LCD Warning Messages
and the function of all indicator and warning
lights, please refer to the Owner’s Manual.
INSTRUMENT CLUSTER

5
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
25
32
32
32
A
Tire Pressure Monitoring
System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
Tire Pressure Monitoring System (TPMS)
The TPMS indicator functions as both Low Tire Pressure Light
and TPMS Malfunction Indicator. The indicator will illuminate
if one or more tires is significantly underinflated, the vehicle has a
spare tire installed without TPMS or the outside temperature becomes
significantly lower.
The LCD screen in the instrument cluster will display the Low Tire Pressure
indicator Ashowing which tire(s) are underinflated. Inflate tire(s) to
specifications using an accurate digital tire pressure gauge to turn off Low
Tire Pressure Light . See front driver’s door jamb for PSI specification.
When there is a problem with the TPMS, the TPMS Malfunction Indicator
will blink for approximately one minute then illuminate - See dealer
for service.
•Even with TPMS, tire pressure should be checked manually at least once a
month. Only adjust tire pressure on “cold tires”
•For proper maintenance and optimal fuel economy, maintain recommended
tire inflation pressures and stay within the load limits and weight distribution
recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was
adjusted to the recommended tire inflation pressure during warm weather
QUICK TIP
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated
after inflating your tire(s).
INSTRUMENT CLUSTER

6*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Hybrid / Plug-in Indicators at Startup
AECO Guide —Indicates how economically the vehicle is being driven.
•Blue zone: High-efficiency range
•Green zone: Normal-efficiency range
•White zone: Low-efficiency range
BEV Mode —Illuminates when the electric motor is powering the vehicle.
CReady —Illuminates when the Hybrid/Plug-In system is operational. Even
if the engine is off, the vehicle can be driven.
DState of Charge (SOC) —Displays the Hybrid/Plug-In battery charge
status.
EActive ECO —Automatically activated each time the vehicle is started.
Turn system ON/OFF using the ECO button on the center console.
•Active ECO ON (Eco indicator illuminated): Adjusts the engine,
transaxle and A/C system to conserve fuel
•Active ECO OFF (Eco indicator not illuminated): Provides more power
when driving up steep roads or carrying heavy loads
FService Indicator —Illuminates when a malfunction occurs in the
vehicle’s Hybrid/Plug-In system. Have an authorized Kia dealer address
the concern as soon as possible.
If Active ECO is turned off, switch back to Active ECO as soon as
possible for maximum fuel efficiency and to restore the ECO ON
center display.
324025 km -12 °C
0 260
20 240
40 220
20060
18080
100 160
120 140
A
B
D
C
E
F
QUICK TIP
REMINDER: Avoid starting or driving the vehicle when the fuel tank is empty.
As the engine will be incapable of charging the high-voltage Hybrid/Plug-In
battery, the battery will lose its charge and may be damaged.
INSTRUMENT CLUSTER

7
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.

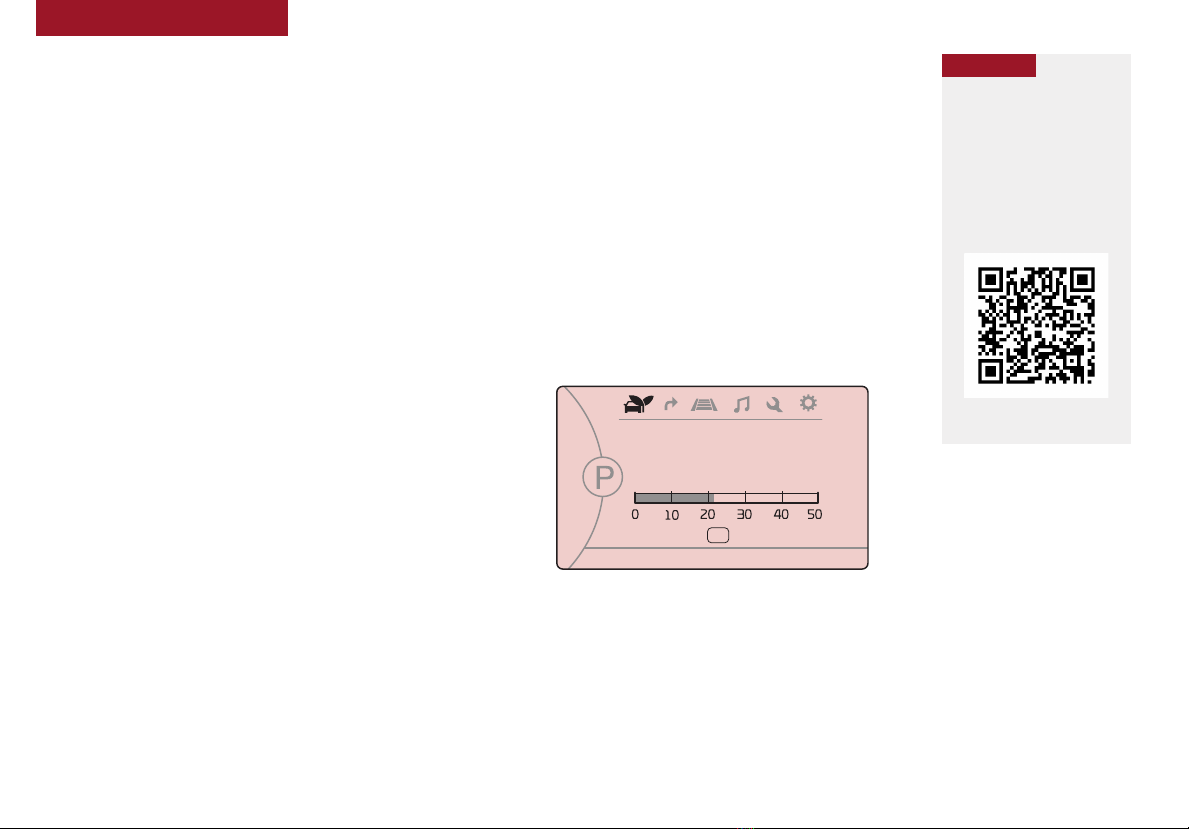

Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information
related to driving. It appears on the display when the Engine Start/Stop
button is in the ON position.
To cycle through the Trip modes, press the Mode button A.
When in the Trip Computer mode , press the Select/Reset button B
to cycle through the screens. When displaying TRIP A or TRIP B screens,
press and hold the Select/Reset button Bto reset the Tripmeter to zero.
LCD Instrument Cluster Modes
Press Mode button Ato scroll through different LCD Instrument Cluster
Modes.
Trip Computer Mode: Displays driving information for tripmeter,
fuel economy, etc.
Turn-by-Turn Mode*: Displays the state of the navigation
ASCC/LDWS* Mode: Displays the state of the Advanced Smart
Cruise Control (ASCC) and the Lane Departure Warning System
(LDWS)
A/V Mode*: Displays the state of the A/V System
Service Modes: Informs on upcoming service intervals, tire
pressure status, warning messages related to TPMS, BSD
malfunction and when any door is not securely closed.
User Settings Mode: Change settings of the doors, lamps and
other features
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
REMINDERS:
•Appearance of Trip Computer display may differ
as equipped
•All stored driving information (except Odometer and
Range) is reset if the battery is disconnected
INSTRUMENT CLUSTER
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
FUEL ECONOMY
•Range
•Average MPG
•Instant MPG
TRIP A/B
•Tripmeter
•Average MPG
•Elapsed Time (E/T)
DIGITAL SPEEDOMETER
DRIVING STYLE
ENERGY FLOW
Range
Average
Hold OK : Reset
1729mi
24.8MPG
(Buttons located on Steering Wheel – Type A shown) (Hybrid screen shown above)
A
B

8*IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Fuel Economy Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
Fuel Economy
There are several factors that contribute to your vehicle’s fuel
economy, including maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle aerodynamics.
Below are tips on how to help improve fuel economy:
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a
moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
REMINDER: Driving range can vary depending on your vehicle’s fuel tank size,
e.g., 12-gal. vs. 24-gal., even though the MPG may be the same
For more information on Fuel Economy, you can snap the QR Code above to view a video
or refer to the Owner's Manual.
INSTRUMENT CLUSTER
When the Instrument Cluster LCD screen is in
the Trip Computer mode, the screen displays fuel
economy information related to the driving range
and average fuel economy.
To change modes, go to User Settings in the LCD
Instrument Cluster modes.
Range - Estimates how far you can go before
refueling is required.
Average Fuel Consumption - Calculates
average* fuel consumption from the distance
driven and amount of fuel injected into the
engine / total fuel used.
FUEL ECONOMY
•Range
•Average MPG
•Instant MPG
TRIP A/B
•Tripmeter
•Average MPG
•Elapsed Time (E/T)
DIGITAL SPEEDOMETER
DRIVING STYLE
ENERGY FLOW
Range
Average
Hold OK : Reset
1729mi
24.8MPG

9
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Service Mode
To enter Service mode, press the Mode button
A, scroll to Service Mode and press Select/
Reset button B. System will display number
of miles remaining until next service is due, as
well as type of service.
When service is required,
the following will be
displayed:
Service Required
To reset the Service mode
system, press and hold
the Select/Reset button
Bfor more than
1 second.
To turn Service In OFF,
go to User Settings.
Service Interval Setting
To set the service interval when in User
Settings mode:
•Press the Select/Reset button Bup/down
and scroll to Service Interval. Press the
Select/Reset button Bto enter
•Press the Select/Reset button Bup/down
and toggle to ON, then press the Select/Reset
button Bagain. Then press the Select/Reset
button Bto scroll and select the desired
miles or months for your next service
•Press the Select/Reset button Bagain to enter
User Settings
To enter the User Settings mode in the LCD Instrument Cluster Modes,
press the Mode button Awhen the vehicle is at a standstill and with
the ENGINE START/ STOP button* in the ON position and select User
Settings .
You can navigate the selections on the
display by pressing the Select/Reset button
Bup/down, and then selecting the item by
pressing the Select/Reset button Bagain.
Driving Assist:
•Smart Cruise Control Response*
•Rear Cross Traffic Alert*
•AEB (Autonomous Emergency Braking)*
•FCW (Forward Collision Warning)*
•Coasting Guide*
Door/Trunk:
•Auto Door Lock & Unlock*
•Smart Trunk*
•Two Press Unlock*
•Horn Feedback*
Lights:
•One-Touch Turn Signal*
•Headlamp Delay
•Welcome Light*
Sound:
•Park Assist System Volume*
•BSD (Blind Spot Detection) Sound*
•Welcome Sound*
•Cluster Voice Guidance*
Service Interval:
•Set Mileage/Month
•Service Interval ON/OFF
Convenience:
•Easy Seat Access*
•Steering Position
•Wireless Charging System*
•Wiper/Light Display*
Other features:
•Fuel Economy Auto Reset
•Fuel Economy Unit
•Temperature Unit
•Tire Pressure Unit*
•Language*
To view a video on your
mobile device, snap these
QR Codes or visit the listed
website.
Refer to page 2 for more
information.
LCD Display Video
LCD Display:
Maintenance Video
QR CODES
www.youtube.com/KiaFeatureVideos
www.youtube.com/KiaFeatureVideos
(Buttons located on Steering Wheel – Type A)
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
RES
CRUISE
CANCEL
OK
SET
MODE
A
B
Service in
Off
Service Required
0000 mi.
0000 mi.
INSTRUMENT CLUSTER

10 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Drive Mode Integrated Control System*
The Drive Mode may be selected based on the driver's
preferences and road conditions.
To cycle through the different Drive Modes A, press the
DRIVE MODE button B. The instrument cluster will display
SPORT* or ECO when selected. When in NORMAL mode, it
will not display in the the instrument cluster.
Drive Mode System
Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
(Located in Instrument Cluster)
ACTIVE
ECO
HEV
DRIVE
MODE
(Buttons located below Gear
Shift -Type B shown)
B
B
B
ECO Mode (Active ECO)
Active ECO helps improve fuel economy by controlling
several vehicle components. When activated, it optimizes
drivetrain operations such as engine power and
transmission to help improve fuel economy.
To turn ON, press the DRIVE MODE button A. The button
light will turn on, and the green ECO indicator light Bin
the instrument cluster will illuminate (indicating that you
are getting optimal fuel efficiency). Active ECO system will
remain on even when the ignition is cycled.
To turn the Active ECO system OFF, press the DRIVE MODE
button Aagain.
To help improve your fuel economy:
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Be sure the wheels are properly aligned
QUICK TIPS
For more information on Active ECO, refer to your Owner’s Manual or contact your local dealership.
A
Hybrid*
A
Plug-in Hybrid*
REMINDERS:
•The system is turned ON and in ECO mode when ignition is in the
ON position
•When NORMAL mode is selected, the indicator will display and system
remains on. When ignition is cycled, the system will default to ECO.
INSTRUMENT CLUSTER

11
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.

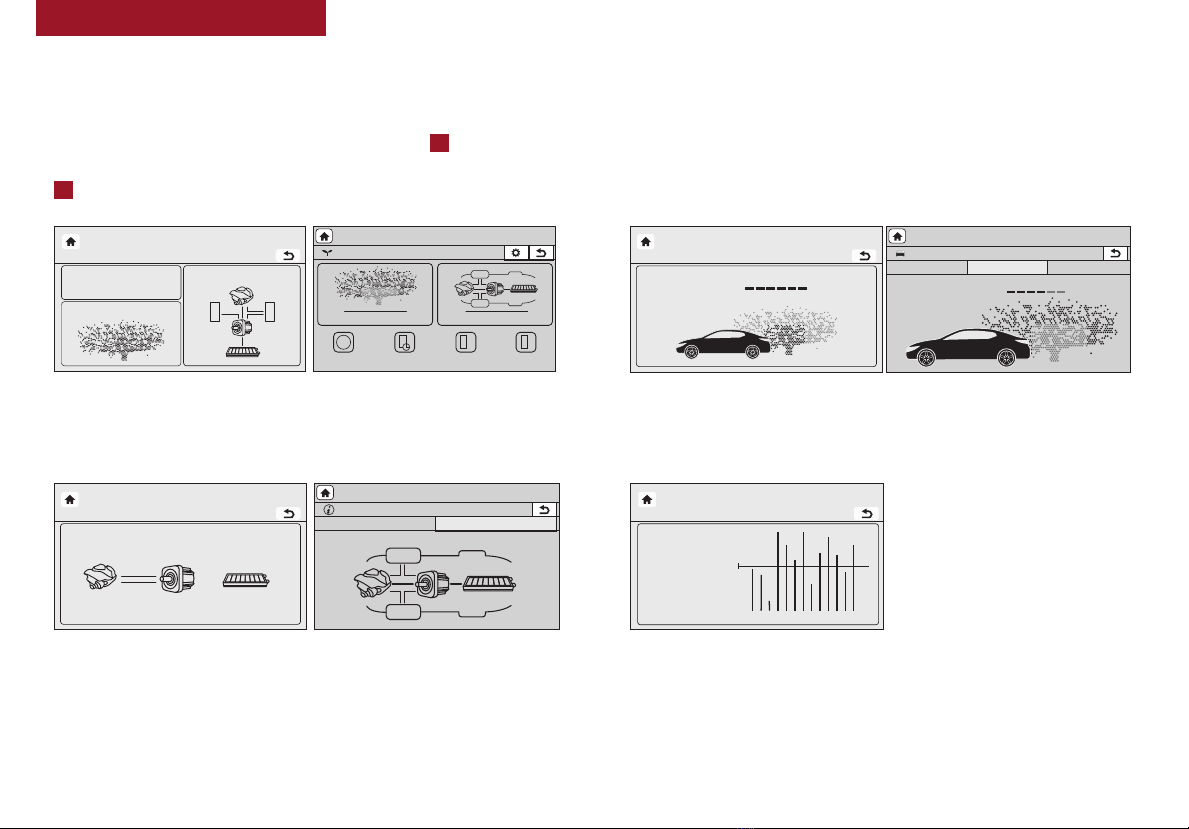

UVO eServices with Premium Navigation Display*
When equipped, Optima Hybrid/Plug-In’s UVO eServices with Premium Navigation screen also provides information on economical
operation and Hybrid/Plug-In system modes. To enter the Hybrid/Plug-In display mode, press the INFO key on the audio control unit. Press
the HYBRID button. Then select one of the three menus A- FUEL ECONOMY, ECO DRIVING and ENERGY FLOW.
Energy Flow - Displays the current flow of power between
the Optima Hybrid/Plug-In’s main powertrain components.
ECO Level - The more economically and environmentally-friendly
you drive, the more the ECO Level increases.
AHybrid System Home Screens
Fuel Economy - Displays the average fuel
economy over the duration of a trip.
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l Fuel Economy
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
28.0 MPG
Reset
l Hybrid Fuel
Economy
l l l ECO Driving
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l Fuel Economy
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
28.0 MPG
Reset
l Hybrid Fuel
Economy
l l l ECO Driving
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l Fuel Economy
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
28.0 MPG
Reset
l Hybrid Fuel
Economy
l l l ECO Driving
Energy Flow
28MPG
Feb. 39:31AM
Fuel Economy
ECO Driving
Feb. 312:26AM
l l l Fuel Economy
Feb. 312:31AM
ECO Level 6
Feb. 39:31AM
Hybrid Mode
Engine Electric
Motor
Battery
l Average
28.0 MPG
Reset
l Hybrid Fuel
Economy
l l l ECO Driving
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Plug-In Hybrid
ECO Driving
Jul. 19 3:22 AM
Energy Information
Charging
Stations
Set Charging
Times
EV Range Gas Stations
ECO Driving
ECO LevelFuel Economy History
Jul. 19 3:22 AM
ECO Level 4
Energy Information
Energy Flow
Hybrid Ready
Engine Electric
Motor
Battery
Battery Information
Jul. 19 3:22 AM
Energy Information
Energy FlowBattery Information
Jul. 19 3:22 AM
Total Range
Electric Remaining Charging Time
Gasoline Normal (240V) 1 h 20 m
350 80%
50
300
mi
mi
mi
Hybrid Screen
Hybrid Screen
Hybrid Screen
Hybrid Screen
Plug-In Hybrid Screen*
Plug-In Hybrid Screen*
Plug-In Hybrid Screen
HYBRID / PLUG-IN SYSTEM

12 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Instrument Cluster - Energy Flow
Optima Hybrid/Plug-In’s instrument cluster displays the following Hybrid/Plug-In system modes to inform
the driver of its status. To change modes, go to User Settings in the LCD Instrument Cluster modes.
EV Propulsion - The electric motor
is moving the vehicle.
Engine-Only Propulsion - The engine is moving
your vehicle.
Power Assist - Both the electric motor AND the
engine are moving the vehicle.
Engine Generation - While the vehicle is stopped,
the engine is charging the Hybrid/Plug-In battery.
HYBRID / PLUG-IN SYSTEM

13
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Instrument Cluster - Energy Flow
Optima Hybrid/Plug-In’s instrument cluster LCD screen displays the following Hybrid/Plug-In system modes to
inform the driver of its status. To change modes, go to User Settings in the LCD Instrument Cluster modes.
Power Reserve - While the engine powers the vehicle,
it is also recharging the Hybrid/Plug-In battery.
Engine Brake/Regeneration - The regenerative braking
system is recharging the Hybrid/Plug-In battery.
Vehicle Stop - The vehicle’s Hybrid/Plug-In
system is standing by.
Engine Generation/Regeneration - The engine
and the regenerative braking system are both
recharging the Hybrid/Plug-In battery.
HYBRID / PLUG-IN SYSTEM

14 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
POWER
CHARGE
FAULT
B
A
C
D

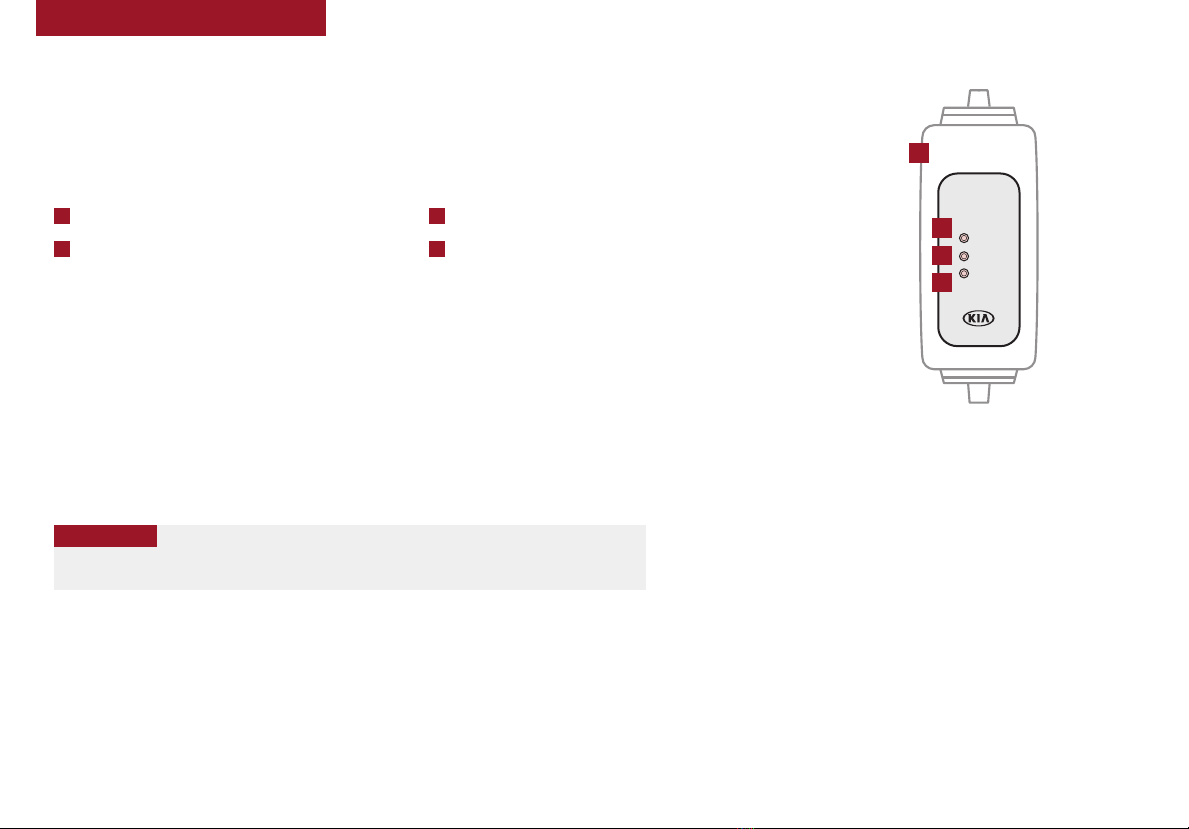

(Control box on charging cable)
Charging the Plug-In Hybrid Vehicle*
Level 1 Charging – “Trickle” Charge
A Level 1 or “trickle” charger is the most common type of charging system for a Plug-In Hybrid. This type of
charger uses 110 volts of household electricity and takes up to 9 hours for a full charge.
Trickle Charger Indicators:
AICCB – In-Cable Control Box
BPower – Indicates that the charger is plugged in
and functioning.
CCharge – Indicates that the vehicle is charging.
DFault – Indicates charge failure.
REMINDER: Do not use an extension cord. Plug Trickle charger directly into wall socket.
Level 2 Charging – “Normal” Charge
A Level 2 or “normal” 240-volt charger is the recommended charging system for your Optima Plug-In Hybrid.
This type of charger uses 240 volts of electricity and takes approximately 2.5-3 hours for a full charge
(Based on Kia Motors Corporation testing with SAE J1772 charger performed at 3.3kW). This charger
can be installed at your home or found at a public charging station.
REMINDER: Shape of charger and how to use the charger may be different for each manufacturer.
Please see Owner’s Manual for more information.
A Level 2 or “normal” 240-volt charger is recommended for regular charging of the vehicle.
QUICK TIPS
REMINDER: For more detail and/or subsequent steps in charging your vehicle, please see the Owner's Manual.
HYBRID / PLUG-IN SYSTEM

15
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
F
G
POWER
CHARGE
FAULT
E
REMINDER: For more detail and/or subsequent steps in charging your vehicle, please see
the Owner’s Manual.
Charging the Plug-In Hybrid Vehicle* (Continued)
To charge the Optima Plug-In Hybrid vehicle using a normal/trickle charger:
1. Connect the ICCB Aplug to an electrical outlet
2. Check if the power light (green) Bon the ICCB turns on
3. Press the brake pedal and engage the parking brake
4. Turn off all switches, put the shift lever in P (Park), and turn off
the vehicle
5. Open the charging door Eby pressing the charging door
(Ensure doors are unlocked).
6. Remove any dust on the charging connector and charging inlet F.
7. Hold the charging connector handle Gand connect it to the vehicle’s trickle
charging inlet Fby pushing the connector until you hear a “clicking” sound
8. Charging begins automatically (Ensure the charge indicator light is
illuminated on your instrument cluster, indicating the vehicle is charging)
Checking the Charging Status
The charging status can be checked by viewing the charging status indicator
on the dash panel. The lights will progressively become lit as the vehicle
approaches a full charge.
After charging has started, the estimated charging time is displayed on the
Instrument Cluster LCD Ifor about 1 minute. It is also displayed, when the
driver’s door is opened with charging in progress.
Remaining charge time
6h 14m
50%
I
HYBRID / PLUG-IN SYSTEM

16 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE

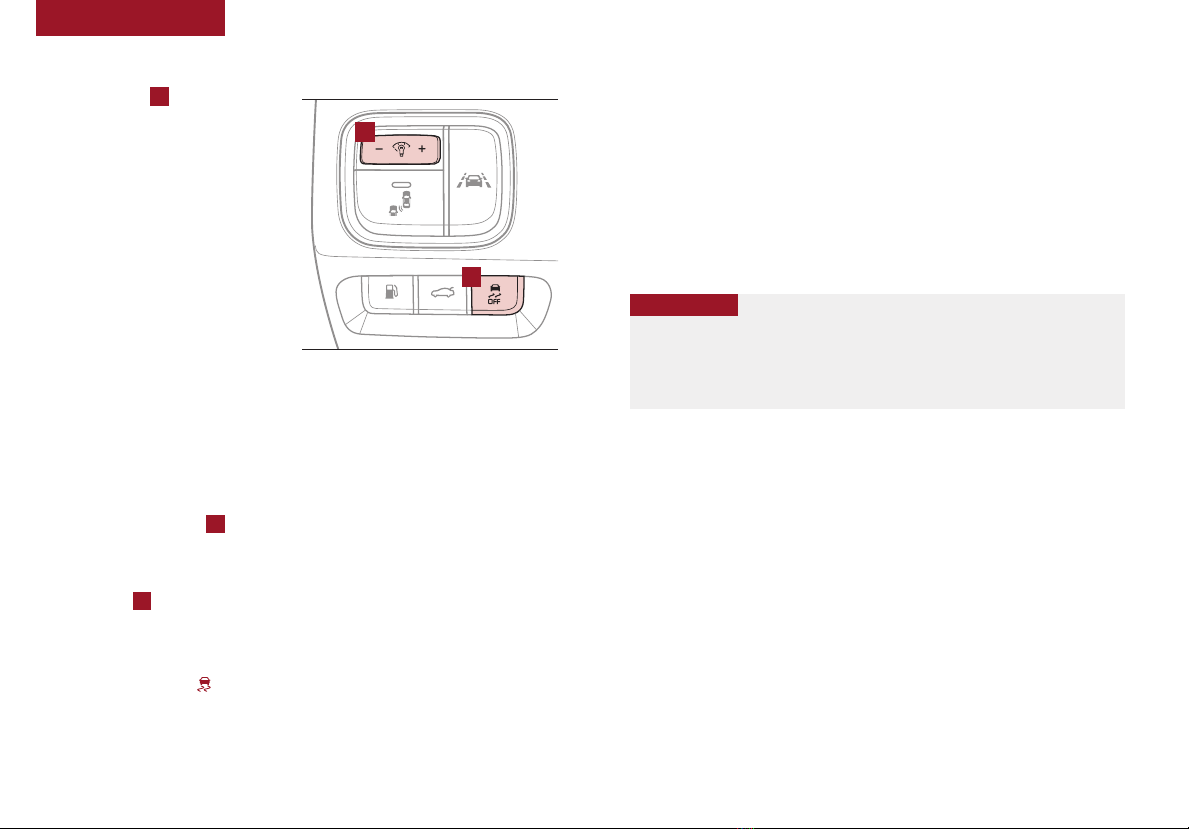

Blind Spot Detection (BSD) System*
The BSD system uses radar sensors to help alert the driver before changing
lanes. The light on the BSD button Awill illuminate when turned ON. The outside
rearview mirror warning lights will also illuminate for 3 seconds.
The system will become active when the vehicle is traveling more than 18 mph
and will alert the driver if another vehicle is detected by the radar sensor.
Blind Spot Detection / Lane Change Assist
1st-stage alert: When another vehicle is detected within the BSD System
boundary B, a yellow indicator will illuminate on the outside rearview mirrors.
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn signal,
a flashing yellow indicator will illuminate on the outside rearview mirrors and the
system will sound an alert.
RCTA (Rear Cross Traffic Alert)
If the RCTA system sensors detect approaching vehicles from the left or right
side C, the system will sound an audible alert, the warning indicators on the
outside rearview mirror will illuminate and a message will appear on the LCD
screen, with these conditions:
•When the vehicle is in Reverse
•When the vehicle moves in reverse from a parking position
•When the vehicle is moving less than 6 mph
REMINDERS:
•The BSD system will not show a warning if the vehicle speed is only 6 mph
above the surrounding vehicles
•If the BSD is turned ON and the ignition is cycled, the BSD system returns to ON
•The RCTA feature can be turned OFF/ON in User Settings
For more information on the Blind Spot Detection System, please refer to the Owner’s Manual.
Blind Spot Detection
System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
QR CODE
www.youtube.com/KiaFeatureVideos
B
C
(Buttons are located left
of the Steering Wheel)
REMINDER: The above images are for
illustration purposes only and may not reflect
actual operation.
A
DRIVER'S PANEL

17
*IF EQUIPPEDALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
DRIVER'S PANEL
Lane Departure Warning System (LDWS)*
With the ENGINE START/STOP button in the ON position, press the
LDWS button Ato turn system ON. The instrument cluster
indicator will illuminate.
If the LDWS detects that you are veering outside of your lane, the
system may issue a warning on the LCD screen and an alert may
sound, while applying a slight adjustment to the steering, trying to
prevent the vehicle from moving outside its lane.
Standard LDWS is the operating mode by default when the button
is depressed to ON. To switch to Active LDWS mode or standard mode,
go to User Settings in the Instrument Cluster.
If the LDWS detects that you are veering outside of your lane, the
system may issue a warning on the LCD screen and an alert may sound.
All systems will operate under the following conditions:
•The vehicle exceeds approximately 55 mph
•The LDWS system recognizes the lane the vehicle is
traveling in
•LDWS will stay on when the ignition is cycled
REMINDER: LDWS will not issue a warning if the turn signal is activated.
Autonomous (Assist) Emergency Braking (AEB) / Forward Collision Warning (FCW)*
The AEB helps to alert the driver when rapidly approaching a vehicle that is slowing down, braking
or stopped B. A warning message will appear on the LCD screen and a chime will sound. The AEB
will become active when the vehicle is traveling more than 6 mph.
To turn the AEB off, go to User Settings in the LCD Instrument Cluster modes.
REMINDER: The AEB will be activated by default when vehicle power is cycled on, even when previously set to off
Autonomous (Assist) Emergency Braking is not a substitute for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.
When the LKAS sensor detects
the lane traveling in, both lanes
are illuminated
When the LKAS sensor does
not detect the lane traveling in
the lanes are not illuminated
When the LKAS sensor detects the vehicle veering outside of the lane traveling
in, a yellow indicator will illuminate either on the left or right lane (shown in both
images above)
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
Lane Keep Assist
B
Lane Departure Warning
System Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website.
Refer to page 2 for more
information.
www.youtube.com/KiaFeatureVideos
QR CODE
(Buttons are located left
of the Steering Wheel)
A

18 *IF EQUIPPED
OPTIMA HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Electronic Stability Control (ESC)
The ESC system is designed to help stabilize the vehicle during cornering
maneuvers. It is a good idea to keep the ESC turned ON for daily driving
whenever possible.
Press ESC OFF button Bto disable Traction Control in ESC (ESC OFF
indicator will illuminate).
To turn both Traction Control and Stability Control off, press and hold ESC
OFF button B(ESC OFF indicator will illuminate, and an alert sounds).
REMINDERS:
•ESC is active by default at vehicle start-up
•The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in
operation
For more information on Electronic Stability Control (ESC) and its specific features and
operations, please refer to your Owner’s Manual.
(Located left of Steering Wheel)
Instrument Panel Dimmer
Toggle switch Aup or down to
adjust display brightness of the
instrument panel illumination.
REMINDER: The Instrument Panel
Dimmer does not adjust brightness
on the UVO eServices System or
the UVO eServices with Premium
Navigation System screens; use the
system’s setup menu to adjust
brightness on the screens.
Hill-Start Assist Control (HAC)
HAC helps prevent the vehicle from rolling backward when accelerating
from a stop while on a steep incline.
The HAC automatically activates whether the ESC is OFF or ON but does
NOT activate when the ESC has malfunctioned.
REMINDERS:
•The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position.
•In the event of HAC system malfunction, see Authorized Kia Dealer for service.
•
•When HAC is active (e.g., accelerating from a stop on an incline), you may
notice that the brakes will momentarily remain engaged after you depress the
accelerator
•HAC provides a 2-second delay before the vehicle may start rolling backward
QUICK TIPS
A
B
DRIVER'S PANEL
