Introduction
How to use this manual . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
• Petrol engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
• Diesel engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle break-In process . . . . . . . . . . . . . . . . . . . . . 1-8
Risk of burns when parking or stopping vehicle. . 1-8
1

Introduction
21
We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strong-
ly recommend that you read the
entire manual. In order to minimise
the chance of death or injury, you
must read the WARNING and CAU-
TION sections in the manual.
Illustrations complement the words in
this manual to best explain how to
enjoy your vehicle. By reading your
manual, you learn about features,
important safety information, and driv-
ing tips under various road conditions.
The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all information
in your manual.
Sections: This manual has 9 sections
plus an index. Each section begins
with a brief list of contents so you
can tell at a glance if that section has
the information you want.
You will find various WARNINGs,
CAUTIONs, and NOTICEs in this
manual. These WARNINGs were
prepared to enhance your personal
safety. You should carefully read and
follow ALL procedures and recom-
mendations provided in these
WARNINGs, CAUTIONs and
NOTICEs.
✽✽NOTICE
A NOTICE indicates interesting or
helpful information is being provided.
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situation
in which harm, serious bodily
injury or death could result if the
warning is ignored.
CAUTION
A CAUTION indicates a situation
in which damage to your vehicle
could result if the caution is
ignored.

13
Introduction
Petrol engine
Unleaded
For Europe
For the optimal vehicle performance,
we recommend you to use unleaded
petrol with an octane rating of RON
(Research Octane Number) 95 / AKI
(Anti Knock Index) 91 or higher.
You may use unleaded petrol with an
octane rating of RON 91~94 / AKI
87~90 but it may result in slight per-
formance reduction of the vehicle.
(Do not use methanol blended fuels.)
Except Europe
Your new Kia vehicle is designed to
use only unleaded fuel having an
Octane Rating of RON (Research
Octane Number) 91 / AKI (Anti-
Knock Index) 87 or higher. (Do not
use methanol blended fuels.)
Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as min-
imise exhaust emissions and spark
plug fouling.
Leaded (if equipped)
For some countries, your vehicle is
designed to use leaded petrol. When
you are going to use leaded petrol,
Kia recommends to visit an autho-
rised Kia dealer/service partner and
ask whether leaded petrol in your
vehicle is available or not.
Octane Rating of leaded petrol is
same with unleaded one.
FUEL REQUIREMENTS
WARNING
• Do not "top off" after the noz-
zle automatically shuts off
when refuelling.
• Always check that the fuel cap
is installed securely to pre-
vent fuel spillage in the event
of an accident.
CAUTION
NEVER USE LEADED FUEL. The
use of leaded fuel is detrimental
to the catalytic converter and
will damage the engine control
system’s oxygen sensor and
affect emission control.
Never add any fuel system
cleaning agents to the fuel tank
other than what has been speci-
fied. (Kia recommends to con-
sult an authorised Kia
dealer/service partner for
details.)

Introduction
41
Petrol containing alcohol and
methanol
Gasohol, a mixture of petrol and
ethanol (also known as grain alco-
hol), and petrol or gasohol containing
methanol (also known as wood alco-
hol) are being marketed along with or
instead of leaded or unleaded petrol.
Do not use gasohol containing more
than 10% ethanol, and do not use
petrol or gasohol containing any
methanol. Either of these fuels may
cause drivability problems and dam-
age to the fuel system, engine control
system and emission control system.
Discontinue using gasohol of any
kind if drivability problems occur.
Vehicle damage or drivability prob-
lems may not be covered by the
manufacturer’s warranty if they result
from the use of:
1. Gasohol containing more than
10% ethanol.
2. Petrol or gasohol containing
methanol.
3. Leaded fuel or leaded gasohol.
Other fuels
Using fuels such as
- Silicone (Si) contained fuel,
- MMT (Manganese, Mn) contained
fuel,
- Ferrocene (Fe) contained fuel, and
- Other metalic additives contained
fuels,
may cause vehicle and engine dam-
age or cause plugging, misfiring,
poor acceleration, engine stalling,
catalyst melting, abnormal corrosion,
life cycle reduction, etc.
Also, the Malfunction Indicator
Lamp (MIL) may illuminate.
✽✽NOTICE
Damage to the fuel system or per-
formance problem caused by the use
of these fuels may not be covered by
your New Vehicle Limited Warranty.
CAUTION
Never use gasohol which con-
tains methanol. Discontinue use
of any gasohol product which
impairs drivability.

15
Introduction
Use of MTBE
Kia recommends avoiding fuels con-
taining MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen
Content 2.7% weight) in your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapour lock or hard starting.
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.
Fuel Additives
Kia recommends that you use
unleaded petrol which has an octane
rating of RON (Research Octane
Number) 95 / AKI (Anti Knock Index)
91 or higher (for Europe) or Octane
Rating of RON (Reasearch Octane
Number) 91 / AKI (Anti-Knock Index)
87 or higher (except Europe).
For customers who do not use good
quality petrols including fuel addi-
tives regularly, and have problems
starting or the engine does not run
smoothly, one bottle of additives
added to the fuel tank at every
15,000km (For Europe) / 10,000km
(Except Europe). Additives are avail-
able from a professional workshop
along with information on how to use
them. Kia recommends to visit an
authorised Kia dealer/service part-
ner. Do not mix other additives.
CAUTION
Your New Vehicle Limited
Warranty may not cover damage
to the fuel system and any per-
formance problems that are
caused by the use of fuels con-
taining methanol or fuels con-
taining MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)

Introduction
61
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.
Diesel engine
Diesel fuel
Diesel engine must be operated only
on commercially available diesel fuel
that complies with EN 590 or compa-
rable standard. (EN stands for
"European Norm"). Do not use
marine diesel fuel, heating oils, or
non-approved fuel additives, as this
will increase wear and cause dam-
age to the engine and fuel system.
The use of non-approved fuels and /
or fuel additives will result in a limita-
tion of your warranty rights.
Diesel fuel of above cetane 51 is
used in your vehicle. If two types of
diesel fuel are available, use summer
or winter fuel properly according to
the following temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type
diesel fuel.
Watch the fuel level in the tank very
carefully : If the engine stops through
fuel failure, the circuits must be com-
pletely purged to restart.

17
Introduction
Biodiesel
Commercially supplied Diesel blends
of no more than 7% biodiesel, com-
monly known as "B7 Diesel" may be
used in your vehicle if Biodiesel meets
EN 14214 or equivalent specifications.
(EN stands for "European Norm"). The
use of biofuels exceeding 7% made
from rapeseed methyl ester (RME),
fatty acid methyl ester (FAME), veg-
etable oil methyl ester (VME) etc. or
mixing diesel exceeding 7% with
biodiesel will cause increased wear or
damage to the engine and fuel sys-
tem. Repair or replacement of worn or
damaged components due to the use
of non approved fuels will not be cov-
ered by the manufactures warranty.
CAUTION
Do not let any petrol or water
enter the tank. This would make
it necessary to drain it out and
to bleed the lines to avoid jam-
ming the injection pump and
damaging the engine.
CAUTION - Diesel Fuel
(if equipped with DPF)
It is recommended to use the
regulated automotive diesel fuel
for diesel vehicle equipped with
the DPF system.
If you use diesel fuel including
high sulfur (more than 50 ppm
sulfur) and unspecified addi-
tives, it can cause the DPF sys-
tem to be damaged and white
smoke can be emitted.
CAUTION
• Never use any fuel, whether
diesel or B7 biodiesel or oth-
erwise, that fails to meet the
latest petroleum industry
specification.
• Never use any fuel additives
or treatments that are not rec-
ommended or approved by the
vehicle manufacturer.

Introduction
81
No special break-in period is needed.
By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• Whilst driving, keep your engine
speed (rpm, or revolutions per
minute) within 3,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is need-
ed to properly break-in the engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first
2,000 km (1,200 miles) of operation.
• Do not park or stop the vehicle near
flammable items such as leaves,
paper, oil, and tyre. Such items
placed near the exhaust system can
become a fire hazard.
• When an engine idles at a high
speed with the rear side of the vehi-
cle touching the wall, heat of the
exhaust gas can cause discol-
oration or fire. Keep enough space
between the rear part of the vehicle
and the wall.
• Be sure not to touch the
exhaust/catalytic systems whilst
engine is running or right after the
engine is turned off. There is a risk
of burns since the systems are
extremely hot.
VEHICLE BREAK-IN
PROCESS
RISK OF BURNS WHEN
PARKING OR STOPPING
VEHICLE.

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6 2

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Bonnet ...................................................4-32
2. Head lamp (Features of your vehicle) ...4-99
Head lamp (Maintenance)...................8-119
3. Front fog lamp
(Features of your vehicle)....................4-102
Front fog lamp (Maintenance) .............8-119
4. DRL lamp (Features of your vehicle) ..4-104
DRL lamp (Maintenance) ....................8-119
5. Wheel and tyre...............................8-71, 9-4
6. Outside rearview mirror.........................4-48
7. Sunroof..................................................4-38
8. Front windscreen wiper blades
(Features of your vehicle)....................4-108
Front windscreen wiper blades
(Maintenance) .......................................8-65
9. Windows ................................................4-27
OYB017001R
■Front view
❈The actual shape may differ from the illustration.

23

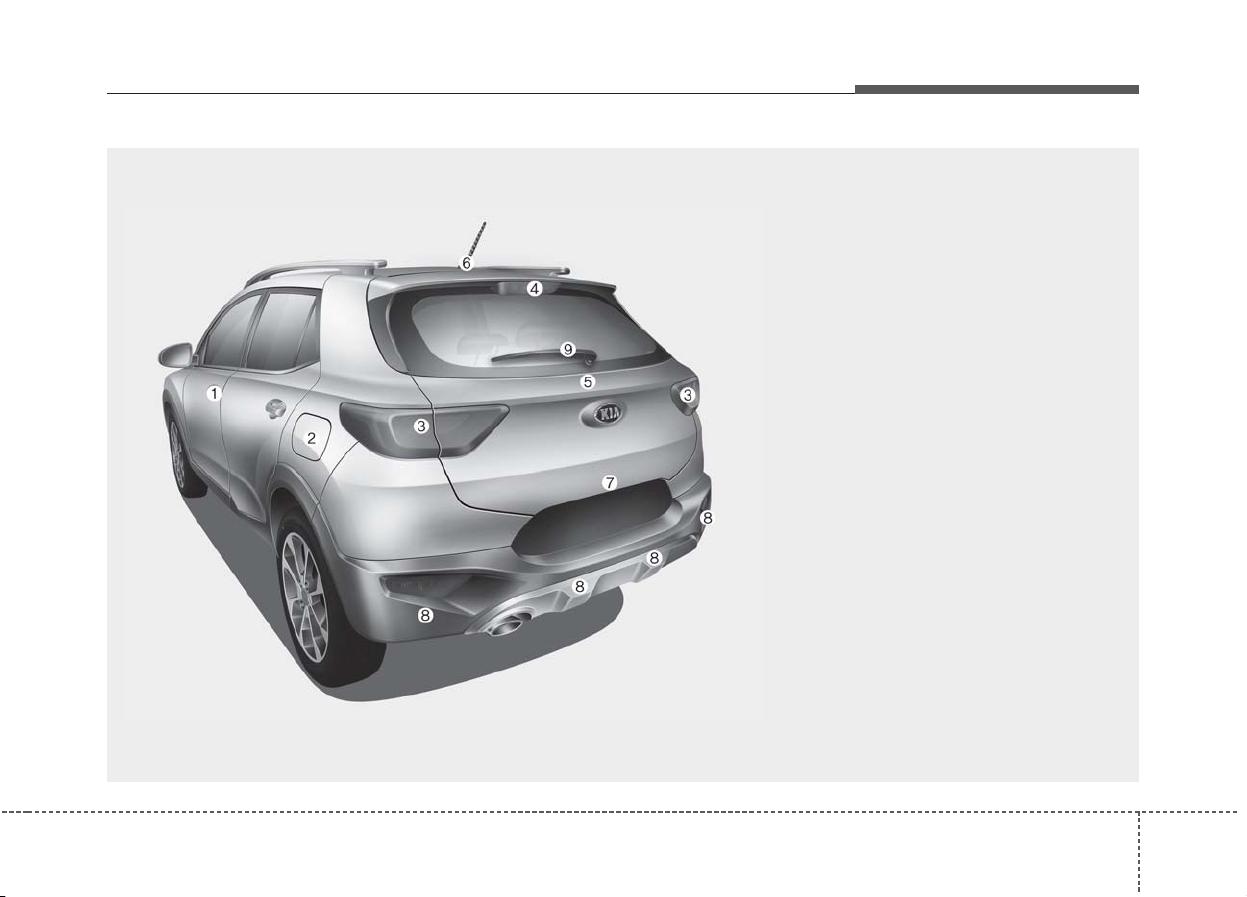

Your vehicle at a glance
1. Door locks .............................................4-18
2. Fuel filler lid ...........................................4-35
3. Rear combination lamp
(Maintenance) .....................................8-120
4. High mounted stop lamp
(Maintenance) .....................................8-120
5. Tailgate ..................................................4-24
6. Antenna ...................................................5-2
7. Rear view monitor .................................4-97
8. Parking distance warning-reverse .........4-93
9. Rear window wiper blade
(Features of your vehicle)....................4-111
Rear window wiper blade (Maintenance)...8-66
OYB017002
■Rear view
❈The actual shape may differ from the illustration.

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ............................4-20
2. Inner fuse panel ................................8-86
3. Power window switches ....................4-27
4. Power window lock button ................4-30
5. Outside rearview mirror control
switch ................................................4-49
6. Outside rearview mirror folding
switch ................................................4-49
7. Bonnet release lever .........................4-32
8. Fuel filler lid release lever .................4-35
9. Steering wheel ..................................4-43
10. Steering wheel tilt control ...............4-44
11. Headlight levelling device .............4-104
12. Instrument panel illumination control
switch ..............................................4-51
13. BCW ON/OFF button......................6-93
14. ESC OFF button .............................6-55
15. LKA ON/OFF button .......................6-85
16. TPMS SET switch .............................7-9
17. Brake pedal.....................................6-48
18. Accelerator pedal
19. Clutch pedal
OST018003R

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
OST018004R
1. Instrument cluster.............................4-51
2. Horn .................................................4-45
3. Driver’s front air bag.........................3-54
4. Light control/Turn signals .................4-99
5. Wiper/Washer.................................4-108
6. Ignition switch.....................................6-7
ENGINE START/STOP button ...........6-11
7. Hazard warning flasher switch ................7-2
8. Central door lock switch ...................4-21
9. Climate control system .......4-116, 4-127
10. AUX, USB port .................................5-3
11. Manual transaxle ............................6-24
Automatic transaxle........................6-28
Dual Clutch Transmission (DCT)....6-36
12. Parking brake lever ........................6-50
13. Passenger’s front air bag ...............3-54
14. Power outlet .................................4-153
15. Glove box .....................................4-146
16. Cigarette lighter............................4-149
17. Seat warmer.................................4-151
18. Idle Stop and Go system OFF
button .............................................6-20
19. Parking distance warning-reverse
ON/OFF button...............................4-93
20. Heated steering wheel switch ........4-44
21. USB charger.................................4-154

Your vehicle at a glance
62
ENGINE COMPARTMENT
OYB076081R
❈The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir...................8-50
2. Engine oil filler cap ...........................8-45
3. Brake / clutch fluid reservoir .............8-54
4. Air cleaner.........................................8-60
5. Fuse box ...........................................8-87
6. Negative battery terminal..................8-67
7. Positive battery terminal ...................8-67
8. Engine oil dipstick .............................8-44
9. Radiator cap .....................................8-52
10.Windscreen washer fluid reservoir ..8-57
■■Kappa 1.0L T-GDI Engine (Petrol)

27
Your vehicle at a glance
1. Engine coolant reservoir...................8-50
2. Engine oil filler cap ...........................8-45
3. Brake / clutch fluid reservoir .............8-54
4. Air cleaner.........................................8-60
5. Fuse box ...........................................8-87
6. Negative battery terminal..................8-67
7. Positive battery terminal ...................8-67
8. Engine oil dipstick .............................8-44
9. Radiator cap .....................................8-52
10.Windscreen washer fluid reservoir ..8-57
11. Automatic transaxle fluid dipstick....8-55
OYB076001R/OYB076002R
■■Kappa 1.4L MPI Engine (Petrol)
❈The actual engine room in the vehicle may differ from the illustration.
■■Kappa 1.2L MPI Engine (Petrol)

Your vehicle at a glance
82
1. Engine coolant reservoir...................8-50
2. Engine oil filler cap ...........................8-47
3. Brake / clutch fluid reservoir .............8-54
4. Air cleaner.........................................8-60
5. Fuse box ...........................................8-87
6. Negative battery terminal..................8-67
7. Positive battery terminal ...................8-67
8. Engine oil dipstick .............................8-46
9. Radiator cap .....................................8-52
10.Windscreen washer fluid reservoir ..8-57
OYB078131R
■■Smartstream D1.6 Engine (Diesel)
❈The actual engine compartment in the vehicle may differ from the illustration.

Safety features of your vehicle
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
• Headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
• Rear seat adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-17
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Child Restraint System (CRS) . . . . . . . . . . . . . . . 3-32
• Children always in the rear . . . . . . . . . . . . . . . . . . . . 3-32
• Selecting a Child Restraint System (CRS) . . . . . . . . 3-33
• Installing a Child Restraint System (CRS). . . . . . . . 3-35
• ISOFIX anchorage and top-tether anchorage
(ISOFIX anchorage system) for children . . . . . . . . 3-36
Air bag - supplemental restraint system . . . . . . . 3-45
• How does the air bag system operate . . . . . . . . . . . . 3-46
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
• SRS components and functions . . . . . . . . . . . . . . . . . 3-51
• Driver's and passenger's front air bag . . . . . . . . . . . 3-54
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
• Additional safety precautions. . . . . . . . . . . . . . . . . . . 3-70
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-72
3
