Kia Spectra 2004 User manual

2004 ENGINES
1.8L 4-Cylinder
GENERAL
SPECIAL SERVICE TOOLS
Fig. 1: Service Tools (1 Of 3)
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 1 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC. domingo, 7 de febrero de 2021 08:29:59 . m. P ge 1 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Courtes of KIA MOTORS AMERICA, INC.
Fig. 2: Service Tools (2 Of 3)
Courtes of KIA MOTORS AMERICA, INC.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 2 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 3: Service Tools (3 Of 3)
Courtes of KIA MOTORS AMERICA, INC.
TROUBLESHOOTING GUIDE
ENGINE
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 3 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 4: Engine Troubleshooting Chart (1 Of 3)
Courtes of KIA MOTORS AMERICA, INC.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 4 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 5: Engine Troubleshooting Chart (2 Of 3)
Courtes of KIA MOTORS AMERICA, INC.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 5 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 6: Engine Troubleshooting Chart (3 Of 3)
Courtes of KIA MOTORS AMERICA, INC.
TIMING BELT
Fig. 7: Timing Belt Troubleshooting Chart
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 6 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Courtes of KIA MOTORS AMERICA, INC.
ENGINE SPECIFICATIONS
Engine Specifications Chart
ENGINE DESCRIPTION
The T8 DOHC engine is a 4 cylinder overhead dual camshaft engine with a compression ratio of 9.4: The
cylinder head is made of aluminum alloy for good heat conductivity and heat resistance and utilizes a pentroof
combustion chamber with 4 valves (IN: 2, EX: 2) per cylinder. An aluminum oil pan is incorporated for reduced
vibration and improved cooling capacity. Maintenance free hydraulic lash adjusters (HLA's) are used for
reduced noise and vibration.
ENGINE ASSEMBL REMOVAL & INSTALLATION
REMOVAL
.
Disconnect battery cables.
Item Engine model T8 DOHC
Type Gasoline, 4 cycle
Cylinder arrangement and number In line, 4 cylinders
Combustion chamber Pentroof
Valve system OHC, belt driven (IN :2, EX : 2)
Displacement 09.4 ( ,793)
Bore and stroke cu in(cc) 3. 9X3.43 (8 .0X87.0)
Compression ratio in (mm) 9.5:
Compression pressure psi (kpa, kg/cm2 )-rpm 93 ( ,333, 3.6)-300
Valve timing
IN Open BTDC 0°
Close ABDC 42°
EX Open BBDC 50°
Close ATDC 0°
Valve clearance IN (mm) IN 0: Maintenance-free
EX 0 : Maintenance-free
Idle speed rpm 800±50
Ignition timing BTDC 5°± 0°
Firing order -3-4-2
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 7 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 8: Disconnecting Batter Cables
Courtes of KIA MOTORS AMERICA, INC.
2. Remove battery and battery tray.
3. Drain engine coolant.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 8 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 9: Draining Engine Coolant
Courtes of KIA MOTORS AMERICA, INC.
4. Remove data link connector upward from mass airflow sensor bracket.
5. Disconnect intake air temperature sensor connector and mass air flow sensor connector.
6. Disconnect air intake hose from throttle body.
7. Disconnect ventilation hose.
8. Remove fresh air duct.
9.
Remove accelerator cable and cruise control cable if equipped.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 9 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 10: Removing Accelerator Cable And Cruise Control Cable If Equipped
Courtes of KIA MOTORS AMERICA, INC.
0. Remove air cleaner assembly.
. Disconnect brake vacuum hose and purge control vacuum hose from dynamic chamber.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 10 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 11: Disconnecting Brake Vacuum Hose And Purge Control Vacuum Hose
Courtes of KIA MOTORS AMERICA, INC.
2. Remove upper and lower radiator hoses.
3. Disconnect fuel hose from fuel injector rail.
WARNING: Keep open flames and sparks away from open fuel lines or a fire or
explosion may result.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 11 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

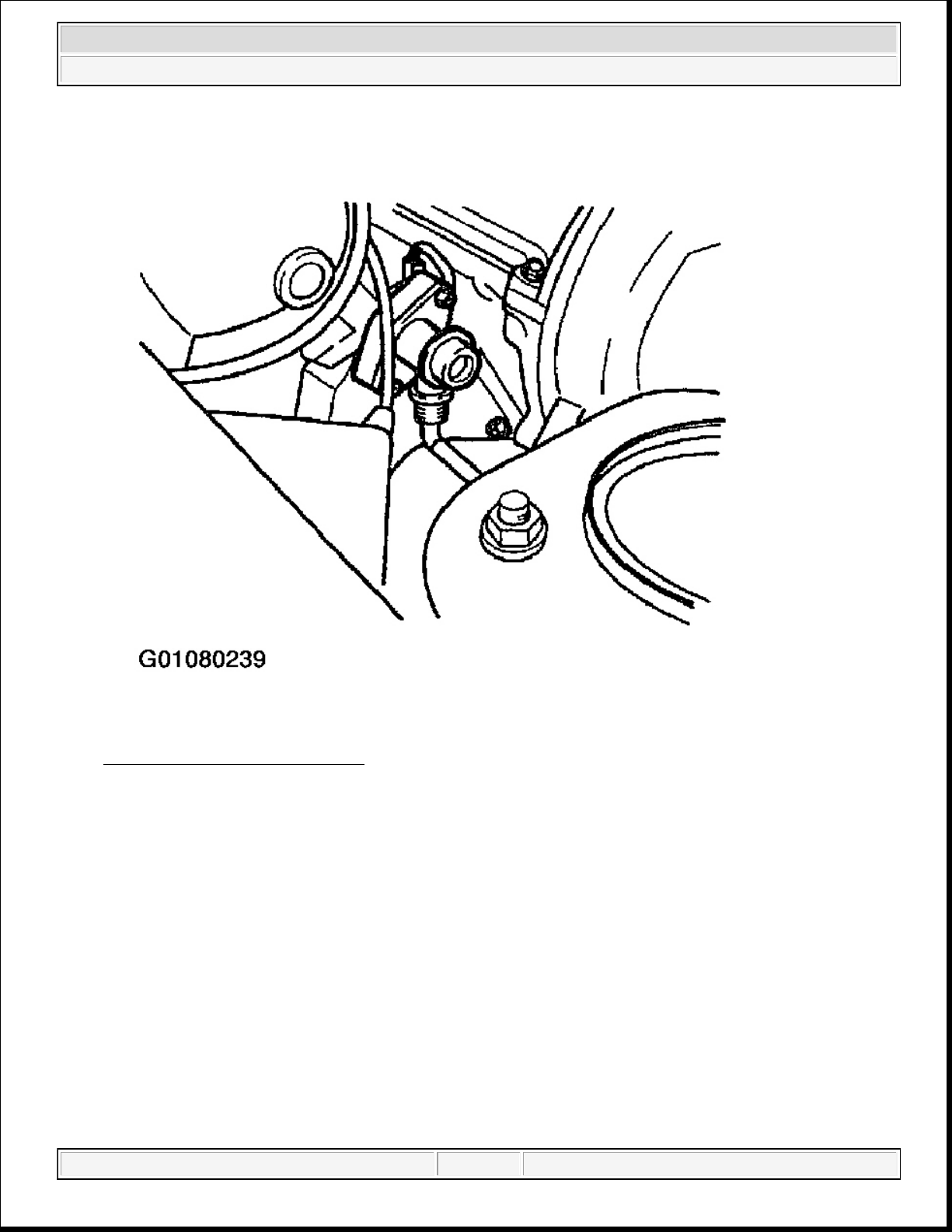

Fig. 12: Disconnecting Fuel Hose
Courtes of KIA MOTORS AMERICA, INC.
4.
Remove heater hoses.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 12 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

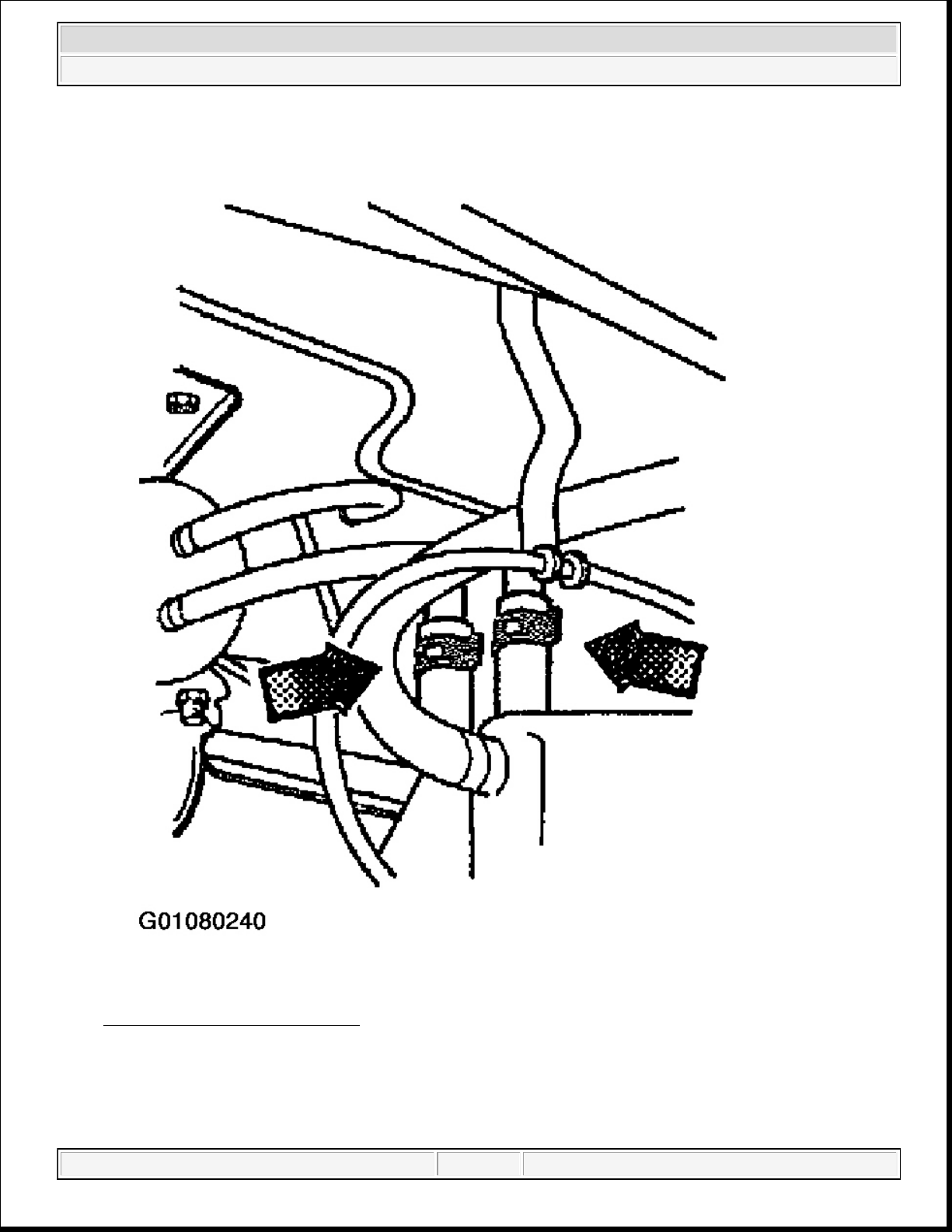

Fig. 13: Removing Heater Hoses
Courtes of KIA MOTORS AMERICA, INC.
5.
Disconnect IAC and throttle position sensor connectors.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 13 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

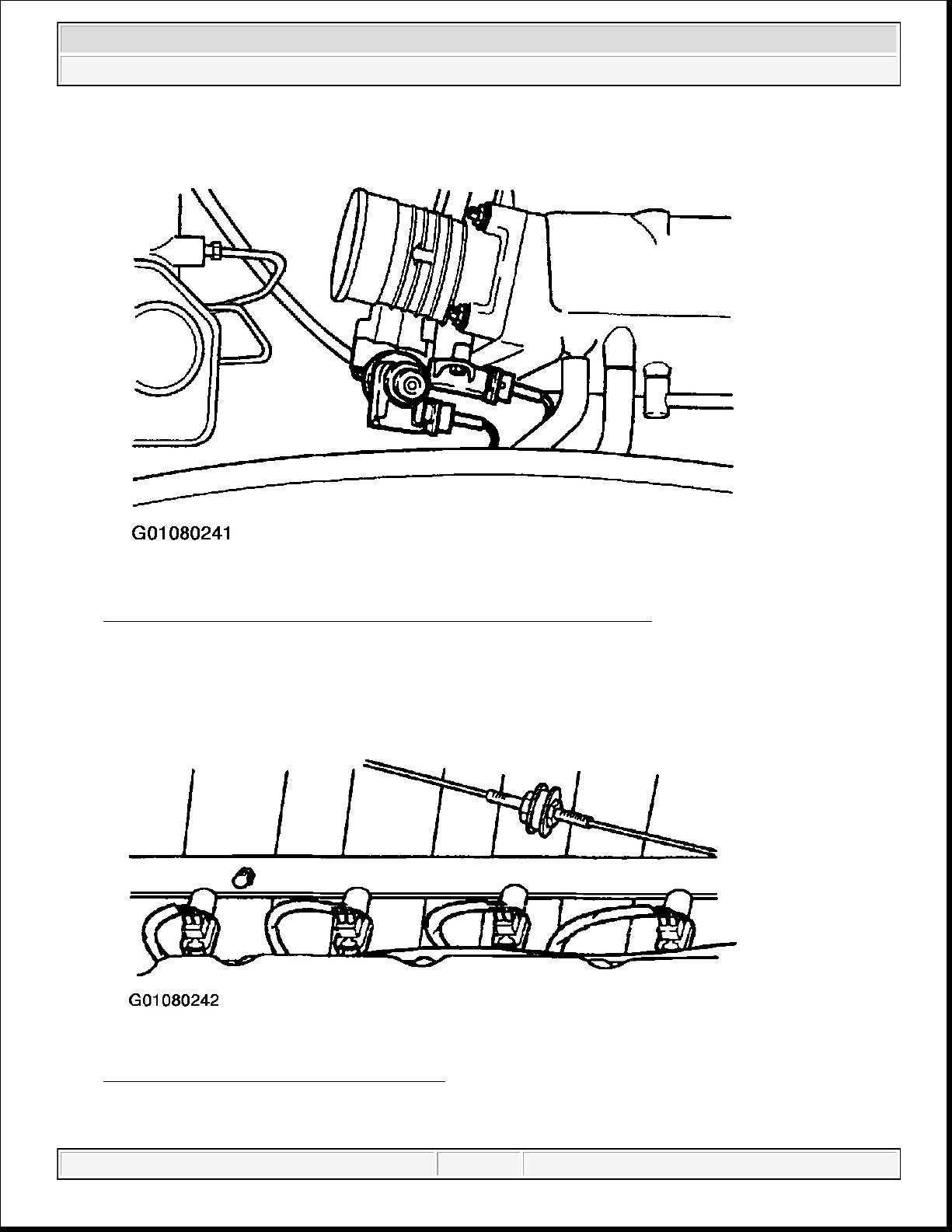

Fig. 14: Disconnecting IAC And Throttle Position Sensor Connectors
Courtes of KIA MOTORS AMERICA, INC.
6. Disconnect injector connectors.
Fig. 15: Disconnecting Injector Connectors
Courtes of KIA MOTORS AMERICA, INC.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 14 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

7. Disconnect electric connectors, bracket and reinstall engine hanger.
Tightening torque: 27.5~38.3 lb-ft (37.2~51.9 N.m, 3.8~5.3 kg-m)
Fig. 16: Disconnecting Electric Connectors
Courtes of KIA MOTORS AMERICA, INC.
8.
Disconnect B
-
terminal connector and S
-
terminal connector from starter.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 15 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 17: Disconnecting B-Terminal And S-terminal Connectors From Starter
Courtes of KIA MOTORS AMERICA, INC.
9.
Disconnect generator B
-
terminal connector and connector C 2 from generator.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 16 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 18: Disconnecting Generator B-Terminal And Connector C121 From Generator
Courtes of KIA MOTORS AMERICA, INC.
20.
Disconnect engine ground strap.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 17 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 19: Disconnecting Engine Ground Strap
Courtes of KIA MOTORS AMERICA, INC.
2 .
Remove RH & LH splash shield.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 18 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 20: Removing RH & LH Splash Shield
Courtes of KIA MOTORS AMERICA, INC.
22.
Remove exhaust manifold heat shield and three P/S pump bracket bolts.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 19 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.

Fig. 21: Removing Exhaust Manifold Heat Shield And P/S Pump Bracket Bolts
Courtes of KIA MOTORS AMERICA, INC.
23.
Remove four A/C compressor bolts and five A/C compressor mounting bracket bolts.
2004 Kia Spectra
2004 ENGINES 1.8L 4-Cylinder
domingo, 7 de febrero de 2021 08:29:49 . m. P ge 20 © 2011 Mitchell Rep ir Inform tion Comp ny, LLC.
