WARNING!
To reduce risk of fire, electric shock, or injury, please read and follow all safety instructions and caution markings
before use. This vacuum cleaner is designed to be safe when used for cleaning functions as specified. Should
damage occur to electrical or mechanical parts, the cleaner and/or accessory should be repaired by a Kiam
Authorised service agent or the manufacturer, before use, in order to avoid further damage to the machine or
physical injury to the user.
Read and follow all safety instructions:
1. Safety Instructions
•
•
•
•
•
•
•
•
•
•
•
•
Before using the machine make sure that the frequency and voltage shown on the rating plate corresponds
with the mains voltage. (240 volt / 50 Hz)
Do NOT leave the machine when it is plugged in. Always unplug from the socket when not in use and before
maintenance.
Do NOT use with damaged electrical cable or plug. To unplug, grasp the plug, not the cable. Do not handle
plug or machine with wet hands. Turn off all controls before unplugging.
Do NOT pull or carry the machine by the cable, use the cable as a handle, close a door on the cable or pull
the cable around sharp edges or corners. Keep cable away from heated surfaces.
Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not put
any objects into openings or use with the inlet blocked. Keep openings free of dust, lint, hair and any debris
that could reduce the flow of air.
Do NOT use this appliance for vacuuming dust which maybe considered hazardous to health.
Do NOT use to pick up flammable or combustible liquids, such as petrol, or use in areas where they maybe
present.
Do NOT pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
The appliance is not intended for use by young children. Young children should be supervised to ensure that
they do not play with the machine. Use extra care when cleaning on stairs.
If the cleaner is not working properly or has been dropped, damaged, or dropped into water, return it to a
Kiam service center.
Use only as described in this manual and only with the manufacturer’s recommended attachments.
Do NOT use a wet dust filter.
1

T: 0044 151 548 5500
F: 0044 151 548 5599
© Equipmart Ltd
www.kiamproducts.co.uk
Check that all power switches are in the off position. Connect the suction hose into the suction inlet of the
machine by pushing the hose forward until the pin clicks in to place at the inlet (to release the hose from machine
just pull the pin upwards and then pull out the hose). Then connect the hose to your gutter poles. Connect the
power plug into a mains electrical outlet. Push the power switch to the on position to start the motor. Each motor
is independently switched.
NOTE: For wet pick up (gutter cleaning)
Remove the white dry filter leaving the spong filter on. The machine is equipped with a float valve that shuts off
the airflow through the machine when the maximum liquid level is reached. You will then hear a noticeable change
of sound from the motor and notice that the suction power decreases. When this occurs switch the machine off,
disconnect the machine from the socket and empty the tank.
2. Starting And Operating The Machine
2
WARNING
Before emptying the tank, unplug the vacuum cleaner. Always fully empty and clean the container and the float
system after picking up liquids. Never pick up liquid without the float system installed in the machine.
Emptying via tank:
Release the two latches holding the head unit in place and remove it, also remove th einternal steel cone. The
suction hose can remain attached whilst emptying the tank. To avoid movement of the trolley, place one foot at the
base part of the trolley. Grasp the handle at the bottom of the tank, then tilt the container backwards to pour the
liquids out.
Clean the float valve and basket with a damp cloth before the head unit is refitted to the tank. Refit the head and
secure with the latches.
3. Emptying After Wet Pick Up
WARNING
Before checking the dust filter, unplug the vacuum cleaner.
Release the two latches holding the head unit in place and remove the steel cone. Check the dust filter and
replace if necessary. Refit the head unit onto the tank and secure with the latches. Never pick up dry material
without dust filter fitted in the machine. For replacement dust bags, visit www.kiamproducts.co.uk.
4. Emptying After Dry Pick Up
Remove the plug from the socket when machine is not in use. Wind up the electrical cable starting from the
machine end to avoid kinks. The power cable can be wound up around the hooks located on the head unit.
5. After Use

T: 0044 151 548 5500
F: 0044 151 548 5599
© Equipmart Ltd
www.kiamproducts.co.uk
The manufacturer provides warrantly in accordance with the legislation of the customer’s own country
of residence with 12 months starting from the date on which the appliance is sold to the end users.
The warrantly only covers defects in material or workmanship.
6. Warranty
3
•
•
•
•
•
Normal wear and tear
Incorrect use,e.g. overloading of the appliance,use of non-approved accessories
Use of force,damage caused by external influences
Damage caused by non-observance of the user manual,e.g. connection to an unsuitable mains supply or
non-compliance with the installation instructions
Partially or completely dismantled appliances.
•
•
•
•
Regularly clean the vacuum filters to prolong the life of the machine. Cleaning of the vacuum filters can be
achieved by tapping/knocking the filter inside a garbage bin to release dust/debris from the filter and/or use
compressed air to blow the dust/debris out. Always ensure you are wearing the correct personal protection
equipment (PPE) when cleaning vacuum filters. Also always consider your surroundings and other persons
within your working area when cleaning vacuum filters.
Clean any dust/debris from around the vacuum filter basket and on the underside of the motor head unit on a
regular basis to prevent any dust/debris getting sucked into the vacuum motors.
Immediately replace any damaged vacuum filters.
Never attempt to lubricate any motor components.
Repairs under warranty may only be carried out by an authorized service centre. When making a claim under the
warrantly, proof of purchase (with purchase date) must be submitted.
The warrantly will not apply in cases of:
7. Maintenance
WARNING:
Ensure the machine is disconnected from the power supply before carrying out any maintenance and/or cleaning
of the machine.

1
23
T: 0044 151 548 5500
F: 0044 151 548 5599
© Equipmart Ltd
www.kiamproducts.co.uk
8. Specification
4
Model ..........................
Power ..........................
Air Flow .......................
Water Lift .....................
Capacity ......................
Function ......................
Voltage ........................
Cyclone
3600W
645 m³/hour
2400mm
76L
Wet / Dry
220-240V

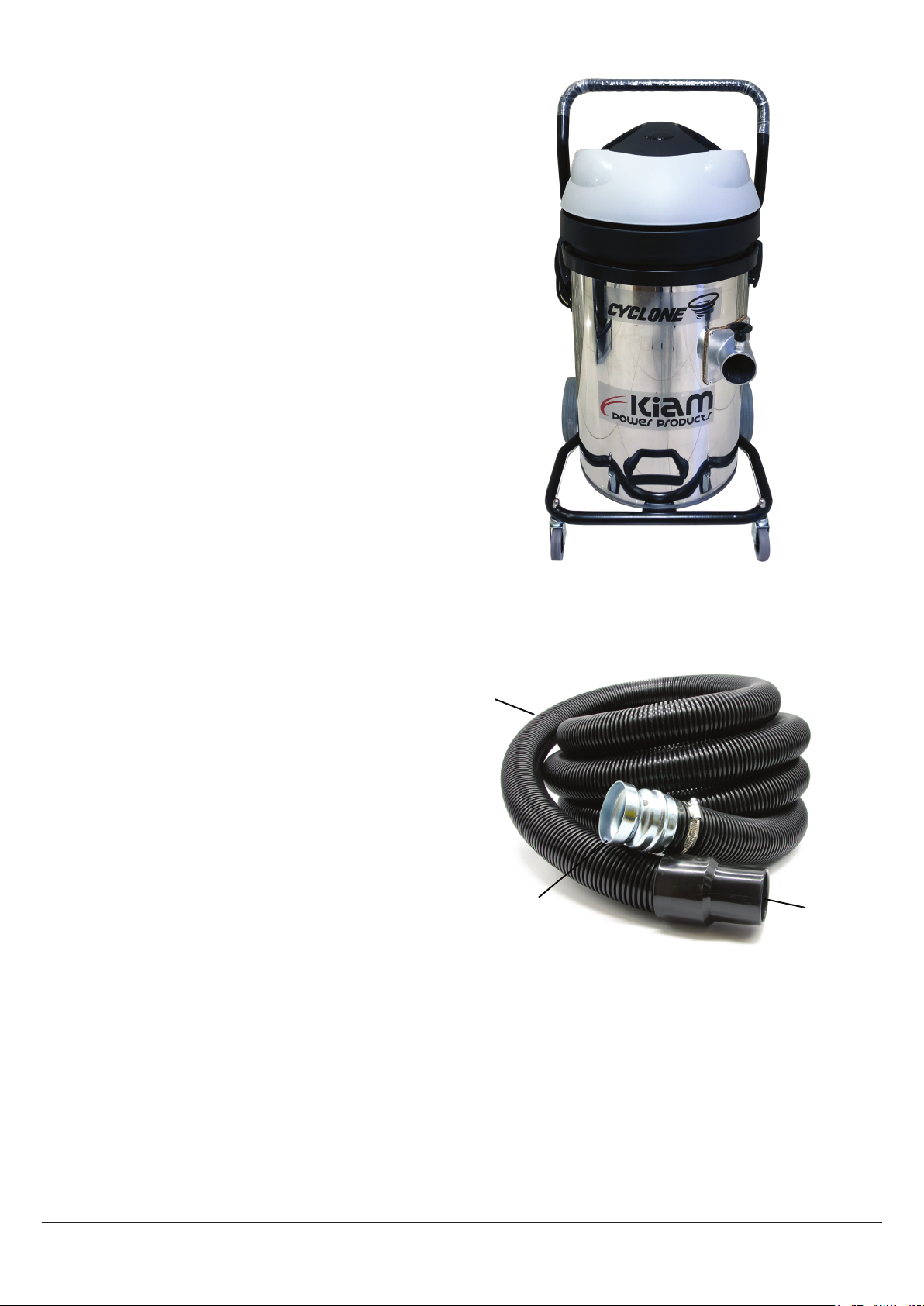

1.
2.
3.
Suction Hose
Inlet Connector
Outlet Connector
Accessories Included

T: 0044 151 548 5500
F: 0044 151 548 5599
© Equipmart Ltd
www.kiamproducts.co.uk
9. Troubleshooting
5
The vacuum safety float valve
blocks the vacuum caused by:
A. Tank is full of liquid
B. Vacuum has overturned
A. Turn of the vacuum and empty the
tank
B. Upright the vacuum and turn it off for
approx. 3-5 seconds
PROBLEM CAUSES SOLUTIONS
The vacuum cleaner fails
to start
The vacuum cleaner does not
vacuum efficiently
Substantial increase in motor
revolutions and decrease in
suction
Power cord is disconnected
Vacuum is not switched ON
Electrical Fault
Check the electric power
supply line is connected to your wall
socket correctly
Check that the vacuum is turned on. To
turn on the vacuum press any of the
on/off switches to the on position
Contact an authorised
service centre
Vacuum tank full Empty the vacuum tank
Dirty / clogged / full filter
Clean the filter as described in the
maintenance section.
(Empty or replace filters
if necessary)
The vacuum safety float valve
has intervened due to the tank
being full of liquid
Empty the vacuum tank
Check that the vacuum hose,
floor tools and/or extension
tubes are not blocked
Ensure that the hose is not blocked by
removing the hose assembly and
inserting a long object through the hose
to clear any obstructions. Do not use
excessive force to clear obstructions
Vacuum motor head unit is not
fitted correctly
Refit the vacuum motor head unit
checking that it sits well onto the
vacuum tank. Secure it in place
with the tank locks
Vacuum hose blocked
Ensure that the hose is not blocked by
removing the hose assembly and
inserting a long object through the hose
to clear any obstructions. Do not use
excessive force to clear obstructions
