Kicker KX300.4 User manual

Congratulations! You have just purchased the latest in amplifier tech-
nology to carry the famous KICKER name. Your KICKER KX series
amplifier is designed and built to give you years of powerful and trou-
ble-free performance. This installation manual contains valuable infor-
mation on how to get the most out of your new KX series amplifier.
Thanks for buying KICKER. Enjoy!
KX Amplifier Features
NEW for 2002 Radically advanced chassis with removable chassis shroud.
Low Impedance Operation Stable into 2 ohm stereo or 4 ohm mono loads.
SORT Protection Circuitry (Short circuit, Over-voltage, Reverse polarity,
Thermal) Protects amplifier from accidents and undesired operation.
MOSFET Power Supply Provides high efficiency operation.
KickBass Variable bass boost circuit which provides up to 18 dB of boost at 40
Hz.
Built-In Variable Crossover 12 dB High pass or Low pass variable from 50-
200 Hz. Defeatable for full range operation.
High & Low level inputs Allows connection to various sources such as: after-
market stereo, factory radio, DVD Player, Video Cassette Player, etc..
Custom tooled gold plated connectors Assure maximum power transfer
and damping.
SAMS (Stereo And Mono Simultaneously) Amplifier will operate into a bridged
mono load and a stereo load at the same time.
Remote Bass Level Control Dash mounted for maximum control.
(Not included in the KX300.4)
Three Year Warranty When
purchased from and installed by an Authorized
KICKER Dealer.
KX300.4 / KX600.4 / KX800.4

2
With the shroud removed, you now have access to the four mounting holes in
the mounting feet and all wiring connections. Drill 4 holes using a 7/64” drill bit
and use the supplied #8 screws to mount the amplifier.
REMOVE REMOVE
REMOVE
REMOVE
Mounting Instructions
When selecting a location to mount your Kicker amplifier be sure it is struc-
turally sound and that there are no items behind the area that could be dam-
aged by the screws. Check for brake lines, fuel lines, gas tanks, or wiring harness-
es etc.
All amplifiers generate heat under normal operation. Be sure to choose a loca-
tion that allows adequate ventilation for the amplifier. Also consider that the air
temperature inside an automobiles trunk can reach upwards of 140 degrees
fahrenheit. An amplifier mounted here may require additional cooling tactics
such as fans or venting to allow cool operation. If possible, mounting the amp in
the passenger compartment will allow cooler operation.
Remember that the controls on top of the amp will need to be accessible for
adjustment later. Keep this in mind as you choose your amplifier’s mounting
location.
Now that you are ready to mount your amplifier, use the supplied 3mm allen
wrench to remove the amplifier shroud. This will give you access to the mount-
ing holes in the amplifier and all wiring connections.

3
Wiring Instructions
Signal can be input into the amplifier using either the low level RCA input con-
nections or the high level (speaker level) connections. Using the low level RCA
connections is the preferred method. Use the high level inputs only if your head
unit does not have low level RCA type outputs.
The use of twisted pair interconnects is recommended for all installations to
minimize noise. When routing these cables through the automobile, try to keep
them away from factory wiring harnesses and other power wiring. If you need to
cross any of this wiring do so at a 90 degree angle to reduce the potential of
noise problems.
When working with power connections it is always recommended that you dis-
connect the battery to prevent accidents.
The ground should be connected to the amplifier first before making any of
the other connections. This wire should be as short as possible (24 inches or less)
and connected to a paint/corrosion free solid metal area of the car’s chassis. Use
the same gauge wire as recommended for the amplifiers power connection to
the battery. Adding an additional ground wire between the car battery’s negative
post and the car chassis of this same gauge (or larger) is also recommended.
If you ever need to remove the amp from the vehicle after it has been
installed, the ground wire should be the last wire disconnected from the amplifi-
er, just the opposite as when you installed it.
A fuse must be installed within 18 inches of the battery to protect the power
wire feeding your amplifier. This fuse should be of at least the same value used
in the amplifier but no higher than the capacity of the wire. See the chart below
for wire size and fusing recommendations.
Model Fuse Size Wire Size
KX-300.4 40A 8 GA
KX-600.4 80A 4 GA
KX-800.4 120A 2 GA
L R L R
Amp 1 Amp 2
L+ L - R + R - L+ L - R + R -
SOURCE UNIT
BRIDGE BRIDGE
LEFT +
LEFT -
RIGHT -
RIGHT +
LEFT +
LEFT -
RIGHT -
RIGHT +
Amp 2
AMP 1
Amp 1 Amp 2
+ - - + + - - + WARNING-Use Only
High Or Low Level
NOT...Both!!!
OFF HI PAS S LO PASS OFF HI PASS LO PASS
AMP 1 AMP 2
HI-LEVEL INPUT
A
MP 1
AMP 2
REMOTE BASS

4
Remote Bass Level Control
When using AMP 2 as a subwoofer amplifier you have the ability to control the
level of the subs from the driver’s seat. To mount the controller simply screw the
metal bracket to the chosen location, then slide the housing onto the bracket
until it snaps into place. Run the cable from the controller to the appropriate
jack on the amplifier chassis.
System Diagrams
The following diagrams show the most common configurations for your sys-
tem.
Stereo Four Channel Operation
KX amplifiers are capable of operating into a minimum impedence of 2 ohms
per channel in stereo operation.
GROUND
REMOTE
TURN-ON
BATTERY
+12V FUSE
SIGNAL IN AMP 1
SIGNAL IN AMP 2
-+-+
+-
+-
+-
R-
R+
L-
L+
R-
R+
L-
L+
18"
or less
L R L R
Amp 1 Amp 2
L+ L - R + R - L+ L - R + R -
REMOTE
BRIDGE BRIDGE
Amp 2
AMP 1
Amp 1 Amp 2
+ - - + + - - +
OFF HIPASS
LOPASS
OFF HI PASS LO PASS
AMP 1 AMP 2
HI-LEVEL INPUT
REMOTE BASS
LEVEL CONTROL
KX300.4
NOT INCLUDED
PHONE
CABLE
Mounting Surface

5

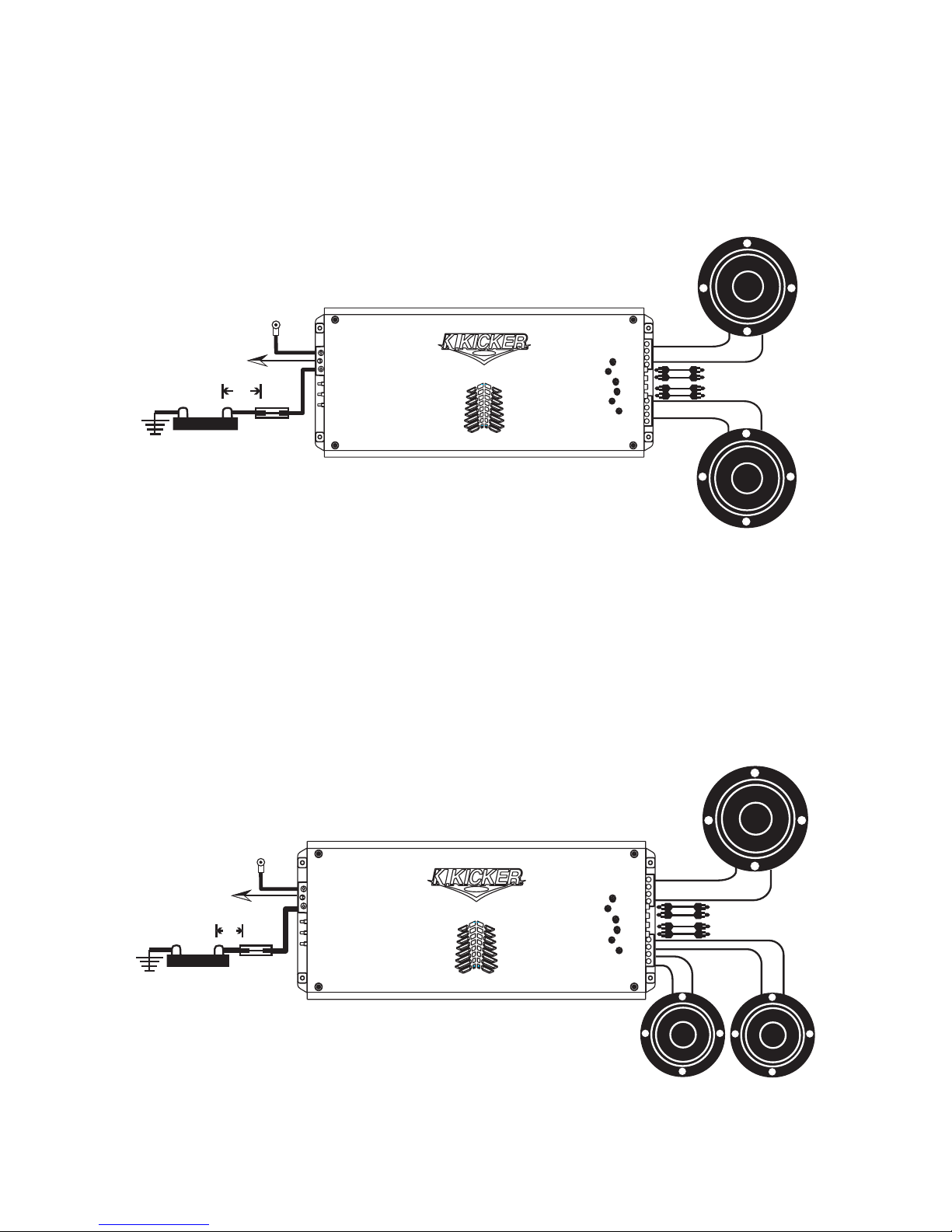

BRIDGED OPERATION (MONO)
KX amplifiers are capable of operating into a minimum impedence of 4 ohms
in Bridged operation.
Stereo And Bridged
KX amplifiers are capable of operating into a minimum impedence of 2 ohms
stereo and 4 ohms bridged operation.
SIGNAL IN AMP 1
SIGNAL IN AMP 2
-+
-
+
R-
R+
L-
L+
R-
R+
L-
L+
GROUND
REMOTE
TURN-ON
BATTERY
+12V FUSE
18"
or less
GROUND
REMOTE
TURN-ON
BATTERY
+12V FUSE
SIGNAL IN AMP 1
SIGNAL IN AMP 2
-+
R-
R+
L-
L+
R-
R+
L-
L+
+-
+-
+-
18"
or less

Adjusting Amplifier Controls
On your Kicker amplifier there are six rotary controls on top and two switches
on the end panel. These controls ensure the reliability and performance of the
amplifier, so they need to be set correctly.
CROSSOVER SWITCHES
NEVER CHHANGE THE CRROSSOVER SWITCHHSETTING WITH THE SYSTEM ON!
The switches located on the end panel next to the RCA jacks are for setting
the internal crossover. In the OFF position the amplifier passes a full range signal
to the speakers. Use the LO positon when connected to a subwoofer. The HI
positon should be selected when connected to any speakers which you do not
want to receive sub-bass information.
BEFORE TURNING ON THE SYSTEM FOR THE FIRST TIME, MAKE SURE THAT
THE SIX ROTARY COONTROLS ON TOP OF THE AMPLIFIER ARE
TURNED FULLY COOUNTER-CLLOCKKWISE!
GAIN CONTROLS
Remember, the gain control is not a volume control, it matches the output of
the head unit to the input level of the amplifier and must be adjusted properly
for best performance. All the way up or down is not necessarily the best.
Turn the head unit up to about 3/4 volume. (eg. If the head unit goes to 30,
turn it to 25.) Next, turn (clockwise) the gain on the amplifier up slowly until you
can hear audible distortion, then turn it down just a little. Adjust AMP 1 first,
then proceed to AMP 2.
Crossover Control
Where you set the crossover is very subjective and can be fine tuned to match
your listening preference or speaker requirements.
Bass Boost
The BASS BOOST control is designed to give you increased output at 40 Hz. The
setting for this control is subjective, however, if you turn it up, you must go
back and adjust the gain control to avoid clipping the amplifier.
0
3
6 9 12
15
18
0 11
50 200
AMP 2
BASS
BOOST
(dB)
AMP 2
GAIN
AMP 2
X-OVER
FREQ. (Hz)
0
3
6 12
15
18
0 11
50 200
AMP 1
BASS
BOOST (dB)
AMP 1
GAIN
AMP 1
X-OVER
FREQ. (Hz)
Amp 2 Bass Boost
0-18 dB @ 40 Hz
Amp 2 Input Gain
Low Level High Level
170mV - 5V & 340mV - 10V
Amp 2 Crossover
50 Hz - 200 Hz 12 dB/Oct
Amp 1 Bass Boost
0-18 dB @ 40 Hz
Amp 1 Input Gain
170mV - 5V & 340mV - 10V
Amp 1 Crossover
50 Hz - 200 Hz 12 dB/Oct
Low Level High Level
6

7
Specifications
Model KX300.4 KX600.4 KX800.4
RMS Power
In Watts, All Channels Driven
@ 13.8V, 4Ω Stereo, 0.085% THD 38 x 4 75 x 4 100 x 4
@ 13.8, 2Ω Stereo, 0.2% THD 75 x 4 150 x 4 200 x 4
@ 13.8, 4Ω Mono, 0.4% THD 150 x 2 300 x 2 400 x 2
Dynamic Power
In Watts, All Channels Driven
@ 14.4V, 4Ω Stereo 60 x 4 120 x 4 175 x 4
@ 14.4V, 2Ω Stereo 75 x 4 150 x 4 215 x 4
@ 14.4V, 4Ω Mono 150 x 2 300 x 2 430 x 2
Length with Shroud 16” 22 1/2” 25 3/4”
(40.64cm) (57.15cm) (65.40cm)
Specifications common to all models
Height::2.5 inches / 6.35 centimeters
Width::10.125 inches / 25.7 centimeters
Length Without Shroud::Subtract 5” / 12.7cm from chart above
Frequency Response::20 Hz - 20 KHz, + 0, -1dB
Input Sensitivity::170 mV - 5 V low level, 340 mV - 10 V high level
Signaal--to--Noise Ratio::>95 dB, a-weighted, re: rated power
Electronic Crossover::Variable high or low pass, 50 - 200 Hz, 12 dB/octave
KickBBass Boost::Variable 0 to +18 dB boost @ 40 Hz

8
Troubleshooting
If your amplifier does not appear to be working, check obvious things first
such as blown fuses, poor or incorrect wiring connections, crossover and gain
controls set incorrectly, etc.
There are two LEDs on the end panel of your Kicker KX series amplifier, one
green and one red. When the green LED is lit this indicates the amplifier is
turned on and no trouble exists. If the green LED turns off and the red LED is lit
this indicates that the protection circuitry (SORT) is engaged.
The power indicator on top of the amplifier which illuminates the model
badge follows the same function as the green LED.
Green LED off,,no output::
With a Volt Ohm Meter (VOM) check::
Ö+12 volt power terminal (should read +12V to +16V).
ÖRemote turn-on terminal (should read +12V to +16V).
ÖGround terminal.
Green LED on,,no output::
ÖCheck RCA connections.
ÖTest speaker outputs with known good speaker.
ÖSubstitute known good source unit.
ÖCheck for signal on RCA cable with VOM meter in AC position.
Red LED on,,no output::
1.) Amp is very hot.
ÖThermal protection is engaged. Check for proper impedance at
speaker terminals. Also check for adequate airflow around amplifier.
2.) Amp shuts down only while vehicle is running.
ÖVoltage protection is engaged. Voltage to the amplifier is not within
the 9-16 volt operating range. Have automobile charging/electrical
system inspected.
3.) Amp will only play at low volume levels.
ÖShort circuit protection is engaged. Check for speaker wires shorted
to each other or the vehicle chassis. Damaged speakers or operating
below minimum impedance will also cause this.
No output from one chaannel::
ÖCheck balance control on head unit.
ÖCheck RCA & speaker connections for that channel.
ÖSwap RCA connections from left to right.
If problem changes sides then you have a bad RCA
cable or source unit problem.
ÖSwap speaker connections from left to right.
If problem changes sides then you have a bad speaker
cable or bad speaker.

9
Alternaator noise (whining sound thaat vaaries with engine RPM):
ÖCheck for damaged RCA cable.
ÖCheck routing of RCA cable.
ÖCheck source unit for good ground.
ÖCheck gain setting, turn down if set too high.
Poor stereo imaage or reduced baass response::
ÖCheck system phasing by turning the balance control from left to
right. If there is more bass output when turned to either side then
check your speaker wiring for proper positive and negative connections.
reverse connections on one channel if necessary.
CAAUTION: When jump staarting the vehicle,,be sure thaat connections maade with
jumper caables are correct..Improper connections caan result in blown amplifier
fuses as well as faailure in other systems in the vehicle..
If you have more questions about the installation and operation of your new
KICKKER
amplifier, see the Authorized
KICKKER
Dealer in your area. You may also
call our Technical Services Line at [phone] for assistance or visit our website
at www.KICKER.com.

10
Notes

• Products purchased from an unauthorized dealer.
• Damage due to improper installation
• Damage caused by exposure to water, excessive
heat, chemical cleaners, and/or UV radiation.
• Damage through negligence, misuse, accident or
abuse. Repeated returns for the same damage may
be considered abuse.
• Freight damage.
• The cost of shipping product to Stillwater
Designs.
HOW LONG WILL IT TAKE?
Stillwater Designs maintains a goal of 24-hour service for all returns. Delays may be incurred if lack of
replacement inventory or parts is encountered.
INTERNATIONAL WARRANTY
Contact your International Stillwater Designs dealer or distributor concerning specific
procedures for your country’s warranty policies.
P.O. Box 459 • Stillwater, Oklahoma 74076 • U.S.A. • 405 624-8510
• Items previously repaired or modified by any
unauthorized repair facility.
• Items returned from unauthorized individuals or
dealers.
• Return shipping on non-defective items.
• Products with tampered or missing barcode
labels.
• Products returned without a Return
Authorization (RA) number.
KICKER drivers are capable of producing sound levels that can permanently
damage your hearing! Turning up a system to a level that has audible distor-
tion is more damaging to your ears than listening to an undistorted system
at the same volume level. The threshold of pain is always an indicator that
the sound level is too loud and may permanently damage your hearing.
PPleaase use common sense when controlling volume!!
WARNING:
March 2002
ELECTRONICS LIMITED WARRANTY
Stillwater Designs warrants this product to be free from defects in material and workmanship
under normal use for a period of three (3) years from date of original purchase when purchased
from and installed by an Authorized KICKER Dealer or one (1) year from date of original purchase
if purchased from and not installed by an Authorized KICKER Dealer. If this product is labeled “B
Stock”, it is warranted for one (1) year from date of purchase, regardless of place of installation. Should
service be necessary under this warranty for any reason due to manufacturing defect or malfunction
during the warranty period, Stillwater Designs will replace or repair (at its discretion) the defective mer-
chandise with equivalent merchandise at no charge. Warranty replacements on “B-Stock” merchandise
may have cosmetic scratches and blemishes. Discontinued products may be replaced with equivalent
products.
This warranty is valid only for the original purchaser and is not extended to owners of the product
subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a
period of the express warranty as provided herein beginning with the date of the original purchase at
retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states
do not allow limitations on implied warranties, therefore these exclusions may not apply to you.
This warranty gives you specific legal rights; however you may have other rights that vary from
state to state.
WWHHAATTTTOODDOOIIFFYYOOUUNNEEEEDDWWAARRRRAANNTTYYOORRSSEERRVVIICEE
Defective merchandise must be returned to your local Authorized Stillwater Designs (Kicker) Dealer
for warranty. Assistance in locating an Authorized Dealer can be obtained by writing or calling Stillwater
Designs direct. You can confirm that a dealer is authorized by asking to see a current authorized dealer
window decal.
If it becomes necessary for you to return defective merchandise, call the Kicker Customer Service
Department at [phone] for a Return Authorization (RA) number. Package all defective items in
the original container or in a package that will prevent shipping damage, and return to
Stillwater Designs, 5021 North Perkins Road, Stillwater, OK 74075
The RA number must be clearly marked on the outside of the package. Return only defective com-
ponents. Non-defective items received will be returned freight collect.
Include a dated proof-of-purchase from an Authorized Dealer. Warranty expiration on items
returned without proof-of-purchase will be determined from the manufacturing date code. Coverage
may be invalidated if this date is greater than 18 months previous to the date item is sent in. Freight
must be prepaid; items received freight collect will be refused.
Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker
Customer Service Department at [phone].
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for which it was designed.
It does not cover:
