Kicker iK350 User manual

lfKICKER®
Authorized KICKER Dealer:
Purchase Date:

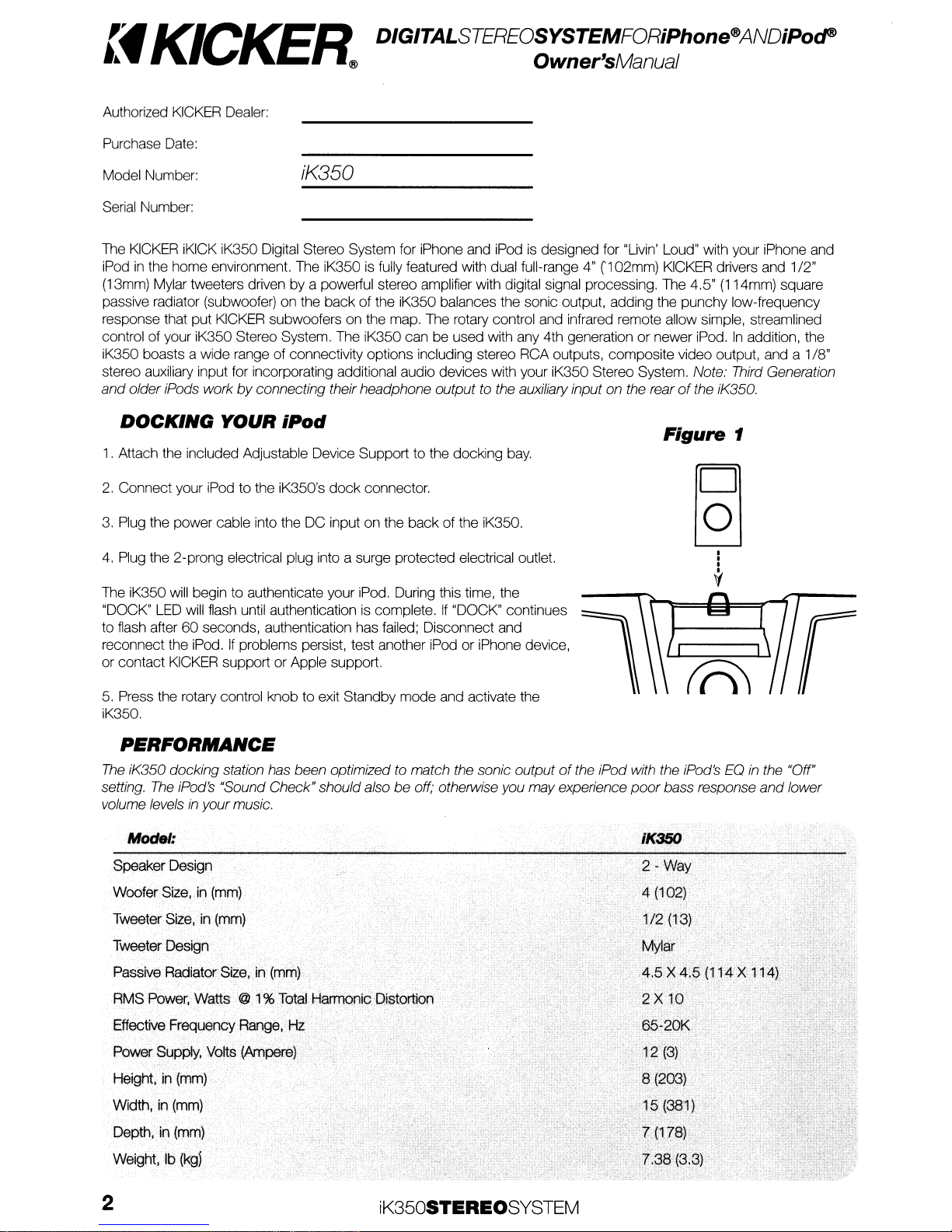

DIGITALSTEREOSYSTEMFORiPhone@ANOiPocF
Owner'sManual
Model Number:
Serial Number:
iK350
The KICKER iKICK iK350 Digital Stereo System for iPhone and iPod is designed for "Livin' Loud" with your iPhone and
iPod
in the home environment. The iK350 is fully featured with dual full-range 4" C102mm) KICKER drivers and 1/2"
(13mm) Mylar tweeters driven by apowerful stereo amplifier with digital signal processing. The 4.5" (114mm) square
passive radiator (subwoofer) on the back of the iK350 balances the sonic output, adding the punchy low-frequency
response that put KICKER subwoofers on the map. The rotary control and infrared remote allow simple, streamlined
control of your iK350 Stereo System. The iK350 can be used with any 4th generation or newer iPod.
In addition, the
iK350 boasts awide range of connectivity options including stereo RCA outputs, composite video output, and a1/8"
stereo auxiliary input for incorporating additional audio devices with your iK350 Stereo System. Note: Third Generation
and olderiPods work by connecting their headphone output to the auxiliary input on the rear of the iK35o.
The iK350 will begin
to authenticate your iPod. During this time, the
"DOCK"
LED will flash until authentication is complete. If "DOCK" continues
to flash after
60 seconds, authentication has failed; Disconnect and
reconnect the iPod.
If problems persist, test another iPod or iPhone device,
or contact KICKER support or Apple support.
DOCKING YOUR iPod
1. Attach the included Adjustable Device Support to the docking bay.
2. Connect your iPod to the iK350's dock connector.
3. Plug the power cable into the DC input on the back of the iK350.
4. Plug the 2-prong electrical plug into asurge protected electrical outlet.
5. Press the rotary control knob to exit Standby mode and activate the
iK350.
PERFORMANCE 1
Figure 1
I
I
~
The iK350 docking station has been optimized to match the sonic output of the iPod with the iPod's EO in the "Off"
setting.
The iPod's "Sound Check" should also be off; otherwise you mayexperience poor bass response and lower
volume levels
in your music.
Model:
Speaker Design
Woofer Size, in (mm)
Tweeter Size, in (mm)
Tweeter Design
Width,
Depth, in (mm)
Weight, Ib
(kg)
2iK350STEREOSYSTEM

LEO Display
-Rotary Control
...~====~
•Magnetic Remote Storage
...
@-
Docking Bay D
\\
....--~~\\ 0
\
...
Figure 2
1/2" (13mm) Mylar
Tweeters
4" (102mm) Full-
Range Drivers
7/8" Stereo
Auxiliary Input
'"
'"
'"
,
DC Power 12 Volts
Transport Handle
/
/
/
I
I
Stereo RCA Outputs
Composite Video Output
Figure 3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all the instructions listed in this manual. Follow all safety and procedural recommendations to prevent
damage to your self, your
KICKER product, or your portable entertainment device.
The iK350 should not be used near water or
in an environment where exposure to liquids is possible. This includes but is
not exclusive to areas where splashing, dripping, leaks, spills, and exposure to rain can occur. Liquid containers should
not
be placed on or near the iK350 Stereo System. The iK350 Stereo System should not be cleaned with liquid cleaners.
Use only adry cloth to clean the iK350. Only use the iK350
in areas with adequate open ventilation allowing at least 4"
of space on
all sides of the iK350. Do not set the iK350 on any surface or cover the iK350 with any object that could
impede the airflow to and from the iK350 Stereo System. The iK350 should not be placed near any source of heat. This
includes but
is not limited to stoves, radiators, heating elements, electronic heat sources, and areas where excessive
solar heat can be generated. Do not install the iK350 near any ftame or place any flammable objects near the device.
The power outlet used to provide power to the iK350 should be accessible at
all times. The polarized 2-prong electrical
plug has awide blade and narrow blade that should
fit into the corresponding wide and narrow receiving connections
of your electrical outlet. Do not force the plug into the outlet.
If the plug provided with the unit does not fit, consult with
an electrician to upgrade the electrical outlet accordingly. The power cord should be situated in away that protects it
from being pinched, walked on, tripped
over, or accidentally pulled from the electrical outlet or the electrical input on the
iK350. Do not
run the cable through doorways or underneath objects that could damage the wire or tear the insulating
material surrounding the wire. Only use the manufacturer supplied power supply with the iK350. We recommend using a
surge protector/power conditioner and unplugging the iK350 during any electrical storms or situations that could cause
voltage fluctuations
in the electrical system. 3

USING THE SYSTEM MENU ROTARY CONTROL
The iK350 Stereo System's rotary control provides an intuitive user interface. The System Menu options listed on the
LED display below are available for adjustment by the rotary control. The rotary control knob is used as apush-button to
power on the iK350 and to scroll through the menus available on the
LED display. Turning the rotary control knob allows
you to adjust the parameters of the selected menu.
Figure 4
Tap the rotary control knob
to scroll through menu
selections.
Tap and hold to
turn the unit off.
II SIBY DOCK AUX lIB
#
#
•
•
•
•-
- - iK350 System Menu
Turn the rotary control to adjust
the System Menu parameters.
After plugging the power supply into the DC input on the back of the iK350, the unit will be in "Standby" mode, as
displayed by the
LED display on the System Menu. Turn the power on by pushing the rotary control button once. When
the power
is on, the "DOCK" LED will be illuminated on the System Menu.
Volume: By default, the iK350 will be in volume control mode. Turn the rotary knob to adjust the volume up or down.
The rotary control will automatically revert to volume control mode after ashort time period
if any other menus have been
selected.
To scroll through the other menus, simply use the rotary control as apush-button Each single button push will take you
from one menu to the next, rotating through TREB>BASS>DOCKI
AUX and back to the volume control.
Treble: To adjust the treble on the iK350, use the rotary control as apush-button to scroll through the menus until the
''IREB'' menu
is displayed on the LED display. Turn the rotary control knob clockwise to increase treble and counter-
clockwise to reduce treble.
Bass:
To adjust the bass level on the iK350, use the rotary control as apush-button to scroll through the menus
until the "BASS" menu
.is displayed on the LED display. Turn the rotary control knob clockwise to increase bass and
counterclockwise to reduce bass.
Input Source (DOCKIAUX): To enable the auxiliary input on the iK350, an external device must be plugged into the
1/8" stereo auxiliary input on the back of the unit. Use the rotary control as apush-button to scroll through the menus
until your current input source (DOCKIAUX) is flashing.
Turn the rotary control clockwise and counter-clockwise to switch
between
AUX and DOCK input. You rnay also enable auxiliary input by using the Mode button on your remote control to
cycle through menus, then pressing the up/down arrows to select your input source.
Standby: In "Standby" mode, the iK350 will be powered down, but your docked iPod will continue to charge as long as
apower source
is plugged into the DC input on the back of the iK350. To enter standby mode simply press and hold the
rotary control button until the unit turns off and "STBY"
is illurninated.
4iK350STEREOSYSTEM

USING THE REMOTE CONTROL
The Infrared Remote Control enables you to control your iPod and access the iK350 System Menu from aconvenient
location. With the fully featured remote control
it is easy to access all of your iPod's music andlor video content.
Figure 5
iK350
@Power On/Off
®Mute On/Off
eChange
Treble, Bass and
mode Input Source options for
the iK350
~ Skip Backward
~ (Hold down to Rewind) ee
8VolumeUp
(j
BVolume Down
@Play/Pause
®Skip Forvvard
~ (Hold down to Fast
Forvvard)
Navigate upward through tile iPod menu directory or
Qincrease values within the iK350 System Menu.
VPress the up arrow while irJ the Input Source Menu to
enable the Aux input.
:e Make selections and enter sub-directories within the !Pod.
CONNECTING EXTERNAL DEVICES
Navigate downward through the iPod menu directory or
~ reduce values within the iK350 System Menu
~ Press the down arrow while In the Input Source Menu to
disable the Aux input
eNavigate toward iPod root directory
To connect an external video display to the iK350, make sure the video output is enabled on your iPod device. Connect
astandard RCA composite video cable from the composite video output on the back of the iK350 to the RCA video
input on your external video display, See Figure
3, This is apass-through connection. If there are any problems with your
external video display, refer to the iPod device manual or the instructions packaged with your external video display.
To connect an external audio device to the iK350, enable Aux-In mode with the rotary or rernote control as described in
the Input Source section on the previous page. Connect your line level device to the 1/8" stereo input on the back of the
iK350. See Figure
3. If the sound is distorted, you may be overdriving the auxiliary input. Try turning down the external
device until the sound
is no longer distorted, Note: 1st -3rd Generation iPods will require the use of the auxiliary input for
audio playback.
To use an external audio device for output, connect the RCA outputs on the back of the iK350 to the Input(s) of your
third-party device. The audio output
is at afixed level and not adjustable with the iK350 volume control. Use your external
audio device to attenuate the input/output level.
5

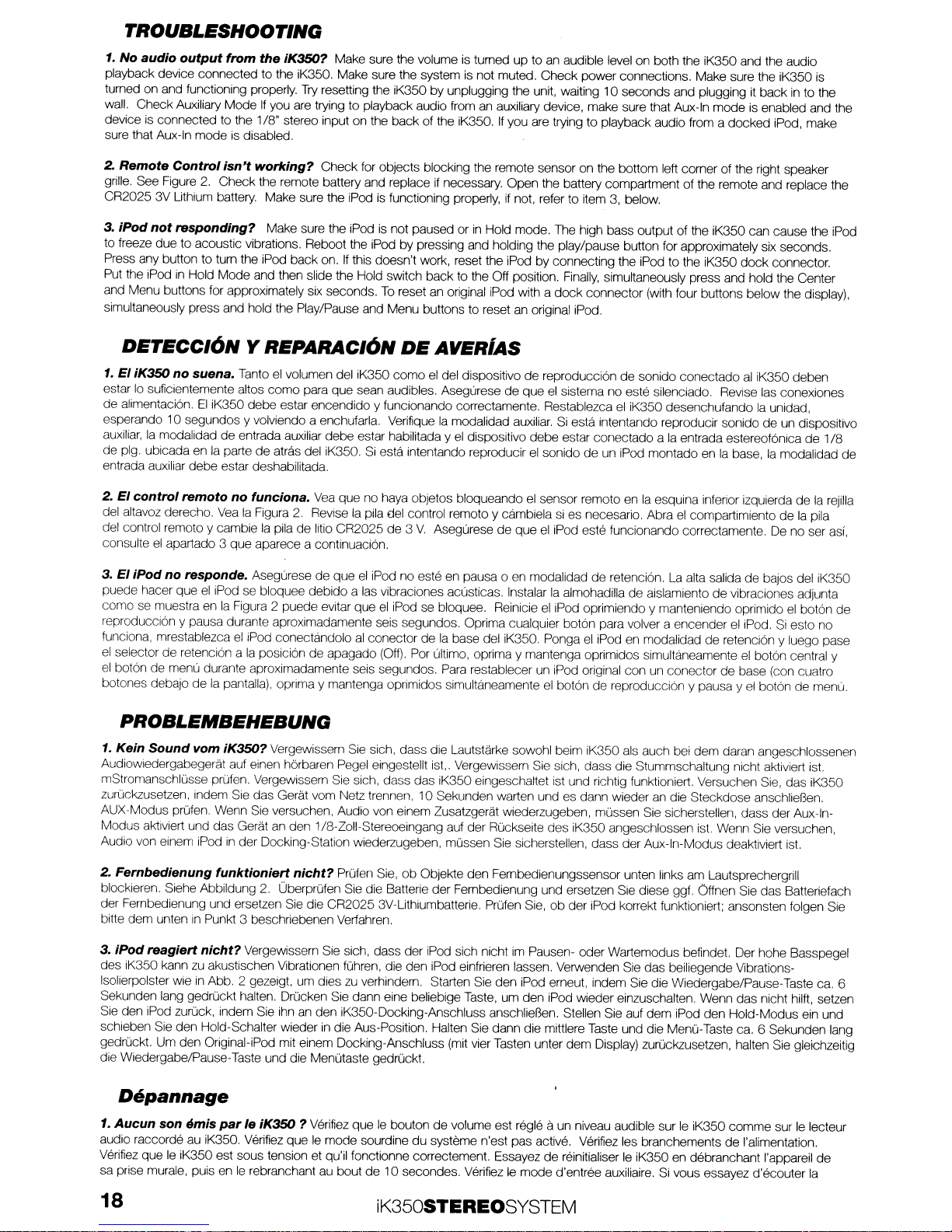

TROUBLESHOOTING
1. No audio output from the iK350? Make sure the volume is tumed up to an audible level on both the iK350 and the audio
playback device connected to the iK350. Make sure the system
is not muted. Check powerconnections. Make sure the iK350 is
tumed on and functioning properly. Try resetting the iK350 by unplugging the unit, waiting 10 seconds and plugging it back in to the
wall. Check Auxiliary Mode
If you are trying to playback audio from an auxiliary device, make sure that Aux-In mode is enabled and the
device
is connected to the 1/8" stereo input on the back of the iK350. If you are trying to playback audio from adocked iPod, make
sure that Aux-In mode IS disabled
2. Remote Control isn't working? Check for objects blocking the remote sensor on the bottom left corner of the right speaker
grille. See Figure
2. Check the rernote battery and replace if necessary. Open the battery compartment of the remote and replace the
CR2025 3V Lithium battery. Make sure the iPod
is functioning properly, if not, refer to itern 3, below.
3. IPod not responding? Make sure the iPod is not paused or in Hold mode. The high bass output of the iK350 can cause the iPod
to freeze due to acoustic vibrations. Reboot the iPod
by pressing and holding the play/pause button for approximately six seconds.
Press any button to turn the iPod back on.
If this doesn't work, reset the iPod by connecting the iPod to the iK350 dock connector.
Put the iPod
in Hold Mode and then slide the Hold switch back to the Off position. Finally, simultaneously press and hold the Center
and Menu buttons for approximately six seconds.
To reset an original iPod with a dock connector (with four buttons below the display),
simultaneously press and hold the PlaylPause and Menu buttons to reset
an original iPod.
DETECC/ON YREPARAC/ON DE AVERiAS
1. EI iK350 no suena. Tanto el volumen del iK350 como el del dispositivo de reproducci6n de sonido conectado al iK350 deben
estar
10 suficientemente altos como para que sean audibles. Asegurese de que el sistema no este silenclado. Revise las conexiones
de alimentacion. EI iK350 debe estar encendido yfuncionando correctamente. Restablezca el iK350 desenchufando la unidad,
esperando 10 segundos yvolviendo aenchufarla. Verifique
la modalidad auxiliar. Si esta intentando reproducir sonido de un dispositivo
auxiliar, la modalidad de entrada auxiliar debe estar habilitada y el dispositivo debe estar conectado a la entrada estereofonica de 1 /8
de pig. ubicada en la parte de atras del iK350. Si esta intentando reproducir el sonido de un iPod montado en la base, la modalidad de
entrada auxiliar debe estar deshabilitada.
2. EI control remoto no funciona. Vea que no haya objetos bloqueando el sensor remoto en la esquina inferior izquierda de la rejilla
del altavoz derecho.
Vea la Figura 2. Revise la pila del control remoto ycambiela si es necesario. Abra el compartimiento de la pila
del control remoto ycambie
la pila de litio CR2025 de 3 V. Asegurese de que el iPod este funcionando correctamente. De no ser as!,
consulte el apartado 3que aparece acontinuacion.
3. EI iPod no responde. Asegurese de que el iPod no este en pausa 0en modalidad de retencion La alta salida de bajos del iK350
puede hacer que
el iPod se bloquee debido alas vibraciones acusticas. Instalar la almohadilla de aislamiento de vibraciones adjunta
como se muestra en
la Figura 2puede evitar que el iPod se bloquee. Reinicie el iPod oprimiendo ymanteniendo oprimido el boton de
reproducci6n ypausa durante aproximadamente seis segundos. Oprima cualquier boton para volver aencender el iPod. Si esto no
funciona, mrestablezca
ellPod conectandolo al conector de la base del iK350. Ponga el iPod en modalidad de retencion yluego pase
el selector de retencion a la posicion de apagado (Off). Por ultimo, oprima ymantenga oprimidos simultaneamente el boton central y
el boton de menu durante aproximadamente seis segundos. Para restablecer un iPod original con un conector de base (con cuatro
botones debajo
de la pantalla), oprirna ymantenga oprimidos simultaneamente el boton de reproduccion ypausa y el boton de menu.
PROBLEMBEHEBUNG
1. Kein Sound vom iK350? Vergewissem Sie sich, dass die Lautstarke sowohl beim iK350 als auch bei dem daran angeschlossenen
Audiowiedergabegerat auf einen h6rbaren Pegel eingestellt ist,. Vergewissern Sie sich, dass die Stummschaltung nicht aktiviert ist.
mStromanschlusse prufen. Vergewissern Sie sich, dass das iK350 eingeschaltet ist und richtig funktioniert. Versuchen Sie, das iK350
zurOckzusetzen, indem Sie das Gerat vom Netz trennen,
10 Sekunden warten und es dann wieder an die Steckdose anschlieBen.
AUX-Modus
prOfen. Wenn Sie versuchen, Audio von einern Zusatzgerat wiederzugeben, mussen Sie sicherstellen, dass der Aux-In-
Modus aktiviert und das Gerat
an den 1/8-Zoll-Stereoeingang auf der Ruckseite des iK350 angeschlossen ist. Wenn Sie versuchen,
Audio von einem iPod
in der Docking-Station wiederzugeben, mussen Sie sicherstellen, dass der Aux-In-Modus deaktiviert ist.
2. Fernbedienung funktioniert nicht? Prufen Sie, ob Objekte den Fernbedienungssensor unten links am Lautsprechergrill
blockieren. Siehe Abbildung
2, Uberprufen Sle die Batterie der Fernbedienung und ersetzen Sle diese ggl. Offnen Sie das Batteriefach
der Fernbedienung und ersetzen Sie die CR2025 3V-Lithiumbatterie.
PrUfen Sie, ob der iPod korrekt funktioniert; ansonsten folgen Sie
bitte dem unten
in Punkt 3beschriebenen Verfahren.
3. iPod reagiert nicht? Vergewissern Sie sich, dass der iPod sich nicht im Pausen- oder Wartemodus befindet. Der hohe Basspegel
des iK350 kann zu akustischen Vibrationen fuhren, die den iPod einfrieren lassen. Verwenden Sie
das beiliegende Vibrations-
Isolierpolster wie in Abb. 2gezeigt, um dies
zu verhindern, Starten Sie den iPod erneut, indem Sie die Wiedergabe/Pause-Taste ca. 6
Sekunden lang gedruckt halten, Drucken Sie dann eine beliebige Taste, um den iPod wieder einzuschalten, Wenn das nicht hilft, setzen
Sie den iPod
zurOck, indem Sie ihn an den iK350-Docking-Anschluss anschlieBen, Stellen Sie auf dem iPod den Hold-Modus ein und
schieben Sie den Hold-Schalter wieder
in die Aus-Position. Halten Sie dann die mlttlere Taste und die Menu-Taste ca. 6Sekunden lang
gedrOckt. Um den Original-iPod mit einem Docking-Anschluss (mit vier Tasten unter dern Display) zurOckzusetzen, halten Sie gleichzeitig
die Wiedergabe/Pause-Taste und die MenUtaste gedrUckt.
Depannage
1. Aucun son emis par Ie iK350 ?Verifiez que Ie bouton de volume est regie aun niveau audible sur Ie iK350 comme sur Ie lecteur
audiO raccorde au iK350. Verifiez que Ie mode sourdine du systeme n'est pas active. Verifiez les branchements de I'alimentation.
Verifiez que
Ie iK350 est sous tension et qu'il fonctionne correctement. Essayez de reinitialiser Ie iK350 en debranchant I'appareil de
sa prise murale, puis en
Ie rebranchant au bout de 10 secondes. Verifiez Ie mode d'entree auxiliaire. Si vous essayez d'ecouter la
18 iK350STEREOSYSTEM

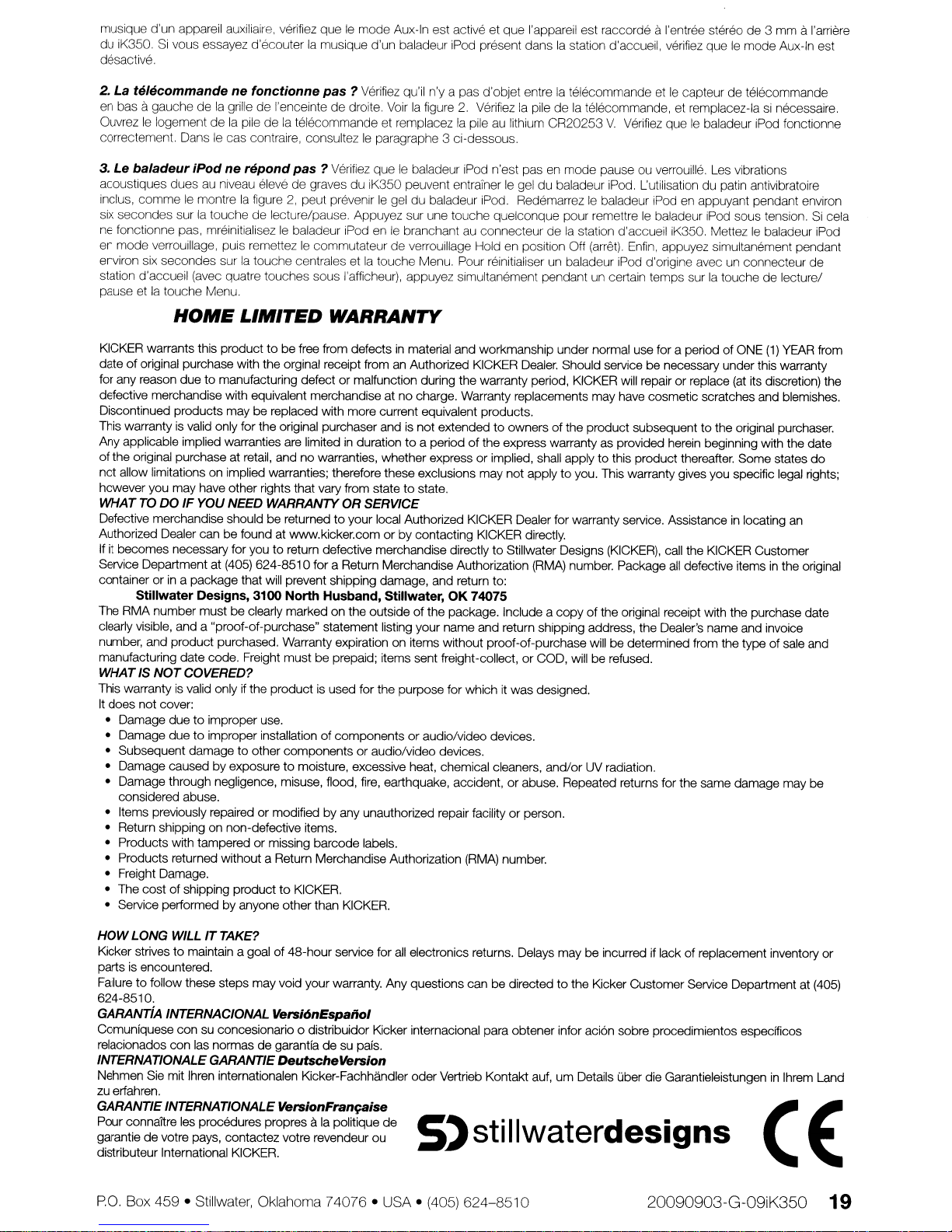

musique d'un appareil auxiliaire, venfiez que Ie mode Aux-In est active et que I'appareil est raccorde aI'entree stereo de 3mm aI'arriere
du iK350, Si vous essayez d'ecouter la musique d'un baladeur iPod present dans la station d'accueil, verifiez que Ie mode Aux-In est
desactive,
2. La te/ecommande ne tonctionne pas? Verifiez qu'il n'y apas d'objet entre la telecommande et Ie capteur de telecommande
en bas agauche
de la grille de I'enceinte de droite, Voir la figure 2, Verifiez la pile de la telecommande, et remplacez-Ia si necessaire,
Ouvrez
Ie logement de la pile de la telecommande et remplacez la pile au lithium CR20253 v. Verifiez que Ie baladeur iPod fonctionne
correctement. Dans
Ie cas contraire, consultez Ie paragraphe 3ci-dessous,
3. Le baladeuriPod ne repond pas? Verifiez que Ie baladeur iPod n'est pas en mode pause ou verrouille, Les vibrations
acoustiques dues au niveau eleve
de graves du iK350 peuvent entraTner Ie gel du baladeur iPod, LU ilisation du patin antivibratoire
inclus,
com me Ie montre la figure 2, peut prevenir Ie gel du baladeur iPod, Redemarrez Ie baladeur iPod en appuyant pendant environ
six
secondes sur la touche de lecture/pause, Appuyez sur une touche quelconque pour remettre Ie baladeur iPod sous tension, Si cela
ne fonctionne pas, mreinitialisez
Ie baladeur iPod en Ie branchant au connecteur de la station d'accueil iK350, Mettez Ie baladeur iPod
en
mode verrouillage, puis remettez Ie commutateur de verrouillage Hold en position Off (arret), Enfin, appuyez simultanement pendant
environ six
secondes sur la touche centrales et la touche Menu, Pour reinitialiser un baladeur iPod d'origine avec un connecteur de
station d'accueil (avec quatre touches sous I'afficheur), appuyez simultanement pendant un certain temps sur la touche de lecture/
pause et
la touche Menu,
HOME LIMITED WARRANTY
KICKER warrants this product to be free from defects in material and workmanship under normal use for aperiod of ONE (1) YEAR from
date
of original purchase with the orginal receipt from an Authorized KICKER Dealer. Should service be necessary under this warranty
for any reason
due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the
defective merchandise with equivalent merchandise at
no charge. Warranty replacements may have cosmetic scratches and blemishes.
Discontinued products may
be replaced with more current equivalent products.
This warranty
is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser.
Any applicable implied warranties are limited
in duration to aperiod of the express warranty as provided herein beginning with the date
of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do
not allow limitations on implied warranties; therefore these exclusions may not apply to you. This warranty gives you specific legal rights;
however you may have other rights that vary from state
to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Defective merchandise should be returned to your local Authorized KICKER Dealer for warranty service. Assistance in locating an
Authorized Dealer can be found at www.kicker.com or by contacting KICKER directly.
If
it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer
Service Department at [phone] for aReturn Merchandise Authorization (RMA) number. Package
all defective items in the original
container
or in apackage that will prevent shipping damage, and return to:
Stillwater Designs, 3100 North Husband, Stillwater, OK 74075
The RMA number must be clearly marked on the outside of the package. Include a copy of the original receipt with the purchase date
clearly visible, and a"proof-of-purchase" statement listing your name and return shipping address, the Dealer's name and invoice
number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and
manufacturing date code. Freight must
be prepaid; items sent freight-collect, or COD, will be refused.
WHATIS NOT COVERED?
This warranty is valid only if the product is used for the purpose for which it was designed.
It does not cover:
•Damage due
to improper use.
•Damage
due to improper installation of components or audio/video devices.
•Subsequent damage
to other components or audio/video devices.
•Damage caused by exposure
to moisture, excessive heat, chemical cleaners. and/or UV radiation.
•Damage through negligence, misuse, flood, fire, earthquake, accident, or abuse. Repeated returns for the same damage may
be
considered abuse.
•Items previously repaired or modified by any unauthorized repair facility or person.
•Return shipping on non-defective items.
•Products with tampered
or missing barcode labels.
•Products returned without aReturn Merchandise Authorization (RMA) number.
•Freight Damage.
•The
cost of shipping product to KICKER.
•Service performed by anyone other than KICKER.
«(
S) sti Ilwaterdesigns
HOW LONG WILL IT TAKE?
Kicker strives to maintain agoal of 48-hour service for all electronics returns. Delays may be incurred if lack of replacement inventory or
parts is encountered.
Failure
to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service Department at (405)
624-8510.
GARANTiA INTERNACIONAL Versi6nEspaiioi
Comuniquese con su concesionario 0distribuidor Kicker internacional para obtener infor acion sobre procedimientos especificos
relacionados con las norrnas
de garantia de su pafs.
INTERNATfONALE GARANT IE DeutscheVersion
Nehmen Sie mit Ihren internationalen Kicker-Fachhandler oder Vertrieb Kontakt auf, um Details uber die Garantieleistungen in Ihrem Land
zu erfahren.
GARANTfE INTERNATIONALE VersionFranfaise
Pour conna1tre les procedures propres a la politique de
garantie de votre pays, contactez votre revendeur ou
distributeur International KICKER.
P,O, Box 459 •Stillwater, Oklahoma 74076 • USA. [phone]
20090903-G-09iK350 19
