KID MOTORZ 1700 User manual

1700
1701
1702
MODEL NO.
Contents, colors and decorations may vary from those shown.
Please read entire manual before starting assembly and keep this
manual along with your purchase receipt for future reference.
To reduce the risk of injury, adult
supervision is required. Never use on road
ways, near motor vehicles, on or near
steep inclines or steps, swimming pools or
other bodies of water. Always wear shoes,
and never allow more than one rider.
CHOKING HAZARD-Small parts.
Not for children under 3 years.
Screws contain potentially
hazardous sharp points or
sharp edges. Adult assembly
required.
Toy must be assembled by adult before use.
WARNING:WARNING:
WARNING:
CAUTION

You must charge your battery
for 12 hours before you use your
vehicle for the first time.
Remember to...
Charge the battery immediately after each use.
Charge the battery at least once a month during storage,
even if the vehicle has not been used.
The battery will be permanently damaged and void your warranty if you fail to follow the
instructions. Please refer to the Battery Care Section in this manual for more information.
(The warranty and customer service contact in this manual only apply in the
United States and Canada.)
All NPL®vehicles are covered by a ninety day warranty against defects in materials
or workmanship from the date of purchasing at authorized retailer. The warranty
covers the NPL®vehicle which has been used under normal circumstances, solely for
the purpose for which it was intended and has been given proper care and
maintenance. The warranty does not cover damage cause by the customer, damage
which results from normal wear and tear or from alterations made by the customer, or
damage caused by use for an unintended purpose. Shipping and handling are not
covered by this warranty.
Please keep the original purchase receipt for any warranty claims, and inspect the
product upon purchase for any defects or missing parts.
We are here to help -
• For parts, please visit: www.funcreation.net
• For Customer Service, please email us: [email protected]
• Or call us: 1-909-643-9359
2
Important

Table of Contents
Important Information
• Your new vehicle requires adult assembly. Please set aside at least 60 minutes for assembly.
• You must charge your battery for 12 hours before you use your vehicle for the first time.
We recommend that you start charging your battery before beginning assembly.
Please see Battery charging beginning on page 6 for detailed instructions.
• Read this manual carefully for important safety information and operating instructions before using your
vehicle. Keep these instructions for future reference as they contain important information.
• Do not operate on grass.
• This vehicle is designed for use on: concrete, asphalt or other hard surfaces; on generally level terrain;
by children ages 3 and up.
• Instruct the children on operation and safe driving rules before they take their first drive:
- always sit in the seat.
- always wear shoes.
- only one rider at a time.
- do not place hands, feet or any part of the body, clothing or other articles near moving parts while the
vehicle is in operation.
- do not allow other children near the car when driving.
• Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors.
• NPL®will not be responsible for damage to the floor if the vehicle is used indoors.
• To prevent damaging the motors and gears, do not tow anything behind the vehicle or overload it. Do not
exceed the maximum weight capacity of 110 lbs. (50 kg).
• If you have any questions about your KID MOTORZ vehicle, please call our service lines at
1-909-643-9359 from 9 AM to 5 PM (PST) Monday through Friday. Trained customer service
representatives are available to take your call.
• Our service centers will repair or replace parts under warranty at no extra charge, and can perform
non-warranty repairs for a minimal charge.
(The warranty and customer service contact in this manual only apply in the United States and Canada.)
Limited Warranty .................................................................................................. 2
Important Information ........................................................................................... 3
Warning ................................................................................................................ 4
Battery Warning.................................................................................................... 5
Battery Charging .................................................................................................. 6
Battery Care and Disposal ................................................................................... 7
Parts List .............................................................................................................. 8

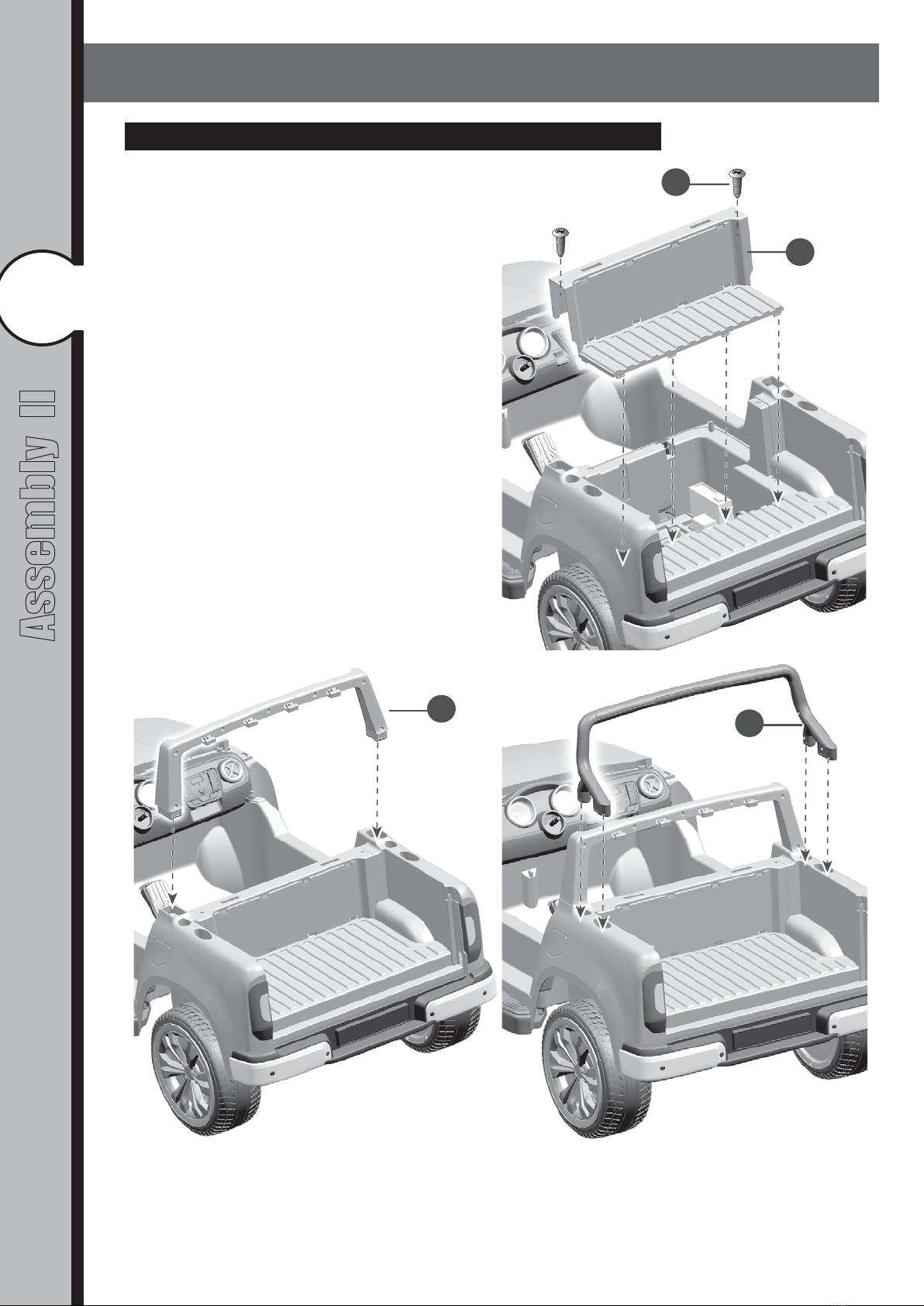

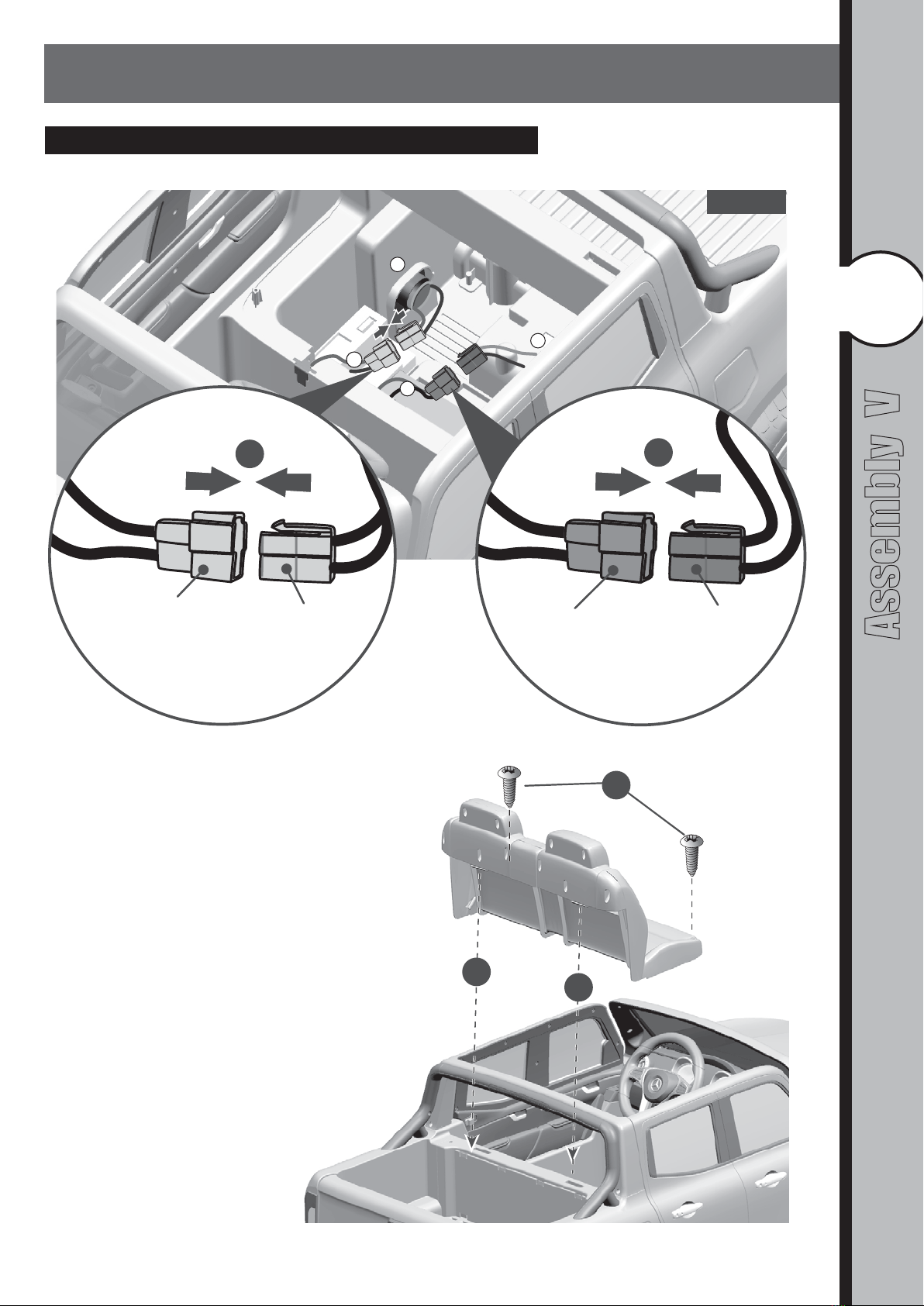

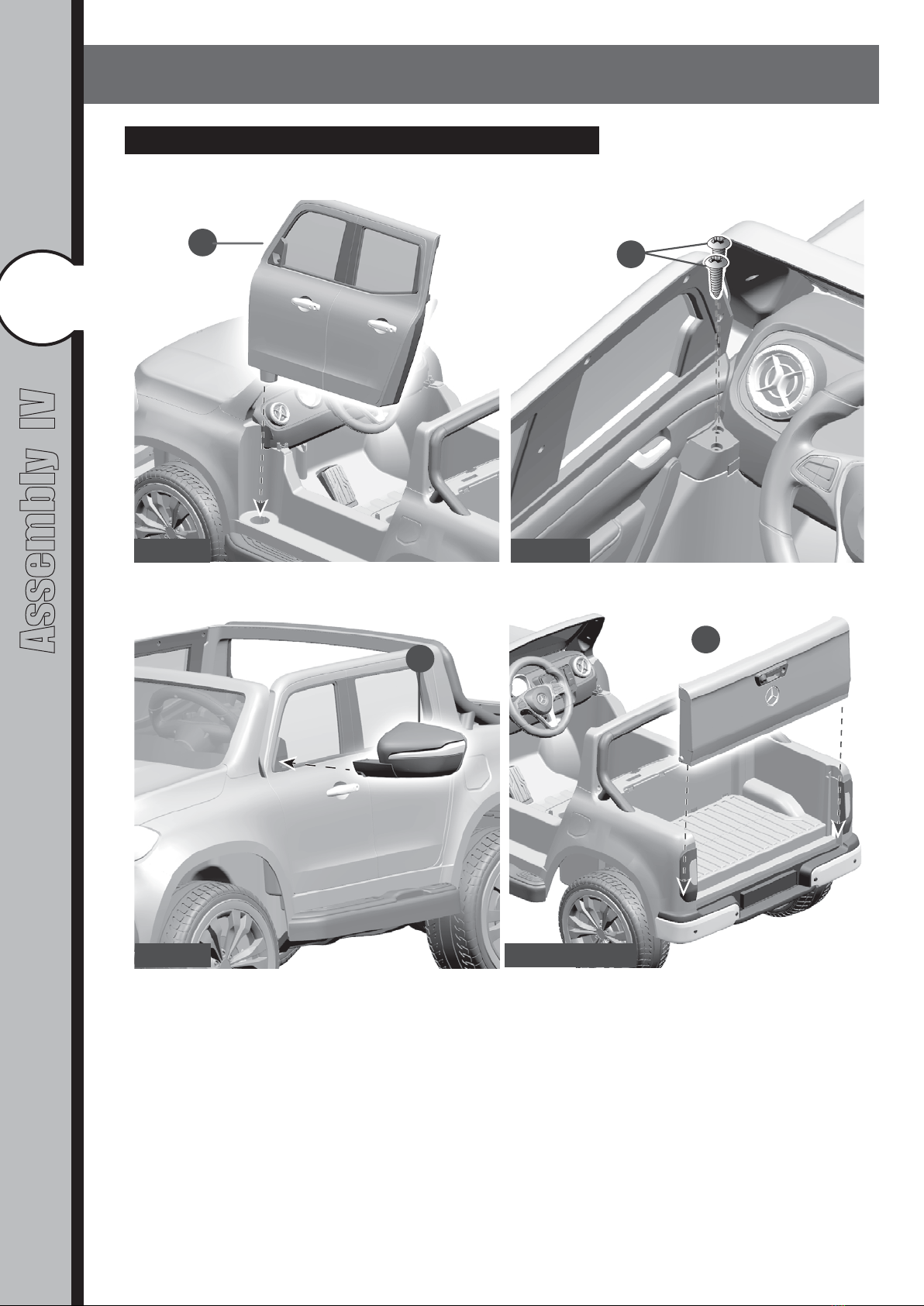

Assembly........................................................................................................ 9-13
Operating your Vehicle ................................................................................. 14-15
Trouble Shooting .......................................................................................... 16-18
3
Important Information

Warning
To Prevent Serious Injuries
●This product is intended for use by children
ages 3 and up, and is not intended for children
under 3 years of age due to lack of ability to
operate safely.
●Maximum weight 110 lbs (50 kg). Only one rider
at a time.
●Do not leave children unattended. Adult
supervision required.
●This package contains small parts. Keep away
from the children until assembled.
●Read manual for detailed safety information
prior to use.
●Inspect product at regular intervals for wear or
loose hardware and tighten as required.
Remove from service if any abnormal
conditions such as cracks or breaks exist.
●Check all coverings regularly to make sure they
are in place.
●Batteries can fall out and injure a child if the
vehicle tips over. Always use the battery cover.
●When the temperature falls below 0°F (-18°C),
outdoor use of this product is not
recommended.
●In extreme cold, plastic materials might lose
resilience and may become brittle and crack
upon impact. Store in a warmer and protected
place.
●Do not operate the vehicle outdoors if it is
raining. Keep it in a dry area when not in use.
●Disconnect the battery power supply when the
vehicle is not in use to prevent the children
driving the car without adult supervision.
●Always make sure the seat is securely attached.
●Only use the charger specied by manufacturer.
●The charger and battery are not toys and must
be regularly examined for damage to the cord,
plug, enclosure and other parts. In the event of
damage, the damage or worn part must not be
used until replaced.
●Never modify the electrical system. Use of the
wrong type battery or charger could cause a re
or explosion.
●Battery compartment and area under seat are
not storage areas. Storing other articles may
create a re hazard. Do not store any articles in
or near motor compartment.
Safe Driving Rules
●ADULT SUPERVISION REQUIRED. MAKE SURE
CHILDREN KNOW AND FOLLOW THESE RULES
FOR SAFE DRIVING.
●Restrict children to safe riding areas:
■Away from swimming pools and other bodies
of water to prevent drowning.
■Level ground to prevent tip overs and
unintended downhill motion.
■Away from steps, hills, driveways, roads and
alleys.
●Teach and learn the safety rst:
Although most children can master the physical
driving skills to control the vehicles, they do not
have the mature judgment skills. Never let a child
drive at any time without adult supervision, and
take the time to carefully evaluate child's skill levels
and abilities to operate the vehicle safely. Children
can not always recognize the hazards even after
instruction. So teach appropriate safety rules
before allowing any child to operate vehicle, and
remember that THERE IS NO SAFE SUBSTITUTE
FOR DIRECT ADULT SUPERVISION.
●Riding rules :
■Always sit on the seat and wear shoes.
■Only one rider at a time.
■Do not operate in the street or near moving
vehicles.
■Do not operate near bodies of water,
obstructions or drop-os.
■Do not operate on sand, dirt or gravel.
■Do not operate in the dark. Unexpected
obstacles could cause an accident.
■Do not operate on inclines or steep slopes.
■Do not operate near ammable vapors (e.g.
gasoline, paint thinner, acetone, liquid wax,
etc.) Using the vehicle near ammable liquids
or vapors could cause an explosion or re.
■Do not place anything near moving parts such
as motors, gears or wheels. Rotating parts can
snag hair, ngers, etc., which may cause serious
injury.
4
Warning

Battery Warning
Only use the battery specified by
manufacturer.
Only use the charger specified by
manufacturer.
Only use the charger in dry locations.
KID MOTORZ 12 volt battery is equipped with a
built-in thermal fuse. The thermal fuse is a
self-resetting safety device which automatically
trips and shuts down operation of the vehicle if the
vehicle is overloaded or the driving conditions too
severe. Once a fuse has tripped it will automatically
reset itself after approximately 10 seconds and
allow the vehicle to resume normal operations.
To avoid repeated automatic shut downs, do not
overload the vehicle by exceeding the 110 lbs. (50
kg) maximum weight capacity or by towing
anything behind the vehicle. Avoid severe driving
conditions, such as driving up very steep slopes or
running into fixed objects, which can cause the
wheels to stop spinning while power is still being
supplied to the motors.
If a thermal fuse in a battery continually trips under
normal driving conditions, please contact our
Service Center at 1-909-643-9359.
(The warranty and phone number only apply in the
United States and Canada.)
- Never modify the electrical system.
Alterations could cause a fire resulting in
serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting in
serious injury.
- Use only components provided with
products.
- Use other than provided could cause
overheating, fire or explosion.
12
5
Battery Warning

Battery Charging
• Plug the charger port into the input socket. (on the dash)
• The POWER SWITCH must be turned in OFF position when charging.
• Plug the charger into a standard wall outlet.
• Only use the NPL®12 volt charger to charge your NPL®12 volt battery.
• Note: if power flow to the wall outlet is controlled by a switch, make sure the switch is "ON".
• Before first-time use, charge the battery for at least 12 hours. Never charge the battery longer than
20 hours.
• Recharge the battery for at least 8-12 hours after each use of your vehicle.
• Do not charge the battery longer than 20 hours.
• Do not charge or store battery upside down. Charging produces explosive gases. Charge away
from flames, sparks and lit cigarettes. Charge in a well ventilated area.
• The power indicator on the charger allows you to see that there is power from the wall outlet.
• Once the battery is charged, disconnect the battery connector from the charger connector. Unplug
the charger from the wall outlet. The battery is now ready to be installed in your vehicle. Please see
the following Battery Installation Section for detailed instructions on installing your vehicle.
WARNING!
USB
interface
TF card
slot Charge input
AUX
input
6
Battery Charging
• Non-rechargeable batteries are not to be recharged.
• Make sure the charger connector is matching with the
battery connector.
• Make sure the brand, voltage and frequency of the
charger are in accordance with the wall outlet.
• Batteries are to be inserted with the correct polarity.
• The supply terminals are not to be short circuited.
CAUTION

Battery Care and Disposal
Disposal
• This ride on contains is a sealed lead-acid battery. It
must be recycled or disposed of it in an environmentally
sound manner.
• Never dispose your battery in the regular, household
trash. The incineration, landfilling or mixing of sealed
lead-acid batteries with household trash is prohibited by
law in most areas.
• To get a replacement battery, please contact at
1-909-643-9359 .
• Always remove exhausted batteries from your toy.
• Dispose of dead batteries properly. Never burn or bury
them.
• Do not dispose of a lead-acid battery in a fire. The
battery may explode or leak.
• Return exhausted batteries to a federal or state
approved lead-acid battery recycler, such as a KID
MOTORZ authorized service center, or a local seller of
automotive batteries.
• For the service center, please call at 1-909-643-9359.
Contact your local waste management officials for other
information regarding the environmentally sound
collection, recycling and disposal of lead-acid batteries.
If you live in the State of Florida or Minnesota, it is
prohibited by law for anyone to throw away lead-acid
batteries in the municipal waste stream.
(The warranty and customer service contact in this
manual only apply in the United States and Canada.)
Care
• If a battery leak develops, avoid contact with the
leaking acid and place the damaged battery in a
plastics sealed bag.
• If acid comes in contact with skin or eyes, flush with
cool water for at least 15 minutes and call a physician
immediately.
• If acid is internally ingested, give water, milk of
magnesia or egg whites immediately. Never give
emetics or induce vomiting. Call a physician
immediately.
• Charge a new battery for at least 12 hours before first
use.
• Never charge the battery longer than 20 hours.
• Overcharging or undercharging the battery may shorten
battery life and decrease vehicle running time.
• After the first charge, recharge the battery for at least
8-12 hours after each use. Never charge the battery
longer than 20 hours. Charge the battery after each
use, regardless of how long the vehicle was used.
• The battery must be upright while charging.
• Do not allow the battery to run down completely before
charging.
• Charge the battery before storing the vehicle.
• Charge the battery at least once per month, even if the
vehicle has not been used.
• Leaving the battery in a discharged condition will ruin it.
• If the vehicle will be stored for more than two months,
be sure to disconnect the motor harness from the
battery.
• Do not store the battery in temperatures above 75°F or
below-10°F.
• Only use 12V battery specified by manufacturer.
• Prevent the battery from moving freely inside the
battery compartment. Make sure all screws for battery
cover are tighten.
• Examine the battery, charger and its connector for
excessive wear or damage each time you charge the
battery. If damage is detected, do not use the charger
or the battery until you have replaced the worn or
damaged part.
• Remember to remove an exhausted battery from the
vehicle.
• Battery leakage and corrosion can damage the vehicle.
TO PROLONG BATTERY LIFE, YOU MUST RECHARGE THE
BATTERY AFTER EACH USE. YOU MUST ALSO CHARGE YOUR
BATTERY IF IT HAS NOT BEEN USED FOR 30 DAYS OR MORE.
Battery Care and Disposal
7

Parts List
20
1
19
2
8
15
916
17
18
9
910
11
3
7
4
4
4
13
14
5
5
6
6
12
19
8
Tailer board
Tail gate
Hex nut driver
Hex nut driver
Parts List
8

Assembly
Children can be harmed by small parts, sharp edges and sharp points in the
vehicles unassembled state, or by electrical items. Care should be taken in
unpacking and assembling the vehicle. Children should not handle parts,
including the battery, or help in the assembly of the vehicle.
1
2
345
Rear bottom view
Attach the Wheels
2
3
4
1
Front bottom view
Turn the vehicle body upside down.
1. Side the gear box onto the rear axle (“R” labeled gear box should be fit the “R” side of
vehicle, and “L” labeled gear box should be fit the “L” side of vehicle). and keep the
connector on the gear box pass through the hole on the vehicle.
2. Match a driving wheel into the gear box through the rear axle.
3. Slide a Φ12 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a hex nut driver.
Repeat for the other rear wheel.
Hint: An extra hex nut driver has been provided to hold the lock nut on the other side of the
rear axle while tightening the lock nut on the other side.
5. “Snap” the hubcap to both the driving wheel.
1. Insert a driving wheel onto the front axle.
2. Slide in a Φ12 washer to the front axle.
3. Tighten a lock nut to the end of the front axle with a hex nut driver.
4. “Snap” the hubcap to the driving wheel.
Repeat for the other front wheel.
Assembly I
9

Assembly
2
4
1
3
Rear view
Attach the Trailer Board, Rear Support & Roll Bar
Turn the vehicle body over.
1. Fit the tabs on the tailer board into the slots
of the pick up bed.
2. Fasten the tailer board with two Φ4x12
screws.
3. Fit the tabs on the rear support into the slots
on the vehicle and push until you hear it
“click” into place.
4. Fit the tabs on the roll bar into the slots on
the vehicle side panels and push until you
hear it “click” into place.
Assembly II
10

Assembly
1
3
4
5
2
Attach the Steering Wheel & Windshield
1. Plug the sound unit connector from the steering wheel into the connector from the
vehicle body.
2. Fit the steering wheel to the end of the steering shaft.
3. Line up the holes on the steering wheel with the holes on the steering shaft, insert the
M5x40 machine screw.
4. Fasten a nut on the opposite end of the screw with a screwdriver.
5. Insert the tabs on the windshield into the slots on the vehicle, push until you hear “click”
into place.
Assembly III
11

Assembly
3
2
1
4
Side view
Side view Rear view
Door inside view
Attach the Wing Mirror, trailer gate & doors
1. Insert the shaft of the door to the slot of the seat of the vehicle.
2. Fasten the door holder with two Φ4x12 screws to the vehicle body.
Repeat for the other door.
3. Fit the tabs on the wing mirror into hole on door, push until you hear it
“click” into place. Repeat for the other wing mirror.
4. Fit the tail gate to the rear of vehicle.
Assembly IV
12

Assembly
2
33
4
Top view
Connect the Power Supply & Attach the Seat
1. Plug the motor connector to the vehicle body
connectors.
a. Plug the vehicle body connector which
labeled with “R” to the motor connector
which placed into the right side of the
vehicle with a sticker showing “R”.
b. Repeat the motor connection at the left
side with the plug and vehicle body
labeled with “L”
2. Plug the battery connector into the vehicle
control board.
3. Insert the tabs on the back of seat into the
slots on tailer board.
4. Fasten the seat with two Φ4x12 screws.
Motor
connector
Vehicle
control board
connector
1
Motor
connector
Vehicle
control board
connector
R
L
L
R
Assembly V
13

Operating Your Vehicle
1
2 3
IMPORTANT!
1. Foot pedal: • To move the vehicle, press the pedal down.
• To brake or slow down, release pressure
from the pedal.
2. Horn button:
Press for horn playing
Long press for –volume.
3. Next / Increase volume button:
Long press for + volume.
A. Power Switch: Press it to power on the vehicle,
long press it for 3 seconds to power off.
B. Forward/Reverse switch:
Changes the direction that vehicle moves from
forward to reverse.
The vehicle equipped with 3 speeds in forward: high speed / normal speed / low speed.
C. Display screen: It displays the power level of the battery when the vehicle stops. When the
numerical value is less than 12, recharge the battery please.
D. Lights button: Turns the lights on and off.
E. Play / Pause
F. Previous / decrease volume
Long press for –volume.
G. Next / Increase volume
Long press for +volume.
H. Rocking mode
I. USB interface: Allow the audio from your portable device to be played through the vehicle
speakers. MP3 format ONLY.
J. 3.5mm AUX input: Allow the audio from your portable music player or phone to be played
through the vehicle speakers. MP3 format ONLY.
K. Sound effect
L. Change the audio input from the FM radio, USB, TF card, AUX input or Bluetooth. Under the
FM radio mode, long press button E (play/pause) for radio searching. When your phone is
connected to the product with bluetooth, the product could answer the call through the
microphone inside the dash.
M.TF card slot.
N. Charge input.
Operating Your Vehicle I
14

Operating Your Vehicle
1
Rear bottom view
Using the Pull Handle
1. Flip the pull handle out. The pull handle is under the tailer gate.
2. You may move the ride-on by pulling as the picture shown.
Operating Your Vehicle II
15

Trouble Shooting
IMPORTANT! If you experience a problem with your vehicle, rst check the Problems and Solutions
Guide below. If you still experience a problem, please contact our Service Center, at 1-909-643-9359
from 9 AM to 5 PM (PST) Monday through Friday. Or email us [e-mail] or
visit us www.funcreation.net for assistance and information from our trained technical staff. (The
warranty and customer service contact in this manual only apply in the United States and Canada.)
Circuit breaker may "trip" and stop the vehicle if it is overloaded or
the driving conditions too severe. The breaker will automatically
reset after approximately 10 seconds, and the vehicle will operate
normally. To avoid repeated automatic shut downs, do not overload
the vehicle by exceeding the weight limited of 110 lbs (50 kg). Or
by towing anything behind the vehicle. Do not drive up hills or run
into fixed objects, which can cause the wheels to stop spinning
while power is still being supplied to the motors. If breaker
continually trips, please contact our Service Center.
Check all wires and connectors. Make sure that the motor harness
connector is plugged in tightly to the battery, and that there are no
loose wires around the motor.
An old or improperly cared battery may be dead. If you are unsure
whether it is dead or not, you can have it tested at our Service
Center.
A new battery should have been charged for at least 12 hours
before using the vehicle for the first time. After that, it must be
recharge the battery for at least 8-12 hours after each use. Never
charge longer than 20 hours. Check all connectors; make sure the
charger is plugged into the wall outlet. Make sure the power flow to
the outlet is on.
You must have a volt meter in order to tell whether the charger is
working or not. If you think there maybe a problem with the charger,
take it to the our Service Center where they will test it for you.
When exposed to water or moisture, switches can become corroded,
or can jam due to loose dirt, sand or gravel.
Please contact our Service Center for diagnosis and repair.
Check all wires and connectors. Make sure that the motor
harness connector is plugged into the battery tightly, and that
there are no loose wires around the motor.
Circuit breaker may "trip" and stop the vehicle if it is overloaded or
the driving conditions too severe. The breaker will automatically
reset after approximately 10 seconds, and the vehicle will operate
normally. To avoid repeated automatic shutdowns, do not
overload the vehicle by exceeding the weight limited of 110 lbs
(50 kg), or by towing anything behind the vehicle. Do not drive
uphill or run into fixed objects, which can cause the wheels to stop
spinning while power is still being supplied to the motors. If
breaker continually trips, please contact our Service Center.
Trouble Shooting I
16

Trouble Shooting
A new battery should have been charged for at least 12
hours before using the vehicle for the first time. After that,
it must be recharged the battery for at least 8-12 hours after
each use. Never charge longer than 20 hours. Check all
connectors; make sure the charger is plugged into the wall
outlet. Make sure the power flow to the outlet is on.
Never charge battery longer than 20 hours. If you think
the battery maybe damage due to overcharging, please
contact our Service Center for testing.
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace the battery
with a new KID MOTORZ 12 volt rechargeable battery.
Do not substitute parts. Please contact our Service Center
to get a replacement battery.
A new battery should have been charged for at least 12
hours before using the vehicle for the first time. After that,
it must be recharge the battery for at least 8-12 hours after
each use. Never charge longer than 20 hours. Check all
connectors; make sure the charger is plugged into the wall
outlet. Make sure the power flow to the outlet is on.
Be sure to charge the battery after each use.
Even with proper care, a rechargeable battery does not
last forever. Average battery life is 1 to 3 years depending
on vehicle use and use conditions. Replace the battery
with a new KID MOTORZ 12 volt rechargeable battery.
Do not substitute parts. To get a replacement battery,
please contact our Service Center.
Allow only 1 rider at a time, follow the 110 lbs (50 kg)
weight capacity and don't tow anything behind the vehicle.
Use only on a generally level ground.
It is possible that only one rear wheel may spin when both
rear wheels are raised off the ground and the vehicle is in
low speed. This does not necessarily indicate a problem.
Check for proper operation of the drive system by raising
the rear wheels off the ground and pressing the foot pedal.
If only one rear wheel spins, carefully press your hand on
the spinning wheel to slow it down. The other rear wheel
should begin to spin. If the other rear wheel does not begin
to spin, there may be a problem with the vehicle. Please
contact our Service Center.
Trouble Shooting II
17

Trouble Shooting
Trouble Shooting III
18
No action required.
No action required. If the battery does not make noise
while charging. It does not mean it isn't accepting the
charging.
Please contact our Service Center for diagnosis
and repair.
Please contact our Service Center for diagnosis
and repair.
Please contact our Service Center for diagnosis
and repair.
Check all wires around the motors and all connectors
to make sure they are tight.
Check all wires around the motors and all connectors
to make sure they are tight.
If, after reviewing the Problems and Solutions Guide, the vehicle still fails to
operate, please contact our Service Center at 1-909-643-9359
Note! For faster service when calling Consumer Relations, completely charge
the battery before calling and have the following available by the phone:
Vehicle
Vehicle model number
Vehicle production run number
(The warranty and customer service contact in this manual only apply in the
United States and Canada.)
When the acceleration pedal
is pressed, the vehicle won’t
run without a pust

12V BATTERY OPERATED RIDE ON
