Kidco G10 User manual

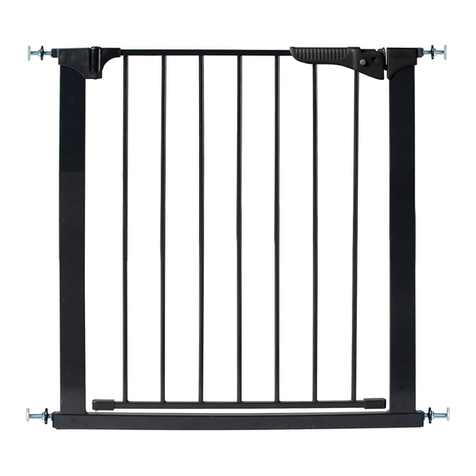

Gateway Model G1 0 for openings 28” to 34”
Optional 6” Extension (Model G6) available for openings 34” to 40”
Optional 12” Extension (Model G 12) available for openings 40” to 46”
Only one extension recommended per gate
User Guide

FOLLOW THESE
INSTRUCTIONS
CAREFULLY AND
KEEP THEM FOR
FUTURE
REFERENCE
This gate is designed for children from 6
months to 36 months. Since each child’s
skills develop at different ages, these age
parameters should be monitored against
your own child’s development.
The gate must be installed in a structurally
sound opening. Never install between two
railings or stair posts.
Ensure mounting surface (wall, doorframe,
stair post etc.) is strong, rigid and is smooth,
clean and grease free. If mounting to brick,
dry wall or other surfaces, an optional gate
installation kit, wooden board mounted to the
surface or additional hardware may be
necessary to provide a solid, smooth surface.
When mounting gate to a stair post, handle
must always be on opposite side of stair
post, next to wall.
Generally, pressure mounted gates are not
recommended for use at the top of the stairs.
However, the Gateway’s advanced walk-
through design makes it possible for it to be
used in this application when these instruc-
tions are followed carefully.
0 Intended for use with children
a
from 6 months through 36
months. *
l Check the stability of the gate
and tighten all hardware and
mountings regularly. l
l To prevent serious injury or
death, securely install gate or
l
enclosure and use according
to manufacturer’s instructions. l
l Never use with a child able to
climb over or dislodge/open the
l
gate or enclosure.
0 Never use if gate is 3/4 of child’s
height.
I
Do not use if any part of gate is
broken or missing.
This product will not neccessarily
prevent all accidents. Never leave
child unattended.
Use only spare parts from KidCo.
Never allow child to climb or
swing on gate.
Use only with the locking/latching
mechanism securely engaged.
Closely supervise child when
gate is installed at the top of the
stairs.
2

Button Spindle housing
Spindle D
(already fittec 0
Spindle A
\
/
Handle
7~~
Walk through
section
1
- =
1L
-
Hinge
n
Spindle C
\
Safety foot
, Wrench
/
Bi
T
1 Pressure indicator/Wrench
Note: To prevent over extension of spindles,
notches have intentionally been cut into the
threads approximately 3 1/4" from the pad
ends.
3

Optional 6” or 12” extensions are available
for larger openings. Only one extension
recommended per gate.
If using gate on a stairway, it must be placed
either on top stair or on lowest stair at
bottom.
Push spindles A, B, C into three corners of
gate. Note these spindles are pulled not
screwed, into and out of their housings and
occasionally may be tight.
Center gate in opening, with bottom rail
resting on floor. Gaps on each side
should be equal.
Insert step plate under bottom rail on
desired side.
Release locking mechanism by pressing
locking button in while lifting handle.
BUTTON MUST ALWAYS BE PRESSED IN
WHEN LIFTING HANDLE. FAILURE TO DO
SO WILL RESULT IN HANDLE MECHANISM
BREAKING.
Pull out spindles A and B until they touch
mounting surface. With walk-through door
slightly open, tighten nutstoward gate
frame as tightly as possible using wrench
provided. Each spindle adjusts individually
and may be extended to varying lengths to
allow for molding, uneven walls, etc.
Spindles may be extended a minimum of 1"
but not more than 31/4" each side.

Close walk-through so safety foot is above
bottom rail but do not lower handle. Pull out
spindle C until it touches mounting surface.
Tighten nut towards the gate frameuntil
safety foot rests on bottom rail. If hinge starts
to lift, nut is too tight and should be loosened
until hinge is back in position.
With handle in raised position, un-screw
handle spindle D until it is 1/8" from mount-
ing surface. Close handle and check all hard-
ware. If correctly installed gate should be
firmly in place and handle will need to be rai-
sed to open and close walk-through. If gate
is unstable, raise handle and unscrew spindle
a little further. Recheck hardware until gate is
secure. Once secure, tighten nut
towards
gate frame.
If gate is not stable reread directions
thoroughly. Make certain gate is appropriate
size for opening and all steps have been fol-
lowed accurately.
A pressure indicator has been added as an
additional safeguard. Lift handle and locate
groove on underside. Return handle to clo-
sed position and place indicator hook under
groove.
Push in button while pulling pressure indica-
tor up. Black gauge within indicator will start
moving down. Recommended pressure is
between 4 and 5. If gauge is not within that
range, loosen handle spindle out a little
further and retest pressure.
If unable to obtain recommended pressure, it
is important to know that gate is not defec-
tive, Gate requires a strong, rigid surface to
maintain pressure. It may be necessary to
consult a hardware store or baby proofer to
find a solution for safe installation.
5

To Open Gate.
Release locking mechanism by pressing
locking button in while lifting handle.
BUTTON MUST ALWAYS BE PRESSED IN
WHEN LIFTING HANDLE. Lift walk-through
section so hinge is raised and walk-through
will swing open in either direction.
Gate should always be in locked position.
To Close Gate.
Lift walk-through section and position safety
foot onto bottom rail, making sure hinge has
dropped down. Push handle down to lock.
l No part of gate requires lubrication. l Do not use abrasive cleaners or bleach.
l Clean using warm, soapy water or a damp
l If using outdoors, and to help prevent rust,
cloth. treat all exposed metal with a rust inhibi-
tor. Some rusting may still occur.
KIDCO LIMITED WARRANTY
Your KidCo product is warranted to be free from manufacturing defects for a period of one
year from date of purchase under normal use and in compliance with the operating instruc-
tions. This warranty extends only to the original retail purchaser and is only valid when suppli-
ed with proof of purchase.
KidCo will either repair, or at our option replace, free of charge, any parts necessary to correct
defects in material or workmanship during the warranty period. This warranty is complete and
exclusive. The warranty expressly disclaims liability for incidental, special and consequential
damages of any nature. Any implied warranty arising by operation of law shall be limited in
operation to the terms of this warranty. Some states do not allow the exclusion or limitation of
incidental or consequential damages or limitations on how long an implied warranty lasts, so
the above may not apply to you. This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
SHOULD REPAIR OR PARTS BE NECESSARY
Should a repair be needed during the warranty period, ship the gate in the original carton or
similar protective container (check any retail store or purchase from UPS) and send freight
prepaid (we suggest UPS) to: KidCo, Inc., 300 Terrace Drive, Mundelein, IL 600604636.
Include a note with your return address, day-time telephone number, and specify what is
wrong with the product. Repairs can normally be made within 48 hours after receipt at KidCo.
For additional information CALL our customer service department at [phone].
