Quick Start Guide
KIDOMO RC TRUCK T1
V1.0

Quick Start Guide
KIDOMO RC TRUCK T1
V1.0

CONTENTS
01 - 06English
07 - 12Deutsch
13 - 18Français

WARNING
Thank you for choosing our product: RC TRUCK T1
To ensure proper use, please read the QSG below and have a good
understanding of the product before using
1. Please turn off the switch after using this product, remove the battery power
cord, and properly replace the battery after charging, so as to avoid excessive
battery discharge caused by the battery being installed in the car for a long time.
2. Do not flip the trigger or the steering wheel as you switch on the radio controller.
3. This product has a brake function. The first time you push the trigger it brakes;
you need to release it to neutral. Push the trigger again, to reverse.
4. This product is not suitable for minors under 14.
5. Please use the original charger.
11

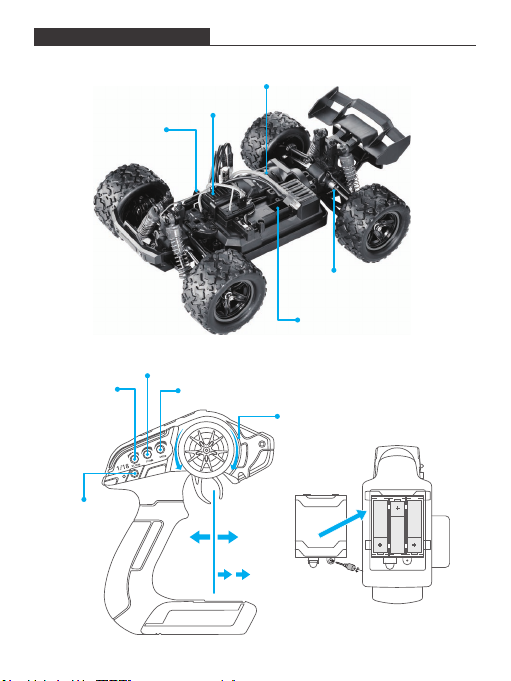

PRODUCT OVERVIEW
3x1.5V "AA"
(Batteries not included)
7.4V 1300mAh li-ion Battery
All Car Alloy Gear
Alloy Wheel And Axle
Brushless
2345，4000KV Motor
3-Wrie Digital Servo
Brushless ESC
Forward Back
Backward
Steering Dual Rate Adjustment
Steering Trim
Switch
Maximum speed Adjustment
Left/Right
22

BATTERY AND CHARGE
• BATTERY INSTALLATION
• CHARGING BATTERY
Please install the battery according to position of the battery and wiring diagram.
• TRANSMITTER BATTERY
The Battery pack should be removed from the car for charging.
Remove the clip to open the battery cover as shown in the photo, and then
remove the battery pack. Connect the battery pack with USB charger as shown.
Plug the USB charger into computer to charge the battery pack.
The charger’s red light is always on and the green light flashing indicates that it is
charging.
The charger’s red and green lights are always on, meaning the battery is fully
charged.
3X1.5V“AA”
(Batteries not included)
7.4V 1300 MAH
Li-ion
USB *1 7.4V BATTERY *2
7.4V 1300 MAH
Li-ion
7.4V BATTERY *1 (Included)
3

IMPORTANT INFORMATION:
① Switch on the radio controller, and then the ESC/Receiver on the truck.
② The binding process is automatically performed in system.
③ Never flip the Trigger or the Steering Wheel at the moment you switch the radio
④ Controller on. Failure to do so will cause the radio system to record the
incorrect signals.
⑤ You are ONLY permitted to spin the Trigger and the Steering Wheel after your
truck is bound with the radio controller.
RUNNING YOUR CAR
Always turn on the radio controller and then the car receiver.
The binding process is automatically fulfilled in system.
Do not flip the trigger or the steering wheel when you switch on the radio
controller.

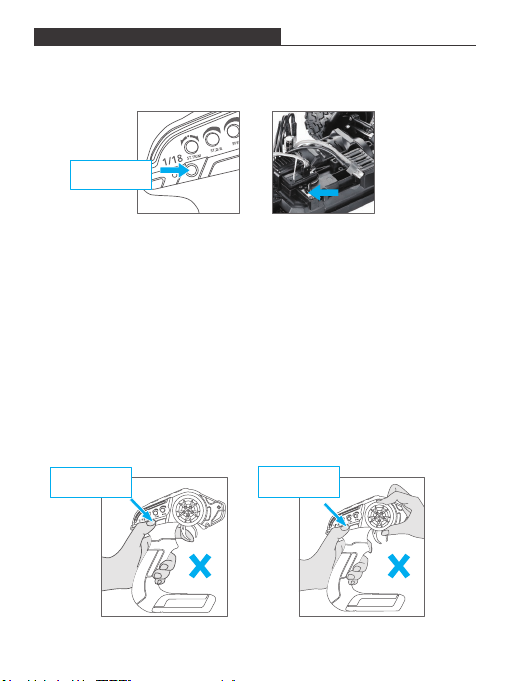

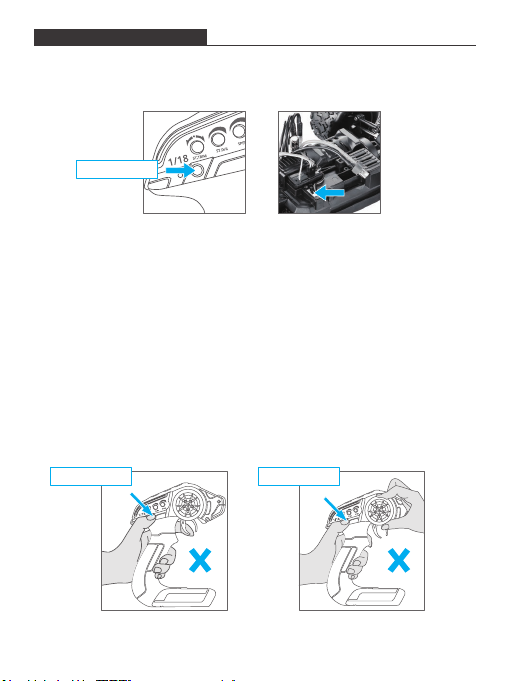

2. PRECAUTIONS FOR 2.4GHz RADIO CONTROLLER
1. TURN ON THE RATIO CONTROLLER AND YOUR CAR
TURN ON THE
RECEIVER ON YOUR CAR
TURN ON THE
RADIO CONTROLLER
Power Switch
Power Switch Power Switch
4

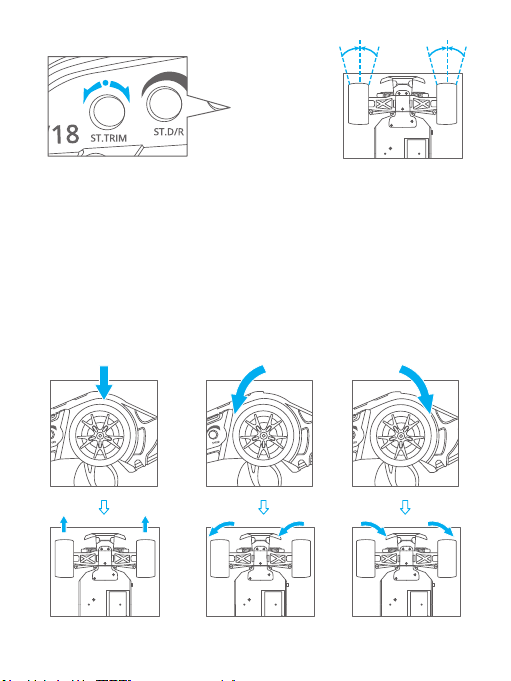

3. TO TUNE THE STEERING TRIM
4. CHECK STEERING PERFORMANCE
Gently pull the trigger to allow the car to run slowly. In the meantime, adjust
the steering trim until the front wheels are aligned.
① To keep the car running in a straight line, do not move the control wheel. (Keep
it at center)
② Turn it left to allow your vehicle to turn to left.
③ Turn it right to allow your vehicle to turn to right.
CENTER TURN LEFT TURN RIGHT
STEERING TRIM
5

5. CHECK TRIGGER RESPONSE
MAINTENANCE
CONTACT US
A: Pull the trigger back to accelerate, release it to decelerate and push it to brake.
B. To stop your car, release the trigger to Neutral
C. Pushing the trigger a second time activates the reverse feature.
After running your car, the following procedures should be performed regularly
to help you maintain your car's performance.
• Inspect your car for any obvious damage
• Check the gears for wear, debris or broken/slipping teeth
• Check the wheels and tighten the wheel screws properly.
• Check for loose screws in the chassis.
• Check the wiring for frayed or damaged wires or connectors.
• Check the steering servo which will wear out over time and require replacement.
• Check all batteries
• Keep the chassis clean and free of sand, dust, and moisture
• Remove and clean the motor if necessary. (Never attempt to re-assemble the
motor, you will damage it and void the warranty.)
• Clean the car body with a soft lint-free cloth.
• Remove all batteries when not in use.
For any inquiries about KIDOMO products, please feel free to contact us.
We will respond within 24 hours.
Email: [email protected]
Tel: [phone] (US)
Official website: www.kidomo.net
