Operation Manual
Dip Simulator
DSI1020
DSI3020
Notations used in this manual 2
Checking the package contents 3
Options 3
Safety markings 4
Safety precautions 4
Precautions when choosing the installation location 5
Precautions for moving the product 6
Introduction 7
Product features 7
Overview of the Test System 9
Voltage dips, short interruptions and voltage
variations immunity tests 9
Component Names and Functions 11

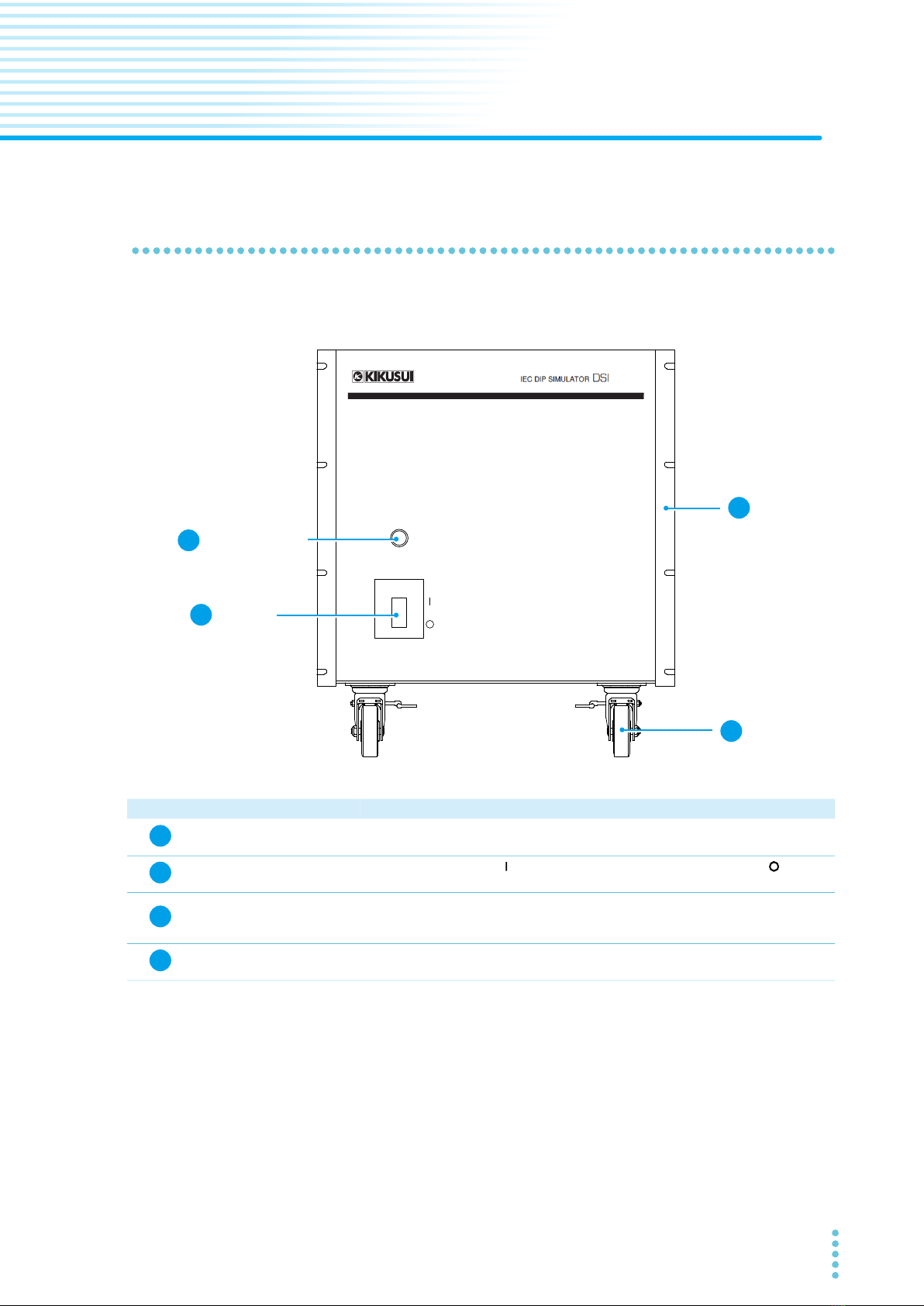

Model DSI1020 11

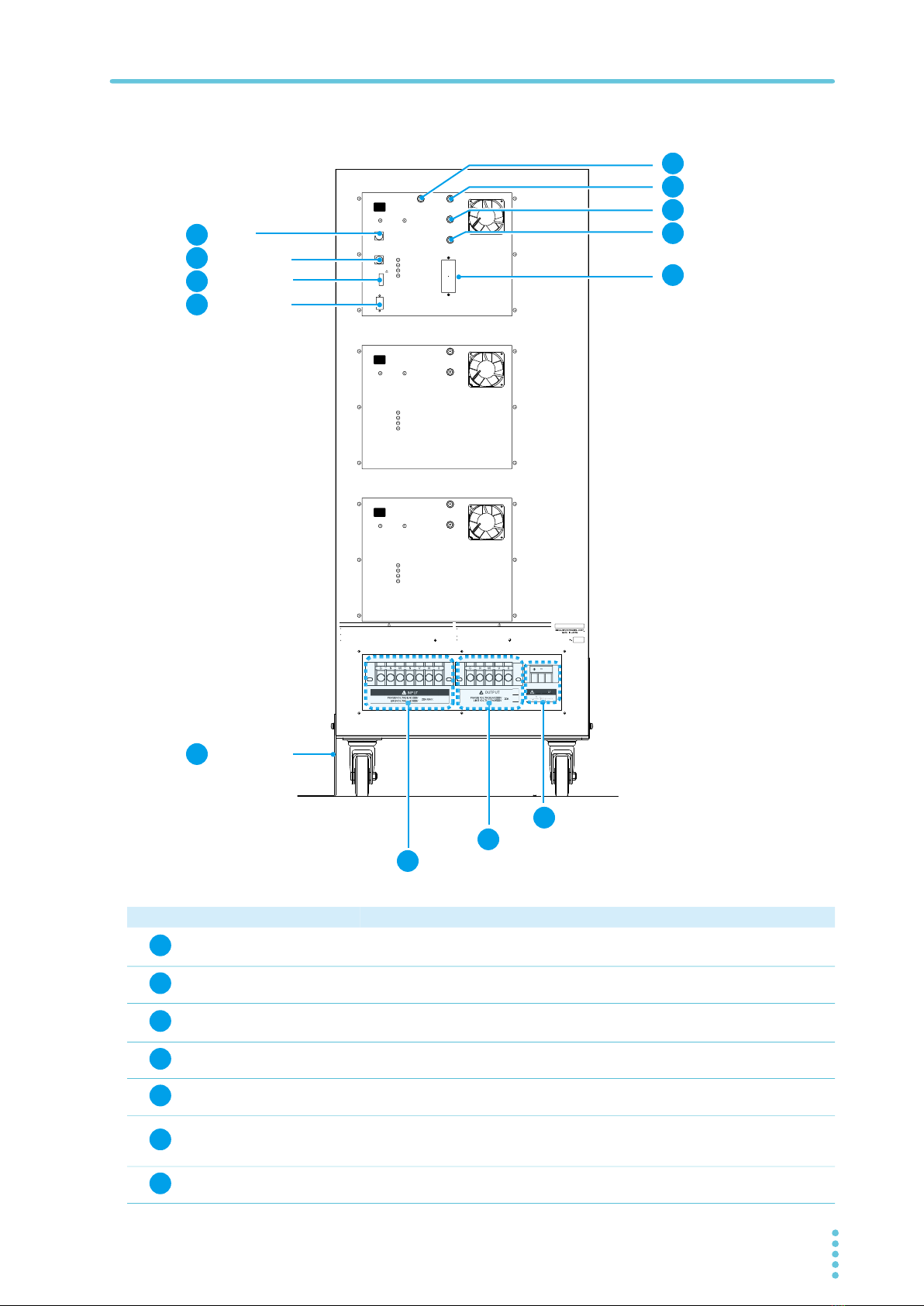

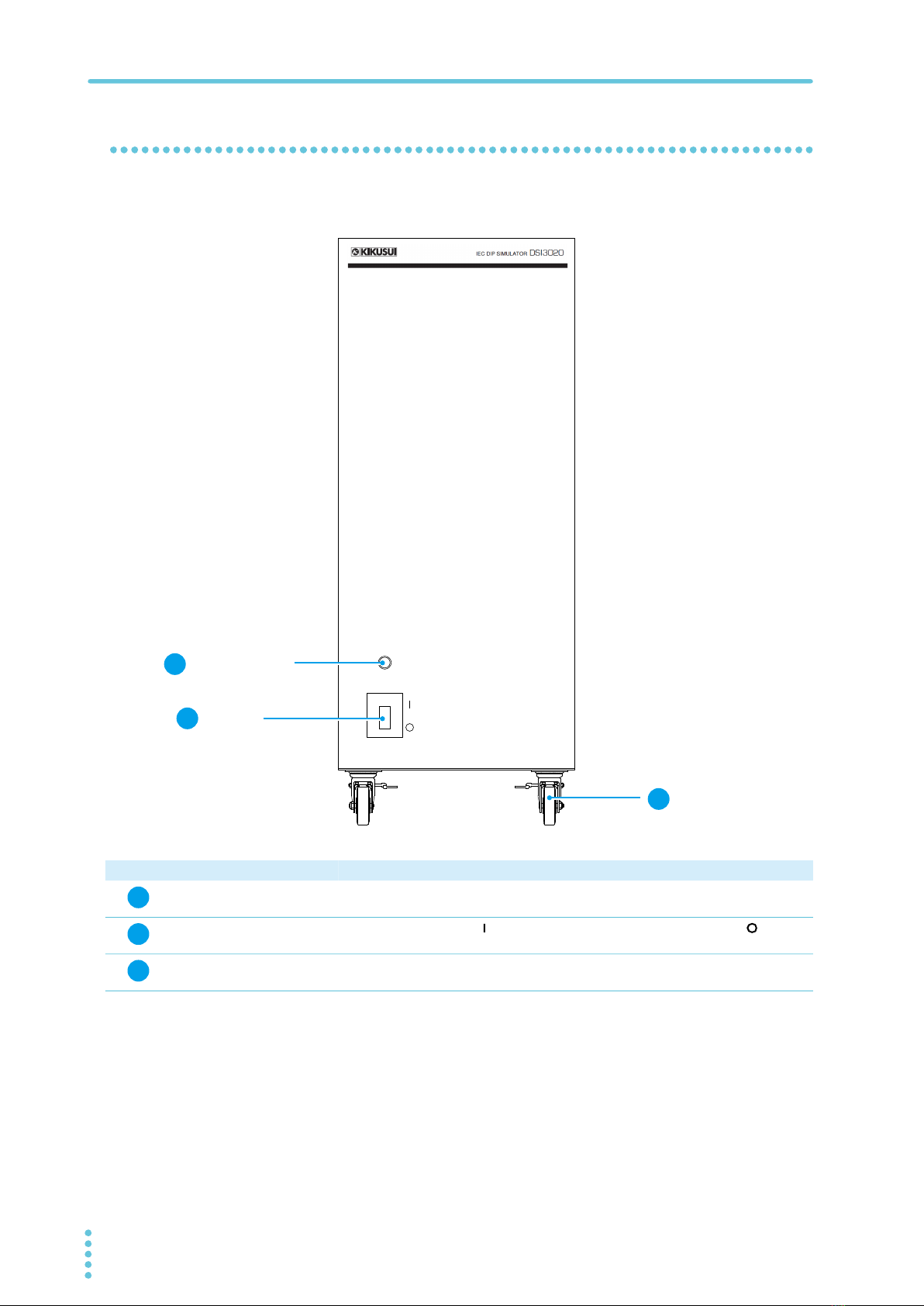

Model DSI3020 14
Installing the Test System 17
DSI1020 Connection 17
Connecting the test circuit 17

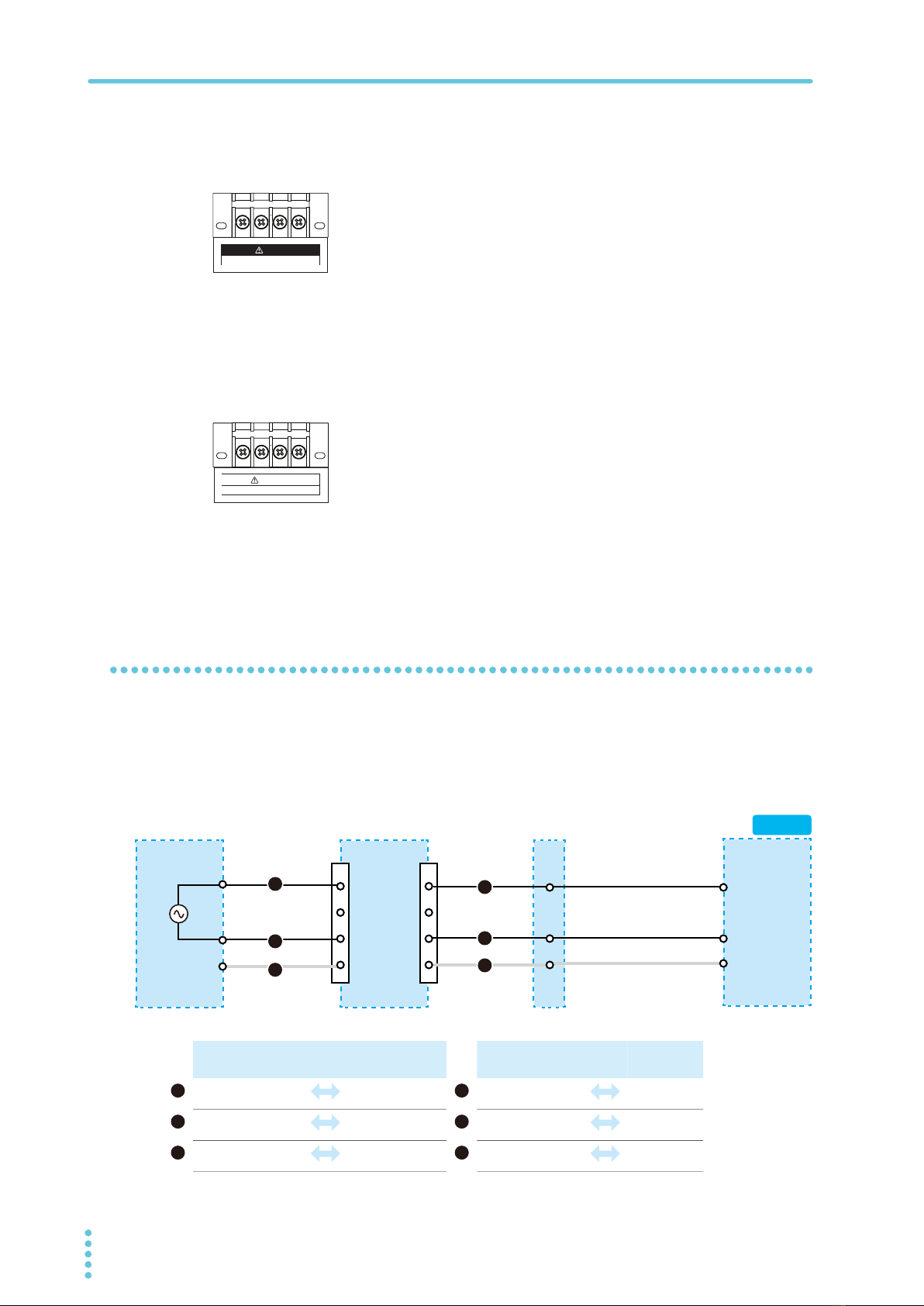

Test circuit 1: DSI1020 + PCR-LE/WE (1 unit) 18
DSI3020 Connection 19

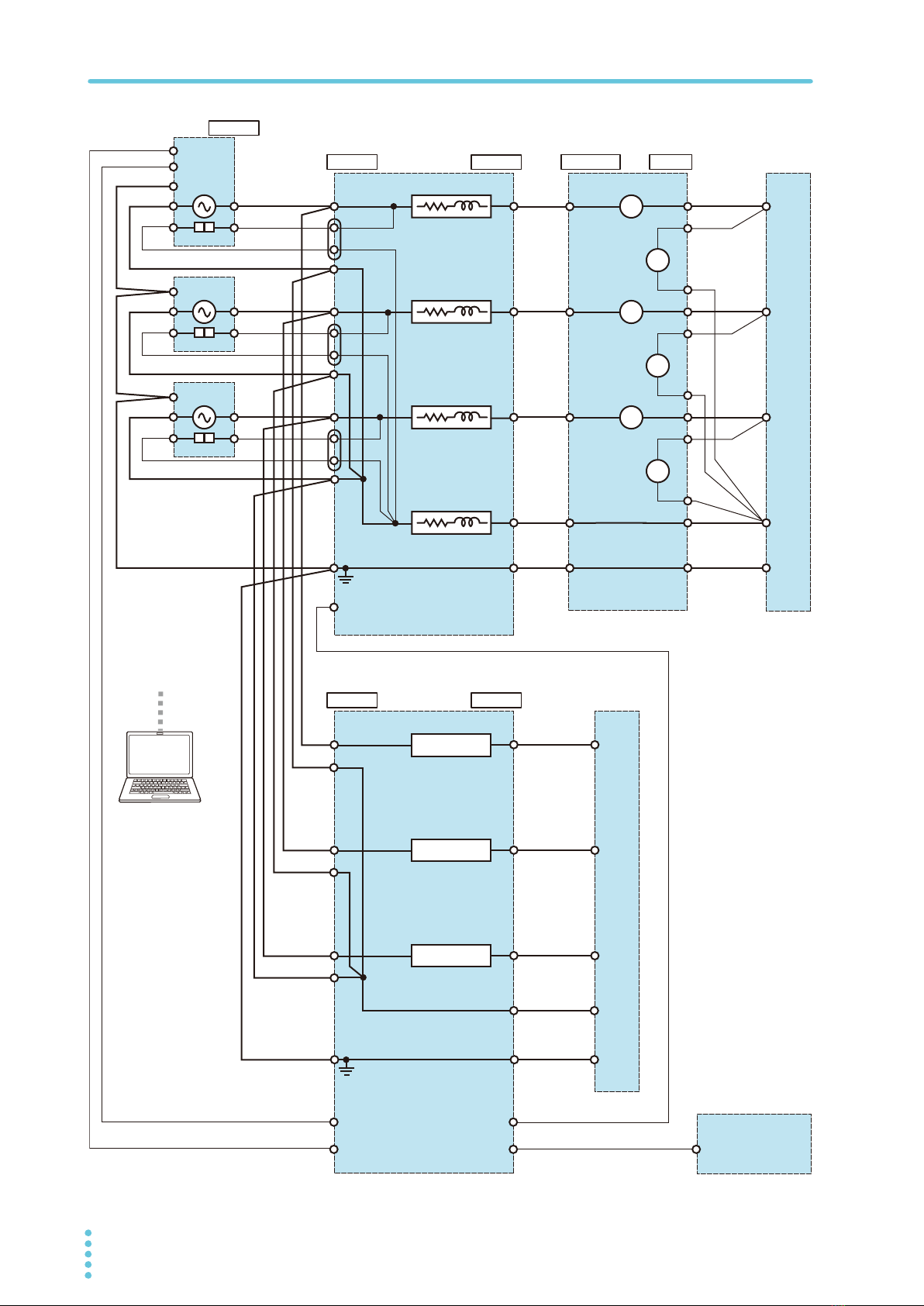

Connecting the test circuit 19

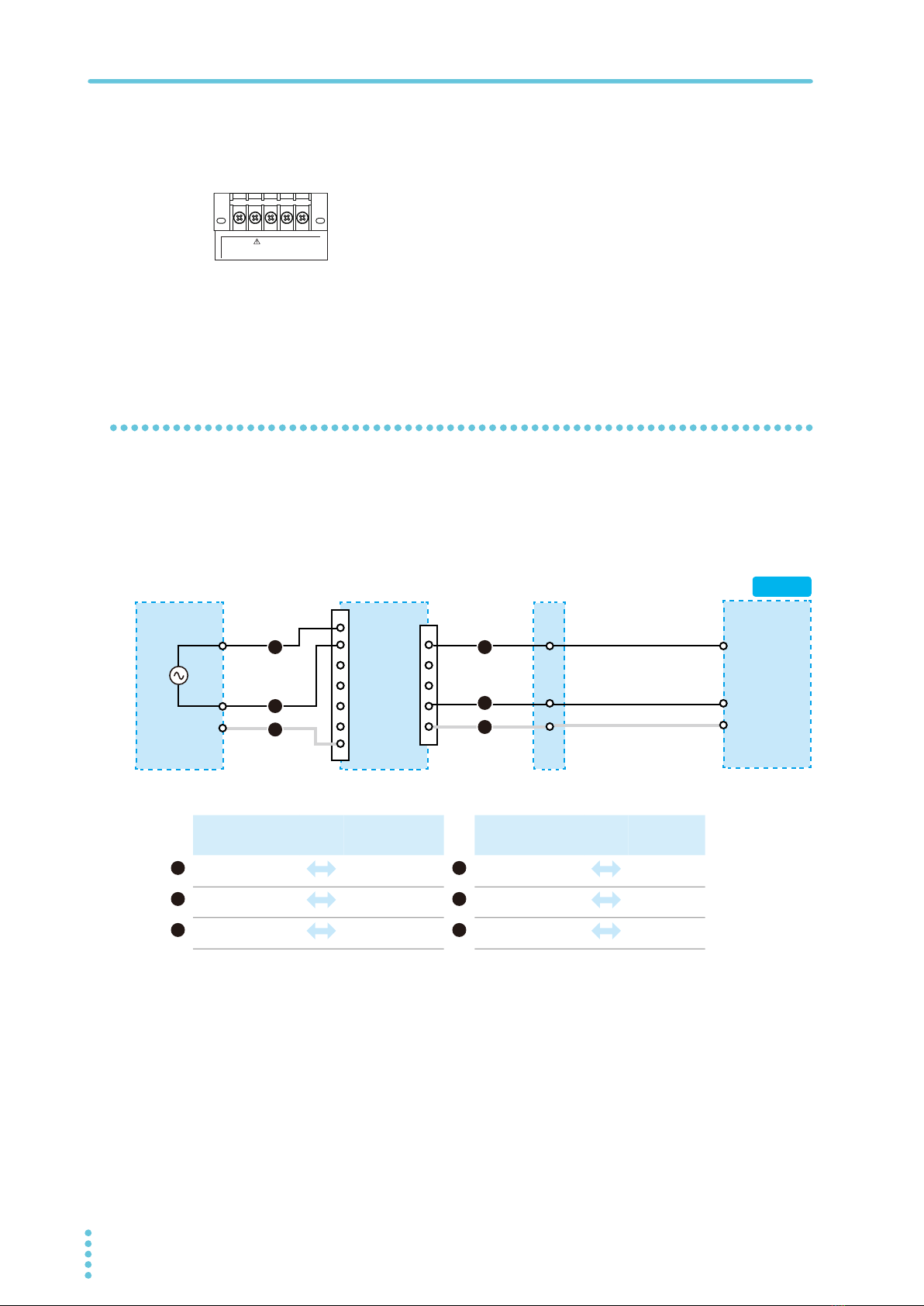

Test circuit 1: DSI3020 + PCR-LE/WE (1 unit) 20
Test circuit 2: DSI3020 + PCR-LE series (2 units) 21
Test circuit 3: DSI3020 + PCR-LE series (3 units) 22
Test circuit 4: DSI3020 + PCR-LE2/PCR-WE2/PCE-
WEA2 (1 unit) 23
Signal Cable Connection 24
Connecting the communication interface 24
Connecting the sync signal interface 26
Connecting to other signal terminals 28
Power Cable Connection 30
Turning the power on 32
Specifications 33
System configuration and output capacity 33
Voltage-dip and short-interruption test performance
34
Signal output terminal (BNC) 35
Communication function 35
General specifications 36
Outline drawing 37
Part No. IB028176
Jan 2023

2DSI1020/ DSI3020
This operation manual describes the physical and electrical
aspects of the product. For details on how to use the product,
see the operation manual for the application software.
For details on how to handle hardware including Kikusui AC
power supplies, see the operation manual of the correspond-
ing device.
You can download the most recent version of the manual
from the Kikusui Electronics Corporation website.
Intended readers
This manual is intended for users of this product and their
instructors. The manual assumes that the reader has knowl-
edge about power supplies.
Copyrights
The contents of this manual may not be reproduced, in whole
or in part, without the prior consent of the copyright holder.
The specifications of this product and the contents of this
manual are subject to change without prior notice.
Copyright© 2014 Kikusui Electronics Corporation
Dispose of the product in accordance with your local regula-
tions.
• DSI1020/DSI3020 Dip Simulator is also referred to as “dip
simulator,” or “DSI.”
• The PCR-LE series and PCR-LE2 series AC power supplies
are also referred to as the “PCR-LE.”
• The PCR-WE series and PCR-WE2 series (including the
PCR-WE2R, a model with a regeneration function) AC
power supplies, in addition, the PCR-WEA series and PCR-
WEA2 series (including the PCR-WEA2R, a model with a
regeneration function) AC power supplies are also referred
to as the “PCR-WE.”
• All the above AC power supply series may be referred to
collectively as the “AC power supply” or “PCR-LE/WE.”
• Application Software SD009-PCR-LE/WE Quick Immunity
Sequencer 2 is also called “application software,” or
“SD009-PCR-LE/WE.”
• Equipment under test is also referred to as “EUT.”
• The term “PC” is used to refer generally to both personal
computers and workstations.
• This manual also uses abbreviations for wiring systems.
Single-phase two-wire: 1P2W
Single-phase three-wire: 1P3W
Three-phase three-wire: 3P3W
Three-phase four-wire: 3P4W
• This manual refers to each phase of a wiring system as U
phase, V phase, W phase, and N phase.
These phases correspond respectively to the R, S, T, and N
phases used in other manufacturers’ products.
• The following markings are used in the explanations.
About This Manual
Disposal
Indicates a potentially hazardous situa-
tion which, if ignored, could result in
death or serious injury.
Indicates a potentially hazardous situa-
tion which, if ignored, may result in
slight injury or damage to the product or
other property.
Indicates information that you should know.
Notations used in this manual
WARNING
CAUTION

DSI1020/ DSI3020 3
When you receive the product, check that all accessories are
included and that the accessories have not been damaged
during transportation. If something is damaged or missing,
contact your Kikusui agent or distributor.
We recommend that you save all packing materials, in case
the product needs to be transported at a later date.
Accessories
The following options can be used with the DSI.
USB interface (factory option)
A communication interface unit for controlling the DSI through
a USB interface.
To control the product from a PC via the USB interface, you
must install a device driver that supports the USB T&M class
(USBTMC).
The USBTMC driver is installed automatically when the VISA
library is installed. For details on installing the VISA library,
see the SD009-PCR-LE/WE setup guide.
GPIB interface1 (factory option)
A communication interface unit for controlling the DSI through
a GPIB interface.
Control power cable (without plug)
This power cable is for connecting to the control power input
(AC INPUT) terminal on the rear panel of the DSI.
Model: AC5.5-3P3M-M4C
Type: Heavy PVC jacketed three-core cable
Length: 3 m
Nominal cross-sectional area: 5.5 mm2 (AWG10 equiva-
lent)
Crimping terminal size: M4
Checking the package contents
Control cable
3 m (1 pc.)
Heavy object warning label (1 pc.)
Control board (1 card)
Operation manual (1 copy)
Model DSI1020 [A8-900-157]
Model DSI3020 [A8-900-158]
Screws (6 pcs.)
Model DSI1020 only
Control power cable
3 m (1 pc.) [85-10-0650]
Plug: NEMA5-15
[85-50-0390]
[UA-1894-01]

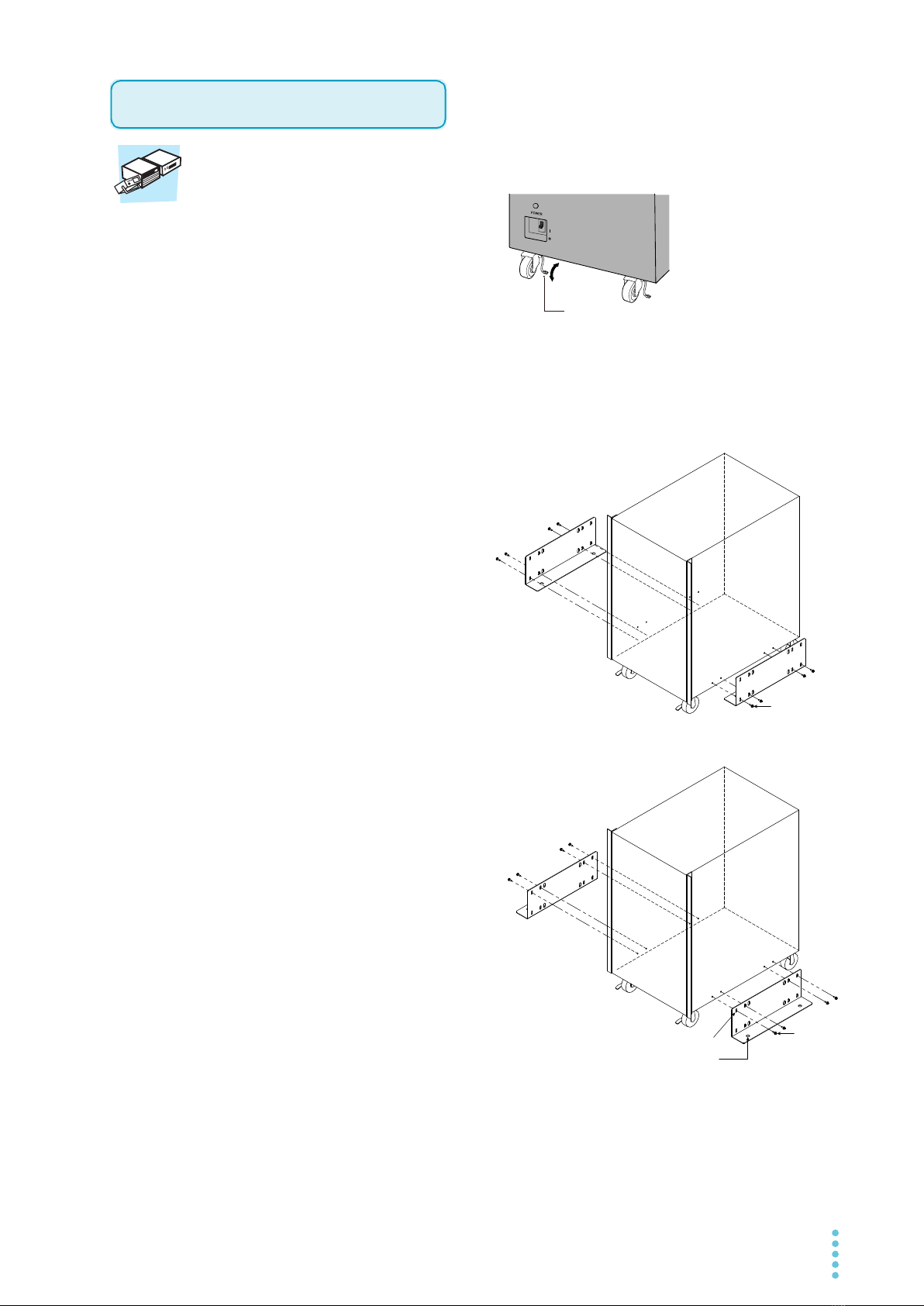

If you remove the rack
mount bracket, use these
screws to fix the side panels
in place.
1 GPIB interface is not supported with SD009-
PCR-LE/WE (Ver.4 or later.)
Options

4DSI1020/ DSI3020

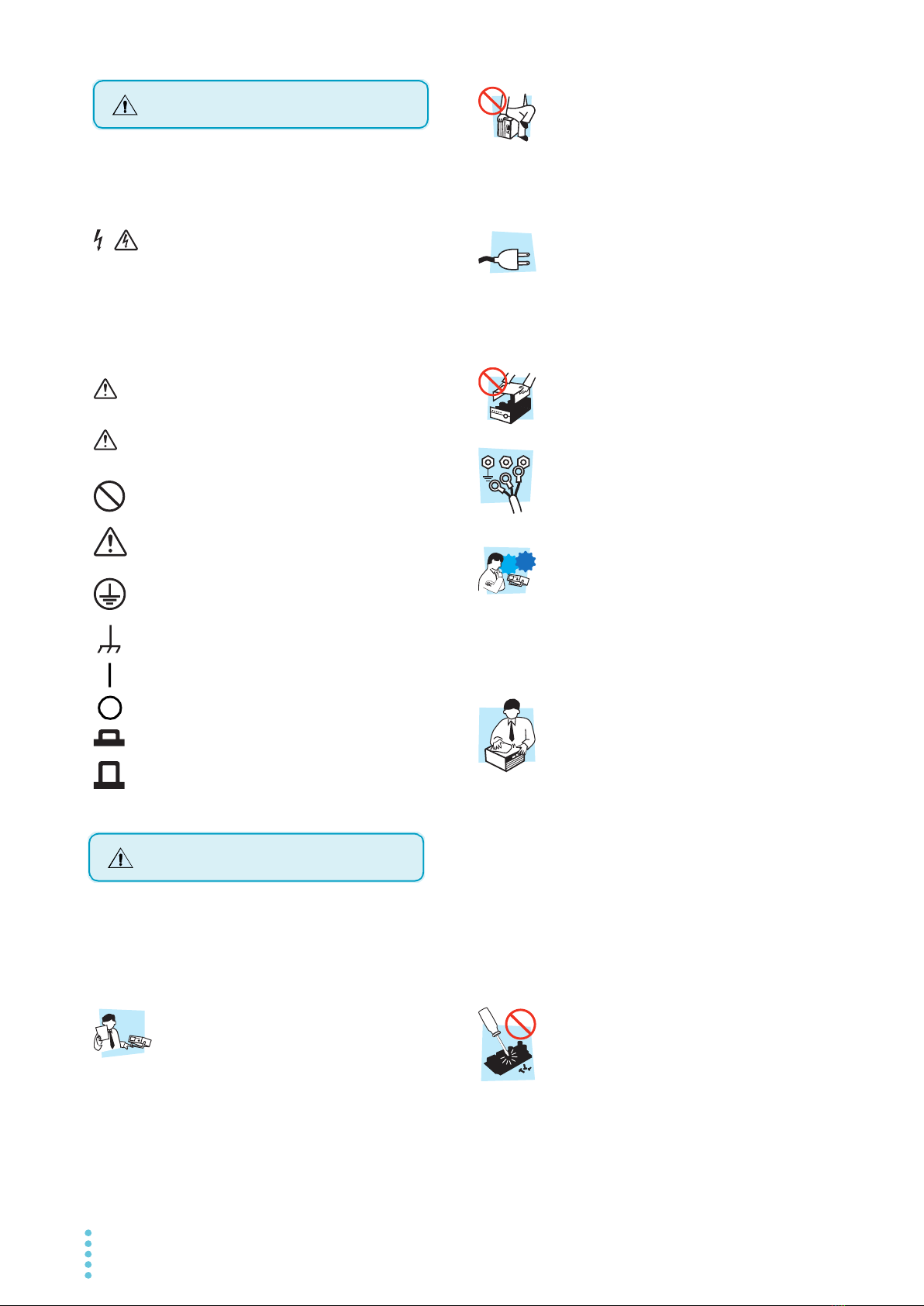

For the safe use and safe maintenance of this product, the
following symbols are used throughout this manual and on
the product. Note the meaning of each of the symbols to
ensure the safe use of the product. (Some symbols are not
used depending on the product.)
The following safety precautions must be observed to avoid
fire hazards, electric shock, accidents, and device failures.
Keep them in mind and make sure to observe them.
Using the product in a manner that is not specified in this
manual may impair the protection functions provided by the
product.
or
Indicates that a high voltage is used here.
Touching an area marked with this symbol
without taking proper precautions may cause a
fatal or serious electric shock. If you must
touch an area marked with this symbol, ensure
that the area is safe before you do so.
DANGER Indicates an imminently hazardous situation
which, if ignored, will result in death or serious
injury.
WARNING
Indicates a potentially hazardous situation
which, if ignored, could result in death or seri-
ous injury.
CAUTION
Indicates a potentially hazardous situation
which, if ignored, may result in slight injury or
damage to the product or other property.
Indicates a prohibited act.
Indicates a warning, caution, or danger. When
this symbol is marked on the product, see the
relevant section in this manual.
Protective conductor terminal.
Chassis (frame) terminal.
On (power supply).
Off (power supply).
In position of a bi-stable push control.
Out position of a bi-stable push control.
Users
• This product must be used only by qualified per-
sonnel who understand the contents of this opera-
tion manual.
• If unqualified personnel are to use the product, be
sure the product is handled under the supervision
of qualified personnel (those who have electrical
knowledge). This is to prevent the possibility of per-
sonal injury.
Safety markings
Safety precautions
Operation
Manual
Purpose of use
• Never use the product for purposes other than the
product’s intended use.
• Do not connect electrical appliances that are nor-
mally used with commercial power supplies as the
PCR-LE Series load.
• This product is not designed or manufactured for
general home or consumer use.
Input power
• Always use the product within the rated input line
voltage range.
• Use the power cable provided to apply power. For
details, see the appropriate pages in this manual.
• This product conforms to IEC Overvoltage Cate-
gory II (energy-consuming equipment that is sup-
plied from a fixed installation).
Cover
• Some parts inside the product are hazardous. Do
not remove the external cover.
Grounding
• This product conforms to IEC Safety Class I
(equipment that has a protective conductor termi-
nal). To prevent electric shock, be sure to connect
the protective conductor terminal of the product to
electrical ground (safety ground).
Operation
• If you notice a malfunction or abnormality in the
product, stop using it immediately, and remove the
power cable plug from the outlet or remove the
power cable from the switchboard. Make sure the
product is not used until it is completely repaired.
• Do not disassemble or modify the product. If you
need to modify the product, contact your Kikusui
agent or distributor.
Maintenance, Inspection and Calibration
• To maintain the performance and safe operation of
the product, we recommend periodic maintenance,
inspection, cleaning, and calibration.
• To prevent the possibility of electric shock, remove
the power plug from the outlet, or remove the
power cable from the switchboard before carrying
out maintenance or inspection. Do not remove the
external cover.
• Check periodically that there are no tears or breaks
in the power cable.
• If the panel needs cleaning, gently wipe it using a
soft cloth with water-diluted neutral detergent. Do
not use volatile chemicals such as benzene or thin-
ner.
• The product is calibrated before shipment. To
maintain long-term performance, we recommend
periodic calibration. To have your product cali-
brated, contact your Kikusui distributor or agent.
Service
• Kikusui service engineers will perform internal ser-
vice on the product. If the product needs adjust-
ment or repairs, contact your Kikusui agent or
distributor.
Line
Voltage
GNL
Check?

DSI1020/ DSI3020 5
Be sure to observe the following precautions
when installing the product.
• Do not use the product in a flammable environment.
Risk of explosion or fire. Do not use the product near alco-
hol, thinner, or other combustible materials, or in an environ-
ment containing such vapors.
• Avoid locations where the product is exposed to high
temperatures or direct sunlight.
• Do not install the product near a heater or in areas sub-
ject to drastic temperature changes.
The product’s operating temperature range is 0°C to 50°C.
• Avoid humid environments.
Do not install the product in high-humidity locations, such as
near a boiler, humidifier, or water supply.
Condensation may form even within the operating humidity
range. If this happens, do not use the product until the con-
densation dries up completely.
The product’s operating humidity range is 20 %rh to 80 %rh
(no condensation).
• Be sure to use the product indoors.
This product is designed for safe indoor use.
• Do not install the product in a corrosive environment.
Do not install the product in a corrosive atmosphere or in an
environment with a high level of sulfuric acid mist or other
types of poisonous gas. Doing so may damage the termi-
nals or cause the internal conductors to corrode. This can
lead to malfunction, damage to the product, or fire.
• Do not install the product in a dusty location.
Accumulation of dust can lead to electric shock or fire.
• Do not use the product in a poorly ventilated location.
Secure adequate space around the product so that air can
circulate around it. Allow at least 20 cm of space between
the product and the nearest wall (or obstacles).
• Do not place objects on top of the product.
Placing objects (especially heavy ones) on top of the prod-
uct can lead to malfunctions.
• Do not use the product in a location subject to strong
magnetic or electric fields or in a location where the
input power supply signal contains large amounts of
distortion or noise.
Doing so may cause the product to malfunction.
• Use the product in an industrial environment.
Using this product in a residential area may interfere with
radio and TV broadcast reception. In such case, users may
need to take special measures to reduce the electromag-
netic radiation.
• Affix the heavy object warning label.
Affix the heavy object warning label to the product where it
can be readily seen. The DSI1020 weights approximately
110 kg (243 lbs). The DSI3020 weighs approximately
230 kg (507 lbs).
• Do not install the product on an inclined surface or in a
location subject to vibrations.
The product may fall or tip over and cause damage and
injury.
• Lock the casters.
Lock the casters moving the caster lock levers with your
foot.
• Use the base hold angles.
To prevent the product from falling over, use the base hold
angles to fix the product to the installation location.
Precautions when choosing the
installation location
Caster lock lever
Free
Lock
When the product is shipped from the factory, base
hold angles are attached to the left and right sides of
the bottom of the product.
Remove the base hold angles from the product.
Face the base hold angles away from the product, and
fix them in place using the screws that you removed.
4-M5
4-M5
Screw hole for anchor 2-M14
P
ass the screws through the top screw holes.

6DSI1020/ DSI3020
Note the following points when moving the
product to the installation location or when
transporting the product.
• Turn off the POWER switch.
Moving the product with the POWER switch turned on may
cause electric shock or damage to the product.
• Remove all wiring.
Moving the product with the cables connected may cause
wires to break or injuries due to the product falling over.
• Remove the base hold angles.
Remove the base hold angles or return them to the factory
default condition.
• Unlock the casters.
Unlock the casters moving the caster lock levers with your
foot. Moving the product without releasing the lock may cause
injuries due to the product falling over. Move the product over a
surface that is as flat as possible.
• Do not move the product by yourself.
Be sure to have two or more people move the product.
Exercise special care when carrying the product over a
slope or across steps.
Check the weight that is indicated on the heavy object warning
label that you affixed at the time of installation.
If you are using a forklift, be sure to slide the forks under the
bottom of the product, check that the product is stable, and
then raise the product.
If you are using a band or similar item to raise the product
with a crane, be sure to slide the band under the bottom of
the product, check that the product is stable, and then raise
the product. (There are four eye bolt holes on the top panel
of this product. M10 eye bolts can be used for the DSI1020,
and M12 eye bolts can be used for the DSI3020.)
When you move the product, do not tip the product on its
side or turn it upside down.
• When transporting the product, be sure to use the orig-
inal packing materials.
Otherwise, damage may result from vibrations or from the
product falling during transportation.
• Be sure to include this manual.
Precautions for moving the product
Factory default
condition
4-M5

DSI1020/ DSI3020 7
Introduction
The DSI1020/ DSI3020 Dip Simulator is an option unit used to construct a test system complying with the
“Voltage Dips, Short Interruptions and Voltage Variations Immunity Tests” as defined in the IEC61000-4-11
Ed3.0 (2020) standard. It can be used in combination with one or more Kikusui AC power supply(ies)
(PCR-LE and PCR-WE).
The DSI meets the following test requirements: high-speed voltage switching (rise time: 1 μs to 5 μs), volt-
age dips (0 %, 40 %, 70 %, and 80 %), and phase-voltage and line-voltage tests.
Product features
Controlled from a PC software application
SD009-PCR-LE/WE is used to control a test system consisting of the DSI and one or more AC power
supplies that will perform “voltage dips, short interruptions and voltage variations immunity tests.”
Three types of communication interfaces (RS-232C/USB/GPIB)
The DSI is standard equipped with an RS-232C interface.
You can add a USB or GPIB1 interface as a factory option (P. 3). These options gives you flexibility in
constructing your test system.
Input voltage up to 500 V
The DSI3020 supports testing of 230 V three-phase four-wire, phase-voltage systems and 400 V line-
voltage systems.
Incorporation into a total test system
By combining the DSI with a Kikusui Harmonic/Flicker Analyzer (KHA series) and a line impedance
network (LIN series2), you can construct a total test system that fully complies with relevant IEC stan-
dards.
The next page shows an example of a three-phase four-wire test system comprising series of PCR-
LEs, LIN3020JF, KHA3000, and DSI3020.
1 GPIB interface is not supported with SD009-PCR-LE/WE (Ver.4 or later.)
2 PCR-WE cannot be combined with a standard line impedance network. For the line impedance
network for PCR-WE, contact your Kikusui distributor or agent.

8DSI1020/ DSI3020
Introduction
Example of a three-phase four-wire total test system (PCR-LE series used for the AC power supply)
V
±
SOURCE LOAD INPUT OUTPUT
OUTPUT
INPUT OUTPUT
V
±
V
±
LIN3020JF
PCR-LE series KHA3000 EUT
U
V
L
L
N
N
G
SENSING
AUX(SLOT3)
SEQ TRIG OUT
L
L
N
N
G
SENSING
W
L
L
L1
L2
L3
N
TRIG IN
AUX
TRIG OUT
PHASE IN
PCR CONTROL
U
V
W
N
N
N
G
SENSING
GG G
V
A
V
A
V
A
EUT
Oscilloscope
U
V
W
N
G
SENSING
DSI3020
N
U
V
W
U
V
W
G
N
N
U
V
W
N
N
N
G
N
U
V
W
G
U
V
W
G
N
N
N
N
Connect to
PCR-LE series,
LIN3020JF,
DSI3020,
KHA3000
PC
(SD009-PCR-LE/WE)

DSI1020/ DSI3020 9
Overview of the Test System
To actually perform tests using the DSI, you will need to install a test system that consists of the DSI and
one or more Kikusui AC power supply(ies.)
Voltage dips, short interruptions and voltage variations
immunity tests
AC power supply and firmware version
The following AC power supplies can be used.
Communication interface
The following communication interfaces can be used with SD009-PCR-LE/WE (Ver.4 or later).
Single-phase three-wire and three-phase output drivers (PCR-LE series only)
For single-phase three-wire output
Using two of PCR-LE series (U-phase unit and V-phase unit), install a single-phase three-wire output
driver (2P05-PCR-LE) in SLOT 1 of each unit.
Be sure to use the DSI in combination with Kikusui AC power supply(ies) (PCR-LE or PCR-
WE.) It cannot be combined with AC power supply(ies) made by other manufacturers.
AC power supply Firmware version
PCR-LE PCR-LE series The required firmware version of AC power
supply is different depending on the version
of SD009-PCR-LE/WE.
For details, see the setup guide of SD009-
PCR-LE/WE to be used.
PCR-LE2 series
PCR-WE PCR-WE series
PCR-WE2 series
PCR-WEA series
PCR-WEA2 series
CAUTION
Risk of malfunction. The DSI cannot be combined with custom-order AC power sup-
ply(ies) with built-in EMI filter(s.)
Communication interface DSI PCR-LE PCR-WE
RS-232C Standard equipment Standard equipment Standard equipment
USB Factory option US05-PCR-LE1
1 An optional communication interface board is required. Install the board into the SLOT 4 of the PCR-LE.
For detail, see the setup guide of each communication interface board.
Standard equipment
LAN — LN05-PCR-LE1Standard equipment

10 DSI1020/ DSI3020
Introduction
For three-phase three-wire or three-phase four-wire output
Using three of PCR-LE series (U-phase unit, V-phase unit, and W-phase unit), install a three-phase
output driver (3P05-PCR-LE) in SLOT 1 of each unit.
Sync signal interface
This is an interface for receiving sync signals output from the AC power supply.
When using PCR-LE, install the control board supplied with the DSI to SLOT 3 of the PCR-LE.
When using PCR-WE, use the REMOTE connector of the PCR-WE. The supplied control board is not
used.
Application software for controlling the test system
Use SD009-PCR-LE/WE to control the test system.
Use the cables supplied with the drivers to connect between the single-phase three-wire or
three-phase output driver connectors. For details, see the setup guide of the driver.

DSI1020/ DSI3020 11
Component Names and Functions
Model DSI1020
Front panel
1020
POWER
Power indicator
1
Caster
4
Rack mount
bracket
3
POWER
2
Name Function
Power indicator Lights in green when the power is on.
POWER Flip the switch up to the ( ) side to turn the power on. Flip it down to the ( ) side to
turn the power off.
Rack mount bracket
L-shaped bracket for mounting the product on a rack (removable)
If you remove the rack mount bracket, use supplied screws to fix the side panels in
place.
Caster The caster can be locked.
1
2
3
4

12 DSI1020/ DSI3020
Component Names and Functions
Rear panel
VOLTAGE
MONITOR
CURRENT
MONITOR
TRIG OUTTRIG IN
RS232C
PHASE IN
AUX
ADDRESS
DO NOT REMOVE COVERS. NO OPERATOR SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
SECURELY TURN OFF THE CIRCUIT BREAKER ON THE SWITCHBOARD BEFORE HANDLING THE POWER CORDS.
TO AVOID AN ELECTRIC SHOCK, THE PROTECTIVE CONDUCTOR TERMINAL MUST BE CONNECTED
TO AN ELECTRICAL GROUND.
WARNING
DSI1020
WEIGHT APPROX 110kg
AC300V 20A MAX AC300V 20A 10 0
-
240V
50 60Hz 65VA MAX
AUX
1
AC INPUT
10
OUTPUT
11
INPUT
Base hold
angle
12
VOLTAGE MONITOR
CURRENT MONITOR
TRIG OUT
6
7
8
TRIG IN
5
Slot for installing a
communication interface
(factory option)
9
PHASE IN
2
ADDRESS
3
RS232C
4
A
C
300
V
20
A
M
A
X
A
C
300
V
20
A
1
00
-
2
4
0V
5
0
60
Hz
6
5
V
A MAX
V
V
13

DSI1020/ DSI3020 13
Component Names and Functions
Name Function
AUX An exclusive input terminal for receiving overheat protection signals (PCR CON-
TROL) from a LIN series1 line impedance network in a total test system.
PHASE IN An input terminal for receiving sync signals output from the AC power supply
ADDRESS Switches for selecting the communication interface (RS-232C/USB/GPIB2) and set-
ting the GPIB address.
RS232C A connector for the RS-232C cable.
TRIG IN An input terminal for receiving trigger signals output from the AC power supply in volt-
age variation tests
TRIG OUT
An output terminal for trigger signals transmitted for starting and stopping voltage dips
in voltage-dip and short-interruption tests, or for starting and stopping voltage varia-
tion in voltage variation tests
VOLTAGE MONITOR A signal output terminal for monitoring output voltage waveforms.
CURRENT MONITOR A signal output terminal for monitoring output current waveforms.
— A slot for installing a factory-option communication interface.
AC INPUT Control power input terminal block (L/N/ (Protective conductor terminal))
Screw size: M4
OUTPUT Output terminal block (L/N/G)
Screw size: M6
INPUT Input terminal block (L/N/G)
Screw size: M6
Base hold angle L-shaped bracket for fixing the product to the installation location
1 PCR-WE cannot be combined with a standard line impedance network. For the line impedance network for PCR-WE,
contact your Kikusui distributor or agent.
2 GPIB interface is not supported with SD009-PCR-LE/WE (Ver.4 or later.)
1
2
3
4
5
6
7
8
9
10
11
12
13

14 DSI1020/ DSI3020
Component Names and Functions
Model DSI3020
Front panel
POWER
Power indicator
1
Caster
3
POWER
2
Name Function
Power indicator Lights in green when the power is on.
POWER Flip the switch up to the ( ) side to turn the power on. Flip it down to the ( ) side to
turn the power off.
Caster The caster can be locked.
1
2
3

DSI1020/ DSI3020 15
Component Names and Functions
Rear panel
NL
U
VOLTAGE
MONITOR
CURRENT
MONITOR
TRIG OUTTRIG IN
VOLTAGE
MONITOR
CURRENT
MONITOR
VOLTAGE
MONITOR
CURRENT
MONITOR
V
W
RS232C
PHASE IN
AUX
ADDRESS
ᮏ〇ရࡢ࢝ࣂ࣮ࡣࠊ⤯ᑐ࡟ྲྀࡾእࡋ࡚ࡣ࠸ࡅࡲࡏࢇࠋ
ෆ㒊ࡢⅬ᳨ࡣᙜ♫ࡀㄆࡵࡓࢧ࣮ࣅࢫ࣐ࣥ࡟ጤクࡋ࡚ࡃࡔࡉ࠸ࠋ
㟁※ࢥ࣮ࢻࡢྲྀࡾᢅ࠸ࡣࠊᚲࡎ㓄㟁┙࠿ࡽࡢ⤥㟁ࢆ㐽᩿ࡋ࡚࠿ࡽ⾜ࡗ࡚ࡃࡔࡉ࠸ࠋ
ឤ㟁஦ᨾ㜵Ṇࡢࡓࡵࠊᮏ〇ရࡢಖㆤᑟయ➃Ꮚࠉࢆ☜ᐇ࡟᥋ᆅࡋ࡚ࡈ౑⏝ࡃࡔࡉ࠸ࠋ
DO NOT REMOVE COVERS. NO OPERATOR SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
SECURELY TURN OFF THE CIRCUIT BREAKER ON THE SWITCHBOARD BEFORE HANDLING
THE POWER CORDS.
TO AVOID AN ELECTRIC SHOCK, THE PROTECTIVE CONDUCTOR TERMINAL
MUST BE CONNECTED TO AN ELECTRICAL GROUND.
㆙ࠉ࿌
WARNING
DSI3020
WEIGHT APPROX 230kg
AC INPUT
100
-
240V
50 60Hz 150VAMAX
AUX
1
AC INPUT
10
OUTPUT
11
INPUT
12
VOLTAGE MONITOR
CURRENT MONITOR
TRIG IN
5
6
8
TRIG OUT
7
Slot for installing a
communication
interface
(factory option)
9
PHASE IN
2
ADDRESS
3
RS232C
4
N
L
AC
INP
U
T
1
00
-
24
0V
5
0
60Hz
1
5
0
V
A MAX
V
V
Base hold
angle
13
Name Function
AUX An exclusive input terminal for receiving overheat protection signals (PCR CON-
TROL) from a LIN series1 line impedance network in a total test system.
PHASE IN An input terminal for receiving sync signals output from the AC power supply
ADDRESS Switches for selecting the communication interface (RS-232C/USB/GPIB2) and set-
ting the GPIB address.
RS232C A connector for the RS-232C cable.
TRIG IN An input terminal for receiving trigger signals output from the AC power supply in volt-
age variation tests
TRIG OUT
An output terminal for trigger signals transmitted for starting and stopping voltage dips
in voltage-dip and short-interruption tests, or for starting and stopping voltage varia-
tion in voltage variation tests
VOLTAGE MONITOR A signal output terminal for monitoring output voltage waveforms.
1
2
3
4
5
6
7

16 DSI1020/ DSI3020
Component Names and Functions
CURRENT MONITOR A signal output terminal for monitoring output current waveforms.
— A slot for installing a factory-option communication interface.
AC INPUT Control power input terminal block (L/N/ (Protective conductor terminal))
Screw size: M4
OUTPUT Output terminal block (U/V/W/G)
Screw size: M6
INPUT Input terminal block (U/V/W/G)
Screw size: M6
Base hold angle L-shaped bracket for fixing the product to the installation location
1 PCR-WE cannot be combined with a standard line impedance network. For the line impedance network for PCR-WE,
contact your Kikusui distributor or agent.
2 GPIB interface is not supported with SD009-PCR-LE/WE (Ver.4 or later.)
Name Function
8
9
10
11
12
13

DSI1020/ DSI3020 17
Installing the Test System
This chapter explains how to install a test system for “voltage dips, short interruptions and voltage varia-
tions immunity tests.”
DSI1020 Connection
Connecting the test circuit
Connect the DSI, the AC power supply, and the EUT to construct the test circuit.
1Check that the POWER switches of all devices are turned off ( ), and shut off the
power supply from the switchboard.
2Check that the terminal (protective conductor terminal) of each AC power sup-
ply’s INPUT terminal block is grounded.
3Unfasten the screws from the terminal cover attached to the lower part of the rear
panel of the DSI.
WARNING
Risk of electric shock.
• Be sure to attach the terminal cover of the DSI. High voltage will be applied to the ter-
minals.
• Before you connect cables to the AC power supply’ OUTPUT terminal block, be
sure to turn the POWER switch off, and then shut off the power supply from the
switchboard.
• Be sure to ground the DSI.
• Never connect the INPUT terminal block of the DSI to the AC line. The internal cir-
cuit of the DSI is not designed to be connected to the AC line.
• Fasten the terminal screws securely. Loose screws are dangerous because the
wires may come loose or the connection may heat up.
• The G terminal in the connect diagrams is not the protective conductor terminal (the main
ground terminal to be connected to an external protective conductor).
• The DSI does not include wires for connecting devices or crimping terminals for the
wires. Check the screw sizes of the I/O terminals of each device, and use appropriate
single-core wires and crimping terminals.
• We recommend that you use wires with a nominal cross-sectional area of at least 8 mm2
(AWG8).

18 DSI1020/ DSI3020
Installing the Test System
4Connect the OUTPUT terminal blocks of the AC power supply to the INPUT terminal
block of the DSI using wires.
To connect to the OUTPUT terminal block of the AC power supply, see the setup guide of the AC
power supply that you using.
5Connect the OUTPUT terminal block of the DSI to the INPUT terminal block of the
EUT using wires.
If necessary, attach relay terminals between this product and the EUT.
6Attach the terminal cover that you removed in step 3.
Test circuit 1: DSI1020 + PCR-LE/WE (1 unit)
DSI1020 INPUT terminal block
Screw size: M6
Tightening torque: 3.0 N•m
DSI1020 OUTPUT terminal block
Screw size: M6
Tightening torque: 3.0 N•m
INPUT
AC300V 20A MAX
GN L
OUTPUT
AC300V 20A
GN L
1P2W
L
N
N
L
G
G
N
L
G
L
N
G
N
L
G
AC power supply
・
PCR-LE series
・
PCR-LE2 series
・
PCR-WE series
・
PCR-WE2 series
・
PCR-WEA series
・
PCR-WEA2 series EUTDSI1020
OUT OUTIN IN Terminal
4
5
6
3
2
1
AC power supply
OUT
DSI1020
IN
DSI1020
OUT
Terminal
Output terminal L Input terminal L Output terminal L Terminal L
Output terminal N Input terminal N Output terminal N Terminal N
Output terminal G Input terminal G Output terminal G Terminal G
1
4
2
5
3
6

DSI1020/ DSI3020 19
DSI3020 Connection
Connecting the test circuit
Connect the DSI, the AC power supply(ies), and the EUT to construct the test circuit.
Four test circuits using the DSI3020.
•Test circuit 1: DSI3020 + PCR-LE/WE (1 unit) (P. 20)
•Test circuit 2: DSI3020 + PCR-LE series (2 units) (P. 21)
•Test circuit 3: DSI3020 + PCR-LE series (3 units) (P. 22)
•Test circuit 4: DSI3020 + PCR-LE2/PCR-WE2/PCE-WEA2 (1 unit) (P. 23)
1Check that the POWER switches of all devices are turned off ( ), and shut off the
power supply(ies) from the switchboard.
2Check that the terminal (protective conductor terminal) of each AC power sup-
ply’s INPUT terminal block is grounded.
3Unfasten the screws from the terminal cover attached to the lower part of the rear
panel of the DSI.
4Connect the OUTPUT terminal blocks of the AC power supplies to the INPUT termi-
nal block of the DSI using wires.
To connect to the OUTPUT terminal block(s) of the AC power supply(ies), see the setup guide of
the AC power supply that you using.
WARNING
Risk of electric shock.
• Be sure to attach the terminal cover of the DSI. High voltage will be applied to the ter-
minals.
• Before you connect cables to the AC power supply(ies)’ OUTPUT terminal
block(s), be sure to turn the POWER switch off, and then shut off the power supply
from the switchboard.
• Be sure to ground the DSI.
• Never connect the INPUT terminal block of the DSI to the AC line. The internal cir-
cuit of the DSI is not designed to be connected to the AC line.
• Fasten the terminal screws securely. Loose screws are dangerous because the
wires may come loose or the connection may heat up.
• The G terminal in the connect diagrams is not the protective conductor terminal (the main
ground terminal to be connected to an external protective conductor).
• The DSI does not include wires for connecting devices or crimping terminals for the
wires. Check the screw sizes of the I/O terminals of each device, and use appropriate
single-core wires and crimping terminals.
• We recommend that you use wires with a nominal cross-sectional area of at least 8 mm2
(AWG8).
DSI3020 INPUT terminal block
Screw size: M6
Tightening torque: 3.0 N•m
GNWNVNU
INPUT
PHASE VOLTAGE AC288V
LINE VOLTAGE AC500V 20A MAX

20 DSI1020/ DSI3020
Installing the Test System
5Connect the OUTPUT terminal block of the DSI to the INPUT terminal block of the
EUT using wires.
If necessary, attach relay terminals between this product and the EUT.
6Attach the terminal cover that you removed in step 3.
Test circuit 1: DSI3020 + PCR-LE/WE (1 unit)
DSI3020 OUTPUT terminal block
Screw size: M6
Tightening torque: 3.0 N•m
GNWVU
OUTPUT
PHASE VOLTAGE AC288V
LINE VOLTAGE AC500V 20A
1P2W
N
L
G
N
L
G
N
L
G
U
N
V
N
W
N
G
U
V
W
N
G
AC power supply
・
PCR-LE series
・
PCR-LE2 series
・
PCR-WE series
・
PCR-WE2 series
・
PCR-WEA series
・
PCR-WEA2 series EUTDSI3020
OUT OUTIN IN Terminal
4
5
6
3
2
1
AC power supply
OUT1
DSI3020
IN
DSI3020
OUT
Terminal
Output terminal L Input terminal U Output terminal U Terminal L
Output terminal N Input terminal N Output terminal N Terminal N
Output terminal G Input terminal G Output terminal G Terminal G
1
4
2
5
3
6
