Kilitronik miniK10m User manual

unique electronic cam lock
OPERATING MANUAL
cabinets lockers boxes
Please read this manual
before using the miniK10m
and miniK10p

Page 2
INDEX
Description........................................................................................................................ 3
Introduction....................................................................................................................... 3
Usage................................................................................................................................. 4
Initial Setup ....................................................................................................................... 4
Assign Master Card...................................................................................................... 4
Selecting Operation Option Of The miniK10 ............................................................. 4
Assign/Delete Service Card / Cards ........................................................................... 5
Assign User Card / Cards ............................................................................................ 5
Deleting User Card ....................................................................................................... 5
Operating Instructions..................................................................................................... 6
Personal Operation With Card To Lock/ To Unlock................................................... 6
Locker Mode Operation With Card To Lock/ To Unlock......................................... 6-7
Cardless Personal Operation ...................................................................................... 7
• Change Password.............................................................................................. 7
• To Unlock With Password ................................................................................. 7
• To Unlock With Cards........................................................................................ 7
• To Lock With Password..................................................................................... 8
• To Lock With Card.............................................................................................. 8
Cardless Locker Mode Operation ............................................................................... 8
• To Lock With Password..................................................................................... 8
• To Lock With Card.............................................................................................. 8
• To Unlock With Password ................................................................................. 9
• To Unlock With Cards........................................................................................ 9
Locker Mode Operation with Card or Password To Lock/Unlock.......................... 10
• To Lock With Password................................................................................... 10
• To Unlock With Password ............................................................................... 10
• To Lock With Any Card.....................................................................................11
• To Unlock With Any Card .................................................................................11
Programming Instuctions.............................................................................................. 12
Light and Audio Warnings ............................................................................................. 13
Program Table................................................................................................................. 14
Maintenance.................................................................................................................... 15
General Warnings........................................................................................................... 15
Cams...................................................................................................................... 15
Other...................................................................................................................... 15
Attention................................................................................................................ 15
Limited Warranty ............................................................................................................ 16
Liability Limits ................................................................................................................ 16
Technical Specications................................................................................................ 16
Quick Info........................................................................................................................ 17

Page 3
1. Red LED
2. Green LED
3. Keypad
4. Lock Body
5. Closing Position
6. Knob Indicator
7. Opening Position
8. Knob
9. Mounting Nut
10. Lock Body
11. Battery Cover
12. Battery Cover Screw
13. ID Label
14. Hand Knob Frame
15. Cam
16. Cam Screw
17. Cylinder Nut
INTRODUCTION
Front Back
DESCRIPTION:
Besides the stylish and enriching design of the miniK10m / miniK10p
cabinet lock, there are various features that make the lock different from
others, such as allowing to use with wet hands, easy and quick installation
at wood and steel cabinets, easy application at existing cabinets, easy
application at right/left cabinet doors, higher battery life with very low energy
consumption, high reliability and operating with a contactless card.

Page 4
USAGE:
Contactless card lock can be used with three types of cards: “User Card,
Service Card and Master Card”. Also, the lock can be used with a password
by selecting the user card free operation. Service card is passive by
default. You should center the card when holding over the keypad to enable
accurate reading. Since the device enters the sleep mode to offer low energy
consumption, you need to wake the lock up by pressing any button before
each operation.
INITIAL SETUP:
• Assign Master card:
1- Press , two tone beep is heard.
2- And then present the master card to the keypad until one tone beep is
heard and green led blinks.
• Selecting Operation option of the miniK10:
1- Press , present the master card to the keypad and press ,
green and red leds blink.
2- Press 1 for selecting operation options. And then
Press 0 for personal operation with card.
Press 1 for locker mode operation with card.
Press 2 for cardless personal operation.
Press 3 for cardless locker mode operation.
Press 4 for locker mode operation card or password.
This step is valid if
there is no assigned
Master Card before.

Page 5

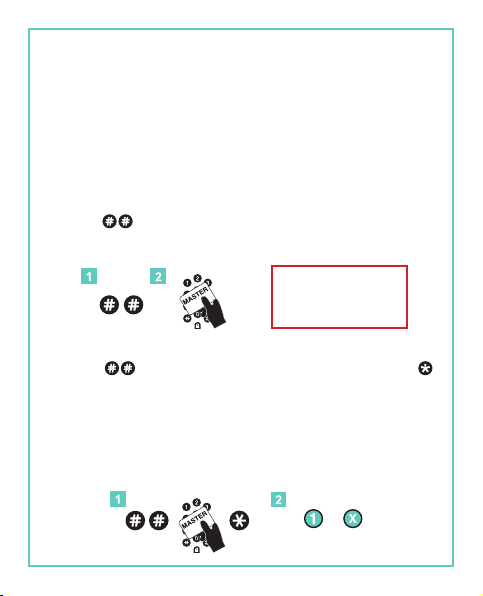

• Assign/Delete Service card / cards: (If you don’t need to use any
service card, skip this step)
1- Press , present the master card to the keypad and press ,
green and red leds blink.
2- Press 5 for selecting service card assign / delete option. And then
Press 0 for all service cards are deleted.
Press 1 for assignment of 1. service card.
Press 2 for assignment of 2. service card.
Press 3 for assignment of 3. service card.
• Assign User card / cards: (If you don’t need to use any user card, skip
this step, when personal operation with card option is selected)
1- Press and then present master card to the keypad, press again.
2- Then enter the sequence number of user card
3- Present that card to lock.
• Deleting User card: (If you don’t need to use any user card, skip this
step, when personal operation with card option is selected)
1- Press and then present master card to the keypad, press .
2- Then enter the sequence number of user card.
Sequence
Number
Sequence
Number

Page 6
OPERATING INSTRUCTIONS
Personal operation with card (if selected)
• To Unlock:
1- Press any number button for wake the lock up.
2- Present any assigned user card / master card / service card to
the keypad in 3 seconds.
3- turn the handle to the unlocked position.
• To Lock:
1- Press any number button for wake the lock up.
2- Present any assigned user card / master card to the keypad
in 3 seconds.
3- Turn the handle to the locked position.
Locker mode operation with card (if selected)
• To Lock:
1- Press any number button for wake the lock up.
2- Present any card / master card to the keypad in 3 seconds.
3- Turn the handle to the locked position.

Page 7
• To Unlock:
1- Press any number button for wake the lock up.
2- Present any card / master card / service card to the keypad in 3 sec.
3- Turn the handle to the unlocked position.

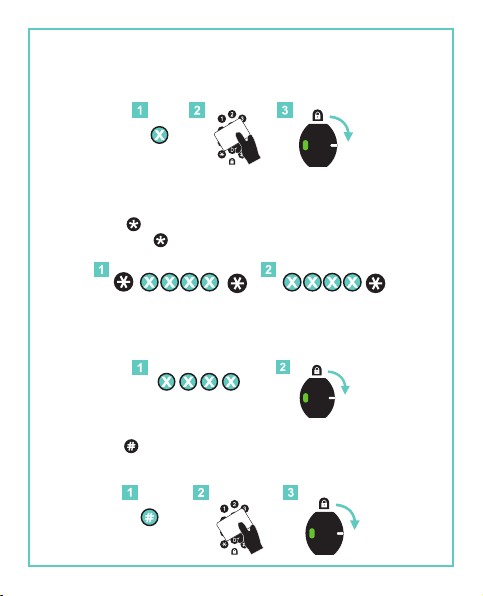

Cardless personal operation (if selected)
• Change Password: (default “1010”)
1- Press and then enter the old password by pressing number
buttons, press again.
2- And then enter the new password by pressing number button, press
• To Unlock with Password: (default “1010”)
1- Enter the user password. 2- Turn the handle to the unlocked position.
• To Unlock with Cards:
1- Press button for wake the lock up.
2- Present master card / service card to the keypad in 3 seconds.
3- Turn the handle to the unlocked position.
USER PASSWORD
OLD PASSWORD NEW PASSWORD

Page 8
• To Lock with Password: (default “1010”)
1- Enter the user password. 2- Turn the handle to the locked position.
• To Lock with Card:
1- Press button for wake the lock up.
2- Present master card to the keypad in 3 seconds
3- Turn the handle to the locked position.
Cardless locker mode operation (if selected)
• To Lock with Password: (default “1010”)
1- Enter the new password. 2- Turn the keypad to the locked position.
• To Lock with Card:
1- Press button for wake the lock up.
2- Present master card to the keypad in 3 seconds
3- Turn the handle to the locked position.
USER PASSWORD
LOCKER MODE PASSWORD

Page 9
• To Unlock with Password:
1- Enter the same password with locking operation.
2- Turn the handle to the unlocked position.
• To Unlock with Cards:
1- Press button for wake the lock up.
2- Present master card / service card to the keypad in 3 seconds
3- Turn the handle to the unlocked position.
LOCKER MODE PASSWORD
The unlocking direction depends on the type of door where
miniK10 is used. All locking and unlocking illustrations depict right
handed door installation.

Page 10
Locker Mode Operation with Card or Password to Lock/Unlock
(if selected)
• To Lock with Password: (default “1010”)
1- Enter the new password.
2- Turn the keypad to the locked position
• To Unlock with Password:
1- Enter the same password with locking operation.
2- Turn the handle to the unlocked position.
If you lock the cam lock with password you have to open it with
password not with card.
LOCKER MODE PASSWORD
LOCKER MODE PASSWORD

Page 11
• To Lock with any card:
1- Press button for wake the lock up.
2- Present any card to the keypad in 3 seconds.
3- Turn the handle to the locked position.
• To Unlock with any card:
1- Press button for wake the lock up.
2- Present any card to the keypad in 3 seconds.
3- Turn the handle to the unlocked position.
If you lock the cam lock with any card, you have to open it with
presented card not with password.

Page 12
PROGRAMMING INSTRUCTIONS
1- Press , present the master card and then press , green and
red leds blink.
2- Enter the program number to be customized and then enter the selected
settings number. (Press Program Number and then Selection Number)
Restore Default Settings: Press 0 - 1
Default Settings are:
Locker mode operation with card, audible operation, penalty operation is
not active, service card is not active, locking with password, door open
warning is not active, resetting user password with service card usage is
not active, blocking the lock is not active.
Mute Operation: Press 2 - 0
All audio warnings can be turned off if mute operation is selected (except
warning beeps).
Audible Operation: Press 2 - 1
Button feedback, warnings and conrmation are audible.
Penalty Operation: Press 3 - 1
Prevents tampering of lock by unauth orized people. Lock is blocked for
5 minutes if wrong password / card is entered three times consecutively.
Factory default is that this feature is not active. Press 3 - 0
Delete All Uvser Cards: Press 4 - 0
It deletes all user cards assigned in the Personal operation with card
option.
Reset User Password: Press 4 - 1
User password is restored to default “1010” in the Cardless personal
operation option.

Page 13
Locking with password / card: (1) Press 6 - 0
Locking operation require a password / card to lock.
Automatic Locking (without password/card): (1) Press 6 - 1
Locking operation does not require a password / card to lock.
Warning of open door : (1) Press 7 - 1
After door is open for one minute, lock gives an audible warning to user
with 8 beeps every seconds to notify user that the door has been left open.
Factory default is that this feature is not active. Press 7 - 0
Resetting User Password with Service card usage: (1), (2) Press 8 - 1
When the lock is unlocked with the service card, the user password is
reset. The user password is restored to default, which is “1010”.
Factory default is that this feature is not active. Press 8 - 0
Blocking the lock : (2) Press 9 - 1
If lock opened with service card, it can be blocked from further user card
access.This would insure service card is only used to access locks for
emergency lockouts. Master card access would then be required to set
up user card again.
Factory default is that this feature is not active. Press 9 - 0
(1): valid for personal operation with card or cardless personal operation
options.
(2): valid if any service card is active.
LIGHT AND AUDIO WARNINGS:
Password / card
is accepted
Green LED blinks with 2 repeated audio warnings.
Wrong password
/ card
Red LED blinks with 4 repeated audio warnings.
Low batterty Red LED blinks 5 times after each operation.
Lock is open 8 audio warnings heard at every second (K10m) / every
5 seconds (K10p) after one minute of opening the lock.

Page 14
0 1
Factory Settings
Prog. No 1-1: Locker mode operation with card
Prog. No 2-1: Audible beeps and conrmations
Prog. No 3-0: Penalty operation PASSIVE
Prog. No 4-0: Delete all user card
Prog. No 5-0: Service card PASSIVE
Prog. No 6-0: Locking with password
Prog. No 7-0: Warning of open door PASSIVE
Prog. No 8-0: Resetting User Password with Service card usage PASSIVE
Prog. No 9-0: Lock block PASSIVE (if service card is active)
1
0Personal Operation with card (individual operation)
1Locker Mode Operation with card (multiple user)
2Cardless Personal Operation (individual operation)
3Cardless Locker Mode Operation (multiple user)
4Locker Mode Operation with Card or Password
20Mute Operation
1Audible Operation
30Penalty PASSIVE
1Penalty ACTIVE
40Delete all user cards
1User password is restored to default, which is “1010”.
5
0Service Card PASSIVE / DELETE
1Assignment of 1.Service Card
2Assignment of 2.Service Card
3Assignment of 3.Service Card
60Locking with Password
1Automatic Locking
70Warning of door open PASSIVE
1Warning of door open ACTIVE
80Resetting User Password with Service card usage PASSIVE
1Resetting User Password with Service card usage ACTIVE
90Block the Lock PASSIVE (if service card is active)
1Block the Lock ACTIVE (if service card is active)
Program Table
PROG.
SELECT.

Page 15
MAINTENANCE:
- Clean front of lock with a mild damp cloth with detergent if needed.
- Do not use any hard or scratching cleanser.
- Do not clean with chemical materials that melt plastic (thinner, acetone, etc.)
- Be careful not to spill water on lock.
GENERAL WARNINGS:
- Read manual before using lock.
- Periodically check nuts and screws to be tightened.
- Do not over-tighten nuts or screws. Do not use an electric screw gun during
installation unless equipped with a torque adjuster.The maximum torque on
the cylinder screw is 2Nm.
- Set and test user and master password prior to installing the lock
- Change all default passwords with your own passwords.
- Common sense, but we must say it... Do not keep the passwords in the
cabinet where the lock is being installed!
- It is not possible to open lock if installed and you forget the user and master
password.
- Lock gives a warning beep when incorrect passwords have been entered
in repeatedly.
- Not possible for front side of lock to be opened by breaking or trying to force
open lock.
- Use CR2450 3.0V Lithium batteries.
- Remember that battery consumption is high
when programs 2, 3, and 7 are active.

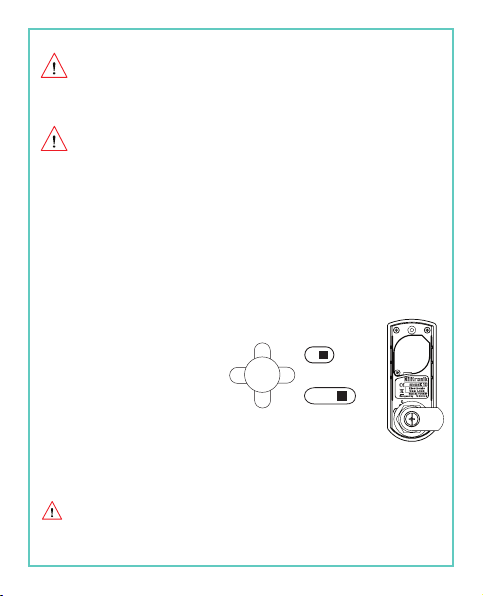

CAMS:
- Two cams are included
- Cams can be placed at
increments of 90 degrees
- The Stop Cam (#4) in installation
instructions can be positioned for
turning the cam clockwise or counter-clockwise
OTHER:
Battery failure override- The miniK10 has 2 external nodes surrounding the red and
green indicator lights where an external battery can be connected long enough to
enter in the correct code to open the lock allowing new batteries to be installed.
ATTENTION!
In case of any failure, inform the vendor in writing of the detailed description of the
failure. In case of any intervention in the device, such as attempting to repair the
device, the device gets OUT OF WARRANTY.
Cam
Placement
7/8” Straight Cam
22mm
1-1/2” Straight Cam
38mm

Page 16
LIMITED WARRANTY:
Kilitronik offers a one year limited warranty all products to be free from
manufacturing defects in materials and workmanship. This warranty does
not cover the battery, lost combinations or damages caused by improper
mounting, improper or unreasonable use.
LIABILITY LIMITS:
This is a limited warranty and is in lieu of all other warranties (including
the implied warranties of merchantability and tness for use) and under no
circumstances shall Kilitronik be liable for any incidental or consequential
damages or losses.
TECHNICAL SPECIFICATIONS:
ATTENTION: (*) (Battery life may vary in accordance with battery brand,
programming parameters and environmental conditions of the product
is used.)
ATTENTION: Remember to write down your passwords after
programming and prior to installing lock.It is not possible to open lock if it
is in installed and you forget your passwords.
ATTENTION: miniK10 is made for only interior usage.
Weight 71 g (2.5 oz) (excluding cam and mounting)
Key Pad Silicone Keypad with metal dome
Operating Temperature +10 / +50 °C (50 - 122 °F)
Storage Temperature +0 / +60 °C (32 - 140 °F)
Operating Moisture 20% - 80% Rh (without condensation)
Replaceable Battery 3V Lithium CR2450
Battery Life (*) At least 5 years (for 10 uses a day)

Page 17
K10p CARD SPECIFICATIONS:
K10m APPROPRIATE CARD:
MIFARE Classic®, MIFARE® DESFire® cards...
Operating Frequency 125KHz
Data Coding Type Manchester Coding
Data Memory 64 bit
Example Appropriate Card em4100 card from EM Microelectronic-Marin
Thank you
Congratulations for making this eco-friendly choice! By
purchasing a miniK10, you will prevent additional batteries going
to the landlls over the up to 5 years. With its smart technology,
the miniK10 only requires one battery over a 5 year period. (*)
This period may be reduced according to battery performance,
environmental conditions and frequency of use.

Page 18
QUICK INFO
LOCKING / UNLOCKING WITH USER CARD
LOCKING / UNLOCKING WITH MASTER CARD
If cardless personal operation option or cardless locker mode operation option is selected, you
should press button at rst to lock and unlock by using the master card.

.......................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
...................................................................
Notes:

Vemus Endüstriyel Elektronik San. Ve Tic. Ldt. Şti.
NOSAB Zeytin C.14 16220 Nilüfer / BURSA
+ 90 224 411 10 30
+ 90 224 411 10 31
, and are trademarks of
VEMUS Endüstriyel Elektronik Ltd. Şti. Rev.00 011 580 0589
www.kilitronik.com
Hospitals
Spa
and
Baths
Schools
In
Mailboxes
Sports Halls
Staff Lockers
