Kinetik BTS200 User manual

Instruction Manual
BTS200
Smart
Body Analyser Scale
BTS200 IB UK 20211103
Thank you very much for selecting the Kinetik Wellbeing Smart Body Analyser Scale BTS200.
Please read the user manual carefully and thoroughly to ensure the safe usage of this product.
Keep the manual for further reference in case you have problems.
Kinetik Medical Devices Ltd.
3 Perrywood Business Park,
Honeycrock Lane, Redhill RH1 5DZ, UK
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。
By cmlam at 10:35 am, Nov 08, 2021

TABLE OF CONTENTS
1
INTRODUCTION.......................................................................2
Support
SAFETY INFORMATION..............................................................3 - 4
Safety and Usage Information
Tips
Device Components
List
LED Display
OVERVIEW.............................................................................5 - 6
General Instructions
Insert the Batteries
Pair-Up
Pairing Phone to Scales
INITIAL START-UP.....................................................................7 - 8
MANAGE YOUR HEALTH.............................................................11
Data Transmission
APPENDIX..............................................................................17
Warning
Error Prompt
When Measuring...
When Data Transmitting...
TROUBLESHOOTING..................................................................12 - 14
SPECIFICATIONS......................................................................15
MAINTENANCE........................................................................16
WARRANTY............................................................................16
START MEASURING...................................................................9 - 10
Select Measurement Unit
Daily Measurement
Heart Rate Measurement
Small Items Measurement
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

CAUTION
Kinetik Wellbeing’s Smart Body Analyser Scale BTS200 offers you a seamless way to manage your health.
Please be aware that this device is designed for healthy population over 10 years old self-measuring
and self-monitoring body compositions. Any information provided by this device is in no way meant to
treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician.
This device is contraindicated for any female subject who may be suspected of, or is pregnant.
Otherwise, the effects of this device on the fetus are unknown.
This device is contraindicated for any person who is connected to a wearable or implantable electronic
device or instrument such as a pacemaker or defibrillator.
This device should not be used by anyone who is acutely or chronically ill, suffering from a disease
or taking medications that affect your water levels. The accuracy of readings for these patients has not
been verified. Specific medical advice should be obtained from a physician.
BTS200 is equipped with data transmission function. It may emit electromagnetic energy so as
to perform its intended function. Nearby portable and mobile RF communications equipment can affect
the performance of BTS200. The device can interfere with electrical equipment within the vicinity.
Manufacturer will make available on request circuit diagrams, component parts list, etc.
WARNING:No modifications of this equipment is allowed. This may result in increased EMISSIONS
or decreased IMMUNITY of BTS200.
Please use the device according to the user manual. Any misuse can cause electric shock,burns, fire
and other unexpected hazards.
Please use and store the device in the environment which is advised in the user manual.
Don’t expose the device to extreme temperatures, direct sunlight, moist or corrosive environments.
Do not step on the scale when your body or feet are wet, especially after bathing or showering to
prevent slipping.
Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of small
parts is dangerous or even fatal.
Please don't use the device out of it's lifetime, because degraded sensors and electrodes, or loosened
electrodes can degrade performance or cause other problems.
If you have an allergy to stainless steel，please avoid to contact to the electrodes of the device.
The patient is an intended operator. The patient can measure, transmit data and charge battery under
normal circumstances and maintain the device and its accessories according to the user manual.
The warning signs and symbols are essential to ensure your correct and
safe use of this product and protect you and others from injury. Please kindly
find the meanings of the warning signs and symbols, which you may encounter
in the label and user manual, as follows:
SAFETY INFORMATIONINTRODUCTION
2 3
Safety and Usage Information
Our manual should provide you with all the information you need
to set up and use this product.
If you have a question, have a look at our Troubleshooting page!
For further assistance, why not contact our Customer Care team
directly? We’re here to help!
Our Customer Care team are available from 9am-5pm, Monday to
Friday (excluding bank holidays).
We promise to respond to all queries and will ensure to resolve any
issue you may be having.
You can reach us by…
Phone:
[phone]
Live Chat:
Simply visit www.kinetikwellbeing.com and send us a message.
Email:
[email protected]
Post:
Kinetik Medical Devices Limited
Unit 3, Perrywood Business Park, Honeycrock Lane,
Salfords, Redhill. RH1 5DZ
Support
Symbol for “DIRECT CURRENT”
Read the instructions (actual symbol
colours are white on a blue background).
Symbol for “MANUFACTURE DATE”
Symbol for “SERIAL NUMBER”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Symbol for “ENVIRONMENT PROTECTION
– Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authority or retailer for recycling
advice”
UKCA marking
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

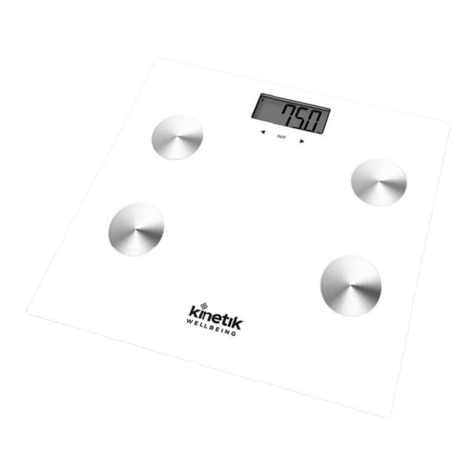

1. Smart Body Analyser Scale BTS200
2. Four AAA-size Batteries (1.5V per each)
3. User Manual
LED Display
UNIT Button
Battery Compartment
Sensor
Electrodes
Electrodes
OVERVIEWSAFETY INFORMATION
4 5
Device Components
List
INDICATIONS FOR USE
The Kinetik Wellbeing Smart Body Analyser Scale measures weight and
uses bio-electrical impedance analysis(BIA) technology to estimate body
fat and heart rate in generally healthy children 10-17 years old and healthy
adults.
It is intended for use in the domestic setting only.
Tips
Place the scale on a flat, hard surface. Soft surfaces such as carpet will affect
the performance of the scale.
Step onto the platform with bare feet. Stand still and keep full contact with the
electrodes until the measurement is complete.
Start measurement at least two hours after Getting up or Dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath,
drinking, and dining.
Always start measurement in the same time slot and on the same scale located
on the same flat, hard surface.
For maximum accuracy and repeatability, it is recommended that you should
use the device in the same time of the day and on the same location.
The condition of the skin on the bottom of your feet can affect the reading.
The natural effects of aging or activity can make this skin hard. Take the
reading with clean, slightly damp feet for best accuracy. If you are having a
problem on operating this scale please contact customer service.
Body fat percentage estimates will vary with the amount of water in the body,
and can be affected by dehydration or over-hydration due to such factors as
alcohol consumption, menstruation, illness, intense exercise, etc.
To ensure the accuracy of measurement, please follow below instructions
when you start measurement.
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

Bluetooth Connection Indication
Resting Heart Rate Result
Pound
Kilogram
CAUTION
When the symbol “ Lo” appears, you shall replace with a new set of batteries. Please replace all four
batteries at the same time. Do NOT mix the old batteries with the new one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries
and scrapped device.
If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries
before storing.
Do not mix alkaline, standard(carbon-zinc), or rechargeable(Ni-Cd, Ni-MH, etc) batteries.
Kinetik Wellbeing’s Smart Body Analyser Scale BTS200 applies BIA (Bio-impedance
Analysis) technology. A small amount of weak current flows through the human
body so as to detect the bio-impedance and estimate body fat and heart rate. The
electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also
possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that
anyone with an wearable or implantable medical electronic instrument, such as a
pacemaker, must avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy
adults.
INITIAL START-UP
OVERVIEW
76
General Instructions
Insert the Batteries
LED Display
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AAA) into the
battery compartment according to the polarity
indications marked inside the compartment.
* The digits “ 8888 ” will be shown on the LED.
Close the battery door, the scale is initialized
when the digits “ZEro” are shown. Place the
scale on the ground and wait, “000.0” lb will
be shown.
* The scale will shut down in 30s without measurement.
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

9
INITIAL START-UP
8
Pair-Up
Pairing Phone to Scales
1.
2.
3.
4.
5.
6.
7.
8.
With batteries correctly installed, press “UNIT” button in the back of the scale to
select measurement unit. The default measurement unit is “lb”. You may press
“UNIT” button to choose between pound and kilogram.
Select Measurement Unit
START MEASURING
With original SENSE ON patent technology, BTS200 will switch on as you step
on the platform barefooted.
Stand still and keep full contact with the electrodes until the LED stops blinking
digits.
•
•
Daily Measurement
With the advanced Bluetooth 5.0 technology applied, the mobile or portable
equipments, which are equipped with Bluetooth function in line with BLE Technical
Specifications as well as BLP Protocol established by global organization Bluetooth
SIG, are capable to receive your personal health data.
Just simply install the Smart Weight Diary by MedM and pair up your scale with
your mobile or portable equipments. Then you may enjoy the comprehensive health
solution provided by Kinetik Wellbeing.
Note: The APP is available for devices which support Bluetooth 5.0 or above
technology.
To connect the APP and the scale make sure the scale is on.
•
Download the Smart Weight Diary by MedM app or the MedM Health app
from the App store or Google Play.
Install the app and register an account.
Enable Bluetooth and the MedM app on your smart device. Make sure both Bluetooth
and app are ON when pair-up is proceeding.
In the app, select the menu in the top left corner of the screen. Then select My Devices.
At the bottom of this screen, select Add New. The app will automatically start
scanning for a new device.
While the scan is underway turn on your scales by standing on them (or applying
weight). Ensure that batteries have been inserted into scales before doing so.
When detected select the Kinetik BTS200.
Once selected you will be asked if you would like to receive data automatically.
To transmit and store each weighing session automatically you will need to select
Yes on this screen. If you select No you will need to manually input your results.
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

MANAGE YOUR HEALTH
1110
START MEASURING
Small Items Measurement
When the weighed items are between 0.15-9.95kg, the scale is in the small items
weighing mode. The scale will not lock the weight. If you remove the item, the scale
will return to zero.
Heart Rate Measurement
•
The heart rate is measured on the APP and this function is turned on by default.
If you close this function, only the weight data shown on the scale.
When the function of heart rate measurement is on, after the scale locks the
weight, it starts to measure the heart rate. The scale displays moving “ ” during
the measurement.
Data Transmission
•
•
•
Then the all measuring results will be displayed one time again: Weight and
Heart Rate result. And turn off.
When finishing all measurement, the detailed measurement results will show
on APP automatically. You can check it anytime.
•
After the heart rate measurement is completed, the measuring result will be shown.
With BTS200 successfully paired-up with your smartphone, the measurement
data will be transmitted to your mobile via Bluetooth.
•
The symbol will display after successful data transmission, and you may
check your personal health data stored in your smartphone.
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol . The
Analyser may interfere with electrical equipment within the vicinity.
To enable the data transmission function, this product should be paired to a Bluetooth 5.0 or
above end.
How to mitigate possible interference?
1. The range between the Analyser and the Bluetooth end should be reasonably close, from 1
meter to 10 meters. Please ensure no obstacles between the Analyser and the Bluetooth end
so as to obtain quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission
/ Transmitter) should be kept at least 1 meter away from the Analyser.
•
If the data transmission fails, the symbol does not display. The pending
measurement data will be temporarily kept in the scale and transmitted to your
smartphone when next measurement is complete.
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

Problem Root Cause Solution
Your feet are too dry.
Abnormal
measuring results:
- Too high;
- Too low;
- Huge difference
between two recent
measurement.
No display on
LED when the
device powers on.
CANNOT proceed
to analyse body fat
and heart rate.
The device
powers off.
Wipe your feet with a damp
cloth, keeping them slightly damp
when starting measurement.
Batteries not yet installed.
Worn batteries.
Low battery.
Install the batteries.
(Please refer to Insert the
Batteries)
Replace all four batteries at the
same time. Please purchase the
authorised batteries for
replacement.
Step onto the platform
wearing socks or shoes.
Please keep barefooted during
the measurement, and keep full
contact with the electrodes as
well.
Replace all four batteries at the
same time. Please purchase the
authorised batteries for
replacement.
1312
TROUBLESHOOTING
Error Description Solution
Overload. Stop using this scale for
measurement.
Low Battery. Replace all four batteries in the
same time. Please purchase the
authorised batteries for
replacement.
Turn on the heart rate
measurement function on the APP.
The heart rate analysis
fails to complete the
analysis.
TROUBLESHOOTING
Error Prompt
Problem Root Cause Solution
Incorrect posture
Abnormal
measuring results:
- Too high;
- Too low;
- Huge difference
between two recent
measurement.
Please step on the platform
barefooted and stand still.
The device is located on
the soft ground such as a
carpet or on a rugged
surface.
Please place the device on a
flat, hard surface.
When Measuring ...
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

1514
SPECIFICATIONS
Smart Body Analyser Scale (BTS200)
6V (Four AAA-size Batteries)
Product Name
Dimension
Net Weight
Display Digital LED
Measurement Unit Pound / Kilogram
Measurement Range
Division
Accuracy
Working Environment
Storage Environment
Power Source
Auto-ON SENSE ON technology
Auto-OFF The scale will turn off after about 30s if there is no operation.
Accessories 1. Four AAA Size Batteries
2. User Manual
Mode of Operation Continuous Operation
Temperature: 5℃to 40℃
Temperature: -20℃to 60℃Relative Humidity: ≤90% RH
Atmospheric pressure: 86kPa to 106kPa
Atmospheric pressure: 50kPa to 106kPa
Relative Humidity: ≤90% RH
Scale: 300x300x25.5mm (Approximately)
Approximately 1.72kg ( Including the dry cells)
0.33lb to 397lb / 0.15kg to 180kg
<10kg：0.01kg / 0.1lb
10-100kg：0.05kg / 0.1lb；>100kg：0.1kg / 0.2lb
50.05-100: ±0.3kg;
100.1-150: ±0.4kg;
10-50: ±0.2kg;
150.1-180: ±0.7kg;
0.15-5kg: ±0.05kg;
Small Items Mode:
5.05-9.95: ±0.1kg;
Specifications
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the
manufacturer. Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT
be used by anyone during the process of transaction for verification of goods’ weight.
•
•
Problem Root Cause Solution
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth via
Settings.
The APP is OFF. Press the icon to turn ON your
APP.
Place your smartphone closer to
the scale.
Out of range of Bluetooth
transmission.
TROUBLESHOOTING
When Data Transmitting ...
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。

DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt.
Then use a dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance
of discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact
Kinetik Wellbeing. (Please refer to Warranty for contact information)
When carrying out usual maintenance, please ensure practice of the following
Do’s and Don’ts:
Kinetik Wellbeing
Website: http://www.kinetikwellbeing.com
Customer Care email: [email protected]
16
MAINTENANCE
Maintenance
Warranty
APPENDIX
-- CAUTION! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE.
-- DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
-- Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
-- Leaving a battery in an extremely high temperature surrounding
environment that can result in an explosion or the leakage of flammable
liquid or gas;
-- A battery subjected to extremely low air pressure that may result in an
explosion or the leakage of flammable liquid or gas.
Warning
Kinetik Wellbeing warrants its products free of defects in materials and
workmanship in normal use for a period of ONE year from the date of retail
purchase.
This warranty does NOT cover damages caused by misuse or abuse, including
but not limited to:
Failure caused by unauthorised repairs or modifications.
Damage caused by shock or drop during transportation.
Failure caused by improper operation inconsistent with the instructions stated
in this user manual.
Malfunction or damage from failure to provide the recommended maintenance.
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under
warranty, please deliver the original package Kinetik Wellbeing. Please return
the store receipt (with the retail purchase date) and a note with reasons to
return on it as well.
→
→
→
→
→
17
请用AI或EPS档案印刷。
PDF文档只供参考，不可用于印刷，
敬请留意。
