MODEL: KC-1433FX & KC-1433FXR
COPYRIGHT ©2002 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
INSTRUCTION MANUAL
14” -3 SPEED BAND SAW
NEW & IMPROVED
“TRU-RIP”
RIP FENCE SYSTEM
KC-1433FXR SEE PAGE 12

IMPORTANT INFORMATION
2-YEAR
LIMITED WARRANTY
FOR THIS 14” BAND SAW
KING CANADA TOOLS
OFFERS A 2-YEAR LIMITED WARANTY
FOR INDUSTRIAL USE.
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this tool are available at our authorized KING CANADA service centers across Canada. For servicing, contact or
return to the retailer where you purchased your product along with your proof of purchase.
LIMITED TOOL WARRANTY
KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants
to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free
from defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, repairs
or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or for
incidental, special or consequential damages arising from the use of our products. To take advantage of this warranty, the product or
part must be returned for examination by the retailer.Shipping and handling charges may apply. If a defect is found, KING CANADA
will either repair or replace the product.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
KING CANADA INC. DORVAL, QUEBEC, CANADA H9P 2Y4

GENERAL SAFETY INSTRUCTIONS
FOR POWER TOOLS
1. KNOW YOUR TOOL
Read and understand the owners manual and labels affixed to
the tool. Learn its application and limitations as well as its
specific potential hazards.
2. GROUND THE TOOL.
This tool is equipped with an approved 3-conductor cord and
a3-prong grounding type plug to fit the proper grounding
type receptacle. The green conductor in the cord is the
grounding wire. NEVER connect the green wire to a live
terminal.
3. KEEP GUARDS IN PLACE.
Keep in good working order, properly adjusted and aligned.
4. REMOVE ADJUSTING KEYS AND WRENCHES.
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
5. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite accidents. Make sure the
floor is clean and not slippery due to wax and sawdust
build-up.
6. AVOID DANGEROUS ENVIRONMENT.
Don’t use power tools in damp or wet locations or expose
them to rain. Keep work area well lit and provide adequate
surrounding work space.
7. KEEP CHILDREN AWAY.
All visitors should be kept a safe distance from work area.
8. MAKE WORKSHOP CHILD-PROOF.
Use padlocks, master switches or remove starter keys.
9. USE PROPER SPEED.
Atool will do a better and safer job when operated at the
proper speed.
10. USE RIGHT TOOL.
Don’t force the tool or the attachment to do a job for which it
was not designed.
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties or jewelry (rings,
watch) because they could get caught in moving parts. Non-
slip footwear is recommended. Wear protective hair covering
to contain long hair. Roll up long sleeves above the elbows.
12. ALWAYS WEAR SAFETY GLASSES.
Always wear safety glasses (ANSI Z87.1). Everyday
eyeglasses only have impact resistant lenses, they are NOT
safety glasses. Also use a face or dust mask if cutting operation
is dusty.
13. DON’T OVERREACH.
Keep proper footing and balance at all times.
14. MAINTAIN TOOL WITH CARE.
Keep tools sharp and clean for best and safest performance.
Follow instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS.
Before servicing, when changing accessories or attachments.
16. AVOID ACCIDENTAL STARTING.
Make sure the swich is in the ‘’OFF’’ position before plugging
in.
17. USE RECOMMENDED ACCESSORIES.
Consult the manual for recommended accessories. Follow the
instructions that accompany the accessories. The use of
improper accessories may cause hazards.
18. NEVER STAND ON TOOL.
Serious injury could occur if the tool tips over. Do not store
materials such that it is necessary to stand on the tool to reach
them.
19. CHECK DAMAGED PARTS.
Before further use of the tool, a guard or other parts that are
damaged should be carefully checked to ensure that they will
operate properly and perform their intended function. Check
for alignment of moving parts, breakage of parts, mounting,
and any other conditions that may affect its operation. A guard
or other parts that are damaged should be properly repaired or
replaced.
20. NEVER LEAVE MACHINE RUNNING
UNATTENDED.
Turn power ‘’OFF’’. Don’t leave any tool running until it comes
to a complete stop.

SPECIFIC SAFETY INSTRUCTIONS
FOR BAND SAWS
Safety is a combination of common sense, staying alert and
knowing how your band saw works. Read and understand the
following safety rules before operating.
• Adjust the upper guide to just clear workpiece.
•Make sure that the blade is properly adjusted and tensioned
before operating.
• Do not remove small jammed pieces until the blade has
completely stopped.
•Hold workpiece firmly against the table. Do not saw a workpiece
which does not have a flat surface unless it can be supported.
•Turn the machine off if the workpiece is to be backed out of an
uncompleted cut.
BEFORE EACH USE:
Inspect your band saw.
•To reduce the risk of injury from accidental starting, turn the
switch off, unplug the band saw and remove the switch key
before changing the set-up, removing covers, guards or the
blade.
•Check the alignment of moving parts, binding of moving parts,
breakage of parts, band saw stability and any other conditions
that may affect the way the band saw works.
•If any part is missing, bent or broken in any way, or if any
electrical parts do not work properly, turn the band saw off and
unplug the saw. Replace damaged or missing parts before using
the band saw again.
TO REDUCE THE RISK OF INJURY FROM JAMS,
SLIPS, THROWN PIECES OR BROKEN BLADES.
Inspect your blade.
•Choose the right blade size, style and cutting speed for the
material and the type of cutting you plan to do.
•Make surethe blade teeth point downward, towards the table.
•Make surethe blade guides and thrust bearings areproperly
adjusted.
•Make surethe blade tension is properly adjusted.
•To reduce the risk of accidental blade contact, minimize blade
breakage and provide maximum blade support, always adjust
the upper blade guide and blade guard to just clear the
workpiece.
•Caution: Never cut metals with this band saw, only wood and
wood products.
Use extra caution with large, very small or awkward workpieces.
•Use extra supports (tables, blocks, etc...) for any workpieces
large enough to tip when not held down to the table top.
•NEVER use another person as a substitute for a table extension,
or as additional support for a workpiece that is longer or wider
than the basic band saw table, or to help feed, support or pull
the workpiece.
•When cutting irregularly shaped workpieces, plan your work so
it will not slip and pinch the blade. A piece of molding for
example, must lie flat or be held by a fixture or jig that will not
let it twist, rock or slip while being cut.
•Properly support round material such as dowel rods or tubing.
They have a tendency to roll during a cut, causing the blade to
“bite”. To avoid this, always use a “V” block or clamp the work
to the miter guage.
•Cut only one workpiece at a time.
WHENEVER THE BAND SAWIS RUNNING.
•Beforestarting your cut, watch the saw while it runs. If it makes
an unfamiliar noise or vibrates a lot, stop immediately. Turn the
saw off and unplug. Do not restart until you have found and
corrected the problem.
Keep children away.
•Keep all visitors at a safe distance from the band saw.
•Make surebystanders are clear of the table and the workpiece.
Don’tforce the tool.
•Let the blade reach full speed beforecutting.
•It will do the job better and safer at its designed rate.
•Feed the workpiece into the blade only fast enough to let the
blade cut without bogging down or binding.

MOTOR SPECIFICATION AND GROUNDING
WARNING: To reduce the risk of electrical hazards, fire hazards
or damage to the tool, use proper circuit protection. Your tool is
prewired for 120V operation. Connect the tool to a power line with
the appropriate voltage and a 15-amp branch circuit. Use a 15-amp
time delay type fuse or circuit breaker. The AC motor used for this
band saw is a non-reversible type, having the following
specifications:
GENERAL ELECTRICAL CONNECTION SAFETY
DANGER: To reduce the risk of electrocution:
•Use only identical replacement parts when servicing. Servicing should
be performed by an authorized and qualified service technician.
•Do not use in rain or where the floor is wet. This tool is intended
for industrial use.
WARNING! Do not allow your finger(s) to touch the terminals of
the plug when installing or removing the plug to or from the wall
outlet.
GROUNDING
In the event of a malfunction or breakdown, grounding provides a
path of least resistance for electrical current. This reduces the risk of
electric shock. The plug must be used in a matching outlet that is
properly installed and grounded in accordance with all local codes.
Do not modify the plug provided. If it will not fit into the outlet,
have the proper outlet installed by a qualified technician, ensuring
that it is grounded properly. Use only three wire extension cords
with three pronged plugs (Fig.1A). Improper connection of the
grounding wirecan result in the risk of electric shock. The green
wire is the ground wire. If the cord is damaged or worn, repair or
replace it before operating. If repair or replacement of the cord is
necessary, make sure the ground wire is NEVER connected to a live
terminal.
240V OPERATION
If240V, single phase operation is desired, the following instructions
must be followed:
1. Disconnect the machine from its power source.
2. The band saw comes with four motor leads that are connected for
120V operation. Reconnect these four motor leads for 240V
operation, as indicated on the inside of the capacitor cover.
3. The 120V plug supplied with the band saw must be replaced with
aCSA listed plug suitable for 240V operation. This plug is
illustrated in Fig.1B. Contact your authorized service center or
qualified electrician to install the plug and to change the
connections from 120V to 240V. The band saw must comply with
all local and national codes after the 240V plug is installed.
120V/240V MOTOR SPECIFICATIONS
Horsepower
Volts
Amps.
RPM
Hz
Phase
1
120V/240V
10A/5A
1720
60
1
FIGURE 1A
120V GROUNDED OUTLET BOX
CURRENT CARRYING
PRONGS
GROUNDING BLADE
120V WIRING DIAGRAM
POWER CORD
TO SWITCH POWER CORD
SWITCH TO MOTOR
MOTOR
MOTOR
SWITCH
SWITCH
GREEN GREEN
GREEN
WHITE WHITE
BLACK
BLACK
WHITE
MOTOR
LEAD
MOTOR
LEAD
BLACK
FIGURE 1B
240V GROUNDED OUTLET BOX
CURRENT CARRYING
PRONGS
GROUNDING BLADE

UNPACKING
CONTENTS OF BOXES
1. Band saw main frame
2. Cabinet stand w/motor
3. Rip Fence & bars
4. Table
5. Table support brackets
6. Hardware bag (see below
for contents)
7. Pulley cover
8. Belts
WARNING! Do not plug the machine into the wall or try to operate until the band saw is completely assembled, wired, all belts are aligned
and tightened, and the blade is tensioned and tracking properly.
Carefully unpack the contents of the box and check that all items in Fig.2 are included. Do not discard any packing material until the band
saw is fully assembled and operational.
FIGURE 2
1
2
3
45
6
78
CONTENTS OF HARDWARE BAG
1. 1 Knob
2. 4 Hex. nuts
3. 5 Hex. nuts
4. 6 Pan hd. bolts
5. 1 Hex. bolt
6. 2 Hex. bolts
7. 4 Hex. bolts
8. 1 Hex. bolt
9. 2 Pan hd. bolts w/flange
10. 8 Flat washers
11. 1 Flat washer
12. 8 Flat washers
13. 6 Spring washers
14. 2 Table support knobs
See below

ASSEMBLY
ASSEMBLING BANDSAW TO CABINET STAND
1. Set bandsaw on top of stand matching the holes of the bandsaw
base and those of the cabinet stand.
2.Secure bandsaw to cabinet stand using 4 hex. bolts, 8 washers, 4
lock washers and 4 hex. nuts.
ASSEMBLING TABLE
1. Locate the trunnion bracket (A-Fig.3) and bolt it securely to the
band saw using 2 hex. bolts and washers (B) as shown. The longest
bolt (C) is used as a stop to support the table at 900to the blade. To
install, thread a nut onto the bolt and turn the bolt into the
threaded hole in the left, rear of the trunnion bracket.
2. Thread the saw blade through the slot to the centre of the table, turn
the table so the bolts dangling from its underside align with the
holes in the trunnion bracket and lower it into place. Locate the two
hand wheels (A-Fig.4) from the hardwarebag, install and tighten
into place.
3. Table insert: Place the table insert (B-Fig.4) in the hole in the table,
make sure the pin in the table protrudes through the insert.
4. Adjusting table: The table as it sits should slide from side to side, if
it does not, the bolts found on either side of the half round bracket
should be loosened. Adjust the table so the blade sits in the middle
of the slot in the table insert. Retighten the six bolts.
5. Table top: Adjust the long bolt that was threaded into the trunnion
bracket (C-Fig.3), so that the table rests on it when it is 900to the
blade. Lock the bolt in place by tightening the nut down onto the
trunnion bracket.
NOTE: This bolt must be removed if the table is tilted to the left.
6. The pin (C- Fig.4) that looks like a bolt with no threads, should be
tapped into the hole in the right side of the table.
ASSEMBLING DUST CHUTE
1. The dust chute (D- Fig.4) is assembled to the lower wheel cover.
Open lower wheel cover and using two pan hd. bolts (A- Fig.5),
secure dust chute into place as shown in Fig.5.
“TRU-RIP” RIP FENCE SYSTEM ASSEMBLY
1. Assemble the fixed base (A Fig.6) to the cast iron table using 2 hex.
bolts and spring washers (B).
2. Assemble the rear squaretube (C) to the table using 2 cap screws.
3. Assemble the fence (D) to the fence body, then place the fence
assembly on the fixed base and rear square tube, slide the fence on
its guides until it is the required distance from the blade.
4. Check the scale, make sure the distance between the edge of the
miter slot and both the front and rear of the rip fence are the same
distance, adjust so both distances areequal.
5. Lock the fence by pushing down on the locking handle.
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6

ASSEMBLY
INSTALLING V-BELTS
1. Slip shorter of the two V-belts between pulleys A & B Fig.7 & 8. Slip
longer of the two V-belts between pulleys B & C. If too much
tension exists between the pulleys and the installation of V-belts is
impossible, raise the motor plate to decrease the spacing between
the pulleys. See “Adjustments” section for the proper V-belt
tensioning before using band saw.
INSTALLING BELT/PULLEY GUARD
1. Place belt/pulley guard (E- Fig.8) over pulleys and rest on cabinet
stand. Fix the belt/pulley guard to the cabinet stand using four hex.
bolts and washers (F).
INSTALLING BELT/PULLEY GUARD KNOB
1. Using a pan hd. screw from the hardwarebag, fix the belt/pulley
guard knob as shown in Fig. 9.
CONNECTING THE SWITCH AND MOTOR PLUG
This bandsaw is supplied with a quick connect switch to motor plug
which conveniently allows you to plug and unplug the bandsaw
before or after any servicing without having to unplug the main
power cord. Plug in the switch to motor plug as shown in Fig.10.
FIGURE 7
FIGURE 8
FIGURE 9 FIGURE 10

ADJUSTMENTS & OPERATION
900TABLE ADJUSTMENT
Your bandsaw is equipped with an adjustable stop (bolt-A- Fig.12)
assembled to the table trunnion (C) to insure that the table is
perfectly set at 900to the table.
To adjust;
1. Slightly tilt the table to the right. Make sure the stop (bolt) is
lowered to avoid any interference with the table.
2. Place a square on the table and against the band saw blade. Tilt the
table until it is 900to the blade.
3. When the table is 900to the blade, the stop (bolt) should come in
contact with the bottom of the table. If an adjustment is necessary,
loosen nut (B) and turn stop bolt until it contacts the table.
4. The pointer (C-Fig.11) may need adjusting after the table is set at
900,.unscrew pan hd. screw and reposition the pointer to the zero
mark and tighten pan hd. screw.
It is necessary to remove the stop (bolt) when tilting the table to the left.
TILTING TABLE
1. The table on your bandsaw can be tilted 450to the right and 150to
the left. To tilt the table, loosen the two lock knobs (B- Fig.11), tilt the
table to the desired angle and retighten the two lock knobs.
ADJUSTING BLADE TENSION AND TRACKING BLADE
1. The slide bracket (C-Fig.13) allows you to increase or decrease the
blade tension by turning the tension knob (A). With the blade on the
wheels, turn the tension knob (A) raising or lowering the blade
wheel until the desired blade tension is obtained. NOTE: Too much
tension or strain could break the blade.
2. When the proper blade tension is set, slowly rotate blade wheels
clockwise, checking that the blade travels in the center of the upper
wheel protector.
3. If the blade slides toward the front edge, slightly turn knob (B)
clockwise. This tilts the top blade wheel towards the back of the
band saw and draws the blade towards the center of the wheel
protector.
4. If the blade slides towards the back edge, slightly turn the knob (B)
counterclockwise.
FIGURE 11
FIGURE 12
FIGURE 13

ADJUSTMENTS & OPERATION
ADJUSTING UPPER BLADE GUIDE ASSEMBLY
1. Set upper blade guide assembly as closely as possible to the top of
stock. To do so, loosen lock knob (A-Fig.14), raise or lower the
upper blade guide assembly to the desired height.
ADJUSTING UPPER BLADE GUIDES AND BLADE SUPPORT
BEARING
1. After the blade is tensioned and tracking properly, adjust the upper
blade guides (B-Fig.14) and support bearing. To adjust;
2. Loosen thumb screws (C-Fig.14) . Move both guide blocks (B)
within .002 inch to the blade. Do not pinch blade. Retighten thumb
screws. Center the guide blocks (B) with the blade by moving the
blade guide block support (D). Loosen thumb screw (E) then turn
the lower adjustment nut (F) to fine tune this adjustment. Retighten
thumb screw.
3. To adjust the upper blade support bearing located behind the blade
guard, loosen the thumb screw on the opposite side of thumb screw
E. Using the upper adjustment nut (F), move the support bearing to
1/64 inch behind the back of the blade.
NOTE: The upper blade support bearing prevents the blade from
moving back too far and slipping off the wheels.
ADJUSTING LOWER BLADE GUIDES AND BLADE SUPPORT
BEARING
Adjust the lower blade guides and blade support bearing at the same
time as the upper ones. To do so;
1. Loosen thumb screws (A-Fig.15) . Move both guide blocks (B)
within .002 inch to the blade. Do not pinch blade. Retighten thumb
screws.
2. To adjust the lower blade support bearing (C), loosen the thumb
screw (D). Move the support bearing to 1/64 inch behind the back
of the blade. Retighten thumb screw.
CHANGING BLADES
To change blades;
1. Open upper and lower wheel guards.
2. Release blade tension, remove table spreader pin and table insert.
3. Slip blade off wheel, guiding it through the table slot.
4. Toinstall blade, reverse procedure.
CHANGING SPEEDS
To change speeds;
1. Install long belt (B) on pulley steps #4 to obtain 735 RPM.
2. Install long belt (B) on pulley steps #3 to obtain 1470 RPM.
3. Install long belt (B) on pulley steps #2 to obtain 2350 RPM.
Pulley step #1 on motor pulley (C) is not used.
FIGURE 14
FIGURE 15
FIGURE 16

MAINTENANCE & TROUBLESHOOTING
WARNING: For your own safety, turn the switch “OFF” and
remove the plug from the power source before maintaining your
band saw.
TIRES
Pitch and sawdust that build up on the tires should be removed
with a stiff brush or scrape the sawdust with a piece of wood.
NOTE: To reduce the risk of damaging the tires, do not use a sharp
knife or any kind of solvent.
When the tire becomes worn, they should be replaced. When
replacing the tires, stretch them around the wheels but do not glue
them on.
GENERAL MAINTENANCE
Keep your band saw clean. Remove the sawdust from the inside.
Vacuum or blow out frequently.
Do not allow residue to build up on the table, the guides or the
back-up bearings. Clean them with gum and pitch remover.
Note: Do not immerse the back-up bearings in the gum and pitch
remover. Put a thin coat of paste wax on the table so that the wood
slides easily while cutting.
MOTOR
Frequently blow or vacuum out the sawdust from the motor.
CAUTION: To reduce the risk of eye injury from blowing debris,
wear safety glasses when blowing out dust.
LUBRICATION
All of the ball bearings are packed with grease at the factory. They
require no further lubrication.
TROUBLESHOOTING
PROBLEM
The motor will not start.
The band saw blade does not move although motor is running.
The blade will not cut or cuts slowly.
Sawdust fills inside the band saw.
Sawdust in motor housing.
Unable to get the blade to track in the driver of wheel.
SOLUTION
1. Band saw is not plugged in.
2. A household circuit has blown a fuse or an open circuit breaker.
3. Power cordis damaged. Replace.
4. Switch is not in the “ON” position.
5. Motor requires service.
1. Blade tension knob is not tight. Turn motor off, tighten knob and
restart the band saw.
2. Blade has slipped offpulley wheel. Open cover housing and
check.
3. Blade is broken. Replace.
1. Contact has dulled teeth with hardened steels or long usage.
Replace.
2. Blade mounted backwards.
1. This is normal, clean out periodically.
2. Remove cover housing. Use vacuum cleaner to remove dust.
1. Use a vacuum cleaner nozzle on air intake and exhaust grilles.
2. Keep workplace cleaner.Clean up excess sawdust frequently.
1. Backing bearing is not properly adjusted.
2. Tension wheel is not properly adjusted.
3. Bad blade, replace.

INSTRUCTIONS FOR KC-1433FXR
KING CANADA INC. DORVAL, QUÉBEC, CANADA H9P 2Y4
www.kingcanada.com
COPYRIGHT © 2007 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
14” WOOD BANDSAW
WITH RESAW GUIDE

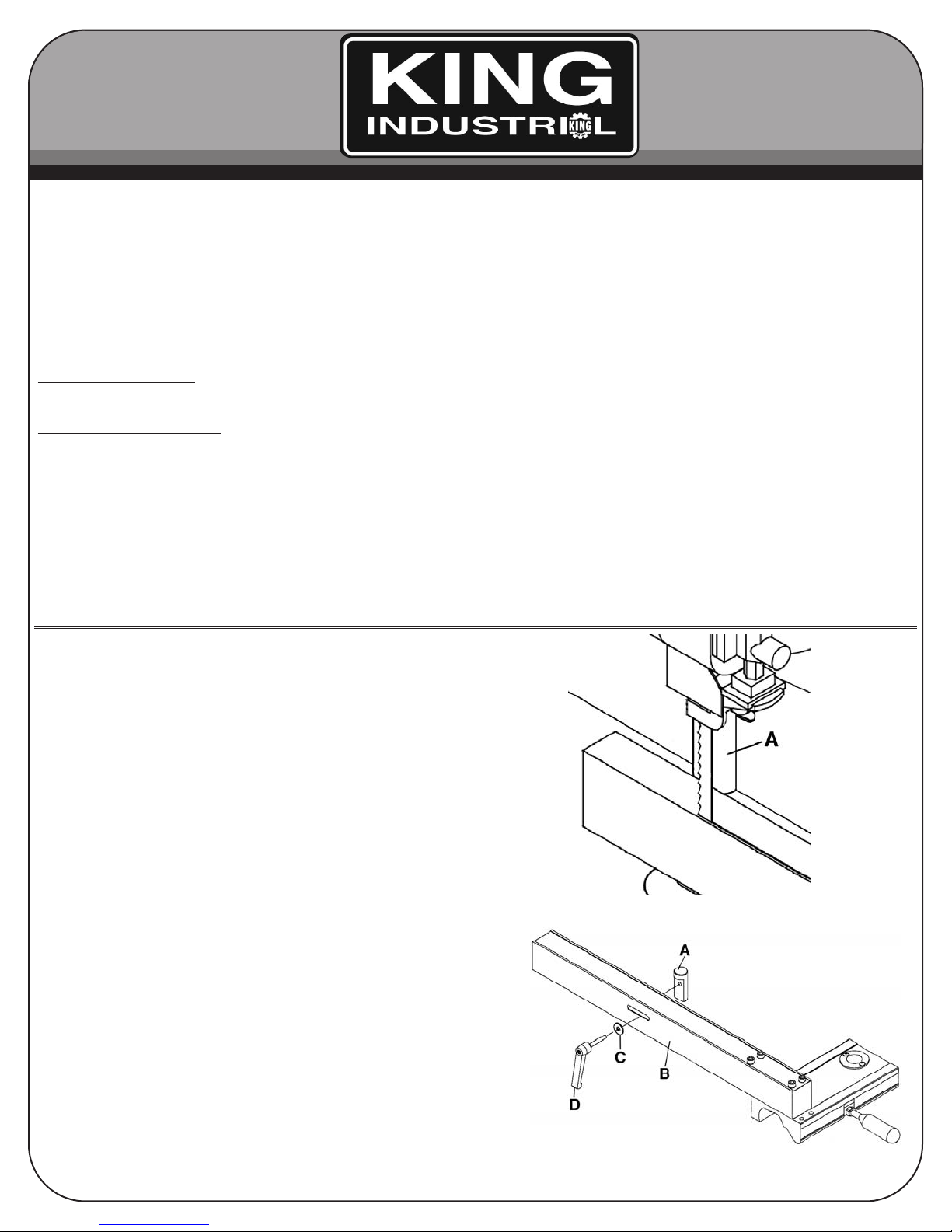

Resaw guide
Resawing is a method of ripping a piece of lumber into thinner pieces as
well as making book matched or slip matched panels. The curved resaw
guide (A) Fig.1 is the best option for guiding wood through the bandsaw.
The narrow line of contact makes it easy to compensate for a blade that
“leads” or wanders off the cutting line when the stock is fed straight into it.
You can get satisfactory results with this resaw guide “single point” method,
but it demands very careful hand control.
To install resaw guide;
1) Attach the resaw guide post (A) Fig.2 to the fence (B) using washer (C)
and lock handle (D).
2) Slide and position the resaw guide post so that it is centered with the
front edge of the blade and tighten lock handle.
Here’s how you can resaw precisely and easily using resaw guide. Pencil a
straight line down the edge of a square edged board. Start sawing along
your layout line, guiding the board freehand. If the blade is leading, you will
have to feed the board into the blade at an slight angle to keep cutting along
the line and to compensate for blade drift. See Fig.1.
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most
updated parts diagram and parts list.
2-YEAR LIMITED WARRANTY FOR KING INDUSTRIAL MACHINERY
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this improved product are available at our authorized King Canada service centers across Canada.
LIMITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original
retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in
materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence or accidents, repairs
done by an unauthorized service center,alterations and lack of maintenance. King Canada shall in no event be liable for death, injuries to
persons or property or for incidental, special or consequential damages arising from the use of our products.
Totake advantage of this limited warranty,return the product at your expense together with your dated proof of purshase to an authorized King
Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service
centers. In cooperation with our authorized serviced center,King Canada will either repair or replace the product if any part or parts covered
under this warranty which examination proves to be defective in workmanship or material during the warranty period.
Figure 2
Figure 1
