Specifications

Dimensional Specifications

IYAR3I

Installation Instruction for

1A89F

• Length: 229 / 305 / 381 / 457 / 533mm

9" / 12" / 15" / 18" / 21"

• Travel: Full Extension

• Maximum Drawer Side Thickness: 16mm

• Max. Load Capacity: 45 kg(100 lb)/pair

• Mount: Undermount

• Material: Galvanized Steel

• Height Adjustment: +3.5mm

• Depth Adjustment: +1/-1mm

ОX

Wood Screw System Screws

7.5

4.0

Drawer Width Formula

Drawer Side Thickness

mm (inch)

"W" minus

mm (inch)

16 (5/8") 10 (3/8")

15 (19/32") 12 (15/32")

14 (9/16") 14 (9/16")

13 (1/2") 16 (5/8")

12 (15/32") 18 (23/32")

W: Internal Cabinet Width

Example:

Internal Cabinet Width = 457 mm (18")

Drawer Side Thickness = 13 mm (1/2")

Drawer Width = 457 - 16 = 441 mm

= (18") - (5/8") = 17-3/8"

+0.5

-1.5

Drawer Installation

Minimum 3 screws per bracket.

W: Internal Cabinet Width DL: Drawer Length X: Drawer Front Thickness L: Slide Length IDL: Internal Drawer Length

Item No. Drawer Length

mm (inch)

Overall Cabinet Depth

mm (inch)

Cabinet Depth With Bracket

mm (inch) Profile Length

mm (inch)

System Screw Locations

mm (inch)

MAX MIN A B

1A89F229 229 (9") 305 (12") 256 (10-1/16") 133 (5-1/4") 229 (9")

1A89F305 305 (12") 381 (15") 369 (14-9/16") 326 (12-7/8") 318 (12-1/2") 165 (6-1/2") 261 (10-1/4")

1A89F381 381 (15") 457 (18") 446 (17-9/16") 403 (15-7/8") 394 (15-1/2") 165 (6-1/2") 357 (14-1/16")

1A89F457 457 (18") 533 (21") 522 (20-9/16") 479 (18-7/8") 470 (18-1/2") 261 (10-1/4") 453 (17-13/16")

1A89F533 533 (21") 610 (24") 598 (23-9/16") 555 (21-7/8") 546 (21-1/2") 261 (10-1/4") 517 (20-3/8")

Fit with American standard 3" cabinet depth system.

Drawer Length

bracket

37(1-7/16”)

9(11/32”)

4(5/32")max

**4

min gap (push-open)

(3/8”)

+2.0

- 1. 0

Note

Profile Length

Cabinet Depth with Bracket

W- 42+0.5

-1.5

Drawer Side Thickness

Maximum

16mm (5/8")

min 6

37(1-7/16")

21(13/16")

min 27.5 13(1/2")

Opening

Drawer Height

Max = opening - 24mm(15/16”)

Drawer Width

max

13mm

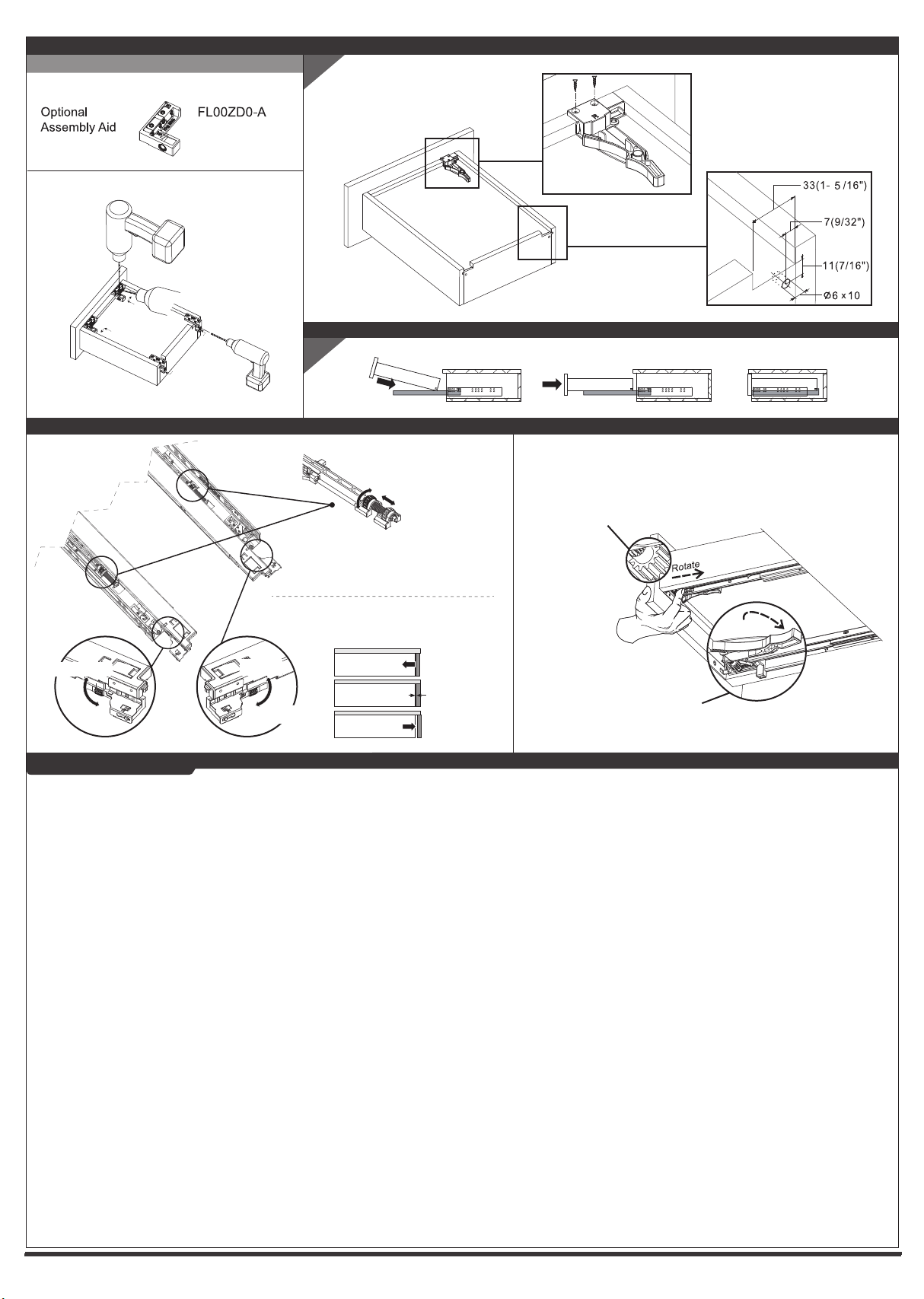

Drilling template (Optional)

Drawer

front

Drawer

rear

6.0mm drill bit

2.5mm drill bit

2Locking Device and

Extension Plastic

Simply rotate the wheel at the

front bottom of the drawer to

adjust the drawer height.

Simply press the front release

device to remove the drawer.

Note: King Slide reserves the right to alter specifications of all the products without notice. The actual product may vary from the illustration, If the entity is different from the illustration then please refer to the entity, thank you.

Drawer Installation

Quality Warranty Letter

King Slide provides a 3 year limited Lifetime Warranty for our drawer runners contained in this product, but not the product itself, against defects in material and workmanship,

as determined by King Slide. This limited warranty does not cover any damage to this product that results from improper installation, accident, abuse, misuse, natural disaster,

or exposed to excessive loads, abnormal environmental conditions, or any unauthorized disassembly, repair, modification or usual and customary wear.

This warranty is a warranty for replacement only. King Slide will send a new King Slide drawer runner to the original consumer purchaser for a Shipping and

Handling Fee currently in effect. The warranty does not cover the cost of removal or reinstallation of the defective drawer runner.

In the event King Slide discontinues the production of the purchased drawer runner, King Slide reserves the right to replace the defective drawer runner with a reasonably

equivalent product. No guarantee of interchangeability is offered. The warranty does not apply to a discontinued product if at King Slide’s discretion a comparable product is not

available.

To obtain a replacement within 30 days of discovery of defect, remove the defective drawer runner and mail it to postage pre-paid to :

KING SLIDE USA, INC.

Customer Service Department

12989 Bellaire Blvd#8,

Houston, TX 77072

Please enclose a copy of your proof of purchase and a brief letter states your name, address and phone number (including area code) with the item along with a description

of the problem. State law requires that items be clean before being returned for repair or replacement.

The current Shipping and Handling fees are settled on $15.00 for up to six (6) replacement sets of drawer runners or hinges.

Each addition sets of drawer runners will be charged for additional Shipping and Handling Fee of $2.00 per set (2 pieces).

For example, 8 replacement sets of drawer runners would require $19 Shipping and Handling Fee. For the Shipping and Handling fees of replacement a check or a Money

Order in the correct amount is required. Shipping and Handling fees are non-refundable.

ALL WARRANTIES IMPLIED BY STATE LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSLY LIMITED AS SET FORTH ABOVE. However, some states do not allow limitations on how long an implied warranty lasts, so the above limitation

may not apply to you. WITH THE EXCEPTION OF ANY WARRANTIES IMPLIED BY STATE LAW AS HEREBY LIMITED, THE FOREGOING EXPRESS LIMITED WARRANTY

IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES OF KING SLIDE WITH RESPECT TO THE REPAIR OR REPLACEMENT OF ANY PROPS OR PARTS.

IN NO EVENT SHALL KING SLIDE BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM THE USE, INSTALLATION, PERFORMANCE OR

FAILURE OF ITS PRODUCT. However, some states do allow the exclusion of limitation of incidental or consequential damages, so the above exclusion may not apply to you.
