ENGINE CRANE
OPERATION MANUAL
NO.9TY1341-02
2

SAFETY INSTRUCTIONS
OPERATION
WARNING
• Study, understand, and follow operation manual and safety precautions before using this device.
• Failure to heed these warning may result in damage to crane and /or resulting in personal injury or
property damage.
• Always use stands in pairs on a hard level surface capable of sustaining the load.
• Do not overload the crane beyond it’s rate capacity of each specified boom position.
• Move load slowly and smoothly to avoid uncontrolled swinging and drop suddenly during transport.
• Load and boom must in lowest possible position before removing.
• No any alteration shall be made to the engine crane.
• Visually inspect device for damage before each use.

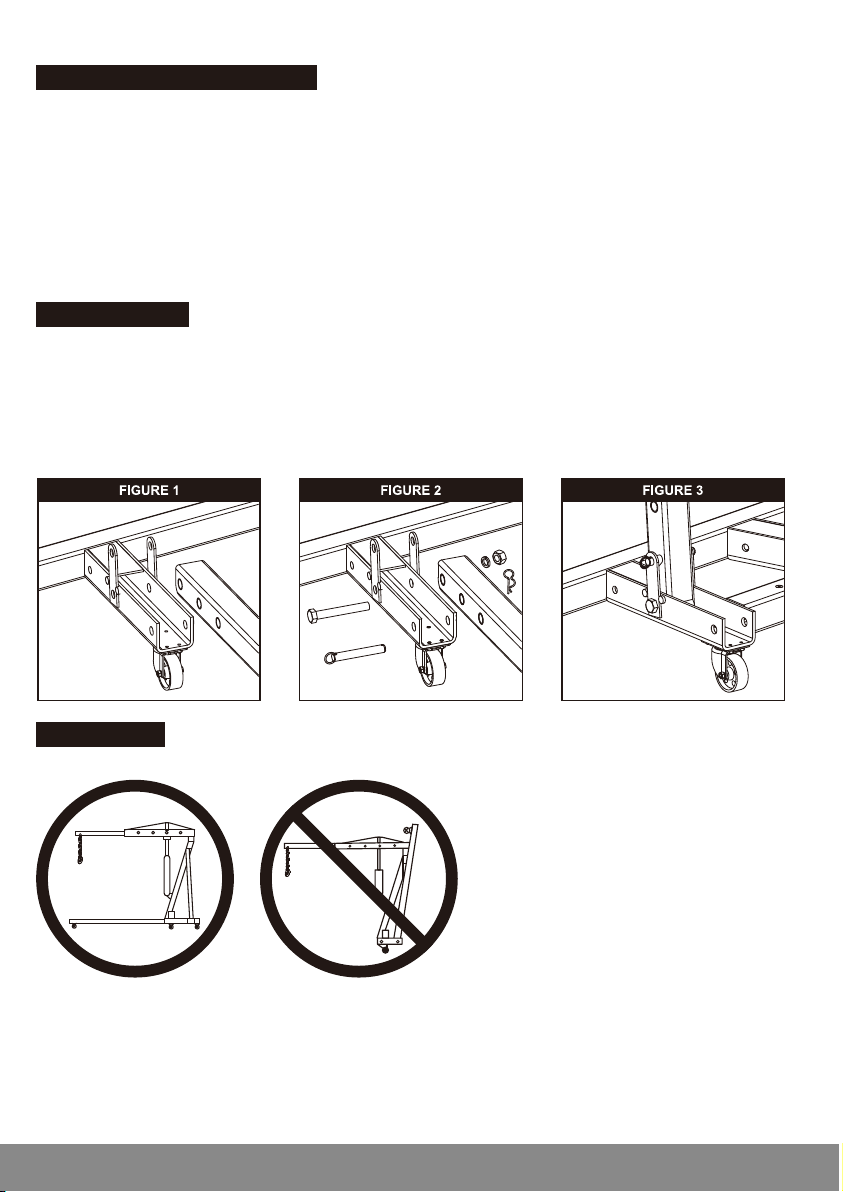

Front legs must always be locked in the down position before applying a load and raising the boom
(figure 1 & 2).
• Before moving the crane, the brake of rear caster should be in released position.
• When the hoist is still, the brake should be in tightened position.
• Boom must be in the fully lowered position before raising legs and ahould be locked in place (figure
3).

ASSEMBLY AND PART LIST
Part
Description
Qty
1
2
3
4
5
6
7
8
9
10
11
12
1
2
1
1
2
1
1
1
1
1
1
1
Frame base
Front leg
Boom
Boom extension
Support strap
Hook chain assembly
Hydraulic ram
Pump handle
Main support post
Bolt M18x110
Bolt M16x90
Bolt M16x90(8.8)
Part
Description
Qty
13
14
15
16
17
18
19
20
21
22
23
24
1
2
1
1
2
2
1
3
3
2
3
8
Spring washer 18
Spring washer 16
Spring washer 8
Bolt M16x75(8.8)
Bolt M14x100
Washer 14
Washer 16
Washer 18
Bolt M18x120
Bolt M16x110
Bolt M14x75(8.8)
Bolt M16x110
Part
Description
Qty
25
26
27
28
29
30
31
32
33
34
35
3
6
3
2
12
16
16
2
4
1
4
Frame pin W/Hair pin
Connect plate
Handle
Swivel caster 3-1/2"
Swivel caster 3"
Nut M8
Bolt M8x20
Bolt M8x12
Nut 14
Nut 16
Nut 18
