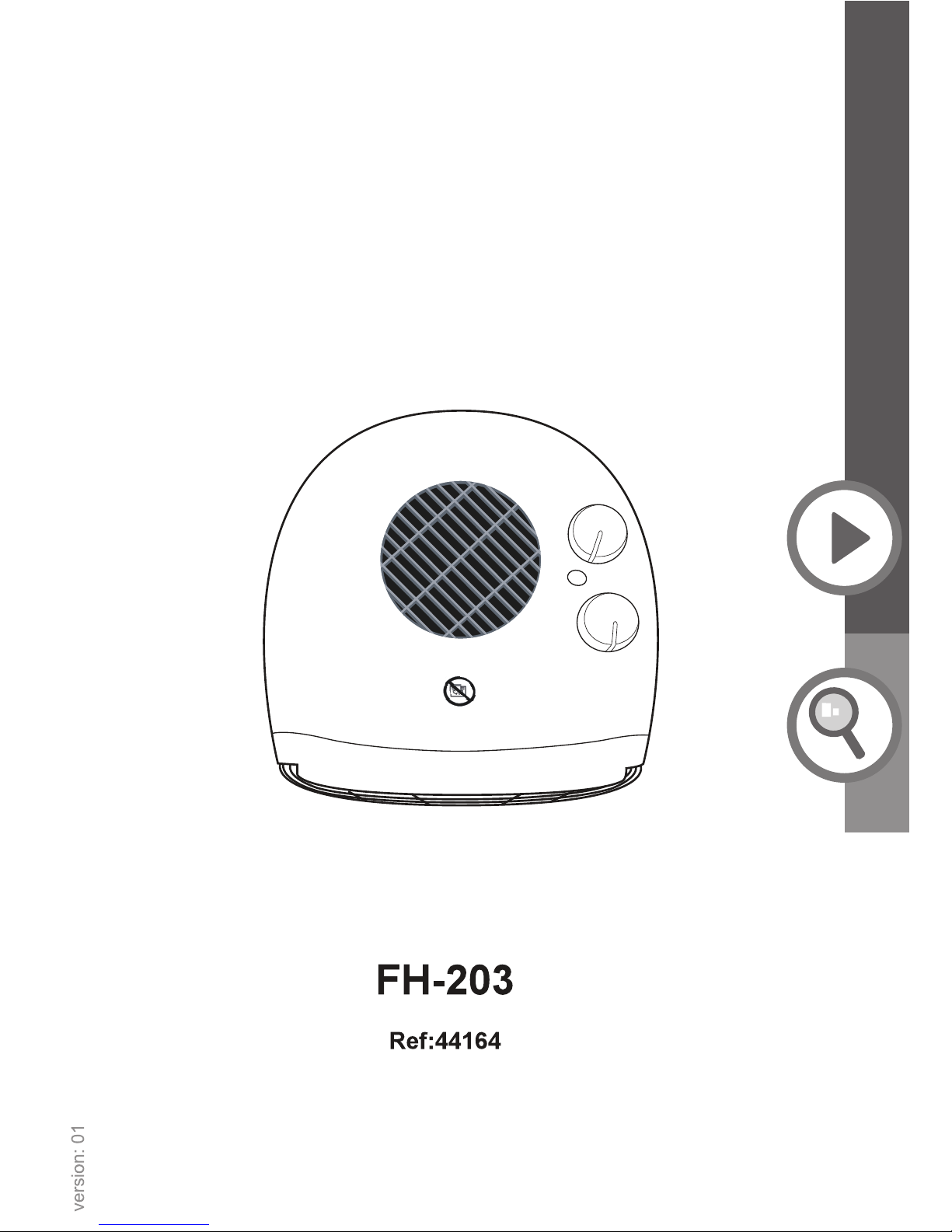

Kingavon FH-203 User manual

Fan heater

Let’s
get started...
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
GB
IE
Getting started...
Safety
Before you start
Quick start
03
05
06
In more detail...
Technical and legal information
Care and maintenance
08
09
02

GB
IE
GB
Safety
03
PLEASE READ THE FOLLOWING INSTRUCTIONS CARE-
FULLY BEFORE USING THE APPLIANCE.
CAUTION - Fire, electric shock, physical injury and material
damage hazards:
To use the appliance, always follow the instructions for assembly,
use and maintenance as well as usage cautions:
1. Carefully read and retain these instructions.
2. Before connecting the appliance, be sure that the mains voltage
available matches that specified on the rating plate.
3. Do not use the appliance for other than its intended use. For
domestic indoor use only.
4. Place the appliance on a flat, stable, heat-resistant surface.
Operating the product in any other position could cause a hazard.
5. There may be trace of odour during the first few minutes of initial
use. This is normal and will quickly disappear.
6. The heater is hot when in use .To avoid burns, do not let bare
skin touch any hot surface. Use the carrying handle when moving
the product.
7. Keep combustible material such as furniture, cushions, bed-
ding, paper, clothes, curtains etc. at least 1m away from the heater.
8. Do not use the heater in areas where flammable liquids are
stored or where flammable fumes may be present.
9. Do not cover or obstruct any of the heat outlet grilles or the air
intake openings of the heater.
10. Do not use the heater in the rooms with explosive gas or while
using inflammable solvents, varnish or glue.
11. Keep the heater clean. Do not allow any objects to enter any
ventilation or exhaust opening as this may cause electric shock, or
fire or damage to the heater.
12. Always unplug or disconnect the appliance from the mains
power supply when not in use or when moving or cleaning it. Do
not pull the cord to unplug the heater.
13. Do not immerse the cord, plug or any part of the appliance in
water or any other liquid.
14. Do not attempt to repair, disassemble or modify the appliance.
There are no user-serviceable parts inside.
15. The heater must not be located immediately below a socket-
outlet.
16. Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.

Safety
04
17. Do not use this heater with a programmer, timer, separate
remote-control system or any other device that switches the heater
on automatically, since a fire risk exists if the heater is covered or
positioned incorrectly.
18. WARNING : In order to avoid overheating, do not cover
the heater.
19. WARNING! - DO NOT COVER THIS APPLIANCE WITH
ITEMS SUCH AS CLOTHING, BLANKETS OR PLACE NEXT TO
CURTAINS OR NET/BLINDS.
20. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
21. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
22. Children of less than 3 years should be kept away unless
continuously supervised. Children aged from 3 years and less than
8 years shall only switch on/off the appliance provided that it has
been placed or installed in its intended normal operating position
and they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user
maintenance.
23. CAUTION - Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
24. CAUTION - if using an extension lead please ensure you do
not exceed the maximum rated running wattage/load of the
extension lead.

GB
IE
Before you start
Things to check before you start
Your product
For domestic use only.
Never allow children or persons unable to operate the
appliance safely, use this appliance without supervision.
Please dispose of plastic bags carefully and keep them
away from children.
This appliance is designed for use as a supplementary heat
source, it is not intended to be the main source of heat.
1. Main body
2. Thermostat
3. Indicator light
4. Selection switch
IMPORTANT: When in use never cover the heater in any way or
place it close to combustible materials. The heater will get hot, never
touch it whilst in use. Always keep children and pets at a safe
distance and never leave unsupervised in a room with a heater that
is working.
Warning ! This product comes fully assembled, before
using please ensure that all components and fixings are
secure, and make sure the appliance is in perfect condition
before operation.
IMPORTANT-RETAIN THIS
INFORMATION FOR FUTURE
REFERENCE: READ CAREFULLY
05

GB
IE

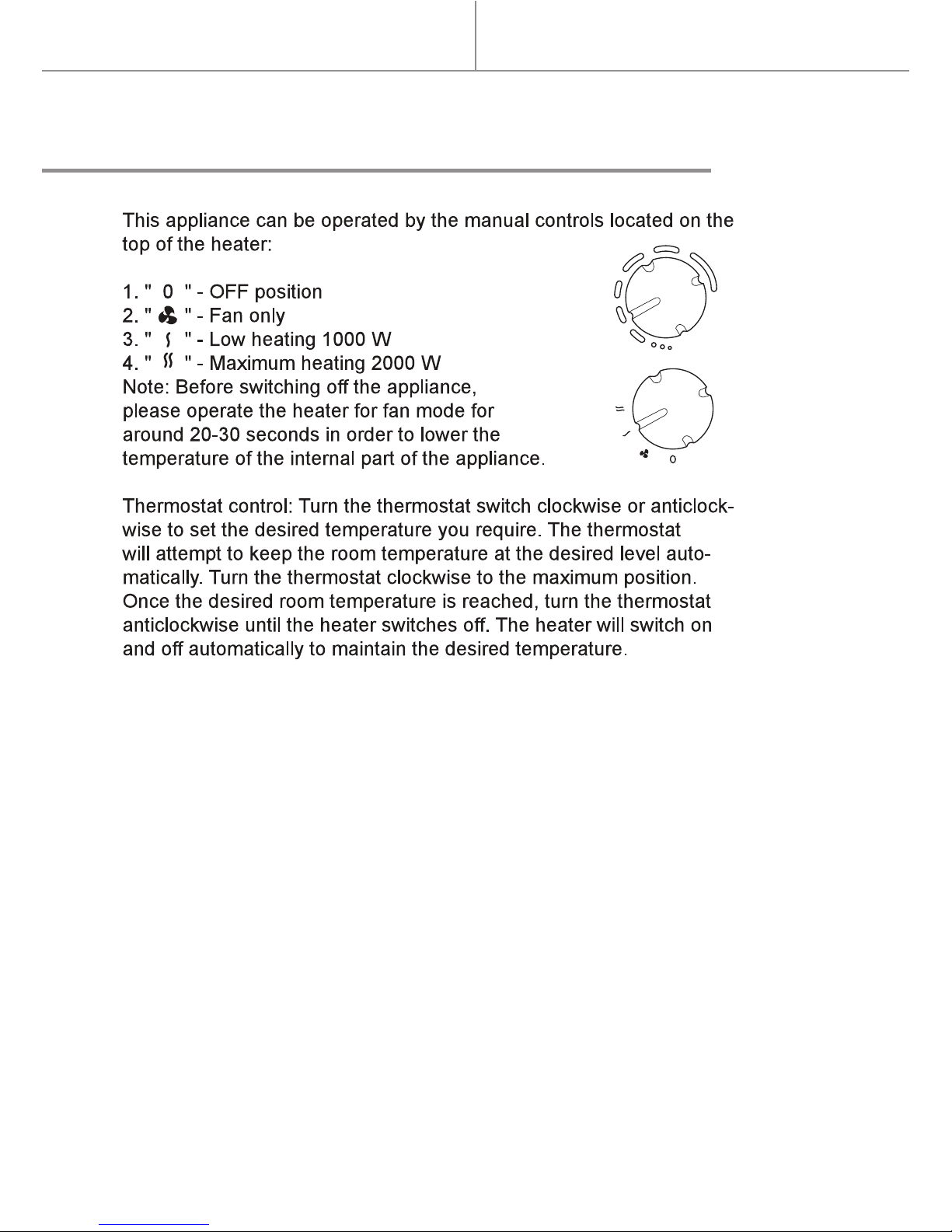

The controls
Quick start
06

GB
IE
Quick start
Safety Control (Thermal Cut-Out):
CAUTION - This product has two overheat protection devices. The first
protection device is an overheat switch which can be re-set, once the cause
of the overheating has been removed AND the heater has cooled down. The
product can then continue to be used normally. The second overheat
protection device is a thermal fuse which CANNOT be reset by the user.
In the event that the heater stops working as a result of overheating take the
following immediate steps: switch the electricity off at the socket and remove
the plug. Remove any objects that are covering the product. CAUTION: Do
not touch the heater as it will be hot.
Set the heater switches to OFF and leave the heater to cool down fully. Once
completely cool, reconnect the heater and switch it on. If it fails to work it is
likely that the secondary overheat protection device (thermal fuse) has
operated – this overheat protection system cannot be reset by the consumer.
Do not open this product. There are no user-serviceable parts inside.
07

08
GB
IE
Technical information
Technical specifications
> Model: FH-203
> Power supply: 220-240V~ 50Hz
> Rated Power: 1700-2000W
> Class II
Conforms to all relevant European Directives.

Care and maintenance
Maintenance and cleaning
Storage
1. Switch off and unplug from the power supply before cleaning.
2. Using a soft, moist cloth, with or without a mild soap solution, carefully
clean the exterior surface of the product.
CAUTION: Allow the product to completely cool before handling or
cleaning it.
3. Do not allow water or other liquids to run into the interior of the product,
as this could create a fire and/or electrical hazard.
4. We also recommend the periodic cleaning of this appliance by lightly
running a vacuum cleaner nozzle over the guards to remove any dust or
dirt that may have accumulated inside or on the unit.
The product can be stored in the off-season, we recommend using the
original (or appropriately sized) box. It is important to keep it in a safe, dry
location.
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as
they may damage the surface finish of the plastic components.
09

Care and maintenance
This symbol is known as the 'Crossed-out Wheelie Bin Symbol'.
When this symbol is marked on a product or battery, it means that
it should not be disposed of with your general household waste.
Some chemicals contained within electrical/electronic products or
batteries can be harmful to health and the environment.
Only dispose of electrical/electronic/battery items in separate
collection schemes, which cater for the recovery and recycling of
materials contained within. Your co-operation is vital to ensure
the success of these schemes and for the protection of the
environment.
Recycling
As the colours of the wires in the mains lead
of this appliance may not correspond with
the coloured markings identifying the termin
als in your plug, proceed as follows.
The blue wire must be connected to the
terminal marked with an N or coloured black.
The brown wire must be connected to the
terminal marked with an L or coloured red.
WARNING: Never connect live or neutral wires to the earth terminal of
the plug.
Plug Replacement
This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp
fuse. Should the fuse require replacement, it must be replaced with a
fuse rated at 13 Amp and approved to BS1362.
In the event the mains plug has to be removed/replaced for any reason,
please note:
IMPORTANT: The wires in the mains lead are coloured in accordance
with the following code:
Blue – Neutral
Brown – Live
1
10

B&Q plc,
Chandlers Ford
Hants
SO53 3LE United Kingdom
www.diy.com
