Kingfisher FPHPC100 User manual

FPHPC100_V1_20161024
FPHPC100
1400W High Pressure Cleaner - Original Instructions
WARNING: Read the instructions before using the product!
EAN: UK 3663602939641
EAN: EU 3663602939665
V04_2009 22
BX220IM
EN 
FR

PL 

RU 
ES

PT

RO


Nettoyeur Haute Pression 1400 W - Instructions d'origine
AVERTISSEMENT : Lisez la notice d’utilisation avant d’utiliser le produit !
0\MNDZ\VRNRFLĞQLHQLRZD: - Instrukcja oryginalna
8:$*$3U]HGSU]\VWąSLHQLHPGRXĪ\WNRZDQLDSURGXNWXGRNáDGQLH]DSR]QDü
VLĊ]LQVWUXNFMąREVáXJL
:Ɇɨɣɤɚɜɵɫɨɤɨɝɨɞɚɜɥɟɧɢɹɂɫɯɨɞɧɨɟɪɭɤɨɜɨɞɫɬɜɨ
ȼɇɂɆȺɇɂȿɉɪɨɱɬɢɬɟɢɧɫɬɪɭɤɰɢɢɩɟɪɟɞɢɫɩɨɥɶɡɨɜɚɧɢɟɦɢɡɞɟɥɢɹ
+LGUROLPSLDGRUDGHDOWDSUHVLyQ: - Manual de instrucciones
ADVERTENCIA: Lea las instrucciones antes de usar el producto!
Lavadora de alta pressão 1400 W - Instruções para o uso
AVISO: Leia as instruções antes de utilizar o produto!
$SDUDWGHFXUă܊DWVXESUHVLXQH:,QVWUXF܊LXQLGHXWLOL]DUH
$9(57,60(17&LWLĠLLQVWUXFĠLXQLOHvQDLQWHGHXWLOL]DUHDSURGXVXOXL
2
35

68 

205
107
140
173

02
GB
IE
32
32
33
30
22
25
20
In more detail...
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
EC declaration of conformity
19
02
03
11
14
Getting started...
Legal information
Your product
Before you start
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
2
2

FPHPC100
Getting started...
03
GB
IE
Safety warnings
>Product shall not be used by children. Children should
be supervised to ensure that they do not play with the
product.
>This product can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
product in a safe way and understand the hazards
involved.
>If the power cord is damaged, it must be replaced by
WKHPDQXIDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOL¿HG
persons in order to avoid a safety hazard.
High pressure cleaner safety warnings
>WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents or
chemicals may adversely affect the safety of the product.
>WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons, live
electrical equipment or the product itself.
>WARNING: Do not use the product within range of
persons unless they wear protective clothing.
>WARNING: Wear appropriate Personnel Protection
Equipment (PPE) while operating the product.
>WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
>:$51,1*5LVNRIH[SORVLRQ±'RQRWVSUD\ÀDPPDEOH
liquids.
>WARNING: This product shall not be used by children
or untrained personnel.
Legal information
3
3

04
FPHPC100
Getting started...
GB
IE
Legal information
Safety warnings
>:$51,1*+LJKSUHVVXUHKRVHV¿WWLQJVDQGFRXSOLQJV
are important for the safety of the product. Use only
KRVHV ¿WWLQJV DQG FRXSOLQJV UHFRPPHQGHG E\ WKH
manufacturer.
>WARNING: Only use original spare parts from the
manufacturer or approved by the manufacturer to ensure
product safety. The use of non-original accessories and
DQ\RWKHUDFFHVVRULHVQRWVSHFL¿FDOO\LQWHQGHGIRUWKH
model in question is prohibited.
>:$51,1* &RQVLGHU ZDWHU WKDW KDV ÀRZQ WKURXJK
EDFNÀRZSUHYHQWHUVWREHQRQSRWDEOH
>WARNING: Switch the product off and disconnect it
from the power supply removing the power plug from the
socket outlet before assembly, cleaning, adjustments,
maintenance, storage and transportation or converting
the product to another function.
>WARNING: Do not use the product if the power cord or
any part of the product is damaged, e.g. safety devices,
high pressure hoses, trigger gun. Never use the product
if the high pressure hose is damaged.
>WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. The plug and socket must
be of watertight construction. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
>WARNING: Always switch off the mains disconnecting
switch when leaving the product unattended.
4
4

FPHPC100
Getting started...
05
GB
IE
Legal information
>Have the electric supply connection to be made
E\ D TXDOL¿HG HOHFWULFLDQ DQG LQ FRPSOLDQFH ZLWK
IEC 60364-1. It is recommended that the electric supply
to this product should include either a residual current
device that will interrupt the supply if the leakage current
to earth exceeds 30 mA for 30 ms or a device that will
prove the earth circuit.
>1HYHUXVHWKHSURGXFWZLWKLQÀDPPDEOHRUWR[LFOLTXLGV
or liquids with characteristics incompatible with its
proper operation.
>Never use the product outdoors in the rain.
>Never touch the plug and/or socket with wet hands.
>Never lock the gun trigger in the operating position.
>&KHFN WKDW WKH SURGXFW LV ¿WWHG ZLWK LWV UDWLQJ ODEHO
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
LGHQWL¿HGDQGDUHSRWHQWLDOO\KD]DUGRXV
>Never tamper with or adjust the setting of the safety
valve or the safety devices.
>Never change the original diameter of the adjustable
nozzle.
>Never leave the product unattended when it is connected
to the power supply.
>Never move the product by pulling on the electrical
power cord.
>Do not allow vehicles to drive over the pressure hose.
>Do not move the product by pulling on the pressure
hose.
>When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
>Protect all electrical conductors against the water jet.
5
5

06
FPHPC100
Getting started...
GB
IE
Legal information
Safety warnings
>During start-up, the product may generate interference
on the electricity supply system.
>High pressure may cause parts to rebound: wear all the
protective clothing and equipment needed to ensure the
operator’s safety.
>%HDZDUHRINLFNEDFNJULSWKHJXQ¿UPO\ZKHQSXOOLQJ
the trigger.
>Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can be
connected directly to the mains drinking water supply
RQO\LIWKHVXSSO\KRVHLV¿WWHGZLWKDEDFNÀRZSUHYHQWHU
device with drainage facility.
>Have maintenance and/or repair work on electrical
FRPSRQHQWVWREHFDUULHGRXWE\TXDOL¿HGVWDII
>Discharge residual pressure before disconnecting the
hose from the product.
>Check before each use, and at regular intervals, that all
metal fasteners are tight and the product’s components
DUHLQJRRGFRQGLWLRQLQVSHFWIRUEURNHQRUZRUQSDUWV
>Use only detergents compatible with the high pressure
hose / electrical power cord cladding materials.
>Connect the appliance to a water tank or a water
container located at least at 2m from the ground with
DVXFWLRQKRVHHTXLSSHGZLWKEDFNÀRZSUHYHQWHUQRW
supplied)
>In case of contact with detergents: rinse with an
abundance of clean water.
Maintenance and storage
>Disconnect the product from the power supply and
check for damage after use.
>Disconnect the product from the power supply before
carrying out maintenance or cleaning work.
6
6

FPHPC100
Getting started...
07
Legal information GB
IE
>Use only the manufacturer’s recommended replacement
parts and accessories.
>Inspect and maintain the product regularly. Have the
product repaired only by an authorised service centre
RUVLPLODUTXDOL¿HGVSHFLDOLVW
>When not in use, store the product out of the reach of
children.
Vibration and noise reduction
To reduce the impact of noise and vibration emission, limit
the time of operation, use low-vibration and low-noise
operating modes as well as wear personal protective
equipment.
Take the following points into account to minimize the
vibration and noise exposure risks:
>Only use the product as intended by its design and
these instructions.
>Ensure that the product is in good condition and well
maintained.
>Use correct accessories for the product and ensure they
in good condition.
>Keep tight grip on the handles/grip surface.
>Maintain this product in accordance with these instructions
and keep it well lubricated (where appropriate).
>Plan your work schedule to spread any high vibration
tool use across a longer period of time.
Emergency
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
7
7

08
FPHPC100 Legal information
Getting started...
GB
IE
Safety warnings
>Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
>Switch off and disconnect from the power supply if
there are malfunctions. Have the garden power tool
FKHFNHG E\ D TXDOL¿HG SURIHVVLRQDO DQG UHSDLUHG LI
necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers
can arise in connection with the structure and design
of this product:
>Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
>'DQJHURILQMXU\DQGSURSHUW\GDPDJHFDXVHGE\À\LQJ
objects.
WARNING! This product produces an
HOHFWURPDJQHWLF ¿HOG GXULQJ RSHUDWLRQ 7KLV
¿HOGPD\XQGHUVRPHFLUFXPVWDQFHVLQWHUIHUH
with active or passive medical implants! To
reduce the risk of serious or fatal injury, we
recommend persons with medical implants to
consult their doctor and the medical implant
manufacturer before operating this product!
8
8

FPHPC100
Getting started...
09
Legal information GB
IE

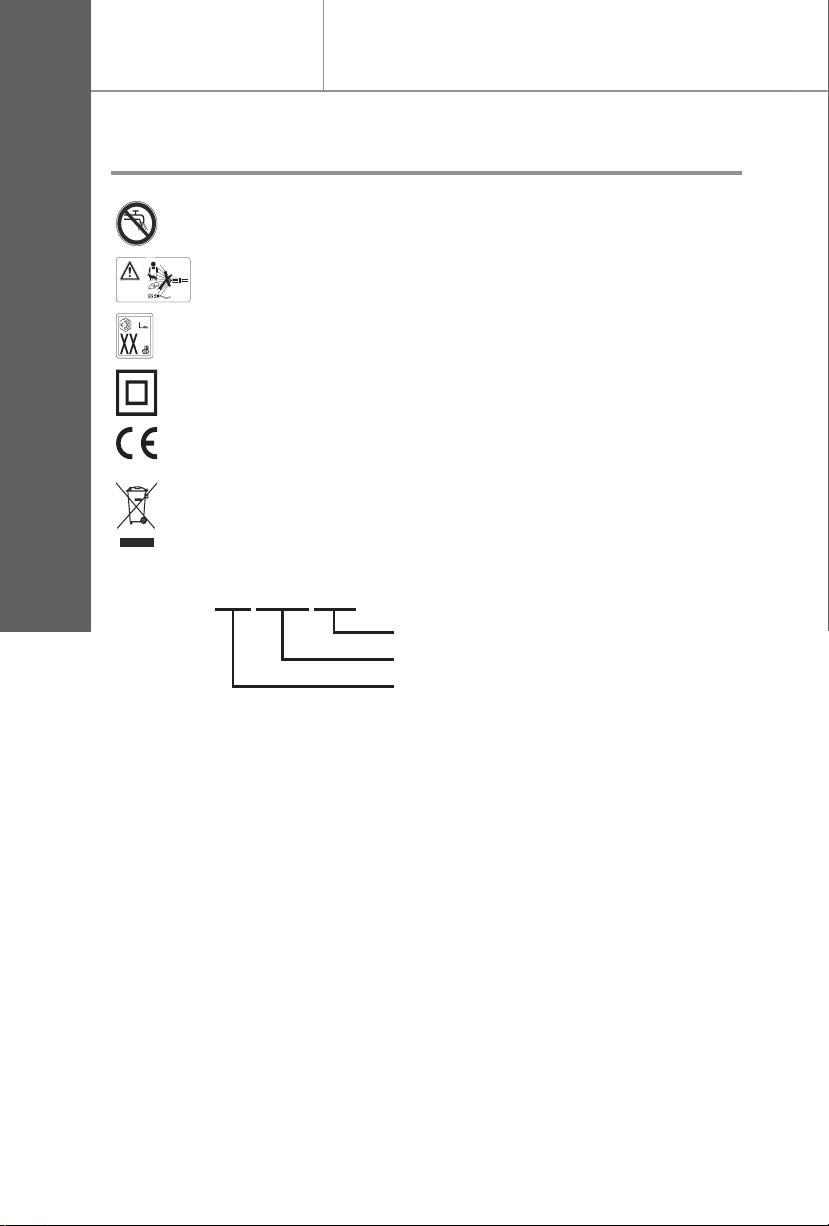

Symbols
2QWKHSURGXFWWKHUDWLQJODEHODQGZLWKLQWKHVHLQVWUXFWLRQV\RXZLOO¿QGDPRQJ
others the following symbols and abbreviations. Familiarise yourself with them
to reduce hazards like personal injuries and damage to property.
V~ Volt, (alternating
voltage)
kg Kilogram
Hz Hertz dB(A) Decibel (A-rated)
W Watt m/s² Metres per seconds
squared
/min or
min-1
per minute MPa Mega Pascal, pressure unit
mm Millimetre bar pressure unit
IPX5 The product is protected against water (out of a nozzle) from all
directions.
yyWxx 0DQXIDFWXULQJGDWHFRGH\HDURIPDQXIDFWXULQJ\\DQGZHHN
of manufacturing (Wxx)
Lock / to tighten or
secure
Unlock / to loosen
Note / Remark. Caution / Warning.
Read the instruction
manual.
Wear hearing protection.
Wear eye protection. Wear respiratory
protection.
Wear protective gloves. Wear protective, slip-
resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.
Always ensure that other people and pets remain at a safe
distance from the product when it is in operation. In general,
children must not come near the area where the product is.
Do not expose the product to rain or wet conditions.
9
9

FPHPC100 Legal information
Getting started...
GB
IE
10
Symbols
Local regulations can prohibit connection of the product to
drinking water supply equipment.
Do not to direct the water jet onto people, animals, electrical
equipment or onto the product itself.
Guaranteed sound power level value in dB
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
FPHPC100
Pressure
High pressure washer
OPP brand
p rated:rated pressure
p max:allowable pressure
Q
rated :rated flow
Q
Max :Max flow
p IN Max : Max inlet water pressure
10
10

FPHPC100
Getting started...
GB
IE
11

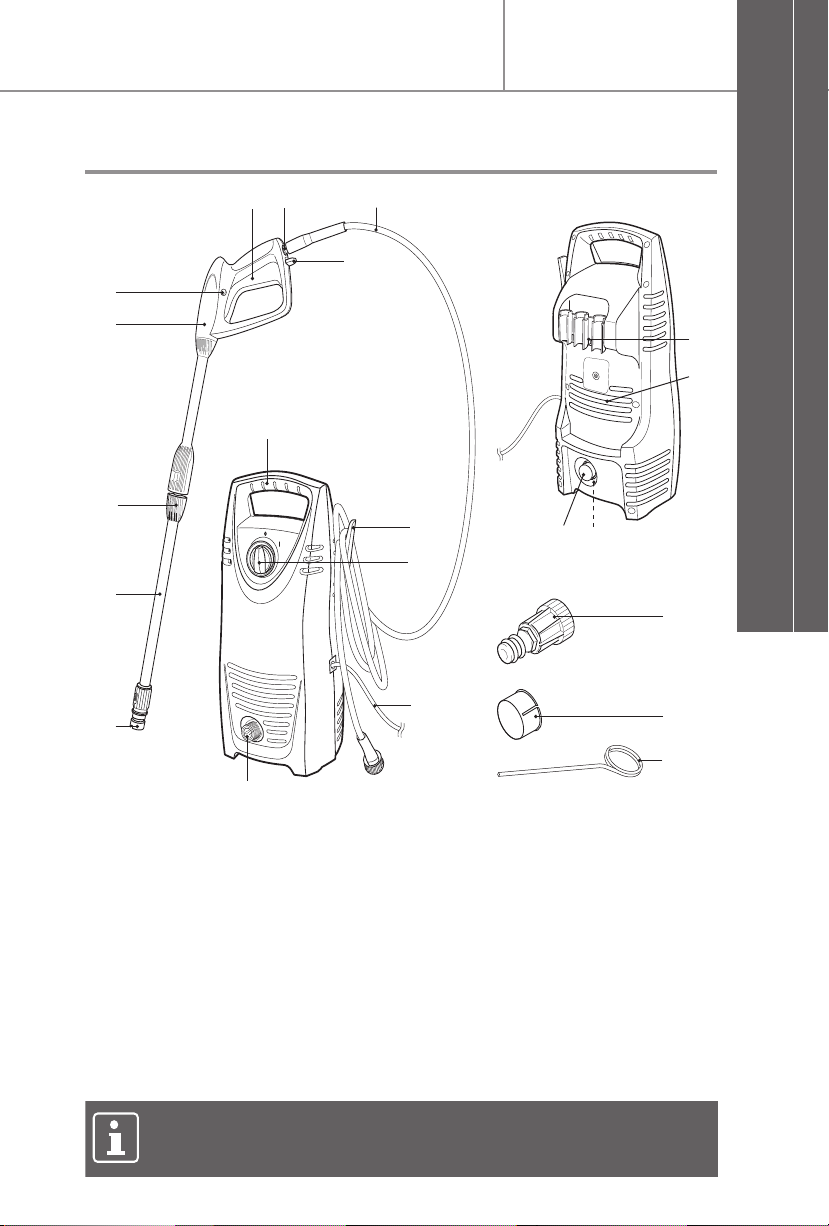

Your product
Your product
1
1a
2a
2b
2c 2d
2e
2
3
4
5
6
7
8
9
10
1111a
12
13
8a
1. Pressure lance
a. Nozzle
2. Spray gun
a. Lance connection port
b. Trigger lock
c. Trigger
d. Hose connection port
e. Hose release
3. Pressure hose
4. Transportation handle
5. Hose holder
6. On/off switch (“I”/”O”)
7. Power cord with plug
8. Water outlet
a. Cap
9. Accessory holder
10. Air vents
11. Water inlet
a. Cap
b. Filter*
12. Water hose connector
13. Cleaning needle
NOTE: Parts marked with * are not shown in this overview. Please
refer to the respective part in the instruction manual.
11
11

FPHPC100
Getting started...
GB
IE
12
Your product
7HFKQLFDOVSHFL¿FDWLRQV
General
> Rated voltage : 220 - 240 V~, 50 Hz
> Rated input : 1400 W
> Rated pressure : 70 bar (7 MPa)
> Max. allowable pressure : 100 bar (10 MPa)
> Max. inlet water pressure : 7 bar (0.7 MPa)
> 5DWHGÀRZ :5.5 l/min
> 0D[LPXPUDWHGÀRZ :7.2 l/min
> Rated temperature : < 50°C
> Gun kickback force at maximum
pressure
:< 20 N
> Protection class : II
> Degree of protection : IPX5
> Weight : approx. 5.61 kg
> Dimensions : approx. 214 x 230 x 452 mm
High pressure hose
> Permissible pressure : 120 bar (12 MPa)
> Maximum temperature : 60 °C
> Length : 3 m
Water hose (not supplied)
> Quality : reinforced garden hose
> Diameter : min. ø 13 mm (½“)
> Max. length : 25 m
Sound level
> Sound pressure level L
pA :78 dB(A)
> Uncertainty KpA :3 dB(A)
> Measured sound power level LWA :90.19 dB(A)
> Uncertainty KWA :3.1 dB(A)
> Guaranteed power level LWA (according
to 2000/14/EC amended by 2005)
:93 dB(A)
Vibration level
> Hand arm vibration ah:<2.5 m/s² (2.3 m/s²)
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards EN ISO 11203 and EN ISO 3744.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
12
12

FPHPC100
Getting started...
GB
IE
13
Your product / Before you start
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures
to protect yourself against vibration exposures. Take the whole
work process including times the product is running under no load
or switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
Unpacking
> 8QSDFNDOOSDUWVDQGOD\WKHPRQDÀDWVWDEOHVXUIDFH
> Remove all packing materials and shipping devices if applicable.
> Make sure the delivery contents are complete and free of any damage. If you
¿QGWKDWSDUWVDUHPLVVLQJRUVKRZGDPDJHGRQRWXVHWKHSURGXFWEXWFRQWDFW
your dealer. Using an incomplete or damaged product represents a hazard to
people and property.
> Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
You will need
(items not supplied)
Suitable crosshead
screwdriver
Water hose
Lubricant
Suitable personal protective
equipment
(items supplied)
Pressure lance (1)
Spray gun (2)
Pressure hose (3)
Hose holder (5)
Cap (8a)
Accessories holder (9)
Cap (11a)
Water hose connector(12)
Cleaning needle (13)
13
13

FPHPC100
Getting started...
GB
IE
14
Before you start
Assembly
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.

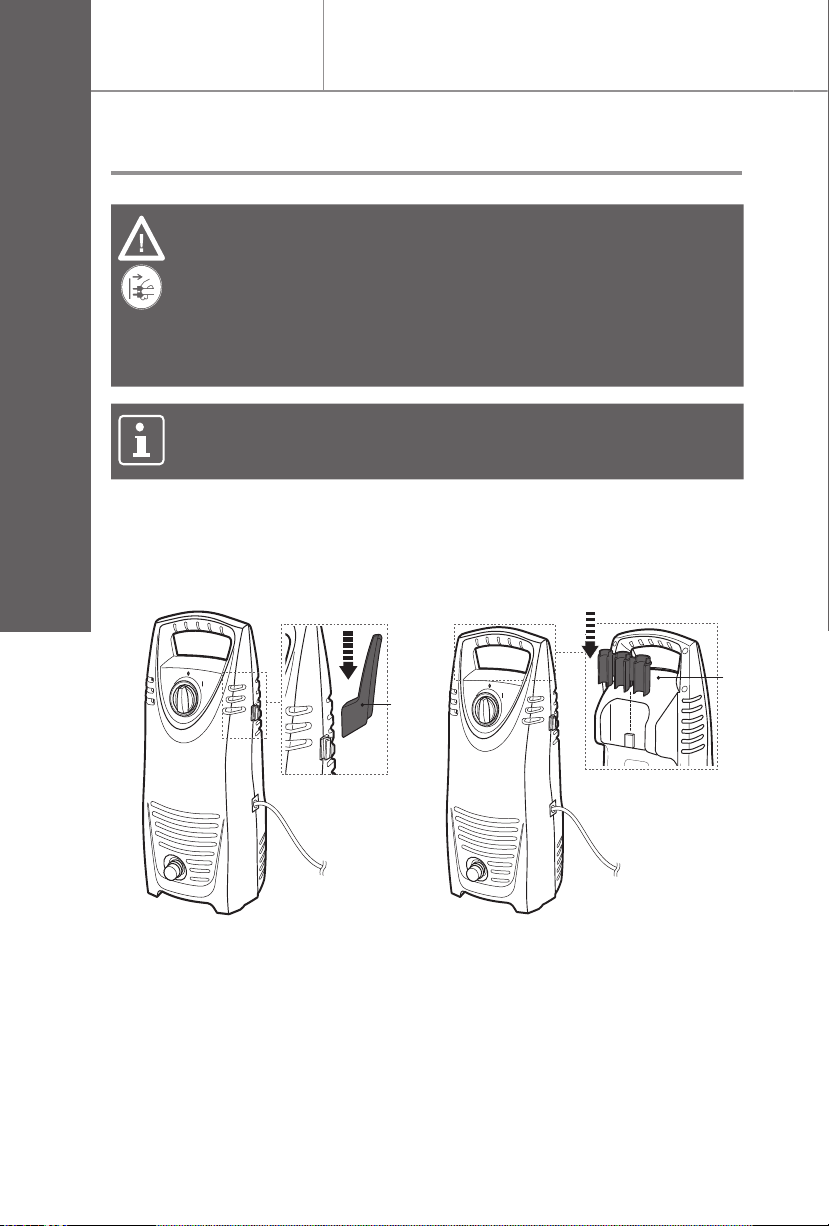

Holders
> Attach the hose holder (5) to the product (Fig. 1).
> Attach the accessory holder (9) to the product (Fig. 2).
5
9
Fig. 1 Fig. 2

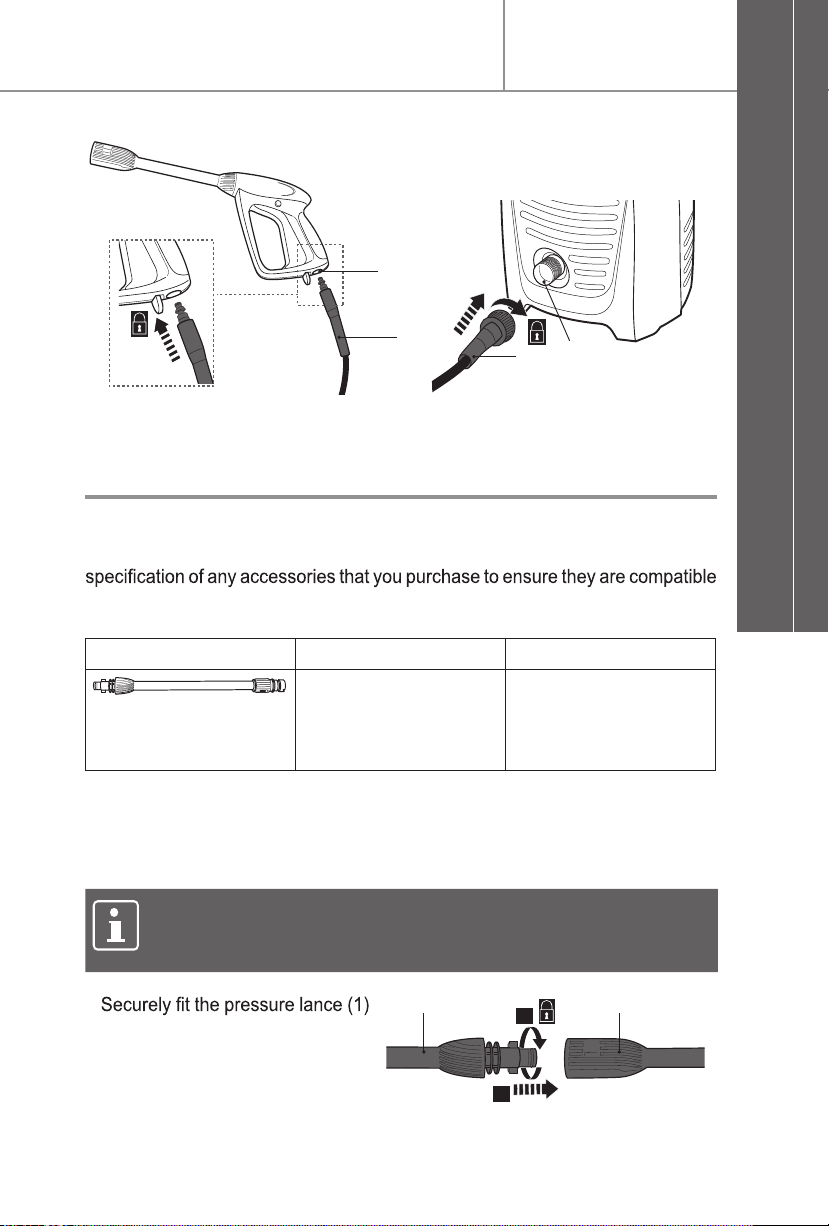

Pressure hose
> Insert the connector of the pressure hose (3) to the hose connection port (2d).
Ensure it snaps in place (Fig. 3).
> Remove the cap (8a) from the water outlet (8).
> Screw the pressure hose (3) clockwise to the water outlet (8). Make sure the
connection is properly tightened (Fig.4).
14
14

FPHPC100
Getting started...
Before you start
GB
IE
15
2d
38
3
Fig. 3 Fig. 4
Accessories
A pressure lance (1) is supplied with this product. Additionally you can purchase
other accessories from the specialist dealer. Please check the technical
with this product.
Illustration Description Application
Pressure lance Spray water jet to clean
sensitive surfaces from
dirt
Adjustable water jet
Attaching Accessories
> Align the tongues of the pressure lance (1) with the grooves of the lance
connection port (2a)and insert it (Fig. 5, step 1).
NOTE: There is a spring in the lance connection port of the spray gun
(2a). It has to be pressed down by the pressure lance (1)and might
need to apply some force.
>
by turning it clockwise and letting
it lock into place (Fig. 5, step 2).
1.
2.
1 2a
Fig. 5
15
15

FPHPC100 Before you start
Getting started...
GB
IE
16
Accessories
Removing accessories
> Press the pressure lance (1)t onto
the lance connection port (2a) (Fig. 6,
step 1) and turn it anti-clockwise to remove it
(Fig. 6, step 2).
1.
2.
1 2a
Fig. 6
Pressure lance
Turn the pressure nozzle (1a) to adjust the water jet of the pressure lance (1)
according to the surface you want to clean. The arrow on the pressure nozzle
points the adjusted application indicated with symbols on the nozzle (Fig. 7, 8).
Fig. 7, fan spray Fig. 8, turbo jet
Fan spray
Use the fan spray to clean wood decks, siding, vehicles etc.
> Turn the spray gun (2)to orientate the fan jet in a better way (Fig. 9, 10).
Fig. 9 Fig. 10
> Always start using the fan spray and begin spraying from at least 30 cm away
to avoid damaging the surface of the material you are cleaning.
16
16

FPHPC100
Getting started...
Before you start
GB
IE
17
Turbo jet
The high pressure turbo nozzle is intended for maximum cleaning effect. Keep
the spray wand 15 - 20 cm away from the cleaning surface at all times.
Connection to the water supply
WARNING! Although this product is suitable for attachment to the
drinking water supply local regulations may prohibit the connection to
drinking water connections!
Observe the regulations of your local utility company when connecting
the product to a water supply line! If it is prohibited to connect to the
GULQNLQJ ZDWHU IDFLOLW\ \RX PXVW XVH D EDFNÀRZ SUHYHQWHU ZKLFK
corresponds to EN 12729 Type BA or EN 61770! Make sure that the
hose is at least a diameter of 13 mm (1/2”) and is re inforced!
> Remove the cap (11a) from the water inlet(11) (Fig. 11).
> Screw the water hose connector (12) onto the water inlet (11) (Fig.12).
11
11a
11
12
Fig. 11 Fig. 12
NOTE: 7KHZDWHULQOHWFRQWDLQVD¿OWHUEWRSURWHFWWKHSURGXFW
DJDLQVWODUJHUSDUWLFOHV3OHDVHHQVXUHWKDWWKLVLV¿[HGDSSURSULDWHO\
'RQRWXVHWKHZDWHULQOHWZLWKRXWWKH¿OWHUE
> Attach a suitable water hose (not
included) to the water supply and
then the other end to the water hose
connector (12) (Fig. 13).
> Open the water supply.
Ø13 мм
12
Fig. 13
17
17

FPHPC100 Before you start
Getting started...
GB
IE
18
Connection to power supply
> Make sure the on/off switch (6) is in its off position (“0”).
> Connect the plug (7) with a suitable socket.
WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
If using an extension cord it must be suitable for outdoor use with
sockets protected against water splashing. Ensure the extension cord
is of the proper size and type for your product  1.5 mm
2)! Always use
a residual current device (RCD) protected supply.
> Your product is now ready to be used.
18
18

FPHPC100
19
In more detail...
GB
IE
In more
detail...
30
32
32
33
25
22
20
Product functions
Operation
Care and maintenance
Trouble shooting
Recycling and disposal
Guarantee
EC declaration of conformity
19
19

GB
IE
20
In more detail...
FPHPC100
GB
IE
Product functions
Intended use
This high pressure cleaner FPHPC100 is designated with a rated input of
1400 Watts. The intended use of this product covers the cleaning of vehicles,
buildings, terraces, facades and garden equipment using clean water. Likewise
you can remove sticky dirt, for example from paving slabs or rain gutters.
This product may not be used to clean clothing, shoes and other textiles.
The water jet should not be directed against persons, animals, any electrical
HTXLSPHQW RU RQ WKH SURGXFW LWVHOI 'R QRW ÀXVK DQ\ REMHFWV ZKLFK FRQWDLQ
health hazardous materials (e.g. asbestos). The product must not be run with
LQÀDPPDEOHH[SORVLYHDQGWR[LFOLTXLGV
)RUVDIHW\UHDVRQVLWLVHVVHQWLDOWRUHDGWKHHQWLUHLQVWUXFWLRQPDQXDOEHIRUH¿UVW
operation and to observe all the instructions therein.
This product is intended for private domestic use only, not for any commercial
trade use. It must not be used for any purposes other than those described.
Hose holder
Use the hose holder (5) to store the high pressure hose.
> Completely unwindthe pressure hose (3) from the holder before operation.
NOTE: Always unwind the complete hose for operation to avoid
damage and injuries.
20
20
