Kingfisher Titan TTB2200PRW User manual

EN
TTB2200PRW
Pressure Washer
2200W High
EAN: 5059340124131
Ref. No.: 165KH
CAUTION: Read the instructions before using the product. BX220IM
EN
TTB2200PRW
Pressure Washer
2200W High
EAN: 5059340124131
Ref. No.: 165KH
CAUTION: Read the instructions before using the product. BX220IM
Original Instructions_TTB2200PRW_V2_20200825_95817-FK
95817_IM_TTB2200PRW_20200702.indd 1 2020/9/21 下午2:06

Congratulations on your purchase of a power tool from
Kingfisher International Products B.V. We want you to continue getting
the best performance from it so this handbook includes information on
safety, handling and care. Please retain this handbook in case you
need to refer to any of the information in the future.
Your power tool comes with a 2 years guarantee, so should
it develop a fault within this period contact your retailer.
GARANTIE
This product carries a guarantee of 2 years. If your product develops a
item was purchased.
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in
the UK.
For any enquiries relating to the guarantee please refer to your retailer.
2200W HighPressure Washer TTB2200PRW
EN
37
37
38
35
31
27
24
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
23
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
03
04
11
12
14
Getting started...
Safety information
Your product
Technical
Before you start
95817_IM_TTB2200PRW_20200702.indd 2 2020/9/21 下午2:06

3
Congratulations on your purchase of a power tool from
Kingfisher International Products B.V. We want you to continue getting
the best performance from it so this handbook includes information on
safety, handling and care. Please retain this handbook in case you
need to refer to any of the information in the future.
Your power tool comes with a 2 years guarantee, so should
it develop a fault within this period contact your retailer.
GARANTIE
This product carries a guarantee of 2 years. If your product develops a
item was purchased.
- Fair wear and tear
- Misuse or abuse
- Lack of routine maintenance
- Failure of consumable items (such as batteries)
- Accidental damage
- Cosmetic damage
- Failure to follow manufacturer’s guidelines
- Loss of use of the goods
This guarantee does not affect your statutory rights. This guarantee is only valid in
the UK.
For any enquiries relating to the guarantee please refer to your retailer.
2200W HighPressure Washer TTB2200PRW
EN
37
37
38
35
31
27
24
In more detail...
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Guarantee
EC declaration of conformity
23
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Let’s
get started...
03
04
11
12
14
Getting started...
Safety information
Your product
Technical
Before you start
95817_IM_TTB2200PRW_20200702.indd 3 2020/9/21 下午2:06

4
EN
Getting started...
Safety information
TTB2200PRW by TITAN
Safety warnings
1. Machines shall not be used by children. Children
should be supervised to ensure that they do not play
with the product.
2. This machine can be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
machine in a safe way and understand the hazards
involved.
Safety warnings for high pressure cleaner
1. WARNING: This product has been designed for use
with the cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning agents
or chemicals may adversely affect the safety of the
machine.
2. WARNING: During use of high pressure cleaners,
aerosols may be formed. Inhalation of aerosols can
be hazardous to health.
3. WARNING: High pressure jets can be dangerous if
subject to misuse. Never direct the jet at persons,
live electrical equipment or the product itself.
4. WARNING: Do not use the machine within range of
persons unless they wear protective clothing.
5. WARNING: Do not direct the jet against yourself or
others in order to clean clothes or foot-wear.
6. WARNING: Risk of explosion – Do not spray
ammable liquids.
7. WARNING: High pressure cleaners shall not be used
by children or untrained personnel.
8. WARNING: High pressure hoses, fittings and
couplings are important for the safety of the product.
Use only hoses, ttings and couplings recommended
by the manufacturer.
95817_IM_TTB2200PRW_20200702.indd 4 2020/9/21 下午2:06

5
EN
Getting started...
Safety information
TTB2200PRW by TITAN
9. WARNING: To ensure machine safety, use only
original spare parts from the manufacturer or
approved by the manufacturer.
10. WARNING: Water that has flowed through backflow
preventers is considered to be non-potable.
11. WARNING: Remove the plug from the socket-outlet
and disconnected from the power source during
cleaning or maintenance and when replacing parts or
converting the machine to another function.
12. WARNING: Do not use the machine if a supply cord
or important parts of the machine are damaged, e.g.
safety devices, high pressure hoses, trigger gun.
13. WARNING: Inadequate extension cords can be
dangerous. If an extension cord is used, it shall be
suitable for outdoor use, and the connection has to be
kept dry and off the ground. It is recommended that
this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
14. WARNING: Always switch off the mains disconnecting
switch when leaving the machine unattended.
15. Never use the product with inflammable or toxic
liquids, or liquids with characteristics incompatible
with its proper operation.
16. Never use the product outdoors in the rain.
17. Never lock the gun trigger in the operating position.
18. Check that the product is fitted with its rating label;
contact your dealer if it is missing. Products without
rating label must not be used, since they cannot be
identied and are potentially hazardous.
19. Never tamper with or adjust the setting of the safety
valve or the safety devices.
20. Never change the original diameter of the adjustable
nozzle.
95817_IM_TTB2200PRW_20200702.indd 5 2020/9/21 下午2:06

6
EN
Getting started...
Safety information
TTB2200PRW by TITAN
21. Never leave the product unattended when it is running.
22. Do not allow vehicles to drive over the pressure hose.
23. Do not move the product by pulling on the pressure
hose.
24. When directed towards tyres, tyre valves or other
pressurised components, the high pressure jet is
potentially dangerous. Do not apply a jet stream and
always keep the nozzle at a distance of at least 30 cm
during cleaning.
25. Protect all electrical conductors against the water jet.
26. High pressure may cause parts to rebound: wear
all the protective clothing and equipment needed to
ensure the operator’s safety.
27. Wear appropriate Personnel Protection Equipment
(PPE) while operation e.g. safety boots, safety gloves,
safety helmets with visors, hearing protection etc.
28. Be aware of kick-back: grip the gun firmly when
squeezing the trigger.
29. Comply with the regulations of the local water supply
authority. Under EN 12729 (BA) the product can
be connected directly to the mains drinking water
supply only if the supply hose is tted with a backow
preventer device with drainage facility.
30. Discharge residual pressure before disconnecting the
hose from the product.
31. Check before each use, and at regular intervals,
that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken
or worn parts.
32. WARNING: Use only detergents compatible with
the high pressure hose cladding materials or other
cladding materials.
Safety warnings
95817_IM_TTB2200PRW_20200702.indd 6 2020/9/21 下午2:06

7
EN
Getting started...
Safety information
TTB2200PRW by TITAN
33. The electric supply connection shall be made by a
qualified electrician and comply with IEC 60364- 1.
It is recommended that the electric supply to this
machine should include a residual current device that
will interrupt the supply if the leakage current to earth
exceeds 30 mA for 30 ms or a device that will prove
the earth circuit.
34. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
The following information applies to professional users
only but is good practice for all users:
Vibration and noise reduction
To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.
Take the following points into account to minimise the
vibration and noise exposure risks:
1. Only use the product as intended by its design and
these instructions.
2. Ensure that the product is in good condition and well
maintained.
3. Use correct accessories for the product and ensure
they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
6. Plan your work schedule to spread any high vibration
tool use across a longer period of time.
95817_IM_TTB2200PRW_20200702.indd 7 2020/9/21 下午2:06

8
EN
Getting started...
Safety information
TTB2200PRW by TITAN
7. Prolonged use of the product exposes the user
to vibrations that can cause a range of conditions
collectively known as hand-arm vibration syndrome
(HAVS) e.g. fingers going white; as well as specific
diseases such as carpal tunnel syndrome. To reduce
this risk when using the product, always wear
protective gloves and keep your hands warm.
Emergency
Familiarise yourself with the use of this product
by means of this instruction manual. Memorise the
safety directions and follow them to the letter. This
will help to prevent risks and hazards.
1.
Always be alert when using this product, so that
you can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
2.
Switch off and disconnect from the power supply
if there are malfunctions. Have the machine
checked by a qualified professional and repaired, if
necessary, before you operate it again.
Residual risks
Even if you are operating this product in accordance
with all the safety requirements, potential risks of
injury and damage remain. The following dangers can
arise in connection with the structure and design of
this product:
1. Health defects resulting from vibration emission if the
product is being used over long periods of time or not
adequately managed and properly maintained.
2. Injuries and damage to property due to broken
attachments or the sudden impact of hidden objects
during use.
Safety warnings
95817_IM_TTB2200PRW_20200702.indd 8 2020/9/21 下午2:06

9
EN
Getting started...
Safety information
TTB2200PRW by TITAN
Symbol
WARNING! This product produces an
electromagnetic eld during operation! This eld
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!
V~ Volt, (alternating voltage) kg Kilogram
Hz Hertz dB(A) Decibel (A-rated)
W Watt m/s² Metres per second
squared
/min or
min-1
Per minute MPa Mega Pascal, pressure
unit
mm Millimetre bar Pressure unit
IPX5 The product is protected against water (out of a nozzle) from all directions.
yyWxx Manufacturing date code; year of manufacturing (20yy) and week of
manufacturing (Wxx).
Lock / to tighten or secure.
Unlock / to loosen.
Note / Remark.
Caution / Warning.
On the product, the rating label and within these instructions you will nd among
others the following symbols and abbreviations. Familiarise yourself with them
to reduce hazards like personal injuries and damage to property.
3. Danger of injury and property damage caused by
ying objects.
95817_IM_TTB2200PRW_20200702.indd 9 2020/9/21 下午2:06

10
EN
Getting started...
Safety information
TTB2200PRW by TITAN

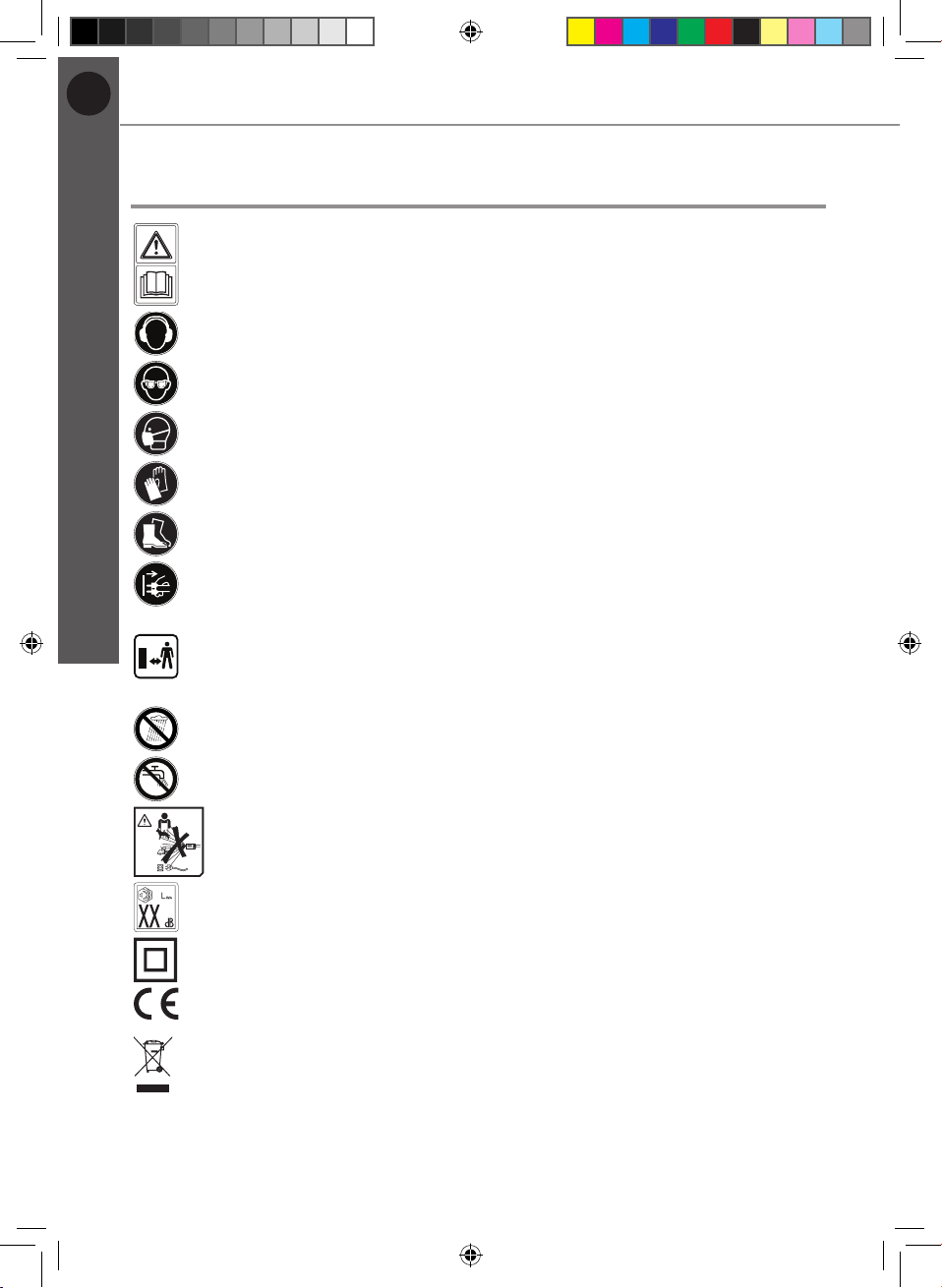

Read the instruction manual.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves.
Wear protective, slip-resistant footwear.
Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage and
transportation.
Always ensure that other people and pets remain at a safe distance
from the product when it is in operation. In general, children must not
come near the area where the product is.
Do not expose the product to rain or wet conditions.
This product is not suitable for connection to the potable water mains.
Do not direct the water jet onto people, animals, electrical equipment
or onto the product itself.
Guaranteed sound power level value in dB.
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
The product complies with the applicable European directives and an
evaluation method of conformity for these directives was done.
WEEE symbol. Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
Symbol
95817_IM_TTB2200PRW_20200702.indd 10 2020/9/21 下午2:06

11
EN
Getting started...
Your product
TTB2200PRW by TITAN
Your product
2
3
10
6
4
5
8
1
7
9
9a
1251 31
11
14
17 18 19 20
25
24
16
21
22
23
1. Transportation handle 13. Nozzle holder
2. Lock-off button 14. Water inlet
3. Supply cord holder (X2) 15. Soap tank
4. Supply cord 16. Pressure hose
5. On/off switch I/O 17. Rotary nozzle
6. Water outlet 18. Vario nozzle
7. Lower spray gun holder 19. Water inlet hose adaptor
8. Spray gun 20. Cleaning needle
9. Upper spray gun holder 21. Hose reel
a) Fixing screw 22. Rims brush
10. Fast pressure hose release button 23. Patio brush
11. Ground support 24. Extension lance
12. Wheel (x2) 25. Winding handle
95817_IM_TTB2200PRW_20200702.indd 11 2020/9/21 下午2:06

12
EN
Getting started...
Your product
TTB2200PRW by TITAN
Technical specications
General
> Rated voltage/frequency : 220 – 240 V ~ / 50 Hz
> Maximum permissible mains impedance : 0.275 Ω
> Rated input : 2200 W
> Rated pressure : 11.5 MPa
> Max. allowable pressure : 15 MPa
> Max. inlet water pressure : 1 MPa
> Rated ow : 5.5 l/min
> Max. rated ow : 8.33 l/min
> Rated temperature : 50°C
> Gun kickback force at max. pressure : 13.9 N
> Protection class : II
> Degree of protection : IPX5
> Weight : 12.5 kg
> Dimensions
High pressure hose
: 420 X 346 X 906 mm
> Allowable pressure : 20 MPa
> Maximum temperature : 60 °C
> Length
Water hose (not supplied)
: 8 m
> Quality : reinforced PVC hose
> Diameter : min. Ø 12.7 mm (½“)
> Max. length
Sound level
: 10 m
> Sound pressure level LpA : 78.8 dB(A)
> Uncertainty KpA : 2.50 dB(A)
> Measured sound power level LWA : 90.3 dB(A)
> Uncertainty KWA : 2.50 dB(A)
> Guaranteed sound power level LWA
(acc. to 2000/14/EC amended by 2005/88/EC)
Vibration level
: 93 dB(A)
> Declared vibration emission value ahd: : <2.5 m/s²
> Uncertainty K : 1.0 m/s²
Technical specications
95817_IM_TTB2200PRW_20200702.indd 12 2020/9/21 下午2:06

13
EN
Getting started...
Your product
TTB2200PRW by TITAN
Technical specications
The sound values have been determined according to noise test code given in
EN 60335-2-79, using the basic standards ISO 3744 and ISO 11203.
The sound intensity level for the operator may exceed 80 dB(A) and ear
protection measures are necessary.
The declared vibration value has been measured in accordance with a standard
test method (according to EN 60335-2-79) and may be used for comparing
one product with another. The declared vibration value may also be used in a
preliminary assessment of exposure.
Rating Label Explanation
TTB2200PRW
TT = TITAN
B = 240V AC
2200 = 2200W
PRW = Pressure washer
WARNING! Depending on the actual use of the product the vibration
values can differ from the declared total! Adopt proper measures to
protect yourself against vibration exposures. Take the whole work
process including times the product is running under no load or
switched off into consideration. Proper measures include among
others regular maintenance and care of the product and cutting
attachments, keeping hands warm, periodical breaks and proper
planning of work processes.
95817_IM_TTB2200PRW_20200702.indd 13 2020/9/21 下午2:06

14
EN
Getting started...
Before you start
TTB2200PRW by TITAN
Unpacking
You will need
Assembly
1. Unpack all parts and lay them on a at, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If
you nd that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.
WARNING! The product is heavy, ask another person for assistance
if required!
WARNING! The product and the packaging are not children’s toys!
Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!
WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled with
damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!
(items not supplied) (items supplied)
Suitable personal protective equipment Supply cord holder (3)
Water hose Lower spray gun holder (7)
Spray gun (8)
Upper spray gun holder (9)
Fixing screw (9a)
Rotary nozzle (17)
Vario nozzle (18)
Water inlet hose adaptor (19)
Rims brush (22)
Patio brush (23)
Extension lance (24)
95817_IM_TTB2200PRW_20200702.indd 14 2020/9/21 下午2:06

15
EN
Getting started...
Before you start
TTB2200PRW by TITAN

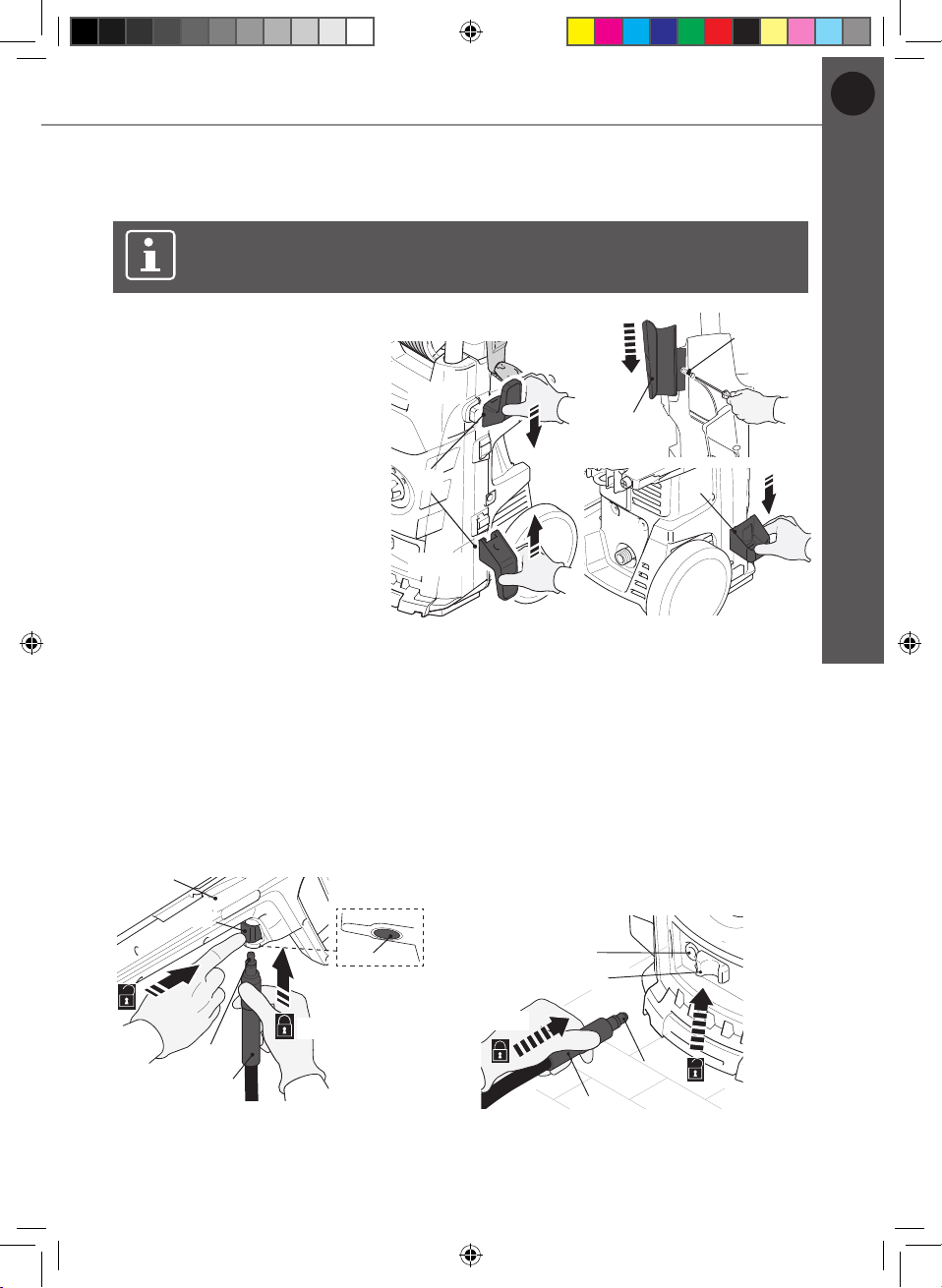

Holders
> Attach the two supply cord
holders (3) to the product
(Fig. 1). Ensure it engaged
properly.
> Slide the upper spray gun
hold (9) to the product and
secure it with the screw (9a)
(Fig. 2).
> Attach the lower spray gun
holder (7) to the product.
Ensure it engaged properly.
Pressure hose
> Insert the connector (16a) of the pressure hose (16) into the hose connection
port (8a) of the spray gun (8). Ensure it snaps in place (Fig. 3). Press the
release button (8b) to unlock if necessary.
> Insert the other connector (16b) of the pressure hose (16) into the water outlet
(6). Ensure it snaps in place (Fig. 4). Press the release button (10) to unlock if
necessary.
Fig. 1
3
Click
Click
7
9
9a
Fig. 2
Click
8
16
16a
8a
8b
Fig. 3
10
16b
16
6
Click
Fig. 4
NOTE: Take care of small parts that are removed during assembly or
when making adjustments. Keep them secure to avoid loss.
95817_IM_TTB2200PRW_20200702.indd 15 2020/9/21 下午2:06

16
EN
Getting started...
Before you start
TTB2200PRW by TITAN
Illustration Description Application
Extension lance (24) To be used in conjunction
with the spray gun and
nozzle.
Rotary nozzle (17) To be used for high pressure
cleaning in conjunction with
the extension lance.
Vario nozzle (18) Fan and pin jet to be used
in conjunction with the
extension lance.
Soap tank (15) Low pressure setting to
apply detergent.
To be used in conjunction
with the spray gun.
Rims brush (22) with
adaptor (22a)
Cleaning of wheels and
rims on vehicles.
To be used in conjunction
with the extension lance.
Patio brush (23) Cleaning of oors, e.g.
garden path or courtyards.
To be used in conjunction
with the extension lance
An extension lance (24) and several accessories are supplied with this product.
Please check the technical specication of any accessories that you purchase
to ensure they are compatible with this product.
Accessories
95817_IM_TTB2200PRW_20200702.indd 16 2020/9/21 下午2:06

17
EN
Getting started...
Before you start
TTB2200PRW by TITAN
Removing accessories
> Press the release button (24b) (Fig. 7, step 1) and remove the nozzle (step 2).
> Press the extension lance (24) towards the spray gun (8) and turn it anti-
clockwise to remove it (Fig. 8).
8
24a
24
1.
2.
Fig. 5
24
17a
Click
Fig. 6
17
24b
1.
2.
Fig. 7
24
1.
2.
3.
8
Fig. 8
Attaching accessories
> Align the tongues (24a) of the extension lance (24) with the grooves of the
connection port of the spray gun (8) and insert it. (Fig. 5, step 1).
> Securely t the extension lance (24) by turning it clockwise to lock it in place
(Fig. 5, step 2). Ensure the arrow on the spray gun aligns with the arrow on
the extension lance.
> Align the tongues (17a) of the nozzle with the grooves of the connection port
of the extension lance (24) (Fig. 6).
> Insert the nozzle into the connection port all the way to the end. Ensure it
engaged properly.
95817_IM_TTB2200PRW_20200702.indd 17 2020/9/21 下午2:06

18
EN
Getting started...
Before you start
TTB2200PRW by TITAN
Rotary nozzle
> The high pressure rotary nozzle is intended for maximum cleaning effect. Keep
the spray wand 15-20 cm away from the surface being cleaned at all times.
> Always attach the extension lance (24) when using the rotary nozzle (17).
Vario nozzle
> The vario nozzle is intended for a large choice of applications and cleaning
effects.
> Always use the vario nozzle (18) with the extension lance (24) attached (Fig. 9).
> Turn the vario nozzle to adjust the water jet according to the surface to be
cleaned (Fig. 10).
> Use the fan spray to clean wood decks, siding, vehicles etc.
> Always start using the fan spray and begin spraying from a minimum 30 cm
away to avoid damaging the surface of the material being cleaned.
> Use the pin spray for maximum cleaning effect.
18
Fig. 10
24
17
18
Fig. 9
Accessories
95817_IM_TTB2200PRW_20200702.indd 18 2020/9/21 下午2:06

19
EN
Getting started...
Before you start
TTB2200PRW by TITAN
Patio brush
The patio cleaner is specially designed to clean large at surfaces.
1. Always attach the extension lance (24) when using the patio brush.
2. Align and insert the tongues (24a) of the extension lance (24) into the
grooves of the spray gun (8) connection port (Fig. 12，step 1).
3. Securely t the extension lance (24) by turning it clockwise to lock it in place
(step 2). Ensure the arrow on the spray gun aligns with the arrow on the
extension lance.
4. Attach the patio brush (23) onto the extension lance (24) (Fig. 13).
5. The angle of the connector (23a) can be adjusted as required.
2.
1.
24a 24
8
Fig. 12
Rims brush
The rims brush is specially designed to clean rims and vehicle wheels.
1. Attach the extension lance (24) onto the spray gun (8) (Fig. 11).
2. Attach the rims brush (22) onto the extension lance.
3. Slightly rotate the rims brush to ensure it faces the proper position if
necessary.
22
8
24
22a
Fig. 11
95817_IM_TTB2200PRW_20200702.indd 19 2020/9/21 下午2:06

20
EN
Getting started...
Before you start
TTB2200PRW by TITAN
WARNING! The patio brush is only intended to be used on at patio
surfaces! Do not attempt to use it on steps or use it vertically on
walls. Never attempt to touch the rotating nozzle or parallel use while
operating.
6. Open the cap (23b) and ll in suitable detergent and close the cap afterwards
(Fig. 14).
NOTE: Only use mild, environmentally friendly detergents. Never
use aggressive chemicals, abrasive detergents or similar to avoid
damage to your health, the product and the environment.
WARNING! Avoid skin contact with detergents, in particular contact
with eyes! If detergent gets in your eyes, ush your eyes with clean
water and seek immediate medical attention!
7. Adjust the detergent ow with the knob (23c).
23a
23
24
8
Fig. 13
23b
23c
23
Fig. 14
Accessories
95817_IM_TTB2200PRW_20200702.indd 20 2020/9/21 下午2:06
