KINGJOY VT-2100 User manual

KINGJOY-VT-2100/VT-2100L
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –15
Čeština
16 –28
Slovenčina
29 –41
Magyar
42 –54
Deutsch
55 –67

3
The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4

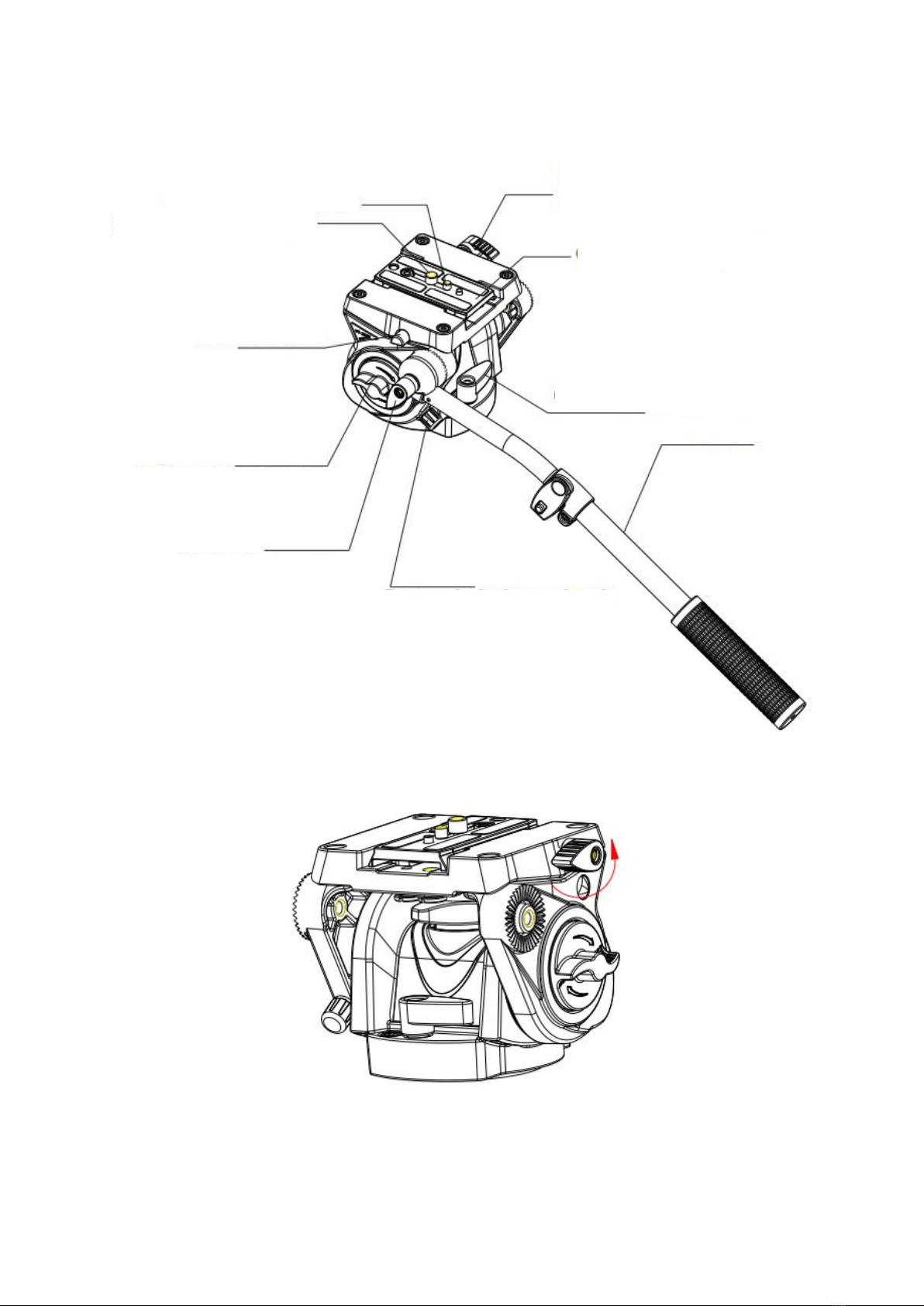

1
2
Feet pad
Mid-level spreader
Legs
Locking
Knob
Legs
Tripod body with 75mm bowl
Bowl
Bowl
locking
knob

5
3
4
5

6
1. (Illustration 1) VT-2100/2100L Introduction
2. VT-2100/VT-2100L Operation Manual

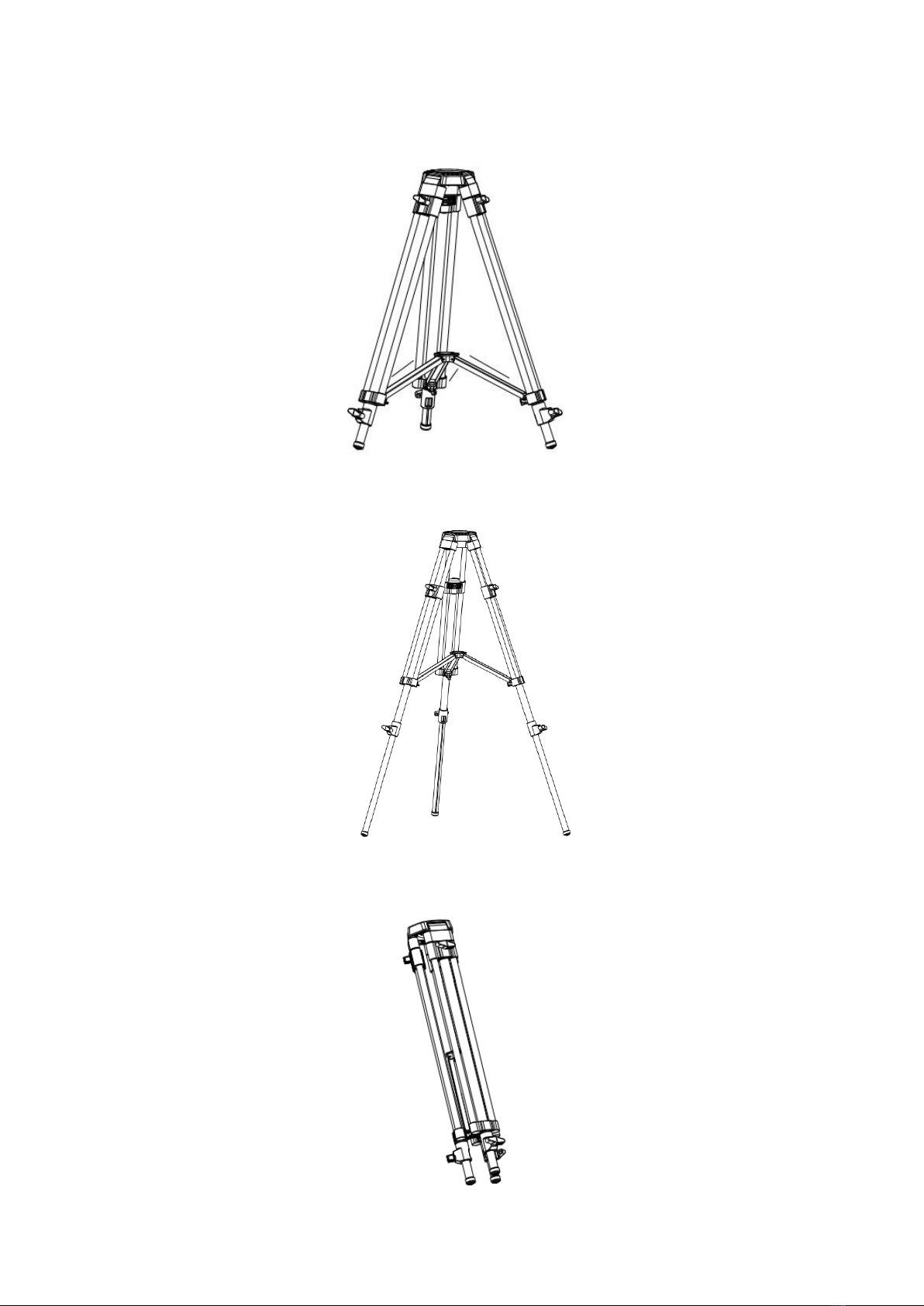

1. Illustration 2. Equip the head with the bowl onto 75mm tripod body and adjust the
head to the desired angle and position by rotation the bowl locking knob.
2. Illustration 3, Mid-level spreader can be extended as the arrow direction and it can be
extend the legs and spread the tripod to the full extension of the mid-level spreader,
and make sure the tripod is level.
3. Illustration 4, Adjust the leg locking knob to get any desired suitable height quickly.
4. Illustration 5, Folding the tripod: Put the tool buckle onto the leg, then it´s convenient
for storage and transport.

7
Warnings:
Do not exceed the tripod’s maximum load capacity.
Ensure the center column is locked.
Do not operate this tripod when the temperature is below -20⁰C or
above 70⁰C. It is not commended to operate in saltwater.
Do not put this tripod in sunlight or leant it against the glass of car
for a long time.
Do not leave this tripod unattended in public place; please be
careful when use it in dangerous place.
Remove the camera from the ballhead during setup or transport.
It is not necessary to equip lubricant. Please use standard lubricant
or grease when necessary.
For your safety, keep it out of power supply.

8
KINGJOY-VT3530

9
1
2
1/4“ camera screw
3/8“ camera screw
Button knob
Left side cover knob
Right Side cover knob
Knob for handle
Dynamic balance knob
Handle
QB-1 big knob
Quick release plate
Knob for quick
release plate

10
3
4
Press this knob
Take out quick release plate as the direction
shown
UNC3/8“ thread hole

11
5
6

12
7

13
1. (Illustration 1) VT-3530M head
2. Quick release plate taking out
(Illustration 2) Loosen quick release plate by twisting the knob.
(Illustration 3) Quick release plate can be taken out by pressing the button knob. Wide
quick release plate can ensure the complete touch with the equipment, which enhances
the stability. (There is security device with the quick release plate. Plate will not drop off
even though the knob is unlocked. In the condition of unlocking, you can front- back
slide the quick release plate to adjust the equipment balance, which length is about
7cm.)
3. Mounting head on tripod
(Illustration 4) Mount the head thread hole onto the tripod screw, rotate it till the head
completely touches with the tripod loading plate.
4. Tilting and rotating
(Illustration 5) Loose the knob, the head can be tilted. On the contrary, lock the head.
Speedy shooting and super locking force, it can make sure the equipment's safety and
stability.
5. Dynamic Balance
As pic shown, rotate the balance knob, the head tilts back to balance position
automatically. On the contrary, rotate the balance knob, the balance gear function
disappears.
6. Horizontal rotating
(Illustration 6) Loose the lock, the head can be 360° horizontal rotated. On the contrary,
lock the head.
7. Handle installing and position changing
(Illustration 7) Install the handle on one side of the head, lock it until it is fixed. If you
want to change the handle position, negative direction unscrew the knob, adjust the
handle direction, then install it on the other side of the head, screw it as the direction
shown.

14
Warnings:
Do not exceed the head’s maximum load capacity. (Please refer to the
specs of stickers which is on the color box.)
Ensure that the head base is locked when necessary.
Do not operate this tripod when the temperature is below -20⁰C or above
70⁰C. It is not commended to operate in saltwater.
Do not put this head in sunlight or leant it against the glass of car for a
long time.
Do not leave this head unattended in public place; please be careful when
use it in dangerous place.
Remove the camera from the head during setup or transport.
It is not necessary to equip lubricant. Please use standard lubricant or
grease when necessary.
For your safety, keep it out of power supply.

15
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

16
Uživatelská příručka k výrobku obsahuje funkce výrobku, návod k použití a postup
obsluhy. Přečtěte si pozorně uživatelskou příručku, abyste získali co nejlepší zkušenosti a
předešli zbytečným škodám. Tento návod si uschovejte pro budoucí použití. Máte-li
jakékoli dotazy nebo připomínky k zařízení, obraťte se na zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

17

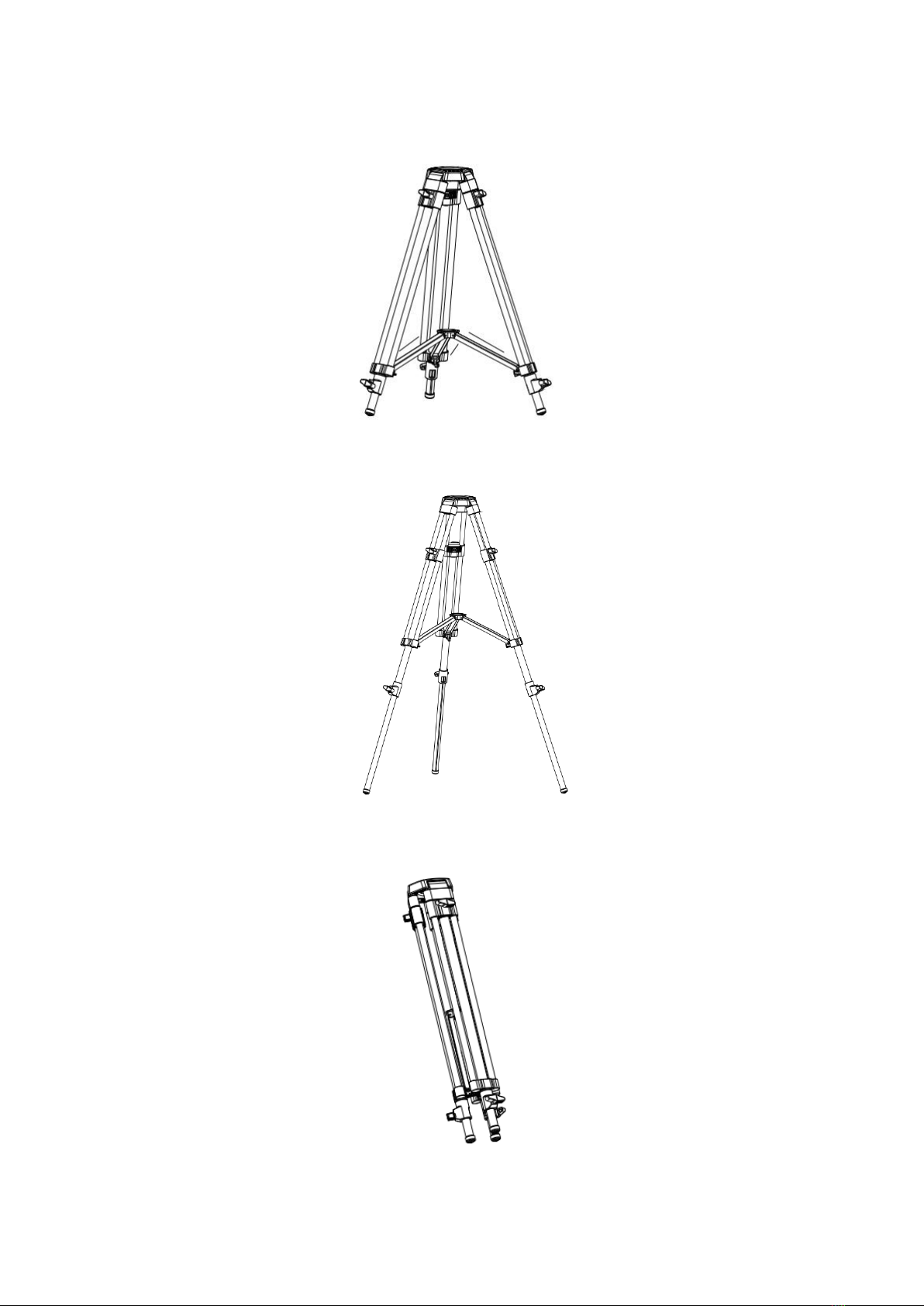

1
2
Podložka
pod nohy
Středový rozkladač
úrovně
Zajišťovací
knoflík nohou
Nohy
Tělo stativu se 75mm miskou
Mísa
Uzamykací knoflík
mísy

18
3
4
5

19
1. (Obrázek 1) VT-2100/2100L Úvod
2. Návod k obsluze VT-2100/VT-2100L
1. Ilustrace 2. Nasaďte hlavu s miskou na 75mm tělo stativu a otáčením aretačního
knoflíku misky nastavte hlavu do požadovaného úhlu a polohy.
2. Ilustrace 3, Středový rozkladač lze vysunout ve směru šipky a lze vysunout nohy a
rozložit stativ na plné vysunutí středového rozkladače a ujistit se, že je stativ v rovině.
3. Ilustrace 4, Nastavte aretační knoflík nohou tak, abyste rychle dosáhli požadované
vhodné výšky.
4. Obrázek 5, Skládání stativu: Na nohu nasaďte sponu, pak ji můžete pohodlně
skladovat a přepravovat.

20
Varování:
Nepřekračujte maximální nosnost stativu.
Zkontrolujte, zda je středový sloupek zajištěn.
Nepoužívejte tento stativ, pokud je teplota nižší než -20⁰C nebo
vyšší než 70⁰C. Nedoporučuje se provozovat ve slané vodě.
Nepokládejte stativ na sluneční světlo ani jej neopírejte na delší
dobu o sklo automobilu.
Nenechávejte tento stativ bez dozoru na veřejných místech; buďte
opatrní při jeho používání na nebezpečných místech.
Při nastavování nebo přepravě sejměte fotoaparát z kulové hlavy.
Mazivo není nutné. V případě potřeby použijte standardní mazivo
nebo tuk.
V zájmu bezpečnosti jej uchovávejte mimo dosah elektrické sítě.
