KINGJOY C86M User manual

KINGJOY C86M
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –15
Čeština
16 –28
Slovenčina
29 –41
Magyar
42 –54
Deutsch
55 –67

3
The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4

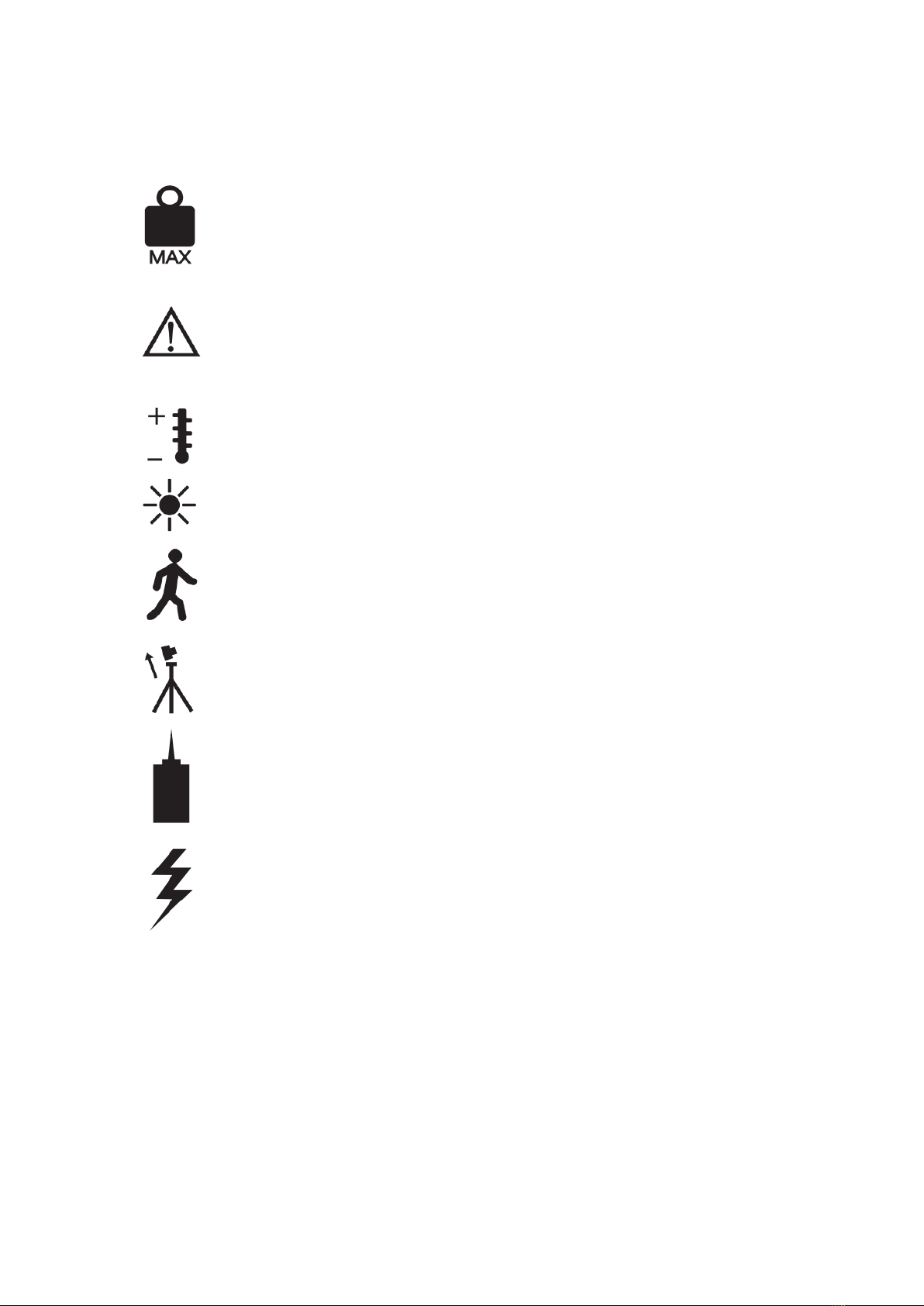

Cautions:
Do not exceed the tripod’s maximum load capacity.
Ensure the center column is locked.
Do not operate this tripod when the temperature is below -20⁰C or
above 70⁰C. It is not commended to operate in saltwater.
Do not put this tripod in sunlight or leant it against the glass of car for
a long time.
Do not leave this tripod unattended in public place; please be careful
when use it in dangerous place.
Remove the camera from the ballhead during setup or transport.
It is not necessary to equip lubricant. Please use standard lubricant or
grease when necessary.
For your safety, keep it out of power supply.

5
Product Illustration
1
2
3/8“ Camera Screw
3/8“ Screw Hole
Foot tube
Rubber sleeve
Bubble Level
Release Buckle
Lock the handle
Foot tube
Rubber pads
Pull Out
Turn Over

6
3
4
5

7

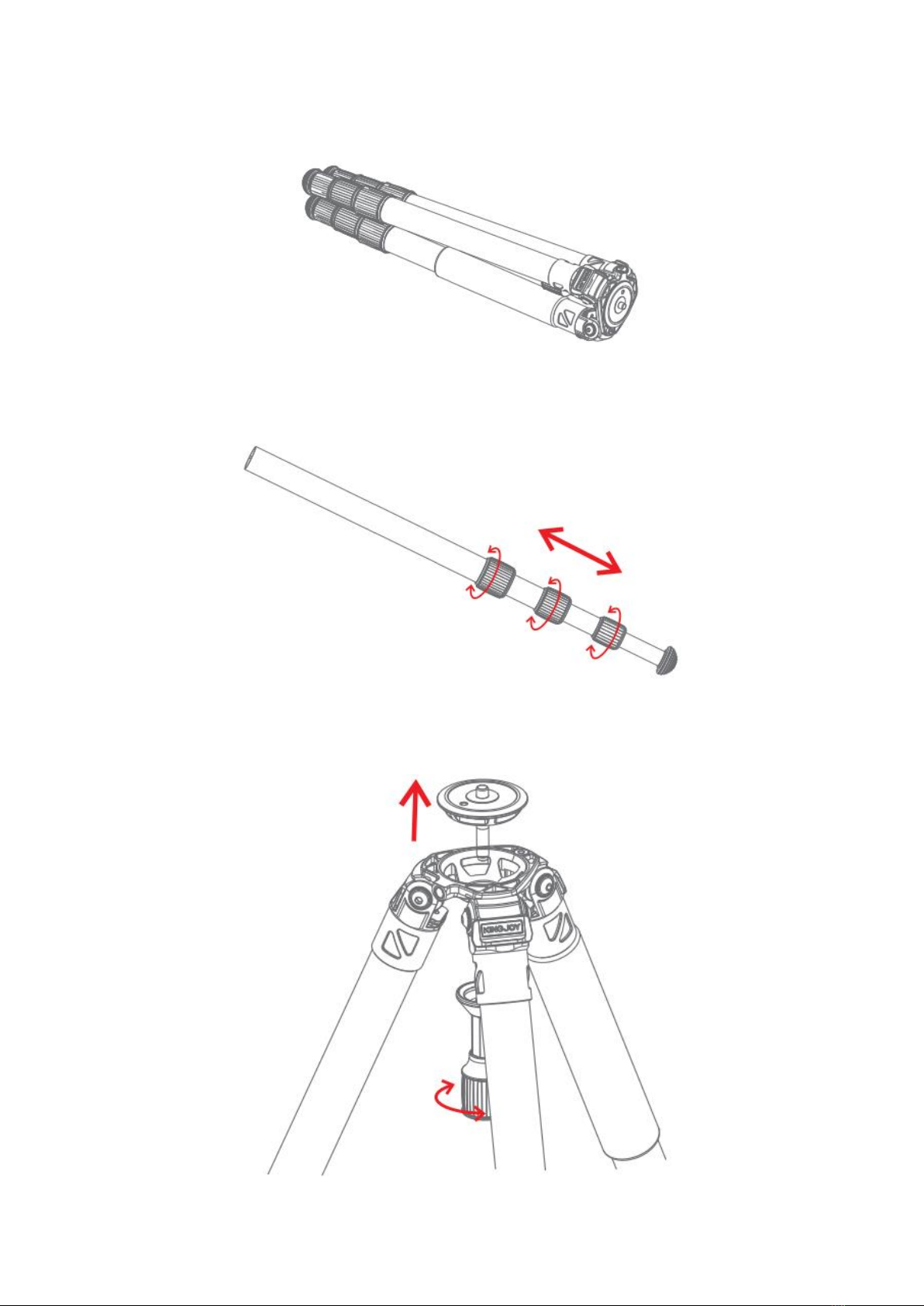

1. Tripod Introduction. (Illustration 1)
2. Tripod Set-up
Pull out the release buckle and turn over the leg outward for different tripod angle
adjustment. (Illustration 2,3)
3. Leg Section Extension and Fold
Loosen the twist lock to extend/fold the flag, tighten the twist lock to lock the leg.
(Illustration 4)
4. Take Out the Head Mount Plate
Loosen the plate locking knob to take out the head mount plate.
5. Accessories Connection
3/8” 1/4” screw hole can be connected with the accessories which with the same
interface, such as magic arm, flashing light and external stand, etc.
6. Tripod loading plate disassembly and video head assembly.
Anticlockwise rotate the handle bar to release and take out the loading plate, put the
video head in the bowl, clockwise rotate the handle bar, vide head can be locked.
(Illustration 5)

8
KINGJOY-VT3530M

9
1
2
Button Knob
1/4“ camera screw
3/8“ camera screw
Left side cover knob
Right Side cover knob
Knob for handle
Dynamic balance knob
Handle
QB-1 big knob
Quick release plate
Knob for quick
release plate
Button knob

10
3
4
Press this knob
Take out quick release plate as the direction
shown
UNC3/8“ thread hole

11
5
6

12
7

13

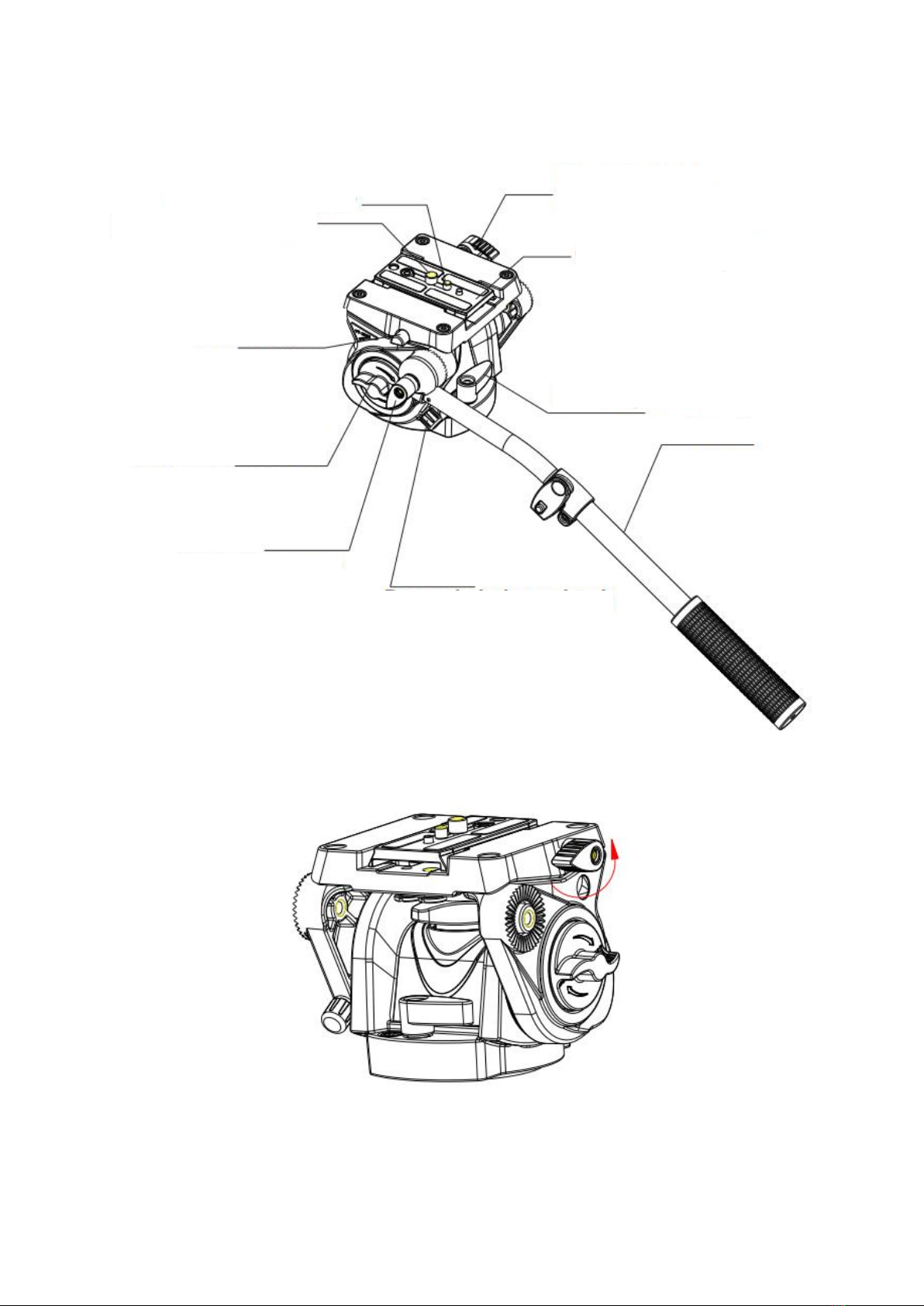

1. (Illustration 1) VT-3530M head
2. Quick release plate taking out
(Illustration 2) Loosen quick release plate by twisting the knob.
(Illustration 3) Quick release plate can be taken out by pressing the button knob. Wide
quick release plate can ensure the complete touch with the equipment, which enhances
the stability. (There is security device with the quick release plate. Plate will not drop off
even though the knob is unlocked. In the condition of unlocking, you can front- back
slide the quick release plate to adjust the equipment balance, which length is about
7cm.)
3. Mounting head on tripod
(Illustration 4) Mount the head thread hole onto the tripod screw, rotate it till the head
completely touches with the tripod loading plate.

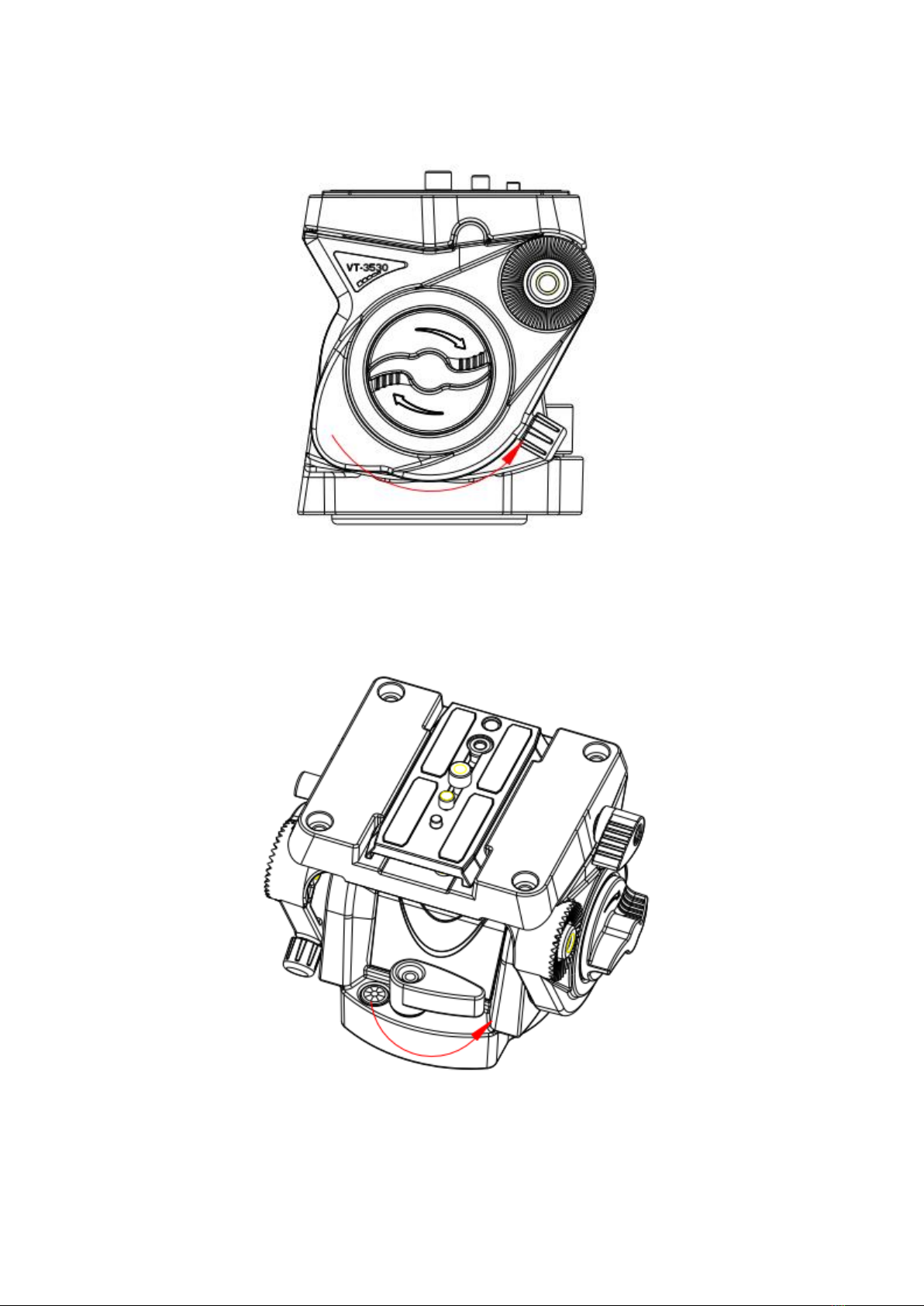

4. Tilting and rotating
(Illustration 5) Loose the knob, the head can be tilted. On the contrary, lock the head.
Speedy shooting and super locking force, it can make sure the equipment's safety and
stability.
5. Dynamic Balance
As pic shown, rotate the balance knob, the head tilts back to balance position
automatically. On the contrary, rotate the balance knob, the balance gear function
disappears.
6. Horizontal rotating
(Illustration 6) Loose the lock, the head can be 360° horizontal rotated. On the contrary,
lock the head.
7. Handle installing and position changing
(Illustration 7) Install the handle on one side of the head, lock it until it is fixed. If you
want to change the handle position, negative direction unscrew the knob, adjust the
handle direction, then install it on the other side of the head, screw it as the direction
shown.

14

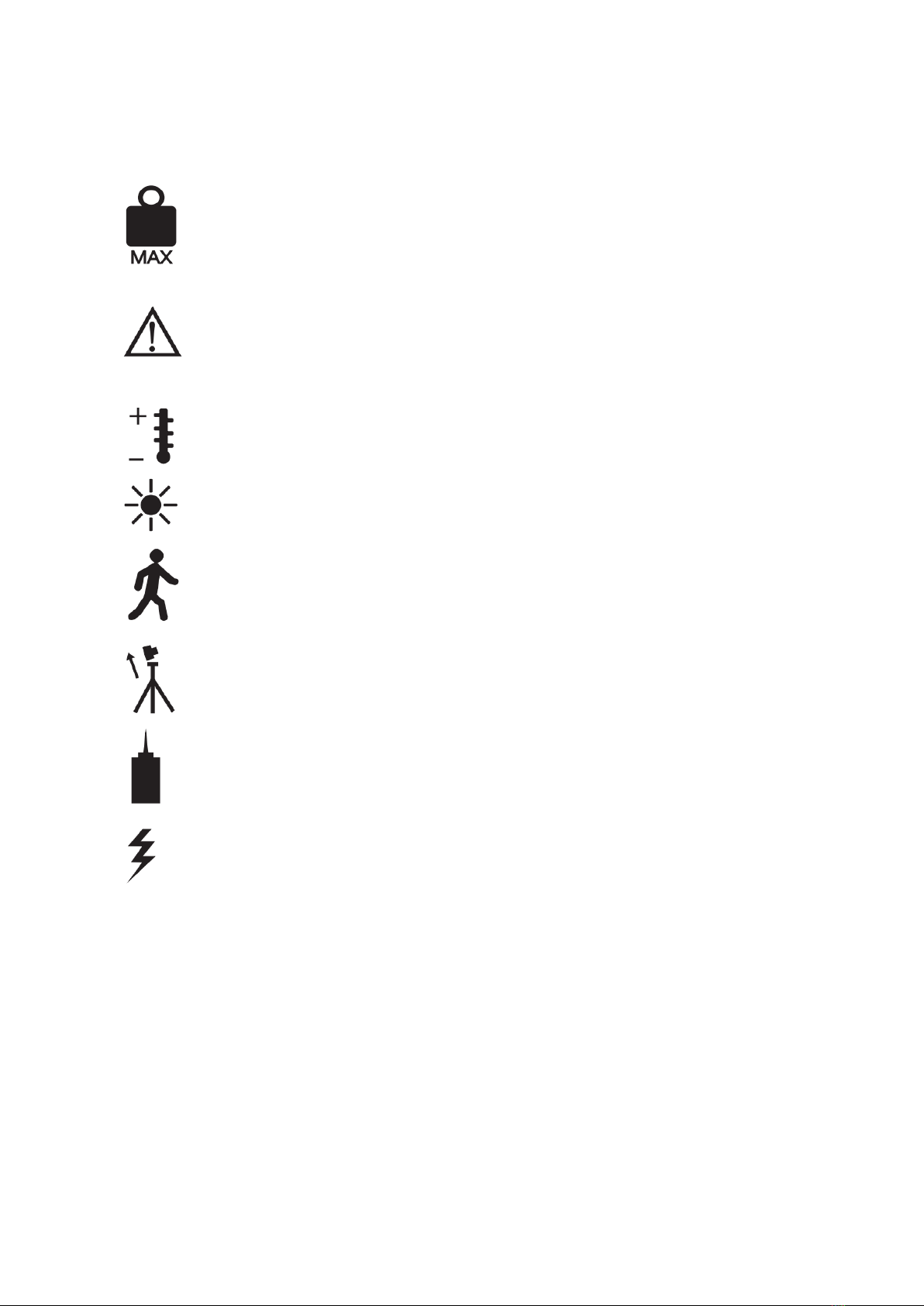

Warnings:
Do not exceed the head’s maximum load capacity. (Please refer to the
specs of stickers which is on the color box.)
Ensure that the head base is locked when necessary.
Do not operate this tripod when the temperature is below -20⁰C or
above 70⁰C. It is not commended to operate in saltwater.
Do not put this head in sunlight or leant it against the glass of car for a
long time.
Do not leave this head unattended in public place; please be careful
when use it in dangerous place.
Remove the camera from the head during setup or transport.
It is not necessary to equip lubricant. Please use standard lubricant or
grease when necessary.
For your safety, keep it out of power supply.

15
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

16
Uživatelská příručka k výrobku obsahuje funkce výrobku, návod k použití a postup
obsluhy. Přečtěte si pozorně uživatelskou příručku, abyste získali co nejlepší zkušenosti a
předešli zbytečným škodám. Tento návod si uschovejte pro budoucí použití. Máte-li
jakékoli dotazy nebo připomínky k zařízení, obraťte se na zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

17
Upozornění:
Nepřekračujte maximální nosnost stativu.
Zkontrolujte, zda je středový sloupek zajištěn.
Nepoužívejte tento stativ, pokud je teplota nižší než -20⁰C nebo vyšší
než 70⁰C. Nedoporučuje se provozovat ve slané vodě.
Nepokládejte stativ na sluneční světlo ani jej neopírejte na delší dobu o
sklo automobilu.
Nenechávejte tento stativ bez dozoru na veřejných místech; buďte
opatrní při jeho používání na nebezpečných místech.
Při nastavování nebo přepravě sejměte fotoaparát z kulové hlavy.
Mazivo není nutné. V případě potřeby použijte standardní mazivo nebo
tuk.
V zájmu bezpečnosti jej uchovávejte mimo dosah elektrické sítě.

18
Ilustrace produktu
1
2
3/8" Šroub pro
fotoaparát
Otvor pro šroub 3/8"
Trubka nohy
stativu
Gumová objímka
Bublinková
vodováha
Uvolňovací spona
Uzamčení rukojeti
Trubka nohy
stativu
Gumové podložky
Vytáhnout
Přetočit

19
3
4
5

20
1. Úvod/Popis stativu. (Obrázek 1)
2. Nastavení stativu
Vytáhněte uvolňovací sponu a otočte nohu směrem ven pro různé nastavení úhlu
stativu. (Obrázek 2,3)
3. Vysunutí a složení části nohy
Povolením otočného zámku nohu vysunete/složíte, utažením otočného zámku nohu
zajistíte. (Obrázek 4)
4. Vyjmutí desky pro montáž hlavy
Povolte zajišťovací knoflík desky a vyjměte desku pro montáž hlavy.
5. Připojení příslušenství
3/8" 1/4" otvor pro šroub lze připojit k příslušenství se stejným rozhraním, jako je
magické rameno, zábleskové světlo a externí stojan atd.
6. Demontáž nakládací desky stativu a montáž videohlavy.
Otáčením rukojeti proti směru hodinových ručiček uvolněte a vyjměte nakládací
destičku, vložte videohlavu do misky, otáčením rukojeti ve směru hodinových ručiček
videohlavu zajistěte. (Obrázek 5)
