Kingkraft Multibath SE User manual

Instructions for use
Multibath SE
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

Contents
• General description
• Important Safety instructions
• Cleaning
• Operating instructions
• Tap options
• Whirlpool, lights and music
• Bathing cushions and supports
• Installation
• Maintenance
• Sample bath markings
• Guarantee

GENERAL DESCRIPTION
The Multibath SE is designed to be used in Hospitals, Nursing and
Residential homes and domestic properties.
This bath is used to assist the carers in the bathing of a person who gener-
ally has some reduction in mobility by raising and lowering the bath to a
convenient height. The traversing seat allows transfer in out and out of the
bath.
WARNING!
PROVISION MUST BE MADE TO BE ABLE TO REMOVE THE USER FROM THE
BATH SAFETLY IN CASE OF EMERGENCY OR POWER FAILURE. THIS MUST
BE FEASIBLE WHEN THE BATH IS IN ANY OF ITS RAISED POSITIONS.
(I.E A MOBILE HOIST IN CASE THE CEILING TRACK HOIST FAILS)
The Multibath SE is supplied with a TMV3 rated bath fill as standard.
This user manual should be read thoroughly before use and we would
recommend putting laminated user and safety instructions on the wall
adjacent to the bath for other carers/users. Please ask Kingkraft if you
would like some copies.
Only accessories manufactured by Kingkraft are intended for use in the
Multibath SE. If other accessories manufactured by others are used we
recommend a risk assessment is undertaken as to their safe use.

IMPORTANT
SAFETY INSTRUCTIONS
WARNING!
ANY PERSON WHO IS INCAPABLE OF FULLY HELPING THEMSELVES
MUST NEVER BE LEFT ALONE IN THE BATH-EVEN FOR A SHORT WHILE
This manual contains information on the standard Multibath SE. Special de-
signed baths by Kingkraft may differ from herein. Please contact Kingkraft if
you have any queries on how to use your product.
• Do not stand in the bath at any time
• Kingkraft products are intended for domestic and commercial use only
• Kingkraft baths are intended for bathing people only
• Do not exceed the maximum weight load 133kg (21st)
• Only one person should be in the bath at one time
• Only Kingkraft manufactured accessories have been tested by Kingkraft
for safe use with this bath under normal conditions of use.
• The bath is fitted with a handset, this should not be submerged in the
water, if it happens to fall in, quickly wipe it dry and seek advice if unsure
Note that UK regulations state, in general, no person should lift a mass
greater than 25kg unaided. Use appropriate lifting equipment if this is required
to help disabled people to get in and out of the bath.
RISK OF SCALDING
Although safety devices are fitted to minimise any risk of scalding, users
must be aware that these are not fail safe. The temperature of the unit must
be independently verified on each occasion it is used-this should be tested
ideally with a calibrated thermometer.
Refer to Kingkraft if the water is too hot or too cold and do not use the bath
until the problem has been corrected.

Cushions & supports
Our cushions are manufactured using PVC and foam filler or polystyrene beads.
There is a risk of floating, pleas ensure they are secured before use.
• Ensure that the bath bottom and mattresses/suckers are clean
• Place cushions/supports securely onto base / side of bath
• Run a small amount of water into the bath
• Press the mattress firmly onto the bottom of the bath
When removing for cleaning take care that each suckers is prised carefully away
from the bottom of the bath to avoid a tearing action. If the cushion rips around the
suckers, this will invalidate your warranty.
Installation
Your Kingkraft product should be installed by a competent installer. If for any
reason you need to move your bath or re-install. Installation guides are available
from Kingkraft. Kingkraft are able to carry out removal and re-installs for you,
please contact us for further advice.
Units with electrical services must only be wired in accordance with the IEE Wiring
Regulations, especially as regards zoning and equipotential bonding. Kingkraft
products are intended for operation only in a bathroom type location where
exposed mains connections and unsealed switches etc. are not permitted.
WARNING!
The unit must not be connected via a plug and socket
Separate instructions regarding installation and connections is available from
Kingkraft, please contact us if you need a copy of this.

RAISE bath up
LOWER seat down
RAISE seat up
LOWER bath down
Operating instructions
This bath is mains powered and has a short battery backup system in the
event of a power failure. This is for one time emergencies only. You can not
run the bath on this backup otherwise it will stop working after a few runs up
and down.
To raise the bath:
Firstly check the raising the bath will not cause damage to persons and sur-
rounding objects. If all clear, press the up and up button on the handset as
shown.
To lower the bath:
As above, check your surroundings, if all clear press the down button on the
handset as shown.
Operating the seat:
The Multibath SE has a powered lift and traverse seat.
To operate the seat, ensure the user is comfortable and (if fitted) the lap strap
is secure round the user. Ensure hands are clear of any potential trapping haz-
ard.
• Lower the bath to its lowest position
• Press the handset button as shown in the picture and the seat will rise
automatically outwards at the top of its stroke
• It will continue to move through its cycle as long as the button is de
pressed
• Ensure the user legs are helped to clear the side of the bath
• When the seat has reached the end of its travel in either direction,
pressing the other seat button will reverse the process.
Please note, the bath will not operate until the seat is fully back in its lowest
position.

Tap and shower options
Please note, you may have special tap options fitted which do not match
the below, please always refer to manufacturing instructions for how to
use.

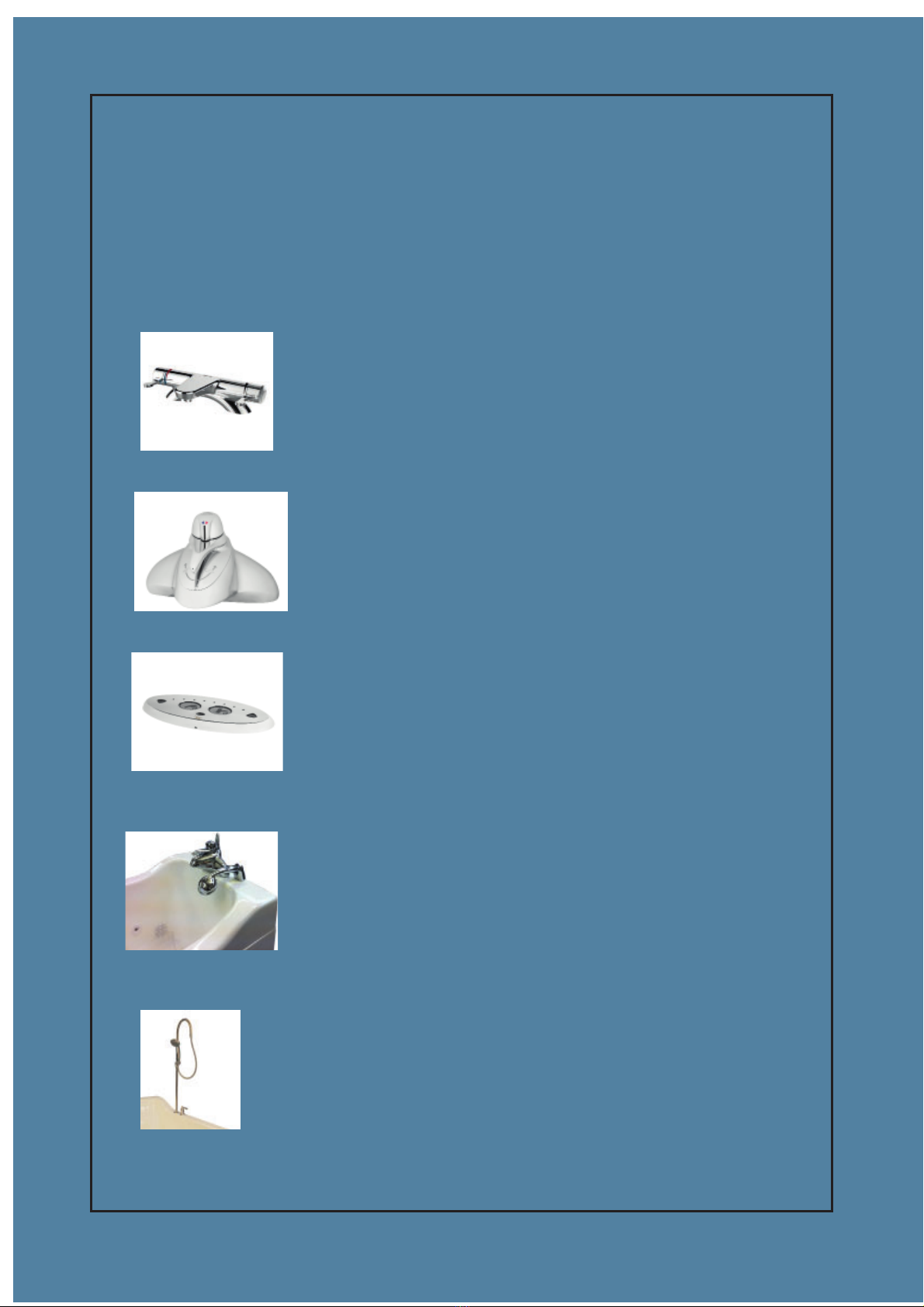

TMV3 mixer tap-bath fill
RADA Autotherm tap-bath/shower fill TMV3
RADA Sense bath and shower/bath fill TMV3
Category 3 integral shower system
Category 5 chrome crook shower system

To fill the bath
If the bath has been supplied with a Opac TMV3
Mixer Tap -
Turn the right hand lever to start the flow of water, and leave in the desired
position until the bath is full to the level required. To stop the flow turn the lever in
the anticlockwise direction until the water stops. To change the temperature turn
the left hand lever until desired temperature is achieved.
If the bath has been supplied with a Rada Authomerm TMV3 Thermostatic
Mixer Tap -
Turn the main flow lever to the right hand side of the unit, which will begin the
water flow from the tap spout. To stop the flow, turn the lever to the middle
position, above the spout. The temperature can be adjusted by using the
temperature control knob on the top of the mixer tap.
If the bath has been supplied with a Rada Sense Digital Adjustable Mixer
Valve System -
The control panel can be mounted on the bath tub, a bracket or wall mounted
near to the bath.
Move your hand in front of the ‘bath fill’ symbol / sensor to start the flow of water.
The temperature of the water can be increased by holding / waving a hand in
front of the red ‘hot’ sensor on the right of the control panel. The temperature of
the water can also be reduced by holding / waving a hand in front of the blue
‘cold’ sensor on the left of the control panel. Lights will indicate where between
the minimum and maximum temperature the water temperature is currently set.
To stop the bath filling, hold / wave a hand in front of the ‘bath fill’ symbol.
The above bath fill options are set by Kingkraft commissioning engineers
(if this has been specified) to a maximum temperature of 44 degrees when the
bath valve control is fully turned/set at its maximum. Always allow time for the
mixed water to run through the systems.
With some boiler systems there can be some temperature fluctuation when the
tap is first turned on, let this stabalise before continuing to fill the bath up or use
the shower.

Remember: the temperature of the water must be checked on every occasion
before a person is placed in the bath or the shower used.
WARNING!
To use the optional shower unit
If the bath has been supplied with a Rada Authomerm TMV3 Thermostatic
Mixer Tap -
Turn the main flow lever to the left hand side of the unit, which will begin
the shower flow. The lever automatically reduces the maximum hot water
temperature by 2-5 degrees dependent on water pressures from the bath
fill maximum temperature. The temperature can be adjusted by using the
temperature control knob on the top of the mixer tap.
If the bath has been supplied with a Rada Sense Digital Adjustable Mixer
Valve System -
The control panel can be mounted on the bath tub, a bracket or wall mounted
near to the bath.
Move your hand in front of the ‘shower’ symbol / sensor to start the flow of water.
The temperature of the water can be increased by holding / waving a hand in
front of the red ‘hot’ sensor on the right of the control panel. The temperature of
the water can also be reduced by holding / waving a hand in front of the blue
‘cold’ sensor on the left of the control panel. Lights will indicate where between
the minimum and maximum temperature the water temperature is currently set.
To stop the shower, hold / wave a hand in front of the ‘shower’ symbol.
The above shower options are set by Kingkraft commissioning engineers
(if this service has been specified) to a maximum temperature of 39 degrees when the
shower valve control is fully turned/set at its maximum.

Whirlpool, lights & music
(if fitted)
It is vital for safety and comfort that the operating, cleaning and disinfection
procedures contained in these instructions are followed. Some people with heart
and other medical conditions may be at increased risk when using the whirlpool.
lights and music, please seek medical advice before using if unsure. The whirlpool
requires cleaning frequent cleaning.
Please note if the bath is installed in a ‘multi-user’ environment, cleaning instructions
will have to be followed to keep the system regularly cleaned and tested. To avoid
cross contamination between users, the system needs cleaning after each use .
To fill the bath:
Fit the plug into the waste fitting or operate the pop-up waste mechanism. Turn
open the bath filling tap and fill the bath until the water level is at least 25mm (1”)
above all the outlet jets in the side of the bath.
To start the whirlpool pump:

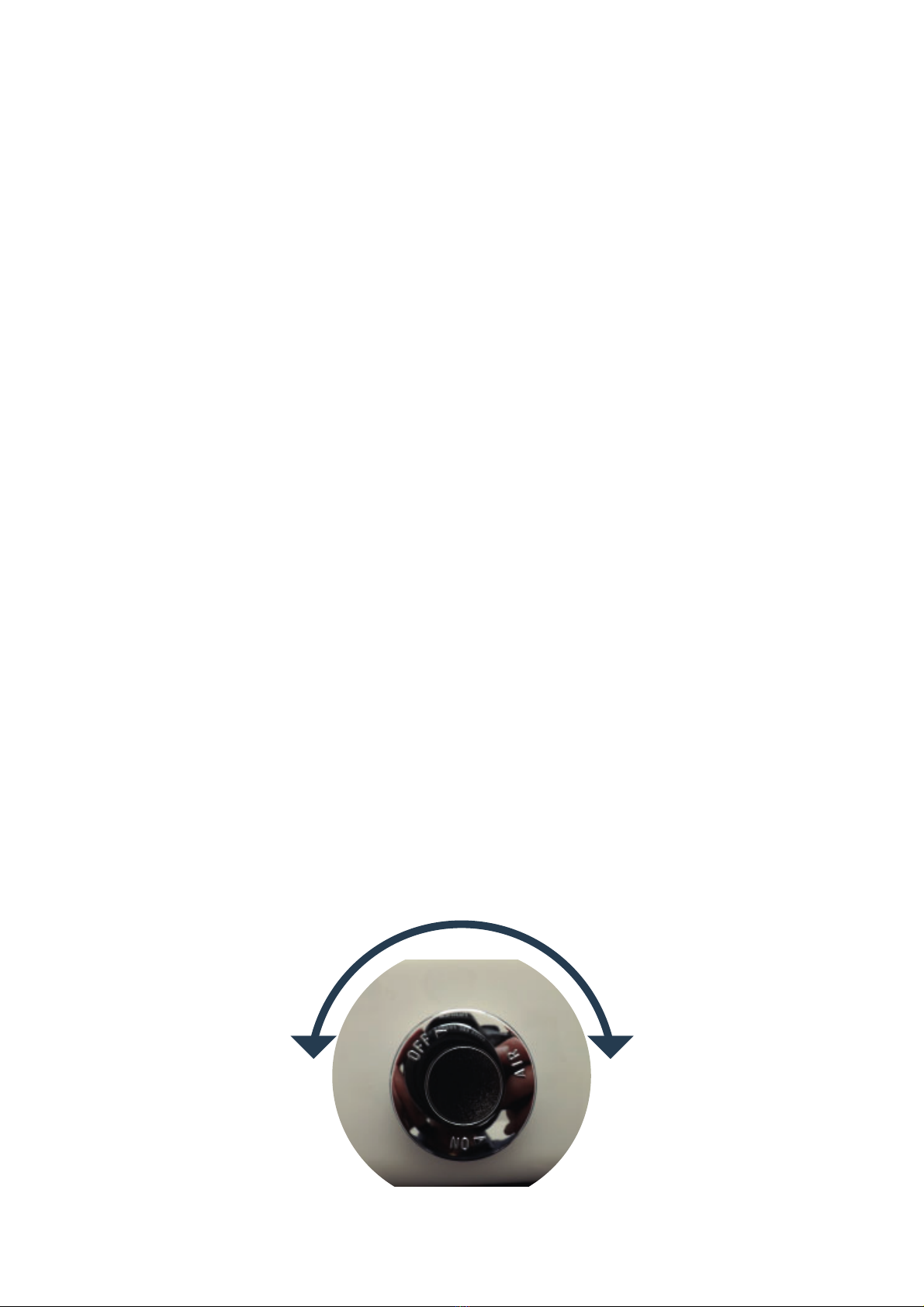

Press down the on/offcontrol button
To increase the pressure of the whirlpool in the bath, turn the control button on the
bath either clockwise to decrease or anti-clockwise to increase.
increase pressure decrease pressure

Adjusting the eye ball jets:
Can be adjusted by placing a finger in the jet hole and turning it to the
desired position
Switch off:
Press the on/offbutton
Whirlpool pump protection
Should the whirlpool system be accidently operated at any time with insufficient
water, the dry run protection unit will automatically switch the pump off. The
whirlpool system can only then be started when there is sufficient water in the
bath. The whirlpool will automatically shut offafter 20 minutes. You may restart if
required. Always have regard to the users medical condition and state of health
when using the whirlpool.
Note: Normal bubble baths will froth excessively with whirlpools and can pose a
major safety risk to the user and potentially cause damage to surrounding fittings.
It is essential that a low foaming bubble bath mixture is used.
Please refer to cleaning instructions on how to keep your whirlpool clean.
Lights
Your bath may also be fitted with lights to help create a sensory experience whilst
bathing. Below are instructions on how to use. There may be risk to some users
with the lights, please check with medical experts before using if unsure.
Change sequence of lights
Press to turn on and off

Music system
Your Multibath SE may have been installed with integrated bluetooth music
system.
Simply connect any device that has bluetooth built into it, so Smartphone
or tablet and search for Soundbathe. Once connected sit back and relax
and listen to your favourite tunes and feel the vibrations as you bathe.

Cleaning
Certain bath additives may damage the bath, if they contain bleach or
other corrosives due to the product the bath is made from. Use only water,
normal soaps and approved cleaning agents. Under no circumstances
should bleach be used.
We recommend Chemgene which can be purchased from Kingkraft.
Regular cleaning routines should be followed.
• Do not use pressurised jets
• Do not steam clean
• If a whirlpool is fitted, we recommend Bronte 6 month whirlpool cleaner
which can be purchased through Kingkraft
Cleaning the whirlpool (if fitted)
Regular cleaning is recommended for the whirlpool.
• Remove all cushions and supports in the bath
• Rinse any debris from the bath
• Close drain by operating pop-up waste control
• Fill bath with water to a level of 25mm (1”) above the whirlpool jets
• Put in the whirlpool cleaner to the guidelines stated on packaging
• Run whirlpool for 15 minutes
• Drain bath
• Fill bath with clean water to measurements as above
• Run whirlpool for 5 minutes
• Drain bath
• Chemgene is also recommend for general cleaning of the bath

Maintenance
The Multibath SE requires annual servicing and 6 month LOLER test, please
contact Kingkraft for further advice.
Fault finding. If your bath is not going up and down but making a ‘beeping noise’,
firstly check that the power supply has not been turned offto the bath. If the
power supply is turned on, try the below.
If the bath will not respond to the pressing of the raise or lower buttons on the
handset switch, and you can hear a beeping sound coming from the bath, you will
have to follow the initialisation sequence to re-set the bath.
Failure of the mains power to the bath, or running the bath offthe back-up
battery only could lead to the synchronisation of the lifting columns becoming
compromised, causing the system to stop working until it is reset.
Initialisation procedure
(only required following loss of synchronising as above)
• Press both up and down button at the same time for at least 5 seconds. This
will activate the new manual mode. The buzzer will beep.
• After the 5 seconds the beep will change to a shorter / different kind of beep.
Release the up and down button and then press the down button only (this
has to be done within 5 seconds. If not the beep will stop and you have start all
over again from point 1)
• During pressing the down buttons all columns will drive inwards. The beep will
be continuous as long as the columns are driving inwards. Columns have to
be driven all the way down after which the beep will stop. The system is then
initialized and ready for use.
We recommend an annual service on all Kingkraft products. If any faults are found
in the unit, contact Kingkraft immediately.
Below is a table to help you keep record of when Kingkraft have attended.
However we will send a reminder letter when the service is due to the address
on our records.

Date Work carried out Kingkraft engineer

Notes

Bath markings
The following are examples markings possibly found on the Multibath SE bath:
This sticker will display your unique serial number for your bath; make sure you
make a note of your serial number for future reference.
Guarantee details
The Multibath SE and its accessories are guaranteed in the UK for a period
of 24 months from the date of delivery against defects arising from faulty
material, inferior workmanship or construction. The result of incorrect
handling of the bath shall not be covered by any guarantee. In line with the
company’s policy of continual product improvements, we reserve the right
to carry out improvements to the specification without notice.
WEEE (Waste Electrical and Electronic Equipment Regulations 2006)
The aim of this Directive is to minimise the impact of electrical and
electronic equipment on the environment when products become waste. All
electrical components on this product must be disposed of in accordance
to the WEEE 2006 regulations, either through reuse, recovery, recycling or
environmentally sound disposal.
If this Kingkraft product is at the end of its life or electrical parts are replaced
during its life-cycle by people other than Kingkraft Engineers, please
contact Kingkraft to discuss arrangements regarding the disposal of any of
the electrical equipment.
